MERCEDES-BENZ ML320CDI 2007 W163 Comand Manual

410 OperationVehicle careCleaning the windows and the wiper
blades
Fold the wiper arms forward until they
engage.

Clean the wiper blade inserts with a
clean cloth and detergent solution.

Use a soft, clean cloth and a mild win-
dow cleaning solution on all outside
and inside glass surfaces.
An automotive glass cleaner is recom-
mended.Light alloy wheels
If possible, clean wheels once a week.

Use Mercedes-Benz approved Wheel
Care, a soft bristle brush and a strong
spray of water for cleaning the light al-
loy wheels.
Warning!
G
For safety reasons, switch off wipers and re-
move SmartKey from starter switch
(vehicles with KEYLESS-GO*: Make sure the
vehicle’s on-board electronics have
status
0) before cleaning the windshield
and/or the wiper blades. Otherwise, the
wiper motor could suddenly turn on and
cause injury.
!
Do not pull on the wiper blade inserts. They
could tear.
!
Fold the windshield wiper arms back onto
the windshield before turning the SmartKey in
the starter switch or pressing the KEYLESS-GO
start/stop button (vehicles with KEYLESS-GO*).
Hold on to the wiper when folding the wiper arm
back. If released, the force of the impact from
the tensioning spring could crack the windshield.
!
To clean the window interior, do not use a
dry cloth, abrasives, solvents or cleaners con-
taining solvents. Do not touch the inside of the
front, rear or side windows and the power
tilt/sliding sunroof* or rear panorama roof with
hard objects such as an ice scraper or ring.
Doing so may damage the windows.
!
Only use acid-free cleaning materials. Acid
may cause corrosion or damage the clear coat.
!
The vehicle should not be parked for an ex-
tended period of time immediately after it has
been cleaned, especially not after the wheel rims
have been cleaned with wheel rim cleaner.
Wheel rim cleaners can lead to increased
corrosion of the brake disks and brake pads.
Non-approved wheel cleaners may also damage
the wheel paint if the car is not driven after
cleaning. Therefore, the vehicle’s brake system
should always be warmed-up before it is parked
after cleaning. To do so, please drive your vehicle
for several minutes to allow the brakes to dry.
When applying Mercedes-Benz approved Tire
Care and Mercedes-Benz approved Wheel Care
products, take care not to spray them on the
brake disks.

411 Operation
Vehicle care
Plastic and rubber parts
Use a gentle dishwashing detergent or
mild detergent for delicate fabrics as a
washing solution.

Wipe with a cloth moistened in a
lukewarm solution.
The surface may temporarily change
color. If this is the case, wait for it to
dry.Hard plastic trim items

Use Mercedes-Benz approved Interior
Care, a soft, lint-free cloth and apply
with light pressure.Steering wheel

Wipe with a damp cloth and dry thor-
oughly or clean with Mercedes-Benz
approved Leather Care.
Carpets

Use Mercedes-Benz approved Carpet
and Fabric Care for cleaning the car-
pets.
Headliner

Use a soft bristle brush or a
dry-shampoo cleaner in case of
excessive dirt.
Warning!
G
Do not use cleaners containing solvents or
cockpit care sprays to clean the cockpit or
the steering wheel. Cleaners containing sol-
vents will make the surface porous and vehi-
cle occupants could suffer serious injuries
from plastic parts coming loose in the event
of air bag deployment.
!
Do not use oil, wax or scouring agents on
these parts.
Never apply strong force and only use a soft,
non-scratching cloth when cleaning the surface.
Do not attempt to wipe the surface with a dry
cloth or sponge.
Otherwise you may scratch or damage the
surface.
!
Never apply strong force and only use a soft,
non-scratching cloth when cleaning the surface.
Do not attempt to wipe the surface with a dry
cloth or sponge.
Otherwise you may scratch or damage the
surface.

412 OperationVehicle careSeat belts
Only use clear, lukewarm water and
soap.
Upholstery
Using aftermarket seat covers or wearing
clothing that have the tendency to give off
coloring (e.g. when wet, etc.) may cause
the upholstery to become permanently dis-
colored. By lining the seats with a proper
intermediate cover, contact-discoloration
will be prevented.Leather upholstery*
Please not that leather upholstery is a
natural product and is therefore subject to
a natural aging process. Leather uphol-
stery may also react to certain ambient
influences such as high humidity or high
temperature by showing wrinkles for
example.

Wipe leather upholstery with a damp
cloth and dry thoroughly or clean with
Mercedes-Benz approved Leather
Care.
Exercise particular care when cleaning
perforated leather as its underside should
not become wet.
MB Tex upholstery

Use Mercedes-Benz approved Interior
Care onto a soft, lint-free cloth and
apply with light pressure for cleaning
the upholstery.
Wood trims

Dampen cloth using water and use
damp cloth to clean wood trims in your
vehicle.
!
The seat belts must not be treated with
chemical cleaning agents. Do not dry the seat
belts at temperatures above 176°F (80°C) or in
direct sunlight.
Warning!
G
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
Warning!
G
Only use seat or head restraint covers which
have been tested and approved by
Mercedes-Benz for your vehicle model.
Using other seat or head restraint covers
may interfere with or prevent the activation
of the active head restraints. Contact an
authorized Mercedes-Benz Light Truck
Center for availability.
!
Wipe with light pressure to avoid damage to
the upholstery.
!
Do not use solvents like tar remover or
wheel cleaner nor polishes or waxes as these
may be abrasive.

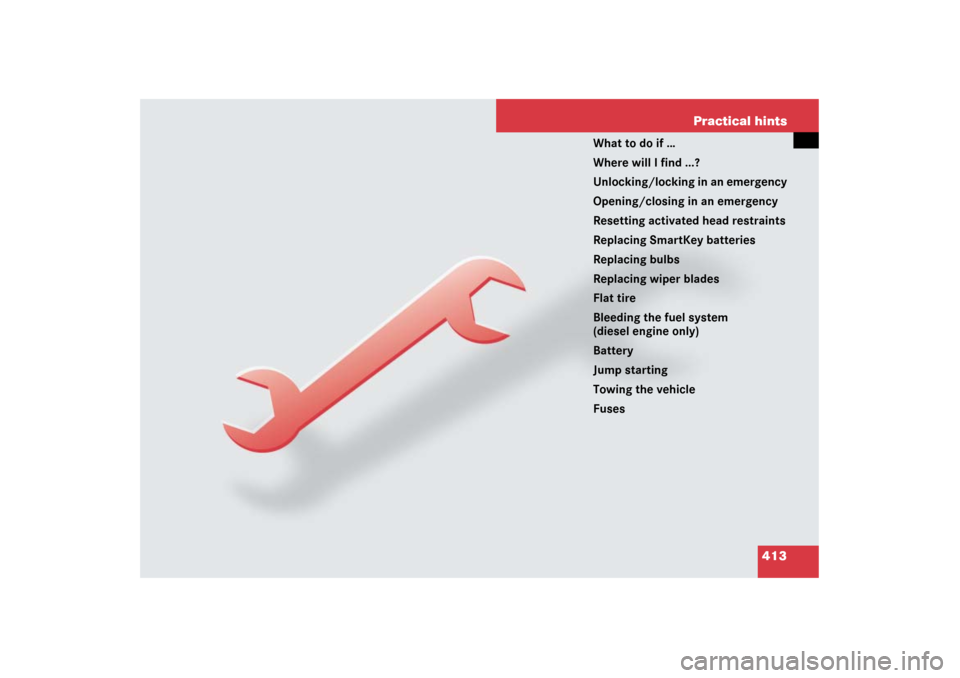

413 Practical hints
What to do if …
Where will I find ...?
Unlocking/locking in an emergency
Opening/closing in an emergency
Resetting activated head restraints
Replacing SmartKey batteries
Replacing bulbs
Replacing wiper blades
Flat tire
Bleeding the fuel system
(diesel engine only)
Battery
Jump starting
Towing the vehicle
Fuses

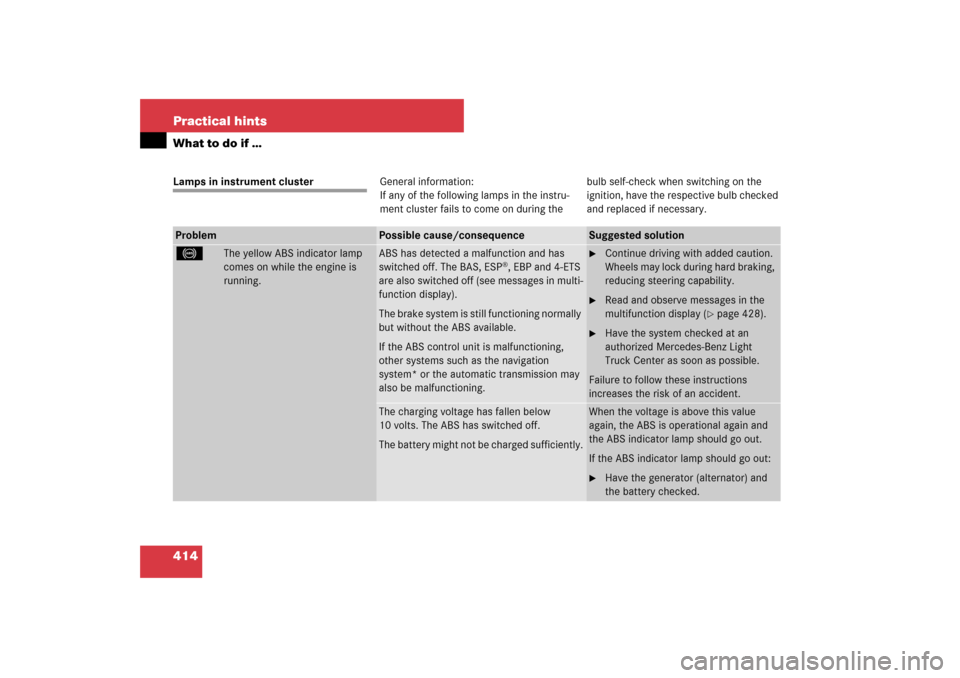

414 Practical hintsWhat to do if …Lamps in instrument clusterGeneral information:
If any of the following lamps in the instru-
ment cluster fails to come on during thebulb self-check when switching on the
ignition, have the respective bulb checked
and replaced if necessary.Problem
Possible cause/consequence
Suggested solution
-
The yellow ABS indicator lamp
comes on while the engine is
running.
ABS has detected a malfunction and has
switched off. The BAS, ESP
®, EBP and 4-ETS
are also switched off (see messages in multi-
function display).
The brake system is still functioning normally
but without the ABS available.
If the ABS control unit is malfunctioning,
other systems such as the navigation
system* or the automatic transmission may
also be malfunctioning.

Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.

Read and observe messages in the
multifunction display (
page 428).

Have the system checked at an
authorized Mercedes-Benz Light
Truck Center as soon as possible.
Failure to follow these instructions
increases the risk of an accident.
The charging voltage has fallen below
10 volts. The ABS has switched off.
The battery might not be charged sufficiently.
When the voltage is above this value
again, the ABS is operational again and
the ABS indicator lamp should go out.
If the ABS indicator lamp should go out:
Have the generator (alternator) and
the battery checked.

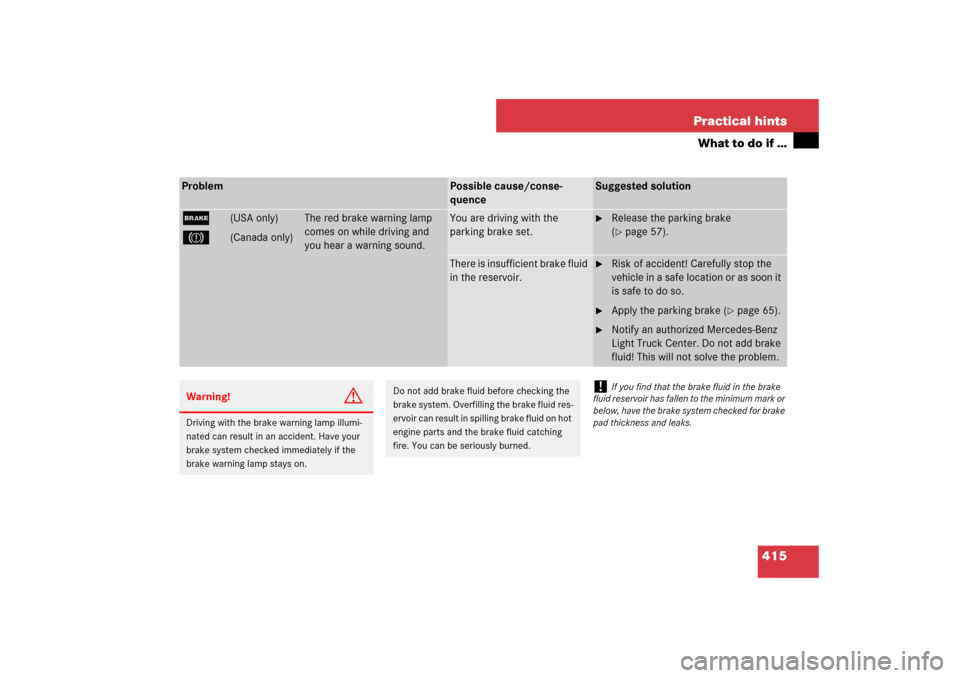

415 Practical hints
What to do if …
Problem
Possible cause/conse-
quence
Suggested solution
;
(USA only)
3
(Canada only)
The red brake warning lamp
comes on while driving and
you hear a warning sound.
You are driving with the
parking brake set.

Release the parking brake
(page 57).
There is insufficient brake fluid
in the reservoir.

Risk of accident! Carefully stop the
vehicle in a safe location or as soon it
is safe to do so.

Apply the parking brake (
page 65).

Notify an authorized Mercedes-Benz
Light Truck Center. Do not add brake
fluid! This will not solve the problem.
Warning!
G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on.
Do not add brake fluid before checking the
brake system. Overfilling the brake fluid res-
ervoir can result in spilling brake fluid on hot
engine parts and the brake fluid catching
fire. You can be seriously burned.
!
If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks.

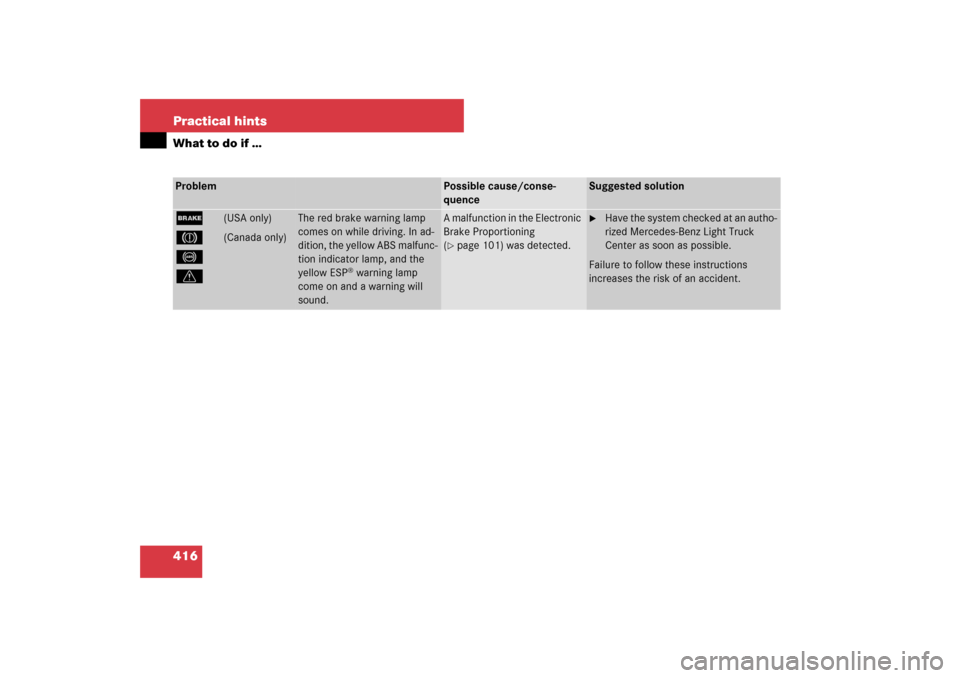

416 Practical hintsWhat to do if …Problem
Possible cause/conse-
quence
Suggested solution
;
(USA only)
3
(Canada only)
-
v
The red brake warning lamp
comes on while driving. In ad-
dition, the yellow ABS malfunc-
tion indicator lamp, and the
yellow ESP
® warning lamp
come on and a warning will
sound.
A malfunction in the Electronic
Brake Proportioning
(page 101) was detected.

Have the system checked at an autho-
rized Mercedes-Benz Light Truck
Center as soon as possible.
Failure to follow these instructions
increases the risk of an accident.

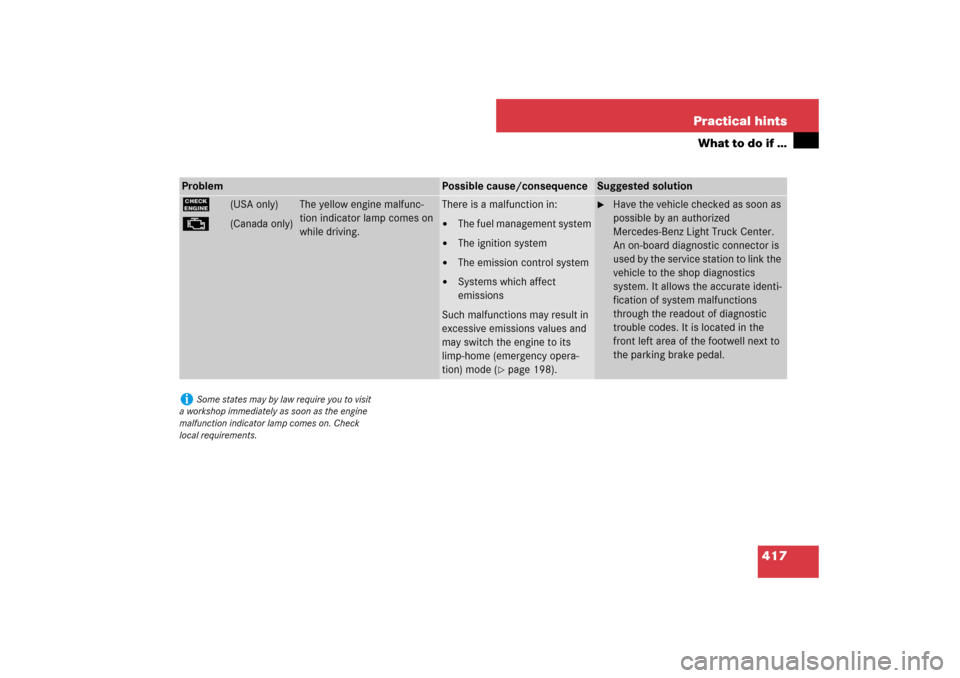

417 Practical hints
What to do if …
Problem
Possible cause/consequence
Suggested solution
?
(USA only)
±
(Canada only)
The yellow engine malfunc-
tion indicator lamp comes on
while driving.
There is a malfunction in:

The fuel management system


The ignition system


The emission control system


Systems which affect
emissions
Such malfunctions may result in
excessive emissions values and
may switch the engine to its
limp-home (emergency opera-
tion) mode (
page 198).

Have the vehicle checked as soon as
possible by an authorized
Mercedes-Benz Light Truck Center.
An on-board diagnostic connector is
used by the service station to link the
vehicle to the shop diagnostics
system. It allows the accurate identi-
fication of system malfunctions
through the readout of diagnostic
trouble codes. It is located in the
front left area of the footwell next to
the parking brake pedal.
i
Some states may by law require you to visit
a workshop immediately as soon as the engine
malfunction indicator lamp comes on. Check
local requirements.

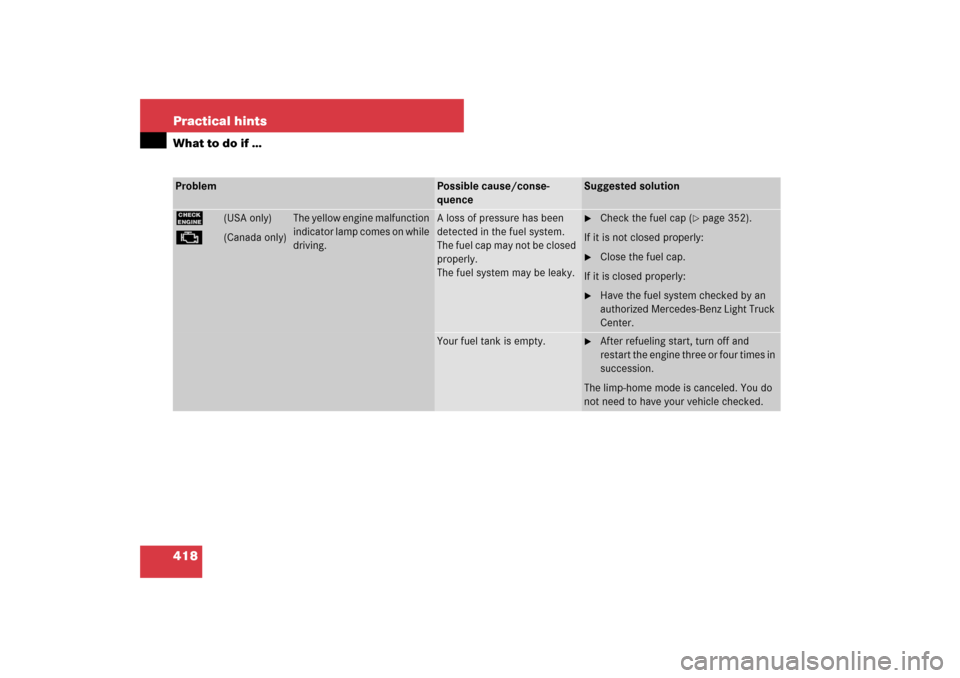

418 Practical hintsWhat to do if …Problem
Possible cause/conse-
quence
Suggested solution
?
(USA only)
±
(Canada only)
The yellow engine malfunction
indicator lamp comes on while
driving.
A loss of pressure has been
detected in the fuel system.
The fuel cap may not be closed
properly.
The fuel system may be leaky.

Check the fuel cap (
page 352).
If it is not closed properly:

Close the fuel cap.
If it is closed properly:

Have the fuel system checked by an
authorized Mercedes-Benz Light Truck
Center.
Your fuel tank is empty.

After refueling start, turn off and
restart the engine three or four times in
succession.
The limp-home mode is canceled. You do
not need to have your vehicle checked.

419 Practical hints
What to do if …
Problem
Possible cause/consequence
Suggested solution
v
The yellow ABS/ESP
® warning
lamp comes on while driving.
The ESP
® has been switched off.
Risk of accident!
When the ESP
® is switched off it will not sta-
bilize the vehicle if the system recognizes
that the vehicle starts to skid or that a wheel
is spinning.

Switch the ESP
® back on (
page 100).
Exceptions: (
page 99).

If leaving the ESP
® switched off, adapt
your speed and driving to the prevailing
road and weather conditions.
If the ESP
® cannot be switched on:

Have the system checked at an autho-
rized Mercedes-Benz Light Truck
Center as soon as possible.
The ESP
® is not operational due to a malfunc-
tion.
Risk of accident!

Observe additional messages in the
multifunction display.

Continue driving with added caution.

Adapt your speed and driving to the pre-
vailing road and weather conditions.

Have the system checked at an autho-
rized Mercedes-Benz Light Truck
Center as soon as possible.
