MERCEDES-BENZ ML350 1997 Complete Repair Manual
Manufacturer: MERCEDES-BENZ, Model Year: 1997, Model line: ML350, Model: MERCEDES-BENZ ML350 1997Pages: 4133, PDF Size: 88.89 MB
Page 2011 of 4133

AR68.20-P-2310GI
Remove/install cover on gearshift lever
26.2.01
MODEL
163.113 /154 /174 #A as of 289565,
163.113 #X as of 754620,
163.128 /157 /175
P68.20-2545-01
1
Armrest cover
2
Stowage box
3
Bolts
4
Cover on shift lever
5
Plastic screws
P68.20-2456-01
Remove/install
1
Remove armrest lid (1)
AR68.20-P-2370GH
2
Remove plastic screws (5)
3
Remove stowage box (2)
Press the pin in the center of the rivet
downwards for about 4 mm; then remove the
rivet from above.
4
Remove selector lever paneling
Long wedge
*115589035900
5
Unscrew bolts (3)
6Remove cover (4) from above
Carefully prize open at front (arrows) and
at the sides.
Long wedge
*115589035900
7
Detach connector from lower control panel
control module
3 connector.
8
Install in the reverse order
Assembly wedge
115 589 03 59 00
Copyright DaimlerChrysler AG 09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
Page 2012 of 4133

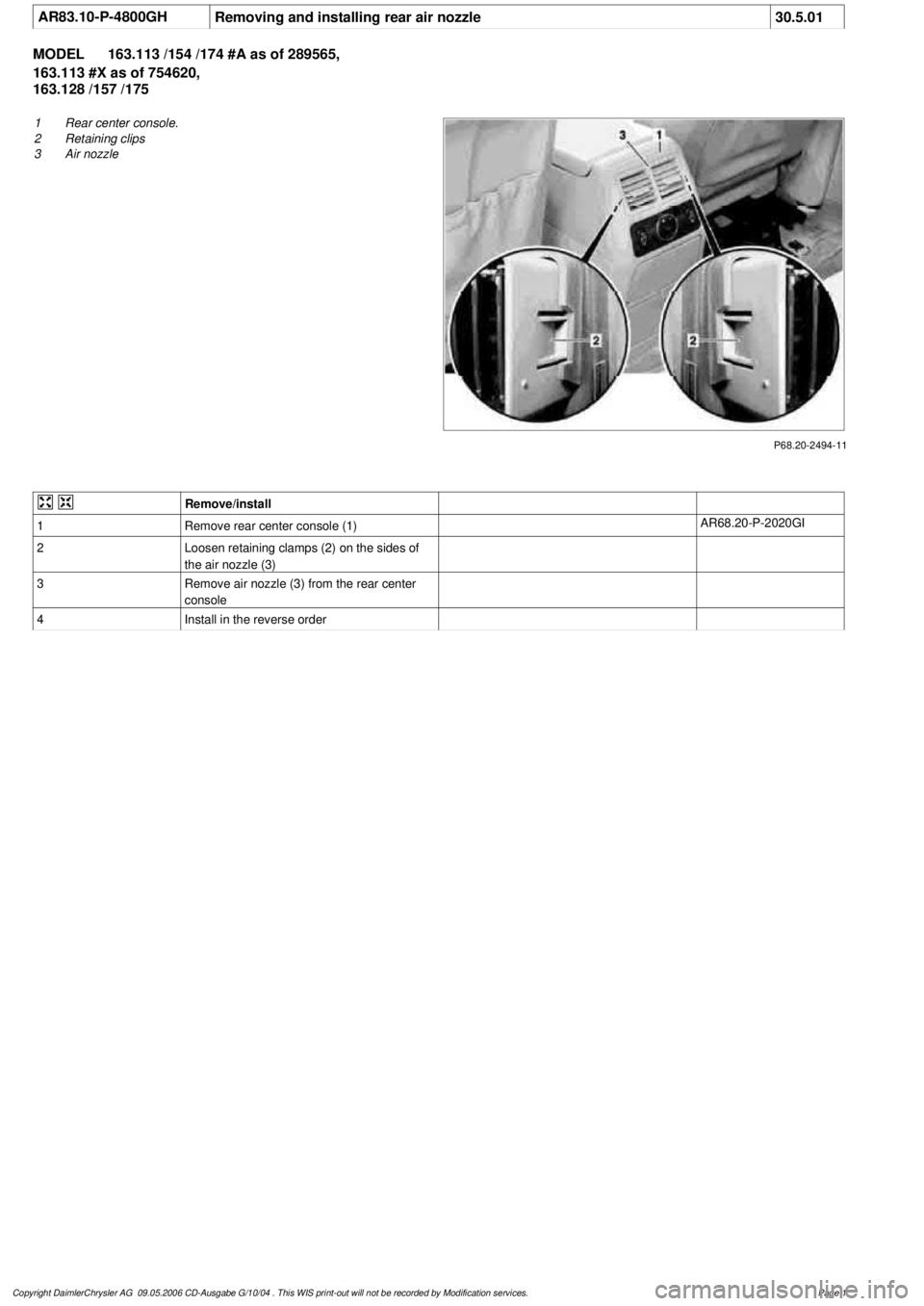

AR83.10-P-4800GH
Removing and installing rear air nozzle
30.5.01
MODEL
163.113 /154 /174 #A as of 289565,
163.113 #X as of 754620,
163.128 /157 /175
P68.20-2494-11
1
Rear center console.
2
Retaining clips
3
Air nozzle
Remove/install
1
Remove rear center console (1)
AR68.20-P-2020GI
2
Loosen retaining clamps (2) on the sides of
the air nozzle (3)
3
Remove air nozzle (3) from the rear center
console
4
Install in the reverse order
Copyright DaimlerChrysler AG 09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
Page 2013 of 4133

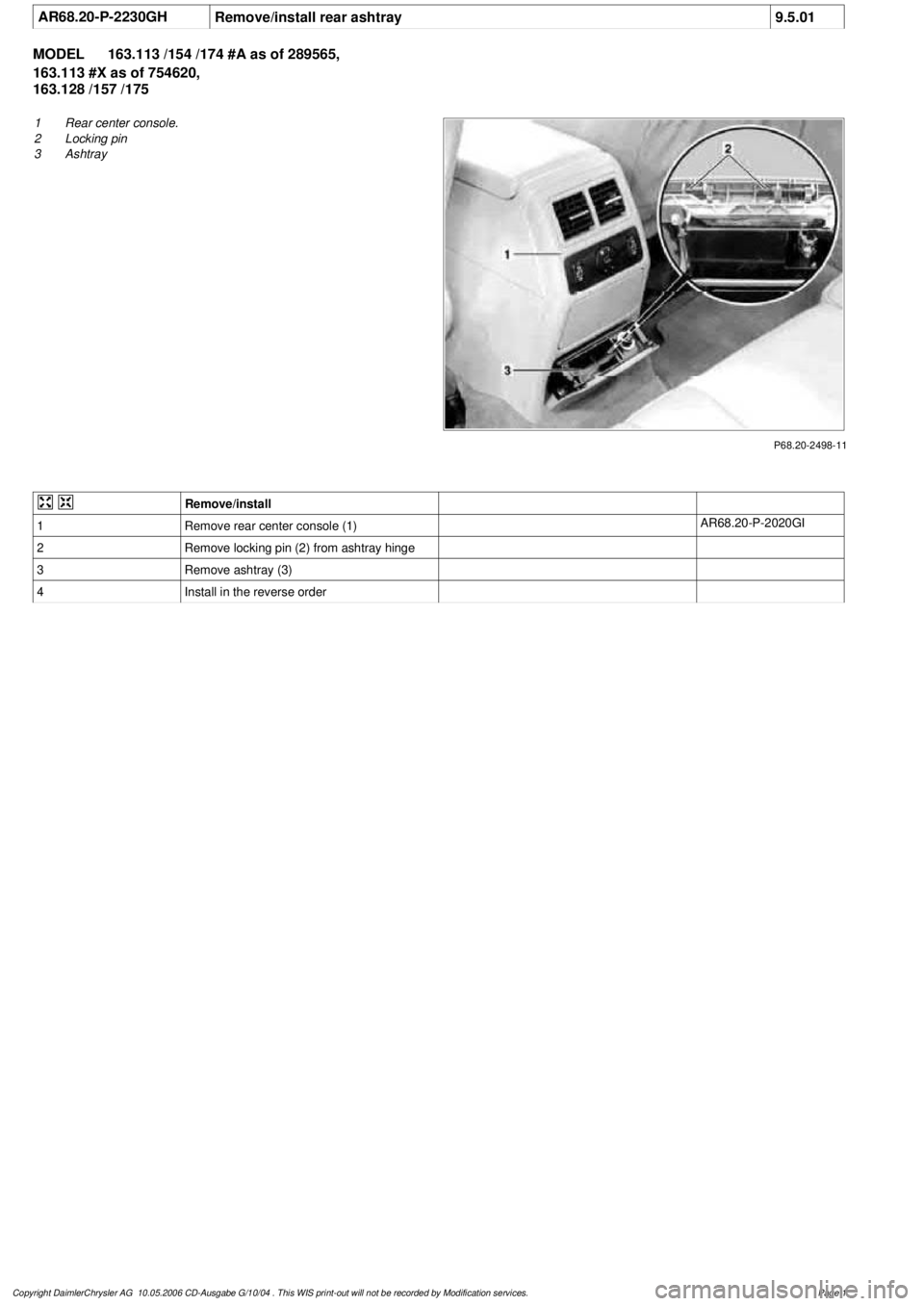

AR68.20-P-2230GH
Remove/install rear ashtray
9.5.01
MODEL
163.113 /154 /174 #A as of 289565,
163.113 #X as of 754620,
163.128 /157 /175
P68.20-2498-11
1
Rear center console.
2
Locking pin
3
Ashtray
Remove/install
1
Remove rear center console (1)
AR68.20-P-2020GI
2
Remove locking pin (2) from ashtray hinge
3
Remove ashtray (3)
4
Install in the reverse order
Copyright DaimlerChrysler AG 10.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

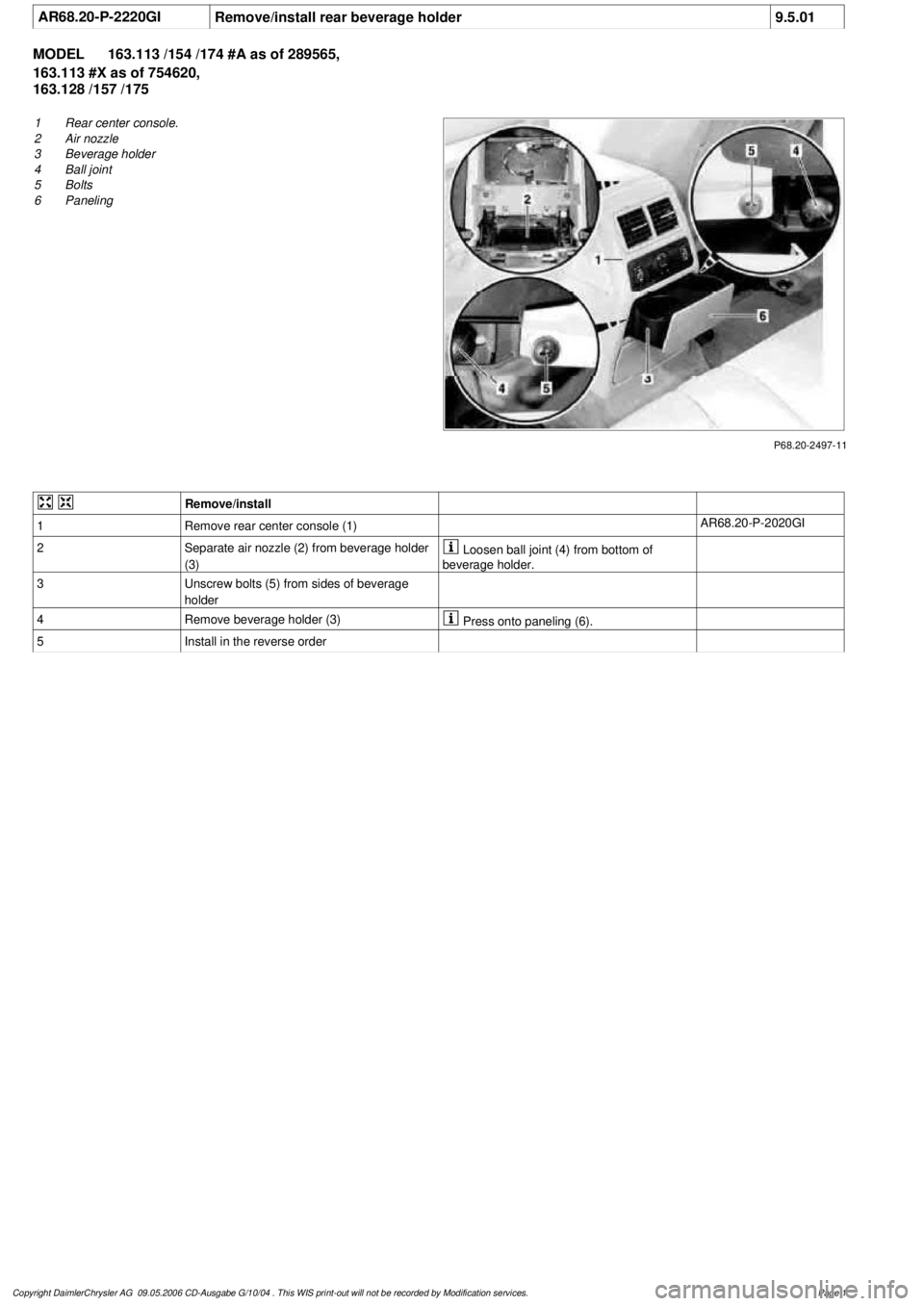

Page 2014 of 4133

AR68.20-P-2220GI
Remove/install rear beverage holder
9.5.01
MODEL
163.113 /154 /174 #A as of 289565,
163.113 #X as of 754620,
163.128 /157 /175
P68.20-2497-11
1
Rear center console.
2
Air nozzle
3
Beverage holder
4
Ball joint
5
Bolts
6
Paneling
Remove/install
1
Remove rear center console (1)
AR68.20-P-2020GI
2
Separate air nozzle (2) from beverage holder
(3)
Loosen ball joint (4) from bottom of
beverage holder.
3
Unscrew bolts (5) from sides of beverage
holder
4
Remove beverage holder (3)
Press onto paneling (6).
5
Install in the reverse order
Copyright DaimlerChrysler AG 09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
Page 2015 of 4133

AR68.20-P-2220GI
Remove/install rear beverage holder
9.5.01
MODEL
163.113 /154 /174 #A as of 289565,
163.113 #X as of 754620,
163.128 /157 /175
P68.20-2497-11
1
Rear center console.
2
Air nozzle
3
Beverage holder
4
Ball joint
5
Bolts
6
Paneling
Remove/install
1
Remove rear center console (1)
AR68.20-P-2020GI
2
Separate air nozzle (2) from beverage holder
(3)
Loosen ball joint (4) from bottom of
beverage holder.
3
Unscrew bolts (5) from sides of beverage
holder
4
Remove beverage holder (3)
Press onto paneling (6).
5
Install in the reverse order
Copyright DaimlerChrysler AG 10.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
Page 2016 of 4133

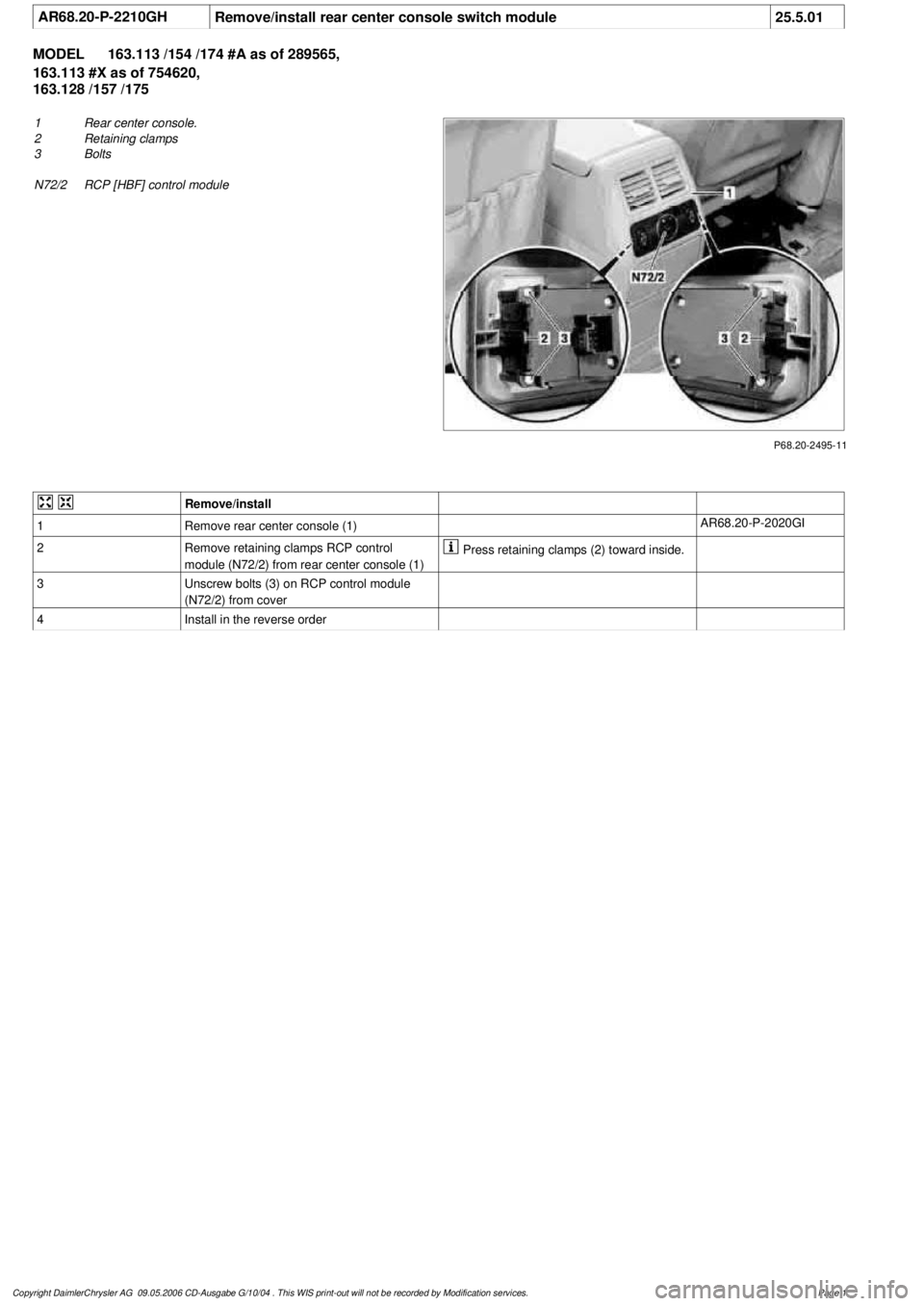

AR68.20-P-2210GH
Remove/install rear center console switch module
25.5.01
MODEL
163.113 /154 /174 #A as of 289565,
163.113 #X as of 754620,
163.128 /157 /175
P68.20-2495-11
1
Rear center console.
2
Retaining clamps
3
Bolts
N72/2
RCP [HBF] control module
Remove/install
1
Remove rear center console (1)
AR68.20-P-2020GI
2
Remove retaining clamps RCP control
module (N72/2) from rear center console (1)
Press retaining clamps (2) toward inside.
3
Unscrew bolts (3) on RCP control module
(N72/2) from cover
4
Install in the reverse order
Copyright DaimlerChrysler AG 09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
Page 2017 of 4133

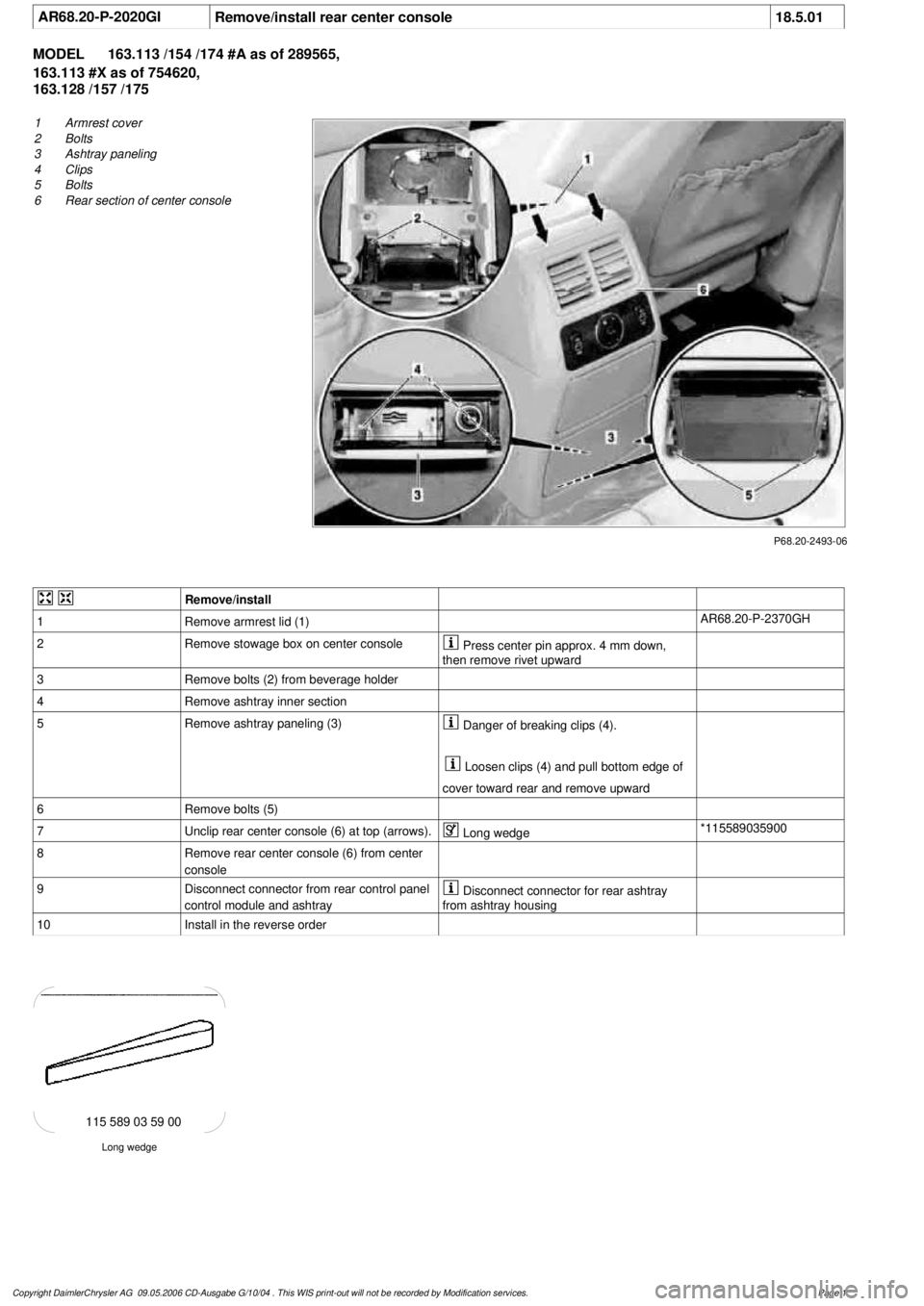

AR68.20-P-2020GI
Remove/install rear center console
18.5.01
MODEL
163.113 /154 /174 #A as of 289565,
163.113 #X as of 754620,
163.128 /157 /175
P68.20-2493-06
1
Armrest cover
2
Bolts
3
Ashtray paneling
4
Clips
5
Bolts
6
Rear section of center console
Remove/install
1
Remove armrest lid (1)
AR68.20-P-2370GH
2
Remove stowage box on center console
Press center pin approx. 4 mm down,
then remove rivet upward
3
Remove bolts (2) from beverage holder
4
Remove ashtray inner section
5
Remove ashtray paneling (3)
Danger of breaking clips (4).
Loosen clips (4) and pull bottom edge of
cover toward rear and remove upward
6
Remove bolts (5)
7
Unclip rear center console (6) at top (arrows).
Long wedge
*115589035900
8
Remove rear center console (6) from center
console
9
Disconnect connector from rear control panel
control module and ashtray
Disconnect connector for rear ashtray
from ashtray housing
10
Install in the reverse order
Long wedge
115 589 03 59 00
Copyright DaimlerChrysler AG 09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
Page 2018 of 4133

AR72.29-P-0001GI

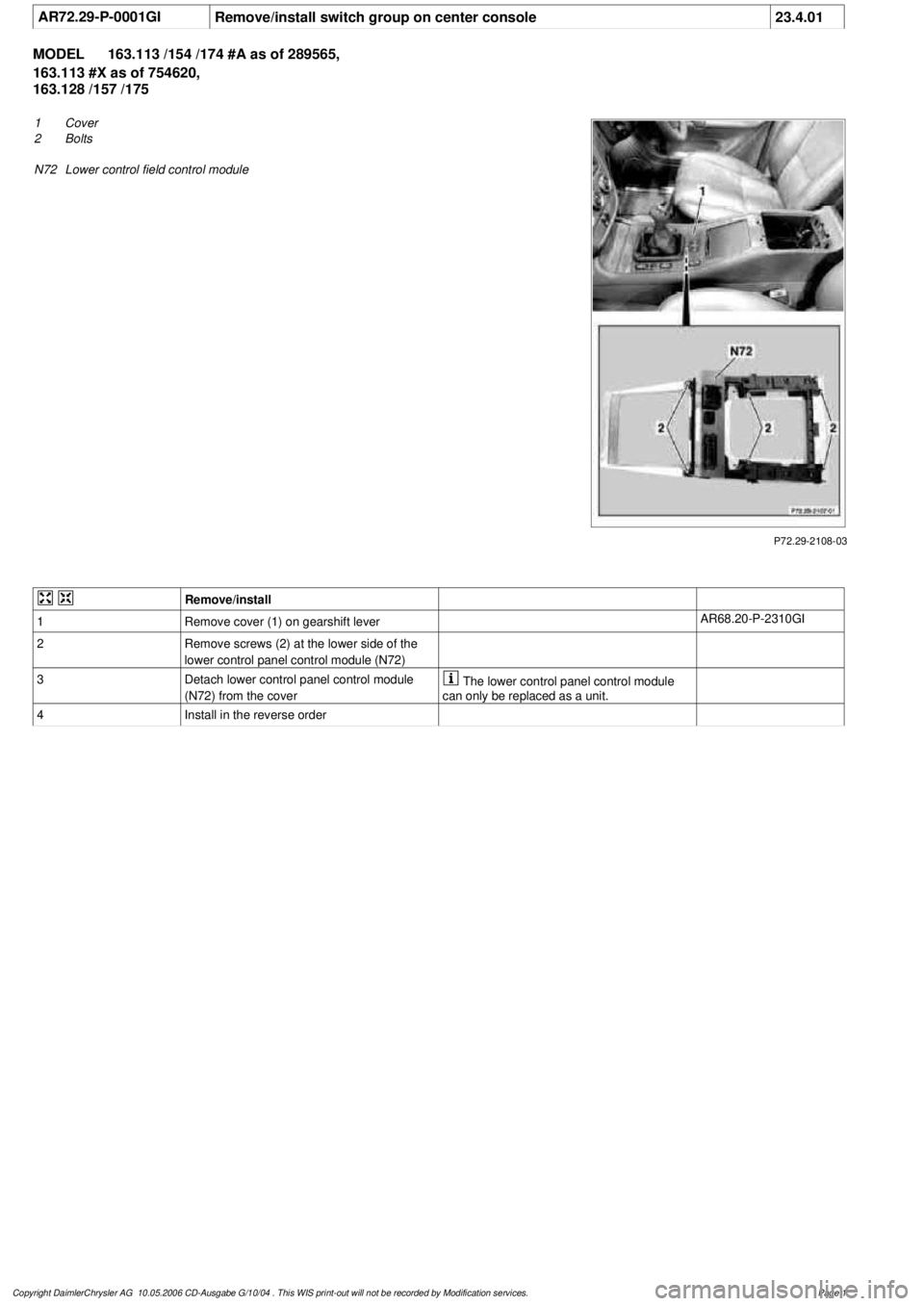

Remove/install switch group on center console
23.4.01
MODEL
163.113 /154 /174 #A as of 289565,
163.113 #X as of 754620,
163.128 /157 /175
1
Cover
2
Bolts
N72
Lower control field control module
P72.29-2108-03
Remove/install
1
Remove cover (1) on gearshift lever
AR68.20-P-2310GI
2
Remove screws (2) at the lower side of the
lower control panel control module (N72)
3
Detach lower control panel control module
(N72) from the cover
The lower control panel control module
can only be replaced as a unit.
4
Install in the reverse order
Copyright DaimlerChrysler AG 10.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
Page 2019 of 4133

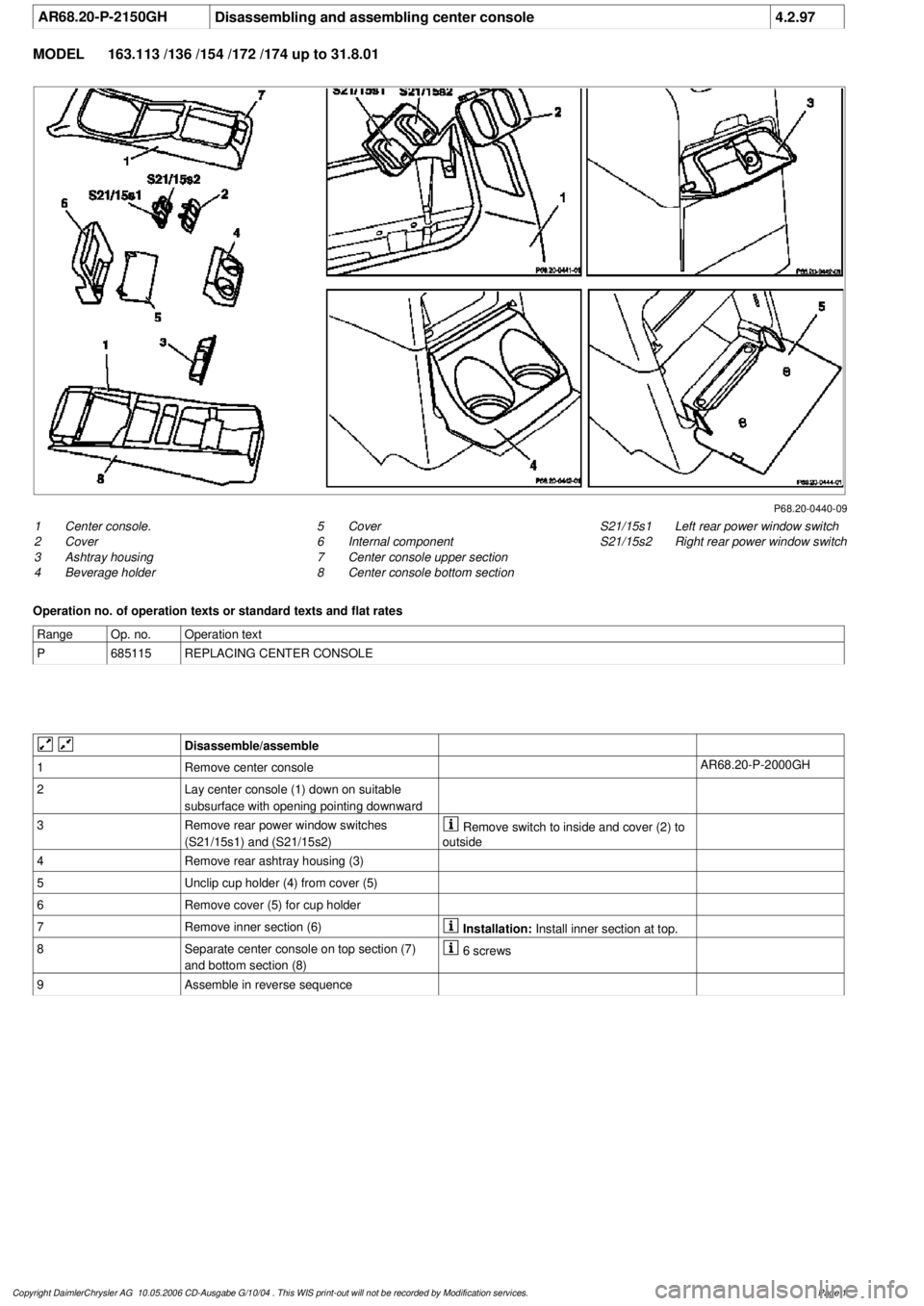

AR68.20-P-2150GH
Disassembling and assembling center console
4.2.97
MODEL
163.113 /136 /154 /172 /174 up to 31.8.01
P68.20-0440-09
1
Center console.
2
Cover
3
Ashtray housing
4
Beverage holder
S21/15s1
Left rear power window switch
S21/15s2
Right rear power window switch
5
Cover
6
Internal component
7
Center console upper section
8
Center console bottom section
Operation no. of operation texts or standard texts and flat rates
Range
Op. no.
Operation text
P
685115
REPLACING CENTER CONSOLE
Disassemble/assemble
1
Remove center console
AR68.20-P-2000GH
2
Lay center console (1) down on suitable
subsurface with opening pointing downward
3
Remove rear power window switches
(S21/15s1) and (S21/15s2)
Remove switch to inside and cover (2) to
outside
4
Remove rear ashtray housing (3)
5
Unclip cup holder (4) from cover (5)
6
Remove cover (5) for cup holder
7
Remove inner section (6)
Installation:
Install inner section at top.
8
Separate center console on top section (7)
and bottom section (8)
6 screws
9
Assemble in reverse sequence
Copyright DaimlerChrysler AG 10.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
Page 2020 of 4133

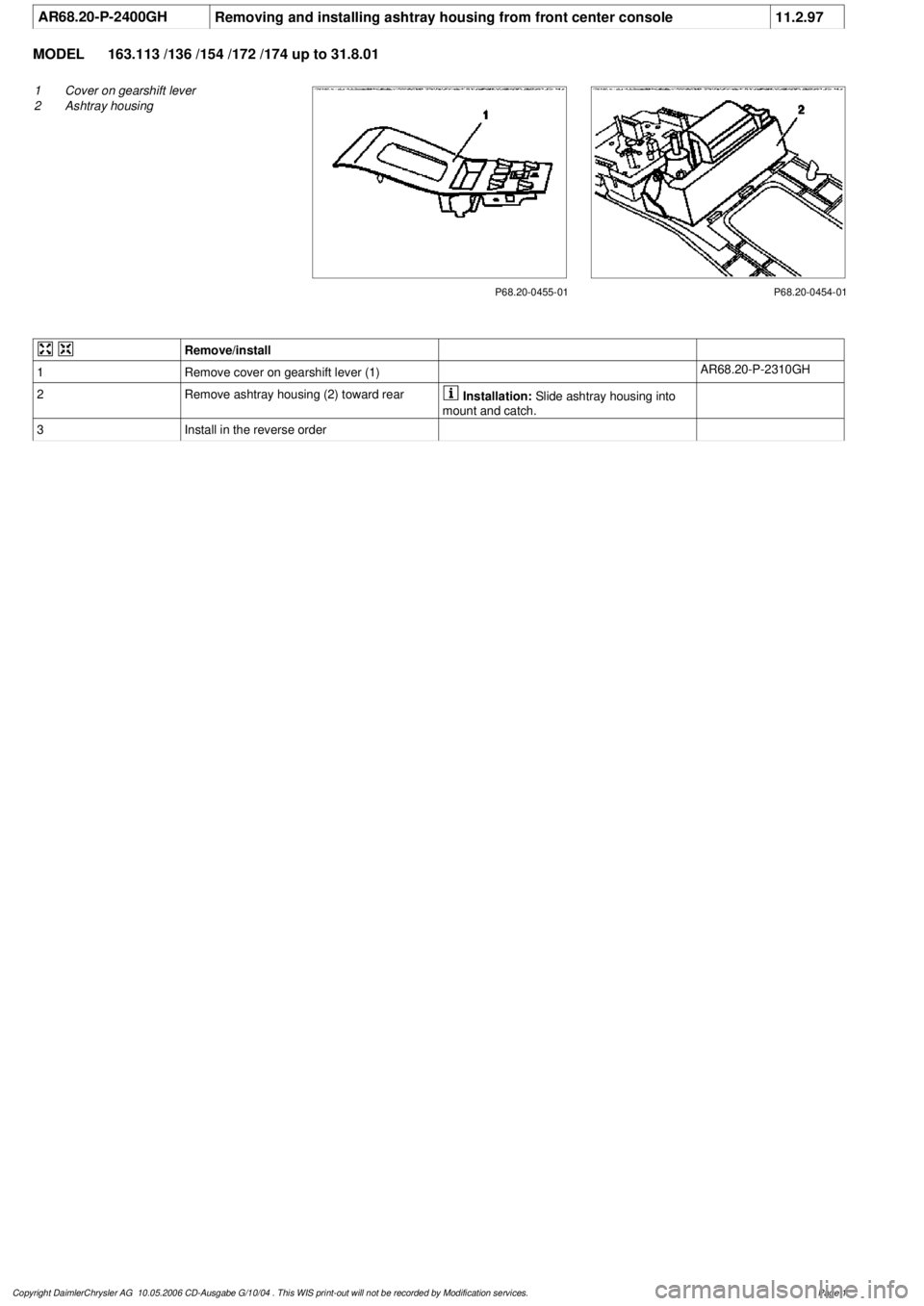

AR68.20-P-2400GH
Removing and installing ashtray housing from front center console
11.2.97
MODEL
163.113 /136 /154 /172 /174 up to 31.8.01
P68.20-0455-01
1
Cover on gearshift lever
2
Ashtray housing
P68.20-0454-01
Remove/install
1
Remove cover on gearshift lever (1)
AR68.20-P-2310GH
2
Remove ashtray housing (2) toward rear
Installation:
Slide ashtray housing into
mount and catch.
3
Install in the reverse order
Copyright DaimlerChrysler AG 10.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
