MERCEDES-BENZ ML350 1997 Complete Repair Manual

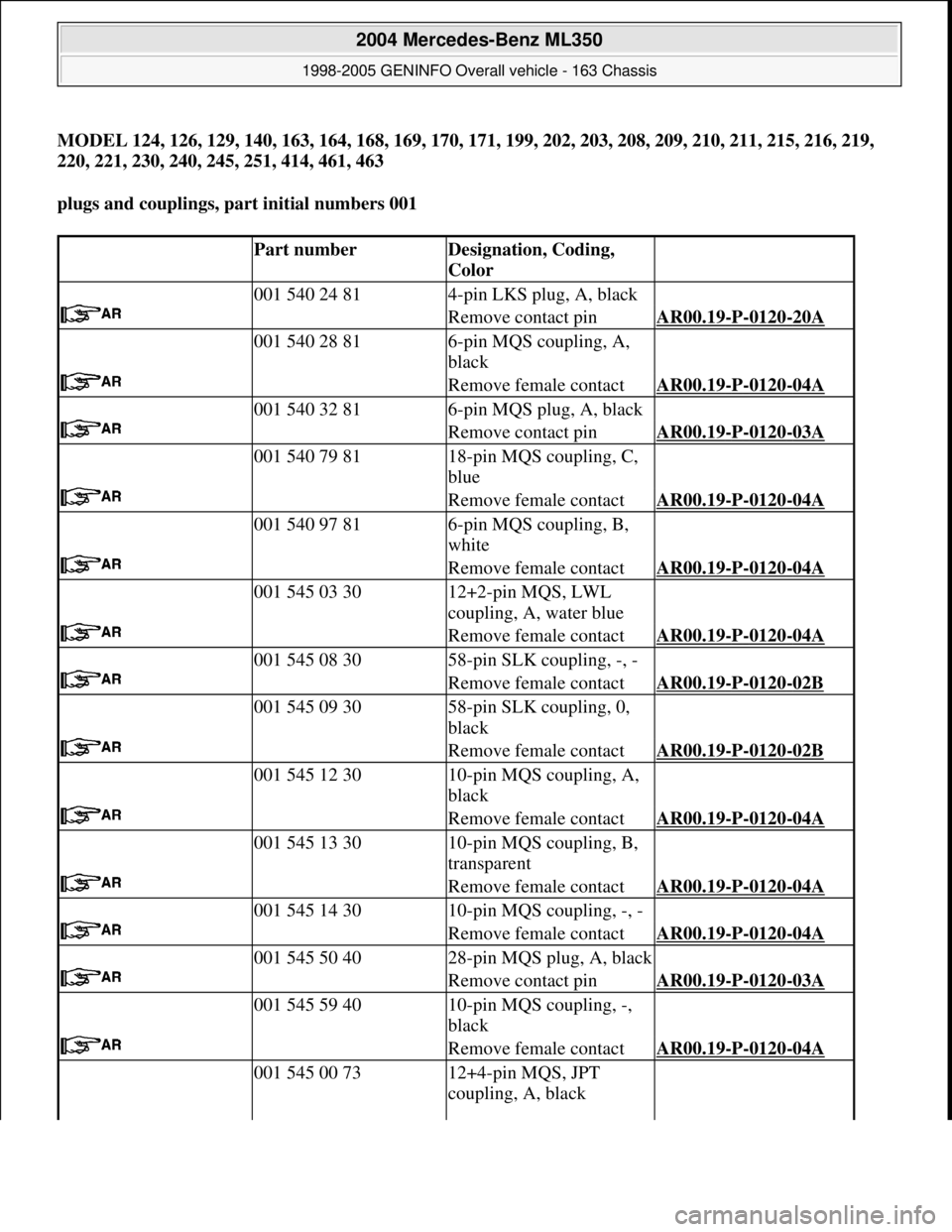

MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
plugs and couplings, part initial numbers 001

Part numberDesignation, Coding,
Color

001 540 24 814-pin LKS plug, A, black
Remove contact pinAR00.19-P-0120-20A

001 540 28 816-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

001 540 32 816-pin MQS plug, A, black
Remove contact pinAR00.19-P-0120-03A

001 540 79 8118-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A

001 540 97 816-pin MQS coupling, B,
white
Remove female contactAR00.19-P-0120-04A

001 545 03 3012+2-pin MQS, LWL
coupling, A, water blue
Remove female contactAR00.19-P-0120-04A

001 545 08 3058-pin SLK coupling, -, -
Remove female contactAR00.19-P-0120-02B

001 545 09 3058-pin SLK coupling, 0,
black
Remove female contactAR00.19-P-0120-02B

001 545 12 3010-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

001 545 13 3010-pin MQS coupling, B,
transparent
Remove female contactAR00.19-P-0120-04A

001 545 14 3010-pin MQS coupling, -, -
Remove female contactAR00.19-P-0120-04A

001 545 50 4028-pin MQS plug, A, black
Remove contact pinAR00.19-P-0120-03A

001 545 59 4010-pin MQS coupling, -,
black
Remove female contactAR00.19-P-0120-04A
001 545 00 7312+4-pin MQS, JPT
coupling, A, black

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:44 PMPage 56 © 2006 Mitchell Repair Information Company, LLC.

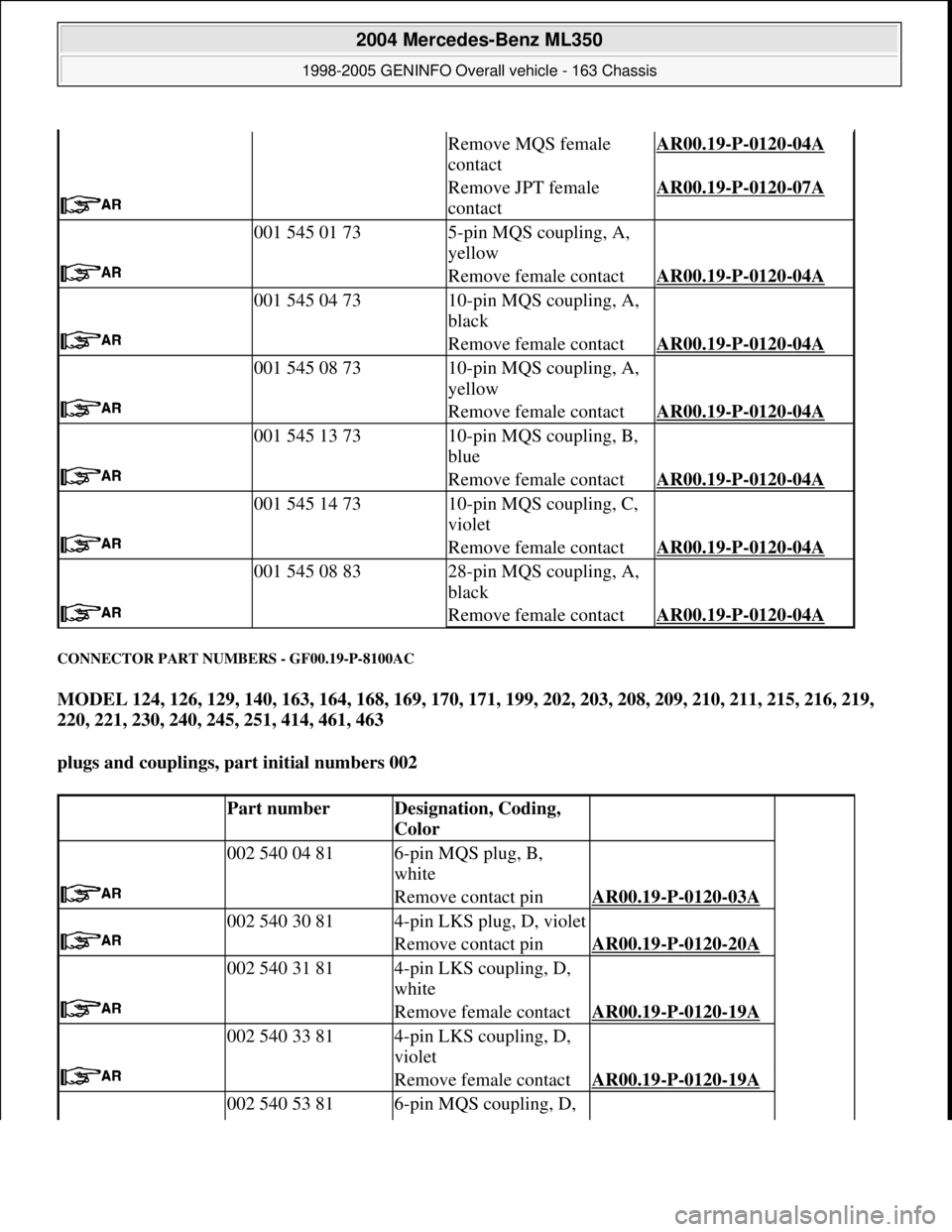

CONNECTOR PART NUMBERS - GF00.19-P-8100AC
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
plugs and couplings, part initial numbers 002

Remove MQS female
contactAR00.19-P-0120-04A
Remove JPT female
contactAR00.19-P-0120-07A

001 545 01 735-pin MQS coupling, A,
yellow
Remove female contactAR00.19-P-0120-04A

001 545 04 7310-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

001 545 08 7310-pin MQS coupling, A,
yellow
Remove female contactAR00.19-P-0120-04A

001 545 13 7310-pin MQS coupling, B,
blue
Remove female contactAR00.19-P-0120-04A

001 545 14 7310-pin MQS coupling, C,
violet
Remove female contactAR00.19-P-0120-04A

001 545 08 8328-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

Part numberDesignation, Coding,
Color

002 540 04 816-pin MQS plug, B,
white
Remove contact pinAR00.19-P-0120-03A

002 540 30 814-pin LKS plug, D, violet
Remove contact pinAR00.19-P-0120-20A

002 540 31 814-pin LKS coupling, D,
white
Remove female contactAR00.19-P-0120-19A

002 540 33 814-pin LKS coupling, D,
violet
Remove female contactAR00.19-P-0120-19A
002 540 53 816-pin MQS coupling, D,

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:44 PMPage 57 © 2006 Mitchell Repair Information Company, LLC.

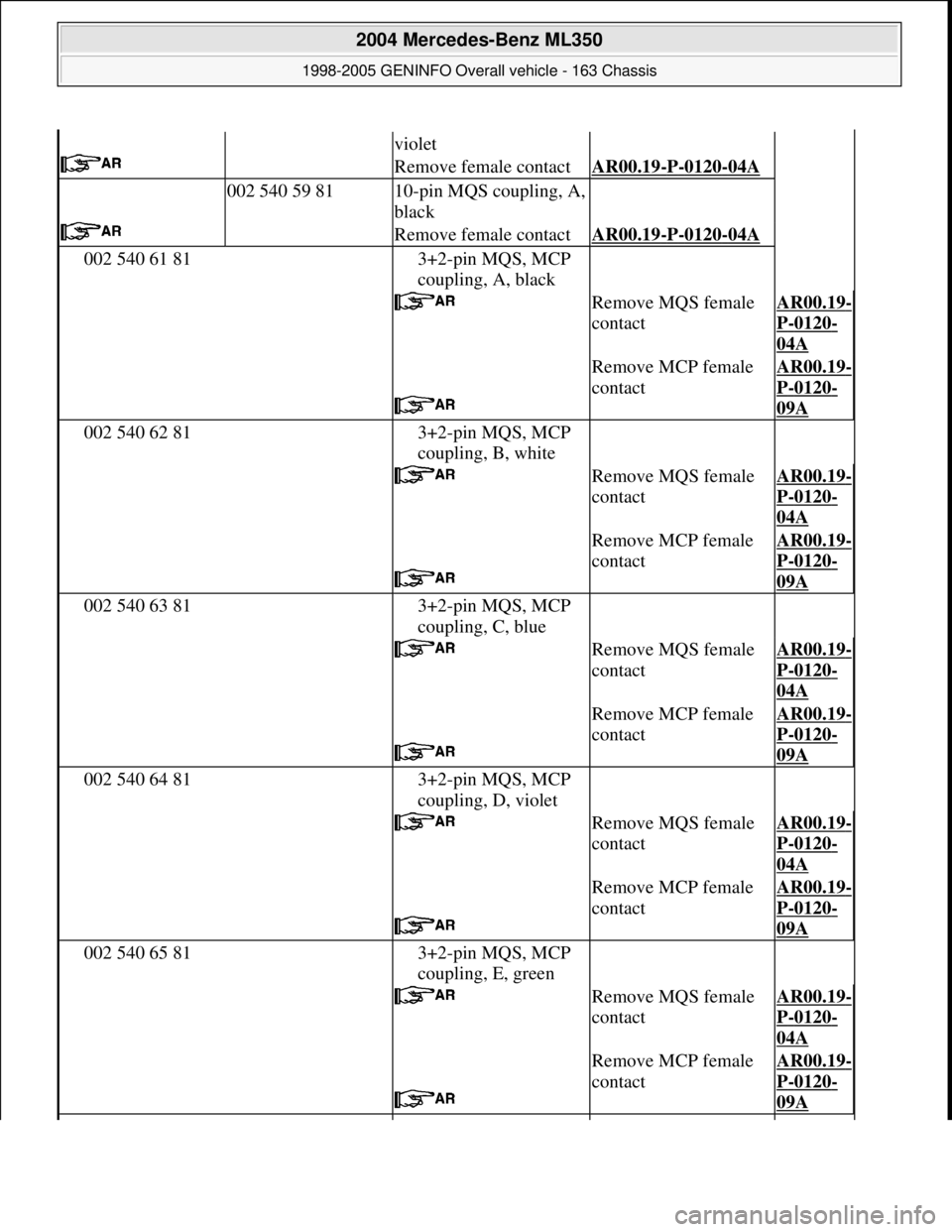

violet
Remove female contactAR00.19-P-0120-04A

002 540 59 8110-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A
002 540 61 813+2-pin MQS, MCP
coupling, A, black
Remove MQS female
contactAR00.19-
P-0120-
04A

Remove MCP female
contactAR00.19-
P-0120-
09A
002 540 62 813+2-pin MQS, MCP
coupling, B, white
Remove MQS female
contactAR00.19-
P-0120-
04A

Remove MCP female
contactAR00.19-
P-0120-
09A
002 540 63 813+2-pin MQS, MCP
coupling, C, blue
Remove MQS female
contactAR00.19-
P-0120-
04A

Remove MCP female
contactAR00.19-
P-0120-
09A
002 540 64 813+2-pin MQS, MCP
coupling, D, violet
Remove MQS female
contactAR00.19-
P-0120-
04A

Remove MCP female
contactAR00.19-
P-0120-
09A
002 540 65 813+2-pin MQS, MCP
coupling, E, green
Remove MQS female
contactAR00.19-
P-0120-
04A

Remove MCP female
contactAR00.19-
P-0120-
09A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:44 PMPage 58 © 2006 Mitchell Repair Information Company, LLC.

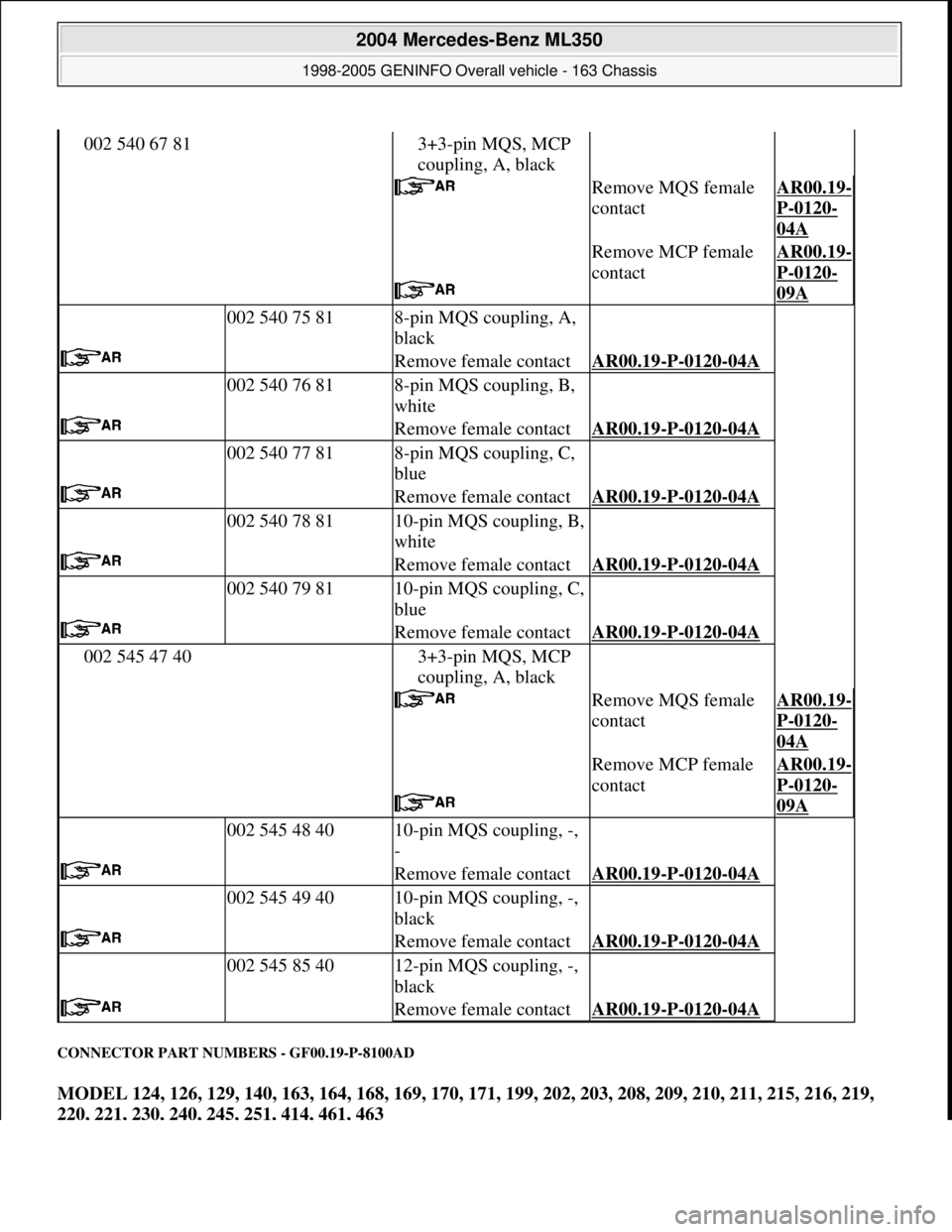

CONNECTOR PART NUMBERS - GF00.19-P-8100AD
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
002 540 67 813+3-pin MQS, MCP
coupling, A, black
Remove MQS female
contactAR00.19-
P-0120-
04A

Remove MCP female
contactAR00.19-
P-0120-
09A

002 540 75 818-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

002 540 76 818-pin MQS coupling, B,
white
Remove female contactAR00.19-P-0120-04A

002 540 77 818-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A

002 540 78 8110-pin MQS coupling, B,
white
Remove female contactAR00.19-P-0120-04A

002 540 79 8110-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A
002 545 47 403+3-pin MQS, MCP
coupling, A, black
Remove MQS female
contactAR00.19-
P-0120-
04A

Remove MCP female
contactAR00.19-
P-0120-
09A

002 545 48 4010-pin MQS coupling, -,
-
Remove female contactAR00.19-P-0120-04A

002 545 49 4010-pin MQS coupling, -,
black
Remove female contactAR00.19-P-0120-04A

002 545 85 4012-pin MQS coupling, -,
black
Remove female contactAR00.19-P-0120-04A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:44 PMPage 59 © 2006 Mitchell Repair Information Company, LLC.

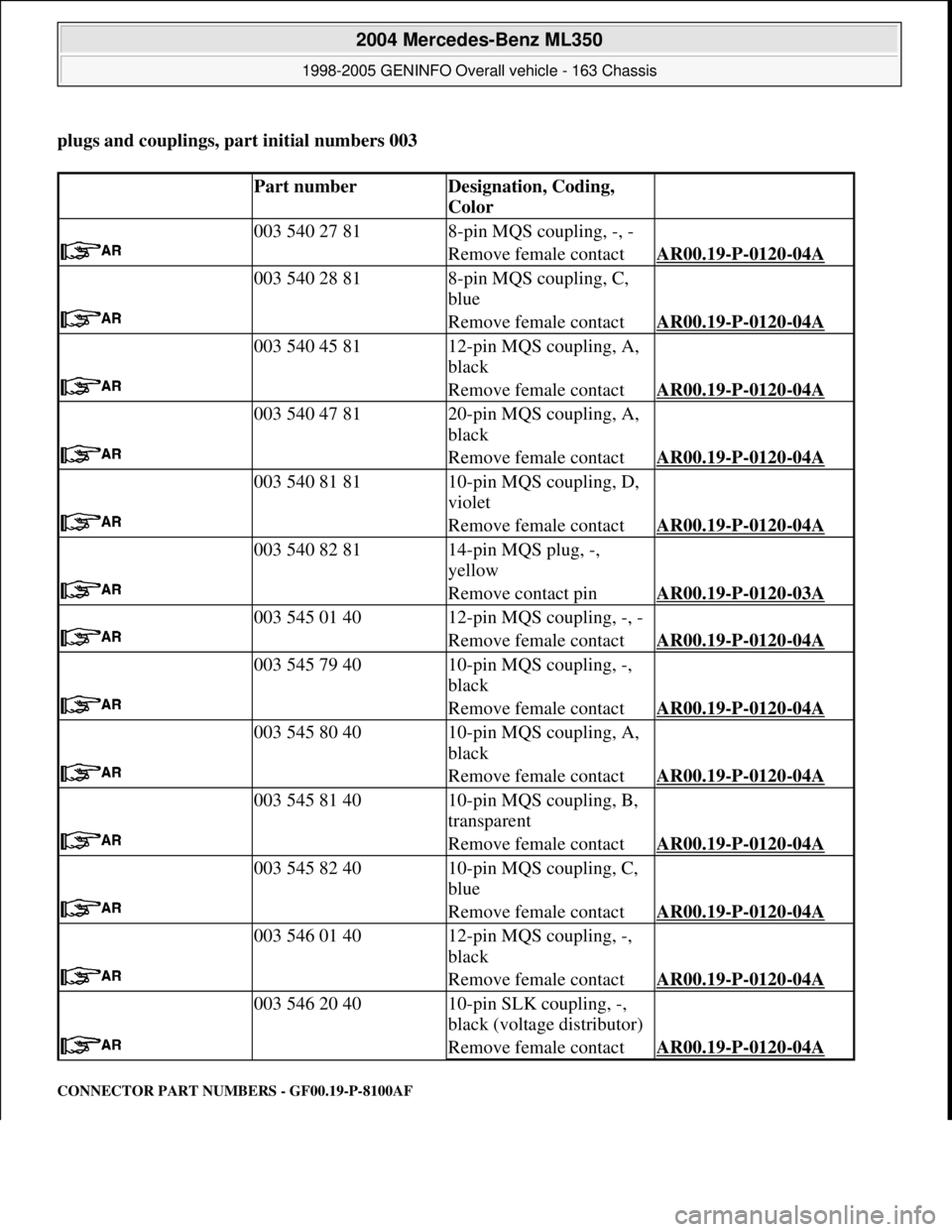

plugs and couplings, part initial numbers 003
CONNECTOR PART NUMBERS - GF00.19-P-8100AF

Part numberDesignation, Coding,
Color

003 540 27 818-pin MQS coupling, -, -
Remove female contactAR00.19-P-0120-04A

003 540 28 818-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A

003 540 45 8112-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

003 540 47 8120-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

003 540 81 8110-pin MQS coupling, D,
violet
Remove female contactAR00.19-P-0120-04A

003 540 82 8114-pin MQS plug, -,
yellow
Remove contact pinAR00.19-P-0120-03A

003 545 01 4012-pin MQS coupling, -, -
Remove female contactAR00.19-P-0120-04A

003 545 79 4010-pin MQS coupling, -,
black
Remove female contactAR00.19-P-0120-04A

003 545 80 4010-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

003 545 81 4010-pin MQS coupling, B,
transparent
Remove female contactAR00.19-P-0120-04A

003 545 82 4010-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A

003 546 01 4012-pin MQS coupling, -,
black
Remove female contactAR00.19-P-0120-04A

003 546 20 4010-pin SLK coupling, -,
black (voltage distributor)
Remove female contactAR00.19-P-0120-04A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:44 PMPage 60 © 2006 Mitchell Repair Information Company, LLC.

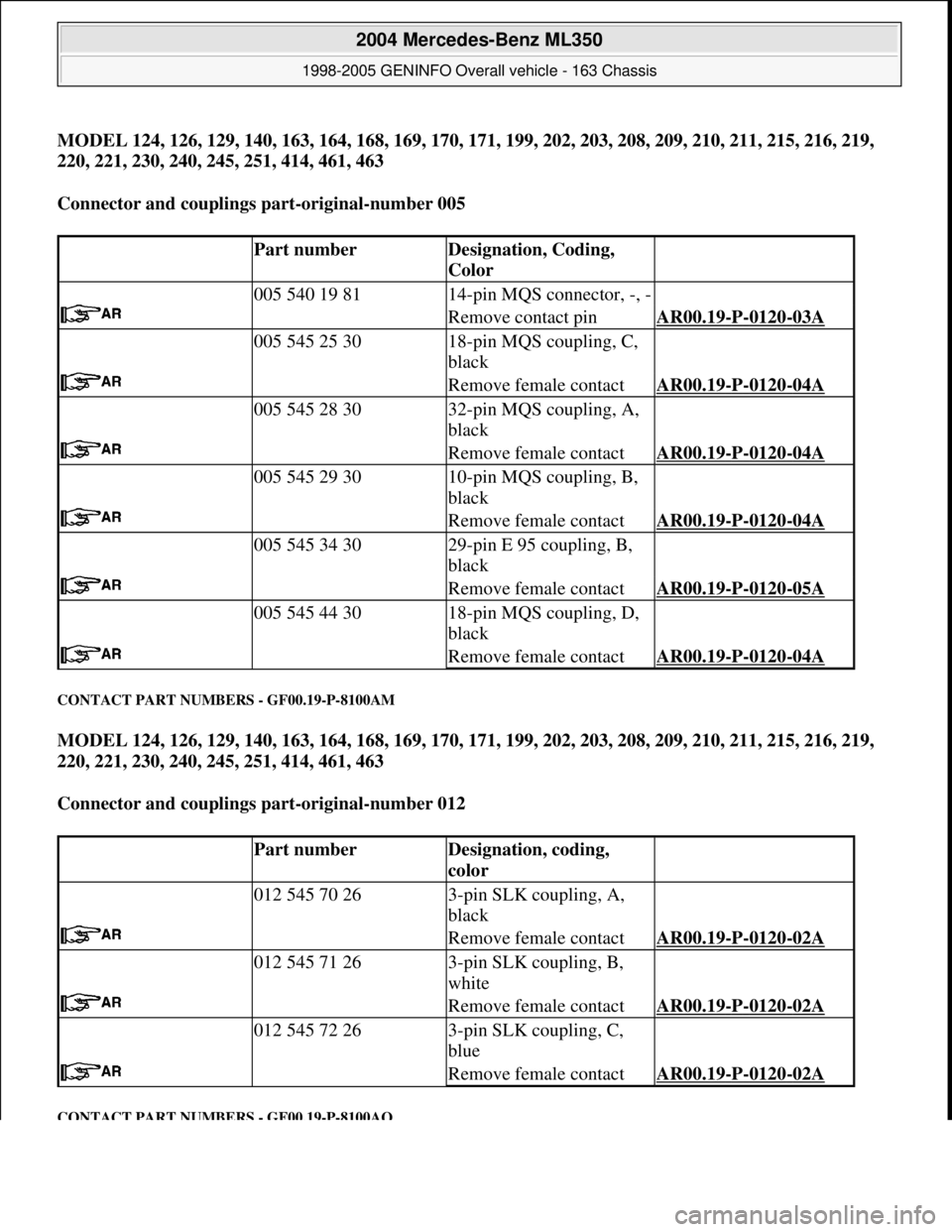

MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 005
CONTACT PART NUMBERS - GF00.19-P-8100AM
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 012
CONTACT PART NUMBERS - GF00.19-P-8100AO

Part numberDesignation, Coding,
Color

005 540 19 8114-pin MQS connector, -, -
Remove contact pinAR00.19-P-0120-03A

005 545 25 3018-pin MQS coupling, C,
black
Remove female contactAR00.19-P-0120-04A

005 545 28 3032-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

005 545 29 3010-pin MQS coupling, B,
black
Remove female contactAR00.19-P-0120-04A

005 545 34 3029-pin E 95 coupling, B,
black
Remove female contactAR00.19-P-0120-05A

005 545 44 3018-pin MQS coupling, D,
black
Remove female contactAR00.19-P-0120-04A

Part numberDesignation, coding,
color

012 545 70 263-pin SLK coupling, A,
black
Remove female contactAR00.19-P-0120-02A

012 545 71 263-pin SLK coupling, B,
white
Remove female contactAR00.19-P-0120-02A

012 545 72 263-pin SLK coupling, C,
blue
Remove female contactAR00.19-P-0120-02A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:44 PMPage 61 © 2006 Mitchell Repair Information Company, LLC.

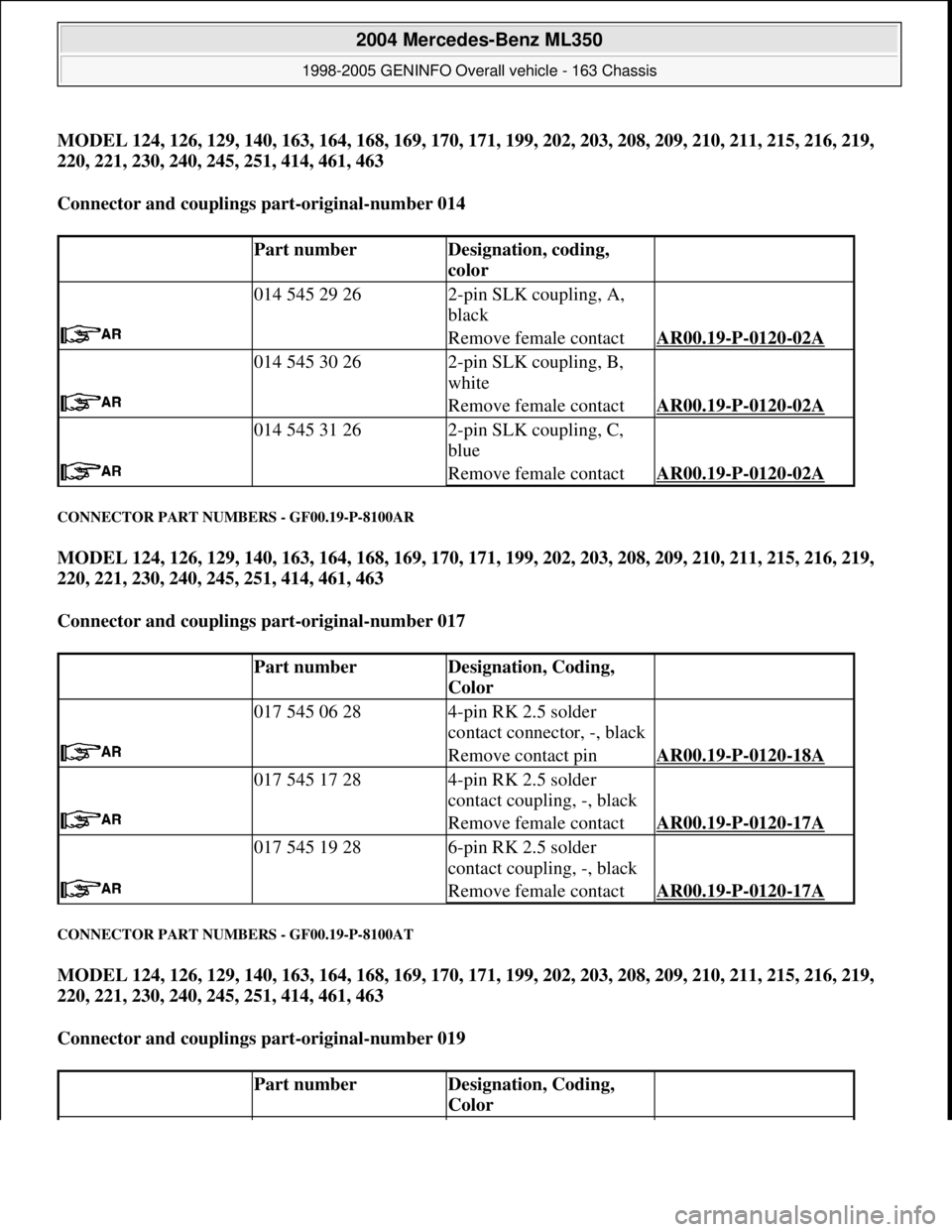

MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 014
CONNECTOR PART NUMBERS - GF00.19-P-8100AR
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 017
CONNECTOR PART NUMBERS - GF00.19-P-8100AT
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 019

Part numberDesignation, coding,
color

014 545 29 262-pin SLK coupling, A,
black
Remove female contactAR00.19-P-0120-02A

014 545 30 262-pin SLK coupling, B,
white
Remove female contactAR00.19-P-0120-02A

014 545 31 262-pin SLK coupling, C,
blue
Remove female contactAR00.19-P-0120-02A

Part numberDesignation, Coding,
Color

017 545 06 284-pin RK 2.5 solder
contact connector, -, black
Remove contact pinAR00.19-P-0120-18A

017 545 17 284-pin RK 2.5 solder
contact coupling, -, black
Remove female contactAR00.19-P-0120-17A

017 545 19 286-pin RK 2.5 solder
contact coupling, -, black
Remove female contactAR00.19-P-0120-17A

Part numberDesignation, Coding,
Color

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:44 PMPage 62 © 2006 Mitchell Repair Information Company, LLC.

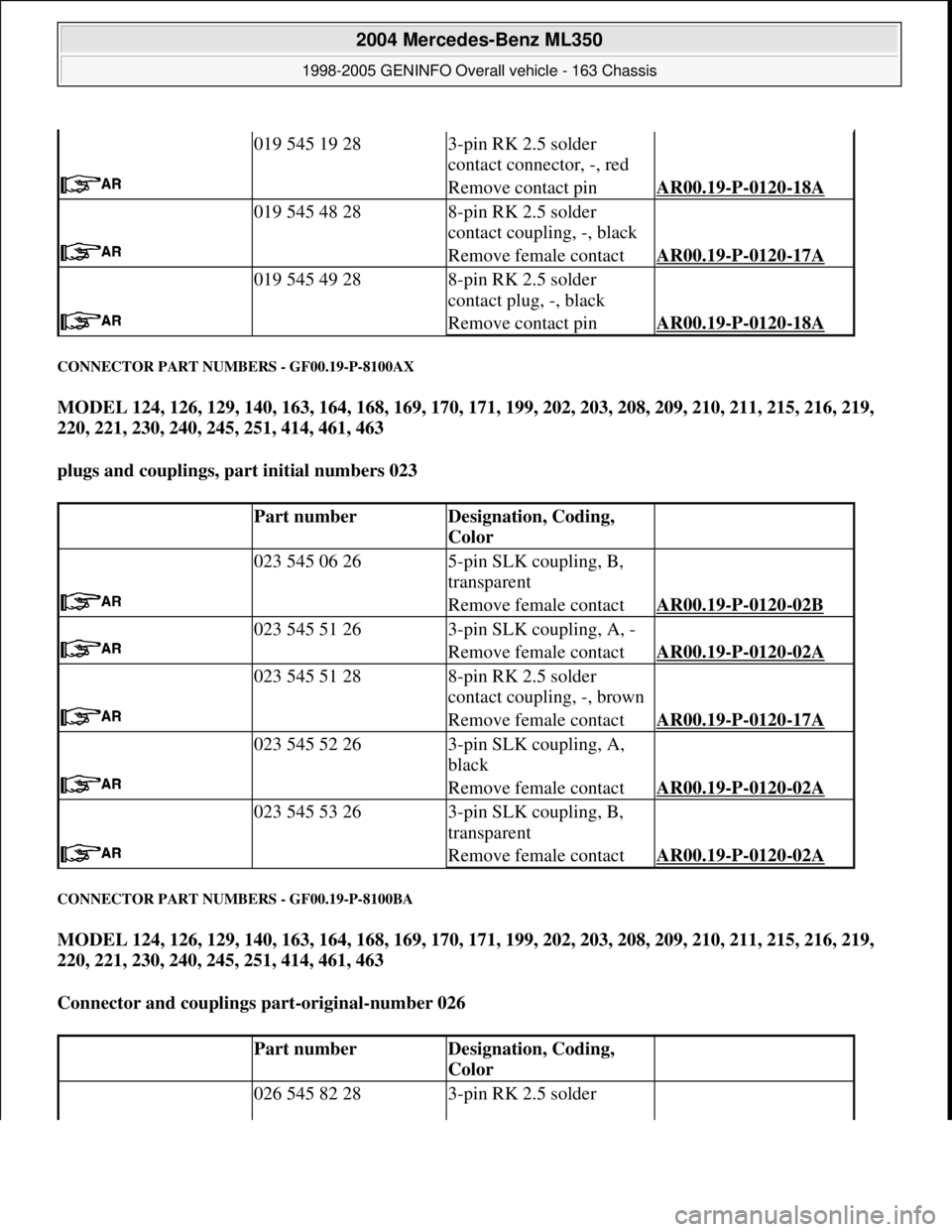

CONNECTOR PART NUMBERS - GF00.19-P-8100AX
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
plugs and couplings, part initial numbers 023
CONNECTOR PART NUMBERS - GF00.19-P-8100BA
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 026

019 545 19 283-pin RK 2.5 solder
contact connector, -, red
Remove contact pinAR00.19-P-0120-18A

019 545 48 288-pin RK 2.5 solder
contact coupling, -, black
Remove female contactAR00.19-P-0120-17A

019 545 49 288-pin RK 2.5 solder
contact plug, -, black
Remove contact pinAR00.19-P-0120-18A

Part numberDesignation, Coding,
Color

023 545 06 265-pin SLK coupling, B,
transparent
Remove female contactAR00.19-P-0120-02B

023 545 51 263-pin SLK coupling, A, -
Remove female contactAR00.19-P-0120-02A

023 545 51 288-pin RK 2.5 solder
contact coupling, -, brown
Remove female contactAR00.19-P-0120-17A

023 545 52 263-pin SLK coupling, A,
black
Remove female contactAR00.19-P-0120-02A

023 545 53 263-pin SLK coupling, B,
transparent
Remove female contactAR00.19-P-0120-02A

Part numberDesignation, Coding,
Color
026 545 82 283-pin RK 2.5 solder

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 63 © 2006 Mitchell Repair Information Company, LLC.

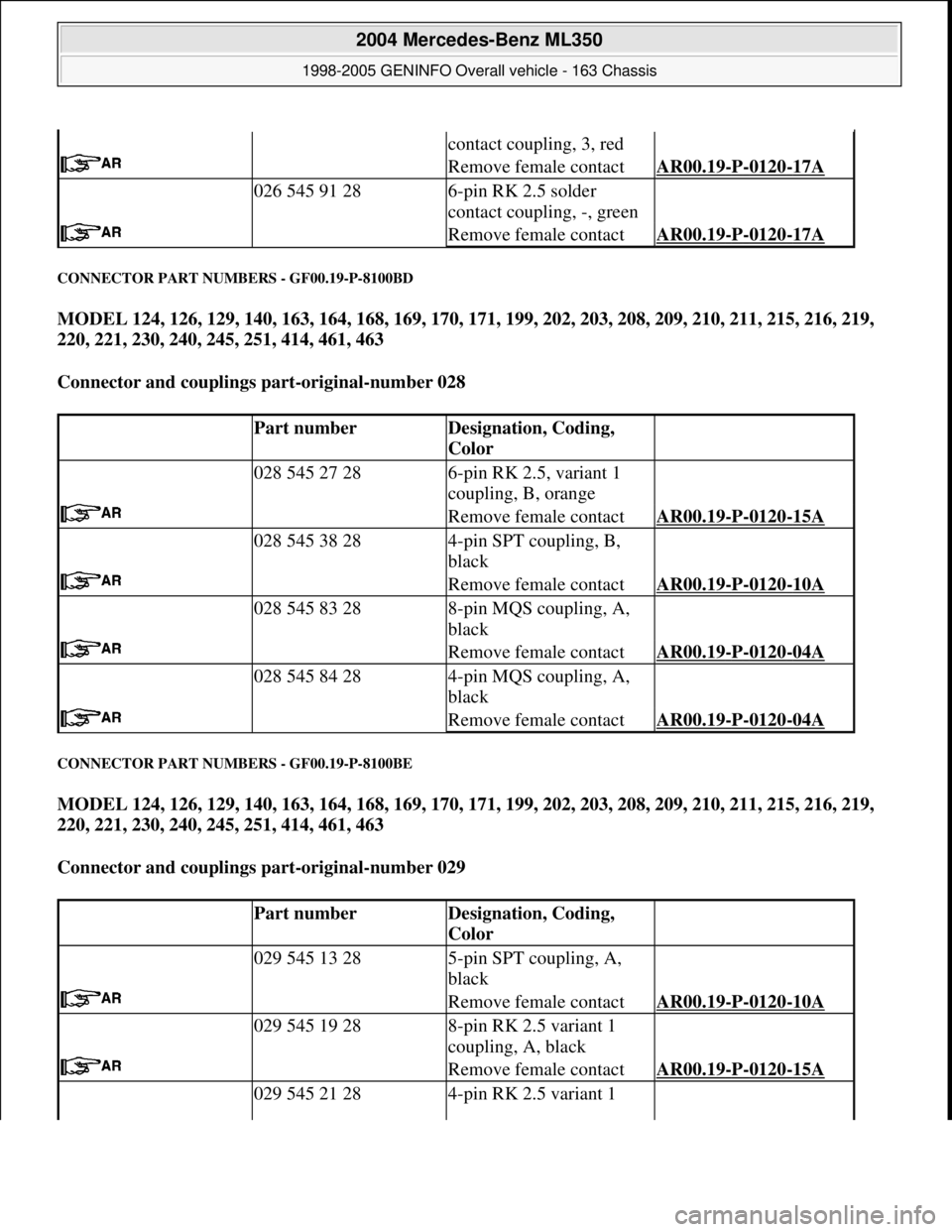

CONNECTOR PART NUMBERS - GF00.19-P-8100BD
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 028
CONNECTOR PART NUMBERS - GF00.19-P-8100BE
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 029

contact coupling, 3, red
Remove female contactAR00.19-P-0120-17A

026 545 91 286-pin RK 2.5 solder
contact coupling, -, green
Remove female contactAR00.19-P-0120-17A

Part numberDesignation, Coding,
Color

028 545 27 286-pin RK 2.5, variant 1
coupling, B, orange
Remove female contactAR00.19-P-0120-15A

028 545 38 284-pin SPT coupling, B,
black
Remove female contactAR00.19-P-0120-10A

028 545 83 288-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

028 545 84 284-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

Part numberDesignation, Coding,
Color

029 545 13 285-pin SPT coupling, A,
black
Remove female contactAR00.19-P-0120-10A

029 545 19 288-pin RK 2.5 variant 1
coupling, A, black
Remove female contactAR00.19-P-0120-15A
029 545 21 284-pin RK 2.5 variant 1

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 64 © 2006 Mitchell Repair Information Company, LLC.

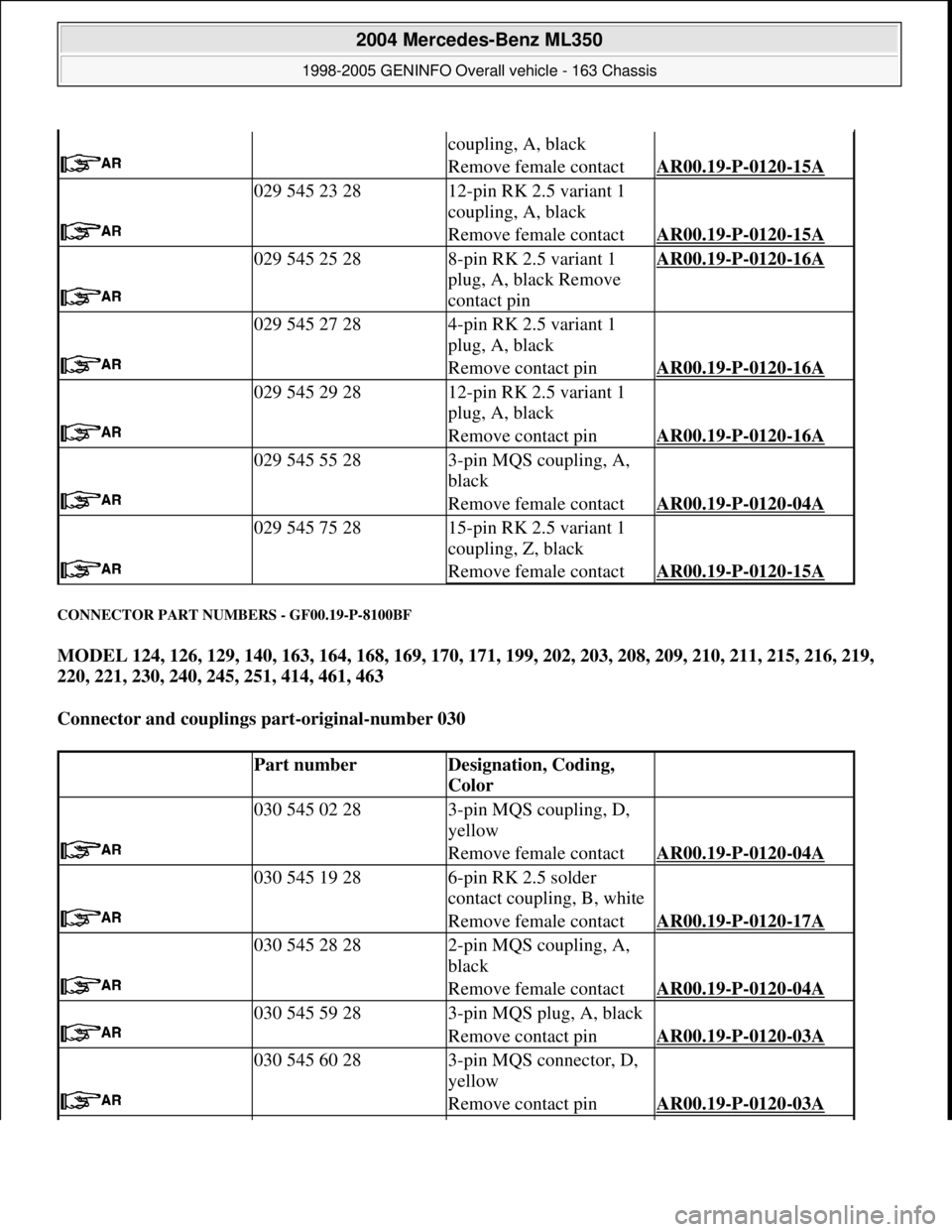

CONNECTOR PART NUMBERS - GF00.19-P-8100BF
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 030

coupling, A, black
Remove female contactAR00.19-P-0120-15A

029 545 23 2812-pin RK 2.5 variant 1
coupling, A, black
Remove female contactAR00.19-P-0120-15A

029 545 25 288-pin RK 2.5 variant 1
plug, A, black Remove
contact pinAR00.19-P-0120-16A

029 545 27 284-pin RK 2.5 variant 1
plug, A, black
Remove contact pinAR00.19-P-0120-16A

029 545 29 2812-pin RK 2.5 variant 1
plug, A, black
Remove contact pinAR00.19-P-0120-16A

029 545 55 283-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

029 545 75 2815-pin RK 2.5 variant 1
coupling, Z, black
Remove female contactAR00.19-P-0120-15A

Part numberDesignation, Coding,
Color

030 545 02 283-pin MQS coupling, D,
yellow
Remove female contactAR00.19-P-0120-04A

030 545 19 286-pin RK 2.5 solder
contact coupling, B, white
Remove female contactAR00.19-P-0120-17A

030 545 28 282-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

030 545 59 283-pin MQS plug, A, black
Remove contact pinAR00.19-P-0120-03A

030 545 60 283-pin MQS connector, D,
yellow
Remove contact pinAR00.19-P-0120-03A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 65 © 2006 Mitchell Repair Information Company, LLC.
