CONNECTOR PART NUMBERS - GF00.19-P-8100BG
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
plugs and couplings, part initial numbers 031

030 545 76 283-pin MQS coupling, A,
yellow
Remove female contactAR00.19-P-0120-04A

030 545 77 283-pin RK 2.5 solder
contact coupling, -, orange
Remove female contactAR00.19-P-0120-17A

030 545 78 283-pin RK 2.5 solder
contact plug, -, orange
Remove contact pinAR00.19-P-0120-18A

Part numberDesignation, Coding,
Color

031 545 00 286-pin E95 coupling, -, red
Remove female contactAR00.19-P-0120-05A

031 545 55 282-pin LSK coupling, A,
black
Remove female contactAR00.19-P-0120-12A

031 545 56 283+4-pin JPT, LSK
coupling, A, black
Remove JPT female
contactAR00.19-P-0120-07A
Remove LSK female
contactAR00.19-P-0120-12A

031 545 57 282-pin LSK plug, A, black
Remove contact pinAR00.19-P-0120-13A

031 545 58 282-pin RK 2.5 variant 1
plug, -, -
Remove contact pinAR00.19-P-0120-16A

031 545 59 282-pin RK 2.5 variant 1
plug, C, blue
Remove contact pinAR00.19-P-0120-16A

031 545 60 282-pin RK 2.5 variant 1
plug, D, yellow
Remove contact pinAR00.19-P-0120-16A

031 545 62 282-pin RK 2.5 variant 1
coupling, C, blue
Remove female contactAR00.19-P-0120-15A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 66 © 2006 Mitchell Repair Information Company, LLC.

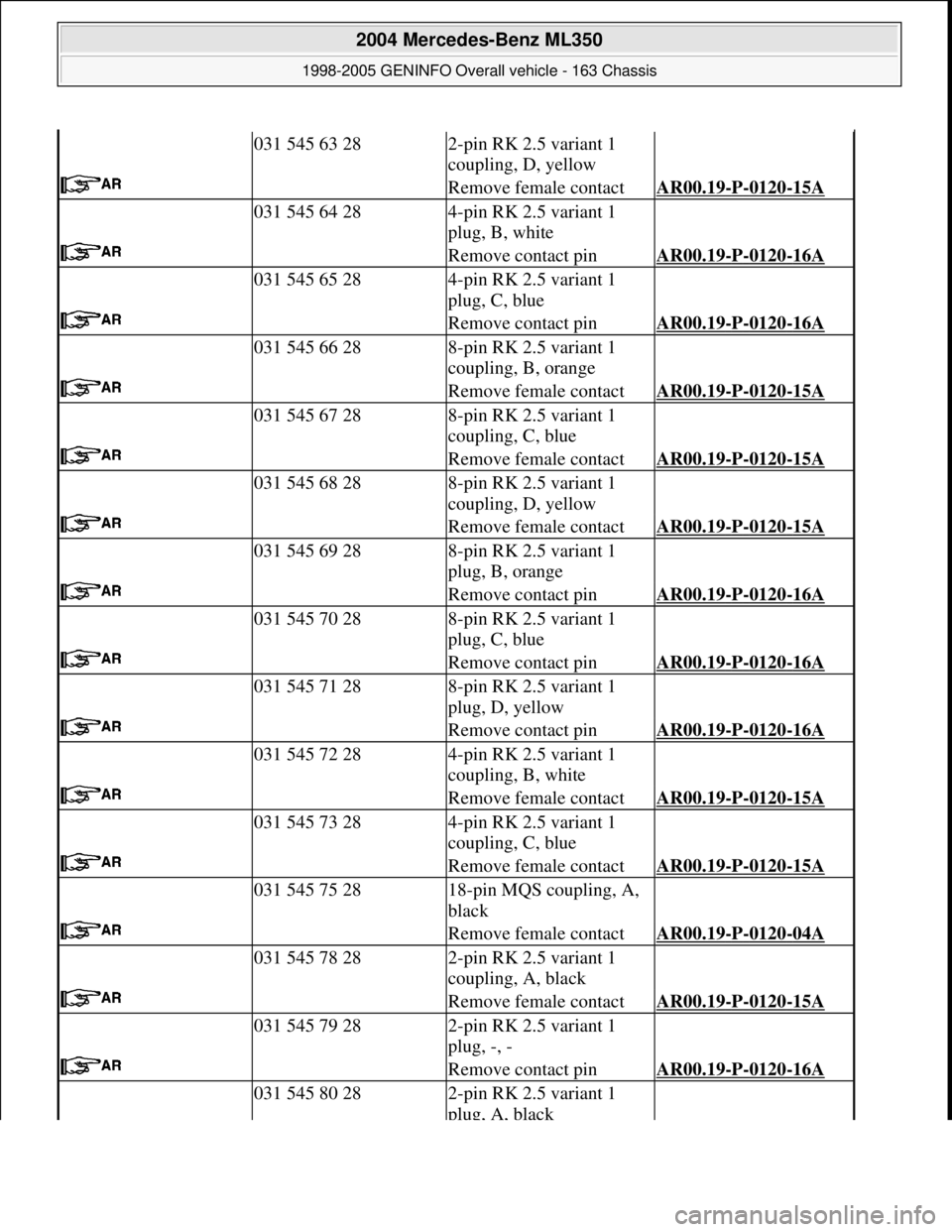

031 545 63 282-pin RK 2.5 variant 1
coupling, D, yellow
Remove female contactAR00.19-P-0120-15A

031 545 64 284-pin RK 2.5 variant 1
plug, B, white
Remove contact pinAR00.19-P-0120-16A

031 545 65 284-pin RK 2.5 variant 1
plug, C, blue
Remove contact pinAR00.19-P-0120-16A

031 545 66 288-pin RK 2.5 variant 1
coupling, B, orange
Remove female contactAR00.19-P-0120-15A

031 545 67 288-pin RK 2.5 variant 1
coupling, C, blue
Remove female contactAR00.19-P-0120-15A

031 545 68 288-pin RK 2.5 variant 1
coupling, D, yellow
Remove female contactAR00.19-P-0120-15A

031 545 69 288-pin RK 2.5 variant 1
plug, B, orange
Remove contact pinAR00.19-P-0120-16A

031 545 70 288-pin RK 2.5 variant 1
plug, C, blue
Remove contact pinAR00.19-P-0120-16A

031 545 71 288-pin RK 2.5 variant 1
plug, D, yellow
Remove contact pinAR00.19-P-0120-16A

031 545 72 284-pin RK 2.5 variant 1
coupling, B, white
Remove female contactAR00.19-P-0120-15A

031 545 73 284-pin RK 2.5 variant 1
coupling, C, blue
Remove female contactAR00.19-P-0120-15A

031 545 75 2818-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

031 545 78 282-pin RK 2.5 variant 1
coupling, A, black
Remove female contactAR00.19-P-0120-15A

031 545 79 282-pin RK 2.5 variant 1
plug, -, -
Remove contact pinAR00.19-P-0120-16A
031 545 80 282-pin RK 2.5 variant 1
plug, A, black

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 67 © 2006 Mitchell Repair Information Company, LLC.

CONNECTOR PART NUMBERS - GF00.19-P-8100BH
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 032

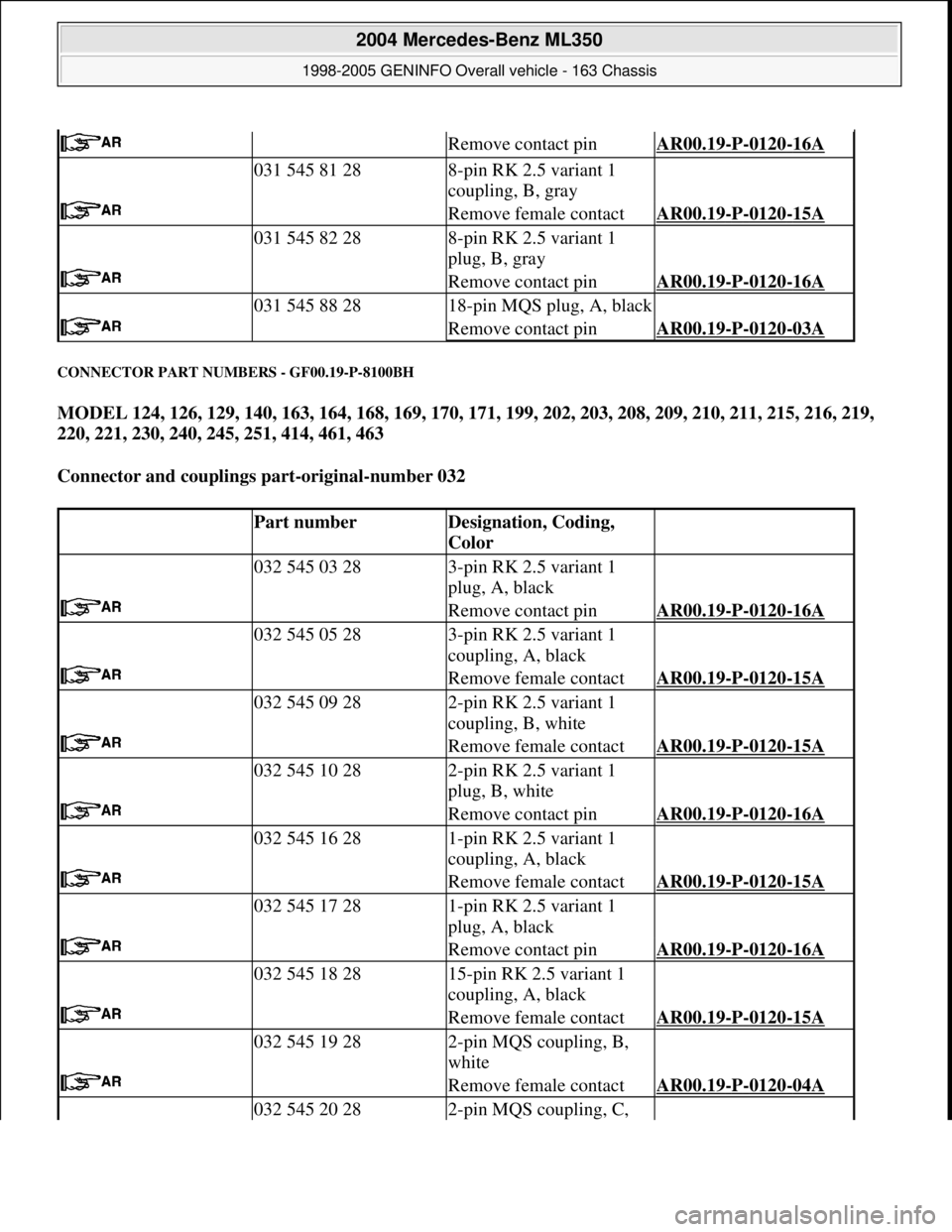

Remove contact pinAR00.19-P-0120-16A

031 545 81 288-pin RK 2.5 variant 1
coupling, B, gray
Remove female contactAR00.19-P-0120-15A

031 545 82 288-pin RK 2.5 variant 1
plug, B, gray
Remove contact pinAR00.19-P-0120-16A

031 545 88 2818-pin MQS plug, A, black
Remove contact pinAR00.19-P-0120-03A

Part numberDesignation, Coding,
Color

032 545 03 283-pin RK 2.5 variant 1
plug, A, black
Remove contact pinAR00.19-P-0120-16A

032 545 05 283-pin RK 2.5 variant 1
coupling, A, black
Remove female contactAR00.19-P-0120-15A

032 545 09 282-pin RK 2.5 variant 1
coupling, B, white
Remove female contactAR00.19-P-0120-15A

032 545 10 282-pin RK 2.5 variant 1
plug, B, white
Remove contact pinAR00.19-P-0120-16A

032 545 16 281-pin RK 2.5 variant 1
coupling, A, black
Remove female contactAR00.19-P-0120-15A

032 545 17 281-pin RK 2.5 variant 1
plug, A, black
Remove contact pinAR00.19-P-0120-16A

032 545 18 2815-pin RK 2.5 variant 1
coupling, A, black
Remove female contactAR00.19-P-0120-15A

032 545 19 282-pin MQS coupling, B,
white
Remove female contactAR00.19-P-0120-04A
032 545 20 282-pin MQS coupling, C,

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 68 © 2006 Mitchell Repair Information Company, LLC.

CONTACT PART NUMBERS - GF00.19-P-8100BI
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 033

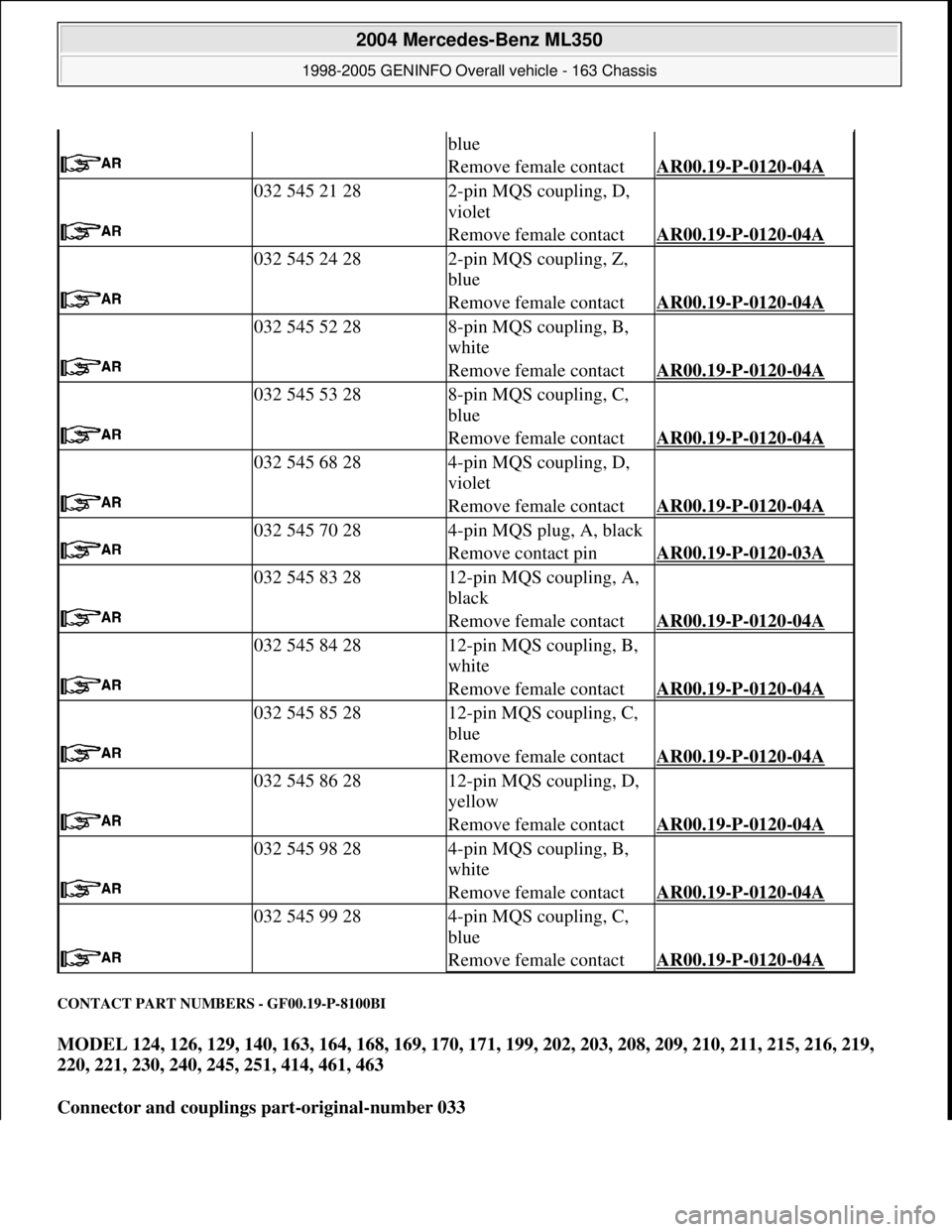

blue
Remove female contactAR00.19-P-0120-04A

032 545 21 282-pin MQS coupling, D,
violet
Remove female contactAR00.19-P-0120-04A

032 545 24 282-pin MQS coupling, Z,
blue
Remove female contactAR00.19-P-0120-04A

032 545 52 288-pin MQS coupling, B,
white
Remove female contactAR00.19-P-0120-04A

032 545 53 288-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A

032 545 68 284-pin MQS coupling, D,
violet
Remove female contactAR00.19-P-0120-04A

032 545 70 284-pin MQS plug, A, black
Remove contact pinAR00.19-P-0120-03A

032 545 83 2812-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

032 545 84 2812-pin MQS coupling, B,
white
Remove female contactAR00.19-P-0120-04A

032 545 85 2812-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A

032 545 86 2812-pin MQS coupling, D,
yellow
Remove female contactAR00.19-P-0120-04A

032 545 98 284-pin MQS coupling, B,
white
Remove female contactAR00.19-P-0120-04A

032 545 99 284-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 69 © 2006 Mitchell Repair Information Company, LLC.

CONNECTOR PART NUMBERS - GF00.19-P-8100BJ
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 034

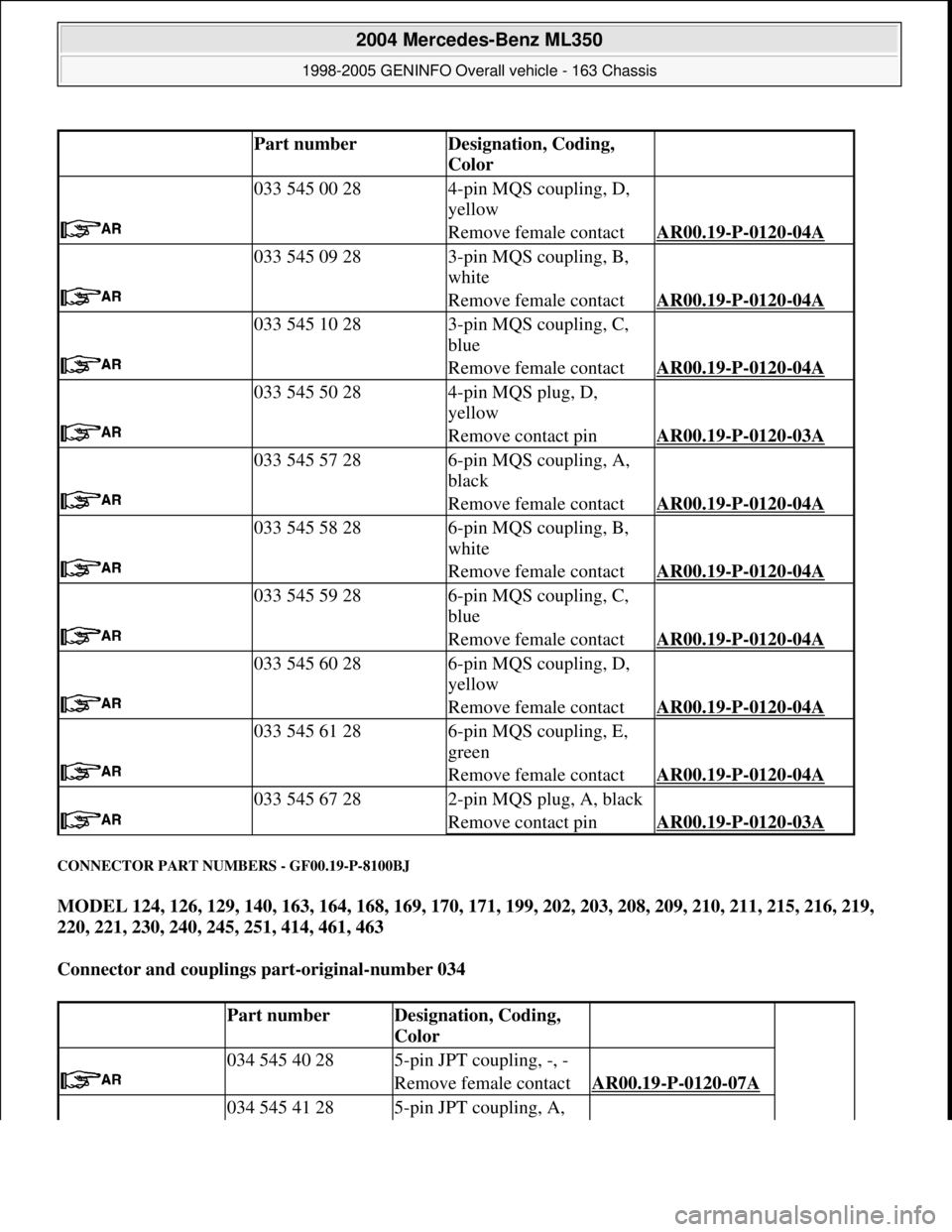

Part numberDesignation, Coding,
Color

033 545 00 284-pin MQS coupling, D,
yellow
Remove female contactAR00.19-P-0120-04A

033 545 09 283-pin MQS coupling, B,
white
Remove female contactAR00.19-P-0120-04A

033 545 10 283-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A

033 545 50 284-pin MQS plug, D,
yellow
Remove contact pinAR00.19-P-0120-03A

033 545 57 286-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

033 545 58 286-pin MQS coupling, B,
white
Remove female contactAR00.19-P-0120-04A

033 545 59 286-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A

033 545 60 286-pin MQS coupling, D,
yellow
Remove female contactAR00.19-P-0120-04A

033 545 61 286-pin MQS coupling, E,
green
Remove female contactAR00.19-P-0120-04A

033 545 67 282-pin MQS plug, A, black
Remove contact pinAR00.19-P-0120-03A
Part numberDesignation, Coding,
Color

034 545 40 285-pin JPT coupling, -, -
Remove female contactAR00.19-P-0120-07A
034 545 41 285-pin JPT coupling, A,

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 70 © 2006 Mitchell Repair Information Company, LLC.

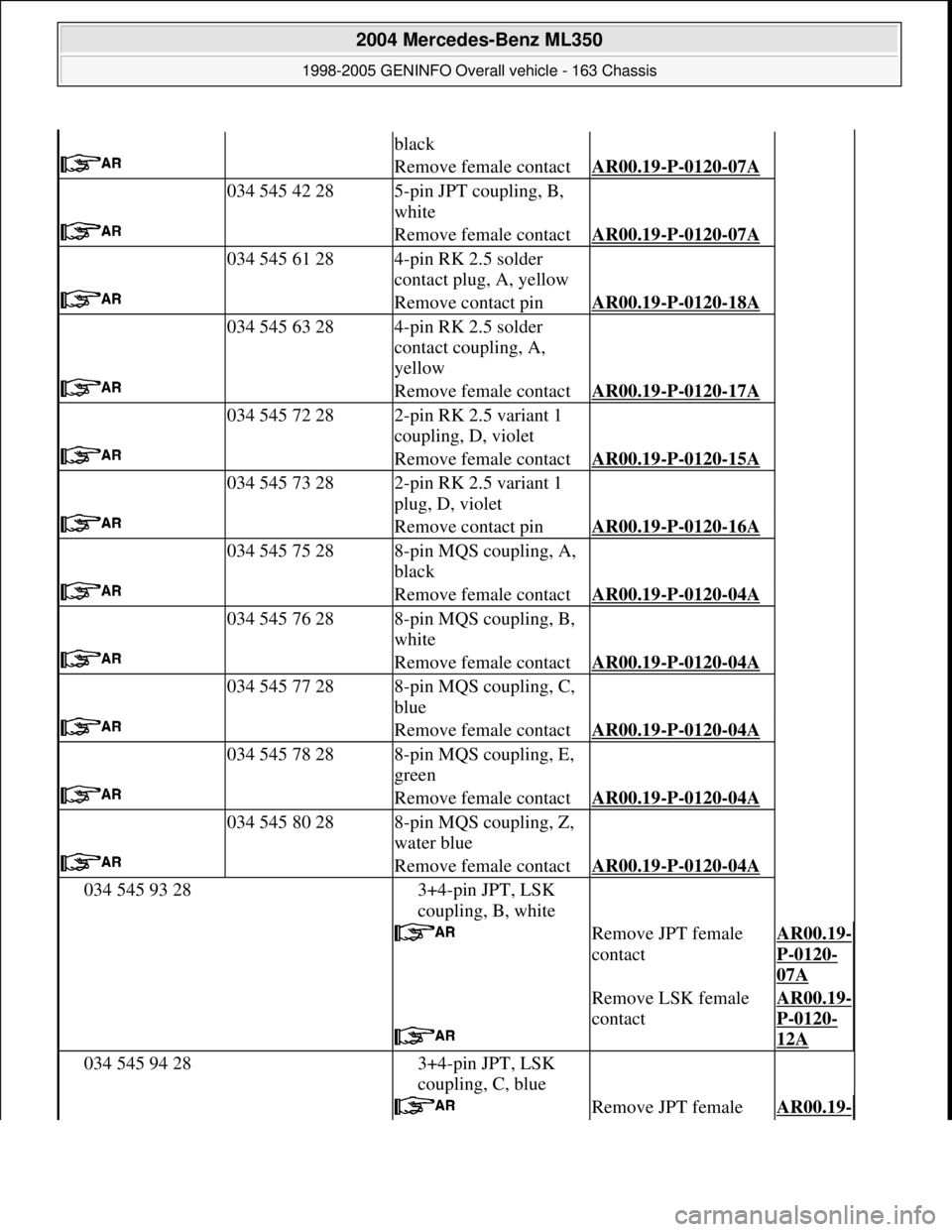

black
Remove female contactAR00.19-P-0120-07A

034 545 42 285-pin JPT coupling, B,
white
Remove female contactAR00.19-P-0120-07A

034 545 61 284-pin RK 2.5 solder
contact plug, A, yellow
Remove contact pinAR00.19-P-0120-18A

034 545 63 284-pin RK 2.5 solder
contact coupling, A,
yellow
Remove female contactAR00.19-P-0120-17A

034 545 72 282-pin RK 2.5 variant 1
coupling, D, violet
Remove female contactAR00.19-P-0120-15A

034 545 73 282-pin RK 2.5 variant 1
plug, D, violet
Remove contact pinAR00.19-P-0120-16A

034 545 75 288-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

034 545 76 288-pin MQS coupling, B,
white
Remove female contactAR00.19-P-0120-04A

034 545 77 288-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A

034 545 78 288-pin MQS coupling, E,
green
Remove female contactAR00.19-P-0120-04A

034 545 80 288-pin MQS coupling, Z,
water blue
Remove female contactAR00.19-P-0120-04A
034 545 93 283+4-pin JPT, LSK
coupling, B, white
Remove JPT female
contactAR00.19-
P-0120-
07A

Remove LSK female
contactAR00.19-
P-0120-
12A
034 545 94 283+4-pin JPT, LSK
coupling, C, blue
Remove JPT female AR00.19-

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 71 © 2006 Mitchell Repair Information Company, LLC.

CONNECTOR PART NUMBERS - GF00.19-P-8100BK
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 035
contactP-0120-
07A

Remove LSK female
contactAR00.19-
P-0120-
12A
Part number
Designation, Coding,
Color


035 545 26 284-pin RK 2.5 variant 1
coupling, D, violet
Remove female contactAR00.19-P-0120-15A

035 545 27 284-pin RK 2.5 variant 1
plug, D, violet
Remove contact pinAR00.19-P-0120-16A

035 545 30 288-pin RK 2.5 variant 1
coupling, D, violet
Remove female contactAR00.19-P-0120-15A

035 545 31 288-pin RK 2.5 variant 1
plug, D, violet
Remove contact pinAR00.19-P-0120-16A

035 545 33 284-pin RK 2.5 variant 1
coupling, E, green
Remove female contactAR00.19-P-0120-15A

035 545 34 288-pin RK 2.5 variant 1
coupling, E, green
Remove female contactAR00.19-P-0120-15A

035 545 35 288-pin RK 2.5 variant 1
plug, E, green
Remove contact pinAR00.19-P-0120-16A

035 545 36 284-pin RK 2.5 variant 1
plug, E, green
Remove contact pinAR00.19-P-0120-16A

035 545 45 286-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A
035 545 46 286-pin MQS coupling, B,
white

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 72 © 2006 Mitchell Repair Information Company, LLC.

CONNECTOR PART NUMBERS - GF00.19-P-8100BL
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 036

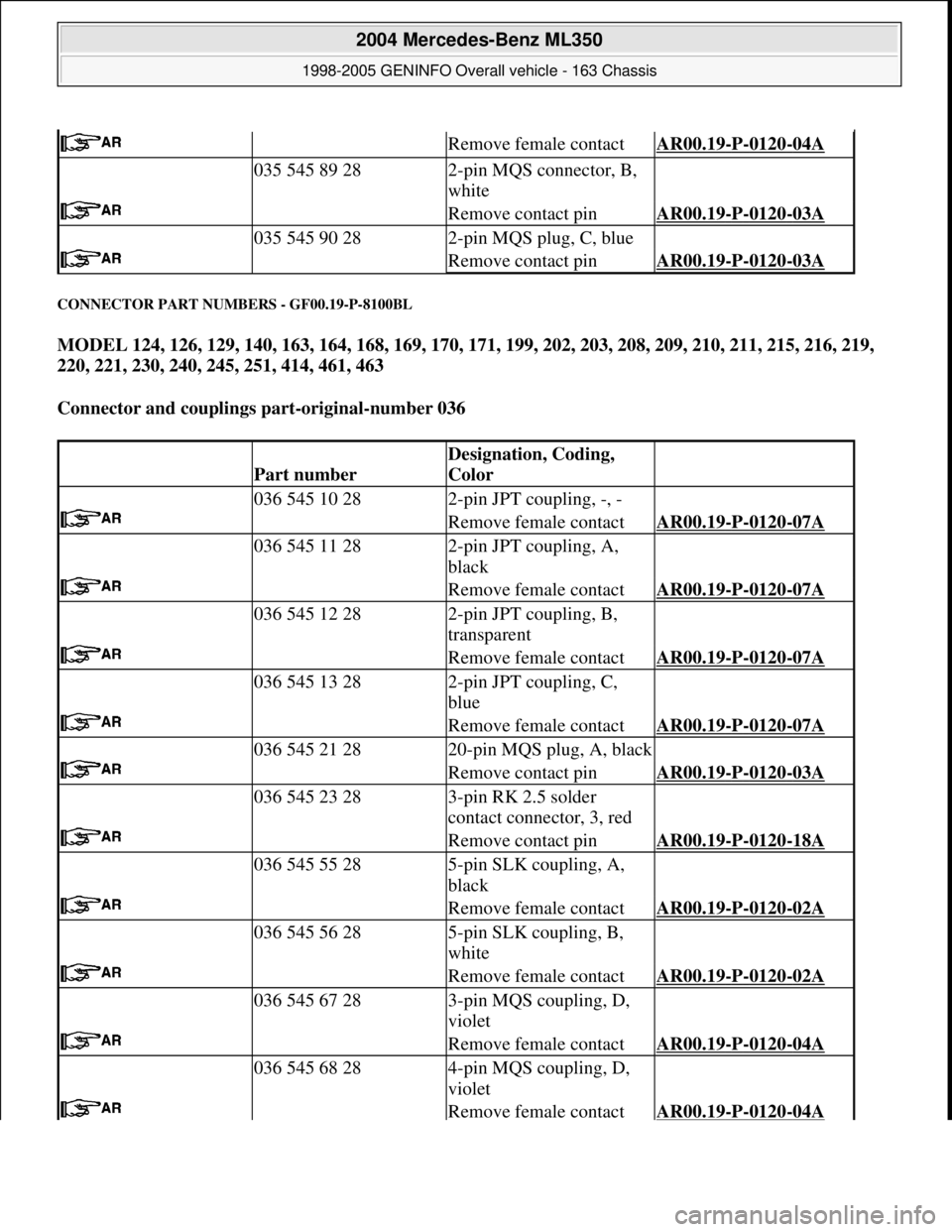

Remove female contactAR00.19-P-0120-04A

035 545 89 282-pin MQS connector, B,
white
Remove contact pinAR00.19-P-0120-03A

035 545 90 282-pin MQS plug, C, blue
Remove contact pinAR00.19-P-0120-03A
Part number
Designation, Coding,
Color


036 545 10 282-pin JPT coupling, -, -
Remove female contactAR00.19-P-0120-07A

036 545 11 282-pin JPT coupling, A,
black
Remove female contactAR00.19-P-0120-07A

036 545 12 282-pin JPT coupling, B,
transparent
Remove female contactAR00.19-P-0120-07A

036 545 13 282-pin JPT coupling, C,
blue
Remove female contactAR00.19-P-0120-07A

036 545 21 2820-pin MQS plug, A, black
Remove contact pinAR00.19-P-0120-03A

036 545 23 283-pin RK 2.5 solder
contact connector, 3, red
Remove contact pinAR00.19-P-0120-18A

036 545 55 285-pin SLK coupling, A,
black
Remove female contactAR00.19-P-0120-02A

036 545 56 285-pin SLK coupling, B,
white
Remove female contactAR00.19-P-0120-02A

036 545 67 283-pin MQS coupling, D,
violet
Remove female contactAR00.19-P-0120-04A

036 545 68 284-pin MQS coupling, D,
violet
Remove female contactAR00.19-P-0120-04A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 73 © 2006 Mitchell Repair Information Company, LLC.

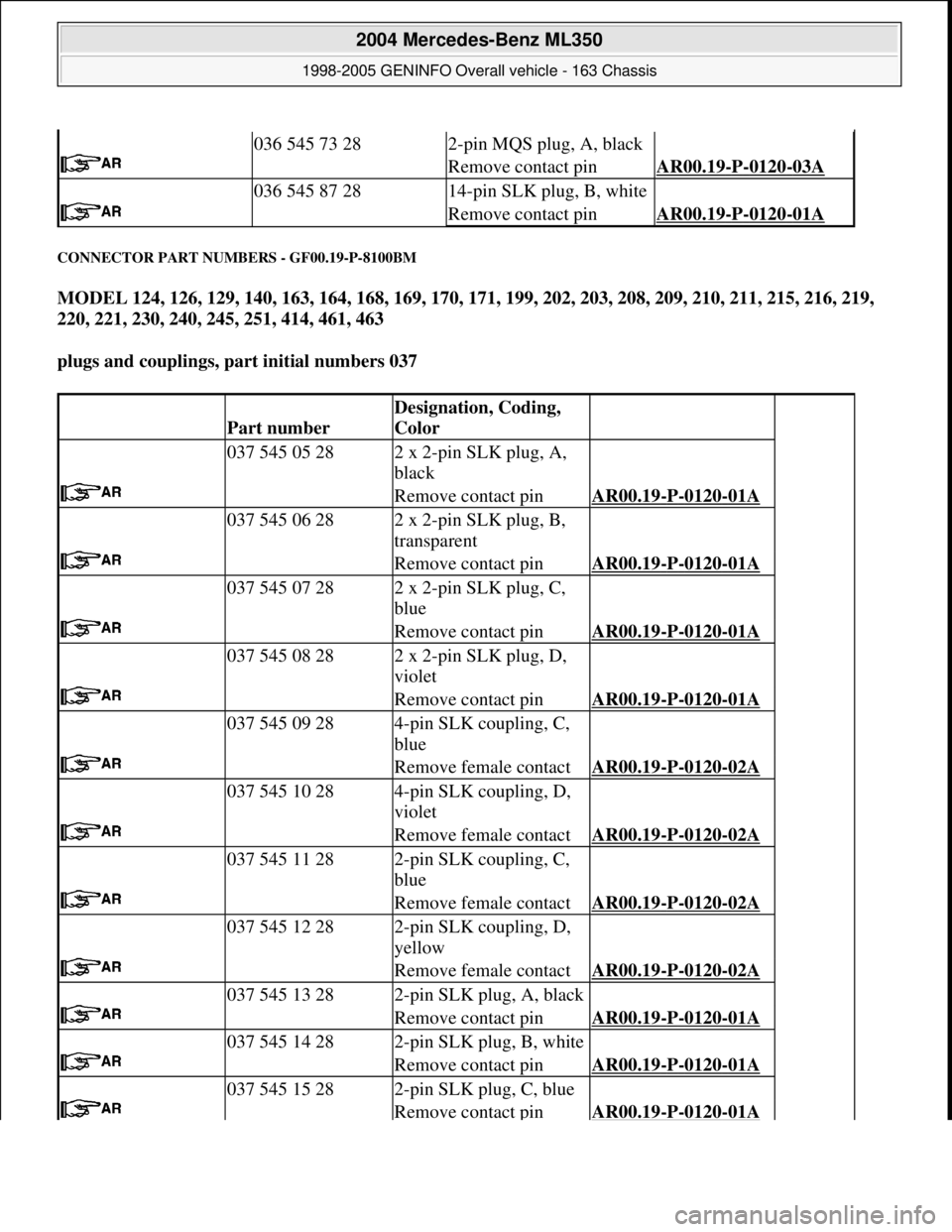

CONNECTOR PART NUMBERS - GF00.19-P-8100BM
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
plugs and couplings, part initial numbers 037

036 545 73 282-pin MQS plug, A, black
Remove contact pinAR00.19-P-0120-03A

036 545 87 2814-pin SLK plug, B, white
Remove contact pinAR00.19-P-0120-01A
Part number
Designation, Coding,
Color


037 545 05 282 x 2-pin SLK plug, A,
black
Remove contact pinAR00.19-P-0120-01A

037 545 06 282 x 2-pin SLK plug, B,
transparent
Remove contact pinAR00.19-P-0120-01A

037 545 07 282 x 2-pin SLK plug, C,
blue
Remove contact pinAR00.19-P-0120-01A

037 545 08 282 x 2-pin SLK plug, D,
violet
Remove contact pinAR00.19-P-0120-01A

037 545 09 284-pin SLK coupling, C,
blue
Remove female contactAR00.19-P-0120-02A

037 545 10 284-pin SLK coupling, D,
violet
Remove female contactAR00.19-P-0120-02A

037 545 11 282-pin SLK coupling, C,
blue
Remove female contactAR00.19-P-0120-02A

037 545 12 282-pin SLK coupling, D,
yellow
Remove female contactAR00.19-P-0120-02A

037 545 13 282-pin SLK plug, A, black
Remove contact pinAR00.19-P-0120-01A

037 545 14 282-pin SLK plug, B, white
Remove contact pinAR00.19-P-0120-01A

037 545 15 282-pin SLK plug, C, blue
Remove contact pinAR00.19-P-0120-01A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 74 © 2006 Mitchell Repair Information Company, LLC.

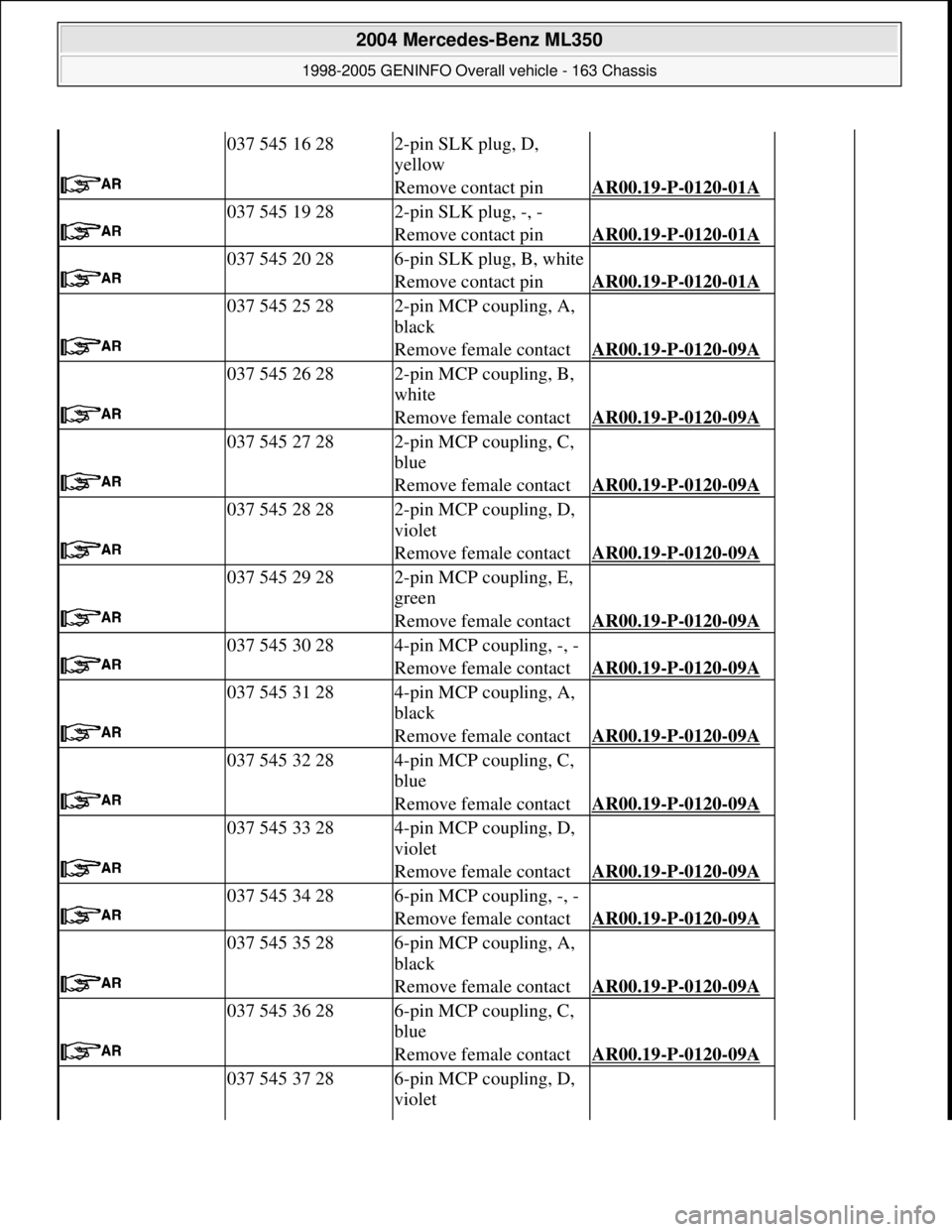

037 545 16 282-pin SLK plug, D,
yellow
Remove contact pinAR00.19-P-0120-01A

037 545 19 282-pin SLK plug, -, -
Remove contact pinAR00.19-P-0120-01A

037 545 20 286-pin SLK plug, B, white
Remove contact pinAR00.19-P-0120-01A

037 545 25 282-pin MCP coupling, A,
black
Remove female contactAR00.19-P-0120-09A

037 545 26 282-pin MCP coupling, B,
white
Remove female contactAR00.19-P-0120-09A

037 545 27 282-pin MCP coupling, C,
blue
Remove female contactAR00.19-P-0120-09A

037 545 28 282-pin MCP coupling, D,
violet
Remove female contactAR00.19-P-0120-09A

037 545 29 282-pin MCP coupling, E,
green
Remove female contactAR00.19-P-0120-09A

037 545 30 284-pin MCP coupling, -, -
Remove female contactAR00.19-P-0120-09A

037 545 31 284-pin MCP coupling, A,
black
Remove female contactAR00.19-P-0120-09A

037 545 32 284-pin MCP coupling, C,
blue
Remove female contactAR00.19-P-0120-09A

037 545 33 284-pin MCP coupling, D,
violet
Remove female contactAR00.19-P-0120-09A

037 545 34 286-pin MCP coupling, -, -
Remove female contactAR00.19-P-0120-09A

037 545 35 286-pin MCP coupling, A,
black
Remove female contactAR00.19-P-0120-09A

037 545 36 286-pin MCP coupling, C,
blue
Remove female contactAR00.19-P-0120-09A
037 545 37 286-pin MCP coupling, D,
violet

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 75 © 2006 Mitchell Repair Information Company, LLC.
