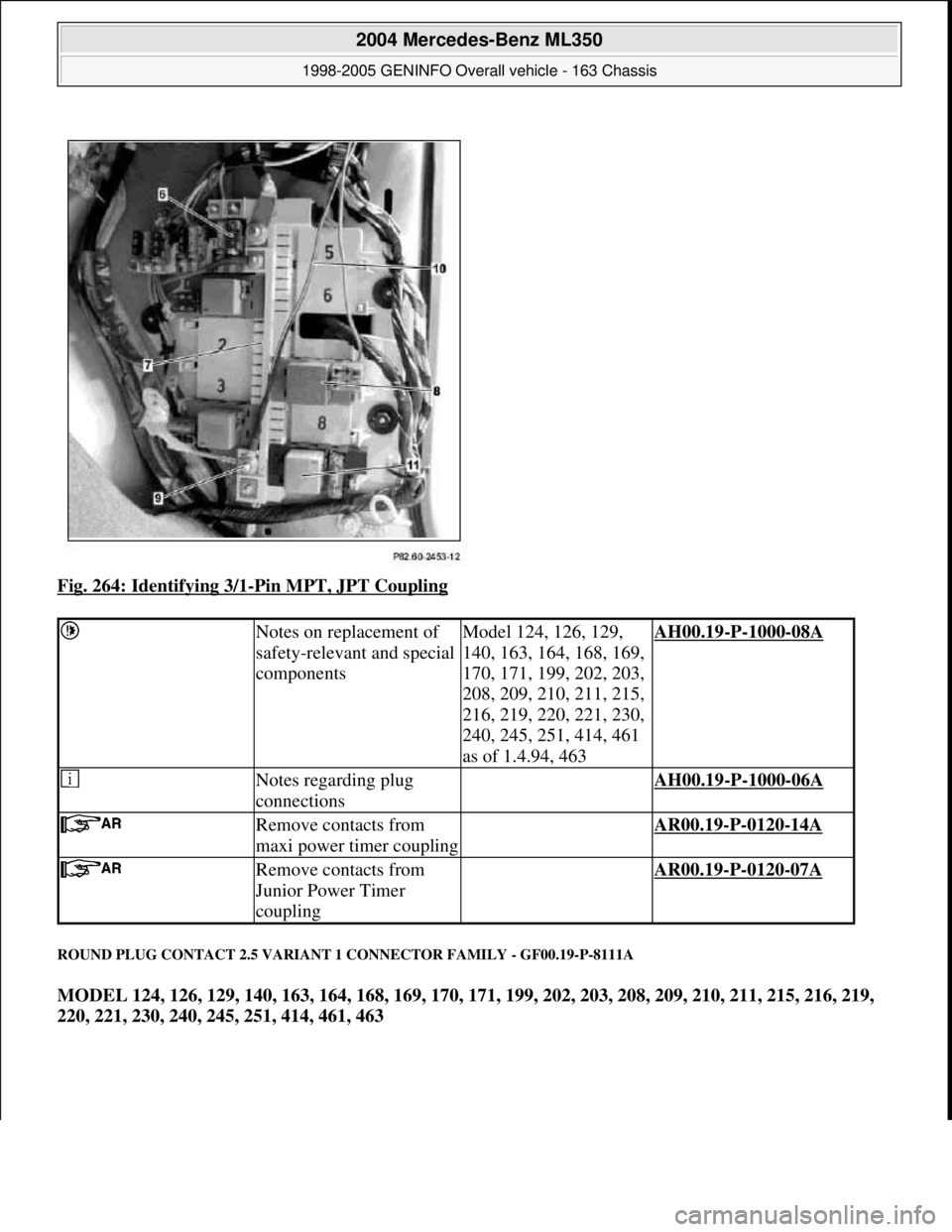

Fig. 264: Identifying 3/1-Pin MPT, JPT Coupling
ROUND PLUG CONTACT 2.5 VARIANT 1 CONNECTOR FAMILY - GF00.19-P-8111A
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Notes on replacement of
safety-relevant and special
componentsModel 124, 126, 129,
140, 163, 164, 168, 169,
170, 171, 199, 202, 203,
208, 209, 210, 211, 215,
216, 219, 220, 221, 230,
240, 245, 251, 414, 461
as of 1.4.94, 463AH00.19-P-1000-08A
Notes regarding plug
connections AH00.19-P-1000-06A
Remove contacts from
maxi power timer coupling AR00.19-P-0120-14A
Remove contacts from
Junior Power Timer
coupling AR00.19-P-0120-07A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:47 PMPage 176 © 2006 Mitchell Repair Information Company, LLC.

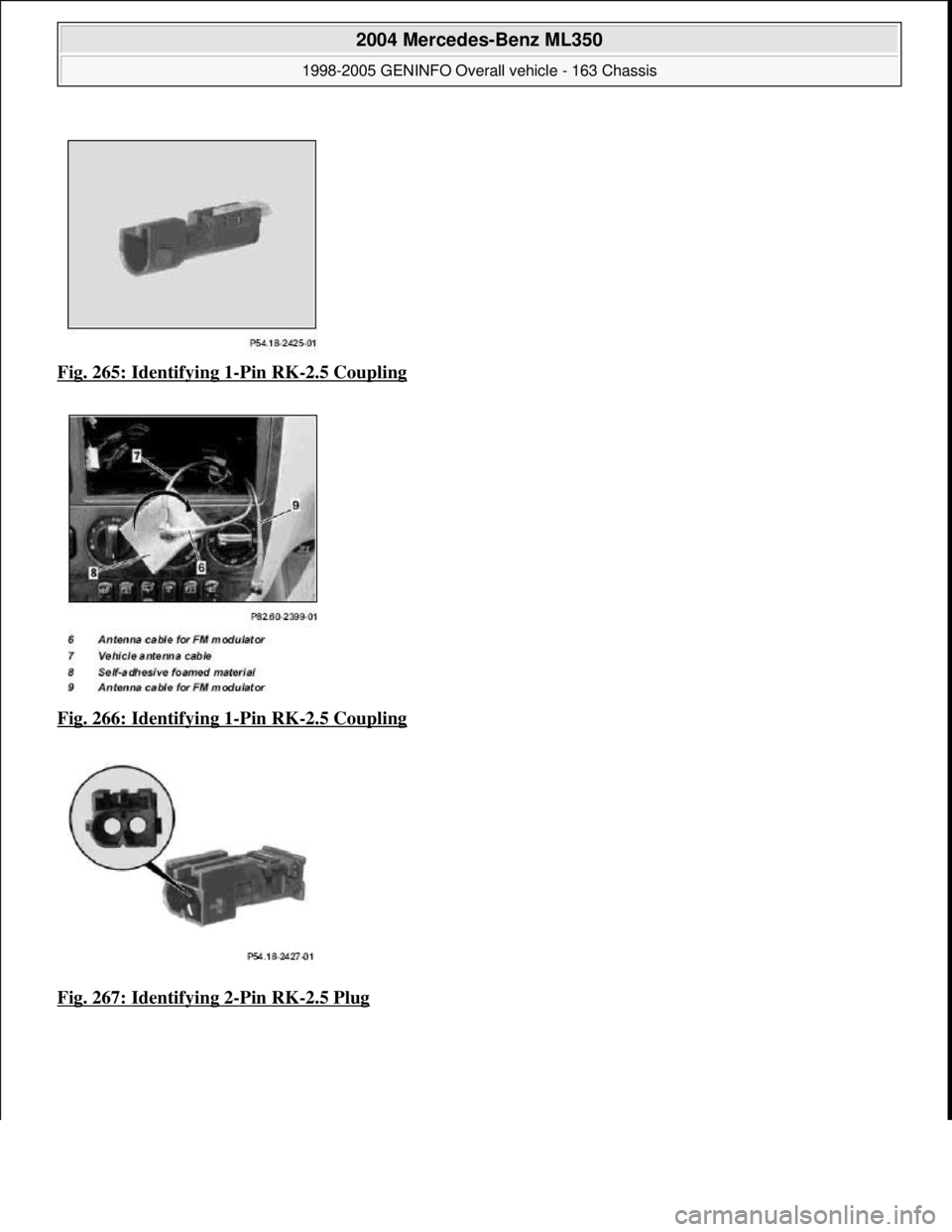

Fig. 265: Identifying 1-Pin RK-2.5 Coupling
Fig. 266: Identifying 1
-Pin RK-2.5 Coupling
Fig. 267: Identifying 2
-Pin RK-2.5 Plug

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:47 PMPage 177 © 2006 Mitchell Repair Information Company, LLC.

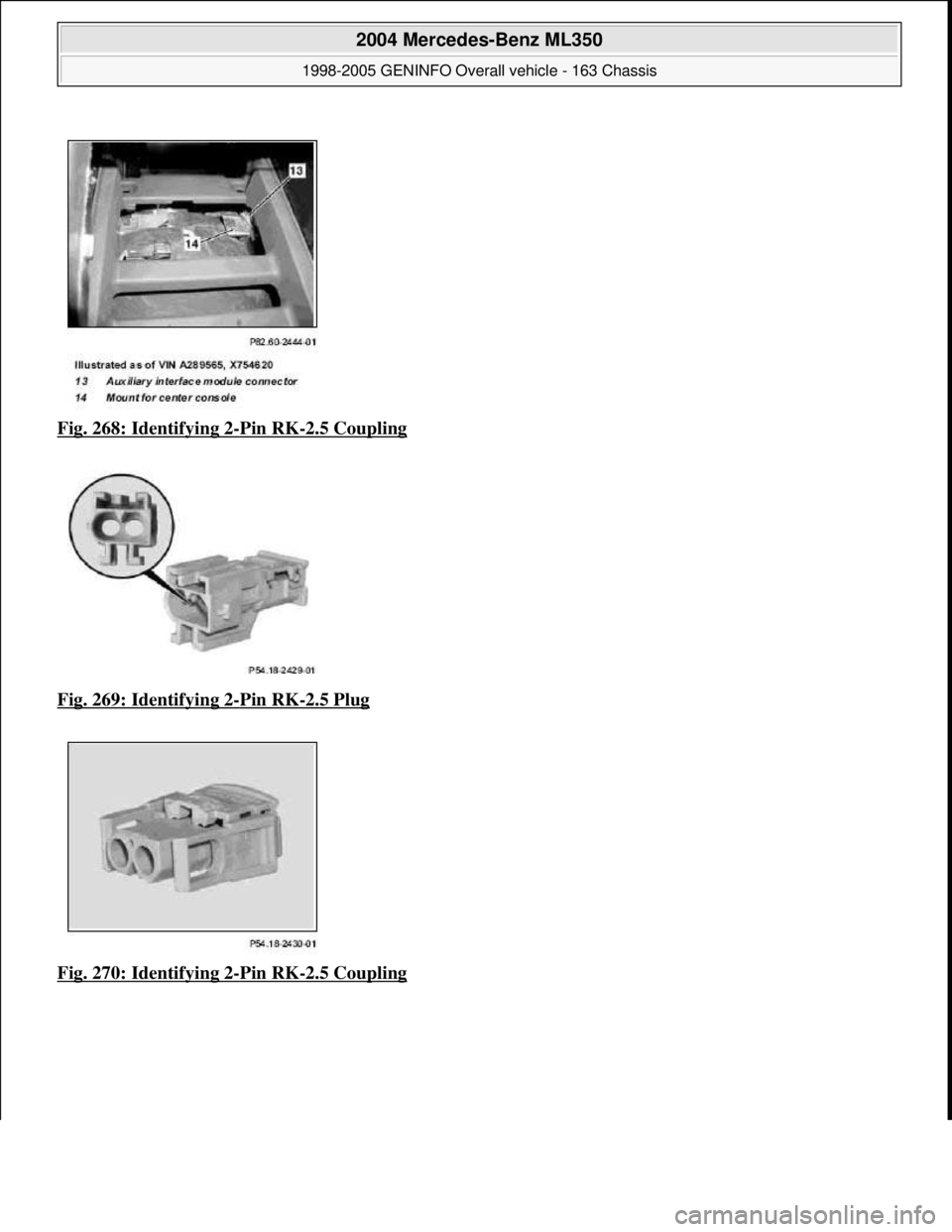

Fig. 268: Identifying 2-Pin RK-2.5 Coupling
Fig. 269: Identifying 2
-Pin RK-2.5 Plug
Fig. 270: Identifying 2
-Pin RK-2.5 Coupling

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:47 PMPage 178 © 2006 Mitchell Repair Information Company, LLC.

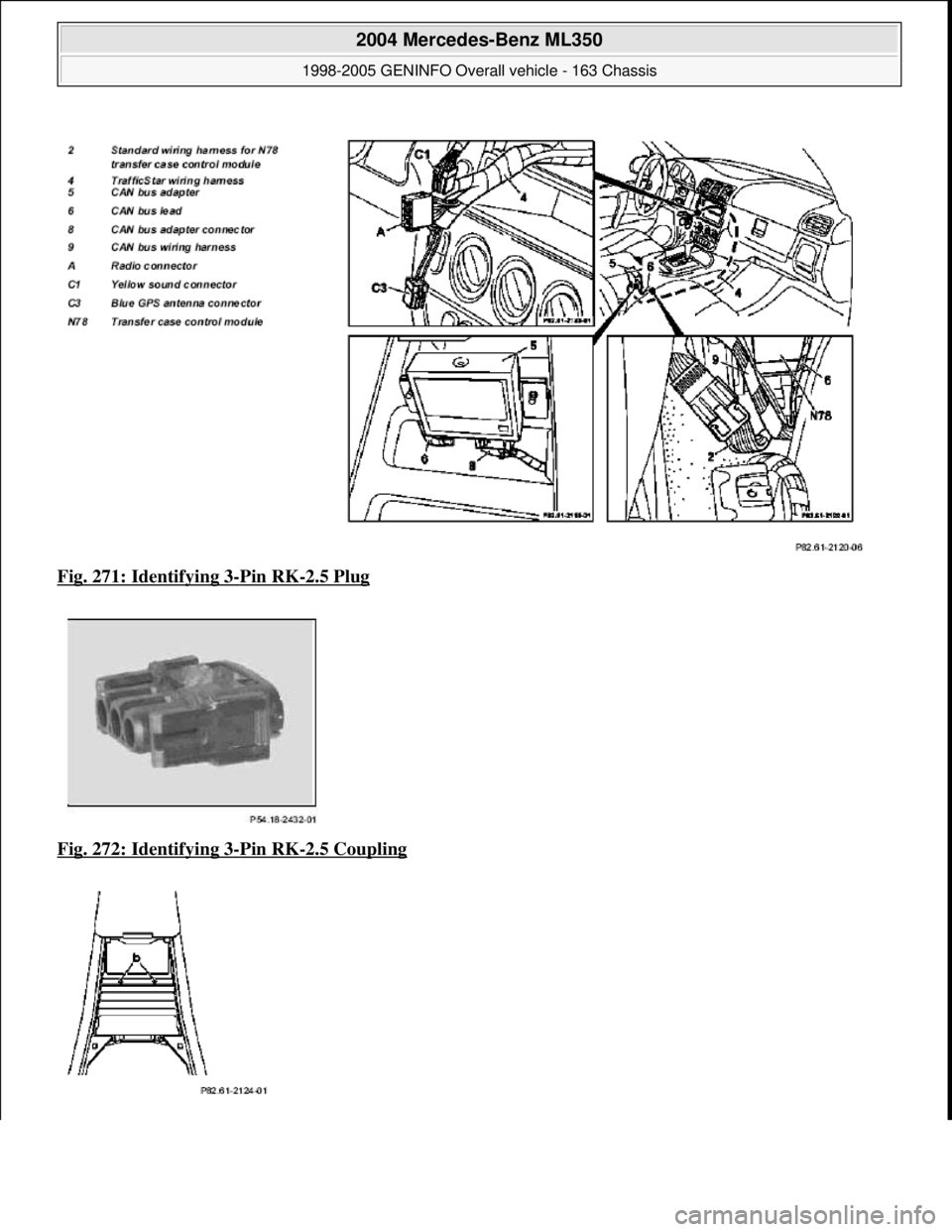

Fig. 271: Identifying 3-Pin RK-2.5 Plug
Fig. 272: Identifying 3
-Pin RK-2.5 Coupling

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:47 PMPage 179 © 2006 Mitchell Repair Information Company, LLC.

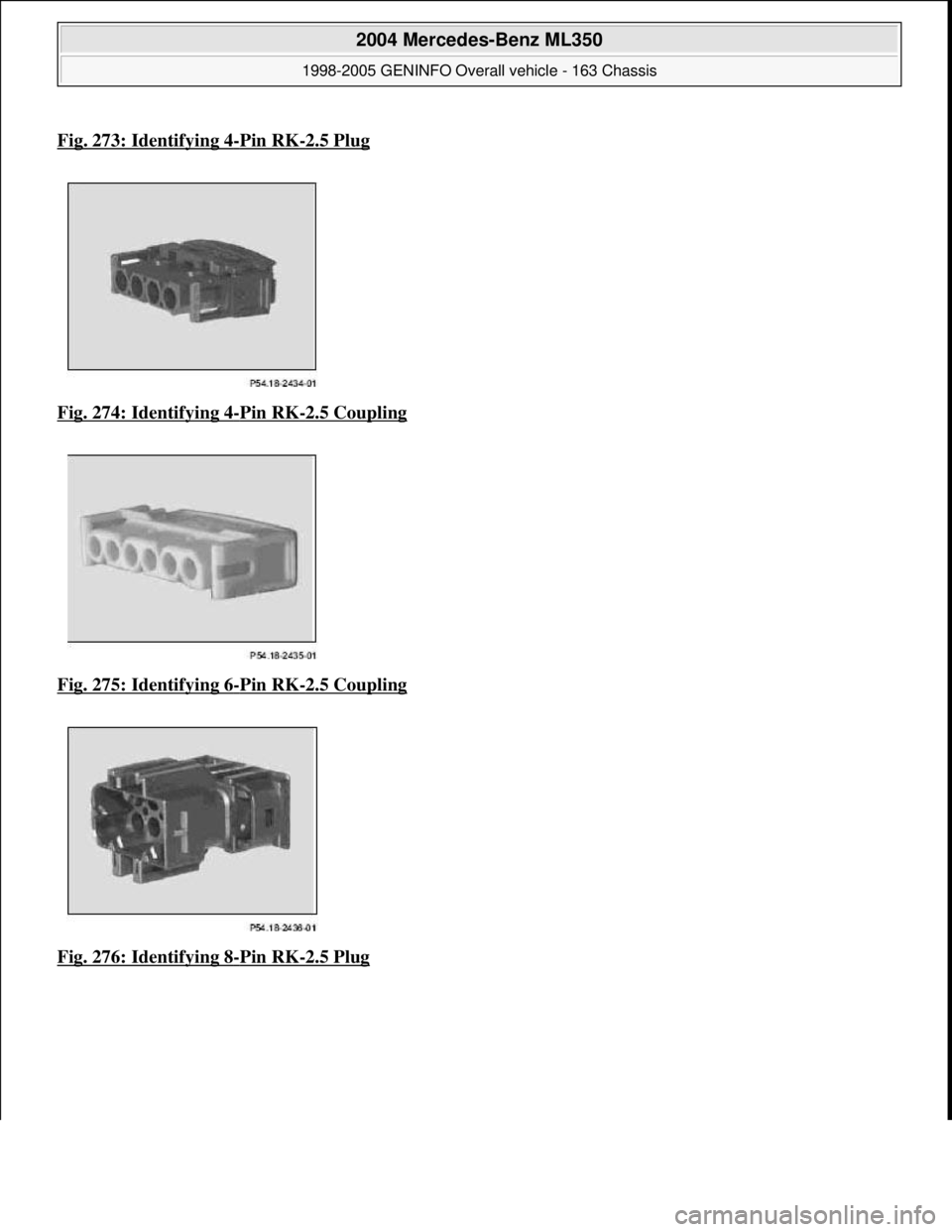

Fig. 273: Identifying 4-Pin RK-2.5 Plug
Fig. 274: Identifying 4
-Pin RK-2.5 Coupling
Fig. 275: Identifying 6
-Pin RK-2.5 Coupling
Fig. 276: Identifying 8
-Pin RK-2.5 Plug

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:47 PMPage 180 © 2006 Mitchell Repair Information Company, LLC.

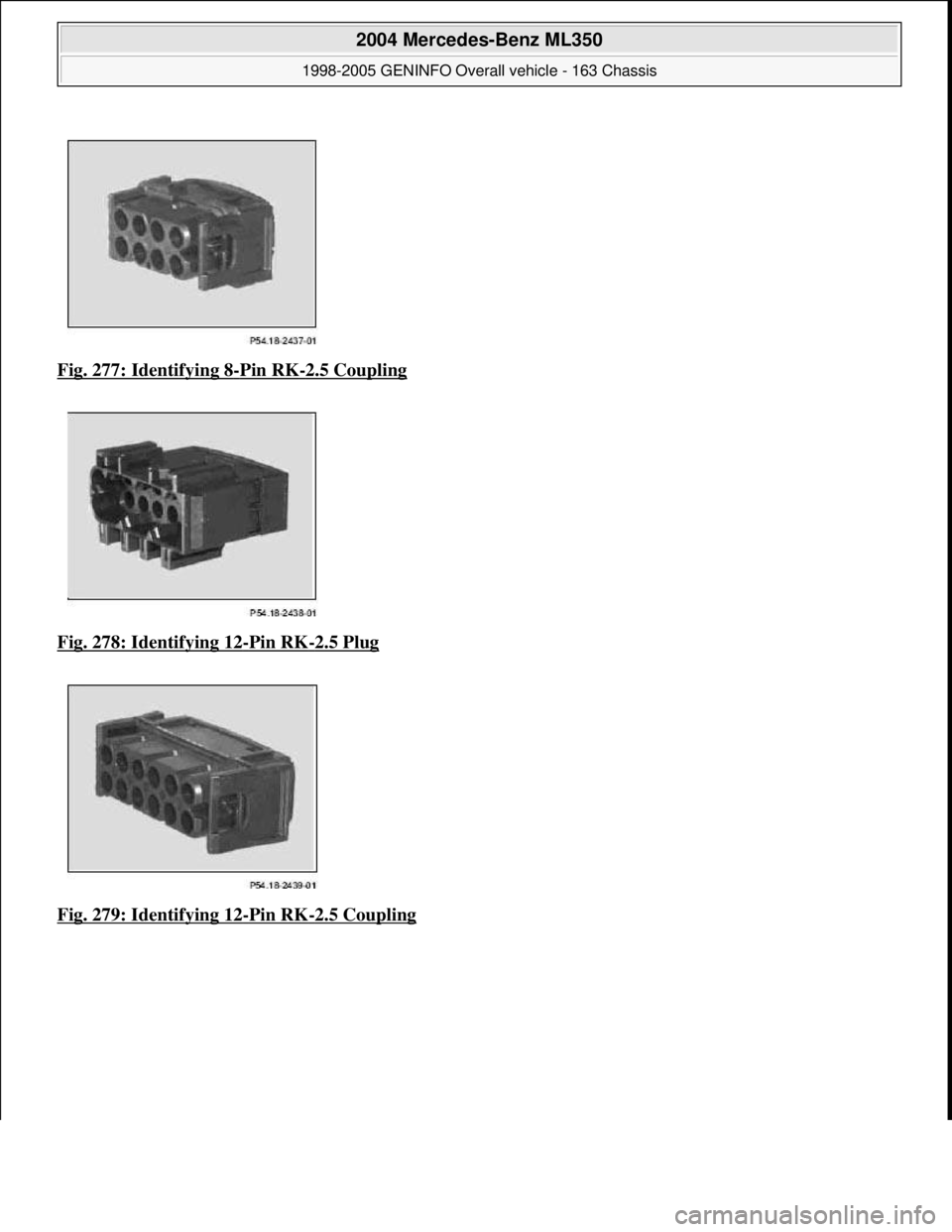

Fig. 277: Identifying 8-Pin RK-2.5 Coupling
Fig. 278: Identifying 12
-Pin RK-2.5 Plug
Fig. 279: Identifying 12
-Pin RK-2.5 Coupling

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:47 PMPage 181 © 2006 Mitchell Repair Information Company, LLC.

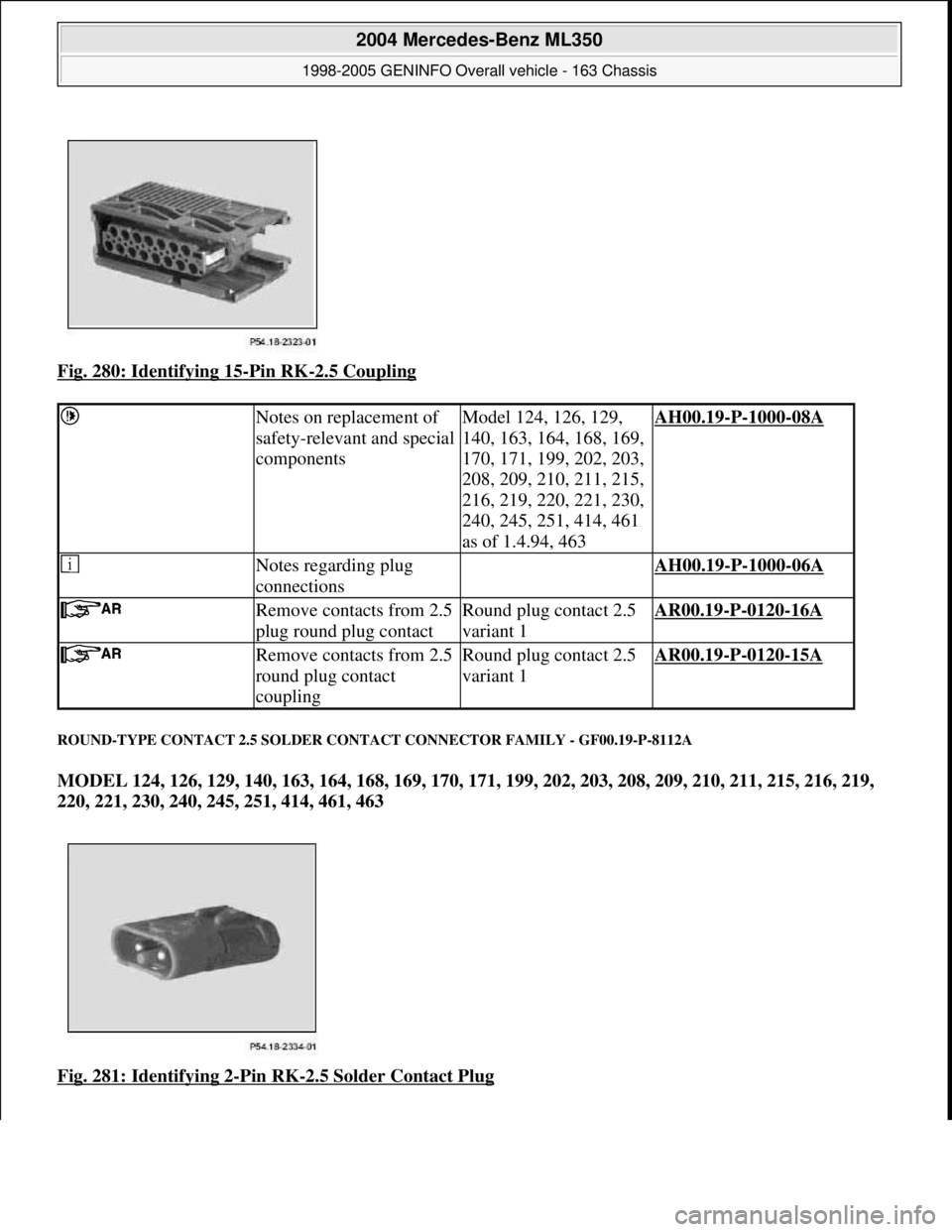

Fig. 280: Identifying 15-Pin RK-2.5 Coupling
ROUND-TYPE CONTACT 2.5 SOLDER CONTACT CONNECTOR FAMILY - GF00.19-P-8112A
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Fig. 281: Identifying 2
-Pin RK-2.5 Solder Contact Plug
Notes on replacement of
safety-relevant and special
componentsModel 124, 126, 129,
140, 163, 164, 168, 169,
170, 171, 199, 202, 203,
208, 209, 210, 211, 215,
216, 219, 220, 221, 230,
240, 245, 251, 414, 461
as of 1.4.94, 463AH00.19-P-1000-08A
Notes regarding plug
connections AH00.19-P-1000-06A
Remove contacts from 2.5
plug round plug contactRound plug contact 2.5
variant 1AR00.19-P-0120-16A
Remove contacts from 2.5
round plug contact
couplingRound plug contact 2.5
variant 1AR00.19-P-0120-15A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:47 PMPage 182 © 2006 Mitchell Repair Information Company, LLC.

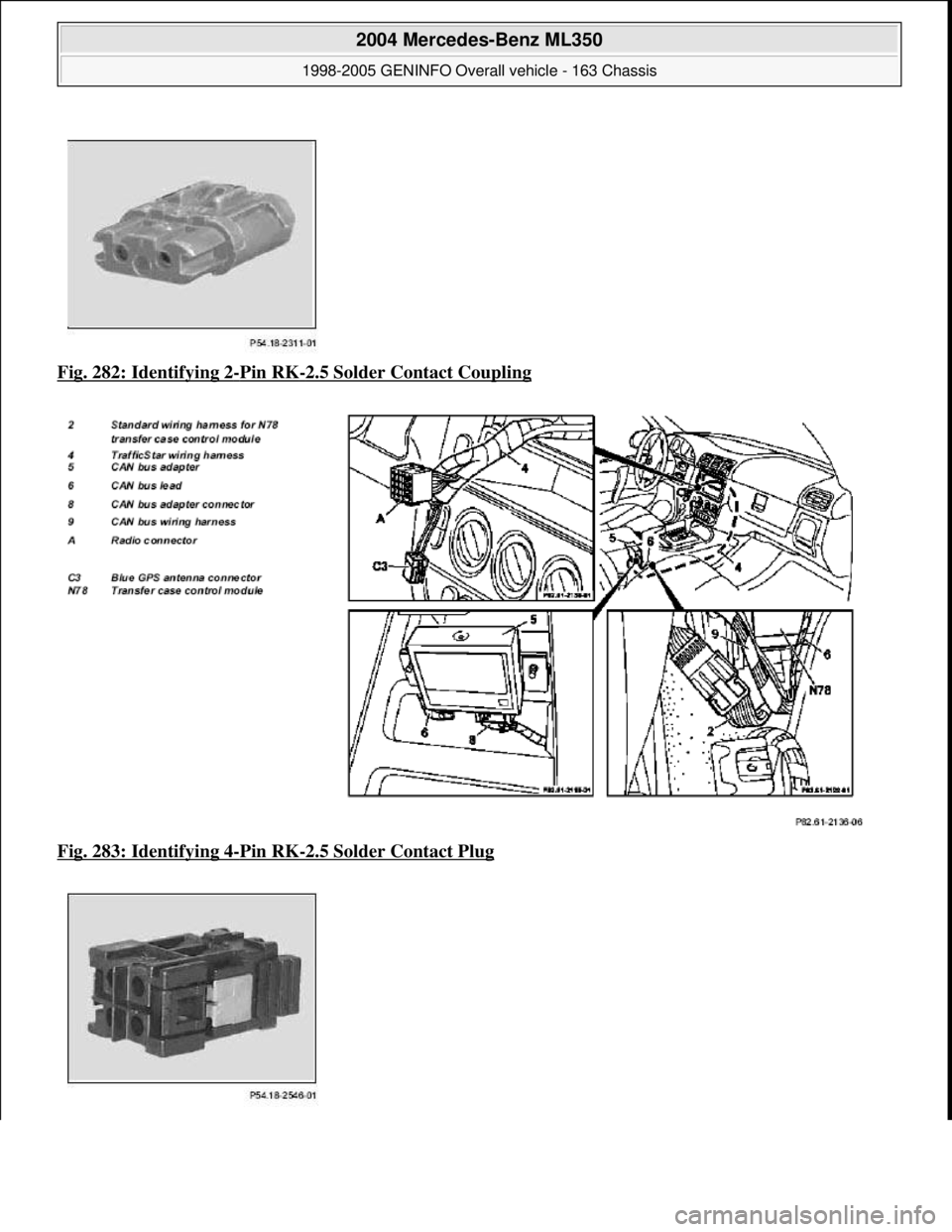

Fig. 282: Identifying 2-Pin RK-2.5 Solder Contact Coupling
Fig. 283: Identifying 4
-Pin RK-2.5 Solder Contact Plug

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:47 PMPage 183 © 2006 Mitchell Repair Information Company, LLC.

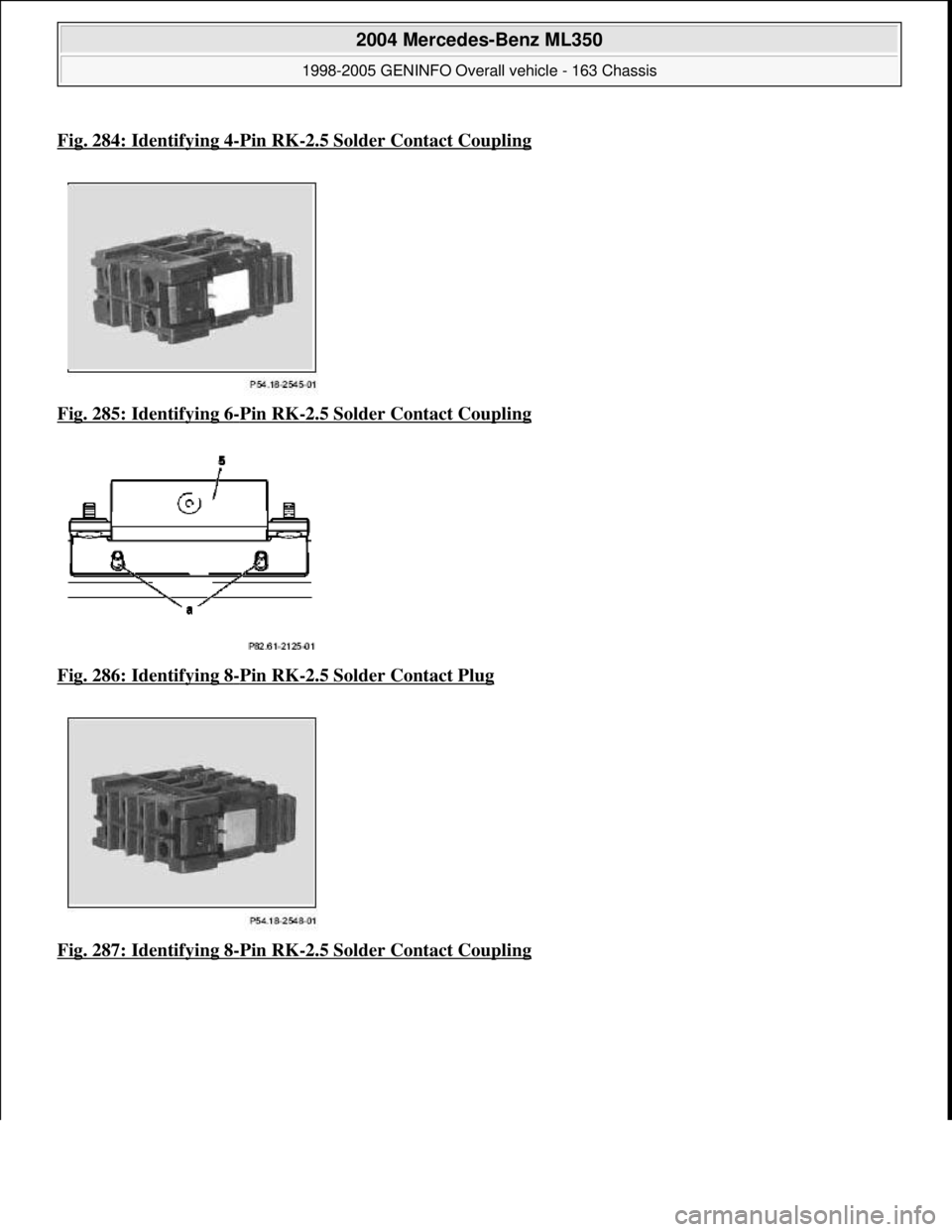

Fig. 284: Identifying 4-Pin RK-2.5 Solder Contact Coupling
Fig. 285: Identifying 6-Pin RK-2.5 Solder Contact Coupling
Fig. 286: Identifying 8
-Pin RK-2.5 Solder Contact Plug
Fig. 287: Identifying 8
-Pin RK-2.5 Solder Contact Coupling

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:47 PMPage 184 © 2006 Mitchell Repair Information Company, LLC.

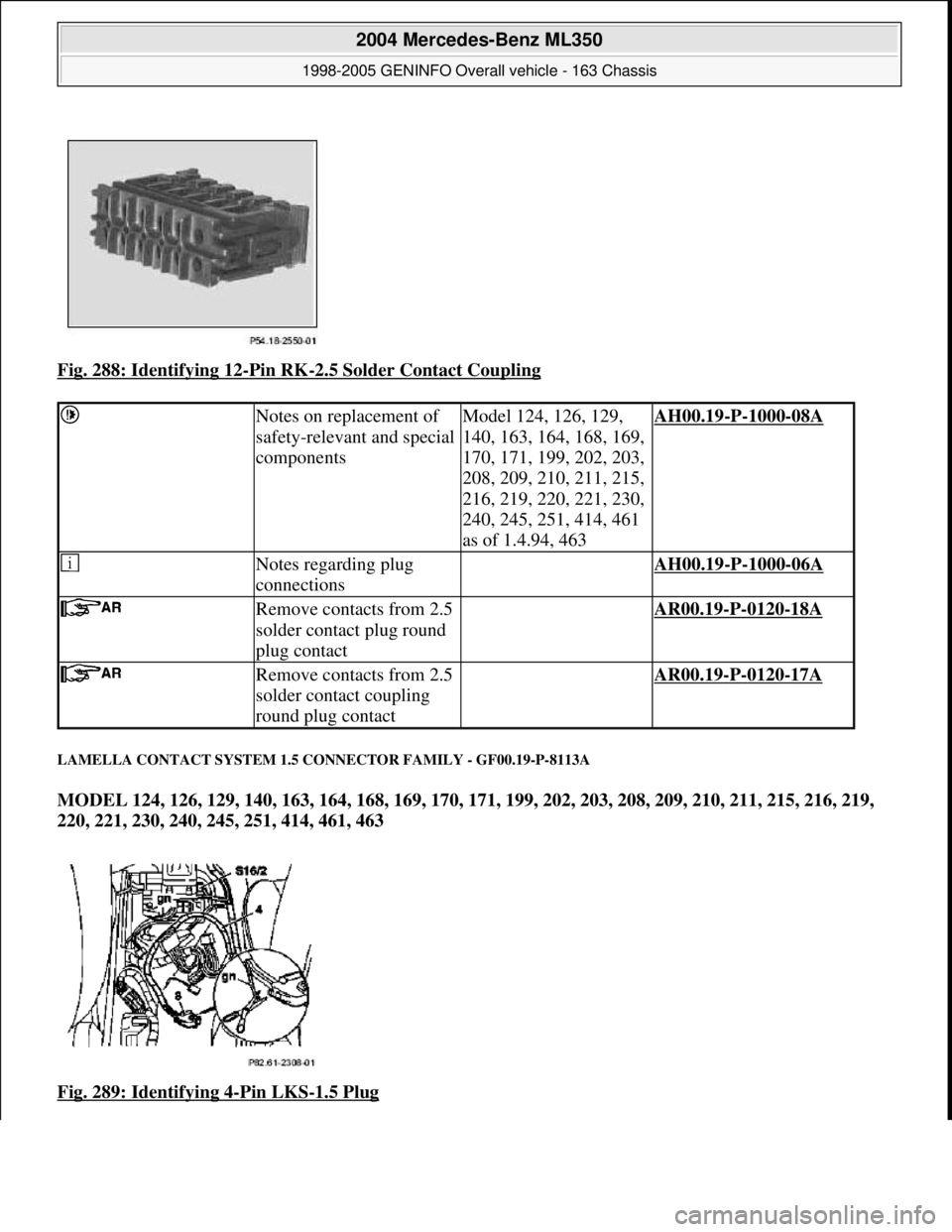

Fig. 288: Identifying 12-Pin RK-2.5 Solder Contact Coupling
