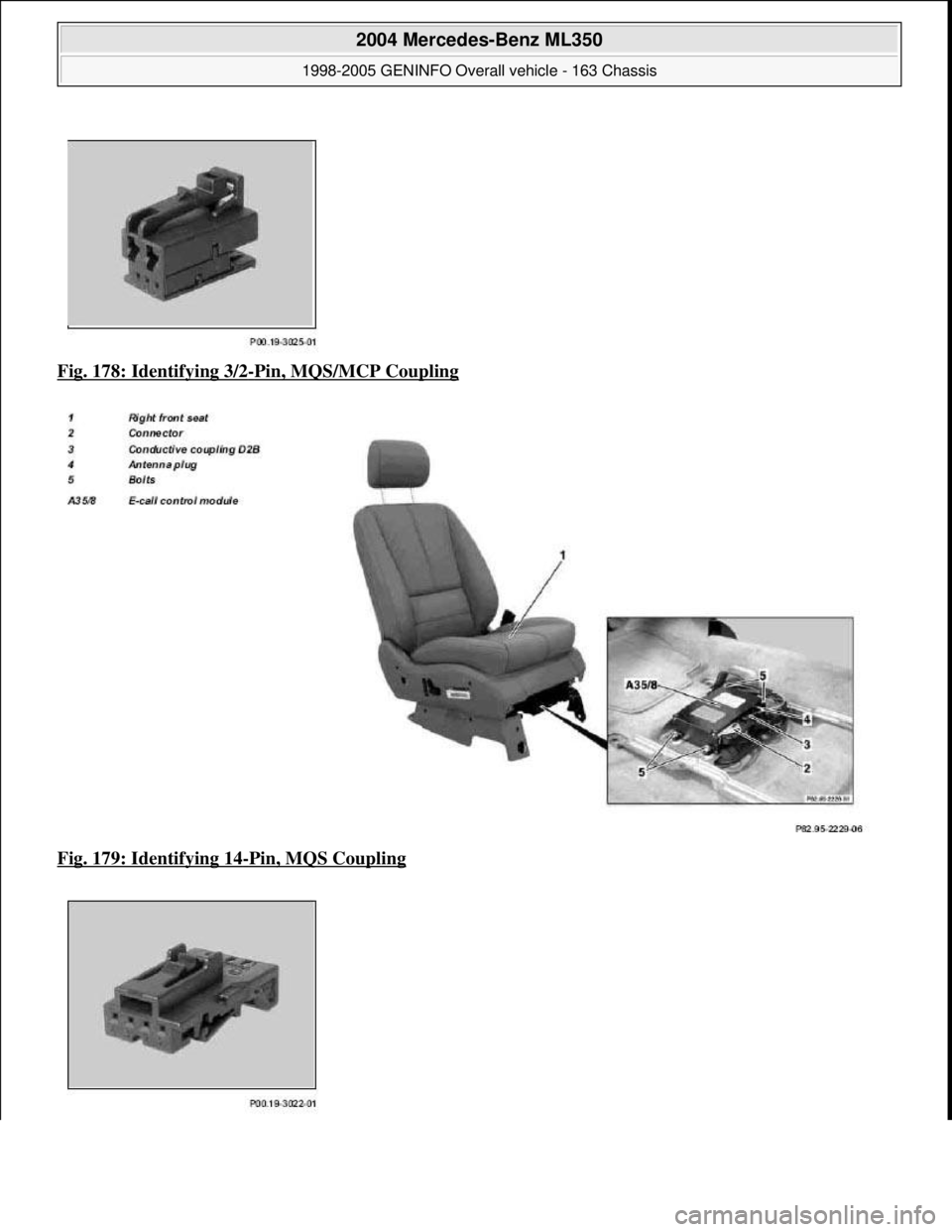

Fig. 178: Identifying 3/2-Pin, MQS/MCP Coupling
Fig. 179: Identifying 14
-Pin, MQS Coupling
2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:46 PMPage 140 © 2006 Mitchell Repair Information Company, LLC.

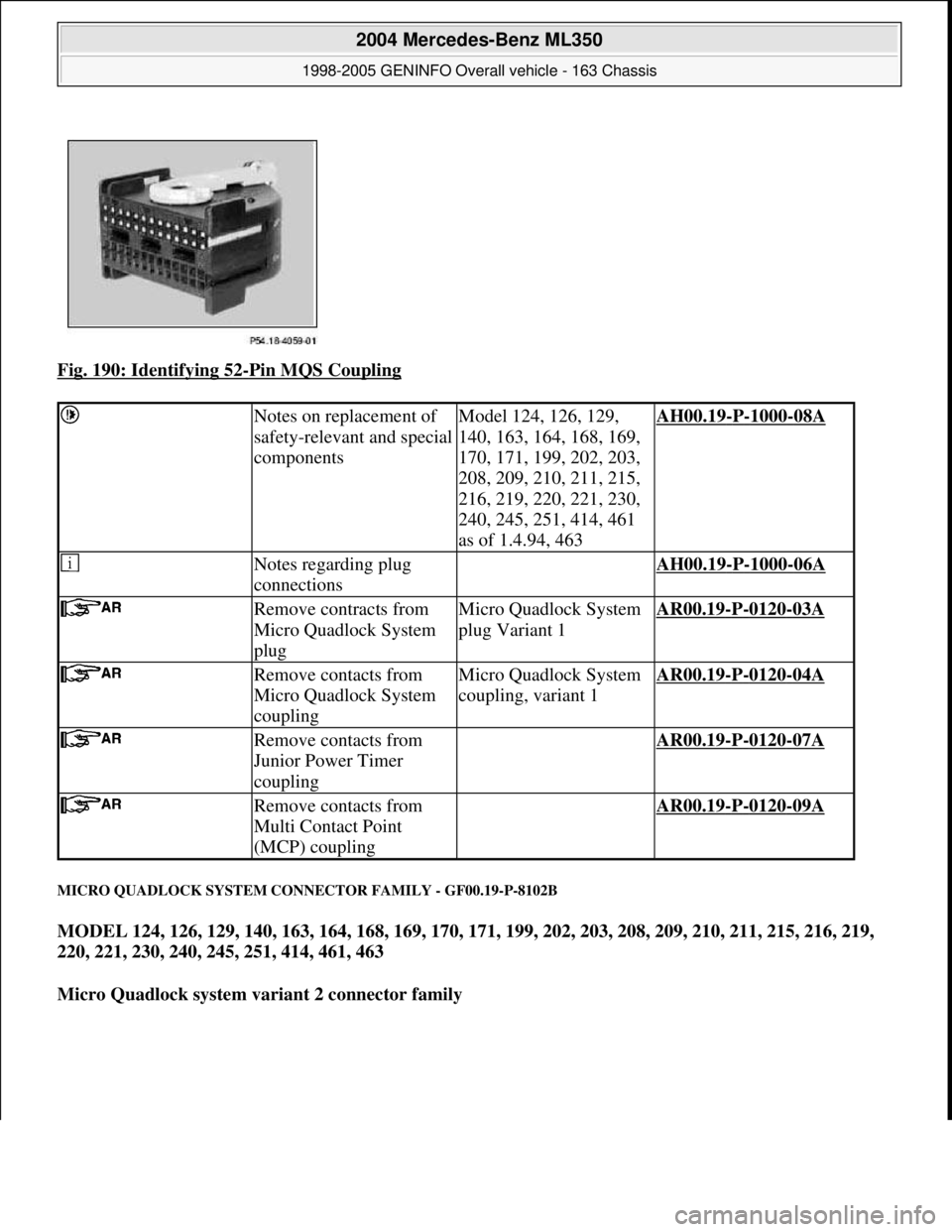

Fig. 190: Identifying 52-Pin MQS Coupling
MICRO QUADLOCK SYSTEM CONNECTOR FAMILY - GF00.19-P-8102B
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Micro Quadlock system variant 2 connector family
Notes on replacement of
safety-relevant and special
componentsModel 124, 126, 129,
140, 163, 164, 168, 169,
170, 171, 199, 202, 203,
208, 209, 210, 211, 215,
216, 219, 220, 221, 230,
240, 245, 251, 414, 461
as of 1.4.94, 463AH00.19-P-1000-08A
Notes regarding plug
connections AH00.19-P-1000-06A
Remove contracts from
Micro Quadlock System
plugMicro Quadlock System
plug Variant 1AR00.19-P-0120-03A
Remove contacts from
Micro Quadlock System
couplingMicro Quadlock System
coupling, variant 1AR00.19-P-0120-04A
Remove contacts from
Junior Power Timer
coupling AR00.19-P-0120-07A
Remove contacts from
Multi Contact Point
(MCP) coupling AR00.19-P-0120-09A
2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:46 PMPage 144 © 2006 Mitchell Repair Information Company, LLC.

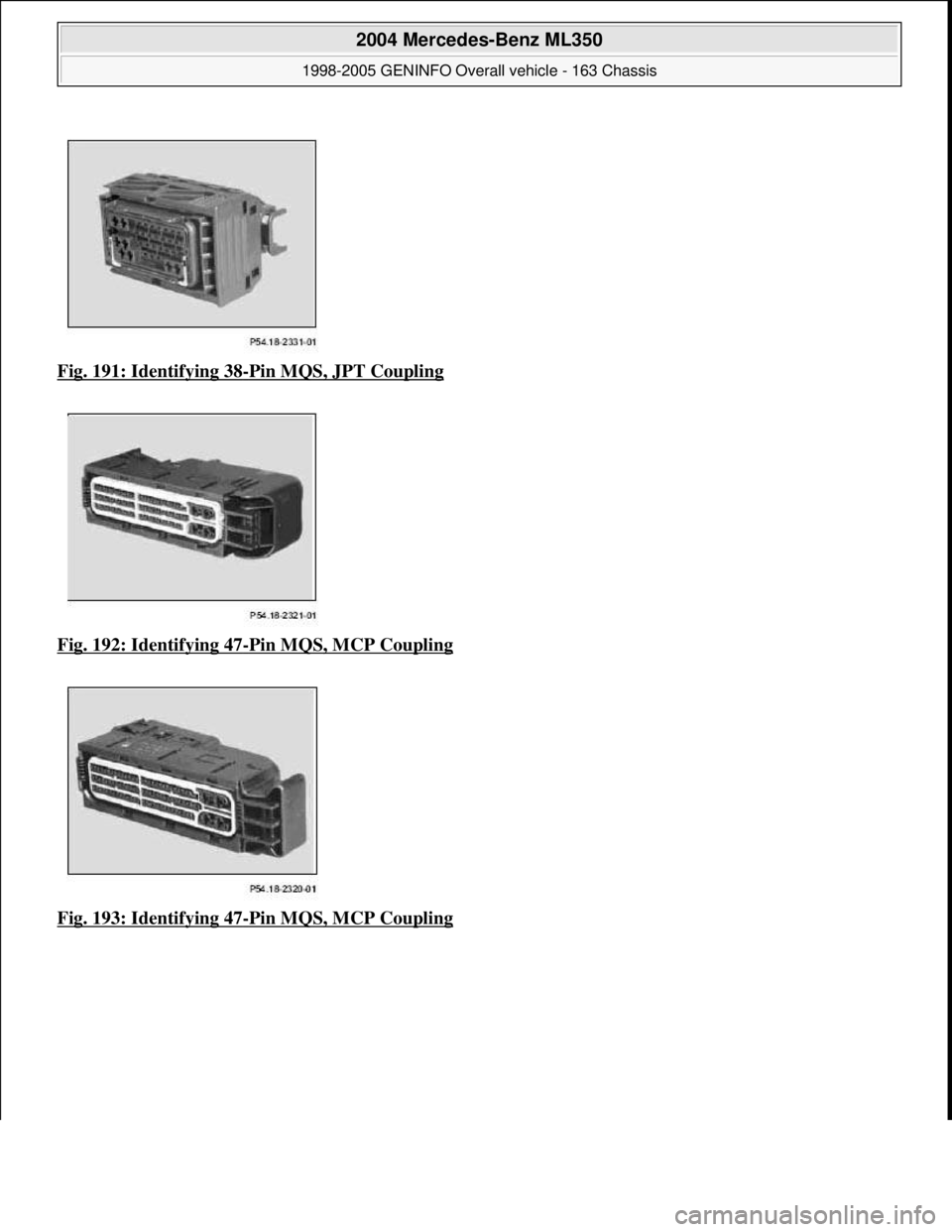

Fig. 191: Identifying 38-Pin MQS, JPT Coupling
Fig. 192: Identifying 47
-Pin MQS, MCP Coupling
Fig. 193: Identifying 47
-Pin MQS, MCP Coupling
