269 Practical hints
Unlocking / locking in an emergency
Locking the vehicle
If you are unable to lock the vehicle with
the remote control, lock it with the folding
key as follows:
Close the passenger doors and the lift-
gate.

Press the upper part of the central
locking switch in the cockpit
(page 93).

Check to see whether the locking
knobs on the passenger doors have
moved down. If necessary push them
down manually.

Lock the liftgate if necessary from in-
side (
page 91).
Except for the driver’s door, the vehicle
should now be locked.1Locking

Insert the key into the driver’s door
lock until it stops.

Turn the key clockwise to position1.
The driver’s door is locked.
Fuel filler flap
1Cover
2Lock rod
Open the liftgate.

Open cover1 in cargo compartment
behind the left trim panel.

Turn lock rod2 clockwise (arrow) to
the end stop.
The fuel filler flap can now be opened.

270 Practical hintsUnlocking / locking in an emergencyManually unlocking the transmission gear selector lever
In the case of power failure the transmis-
sion gear selector lever can be manually
unlocked, e.g. to tow the vehicle.
1Pin

Insert a pin1, e.g. ball point pen, into
the covered opening below the
position D of the shift pattern.

Perform the following two steps simul-
taneously:
Push the pin down.

Move gear selector lever from
positionP.

Remove pin1.
The cover returns to its closed position
after moving the gear selector lever to
positionD.iThe gear selector lever is locked again
when moving it to positionP.

271 Practical hints
Opening / closing in an emergency
Opening / closing in an emergency
Power tilt / sliding sunroof*
You can open or close the tilt / sliding
sunroof manually should an electrical
malfunction occur.
The tilt / sliding sunroof drive is located be-
hind cover3 between the front interior
lamps.
1Hexagon drive hole
2Crank
3Cover
Remove the key from the steering lock.

Pry off cover3 using a flat blade
srewdriver.

Take crank2 out of the Operator’s
Manual pouch.

Insert crank2 through hole1.

Turn crank2 clockwise to:

slide sunroof closed


raise sunroof at the rear

Turn crank2 counterclockwise to:

slide sunroof open


lower sunroof at the rear
iPush crank2 upward while turning to
disengage the electric motor.iTurn crank2 slowly and smoothy.
The tilt / sliding sunroof must be syn-
chronized if it has been operated man-
ually (
page 152).

272 Practical hintsReplacing key batteriesIf the batteries in the remote control are
discharged, the vehicle can no longer be
locked or unlocked. It is recommended to
have the batteries replaced at an autho-
rized Mercedes-Benz Light Truck Center.Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.Warning!
G
Keep the batteries out of reach of children.
If a battery is swallowed, seek medical help
immediately.
iWhen replacing batteries, always
replace both batteries.
The required replacement batteries are
available at any Mercedes-Benz Light
Truck Center.

273 Practical hints
Replacing key batteries
Remote control
Replacement batteries: Lithium, type
CR 2025 or equivalent.
1Release button
2Battery cover
Unfold the key by pressing release
button1.

Pull off battery cover2 in direction of
arrow.

Remove the batteries.

Using a lint-free cloth, insert new bat-
teries under the contact spring with the
plus (+) side facing up.

Press battery cover2 onto housing
until locked in place.

Push each button to assure proper op-
eration of the remote control.
If remote control does not function cor-
rectly after replacing the batteries, the
system may have to be resynchronized.Synchronizing remote control

Turn key in steering lock to position2
(page 33), then to position0 and re-
move.

Within ten seconds, push and hold
button‹ while pushing
buttonΠfive times.

Release the button, and press‹,
Œ orŠ once.
The remote control is resynchronized.

Recheck all of the remote control func-
tions.
iWhen inserting the batteries, make
sure they are clean and free of lint.
iIf it is not possible to resynchronize the
remote control, have the system
checked at an authorized
Mercedes-Benz Light Truck Center.

274 Practical hintsReplacing bulbsBulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See an authorized
Mercedes-Benz Light Truck Center for
headlamp adjustment.Front lamps
iBackup bulbs will be brought into use
when the following lamps malfunction:

Turn signal lamps


Parking lamps


Tail lamps
iIf the headlamps or front fog lamps are
fogged up on the inside as a result of
high humidity, driving the vehicle a dis-
tance with the lights on should clear up
the fogging.
Lamp
Type
1
Front Fog lamp
H8 (35 W)
2
High beam
H7 (55 W)
Parking, standing lamp
5W5
3
Low beam
1
1Vehicles with Xenon* headlamps: Do not replace
the Xenon bulbs yourself. See your authorized
Mercedes-Benz Light Truck Center.
H7 (55 W)
Xenon*:
D2S-35 W
4
Turn signal and side
marker lamp
1157 NA
(32 / 3 cp
bulb)
5
Additional turn signal
lamp
LED

275 Practical hints
Replacing bulbs
Rear lamps Notes on bulb replacement


Only use 12 volt bulbs of the same type
and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not
come on, visit an authorized
Mercedes-Benz Light Truck Center.

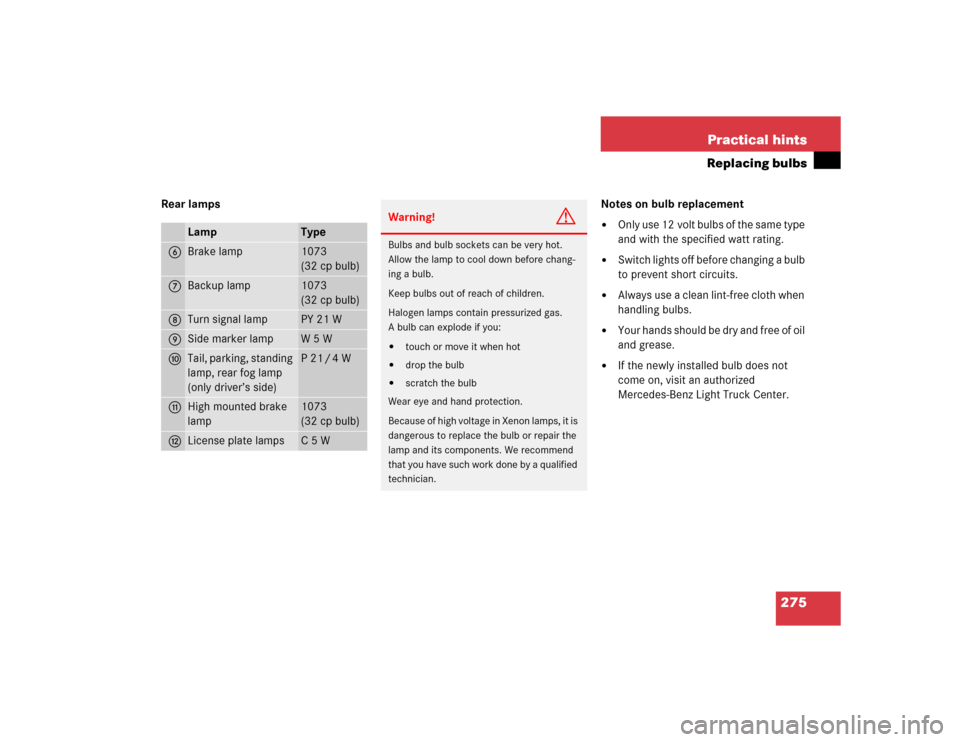

Lamp
Type
6
Brake lamp
1073
(32 cp bulb)
7
Backup lamp
1073
(32 cp bulb)
8
Turn signal lamp
PY 21 W
9
Side marker lamp
W 5 W
a
Tail, parking, standing
lamp, rear fog lamp
(only driver’s side)
P 21 / 4 W
b
High mounted brake
lamp
1073
(32 cp bulb)
c
License plate lamps
C 5 W
Warning!
G
Bulbs and bulb sockets can be very hot.
Allow the lamp to cool down before chang-
ing a bulb.
Keep bulbs out of reach of children.
Halogen lamps contain pressurized gas.
A bulb can explode if you:

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.

276 Practical hintsReplacing bulbsHave the LEDs and bulbs for the following
lamps replaced by an authorized
Mercedes-Benz Light Truck Center:

Additional turn signals in the exterior
rear view mirrors


Xenon*-lamps


Front fog lamps (vehicles with sport
package*)


High mounted brake lamp (only vehi-
cles with an exterior spare-wheel
rack*)
Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
Turn the combination switch to
positionD (
page 107).

Open the hood (
page 222).
Replacing low beam bulbs

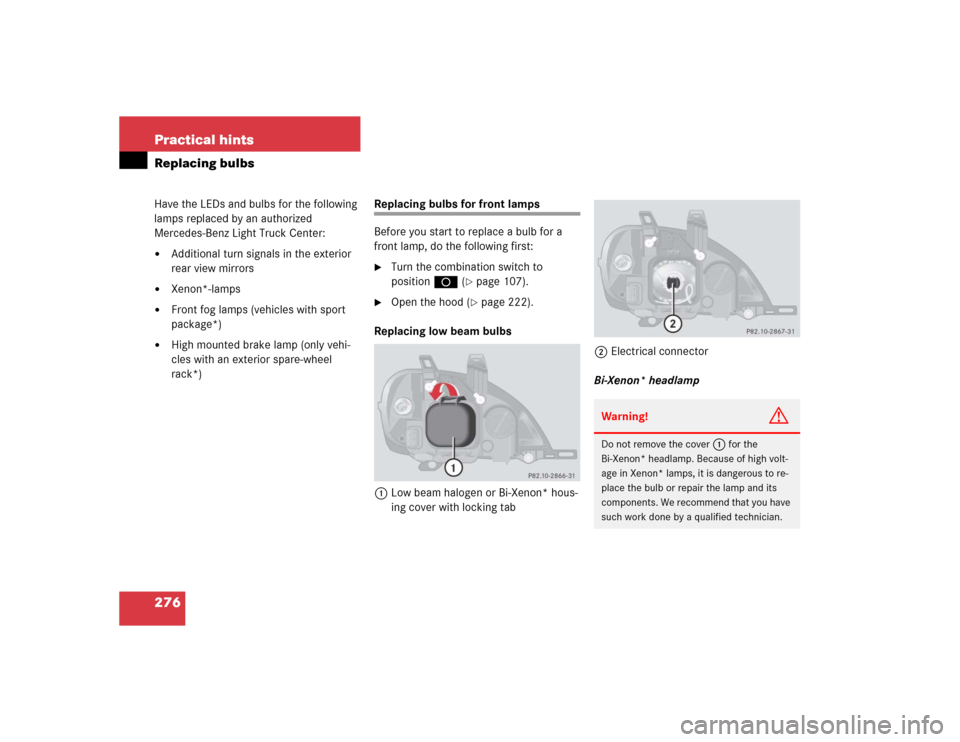

1Low beam halogen or Bi-Xenon* hous-
ing cover with locking tab2Electrical connector
Bi-Xenon* headlamp
Warning!
G
Do not remove the cover
1
for the
Bi-Xenon* headlamp. Because of high volt-
age in Xenon* lamps, it is dangerous to re-
place the bulb or repair the lamp and its
components. We recommend that you have
such work done by a qualified technician.

277 Practical hints
Replacing bulbs
Low beam halogen headlamp
Press down the tab on top end of hous-
ing cover1 and remove it in direction
of arrow.

Pull electrical connector2 off.

Unclip the retainer spring on the bulb
socket and take out of the bulb.

Insert the new bulb so that its socket
locates in the recess of the lamp hous-
ing.

Clip on the retainer spring.

Plug electrical connector2 onto the
bulb.

Align housing cover1 and press until
it engages.High beam halogen bulb (vehicles with
halogen bulbs: high beam and high
beam flasher; vehicles with Xenon*
headlamps: high beam flasher only),
parking and standing lamp

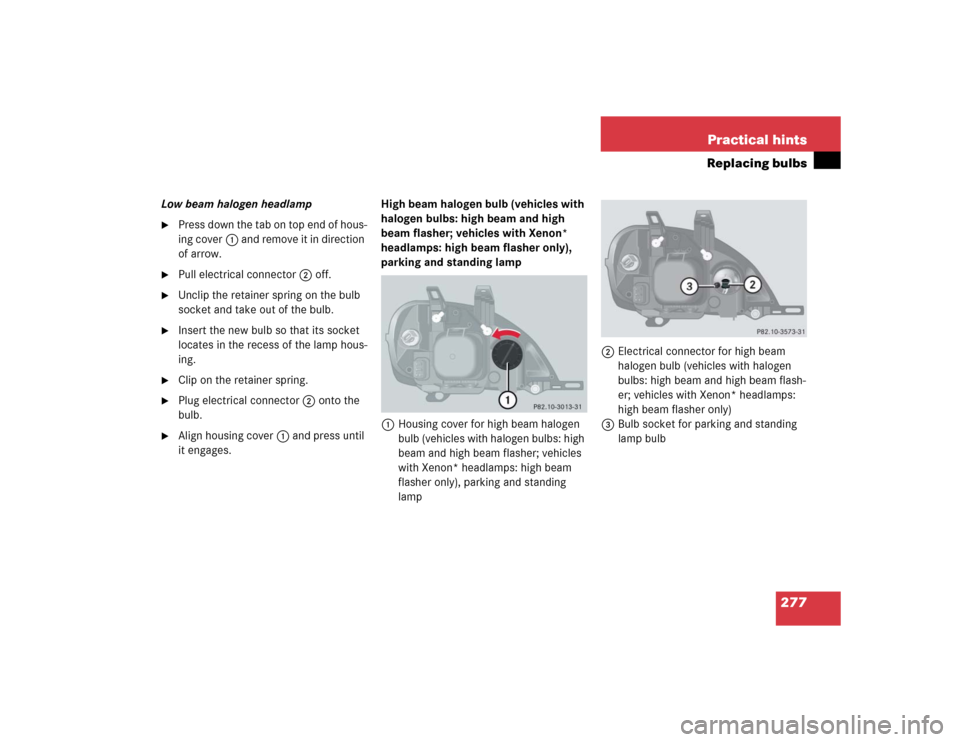

1Housing cover for high beam halogen
bulb (vehicles with halogen bulbs: high
beam and high beam flasher; vehicles
with Xenon* headlamps: high beam
flasher only), parking and standing
lamp2Electrical connector for high beam
halogen bulb (vehicles with halogen
bulbs: high beam and high beam flash-
er; vehicles with Xenon* headlamps:
high beam flasher only)
3Bulb socket for parking and standing
lamp bulb

278 Practical hintsReplacing bulbsHigh beam halogen bulb (vehicles with
halogen bulbs: high beam and high
beam flasher; vehicles with Xenon*
headlamps: high beam flasher only)
Turn housing cover1 counterclock-
wise and remove it.

Pull electrical connector2 off.

Unclip the retainer spring on the bulb
socket and take out the bulb.

Insert the new bulb so that its socket
locates in the recess of the lamp hous-
ing.

Clip on the retainer spring.

Plug electrical connector2 onto the
bulb.

Align housing cover1 and turn it
clockwise.Parking / standing lamp bulb

Turn housing cover1 counterclock-
wise and remove it.

Pull out bulb socket3 with the bulb.

Press gently onto the bulb and turn
counterclockwise out of bulb
socket3.

Press the new bulb gently into bulb
socket3 and turn clockwise until it
engages.

Press bulb socket3 back into the
lamp.

Align housing cover1 and turn it
clockwise.Turn signal bulb / side marker bulb

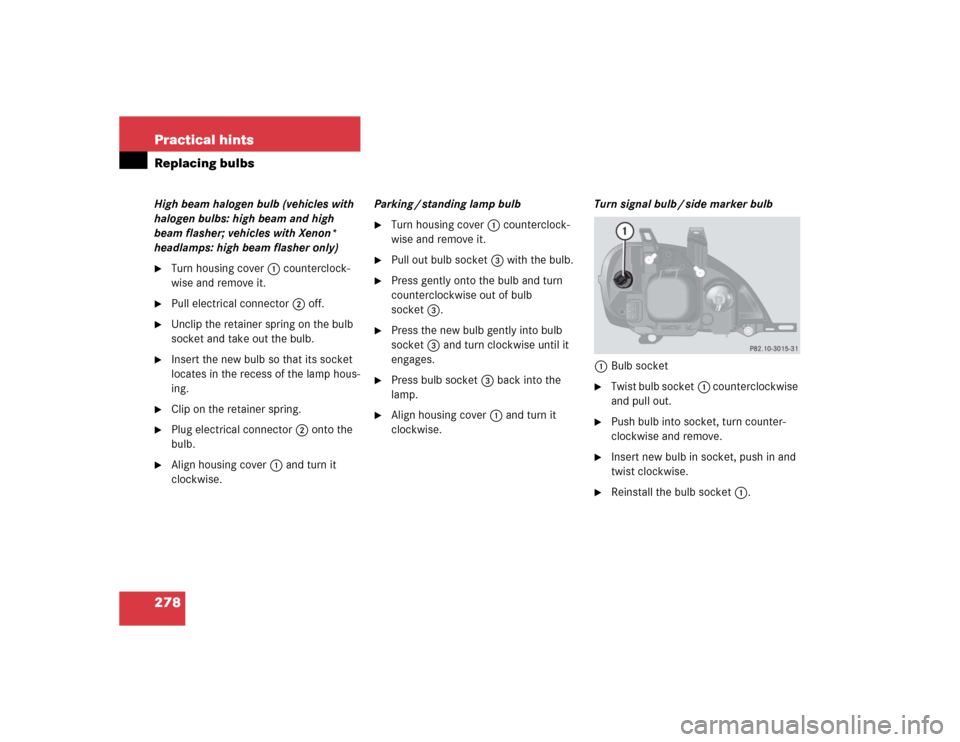

1Bulb socket

Twist bulb socket1 counterclockwise
and pull out.

Push bulb into socket, turn counter-
clockwise and remove.

Insert new bulb in socket, push in and
twist clockwise.

Reinstall the bulb socket1.
