Page 21 of 356
19 Introduction
Reporting safety defects
Reporting safety defects
For the USA only:
The following text is published as required of manufacturers under Title 49, Code of U.S. Federal Regulations, Part 575 pursuant to the
“National Traffic and Motor Vehicle Safety Act of 1966”.Reporting safety defects
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Mercedes-Benz USA, LLC.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer,
or Mercedes-Benz USA, LLC.
To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-888-327-4236 (or 366-0123 in Washington, D.C. area) or
write to: NHTSA, U.S. Department of Transportation, Washington, D.C. 20590. You can also obtain other information about motor ve-
hicle safety from the Hotline.
Page 22 of 356
20 Introduction
Vehicle data recording
Vehicle data recording
Information regarding electronic recording devices
(Including notice pursuant to California Code § 9951)
Please note that your vehicle is equipped with devices that can record vehicle systems data and, if equipped with the Tele Aid system,
may transmit some data in certain accidents.
This information helps, for example, to diagnose vehicle systems after a collision and to continuously improve vehicle safety.
DaimlerChrysler may access the information and share it with others
for safety research or vehicle diagnosis purposes
with the consent of the vehicle owner or lessee
in response to an official request by law enforcement or other government agency
for use in dispute resolution involving DaimlerChrysler, its affiliates or sales / service organization and / or
as otherwise required or permitted by law.
Please check the Tele Aid subscription service agreement for details regarding the information that may be recorded or transmitted
via that system.
Page 23 of 356

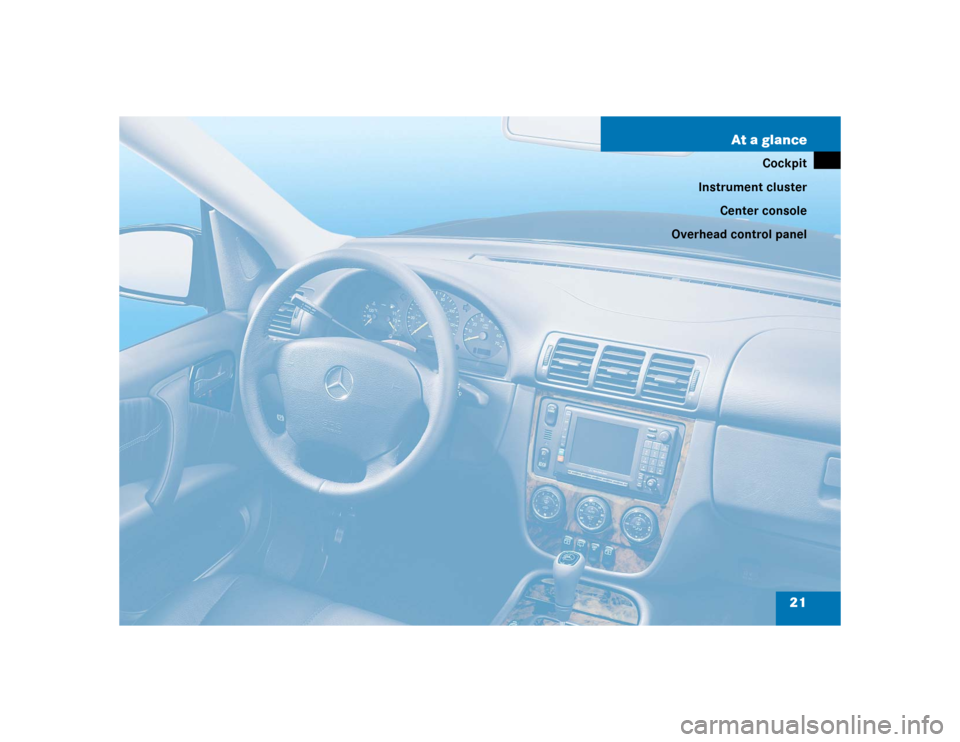

21 At a glance
Cockpit
Instrument cluster
Center console
Overhead control panel
Page 24 of 356

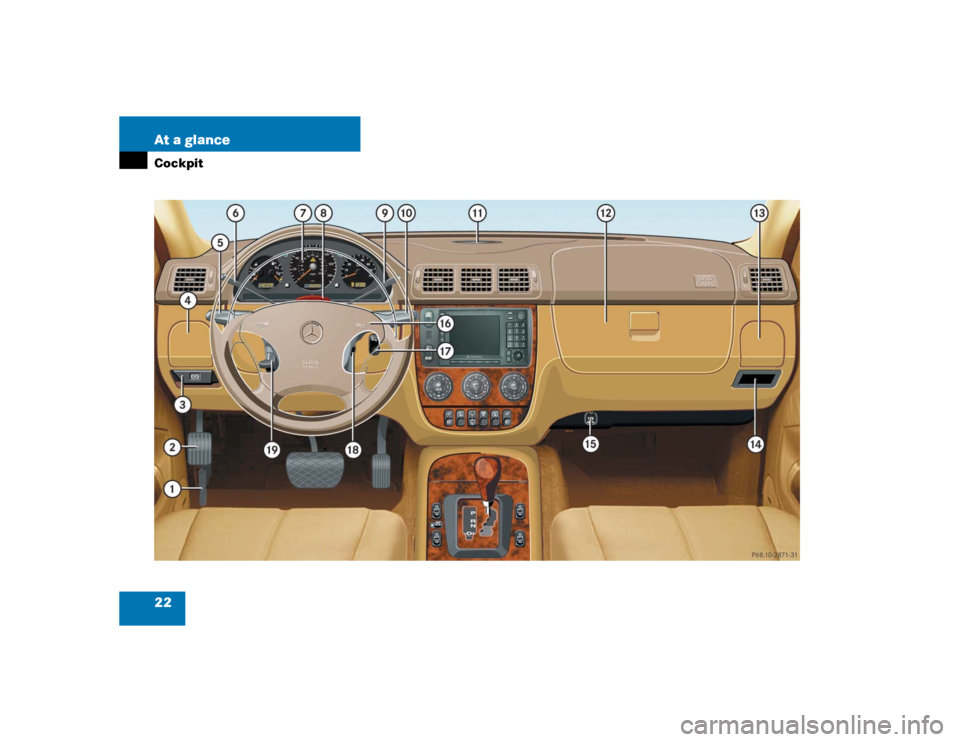

22 At a glanceCockpit
Page 25 of 356

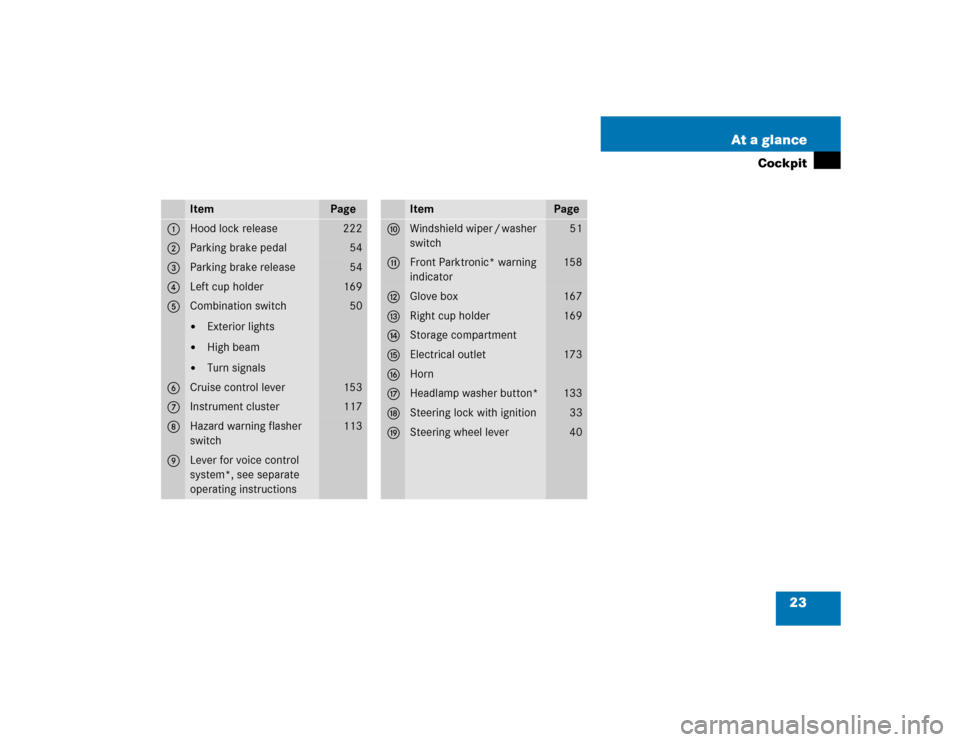

23 At a glance
Cockpit
Item
Page
1
Hood lock release
222
2
Parking brake pedal
54
3
Parking brake release
54
4
Left cup holder
169
5
Combination switch
Exterior lights
High beam
Turn signals
50
6
Cruise control lever
153
7
Instrument cluster
117
8
Hazard warning flasher
switch
113
9
Lever for voice control
system*, see separate
operating instructions
Item
Page
a
Windshield wiper / washer
switch
51
b
Front Parktronic* warning
indicator
158
c
Glove box
167
d
Right cup holder
169
e
Storage compartment
f
Electrical outlet
173
g
Horn
h
Headlamp washer button*
133
j
Steering lock with ignition
33
k
Steering wheel lever
40
Page 26 of 356

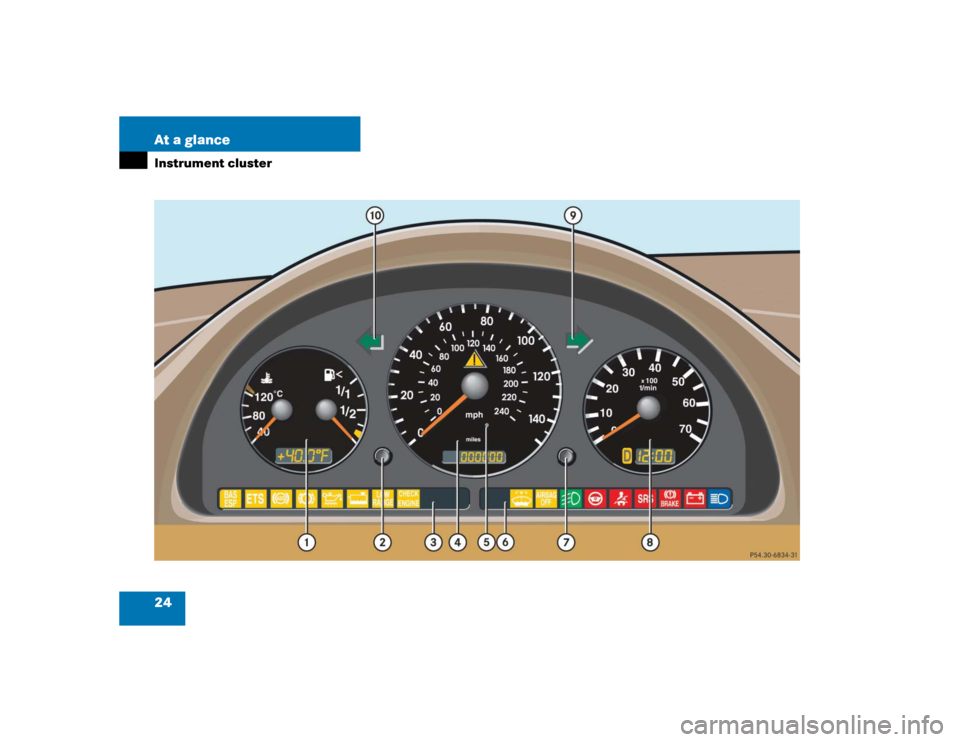

24 At a glanceInstrument cluster
Page 27 of 356

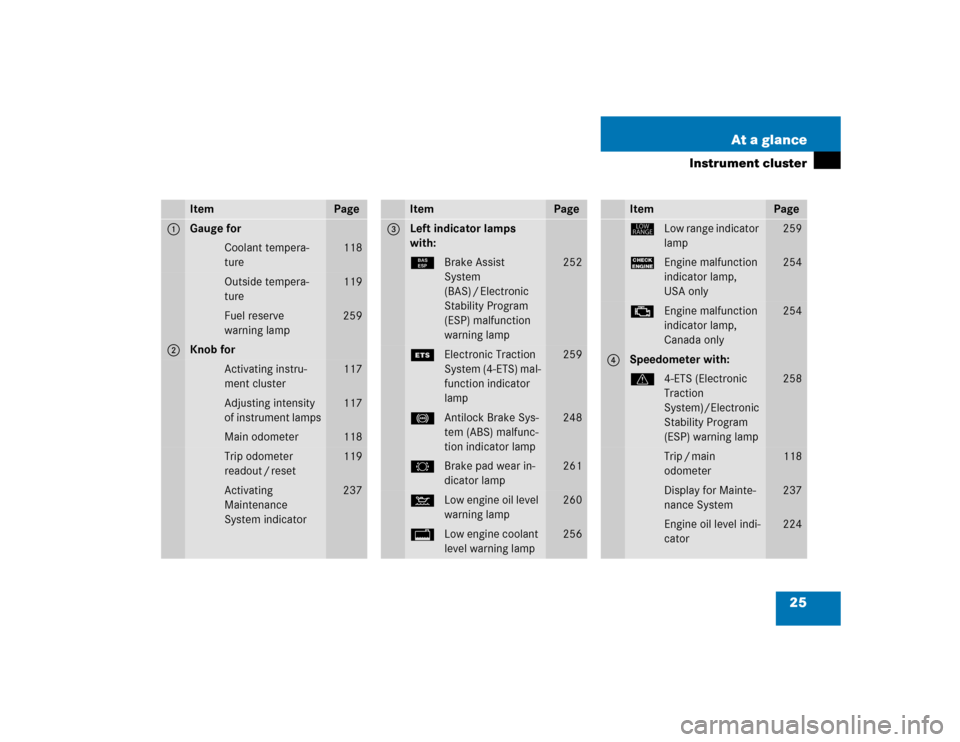

25 At a glance
Instrument cluster
Item
Page
1
Gauge for
Coolant tempera-
ture
118
Outside tempera-
ture
119
Fuel reserve
warning lamp
259
2
Knob for
Activating instru-
ment cluster
117
Adjusting intensity
of instrument lamps
117
Main odometer
118
Trip odometer
readout / reset
119
Activating
Maintenance
System indicator
237
Item
Page
3
Left indicator lamps
with:¿Brake Assist
System
(BAS) / Electronic
Stability Program
(ESP) malfunction
warning lamp
252
{Electronic Traction
System (4-ETS) mal-
function indicator
lamp
259
-Antilock Brake Sys-
tem (ABS) malfunc-
tion indicator lamp
248
2Brake pad wear in-
dicator lamp
261
:Low engine oil level
warning lamp
260
/Low engine coolant
level warning lamp
256
Item
Page
êLow range indicator
lamp
259
?Engine malfunction
indicator lamp,
USA only
254
±Engine malfunction
indicator lamp,
Canada only
254
4
Speedometer with:v4-ETS (Electronic
Traction
System)/Electronic
Stability Program
(ESP) warning lamp
258
Trip / main
odometer
118
Display for Mainte-
nance System
237
Engine oil level indi-
cator
224
Page 28 of 356

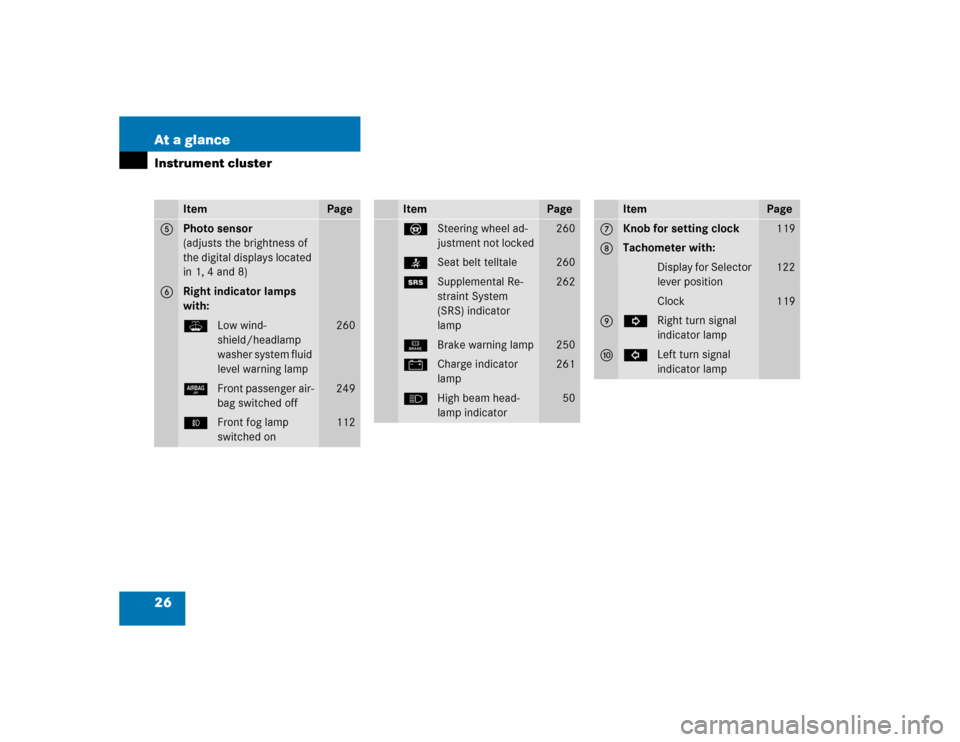

26 At a glanceInstrument cluster
Item
Page
5
Photo sensor
(adjusts the brightness of
the digital displays located
in 1, 4 and 8)
6
Right indicator lamps
with:WLow wind-
shield/headlamp
washer system fluid
level warning lamp
260
7Front passenger air-
bag switched off
249
‡Front fog lamp
switched on
112
Item
Page
_Steering wheel ad-
justment not locked
260
1Supplemental Re-
straint System
(SRS) indicator
lamp
262
ÉBrake warning lamp
250
#Charge indicator
lamp
261
AHigh beam head-
lamp indicator
50
Item
Page
7
Knob for setting clock
119
8
Tachometer with:
Display for Selector
lever position
122
Clock
119
9
KRight turn signal
indicator lamp
a
LLeft turn signal
indicator lamp
Page 29 of 356
27 At a glance

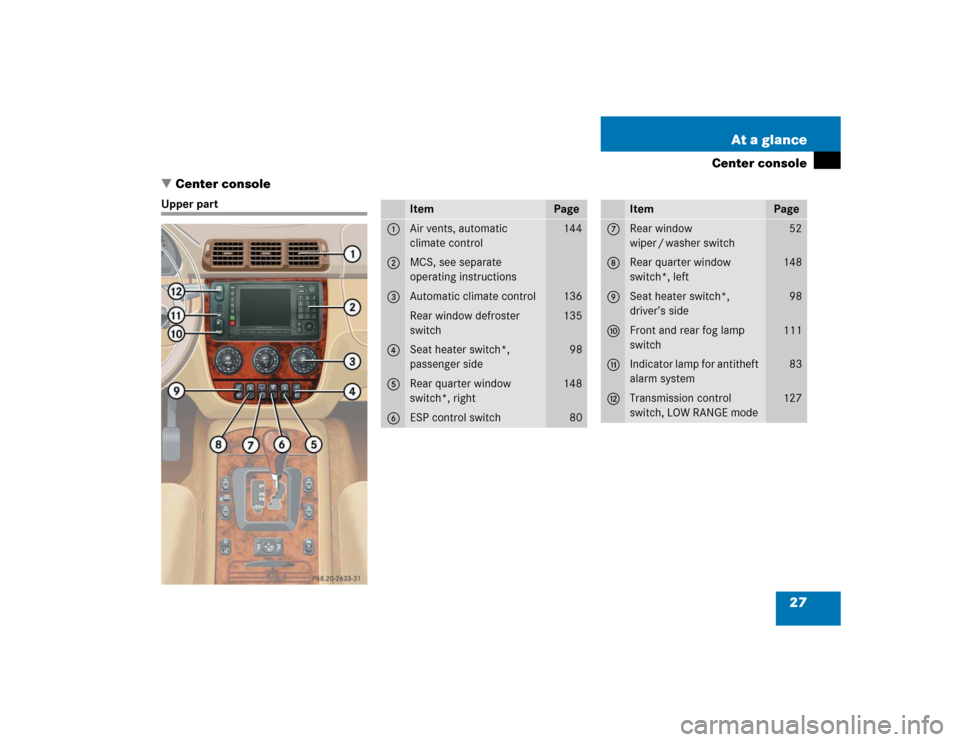

Center console
Center console
Upper part
Item
Page
1
Air vents, automatic
climate control
144
2
MCS, see separate
operating instructions
3
Automatic climate control
136
Rear window defroster
switch
135
4
Seat heater switch*,
passenger side
98
5
Rear quarter window
switch*, right
148
6
ESP control switch
80
Item
Page
7
Rear window
wiper / washer switch
52
8
Rear quarter window
switch*, left
148
9
Seat heater switch*,
driver’s side
98
a
Front and rear fog lamp
switch
111
b
Indicator lamp for antitheft
alarm system
83
c
Transmission control
switch, LOW RANGE mode
127
Page 30 of 356

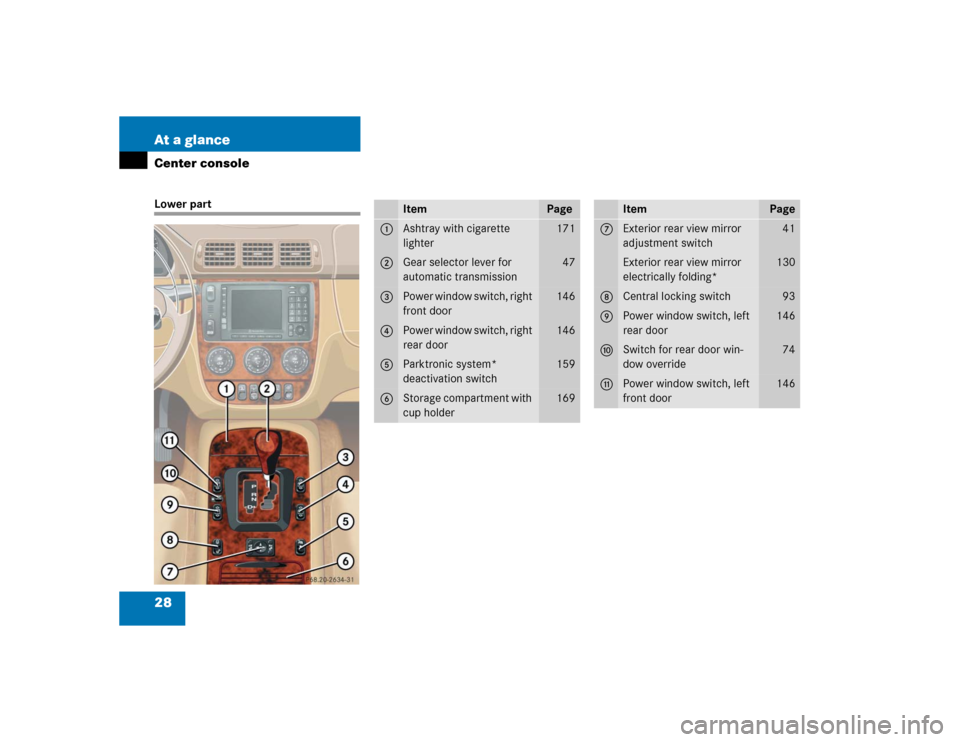

28 At a glanceCenter consoleLower part
Item
Page
1
Ashtray with cigarette
lighter
171
2
Gear selector lever for
automatic transmission
47
3
Power window switch, right
front door
146
4
Power window switch, right
rear door
146
5
Parktronic system*
deactivation switch
159
6
Storage compartment with
cup holder
169
Item
Page
7
Exterior rear view mirror
adjustment switch
41
Exterior rear view mirror
electrically folding*
130
8
Central locking switch
93
9
Power window switch, left
rear door
146
a
Switch for rear door win-
dow override
74
b
Power window switch, left
front door
146
