450 Practical hintsReplacing bulbs4Bulb socket of front fog lamp bulb
Turn bulb socket4 with the bulb
counterclockwise and remove it.

Insert new bulb socket4 with the bulb
into the lamp and turn it clockwise.

Plug electrical connector onto the bulb
socket4.

Reinstall front fog lamp2 into the
bumper.

Reinstall cover1 into the bumper un-
til it engages.
Replacing bulbs for rear lamps
Before you start to replace a bulb for a rear
lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page 138).

Open the tailgate.

Open the cover in the cargo compart-
ment.
For the driver’s side rear lamps, see
“First aid kit” (
page 430).
For the passenger-side rear lamps, see
“Fuse box in cargo compartment”
(
page 479).Vehicles without sound system*:

Remove the additional cover on the
driver’s side.
1Screw

Turn the screws1 90° counterclock-
wise and remove the storage bin.


451 Practical hints
Replacing bulbs

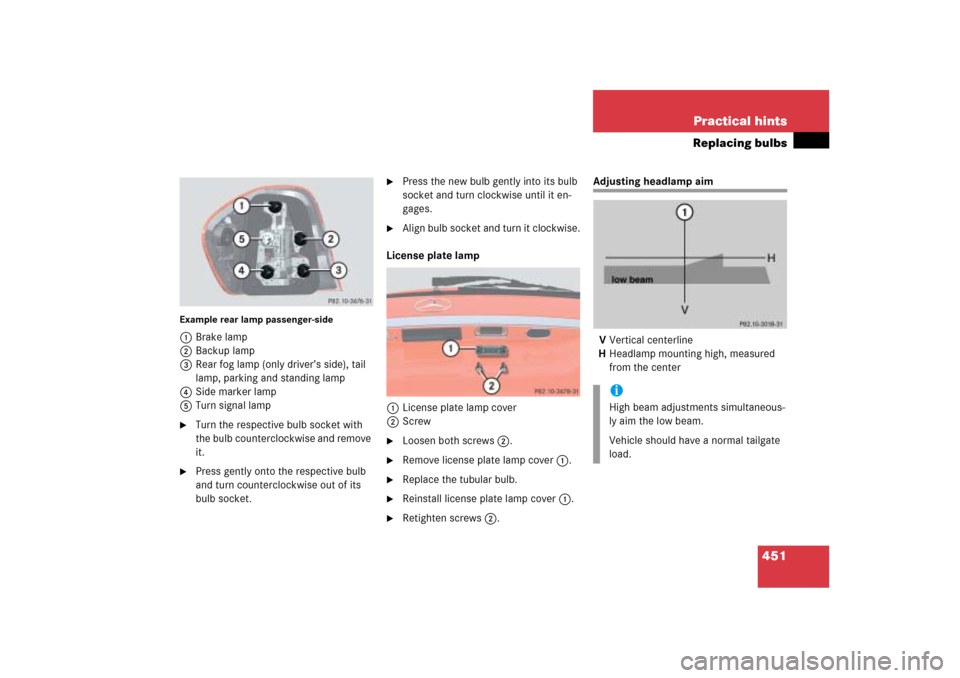

Example rear lamp passenger-side1Brake lamp
2Backup lamp
3Rear fog lamp (only driver’s side), tail
lamp, parking and standing lamp
4Side marker lamp
5Turn signal lamp
Turn the respective bulb socket with
the bulb counterclockwise and remove
it.

Press gently onto the respective bulb
and turn counterclockwise out of its
bulb socket.

Press the new bulb gently into its bulb
socket and turn clockwise until it en-
gages.

Align bulb socket and turn it clockwise.
License plate lamp
1License plate lamp cover
2Screw

Loosen both screws2.

Remove license plate lamp cover1.

Replace the tubular bulb.

Reinstall license plate lamp cover1.

Retighten screws2.
Adjusting headlamp aim
VVertical centerline
HHeadlamp mounting high, measured
from the center
iHigh beam adjustments simultaneous-
ly aim the low beam.
Vehicle should have a normal tailgate
load.

452 Practical hintsReplacing bulbsCorrect headlamp adjustment is extremely
important. To check and readjust a head-
lamp, follow the steps described:
Park the vehicle on a level surface
25 feet (7.6 m) from a vertical test
screen or wall.

Switch the headlamps on
(page 138).
If the beam does not show a beam pattern
as indicated in the figure left, then follow
the steps below:

Open hood (
page 326).

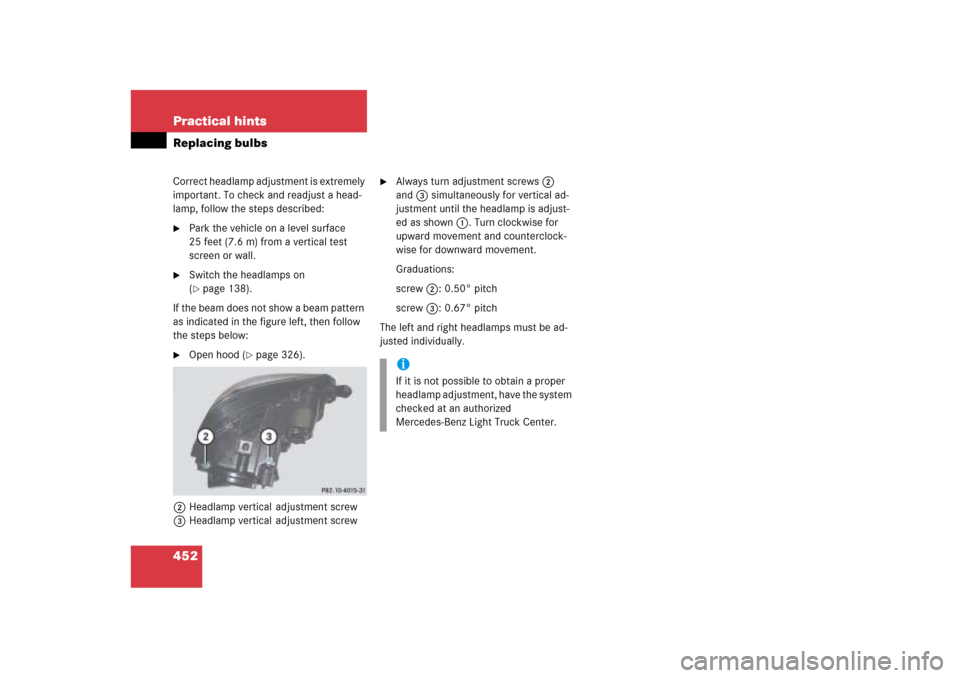

2Headlamp vertical adjustment screw
3Headlamp vertical adjustment screw

Always turn adjustment screws2
and3 simultaneously for vertical ad-
justment until the headlamp is adjust-
ed as shown1. Turn clockwise for
upward movement and counterclock-
wise for downward movement.
Graduations:
screw2:0.50° pitch
screw3:0.67° pitch
The left and right headlamps must be ad-
justed individually.iIf it is not possible to obtain a proper
headlamp adjustment, have the system
checked at an authorized
Mercedes-Benz Light Truck Center.

453 Practical hints
Replacing wiper blades
Replacing wiper blades

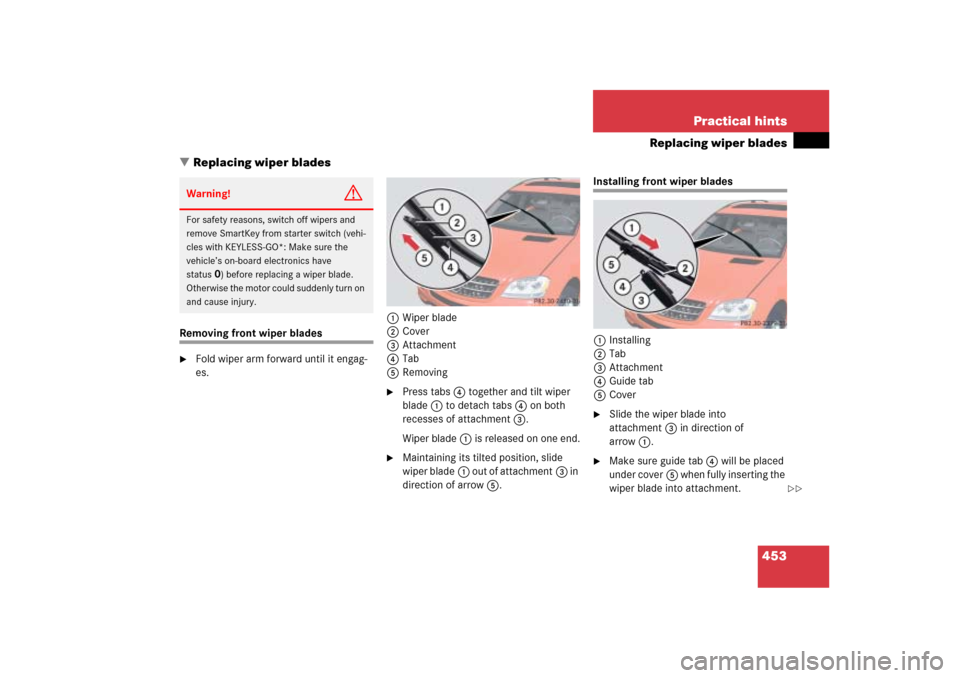

Removing front wiper blades
Fold wiper arm forward until it engag-
es.1Wiper blade
2Cover
3Attachment
4Tab
5Removing

Press tabs4 together and tilt wiper
blade1 to detach tabs4 on both
recesses of attachment3.
Wiper blade1 is released on one end.

Maintaining its tilted position, slide
wiper blade1 out of attachment3 in
direction of arrow5.
Installing front wiper blades
1Installing
2Tab
3Attachment
4Guide tab
5Cover
Slide the wiper blade into
attachment3 in direction of
arrow1.

Make sure guide tab4 will be placed
under cover5 when fully inserting the
wiper blade into attachment.
Warning!
G
For safety reasons, switch off wipers and
remove SmartKey from starter switch (vehi-
cles with KEYLESS-GO*: Make sure the
vehicle’s on-board electronics have
status
0) before replacing a wiper blade.
Otherwise the motor could suddenly turn on
and cause injury.


454 Practical hintsReplacing wiper blades
Let tab2 latch into both recesses of
attachment3.

Check if the wiper blade is securely
fastened.

Fold the wiper arm backward to rest on
the windshield.
Make sure you hold on to the wiper arm
when folding it back.
Removing rear wiper blade
Fold wiper arm1 (
page 455) for-
ward until it engages.
!Never open the hood when the wiper
arms are folded forward.
Hold on to the wiper when folding the
wiper arm back. If released, the force
of the impact from the tensioning
spring could crack the windshield.
Do not allow the wiper arms to contact
the windshield glass without a wiper
blade inserted.
Make certain that the wiper blades are
properly installed. Improperly installed
wiper blades may cause windshield
damage.
For your convenience, we recommend
that you have this work carried out by
an authorized Mercedes-Benz Light
Truck Center.
Warning!
G
For safety reasons, switch off wipers and
remove SmartKey from starter switch (vehi-
cles with KEYLESS-GO*: Make sure the
vehicle’s on-board electronics have
status
0) before replacing a wiper blade.
Otherwise the motor could suddenly turn on
and cause injury.


455 Practical hints
Replacing wiper blades

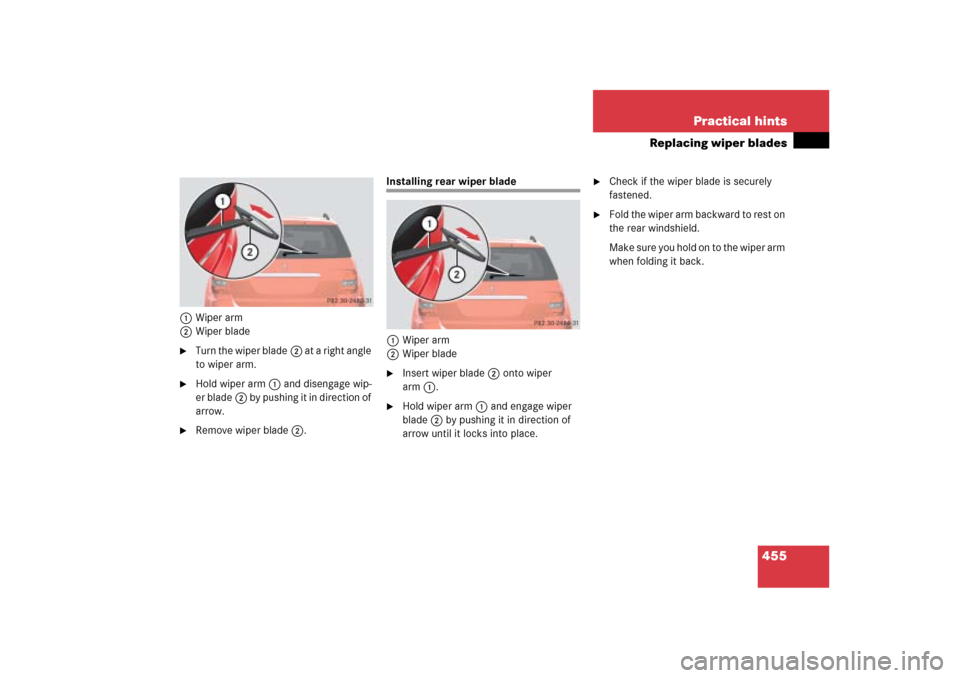

1Wiper arm
2Wiper blade
Turn the wiper blade2 at a right angle
to wiper arm.

Hold wiper arm1 and disengage wip-
er blade2 by pushing it in direction of
arrow.

Remove wiper blade2.
Installing rear wiper blade
1Wiper arm
2Wiper blade
Insert wiper blade2 onto wiper
arm1.

Hold wiper arm1 and engage wiper
blade2 by pushing it in direction of
arrow until it locks into place.

Check if the wiper blade is securely
fastened.

Fold the wiper arm backward to rest on
the rear windshield.
Make sure you hold on to the wiper arm
when folding it back.

456 Practical hintsFlat tire
Preparing the vehicle
Park the vehicle as far as possible from
moving traffic on a hard surface.

Turn on the hazard warning flashers.

Turn the steering wheel so that the
front wheels are in a straight ahead po-
sition.

Set the parking brake.

Shift automatic transmission to park
positionP.
Vehicles with Air suspension package*:

Do not open or close a door or tailgate
while mounting the spare wheel.
Vehicles with SmartKey:

Turn off the engine (
page 34).

Remove the SmartKey from the starter
switch.Vehicles with KEYLESS-GO*:

Turn off the engine by pressing the
KEYLESS-GO* button once
(page 63).

Open the driver’s door (this puts the
starter switch in position0, same as
with the SmartKey removed from the
starter switch). The driver’s door then
can be closed again.

Have any passenger exit the vehicle at
a safe distance from the roadway.
Warning!
G
The dimensions of the Minispare wheel are
different from those of the road wheels. As
a result, the vehicle handling characteristics
change when driving with a mounted
Minispare wheel. Adapt your driving style
accordingly.
The Minispare wheel is for temporary use
only. When driving with a Minispare wheel
mounted, ensure proper tire pressure and
do not exceed a vehicle speed of
50 mph (80 km/h).
Drive to the nearest Mercedes-Benz Light
Truck Center as soon as possible to have the
Minispare wheel replaced with a regular
road wheel.
Never operate the vehicle with more than
one spare wheel mounted.
Do not switch off the ESP
® when a
Minispare wheel is mounted.
iOpen doors only when conditions are
safe to do so.

457 Practical hints
Flat tire
Mounting the spare wheel
Preparing the vehicle
Prepare the vehicle as described
(page 456).

Take the wheel wrench, the collapsible
wheel chock, and the vehicle jack out
of the cargo compartment
(page 430).

Take the Minispare wheel out of the
cargo compartment (
page 433).Lifting the vehicle

Prevent the vehicle from rolling away
by blocking wheels with wheel chocks
or other sizable objects.
A collapsible wheel chock is included
with the vehicle tool kit (
page 430).
For information on setting up the col-
lapsible wheel chock, see
(
page 432).
When changing wheel on a level surface:

Place one wheel chock in front of and
another sizeable object behind the
wheel that is diagonally opposite to the
wheel being changed.
Always try lifting the vehicle using the jack
on a level surface. However, should
circumstances require you to do so on a
hill, place the wheel chock and other size-
able object as follows:

Place the wheel chock and another
sizable object on the downhill side
blocking both wheels of the axle not
being worked on.
!Vehicles with factory-mounted
running-boards*:
Your vehicle is equipped with a scis-
sors-type jack (located under the cargo
compartment floor) designed for use
with factory-mounted running boards.
Only use this jack when jacking up ve-
hicles with factory-mounted running
boards as otherwise the vehicle’s
underbody can be damaged. See sepa-
rate instructions for scissors-type jack.
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use, es-
pecially on hills. Always try to use the jack
on level surface. Make sure that the jack
arm is fully seated in the jack take-up brack-
et. Always lower the vehicle onto sufficient
capacity jackstands before working under
the vehicle.

458 Practical hintsFlat tire
On wheel to be changed, loosen but do
not yet remove the wheel bolts
(approximately one full turn with
wrench).
The jack take-up brackets are located di-
rectly behind the front wheel housings and

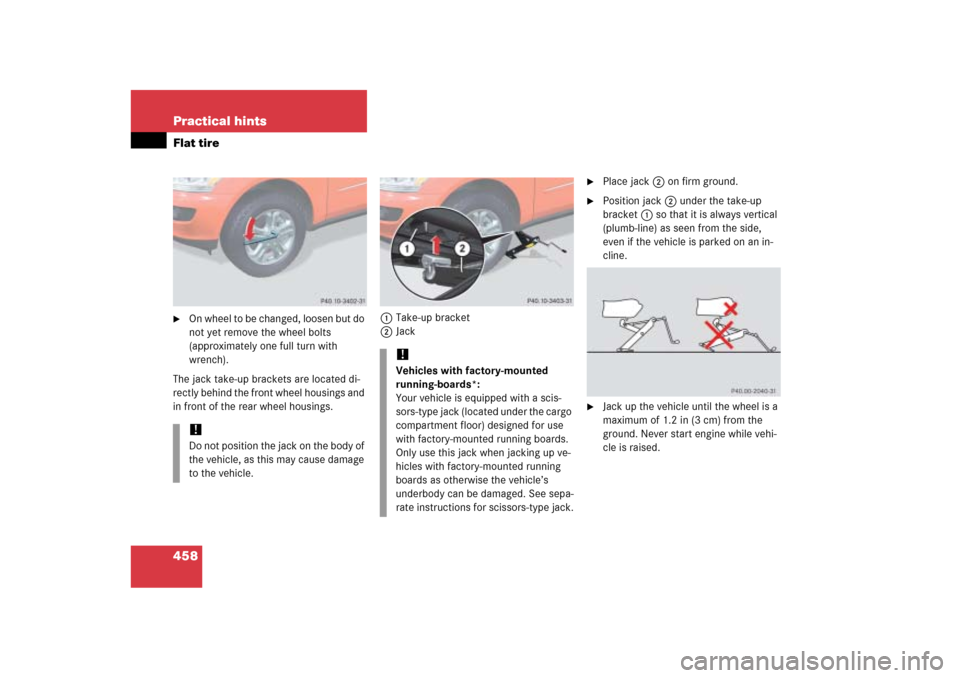

in front of the rear wheel housings.1Take-up bracket
2Jack

Place jack2 on firm ground.

Position jack2 under the take-up
bracket1 so that it is always vertical
(plumb-line) as seen from the side,
even if the vehicle is parked on an in-
cline.

Jack up the vehicle until the wheel is a
maximum of 1.2 in (3 cm) from the
ground. Never start engine while vehi-
cle is raised.
!Do not position the jack on the body of
the vehicle, as this may cause damage
to the vehicle.
!Vehicles with factory-mounted
running-boards*:
Your vehicle is equipped with a scis-
sors-type jack (located under the cargo
compartment floor) designed for use
with factory-mounted running boards.
Only use this jack when jacking up ve-
hicles with factory-mounted running
boards as otherwise the vehicle’s
underbody can be damaged. See sepa-
rate instructions for scissors-type jack.

459 Practical hints
Flat tire

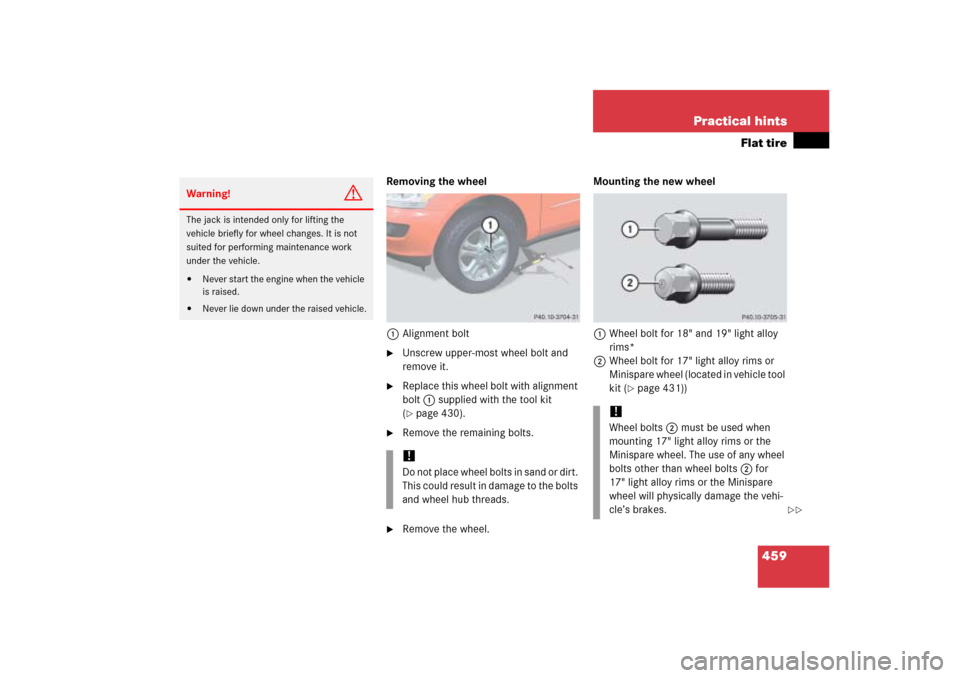

Removing the wheel
1Alignment bolt
Unscrew upper-most wheel bolt and
remove it.

Replace this wheel bolt with alignment
bolt1 supplied with the tool kit
(page 430).

Remove the remaining bolts.

Remove the wheel.Mounting the new wheel
1Wheel bolt for 18" and 19" light alloy
rims*
2Wheel bolt for 17" light alloy rims or
Minispare wheel (located in vehicle tool
kit (
page 431))
Warning!
G
The jack is intended only for lifting the
vehicle briefly for wheel changes. It is not
suited for performing maintenance work
under the vehicle.

Never start the engine when the vehicle
is raised.


Never lie down under the raised vehicle.
!Do not place wheel bolts in sand or dirt.
This could result in damage to the bolts
and wheel hub threads.
!Wheel bolts2 must be used when
mounting 17" light alloy rims or the
Minispare wheel. The use of any wheel
bolts other than wheel bolts2 for
17" light alloy rims or the Minispare
wheel will physically damage the vehi-
cle’s brakes.
