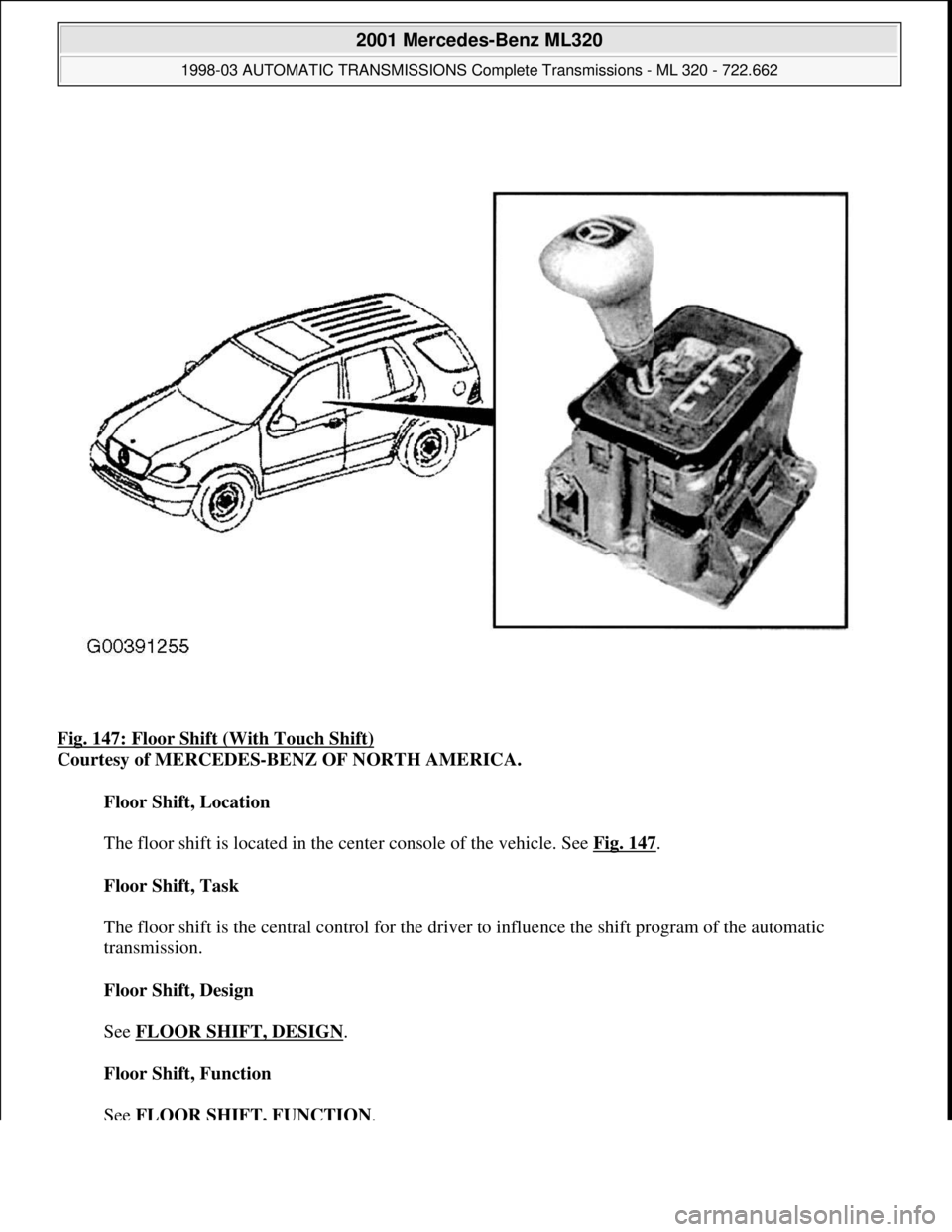

Fig. 147: Floor Shift (With Touch Shift)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Floor Shift, Location

The floor shift is located in the center console of the vehicle. See Fig. 147
.
Floor Shift, Task

The floor shift is the central control for the driver to influence the shift program of the automatic
transmission.
Floor Shift, Design

See FLOOR SHIFT, DESIGN
.
Floor Shift, Function

See FLOOR SHIFT, FUNCTION
.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:29 PMPage 262 © 2006 Mitchell Repair Information Company, LLC.

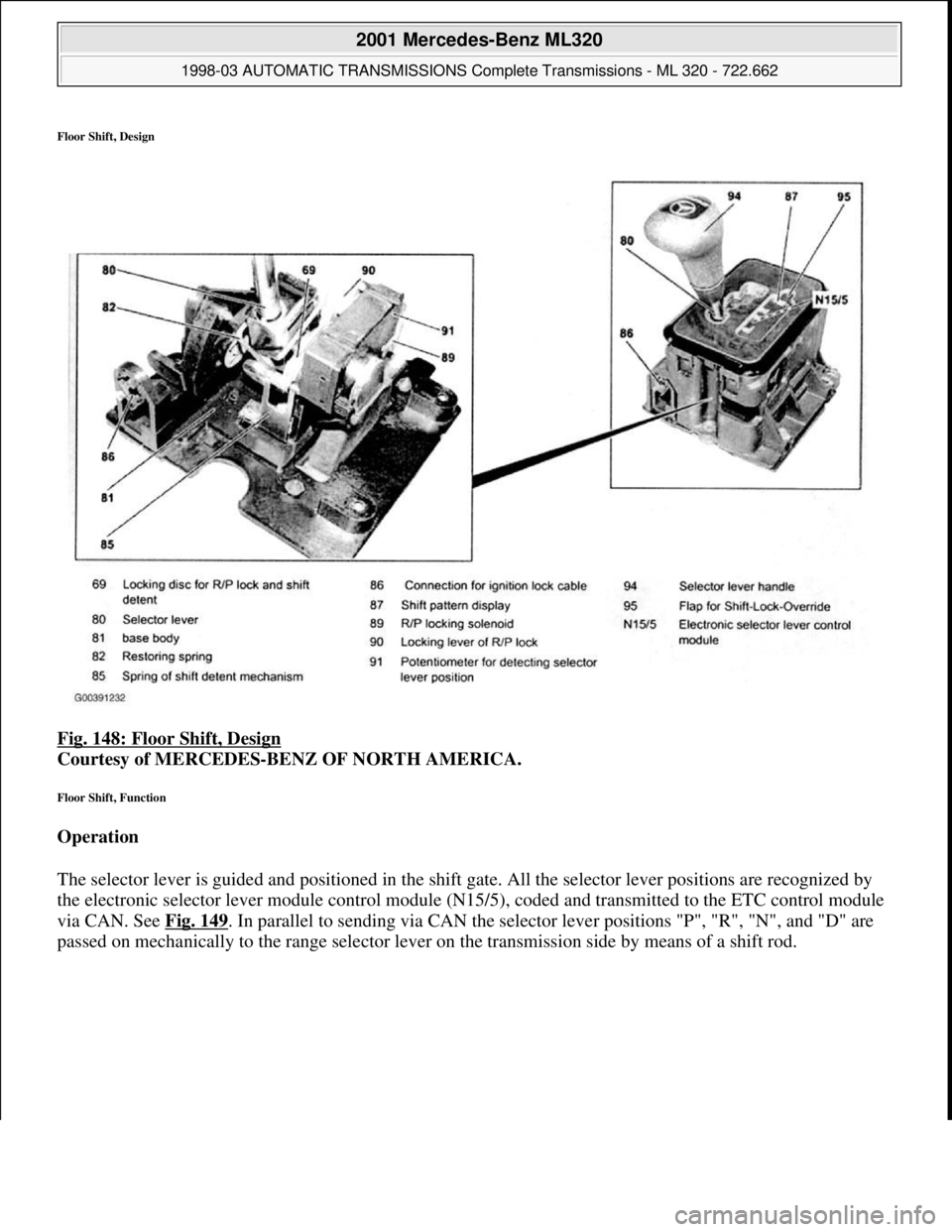

Floor Shift, Design
Fig. 148: Floor Shift, Design
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Floor Shift, Function
Operation
The selector lever is guided and positioned in the shift gate. All the selector lever positions are recognized by
the electronic selector lever module control module (N15/5), coded and transmitted to the ETC control module
via CAN. See Fig. 149
. In parallel to sending via CAN the selector lever positions "P", "R", "N", and "D" are
passed on mechanically to the range selector lever on the transmission side by means of a shift rod.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:29 PMPage 263 © 2006 Mitchell Repair Information Company, LLC.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:29 PMPage 264 © 2006 Mitchell Repair Information Company, LLC.

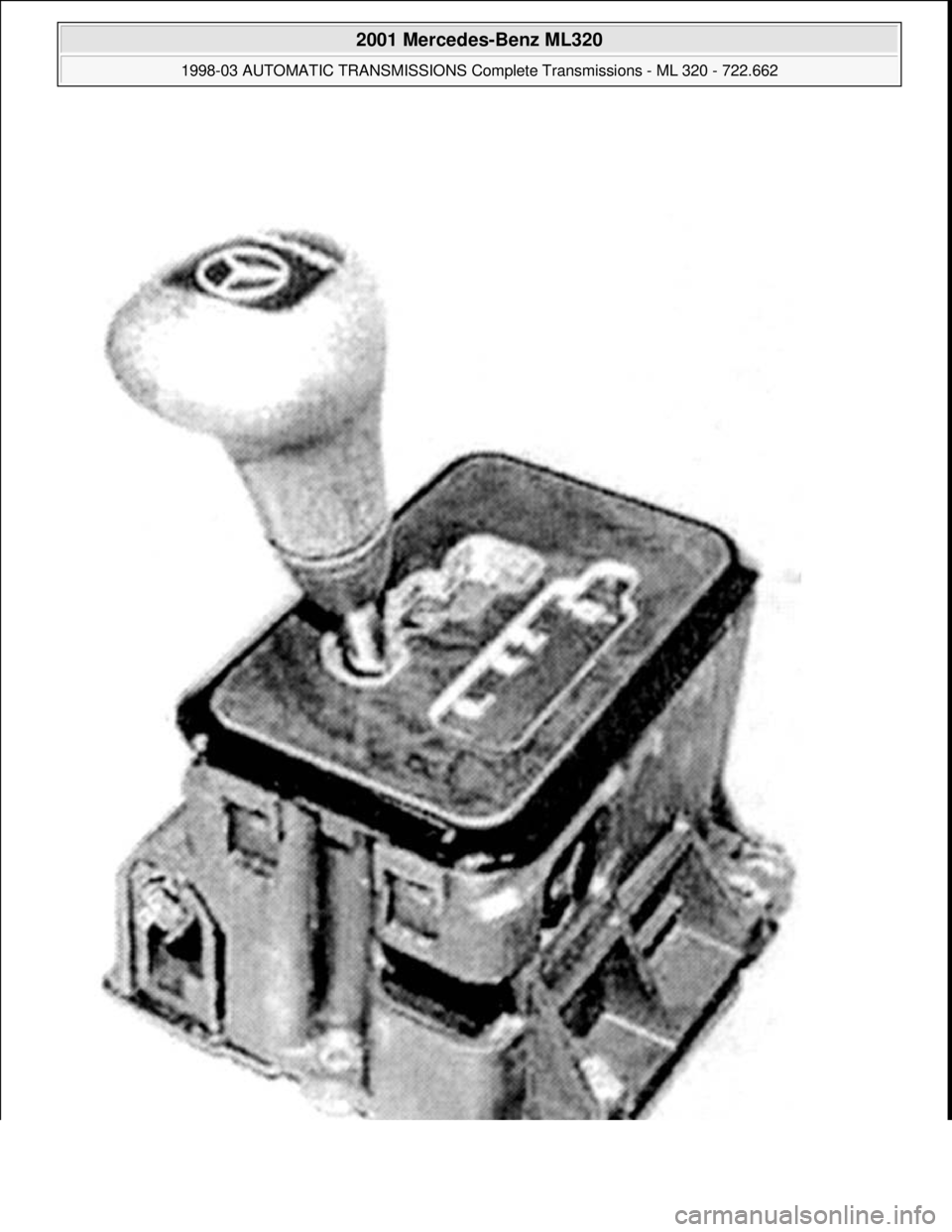

Fig. 149: Floor Shift, Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Location/Task/Design/Function Of R/P Lock (Without Touch Shift)
Fig. 150: R/P Lock Without Touch Shift
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:29 PMPage 265 © 2006 Mitchell Repair Information Company, LLC.

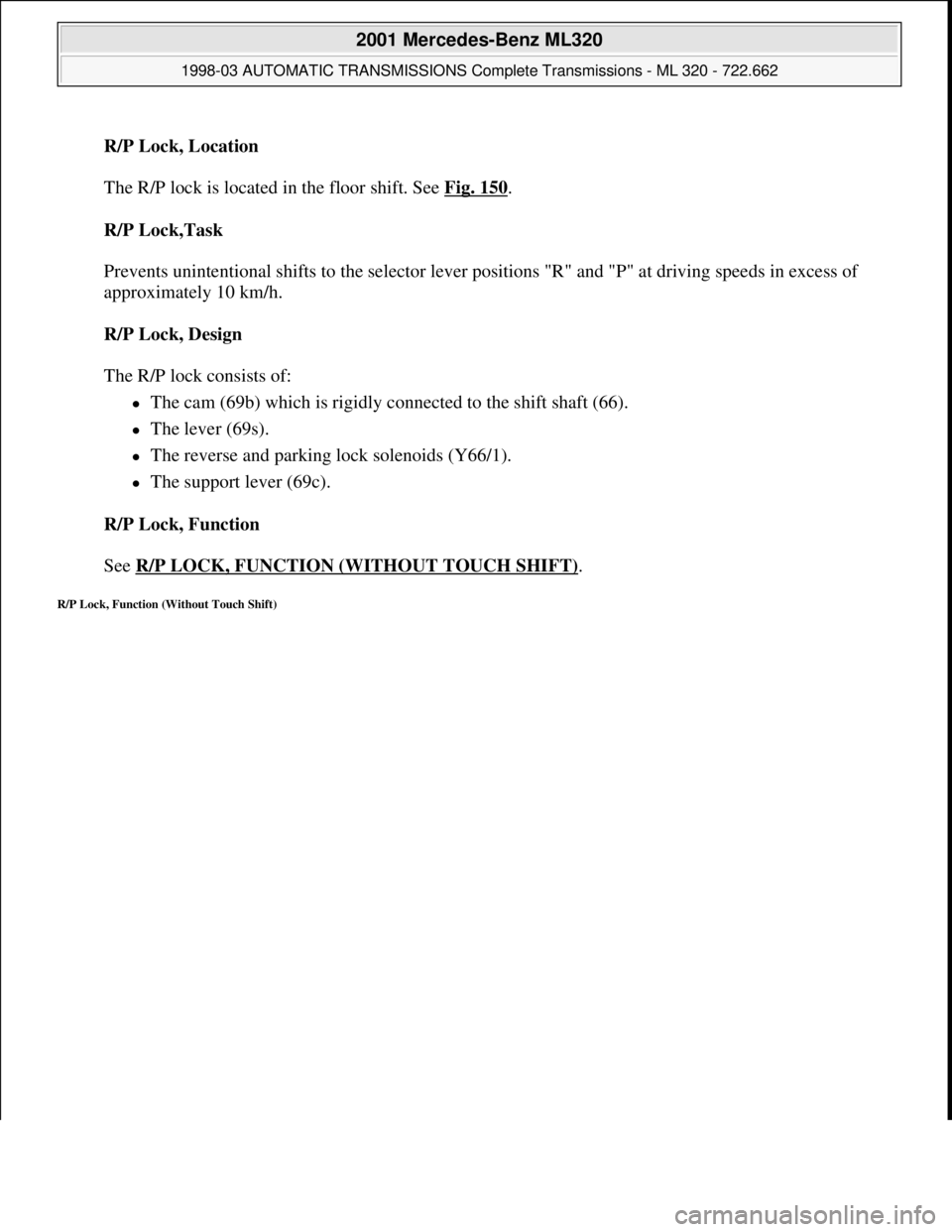

R/P Lock, Location

The R/P lock is located in the floor shift. See Fig. 150
.
R/P Lock,Task

Prevents unintentional shifts to the selector lever positions "R" and "P" at driving speeds in excess of
approximately 10 km/h.
R/P Lock, Design

The R/P lock consists of:
The cam (69b) which is rigidly connected to the shift shaft (66).
The lever (69s).
The reverse and parking lock solenoids (Y66/1).
The support lever (69c).
R/P Lock, Function

See R/P LOCK, FUNCTION (WITHOUT TOUCH SHIFT)
.
R/P Lock, Function (Without Touch Shift)

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:29 PMPage 266 © 2006 Mitchell Repair Information Company, LLC.

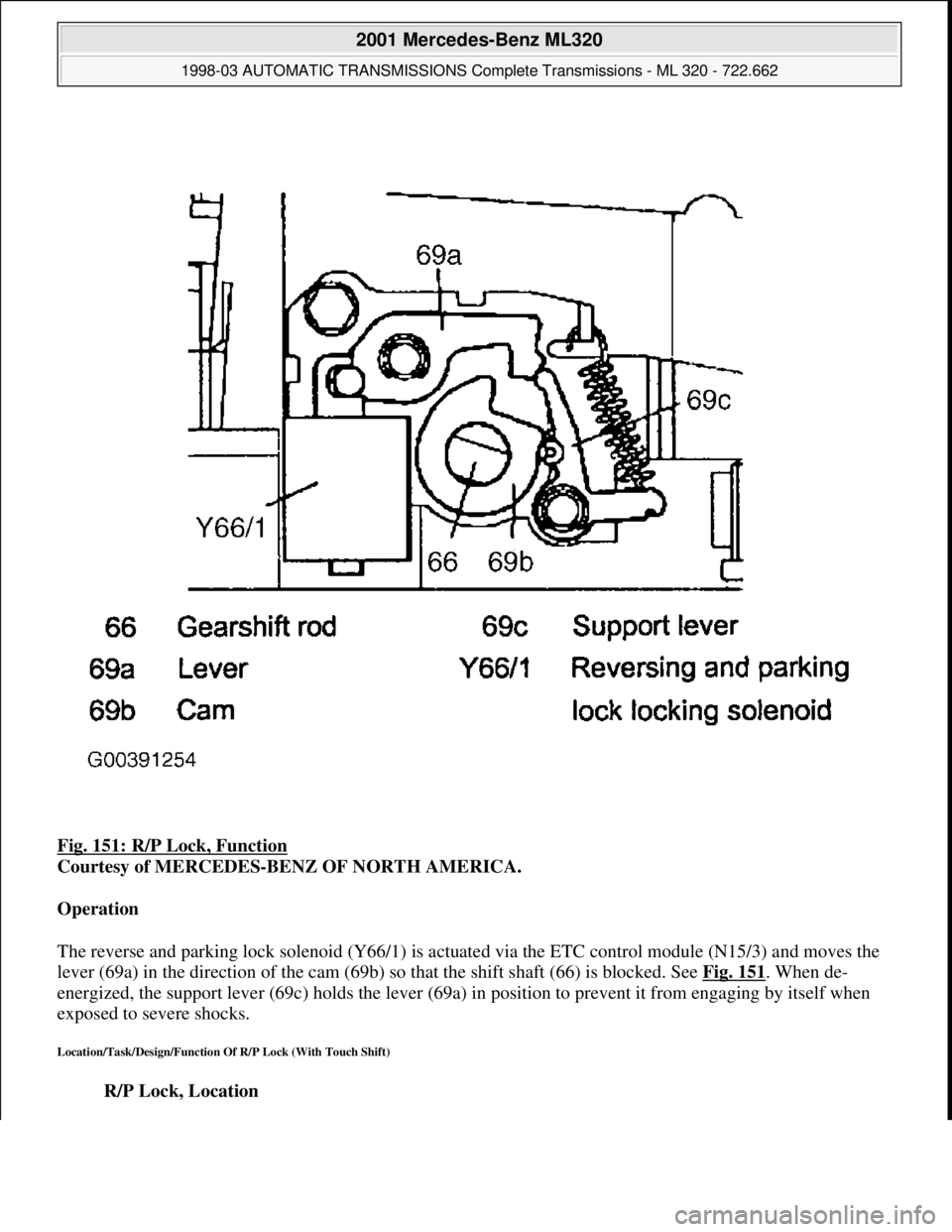

Fig. 151: R/P Lock, Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Operation
The reverse and parking lock solenoid (Y66/1) is actuated via the ETC control module (N15/3) and moves the
lever (69a) in the direction of the cam (69b) so that the shift shaft (66) is blocked. See Fig. 151
. When de-
energized, the support lever (69c) holds the lever (69a) in position to prevent it from engaging by itself when
exposed to severe shocks.
Location/Task/Design/Function Of R/P Lock (With Touch Shift)
R/P Lock, Location


2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:29 PMPage 267 © 2006 Mitchell Repair Information Company, LLC.

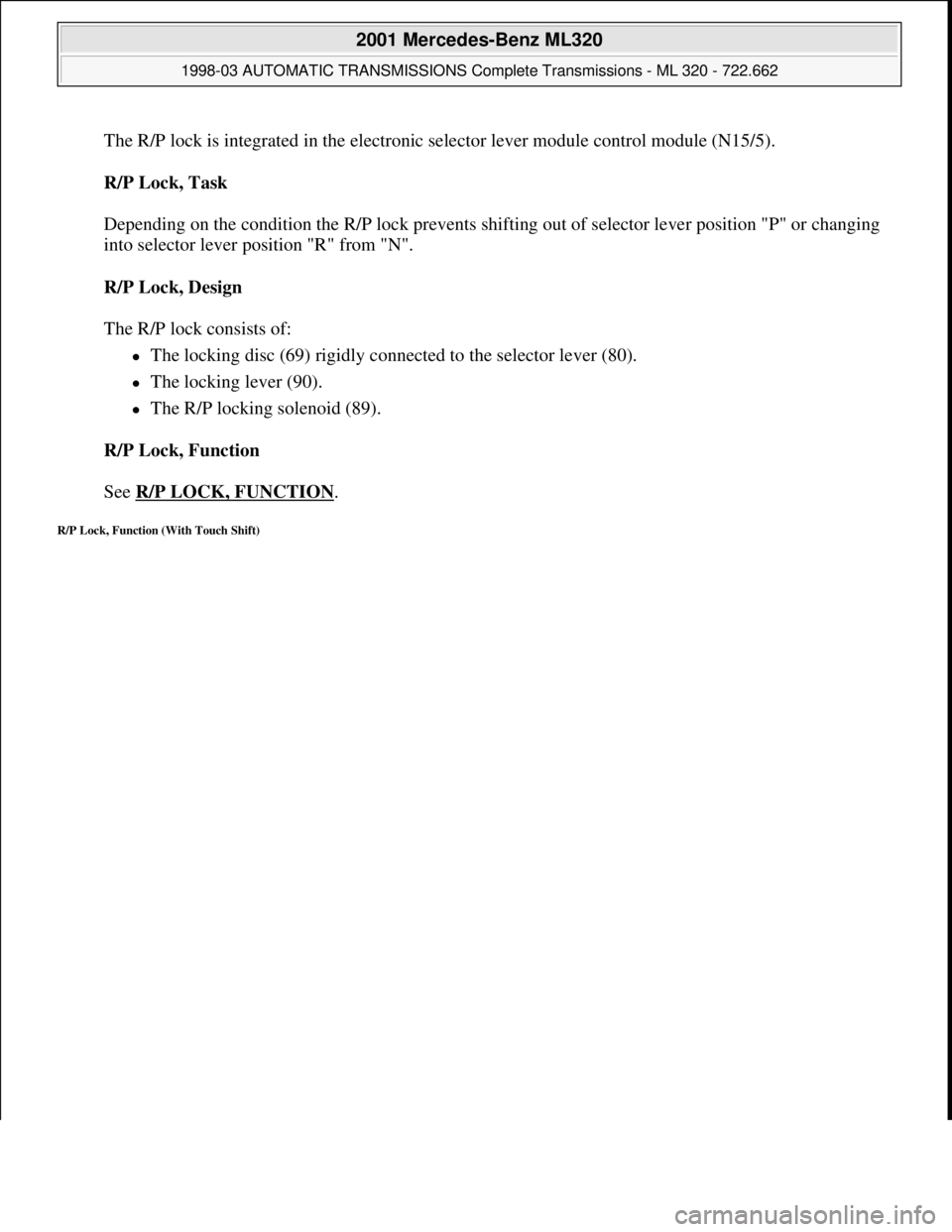

The R/P lock is integrated in the electronic selector lever module control module (N15/5).
R/P Lock, Task

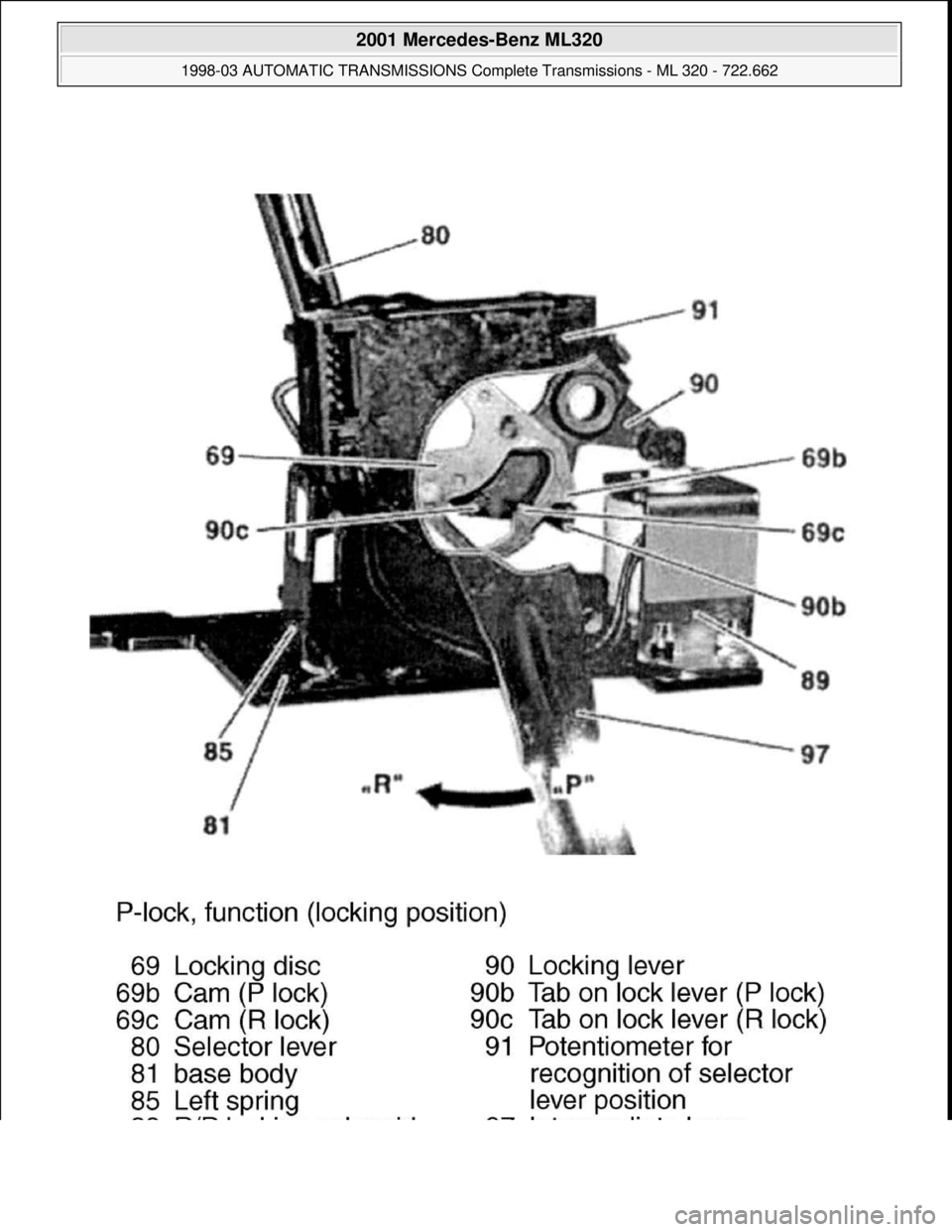

Depending on the condition the R/P lock prevents shifting out of selector lever position "P" or changing
into selector lever position "R" from "N".
R/P Lock, Design

The R/P lock consists of:
The locking disc (69) rigidly connected to the selector lever (80).
The locking lever (90).
The R/P locking solenoid (89).
R/P Lock, Function

See R/P LOCK, FUNCTION
.
R/P Lock, Function (With Touch Shift)

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:29 PMPage 268 © 2006 Mitchell Repair Information Company, LLC.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:29 PMPage 269 © 2006 Mitchell Repair Information Company, LLC.

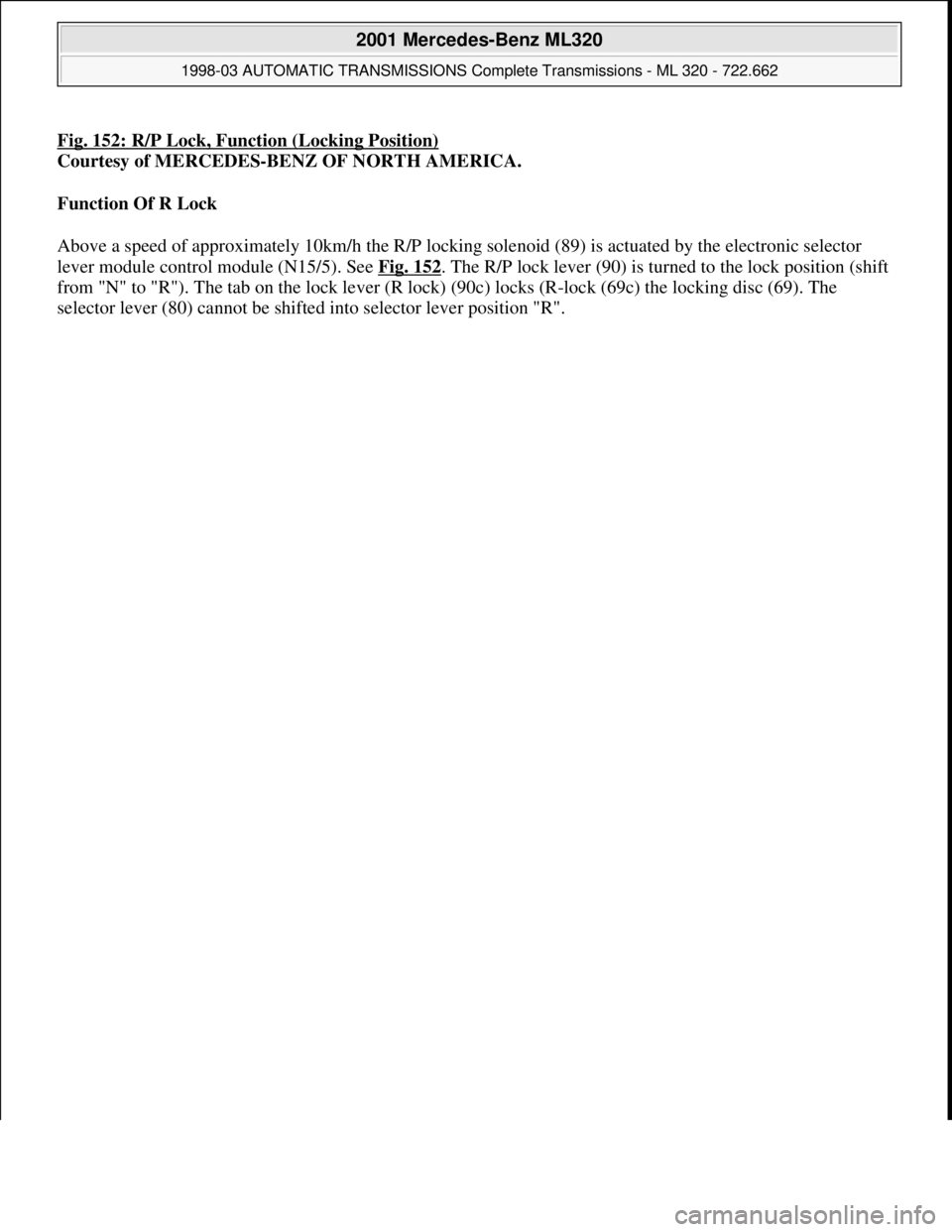

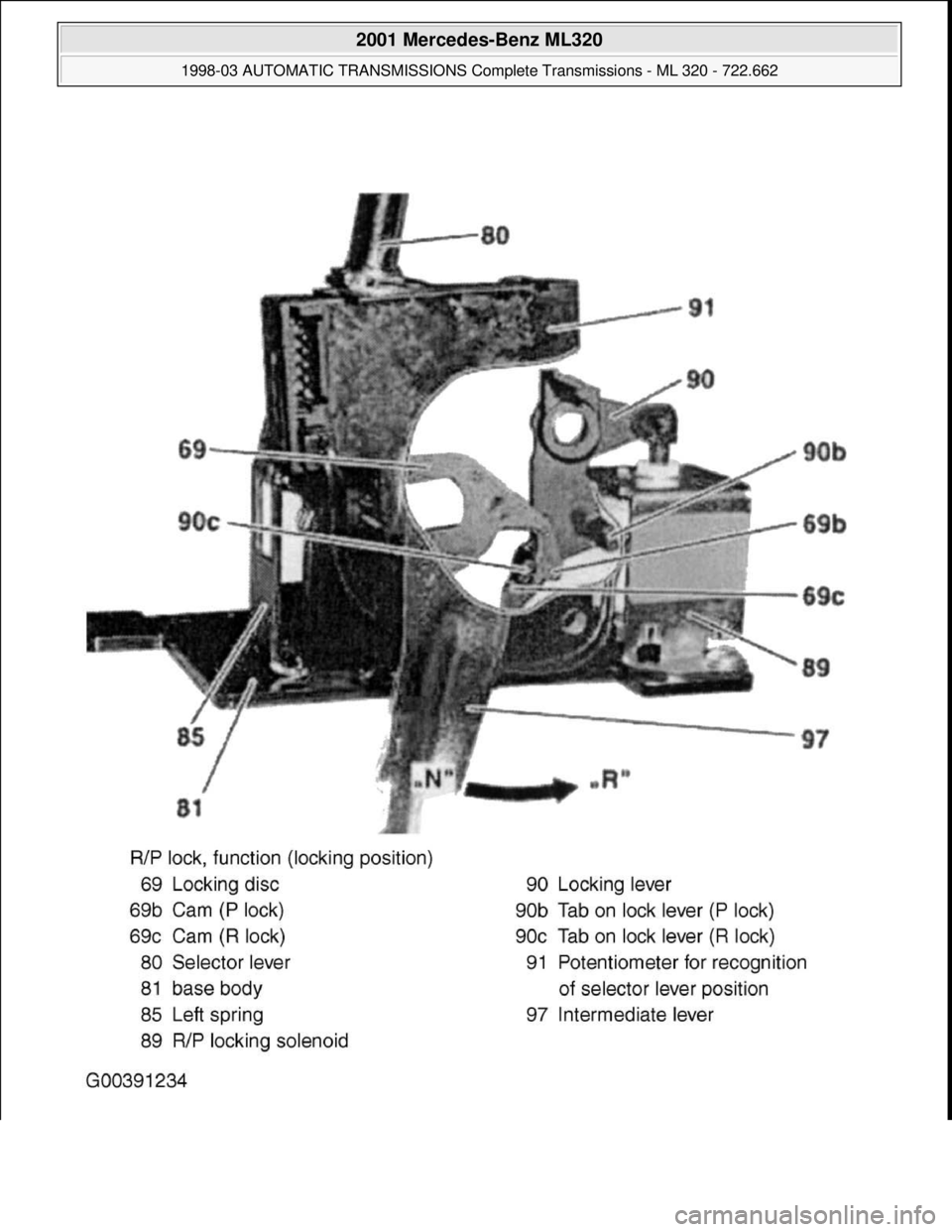

Fig. 152: R/P Lock, Function (Locking Position)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Function Of R Lock
Above a speed of approximately 10km/h the R/P locking solenoid (89) is actuated by the electronic selector
lever module control module (N15/5). See Fig. 152
. The R/P lock lever (90) is turned to the lock position (shift
from "N" to "R"). The tab on the lock lever (R lock) (90c) locks (R-lock (69c) the locking disc (69). The
selector lever (80) cannot be shifted into selector lever position "R".
