MERCEDES-BENZ ML430 1997  Complete Repair Manual RETROFIT WIRING HARNESS OF HANDS-FREE SYSTEM - AZ82.70-P-0005-02GH
1. Expose connector for telephone handset (A34) in radio shaft.

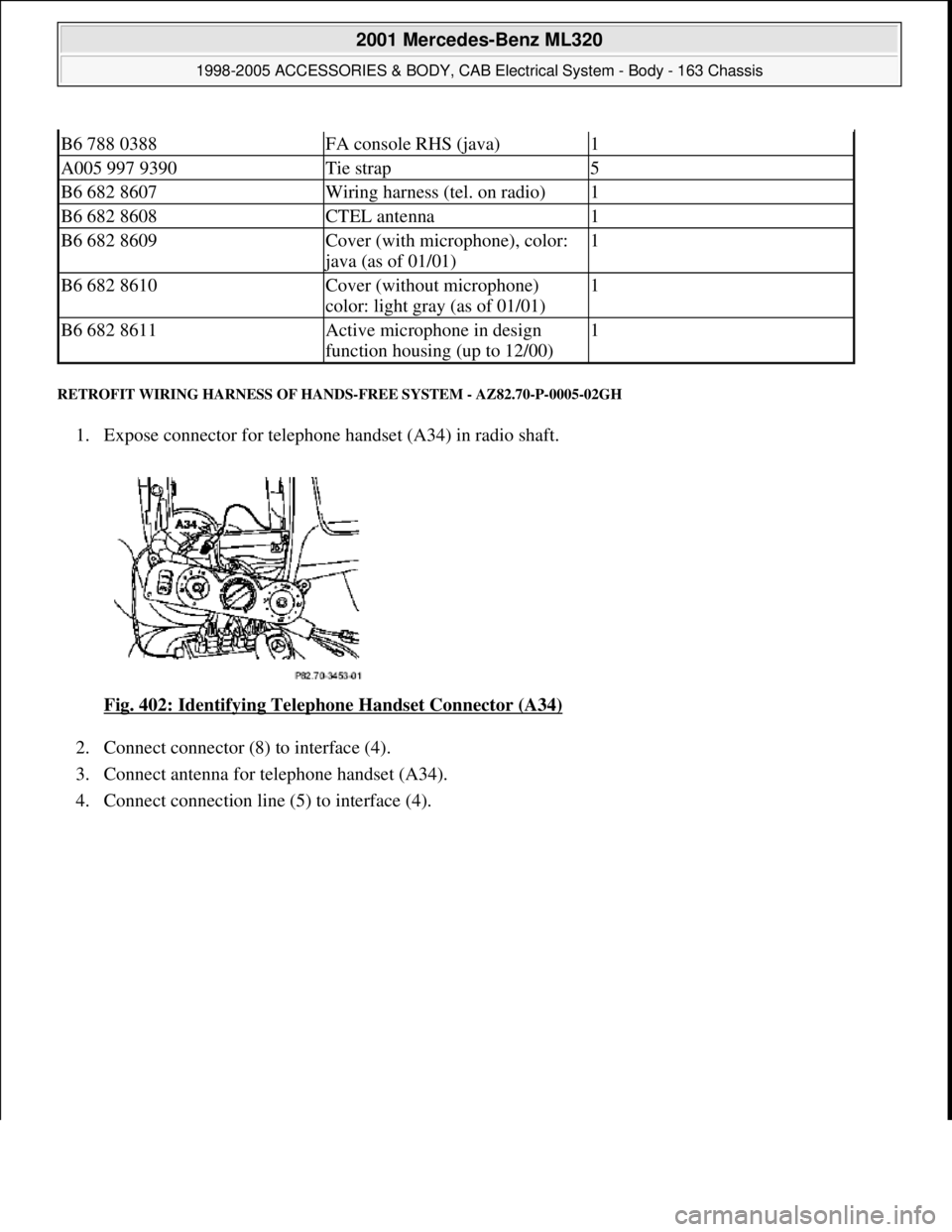

Fig. 402: Identifying Telephone Handset Connector (A34)

2. Connec

Page 1952 of 4133

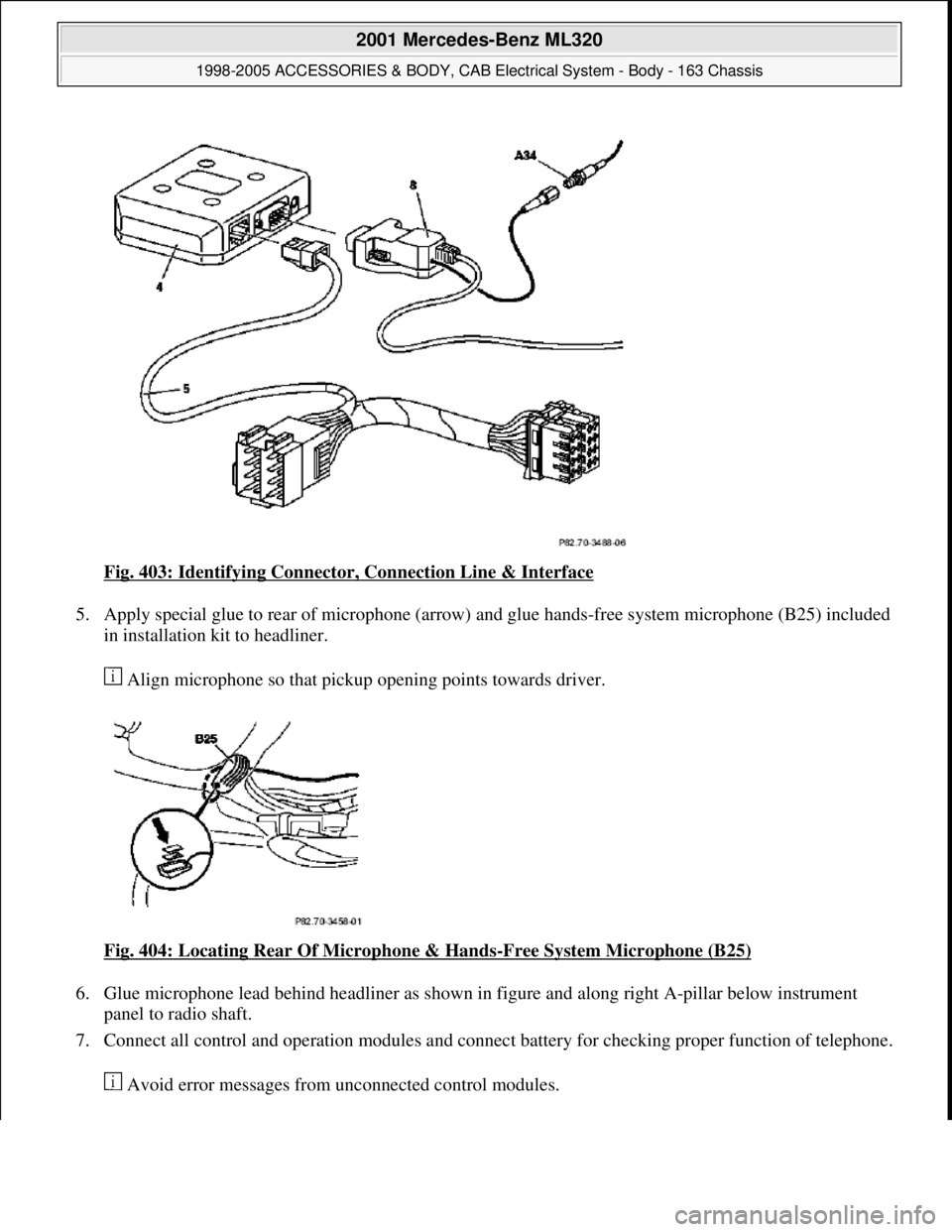

MERCEDES-BENZ ML430 1997  Complete Repair Manual Fig. 403: Identifying Connector, Connection Line & Interface
5. Apply special glue to rear of microphone (arrow) and glue hands-free system microphone (B25) included
in installation kit to headliner

Page 1953 of 4133

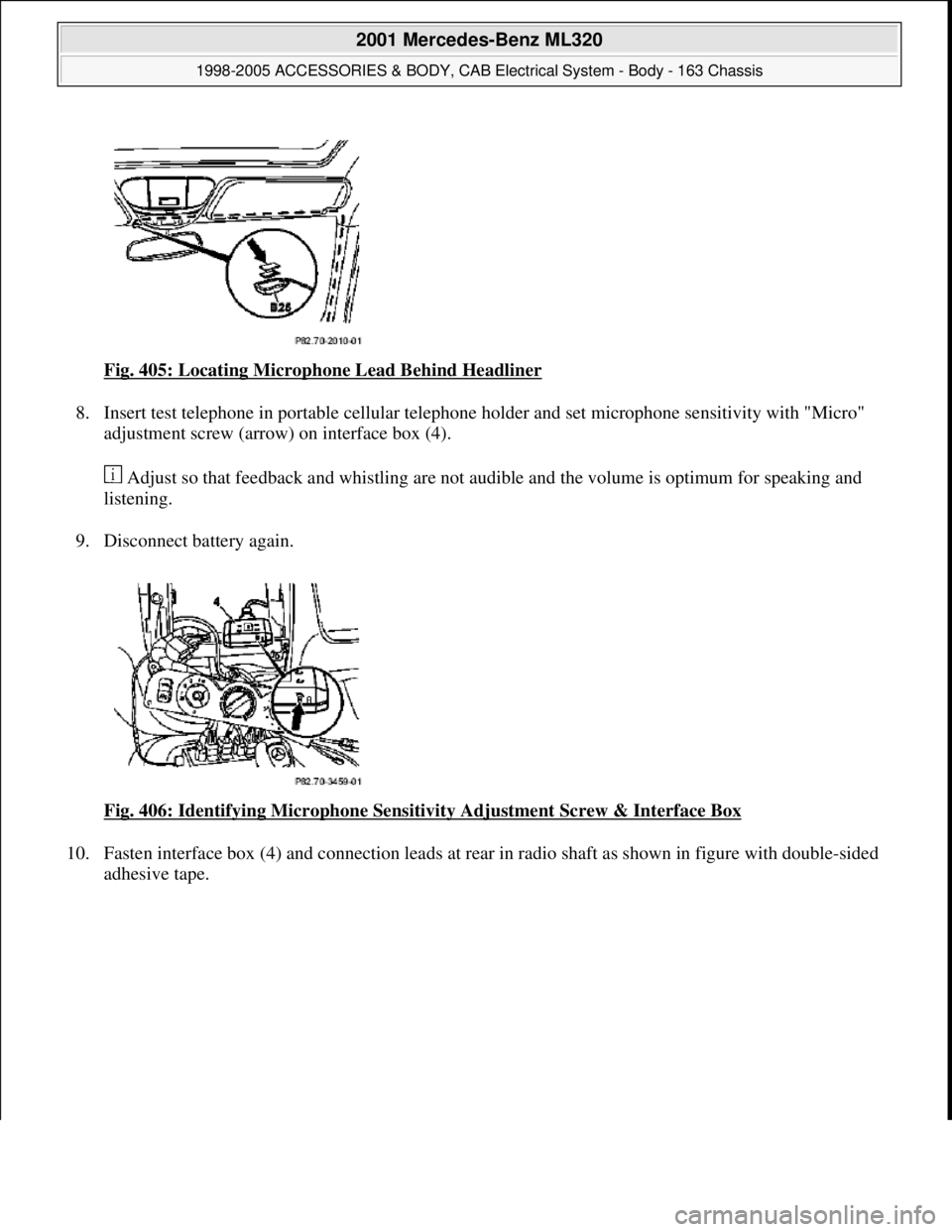

MERCEDES-BENZ ML430 1997  Complete Repair Manual Fig. 405: Locating Microphone Lead Behind Headliner
8. Insert test telephone in portable cellular telephone holder and set microphone sensitivity with "Micro"
adjustment screw (arrow) on interface b

Page 1954 of 4133

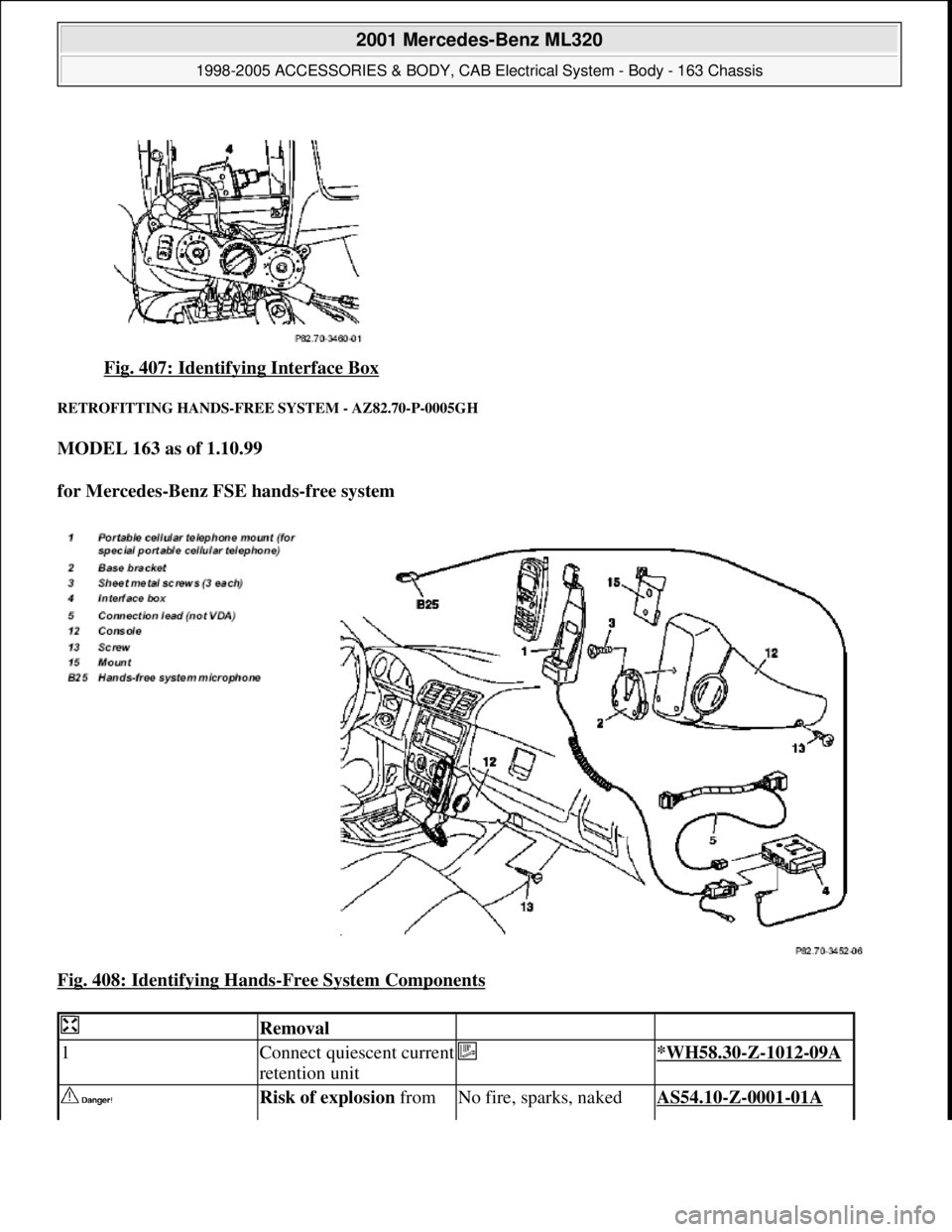

MERCEDES-BENZ ML430 1997  Complete Repair Manual Fig. 407: Identifying Interface Box
RETROFITTING HANDS-FREE  SYSTEM - AZ82.70-P-0005GH
MODEL 163 as of 1.10.99
for Mercedes-Benz FSE hands-free system
Fig. 408: Identifying Hands
-Free Syste

Page 1955 of 4133

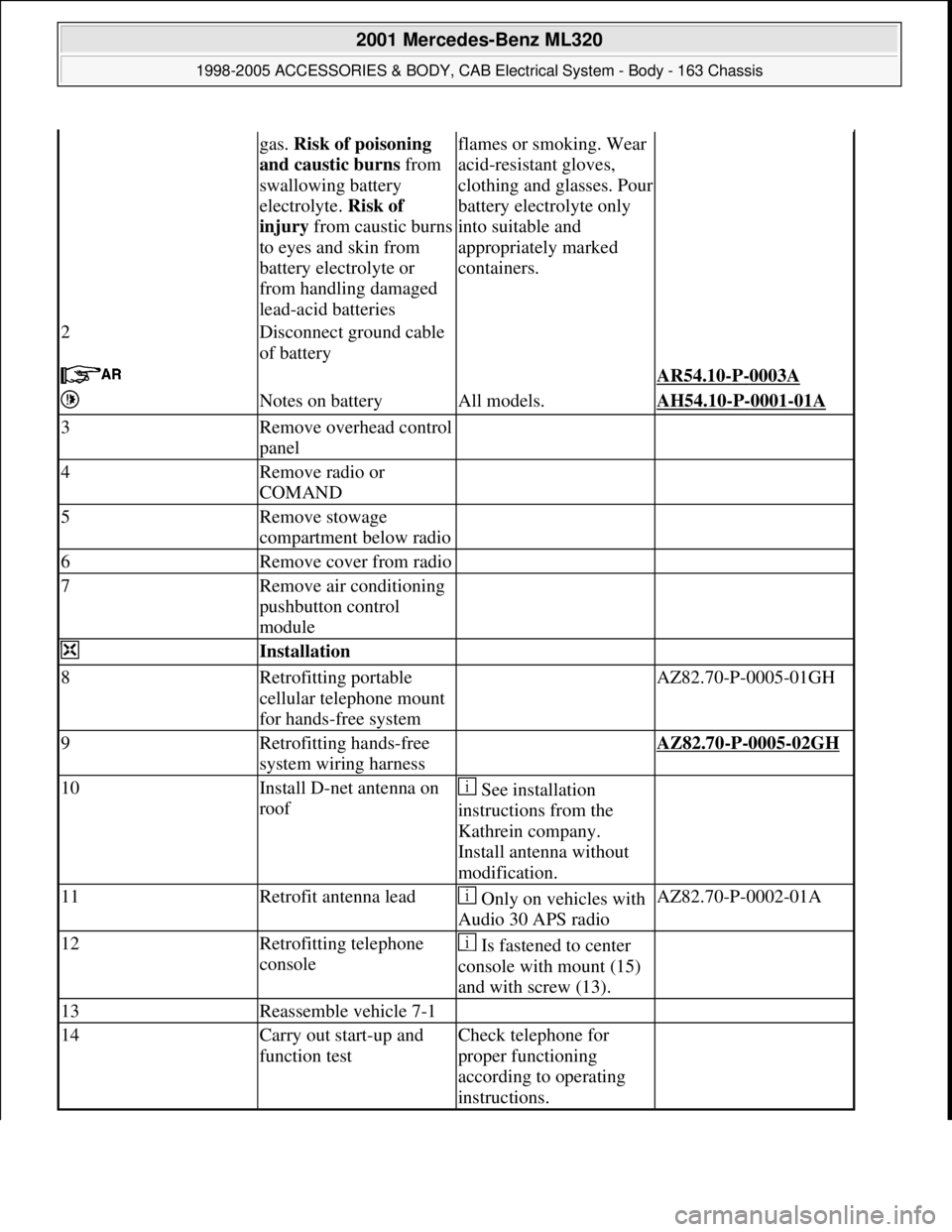

MERCEDES-BENZ ML430 1997  Complete Repair Manual gas. Risk of poisoning
and caustic burns from
swallowing battery
electrolyte. Risk of
injury from caustic burns
to eyes and skin from
battery electrolyte or
from handling damaged
lead-acid bat

Page 1956 of 4133

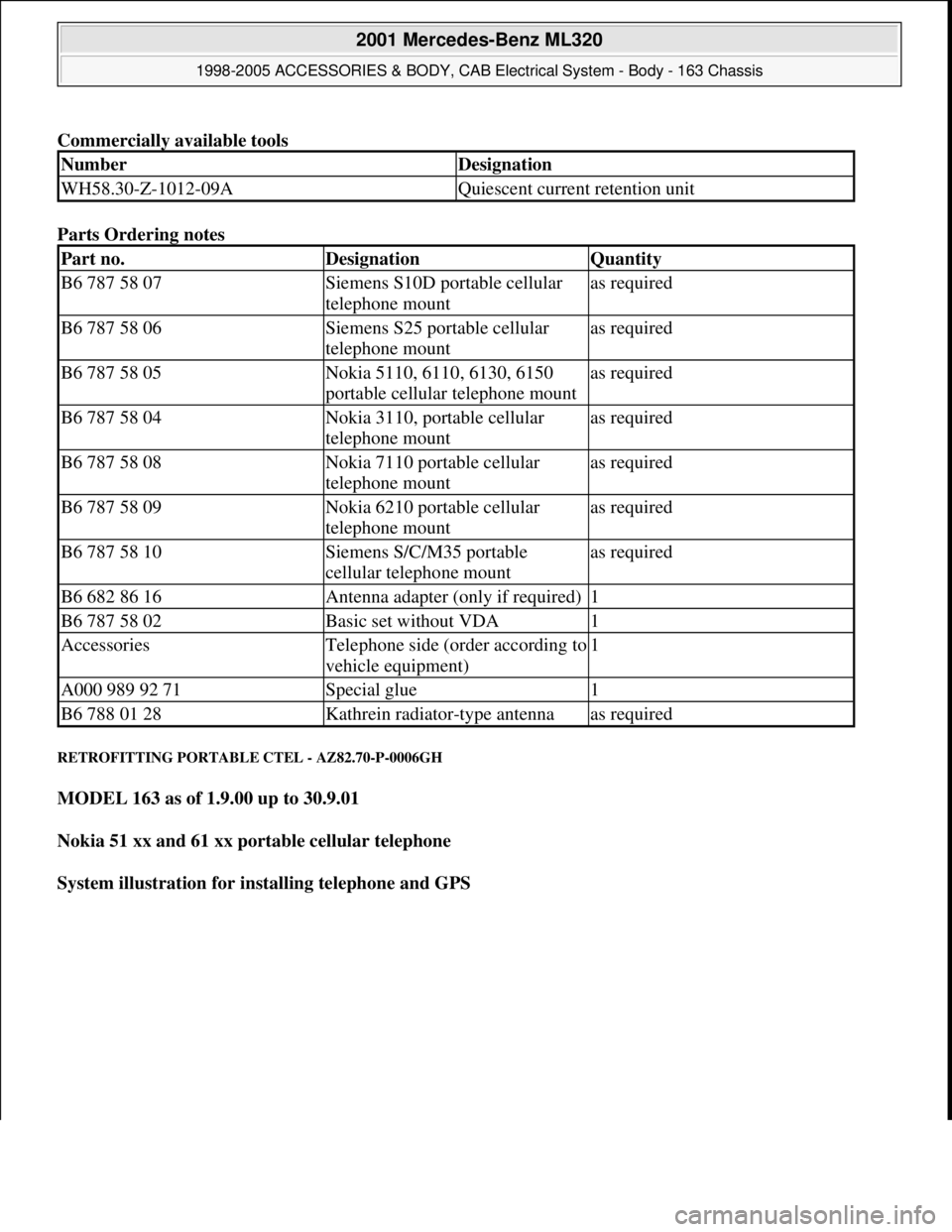

MERCEDES-BENZ ML430 1997  Complete Repair Manual Commercially available tools
Parts Ordering notes
RETROFITTING PORTABLE CTEL - AZ82.70-P-0006GH
MODEL 163 as of 1.9.00 up to 30.9.01
Nokia 51 xx and 61 xx portable cellular telephone
System ill

Page 1957 of 4133

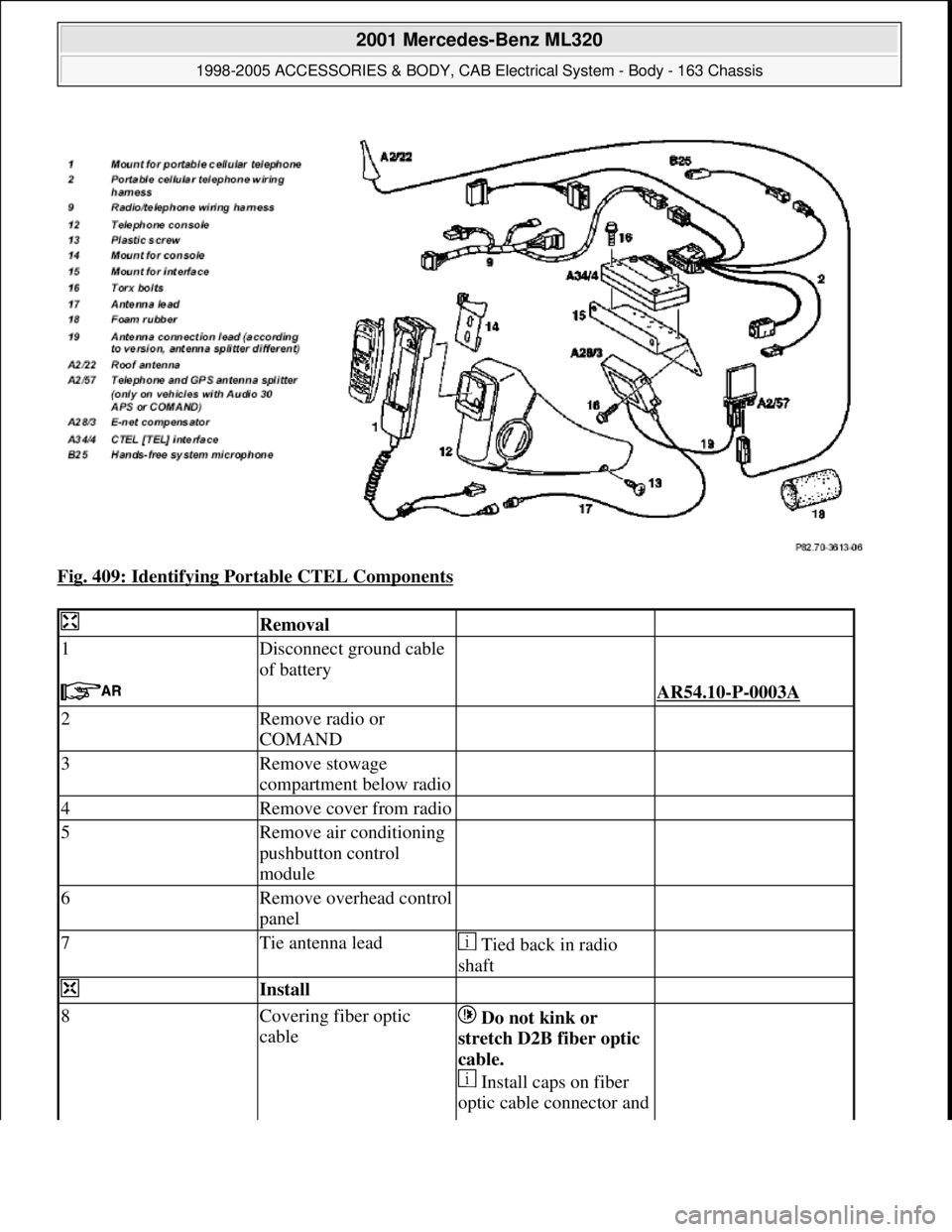

MERCEDES-BENZ ML430 1997  Complete Repair Manual Fig. 409: Identifying Portable CTEL Components
 Removal
1Disconnect ground cable
of battery
   AR54.10-P-0003A
2Remove radio or
COMAND
3Remove stowage
compartment below radio
4Remove cove

Page 1958 of 4133

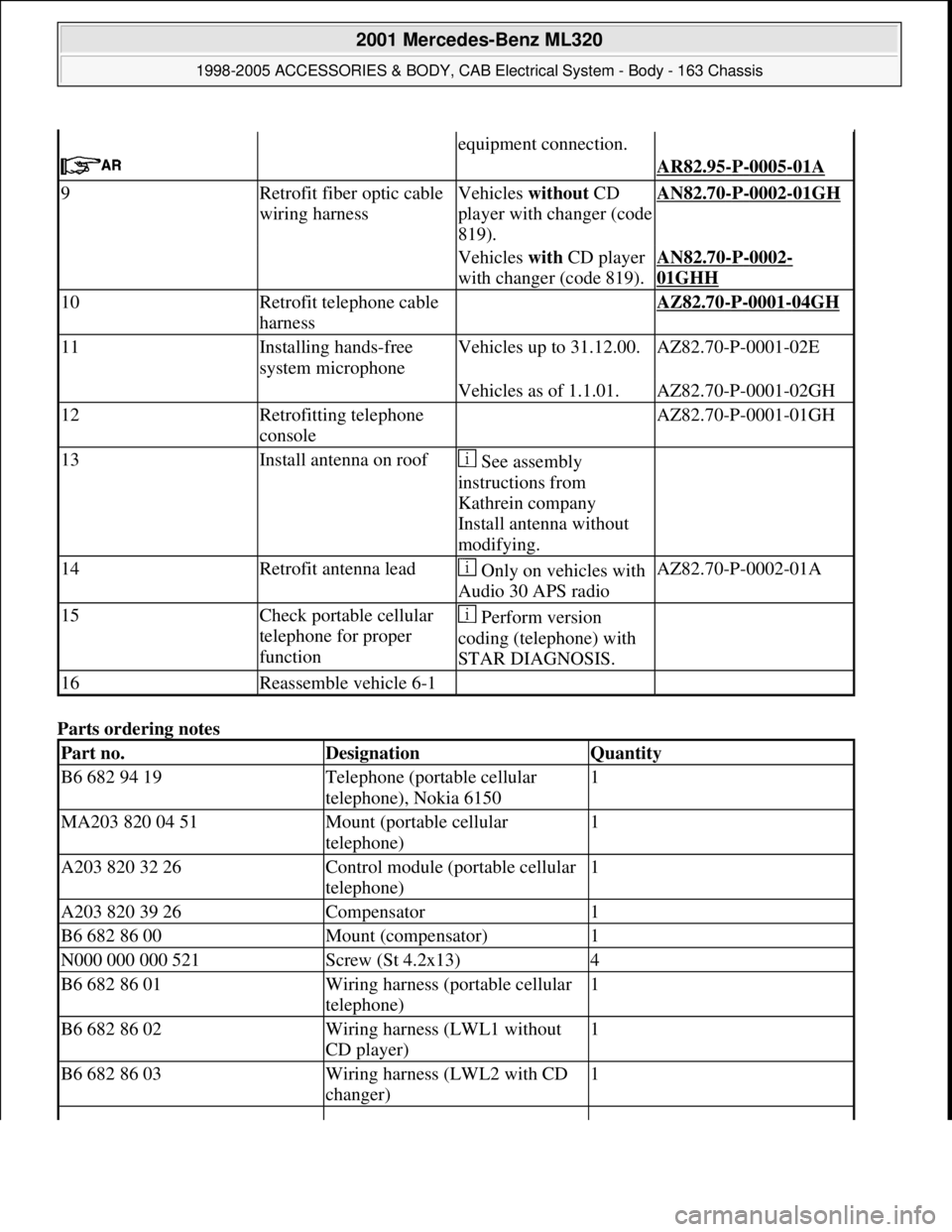

MERCEDES-BENZ ML430 1997  Complete Repair Manual Parts ordering notes
equipment connection.
   AR82.95-P-0005-01A
9Retrofit fiber optic cable
wiring harnessVehicles without CD
player with changer (code
819).AN82.70-P-0002-01GH
  Vehicles with CD

Page 1959 of 4133

MERCEDES-BENZ ML430 1997  Complete Repair Manual REMOVAL & INSTALLATION
INSTALLING LARGER WASHER FLUID RESERVOIR - SM82.35-P-0002GH
MODELS 163.113/136/154/172
with 5 I container
The 5 I washer fluid reservoir has been replaced by a 7.6 I conta

Page 1960 of 4133

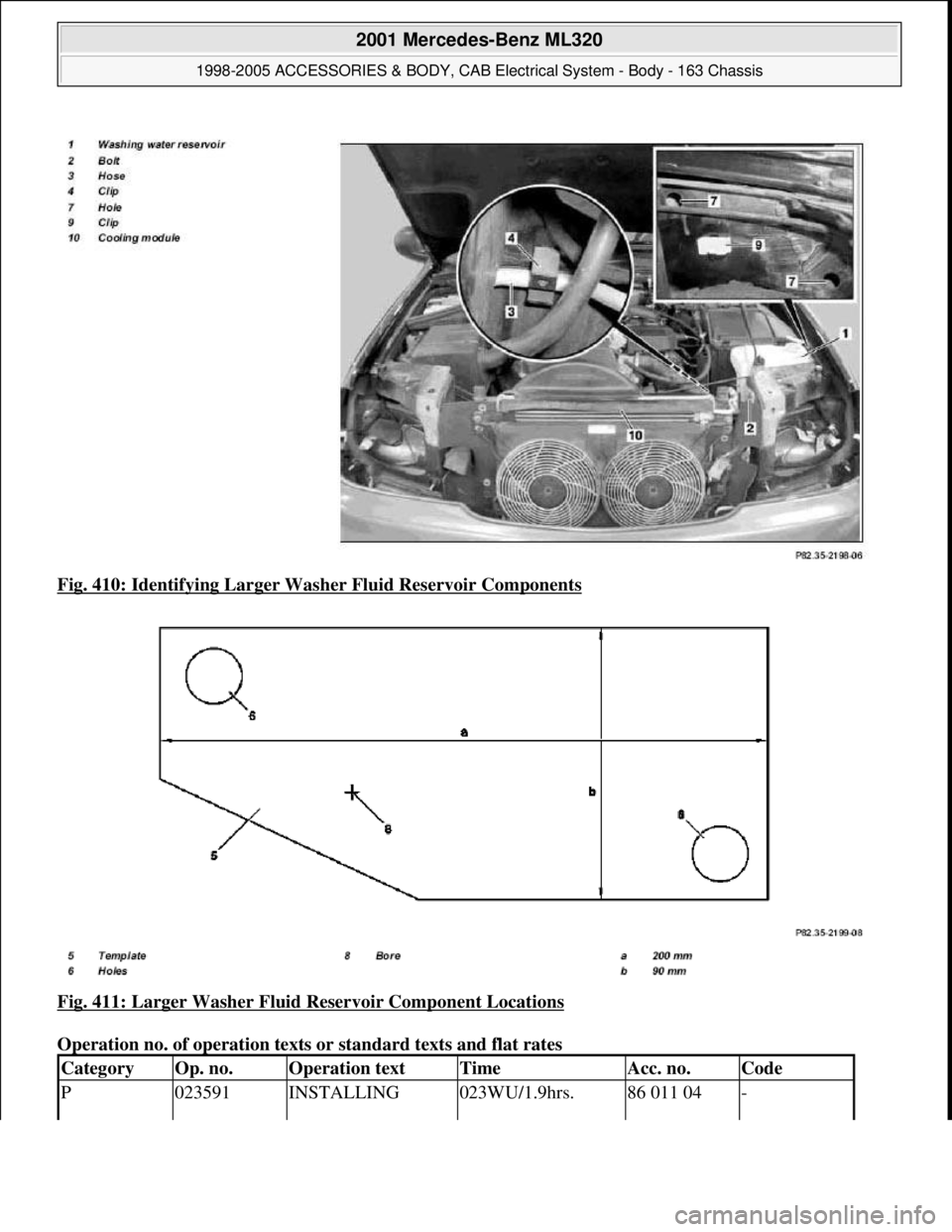

MERCEDES-BENZ ML430 1997  Complete Repair Manual Fig. 410: Identifying Larger Was her Fluid Reservoir Components
Fig. 411: Larger Washer Fluid Reservoir Component Locations

Operation no. of operation texts or   standard texts and flat rates
Ca
