Page 4111 of 4133

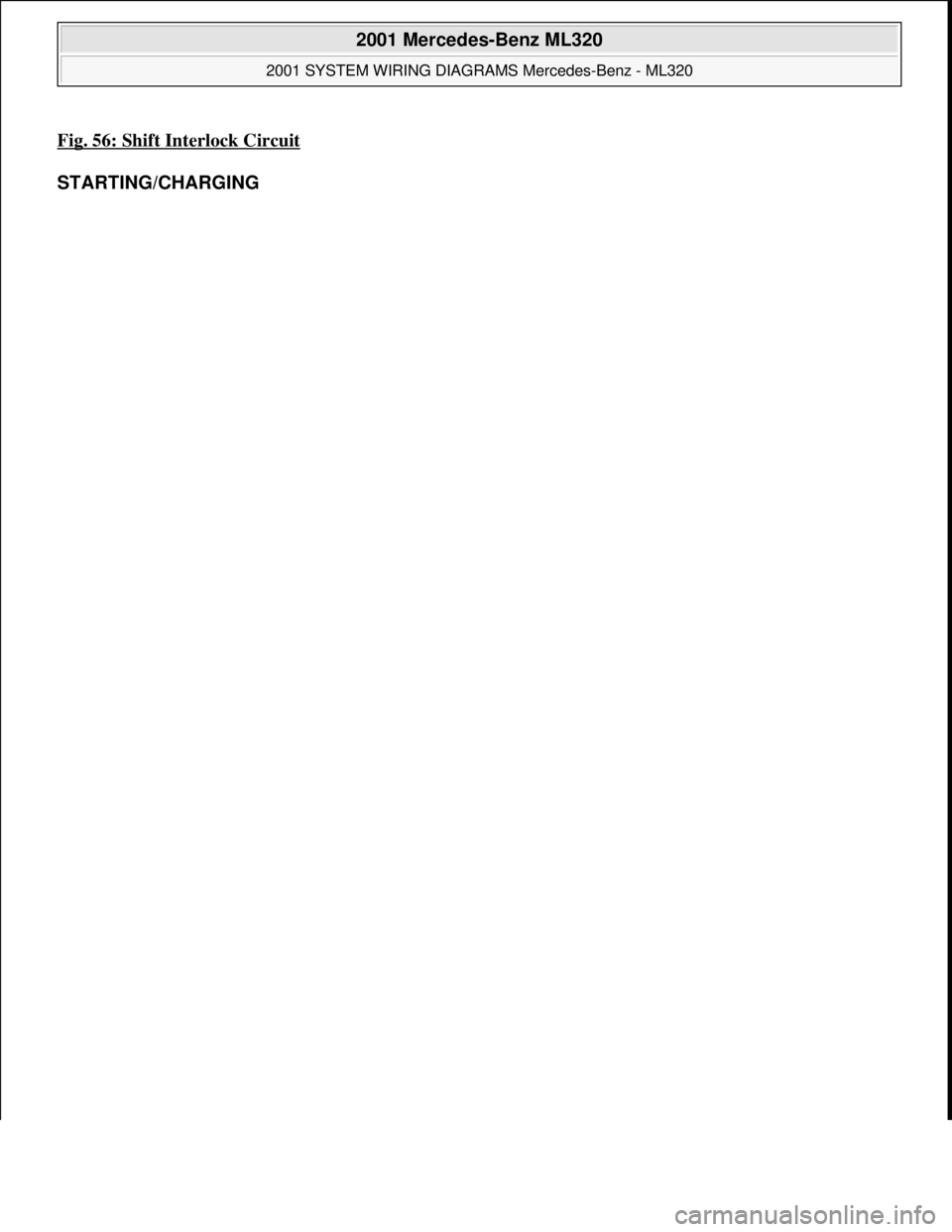

MERCEDES-BENZ ML430 1997 Complete Repair Manual Fig. 56: Shift Interlock Circuit STARTING/CHARGING 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 113 © 2006 Mitchell

Page 4112 of 4133

MERCEDES-BENZ ML430 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 114 © 2006 Mitchell Repair Information Company, LLC.

Page 4113 of 4133

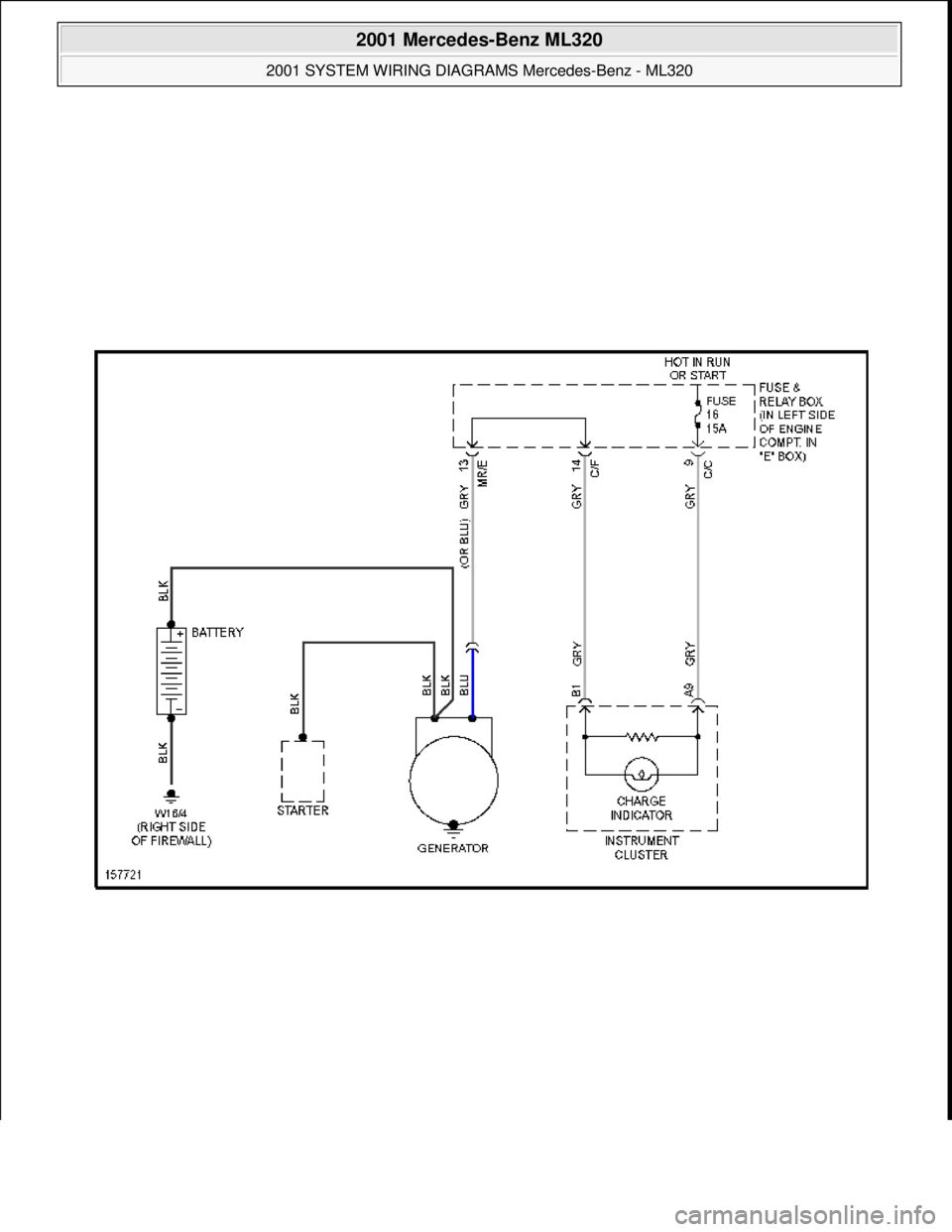

MERCEDES-BENZ ML430 1997 Complete Repair Manual Fig. 57: Charging Circuit 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 115 © 2006 Mitchell Repair Information Compan

Page 4114 of 4133

MERCEDES-BENZ ML430 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 116 © 2006 Mitchell Repair Information Company, LLC.

Page 4115 of 4133

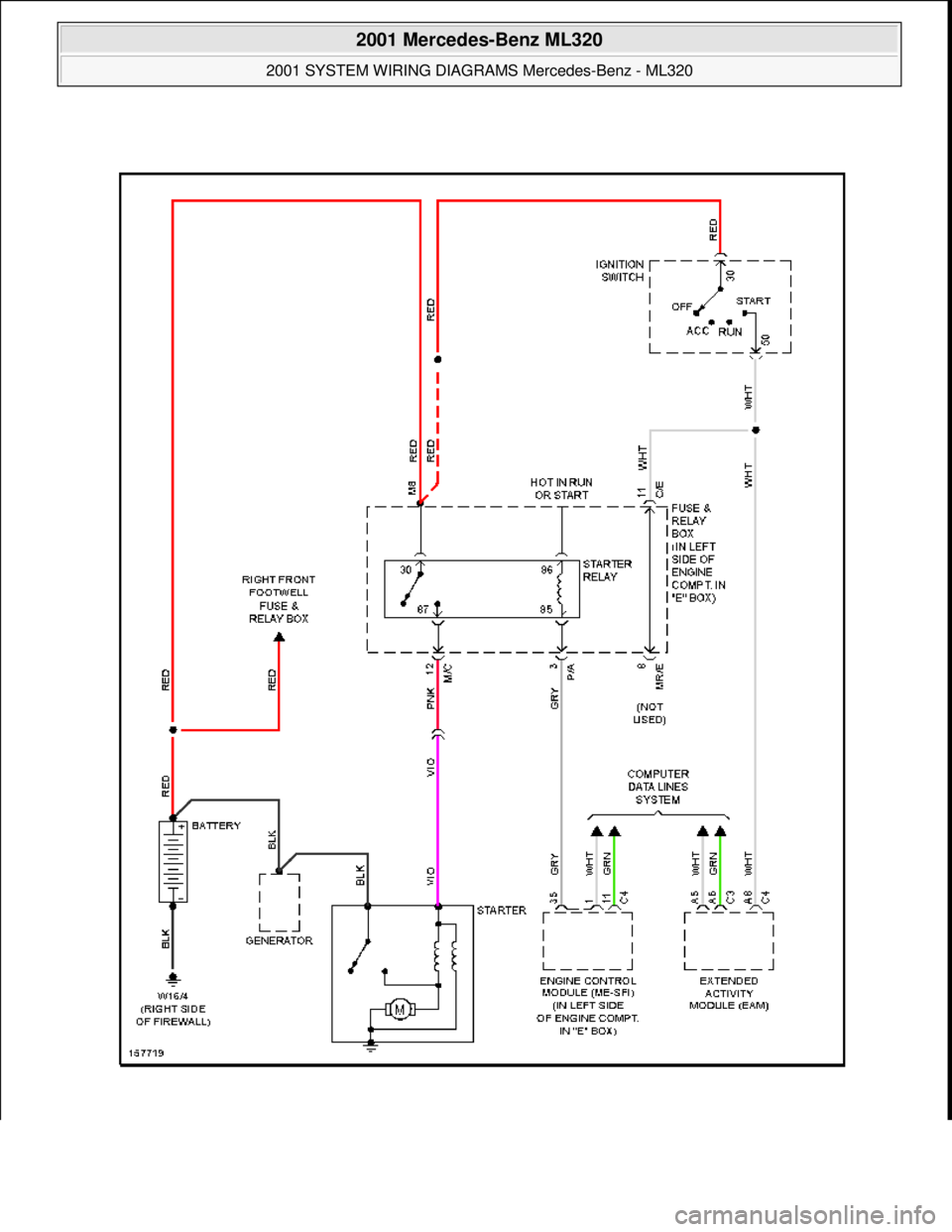

MERCEDES-BENZ ML430 1997 Complete Repair Manual Fig. 58: Starting Circuit SUPPLEMENTAL RESTRAINTS 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 117 © 2006 Mitchell

Page 4116 of 4133

MERCEDES-BENZ ML430 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 118 © 2006 Mitchell Repair Information Company, LLC.

Page 4117 of 4133

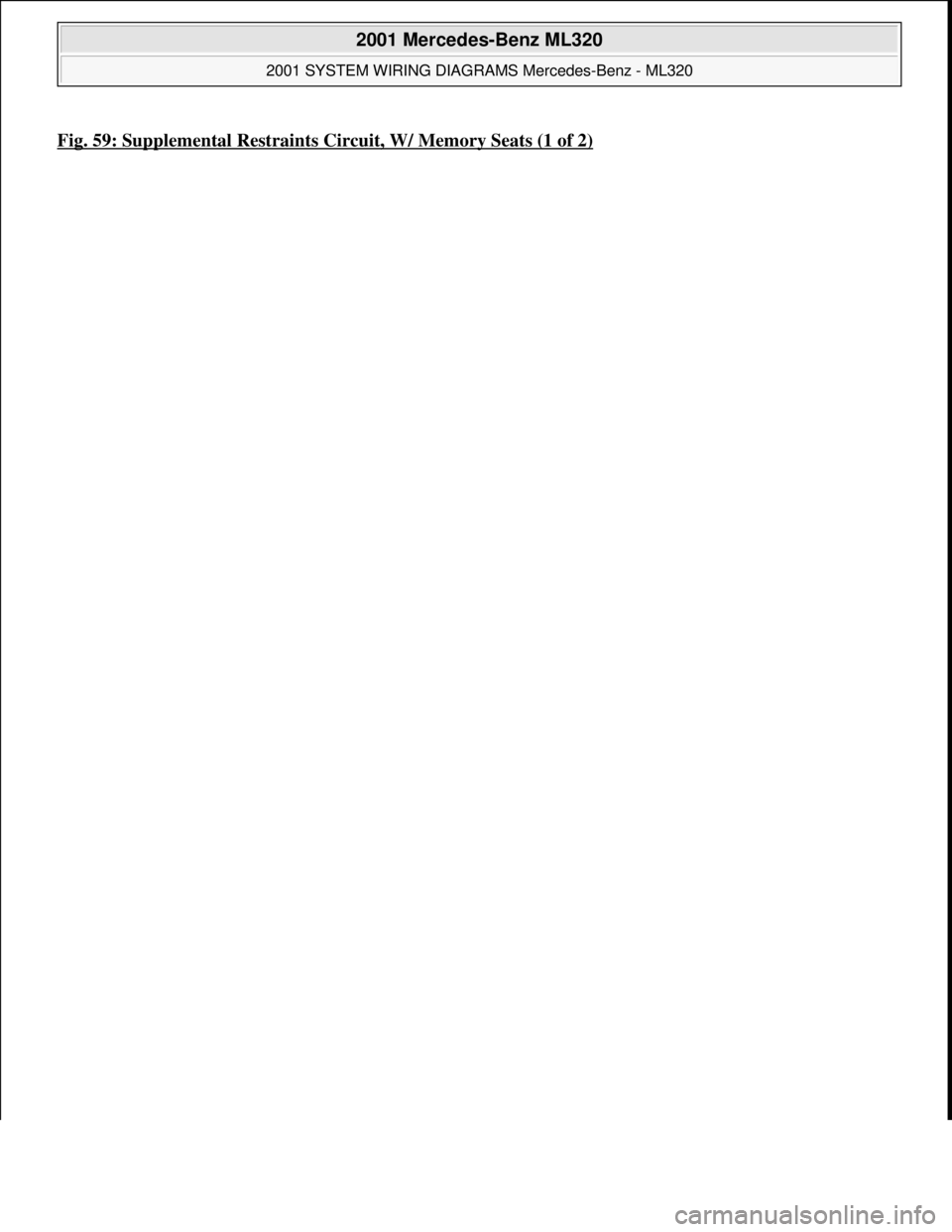

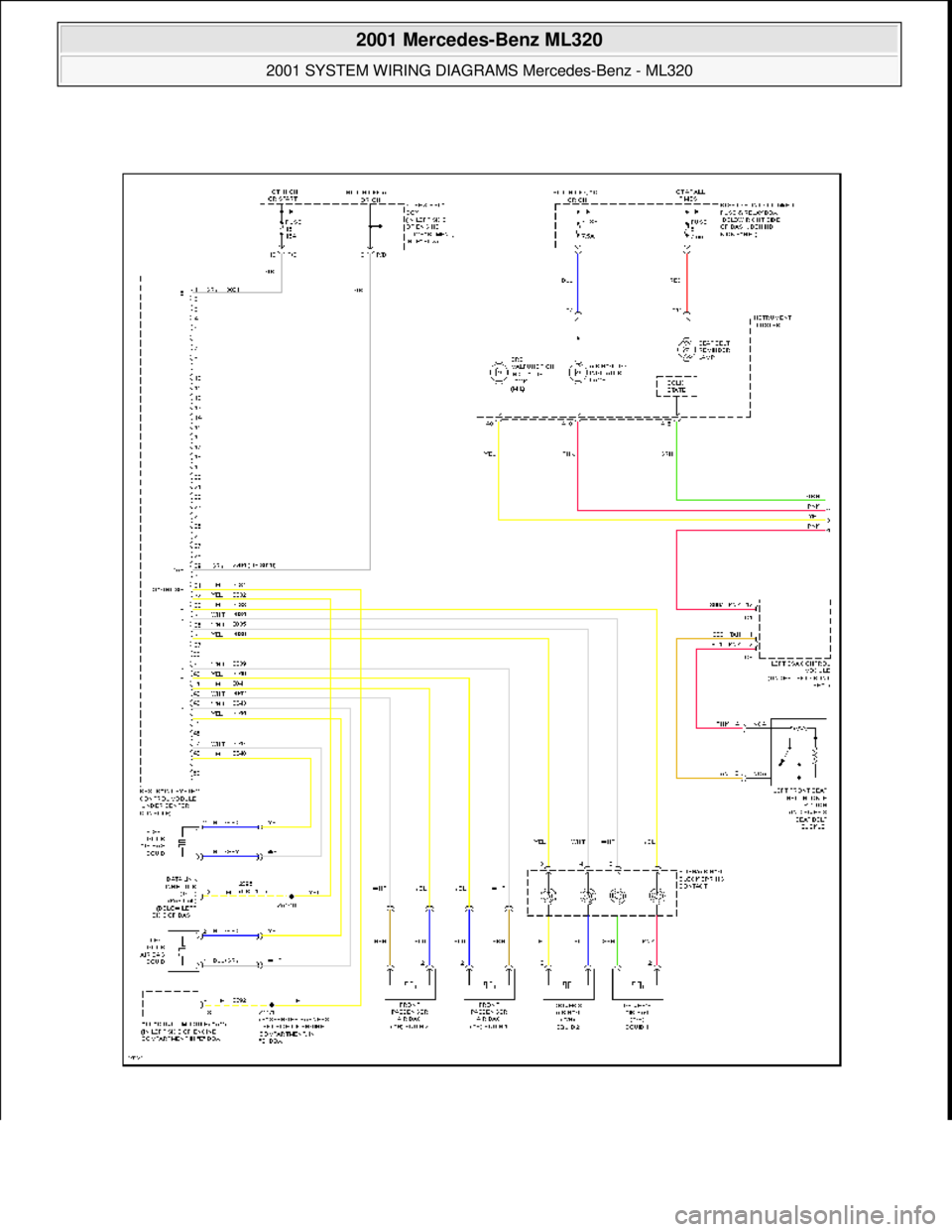

MERCEDES-BENZ ML430 1997 Complete Repair Manual Fig. 59: Supplemental Restraints Circuit, W/ Memory Seats (1 of 2) 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 119 ©

Page 4118 of 4133

MERCEDES-BENZ ML430 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 120 © 2006 Mitchell Repair Information Company, LLC.

Page 4119 of 4133

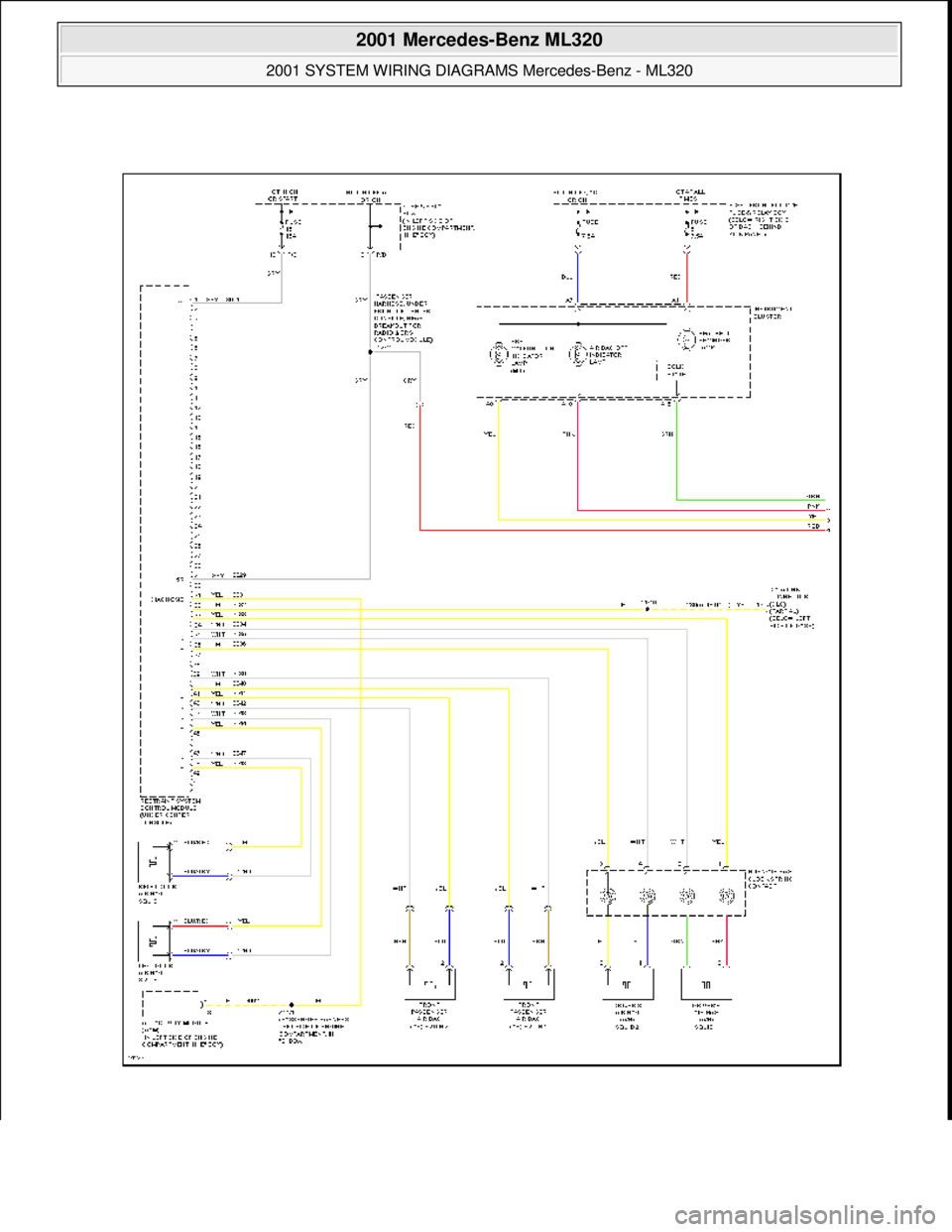

MERCEDES-BENZ ML430 1997 Complete Repair Manual Fig. 60: Supplemental Restraints Circuit, W/ Memory Seats (2 of 2) 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 121 ©

Page 4120 of 4133

MERCEDES-BENZ ML430 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 122 © 2006 Mitchell Repair Information Company, LLC.
