Page 4121 of 4133

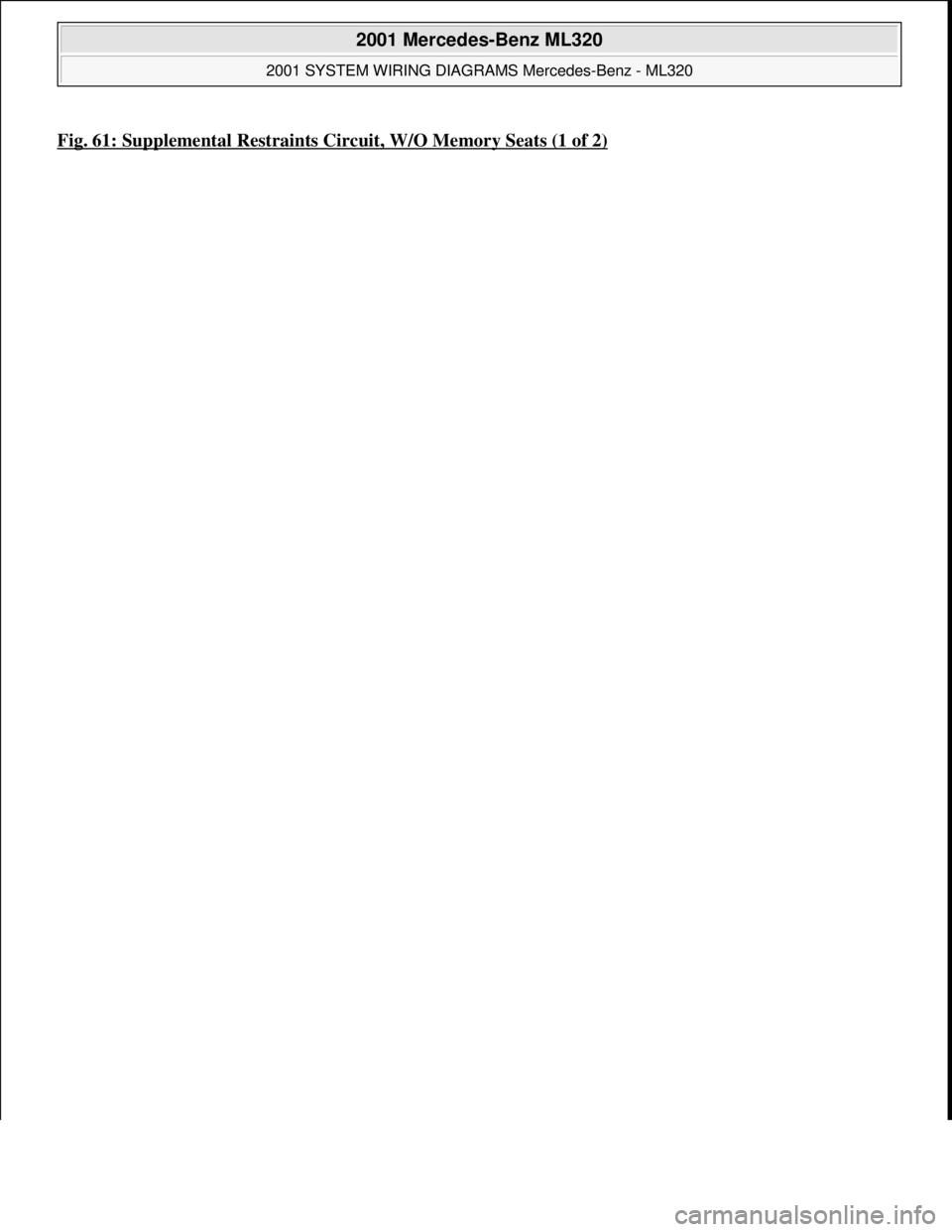

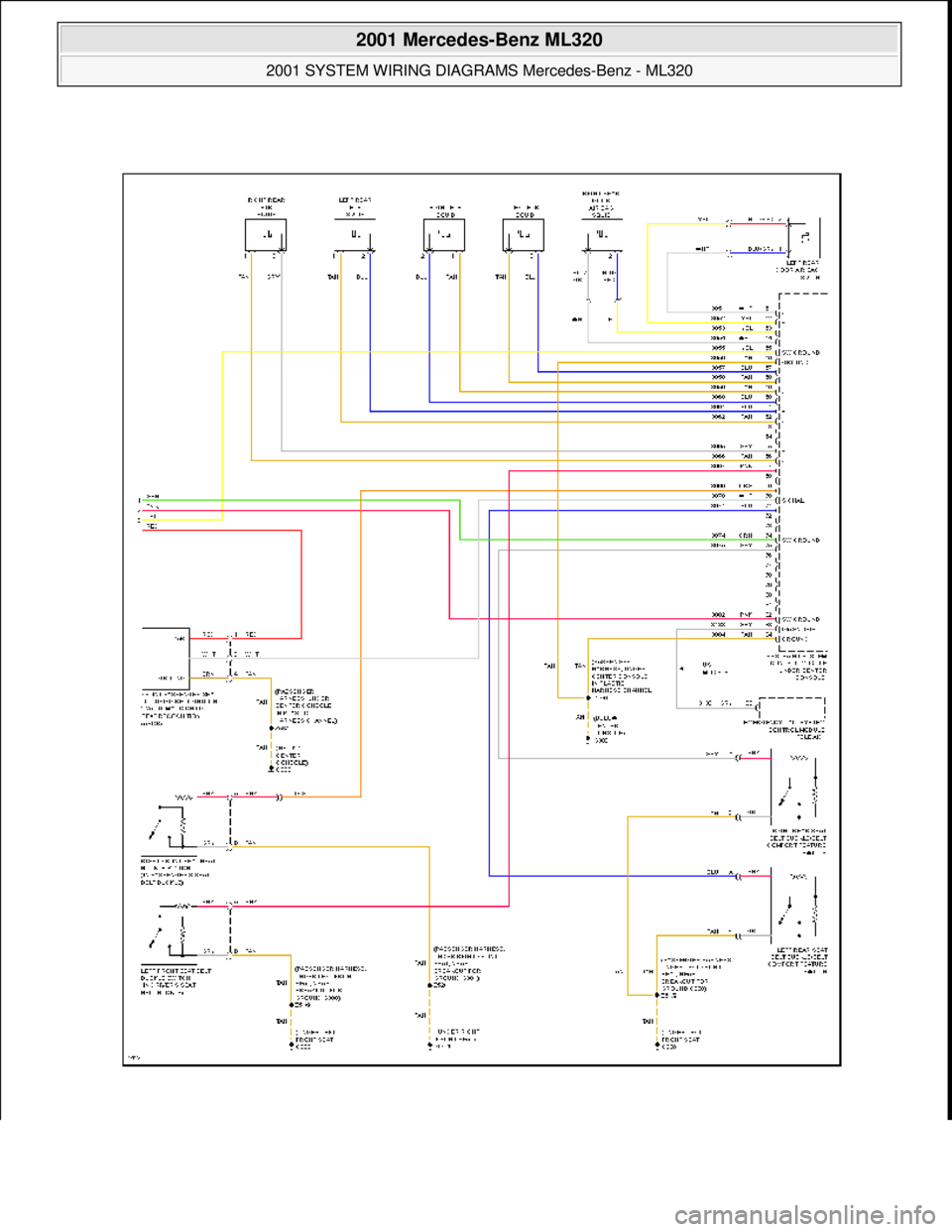

MERCEDES-BENZ ML430 1997 Complete Repair Manual Fig. 61: Supplemental Restraints Circuit, W/O Memory Seats (1 of 2) 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 123 Â

Page 4122 of 4133

MERCEDES-BENZ ML430 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 124 © 2006 Mitchell Repair Information Company, LLC.

Page 4123 of 4133

MERCEDES-BENZ ML430 1997 Complete Repair Manual Fig. 62: Supplemental Restraints Circuit, W/O Memory Seats (2 of 2) TRANSMISSION 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:0

Page 4124 of 4133

MERCEDES-BENZ ML430 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 126 © 2006 Mitchell Repair Information Company, LLC.

Page 4125 of 4133

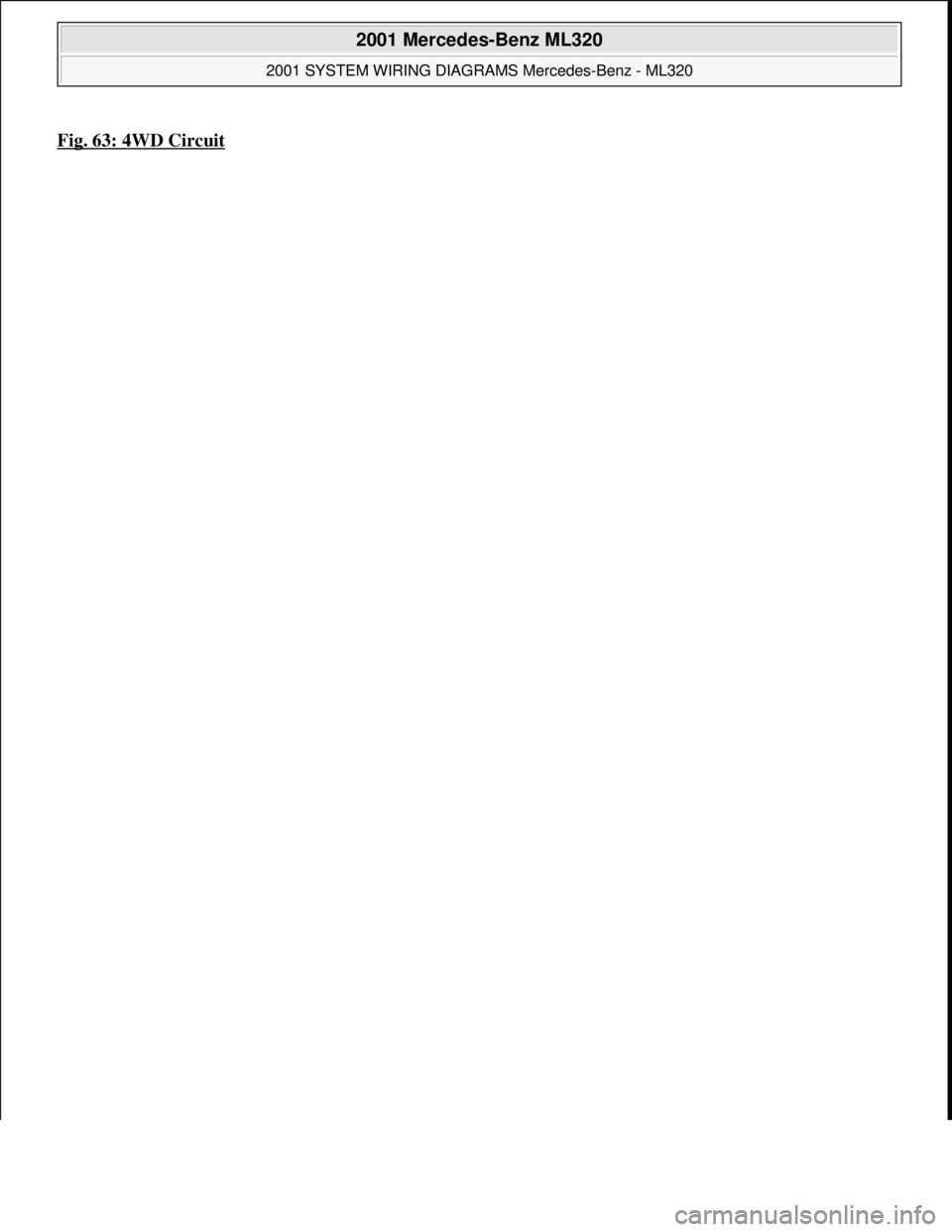

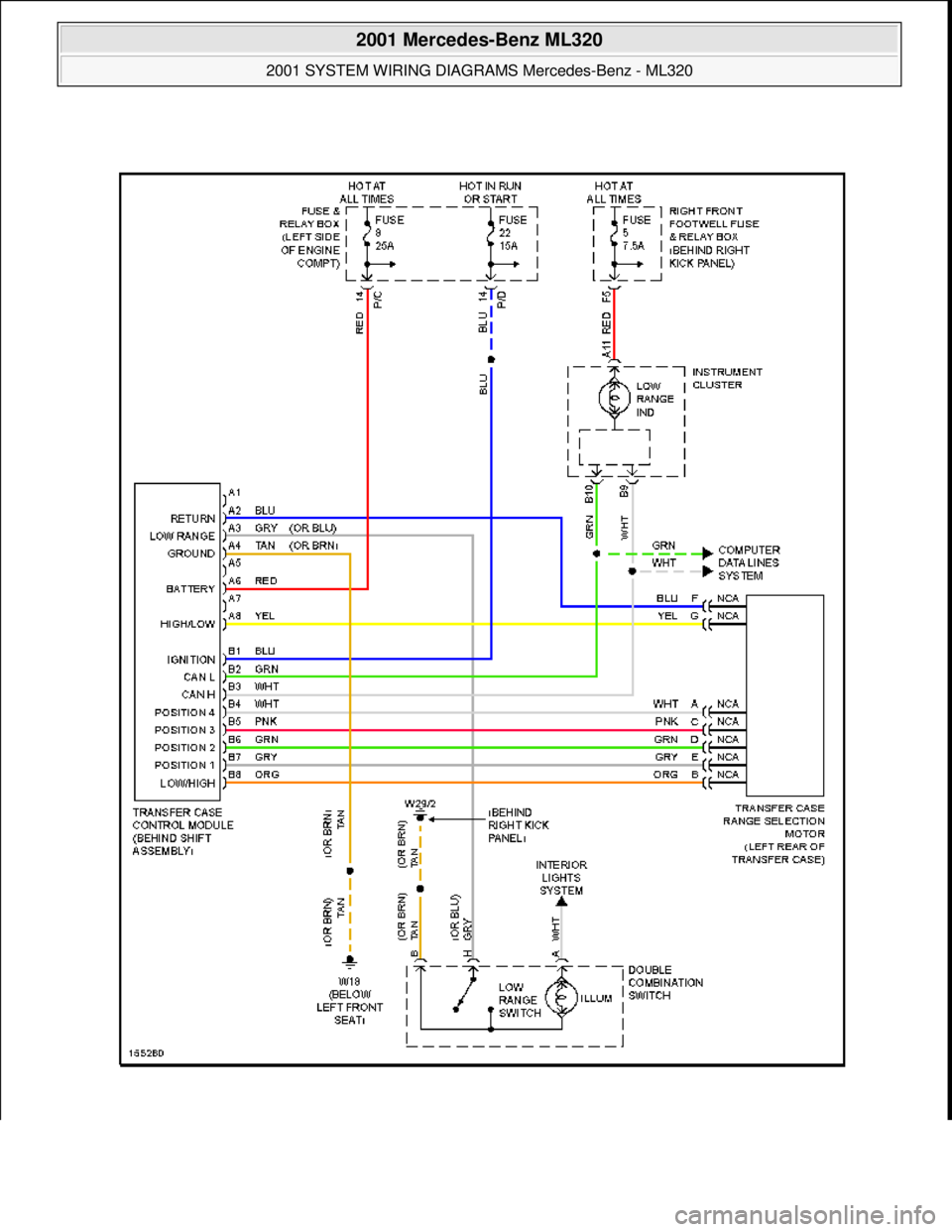

MERCEDES-BENZ ML430 1997 Complete Repair Manual Fig. 63: 4WD Circuit 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 127 © 2006 Mitchell Repair Information Company, LL

Page 4126 of 4133

MERCEDES-BENZ ML430 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 128 © 2006 Mitchell Repair Information Company, LLC.

Page 4127 of 4133

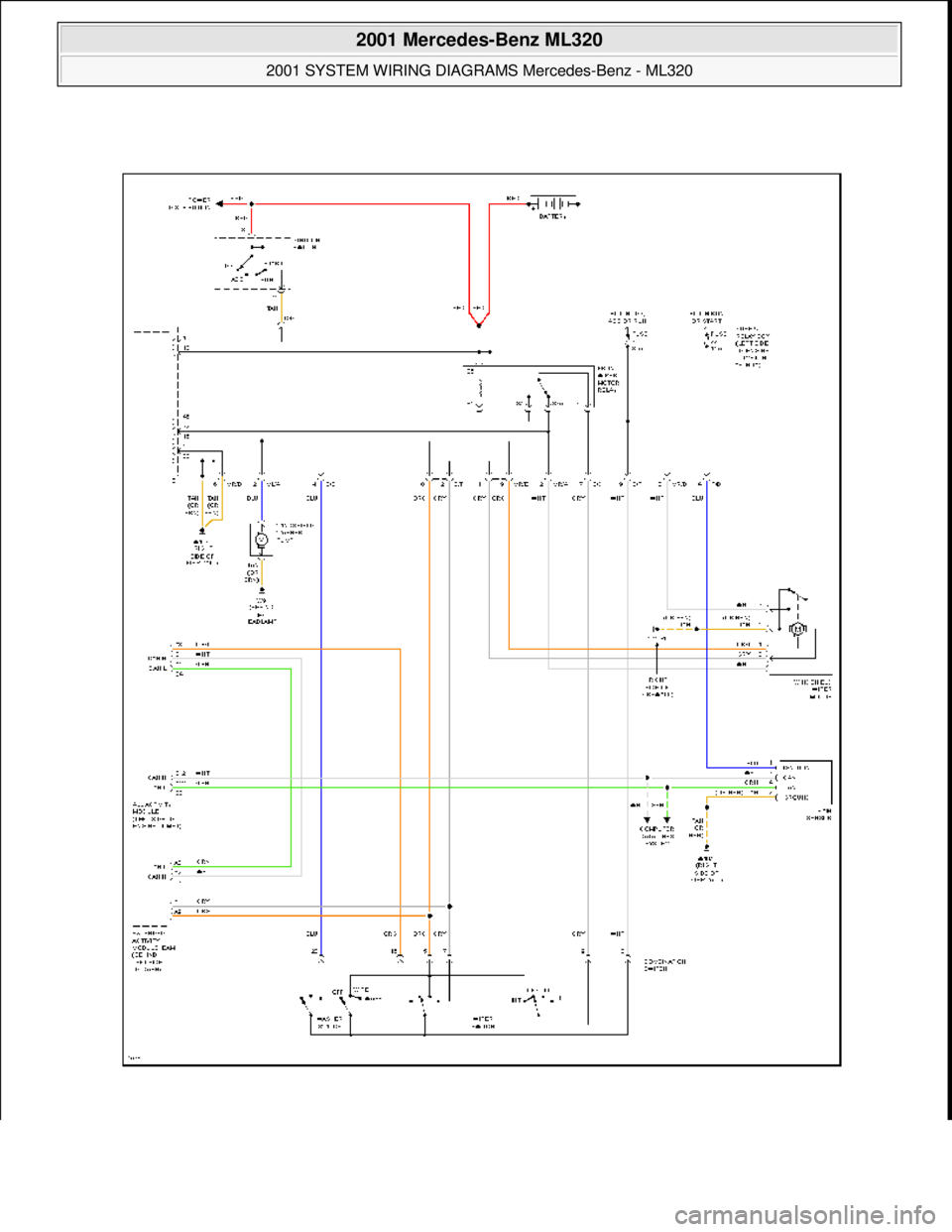

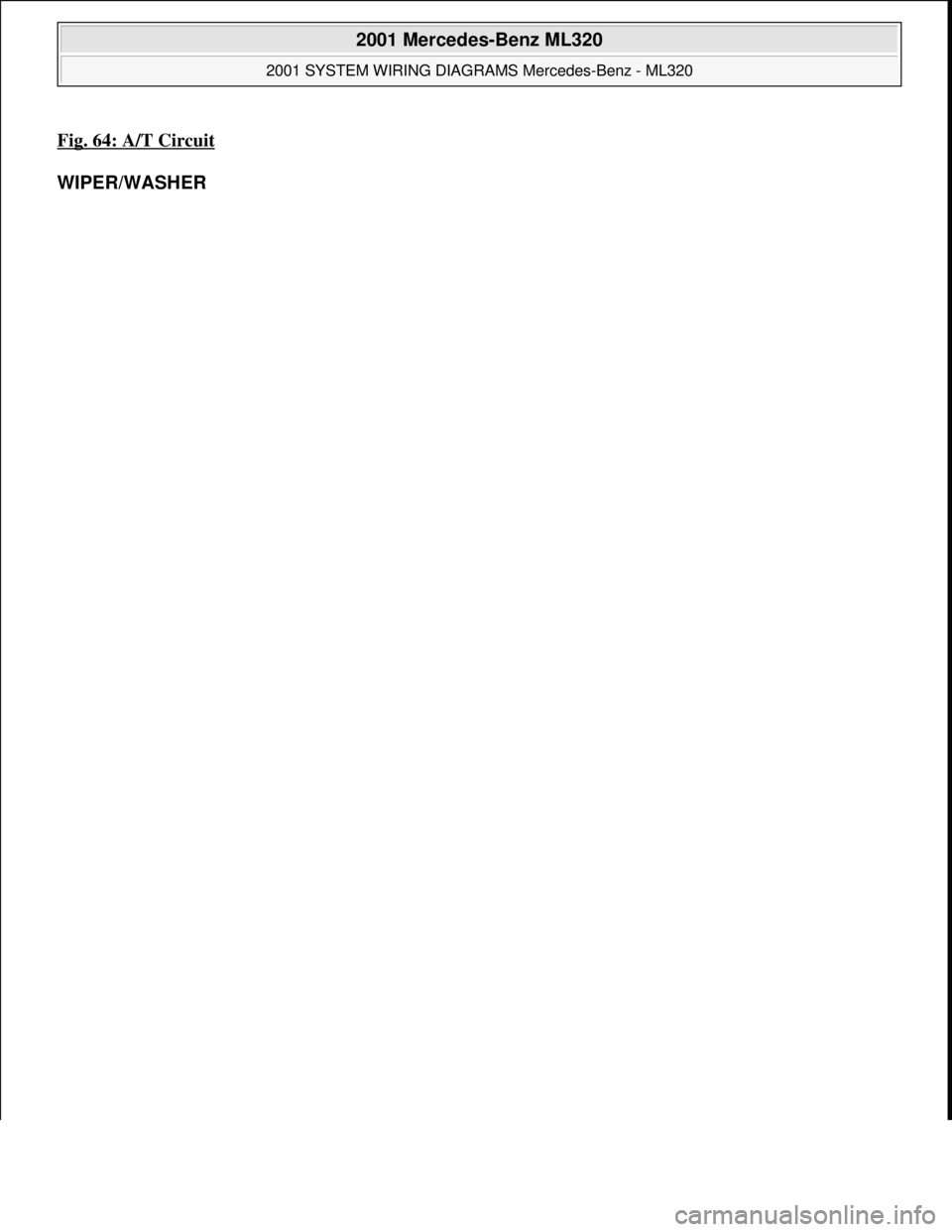

MERCEDES-BENZ ML430 1997 Complete Repair Manual Fig. 64: A/T Circuit WIPER/WASHER 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 129 © 2006 Mitchell Repair Informati

Page 4128 of 4133

MERCEDES-BENZ ML430 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 130 © 2006 Mitchell Repair Information Company, LLC.

Page 4129 of 4133

MERCEDES-BENZ ML430 1997 Complete Repair Manual Fig. 65: Front Wiper/Washer Circuit 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 131 © 2006 Mitchell Repair Informat

Page 4130 of 4133

MERCEDES-BENZ ML430 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 132 © 2006 Mitchell Repair Information Company, LLC.
