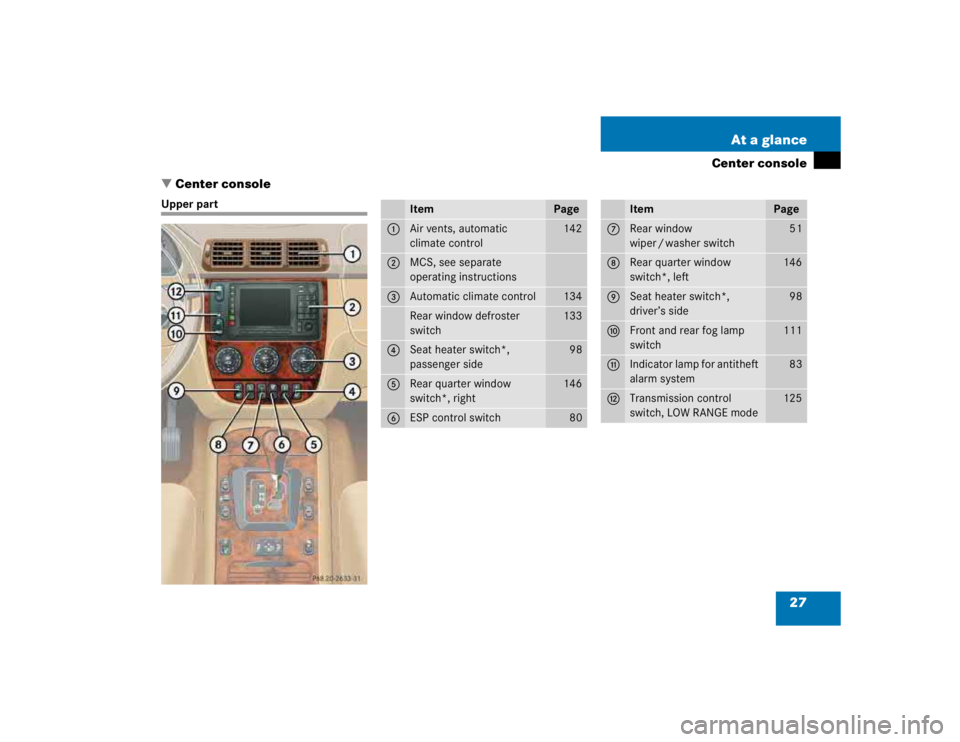

27 At a glance
Center console
Center console
Upper part
Item
Page
1
Air vents, automatic
climate control
142
2
MCS, see separate
operating instructions
3
Automatic climate control
134
Rear window defroster
switch
133
4
Seat heater switch*,
passenger side
98
5
Rear quarter window
switch*, right
146
6
ESP control switch
80
Item
Page
7
Rear window
wiper / washer switch
51
8
Rear quarter window
switch*, left
146
9
Seat heater switch*,
driver’s side
98
a
Front and rear fog lamp
switch
111
b
Indicator lamp for antitheft
alarm system
83
c
Transmission control
switch, LOW RANGE mode
125

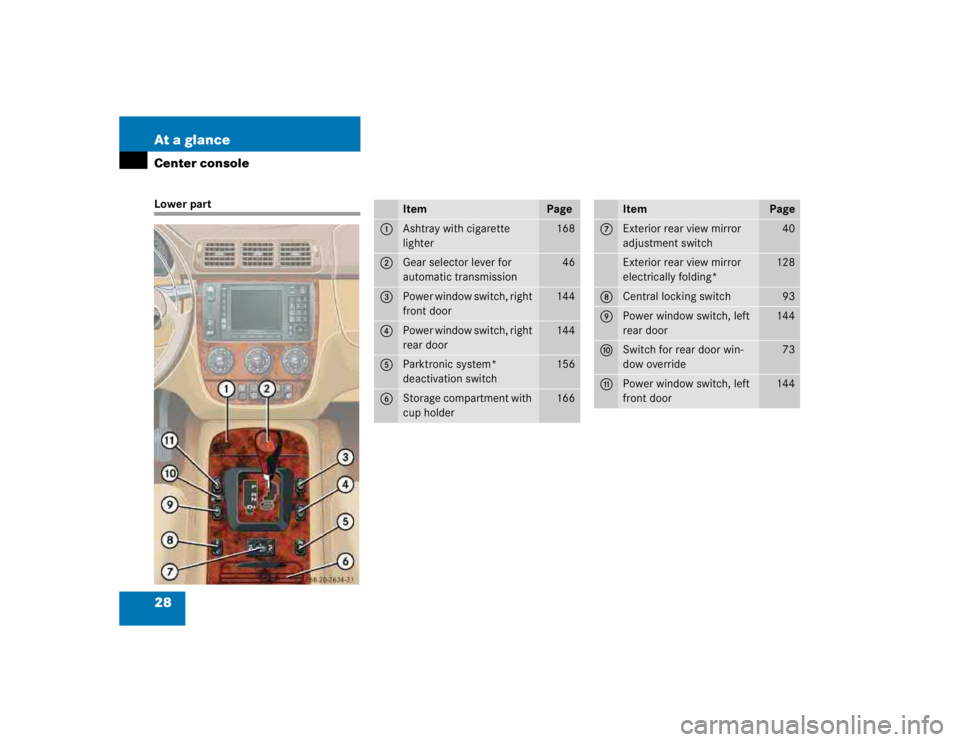

28 At a glanceCenter consoleLower part
Item
Page
1
Ashtray with cigarette
lighter
168
2
Gear selector lever for
automatic transmission
46
3
Power window switch, right
front door
144
4
Power window switch, right
rear door
144
5
Parktronic system*
deactivation switch
156
6
Storage compartment with
cup holder
166
Item
Page
7
Exterior rear view mirror
adjustment switch
40
Exterior rear view mirror
electrically folding*
128
8
Central locking switch
93
9
Power window switch, left
rear door
144
a
Switch for rear door win-
dow override
73
b
Power window switch, left
front door
144

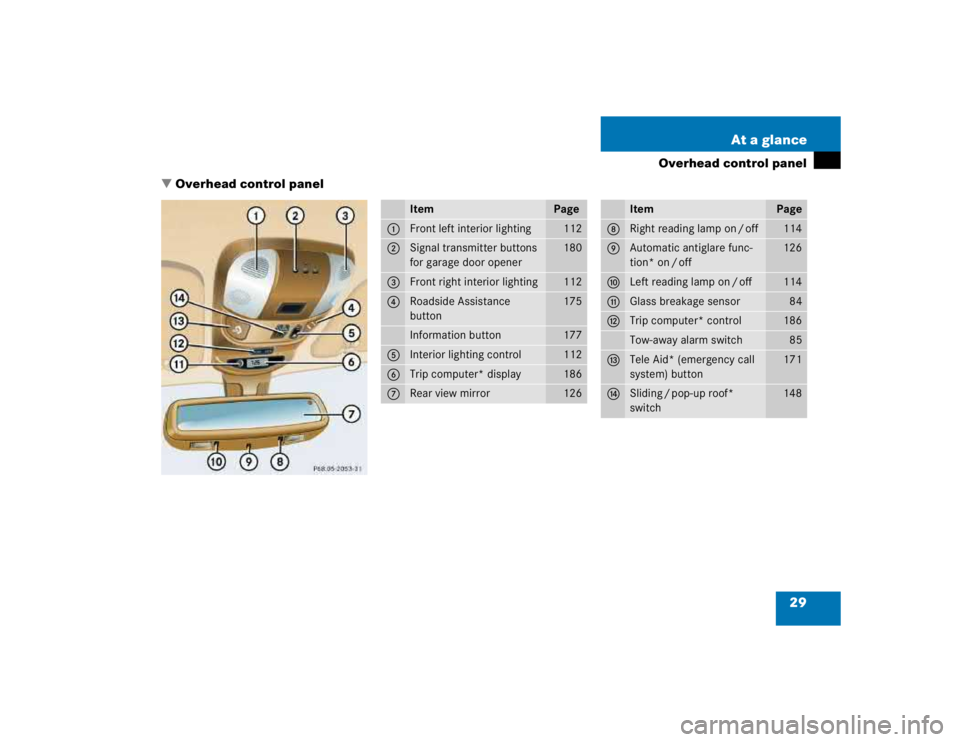

29 At a glance
Overhead control panel
Overhead control panel
Item
Page
1
Front left interior lighting
112
2
Signal transmitter buttons
for garage door opener
180
3
Front right interior lighting
112
4
Roadside Assistance
button
175
Information button
177
5
Interior lighting control
112
6
Trip computer* display
186
7
Rear view mirror
126
Item
Page
8
Right reading lamp on / off
114
9
Automatic antiglare func-
tion* on / off
126
a
Left reading lamp on / off
114
b
Glass breakage sensor
84
c
Trip computer* control
186
Tow-away alarm switch
85
d
Tele Aid* (emergency call
system) button
171
e
Sliding / pop-up roof*
switch
148

30

31 Getting started
Unlocking
Adjusting
Driving
Parking and locking

32 Getting startedUnlocking
The “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page refer-
ences are located at the end of each seg-
ment.
Unlocking
Remote control with folding keyRemote control with folding key1ÂPanic button (
page 75)
2ŒUnlock button
3‹Lock button
4Release button for key
5ŠUnlock button for liftgate

Press unlock buttonΠon the re-
mote control.
All turn signal lamps flash once. The
locking knobs in the doors move up.

Press release button4 on the remote
control.
The key folds out.

Get in the vehicle and insert the key in
the steering lock (
page 33).
More information can be found in the
“Controls in detail” section (
page 88).

33 Getting started
Unlocking
Steering lock positions
0For removing key
The steering is locked when the key is
removed from the steering lock. If
necessary, move steering wheel
slightly to allow the locking mechanism
to engage.
1Unlocking steering
Power supply to some electrical con-
sumers, such as seat adjustment.
2Ignition (power supply for all electrical
consumers) and driving position
3Starting position
Warning!
G
When leaving the vehicle, always remove the
key from the steering lock and lock the vehi-
cle. Do not leave children unattended in the
vehicle, or with access to an unlocked vehi-
cle. Unsupervised use of vehicle equipment
may cause an accident and / or serious per-
sonal injury.iThe key can only be withdrawn in
position0.
If necessary, move steering wheel
slightly to allow the key to be turned
clockwise to position1.
A warning sounds when the driver’s
door is opened and the key is in steer-
ing lock position0 or1.
The key can only be removed from the
steering lock with the gear selector le-
ver in positionP.
!To prevent accelerated battery dis-
charge and a possible dead battery, al-
ways remove the key from the steering
lock when the engine is not in opera-
tion.

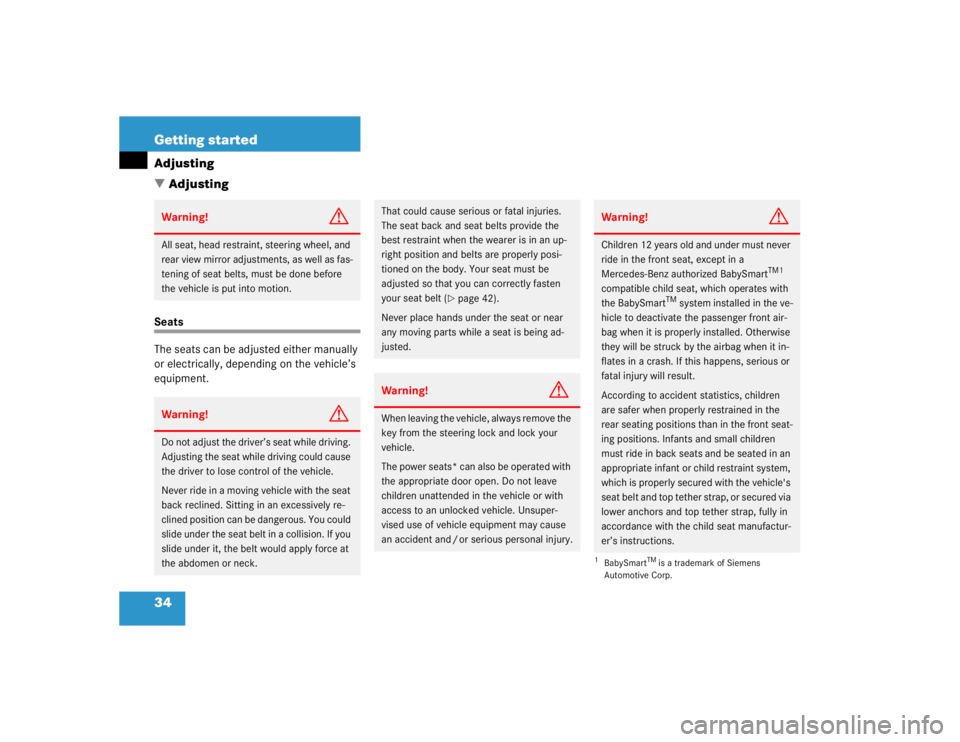

34 Getting startedAdjusting
AdjustingSeats
The seats can be adjusted either manually
or electrically, depending on the vehicle’s
equipment.Warning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back reclined. Sitting in an excessively re-
clined position can be dangerous. You could
slide under the seat belt in a collision. If you
slide under it, the belt would apply force at
the abdomen or neck.
That could cause serious or fatal injuries.
The seat back and seat belts provide the
best restraint when the wearer is in an up-
right position and belts are properly posi-
tioned on the body. Your seat must be
adjusted so that you can correctly fasten
your seat belt (
page 42).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle, always remove the
key from the steering lock and lock your
vehicle.
The power seats* can also be operated with
the appropriate door open. Do not leave
children unattended in the vehicle or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and / or serious personal injury.
Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM1

compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger front air-
bag when it is properly installed. Otherwise
they will be struck by the airbag when it in-
flates in a crash. If this happens, serious or
fatal injury will result.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must ride in back seats and be seated in an
appropriate infant or child restraint system,
which is properly secured with the vehicle's
seat belt and top tether strap, or secured via
lower anchors and top tether strap, fully in
accordance with the child seat manufactur-
er’s instructions.
1BabySmart
TMis a trademark of Siemens
Automotive Corp.

35 Getting started
Adjusting

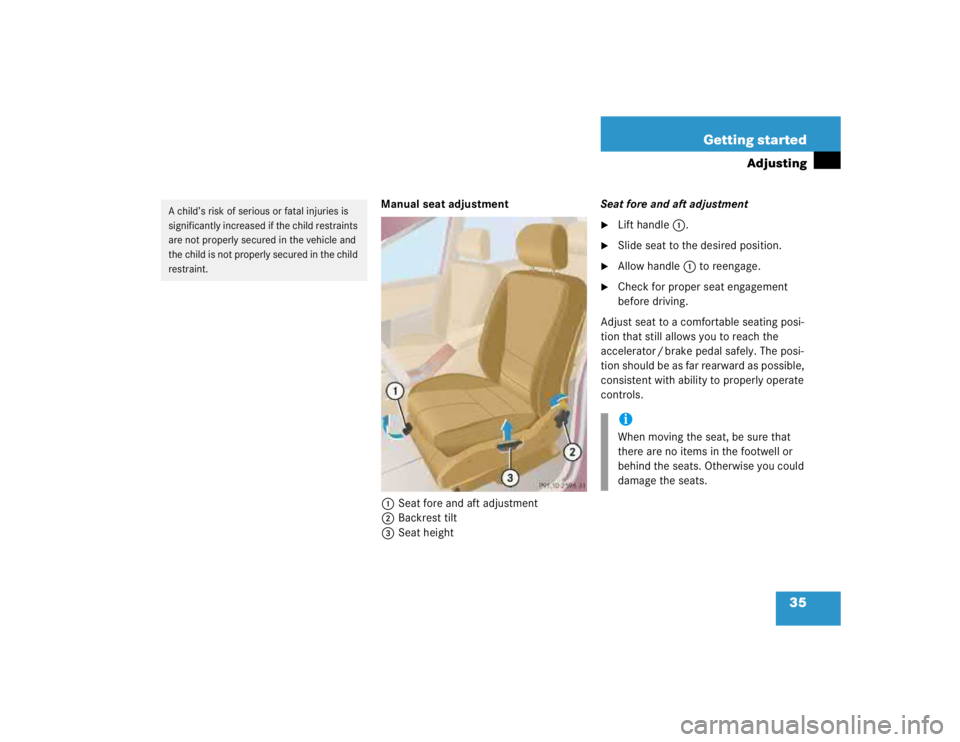

Manual seat adjustment
1Seat fore and aft adjustment
2Backrest tilt
3Seat heightSeat fore and aft adjustment

Lift handle1.

Slide seat to the desired position.

Allow handle1 to reengage.

Check for proper seat engagement
before driving.
Adjust seat to a comfortable seating posi-
tion that still allows you to reach the
accelerator / brake pedal safely. The posi-
tion should be as far rearward as possible,
consistent with ability to properly operate
controls.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
iWhen moving the seat, be sure that
there are no items in the footwell or
behind the seats. Otherwise you could
damage the seats.

36 Getting startedAdjustingSeat backrest tilt
Turn handwheel2 forward or back-
ward until your hands are slightly ang-
led when holding the steering wheel.
Seat height

Lift handle3.

Use your body weight to push the seat
downwards.

Lift your weight off the seat to obtain a
higher seat position.

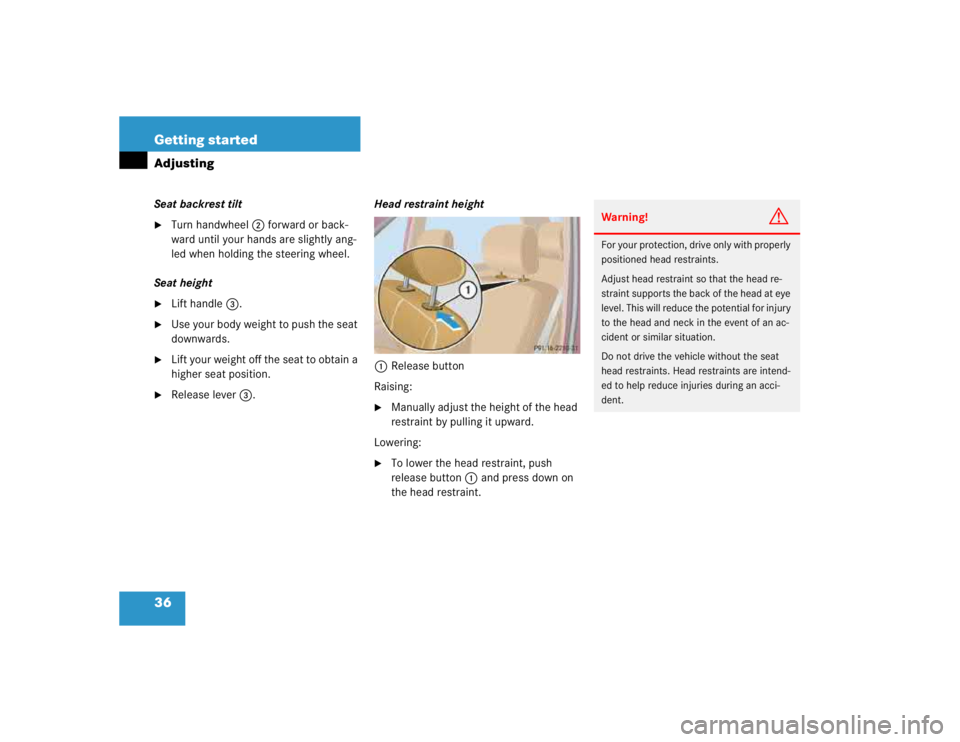

Release lever3.Head restraint height
1Release button
Raising:

Manually adjust the height of the head
restraint by pulling it upward.
Lowering:

To lower the head restraint, push
release button1 and press down on
the head restraint.
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint so that the head re-
straint supports the back of the head at eye
level. This will reduce the potential for injury
to the head and neck in the event of an ac-
cident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.
