MERCEDES-BENZ ML430 1997 Complete Repair Manual

Contents
Opening / closing in an emergency .... 265
Sliding / pop-up roof* ................... 265
Replacing bulbs ................................. 266
Bulbs ............................................ 266
Replacing bulbs for front lamps ... 268
Replacing bulbs for rear lamps..... 270
Adjusting headlamp aim............... 272
Replacing wiper blades ...................... 273
Removing ..................................... 273
Installing ...................................... 273
Flat tire .............................................. 274
Mounting the spare wheel............ 274
Battery ............................................... 278
Disconnecting the battery ............ 279
Removing the batteries ................ 279
Charging and reinstalling
batteries....................................... 279
Reconnecting the batteries .......... 279
Jump starting ..................................... 281
Towing the vehicle ............................. 283
Front towing eye .......................... 285
Rear towing eye ........................... 285
Stranded vehicle .......................... 286Fuses .................................................. 287
Fuse box in engine
compartment ................................ 287
Auxiliary fuse box in front
passenger footwell........................ 288
Technical data.................................. 289
Spare parts service............................. 290
Warranty coverage ............................. 291
Loss of Service and Warranty
Information Booklet ...................... 291
Identification labels ............................ 292
Layout of poly-V-belt drive .................. 293
Engine ................................................ 294
Rims and tires .................................... 295
Rims and tires ............................... 295
Spare wheel .................................. 296
Electrical system ................................ 297
Main Dimensions ................................ 298
Weights .............................................. 299Fuels, coolants, lubricants etc............ 300
Capacities ..................................... 300
Engine oils .................................... 302
Engine oil additives ....................... 302
Air conditioning refrigerant ........... 302
Brake fluid .................................... 302
Premium unleaded gasoline.......... 303
Fuel requirements......................... 303
Gasoline additives......................... 303
Coolants ....................................... 304
Anticorrosion / antifreeze.............. 305
Windshield washer system and
headlamp cleaning system* ......... 307
Windshield and headlamp
washer fluid mixing ratio............... 307
Consumer information........................ 308
Uniform tire quality grading .......... 308
Temperature ................................. 309
Technical terms............................... 311Index................................................. 317

9
Product information

Introduction
Product information
Please observe the following in your own
best interest:
We recommend using genuine
Mercedes-Benz parts as well as conversion
parts and accessories explicitly approved
by us for your vehicle model.
We have tested these parts to determine
their reliability, safety and special
suitability for Mercedes-Benz vehicles.We are unable to make an assessment for
other products and therefore cannot be
held responsible for them, even if in indi-
vidual cases an official approval or authori-
zation by governmental or other agencies
should exist. Use of such parts and acces-
sories could adversely affect the safety,
performance or reliability of your vehicle.
Please do not use them.Genuine Mercedes-Benz parts as well as
conversion parts and accessories
approved by us are available at your autho-
rized Mercedes-Benz Light Truck Center
where you will receive comprehensive in-
formation, also on permissible technical
modifications, and where proper installa-
tion will be performed.

10 IntroductionOperator’s Manual
Operator’s ManualThis Operator’s Manual contains a great
deal of useful information. We urge you to
read it carefully and familiarize yourself
with the vehicle before driving.
For your own safety and longer service life
of the vehicle, we urge you to follow the in-
structions and warnings contained in this
manual. Ignoring them could result in dam-
age to the vehicle or personal injury to you
or others. Vehicle damage caused by fail-
ure to follow instructions is not covered by
the Mercedes-Benz Limited Warranty.
Your vehicle may have some or all of the
equipment described in this manual.
Therefore, you may find explanations for
optional equipment not installed in your
vehicle. If you have any questions about
the operation of any equipment, your au-
thorized Mercedes-Benz Light Truck Cen-
ter will be glad to demonstrate the proper
procedures.We continuously strive to improve our
product, and ask for your understanding
that we reserve the right to make changes
in design and equipment. Therefore, infor-
mation, illustrations and descriptions in
this Operator’s Manual might differ from
your vehicle.
Optional equipment is also described in
this manual, including operating instruc-
tions wherever necessary. Since they are
special-order items, the descriptions and
illustrations herein may vary slightly from
the actual equipment of your vehicle.
If there are any equipment details that are
not shown or described in this Operator’s
Manual, your authorized Mercedes-Benz
Light Truck Center will be glad to inform
you of correct care and operating proce-
dures.
The Operator’s Manual and Service Book-
let are important documents and should be
kept with the vehicle.
Service and warranty information
The Service and Warranty Information
Booklet contains detailed information
about the warranties covering your
Mercedes-Benz, including:

New Light Truck Limited Warranty,


Emission System Warranty,


Emission Performance Warranty,


California, Maine, Massachusetts, and
Vermont Emission Control System
Warranty
(California, Maine, Massachusetts, and
Vermont only),


State Warranty Enforcement Laws
(Lemon Laws).

11 Introduction
Operator’s Manual
Important notice for California retail
buyers and lessees of Mercedes-Benz automobiles
Under California law you may be entitled to
a replacement of your vehicle or a refund
of the purchase price or lease price, if
Mercedes-Benz USA, LLC and / or its au-
thorized repair or service facilities fail to fix
one or more substantial defects or mal-
functions in the vehicle that are covered by
its express warranty after a reasonable
number of repair attempts. During the pe-
riod of 18 months from original delivery of
the vehicle or the accumulation of
18 000 miles (approx. 29 000 km) on the
odometer of the vehicle, whichever occurs
first, a reasonable number of repair at-
tempts is presumed for a retail buyer or
lessee if one or more of the following oc-
curs:(1) the same substantial defect or mal-
function results in a condition that is
likely to cause death or serious bodily
injury if the vehicle is driven, that de-
fect or malfunction has been subject to
repair two or more times, and you have
directly notified Mercedes-Benz USA,
LLC in writing of the need for its repair,
(2) the same substantial defect or mal-
function of a less serious nature than
category (1) has been subject to repair
four or more times and you have direct-
ly notified us in writing of the need for
its repair, or(3) the vehicle is out of service by reason
of repair of the same or different sub-
stantial defects or malfunctions for a
cumulative total of more than
30 calender days. Written notification
should be sent to us, not a dealer, at
Mercedes-Benz USA, LLC, Customer
Assistance Center, One Mercedes
Drive, Montvale, NJ 07645-0350.

12 IntroductionOperator’s ManualMaintenance
The Service Booklet describes all the nec-
essary maintenance work which should be
performed at regular intervals.
Always have the Service Booklet with you
when you take the vehicle to your autho-
rized Mercedes-Benz Light Truck Center
for service. The service advisor will record
each service in the booklet for you.
Roadside Assistance
The Mercedes-Benz Roadside Assistance
Program provides factory-trained technical
help in the event of a breakdown. Calls to
the toll-free Roadside Assistance number
1-800-FOR-MERCedes (in the USA)
1-800-387-0100 (in Canada)
will be answered by Mercedes-Benz Cus-
tomer Assistance Representatives
24 hours a day, 365 days a year.
Roadside Assistance will be provided in ac-
cordance with standard program guide-
lines which include providing service to the
vehicle up to a reasonable distance from a
paved roadway. We will make every effort
to assist in a breakdown situation, howev-
er, the accessibility of your vehicle will be
determined by our authorized
Mercedes-Benz Light Truck Center techni-
cian or the tow service provider on a
case-by-case basis and may be a factor in
our ability to respond.Additional charges may be applicable for a
breakdown location determined not to be a
reasonably accessible roadside location as
determined by our authorized technician
and tow service provider.
For additional information refer to the
Mercedes-Benz Roadside Assistance Pro-
gram Brochure in your glove box.

13 Introduction
Operator’s Manual
Change of address or ownership
If you change your address, be sure to
send in the “Change of Address Notice”
found in the Service and Warranty Informa-
tion Booklet, or simply call the
Mercedes-Benz Customer Assistance
Center (in the USA) at
1-800-FOR-MERCedes, or Customer Ser-
vice (in Canada) at 1-800-387-0100. It is in
your own interest that we can contact you
should the need arise.
If you sell your Mercedes, please leave all
literature with the vehicle to make it avail-
able to the next operator.
If you bought this vehicle used, be sure to
send in the “Notice of Purchase of Used
Truck” found in the Service and Warranty
Information Booklet, or call the
Mercedes-Benz Customer Assistance Cen-
ter (in the USA) at 1-800-FOR-MERCedes,
or Customer Service (in Canada) at
1-800-387-0100.Operating your vehicle outside the USA
or Canada
If you plan to operate your vehicle in for-
eign countries, please be aware that:

service facilities or replacement parts
may not be readily available,


unleaded gasoline for vehicles with cat-
alytic converters may not be available;
the use of leaded fuels will damage the
catalysts,


gasoline may have a considerably low-
er octane rating, and improper fuel can
cause engine damage.

14 IntroductionOperator’s ManualWarning!
G

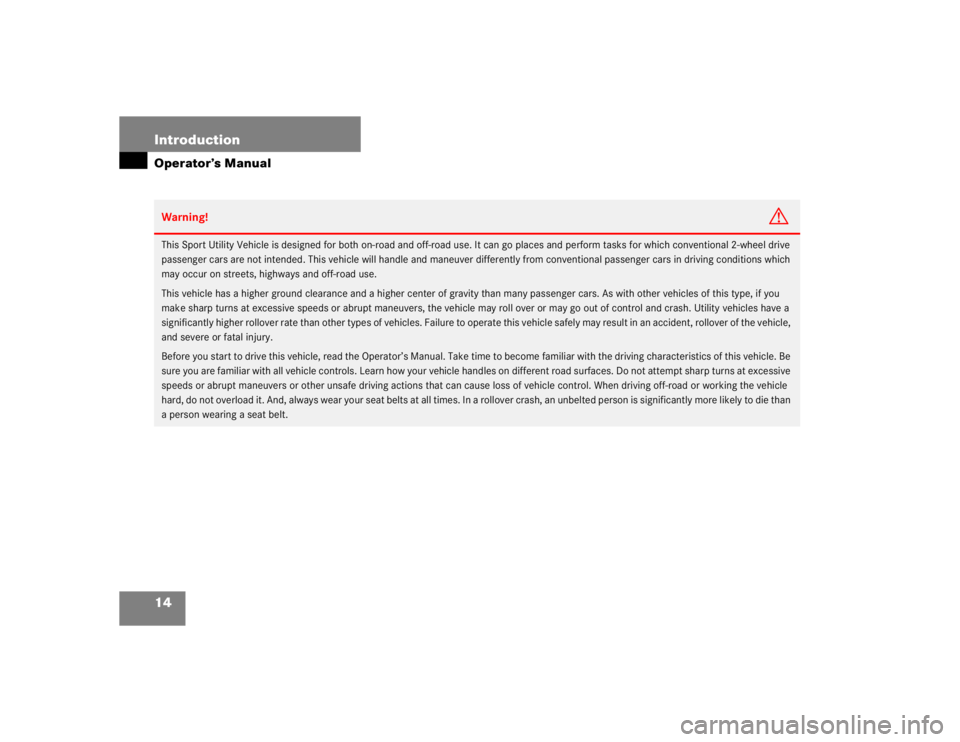

This Sport Utility Vehicle is designed for both on-road and off-road use. It can go places and perform tasks for which conventional 2-wheel drive
passenger cars are not intended. This vehicle will handle and maneuver differently from conventional passenger cars in driving conditions which
may occur on streets, highways and off-road use.
This vehicle has a higher ground clearance and a higher center of gravity than many passenger cars. As with other vehicles of this type, if you
make sharp turns at excessive speeds or abrupt maneuvers, the vehicle may roll over or may go out of control and crash. Utility vehicles have a
s ig ni fi ca n tl y hi gh er ro l lo ve r r at e t h an o th er ty pe s of veh i cl es . F a il ure to o pe ra te th is v eh ic l e s a fel y ma y res ul t in a n ac c i dent, rollover of the vehicle,
and severe or fatal injury.
Before you start to drive this vehicle, read the Operator’s Manual. Take time to become familiar with the driving characteristics of this vehicle. Be
sure you are familiar with all vehicle controls. Learn how your vehicle handles on different road surfaces. Do not attempt sharp turns at excessive
speeds or abrupt maneuvers or other unsafe driving actions that can cause loss of vehicle control. When driving off-road or working the vehicle
hard, do not overload it. And, always wear your seat belts at all times. In a rollover crash, an unbelted person is significantly more likely to die than
a person wearing a seat belt.

15 Introduction
Where to find it
Where to find it
This Operator’s Manual is designed to pro-
vide comprehensive support information
for you, the vehicle operator. Each section
has its own reference color so you can find
information quickly.At a glance
Here you will find an overview of all the
controls that can be operated from the
driver’s seat.Getting started
Here you will find all the information you
need for your first drive. You should read
this section first if this is your first
Mercedes-Benz vehicle or if you are rent-
ing or borrowing this vehicle.Safety and Security
Here you will find descriptions of the safety
features of your vehicle.
Controls in detail
Here you will find detailed information
about the equipment installed on your ve-
hicle. This section expands on the “Getting
started” section and also describes techni-
cal innovations. If you are already familiar
with the basic functions of your vehicle,
this section will be of particular interest to
you.Operation
Here you will find all the information you
need for the proper operation of your vehi-
cle.Practical hints
This section provides fast assistance for
dealing with problems you may encounter.
Technical data
All important technical data for your vehi-
cle can be found in this section.Indexes
The glossary provides explanations of the
most important technical terms.
The table of contents and the index are de-
signed to help you find information quickly
and easily.
The following publications are part of your
vehicle documentation:

this Operator’s Manual


the Service Booklet
Separate operating instructions will be
provided as required depending on the
equipment options installed in your vehi-
cle.

16 IntroductionSymbols
SymbolsThe following symbols are found in this
Operator’s Manual:
* Optional equipment is identified
with an asterisk. Since standard
equipment varies between models,
the descriptions and illustrations in
this manual may differ slightly from
the actual equipment of your vehi-
cle.

This symbol points to instructions for
you to follow.

A number of these symbols appearing
in succession indicates a multiple-step
procedure.
 Page This symbol tells you where to
look for further information on a
topic.
This continuation symbol marks
an interrupted procedure which
will be continued on the next
page.
-> In the glossary of technical
terms, this symbol is used to in-
dicate cross-references to term
definitions.
Display
Words appearing in the multi-
function display are printed in
the type shown here.
Warning!
G
Warning notices draw your attention to haz-
ards that may endanger your health or life,
or the health or life of others.!Highlights hazards that may result in
damage to your vehicle.iHelpful hints or further information you
may find useful.
