Switching the automatic climate control on and off
To s witch of f:
Set air volume control wheel to position0.
The indicator lamp in the Ubutton goes out.
The fresh air supply to the vehicle interior is shut off.
While driving, use this setting only temporarily,
otherwise the windshield could fog up.
To s witch on:
Press the Ubutton. The indicator lamp in the button
illuminates.Switching off the rear passenger compartment
ventilation and rear passenger climate control
For an improved cooling or heating output in the front
passenger compartment, the rear passenger
compartment ventilation can be switched off.
To s w i tch o f f :
Press the REAR-OFF button, see page 110. The indicator
lamp in the button illuminates.
The operation of the rear automatic climate control in
the center console and the fresh air supply to the rear
compartment is shut off.
To a c t i va t e :
Press REAR-OFF button again. The indicator lamp in the
button goes out.
The rear automatic climate control in the center console
switches to automatic mode and fresh air enters the rear
compartment.
For notes on the rear passenger compartment climate
control, see page 119.

119 Automatic climate control
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Rear passenger compartment climate control

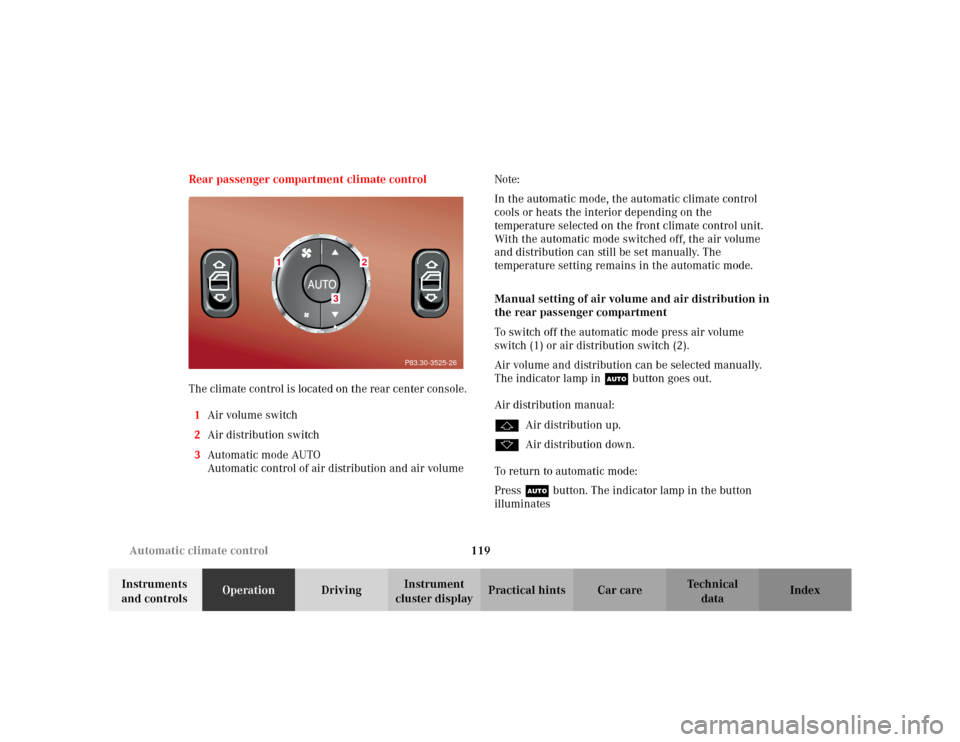

The climate control is located on the rear center console.
1Air volume switch
2Air distribution switch
3Automatic mode AUTO
Automatic control of air distribution and air volumeNote:
In the automatic mode, the automatic climate control
cools or heats the interior depending on the
temperature selected on the front climate control unit.
With the automatic mode switched off, the air volume
and distribution can still be set manually. The
temperature setting remains in the automatic mode.
Manual setting of air volume and air distribution in
the rear passenger compartment
To switch off the automatic mode press air volume
switch (1) or air distribution switch (2).
Air volume and distribution can be selected manually.
The indicator lamp in Ubutton goes out.
Air distribution manual:
jAir distribution up.
kAir distribution down.
To return to automatic mode:
Press Ubutton. The indicator lamp in the button
illuminates
P83.30-3525-26
1
2
3

120 Automatic climate control
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

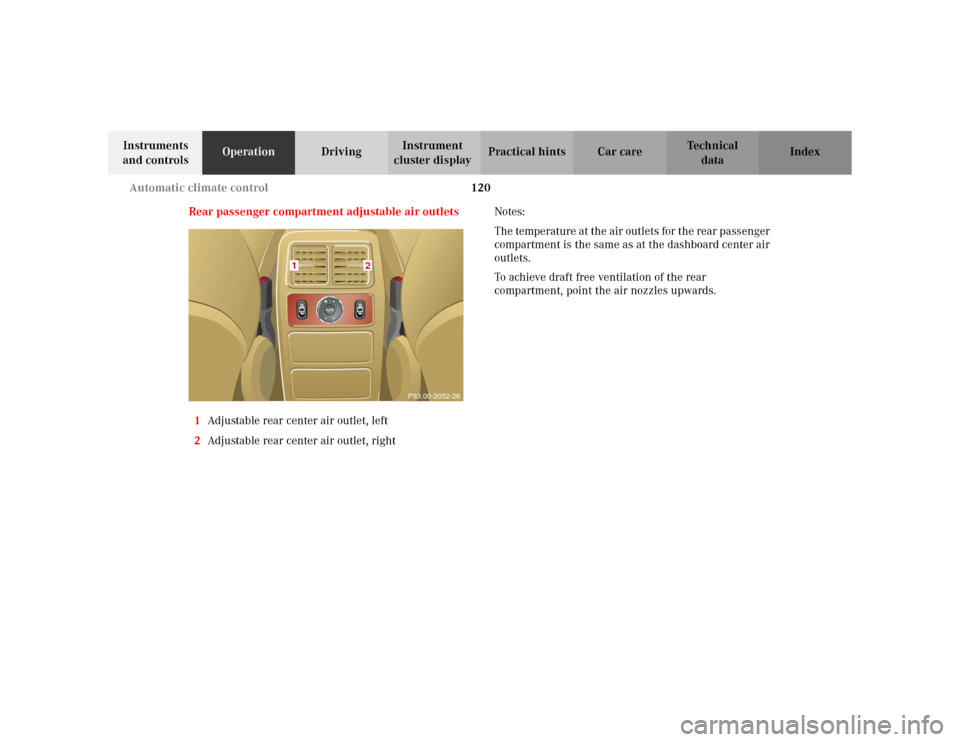

Rear passenger compartment adjustable air outlets
1Adjustable rear center air outlet, left
2Adjustable rear center air outlet, rightNotes:
The temperature at the air outlets for the rear passenger
compartment is the same as at the dashboard center air
outlets.
To achieve draft free ventilation of the rear
compartment, point the air nozzles upwards.
P83.00-2052-26
12

121 Automatic climate control
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Rear window defroster
Turn the key in steering lock to position 2.
To select:
Press the Fbutton in the control panel of the
automatic air conditioner. The indicator lamp in the
button illuminates.
To c a nc el:
Press the Fbutton in the control panel of the
automatic air conditioner. The indicator lamp in the
button goes out.
Notes:
Heavy accumulation of snow and ice should be removed
before activating the defroster. The rear window defroster uses a large amount of power.
To keep the battery drain to a minimum, turn off the
defroster as soon as the rear window is clear.
The defroster is automatically turned off after
approximately 6–17 minutes of operation depending on
the outside temperature and vehicle speed.
If several power consumers are turned on
simultaneously, or the battery is only partially charged,
it is possible that the defroster will automatically turn
itself off. When this happens, the indicator lamp inside
the switch starts blinking.
As soon as the battery has sufficient voltage, the
defroster automatically turns itself back on.

122 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

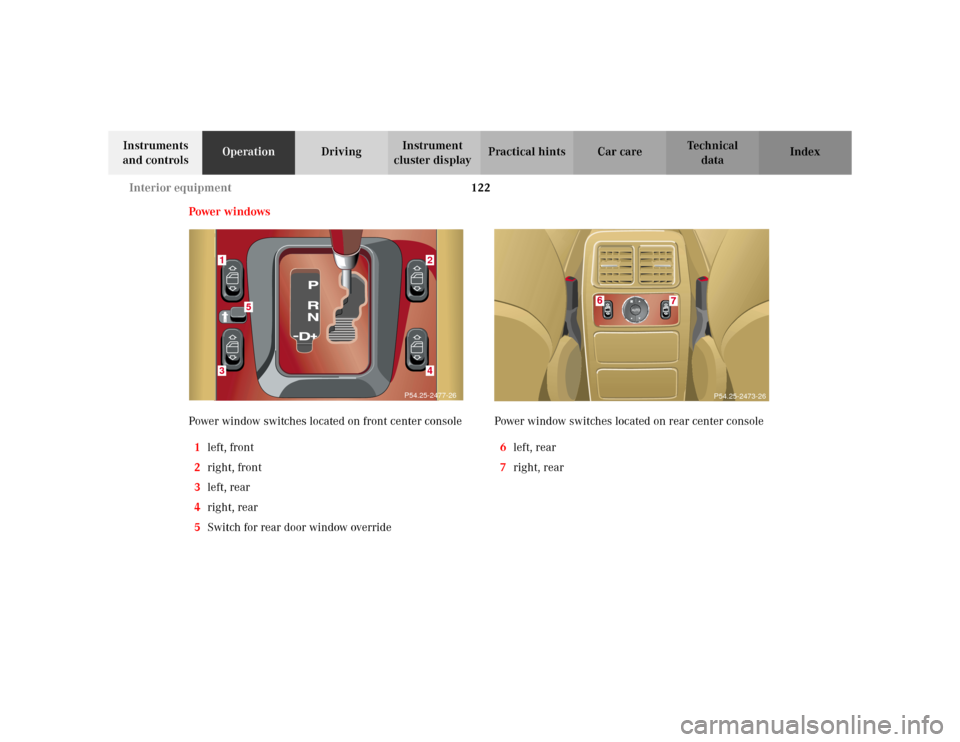

Power windows
Power window switches located on front center console
1left, front
2right, front
3left, rear
4right, rear
5Switch for rear door window overridePower window switches located on rear center console
6left, rear
7right, rear
P54.25-2477-26
13
24
5
P54.25-2473-26

123 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Turn key in steering lock to position 1 or 2.
Opening the side windows:
Press k on the switch to resistance point.
Closing the side windows:
Press j on the switch to resistance point.
Release switch when window is in desired position.
Express opening and closing of windows
Press k or j on the switch past resistance point
and release – window opens or closes completely.
To interrupt procedure, briefly press j or k.
If the upward movement of the window is blocked
during the closing procedure, the window will stop
during the last few inches before closure and open
slightly.
When pressing and holding the switch j to close the
window, and upward movement of the window is
blocked during the last few inches before closure, it will
stop and reopen.
Wa r n i n g !
When closing the windows, be sure that there is no
danger of anyone being harmed by the closing
procedure.The closing procedure can be immediately reversed
by pressing the power window switch.When leaving the vehicle, always remove the key
from the steering lock, and lock the vehicle. Do not
leave children unattended in the vehicle, or with
access to an unlocked vehicle. Unsupervised use of
vehicle equipment can cause serious personal
injury.

124 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Blocking of rear door window operation
If no operation of the rear door windows by the
switches (6) and (7), located on rear center console (for
instance by children) is desired, slide override
switch (5) to right, symbolN becomes visible.
Note:
After turning off the engine, the power windows can be
operated for approximately 30 minutes or until a front
door is opened.Synchronizing power windows
Resynchronize the power windows, if
•the power supply was interrupted (battery
disconnected or low),
•the windows cannot be opened or closed by the
express feature.
To r e s y n ch r o n i z e :
Turn key in steering lock to position 2.
Press j side of power window switch until the
window is completely closed and hold down for
approximately 1 second. Repeat procedure for each
window.
The automatic full opening and closing procedure of the
windows should now be restored.
Wa r n i n g !
When leaving the vehicle, always remove the key
from the steering lock, and lock the vehicle. Do not
leave children unattended in the vehicle, or with
access to an unlocked vehicle. Unsupervised use of
vehicle equipment can cause serious personal
injury.

125 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument

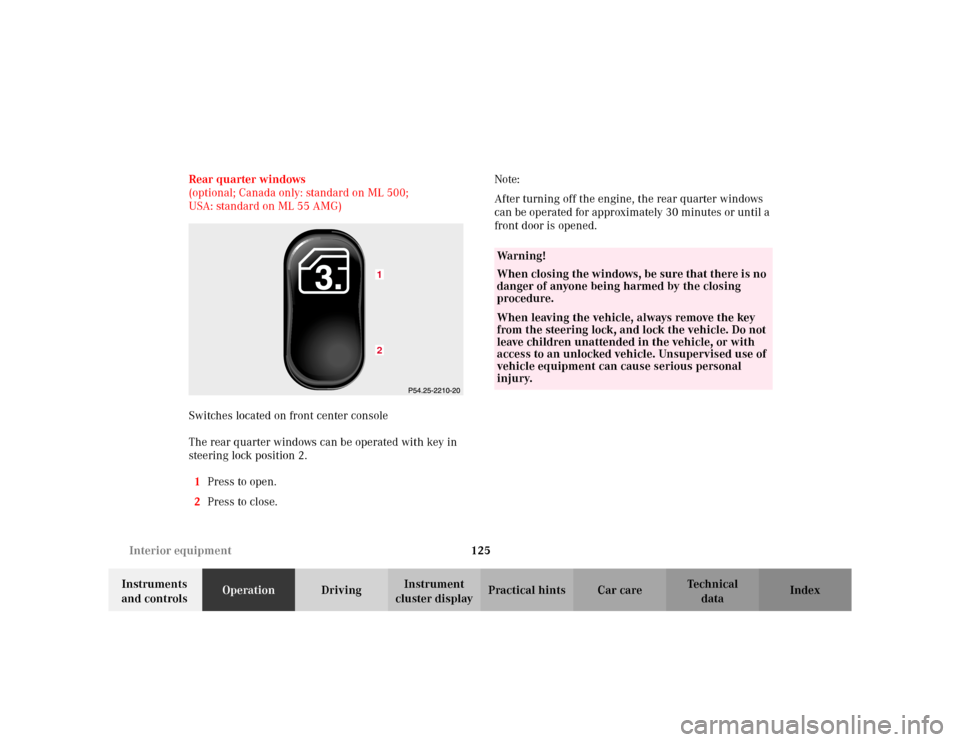

cluster displayPractical hints Car care Index Rear quarter windows
(optional; Canada only: standard on ML 500;
USA: standard on ML 55 AMG)
Switches located on front center console
The rear quarter windows can be operated with key in
steering lock position 2.
1Press to open.
2Press to close.Note:
After turning off the engine, the rear quarter windows
can be operated for approximately 30 minutes or until a
front door is opened.
12
Wa r n i n g !
When closing the windows, be sure that there is no
danger of anyone being harmed by the closing
procedure.When leaving the vehicle, always remove the key
from the steering lock, and lock the vehicle. Do not
leave children unattended in the vehicle, or with
access to an unlocked vehicle. Unsupervised use of
vehicle equipment can cause serious personal
injury.

126 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

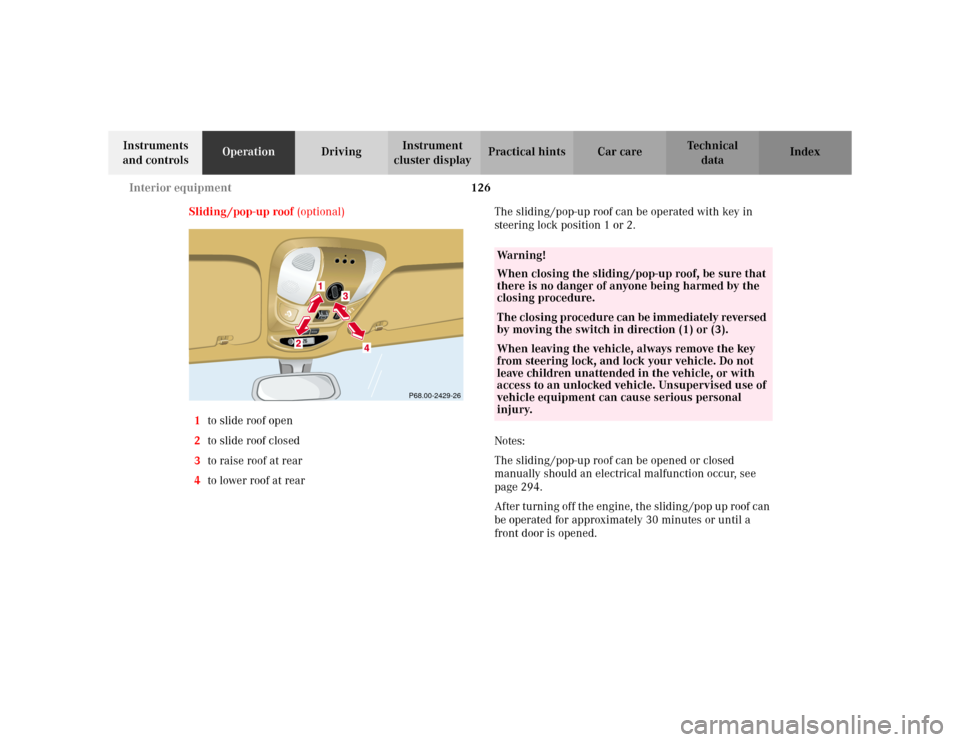

Sliding /pop-up roof (optional)
1to slide roof open
2to slide roof closed
3to raise roof at rear
4to lower roof at rearThe sliding /pop-up roof can be operated with key in
steering lock position 1 or 2.
Notes:
The sliding /pop-up roof can be opened or closed
manually should an electrical malfunction occur, see
page 294.
After turning off the engine, the sliding /pop up roof can
be operated for approximately 30 minutes or until a
front door is opened.
RESETMODE
P68.00-2429-26
Wa r n i n g !
When closing the sliding /pop-up roof, be sure that
there is no danger of anyone being harmed by the
closing procedure.The closing procedure can be immediately reversed
by moving the switch in direction (1) or (3).When leaving the vehicle, always remove the key
from steering lock, and lock your vehicle. Do not
leave children unattended in the vehicle, or with
access to an unlocked vehicle. Unsupervised use of
vehicle equipment can cause serious personal
injury.

127 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument

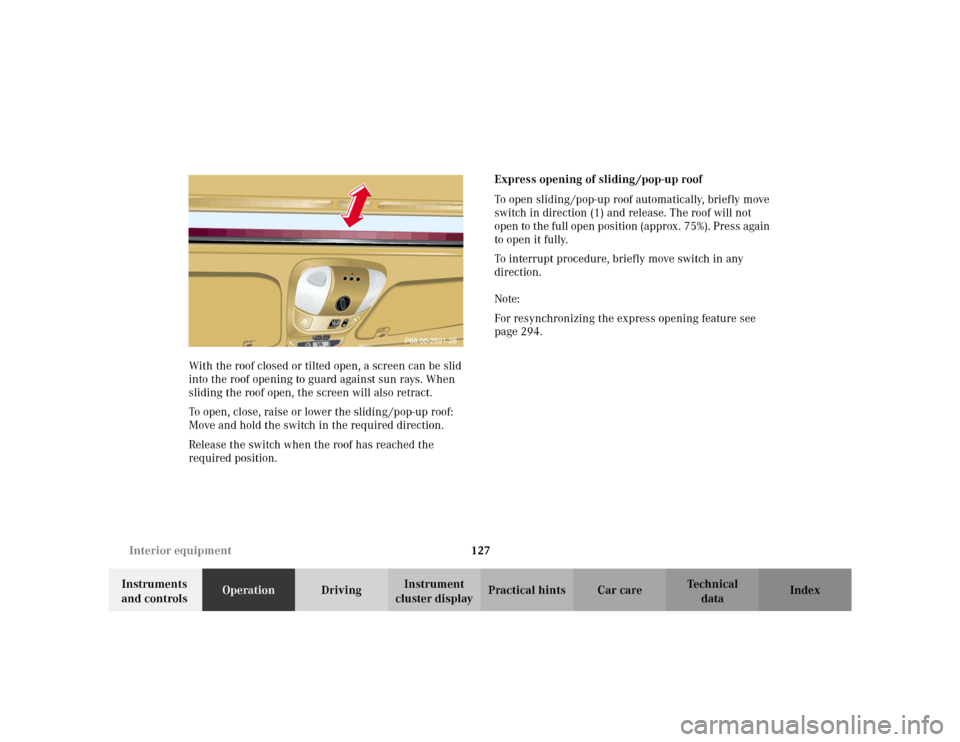

cluster displayPractical hints Car care Index With the roof closed or tilted open, a screen can be slid
into the roof opening to guard against sun rays. When
sliding the roof open, the screen will also retract.
To open, close, raise or lower the sliding /pop-up roof:
Move and hold the switch in the required direction.
Release the switch when the roof has reached the
required position.Express opening of sliding /pop-up roof
To open sliding /pop-up roof automatically, briefly move
switch in direction (1) and release. The roof will not
open to the full open position (approx. 75%). Press again
to open it fully.
To interrupt procedure, briefly move switch in any
direction.
Note:
For resynchronizing the express opening feature see
page 294.
RESETMODE
