MERCEDES-BENZ R-CLASS MPV 2008 Owners Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2008, Model line: R-CLASS MPV, Model: MERCEDES-BENZ R-CLASS MPV 2008Pages: 373, PDF Size: 6.75 MB
Page 261 of 373
Display
messages 258 Display messages Possible cause/consequence Possible solution
DISTRONIC currently unavail-
able See Owner's
Manual
Distronic
* is deactivated and is tempora-
rily not operational if:
R the Distronic* cover in the radiator
grille is dirty.
R its function is impaired due to heavy rain
or snow
R the radar sensor system is temporarily
not operational, e.g. due to electromag-
netic radiation emitted by nearby TV or
radio stations or other sources of radi-
ation
R the radar sensor system has not detec-
ted any vehicles or stationary objects,
e.g. traffic signs, for a long time.
R the system is outside the operating
temperature range Distronic* becomes available again and the dis-
play message disappears when:
R
the dirt (e.g. slush) falls off while you are driving
R the system detects that the sensors are fully
available again
R the system is within the operating temperature
range
If the display message does not disappear:
X Clean the Distronic* cover in the radiator grille
(Y page 247).
X Restart the engine. ESP unavailable See
Owner's Manual
G
Risk of accident
ESP ®
and therefore also PRE-SAFE ®
are
temporarily unavailable. It is possible that
self diagnosis is not yet complete. BAS
has also been deactivated. X
Carefully drive a short distance at a speed
above 20 km/h.
If the display message disappears, ESP ®
is
available again. Practical advice
* optional
251_AKB; 5; 7, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 258 Dateiname: 6515_1825_02_buchblock.pdf; preflight
Page 262 of 373
Display
messages 259Display messages Possible cause/consequence Possible solution
ESP unavailable See
Owner's Manual G
Risk of accident
ESP ®
and therefore also BAS and PRE-
SAFE ®
are unavailable due to undervolt-
age.
The brake system continues to function
normally, but without the functions listed
above. X
Drive on carefully.
X Visit a qualified specialist workshop immedi-
ately. ESP unavailable See
Owner's Manual If, when driving, this message appears and
the
v warning lamp flashes, this
means that 4ETS has been deactivated.
This prevents the brakes on the drive
wheels overheating. As soon as the brakes have cooled down again,
4ETS will be reactivated automatically.
The display message disappears and the v
warning lamp goes out. ESP inoperative See
Owner's Manual G
Risk of accident
ESP ®
and therefore also Brake Assist and
PRE-SAFE ®
are unavailable due to a mal-
function. The vwarning lamp also
lights up in the instrument cluster.
The brake system continues to function
normally, but without the functions listed
above. X
Drive on carefully.
X Visit a qualified specialist workshop immedi-
ately. Select position
P only when vehicle
is at a standstill You have attempted to move the auto-
matic transmission to
Peven though the
vehicle is still moving. X
Stop the vehicle immediately, paying attention
to the traffic conditions as you do so.
X Move the selector lever to P. Practical advi
ce
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 259 ZDateiname: 6515_1825_02_buchblock.pdf; preflight
Page 263 of 373
Display
messages 260 Display messages Possible cause/consequence Possible solution
Vehicle not in position P You have opened the driver's door and the
automatic transmission is in position
R,
N or D. X
Move the selector lever to P.
X Engage the parking brake. Compass unavailable
The compass* is malfunctioning. X
Have the compass* checked at a qualified spe-
cialist workshop. Compass - - -
The compass* is not calibrated. X
Calibrate the compass* (Y page 215).Compass - - -
The compass* is malfunctioning because
of exterior interference. As soon as the source of the interference has
been removed:
X
Turn the key to position 0in the ignition lock
and remove it.
X Wait until the total distance recorder has dis-
appeared from the multi-function display.
X Calibrate the compass* (Y page 215).No Service Your vehicle is outside the network pro-
vider transmitter/receiver range. X
Wait until the operational readiness symbol
appears in the multi-function display
(Y page 138). Drive to work-
shop without changing
gear The transmission position cannot be
changed due to a malfunction. If transmission position
Dis selected:
X Drive to a qualified specialist workshop without
shifting the transmission from position D.
If transmission position R,Nor Pis selected:
X Consult a qualified specialist workshop. Practical advi
ce
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 260Dateiname: 6515_1825_02_buchblock.pdf; preflight
Page 264 of 373
Display
messages 261Display messages Possible cause/consequence Possible solution
P To start the
engine, shift to
either P or N You attempted to start the engine while
transmission position
Ror Dwas selec-
ted. X
Shift the automatic transmission to Por N. Depress brake
to shift out of position P X
Depress the brake pedal. PRE-SAFE inoperative See
Owner's Manual G
Risk of injury
Important functions of PRE-SAFE ®
have
failed. All other occupant safety systems,
e.g. airbags, remain available. X
Visit a qualified specialist workshop. Tyre pressure
monitor inoperative
The tyre pressure monitor* is malfunc-
tioning. X
Have the tyre pressure monitor* and wheels
checked at a qualified specialist workshop. Tyre pressure
monitor inoperative No
wheel sensors The tyre pressure monitor* is deactivated
because the vehicle is fitted with wheels
that do not have suitable wheel sensors. X
Have wheels with suitable wheel sensors fitted
at a qualified specialist workshop.
Once wheels with the correct wheel sensors
have been fitted, the tyre pressure monitor*
reactivates automatically after a few minutes
of driving. Practical advi
ce
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 261 ZDateiname: 6515_1825_02_buchblock.pdf; preflight
Page 265 of 373
Display
messages 262 Display messages Possible cause/consequence Possible solution
Tyre pressure
monitor Wheel sensor miss-
ing
The tyre pressure monitor* is not receiv-
ing signals from one or more wheels
because:
R
a wheel without a suitable wheel sensor
is fitted (e.g. an emergency spare
wheel*).
R the battery on one of the wheel elec-
tronics unit is discharged.
R a wheel electronics unit has malfunc-
tioned.
A line is displayed in the multi-function
display for the tyre concerned instead of
the tyre pressure value. X
Have the tyre pressure monitor* and wheels
checked at a qualified specialist workshop.
Once wheels with suitable wheel sensors have
been fitted again, the tyre pressures are dis-
played in the multi-function display after driv-
ing for a few minutes. Tyre pressure
monitor currently unavail-
able
The tyre pressure monitor* is temporarily
deactivated. The voltage of the vehicle's
electrical system is too low or radio inter-
ference prevents the reception of sensor
signals. X
Drive on.
Once the causes have been eliminated, the tyre
pressure monitor* automatically reactivates
after a few minutes of driving. Practical advi
ce
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 262Dateiname: 6515_1825_02_buchblock.pdf; preflight
Page 266 of 373
Display
messages 263Display messages Possible cause/consequence Possible solution
Tyre pressure Check tyres
G
Risk of accident
The tyre pressure loss warning system has
detected a significant pressure loss. X
Stop the vehicle without making any sudden
steering or braking manoeuvres. Pay attention
to the traffic conditions as you do so.
X Check the tyres.
X Check the tyre pressure and correct it if nec-
essary (Y page 226).
X Repair or change the faulty wheel as neces-
sary (Y page 313).
X Then restart the tyre pressure loss warning
system once the tyre pressure is correct
(Y page 227). Check tyres, then restart Run
Flat Indicator There was a tyre pressure warning mes-
sage. X
Make sure that the pressure set is correct for
all tyres (Y page 226).
X Restart the tyre pressure loss warning sys-
tem (Y page 228). Run Flat Indi-
cator inoperative The tyre pressure loss warning system is
deactivated due to a malfunction. X
Visit a qualified specialist workshop. Please correct tyre pressures
Vehicles with tyre pressure monitor*:
The pressure is insufficient in one or more
tyres, or the pressures of the individual
tyres differ significantly. X
Check the tyre pressure at the next opportunity
and correct it if necessary ( Ypage 226). Cruise control
and SPEEDTRONIC inoperative Speedtronic and cruise control are
unavailable. X
Visit a qualified specialist workshop. Practical advi
ce
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 263 ZDateiname: 6515_1825_02_buchblock.pdf; preflight
Page 267 of 373
Display
messages 264 Display messages Possible cause/consequence Possible solution
DISTRONIC and
SPEEDTRONIC inoperative
Distronic
* andSpeedtronic are unavaila-
ble. X
Visit a qualified specialist workshop. Cruise control - - - km/h A condition for activating cruise control
has not been met. X
Activate ESP ®
(Ypage 61)
X If conditions permit, drive faster than
30 km/h and store the speed (Y page 140).Symbol messages
G
Risk of accident and injury
The operating safety of your vehicle could be compromised if service work is carried out improperly. You could lose control of the vehicle,
thereby causing an accident. Safety systems may also not be able to protect you or others as intended.
Always have maintenance work carried out at a qualified specialist workshop which has the necessary specialist knowledge and tools to
carry out the work required.
Mercedes-Benz recommends that you use a Mercedes-Benz Service Centre for this purpose.
In particular, work relevant to safety or on safety-related systems must be carried out at a qualified specialist workshop. Display messages Possible cause/consequence Possible solution
a This message always appears when the
tailgate is open. X
Close the tailgate. G
Risk of accident
Vehicles with an anti-theft alarm sys-
tem*:
You are driving with the bonnet open. X
Stop the vehicle. Pay attention to the traffic
conditions as you do so.
X Close the bonnet. Practical advice
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 264Dateiname: 6515_1825_02_buchblock.pdf; preflight
Page 268 of 373
Display
messages 265Display messages Possible cause/consequence Possible solution
$ At least one door is open. X
Close the doors. D The cooling fan for the coolant is faulty. X
If the coolant temperature is less than 120 †,
you can continue driving to the nearest quali-
fied specialist workshop.
X In doing so, avoid heavy loads on the engine
(e.g. driving in mountainous terrain) and stop-
and-go driving. # The battery is not being charged. Possible
causes are:
R
a faulty alternator
R a torn poly-V-belt
R a malfunction in the electronics X
Stop immediately and safely when traffic con-
ditions allow and check the poly-V-belt.
X If it has torn: do not drive on. Contact the
nearest qualified specialist workshop.
X If it is not damaged: have the vehicle checked
immediately at a qualified specialist workshop. # Battery/Alternator
Stop vehicle The battery is faulty. X
Pull over as soon as it is safe to do so.
X Do not continue driving under any circumstan-
ces.
X Consult the nearest qualified specialist work-
shop. 2 Brake wear The brake pads/linings have reached
their wear limit. X
Have the brake pads/linings replaced as soon
as possible at a qualified specialist workshop. Practical advi
ce
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 265 ZDateiname: 6515_1825_02_buchblock.pdf; preflight
Page 269 of 373
Display
messages 266 Display messages Possible cause/consequence Possible solution
3 EBV, ABS, ESP inop-
erative See Own-
er's Manual
G
Risk of accident
EBV, ABS, ESP ®
and therefore also PRE-
SAFE ®
are unavailable due to a malfunc-
tion. BAS has also been deactivated.
The brake system continues to function
normally, but without the functions listed
above. X
Drive on carefully.
X Visit a qualified specialist workshop immedi-
ately. 3 Check brake fluid
level
G
Risk of accident
There is insufficient brake fluid in the
brake fluid reservoir. X
Pull over as soon as it is safe to do so.
X Do not continue driving under any circumstan-
ces.
X Consult the nearest qualified specialist work-
shop.
X Do not top up the brake fluid. This will not rec-
tify the malfunction. ! Release parking
brake You are driving with the parking brake
applied. X
Release the parking brake. 1 Restraint sys.
malfunction Con-
sult workshop
G
Risk of injury
The restraint systems are faulty. X
Visit a qualified specialist workshop immedi-
ately. ] Clean fuel filter There is water in the fuel filter. The water
must be drained off
32
. X
Visit a qualified specialist workshop. 32
Only for certain countries. Practical advi
ce
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 266Dateiname: 6515_1825_02_buchblock.pdf; preflight
Page 270 of 373

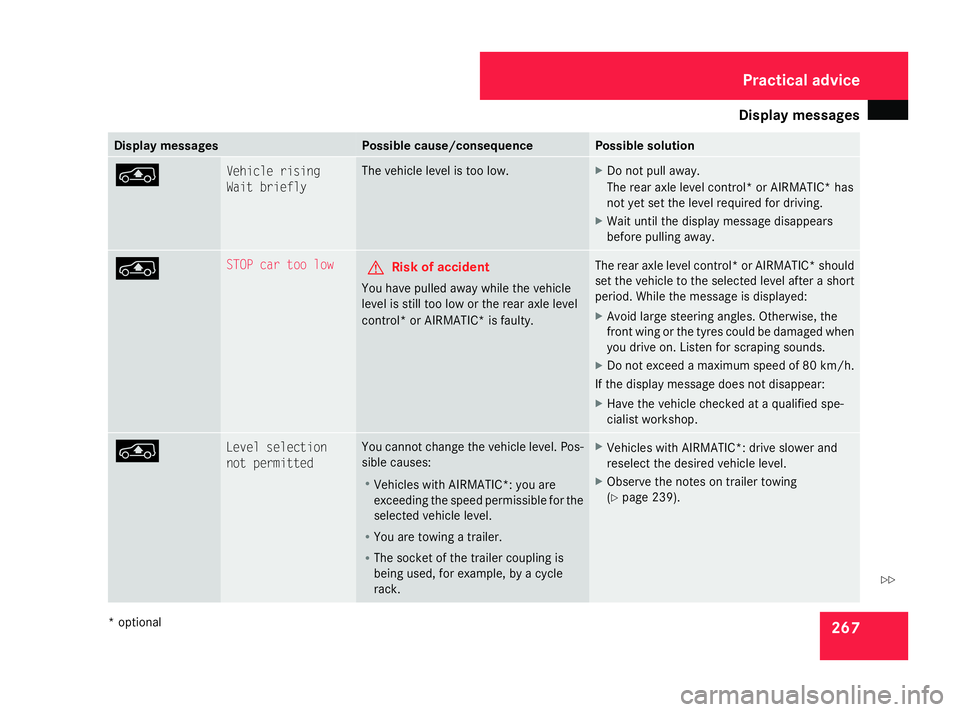

Display
messages 267Display messages Possible cause/consequence Possible solution
> Vehicle rising
Wait briefly The vehicle level is too low. X
Do not pull away.
The rear axle level control* or AIRMATIC* has
not yet set the level required for driving.
X Wait until the display message disappears
before pulling away. > STOP car too low
G
Risk of accident
You have pulled away while the vehicle
level is still too low or the rear axle level
control* or AIRMATIC* is faulty. The rear axle level control* or AIRMATIC* should
set the vehicle to the selected level after a short
period. While the message is displayed:
X Avoid large steering angles. Otherwise, the
front wing or the tyres could be damaged when
you drive on. Listen for scraping sounds.
X Do not exceed a maximum speed of 80 km/h.
If the display message does not disappear:
X Have the vehicle checked at a qualified spe-
cialist workshop. > Level selection
not permitted You cannot change the vehicle level. Pos-
sible causes:
R
Vehicles with AIRMATIC*: you are
exceeding the speed permissible for the
selected vehicle level.
R You are towing a trailer.
R The socket of the trailer coupling is
being used, for example, by a cycle
rack. X
Vehicles with AIRMATIC*: drive slower and
reselect the desired vehicle level.
X Observe the notes on trailer towing
(Y page 239). Practical advi
ce
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 267 ZDateiname: 6515_1825_02_buchblock.pdf; preflight
