Loading and stowing
189

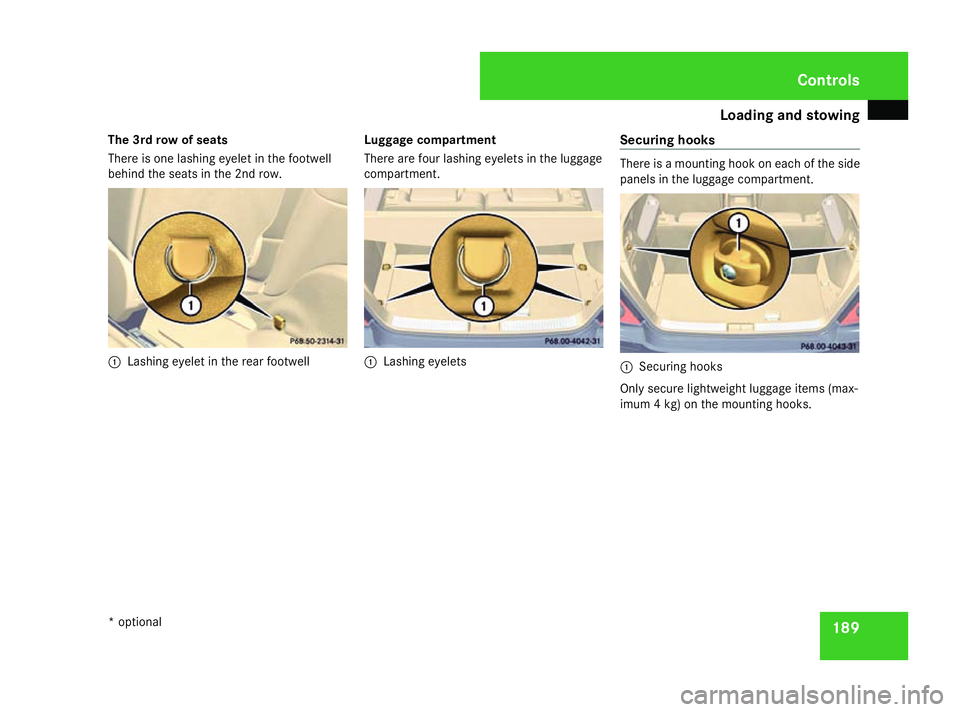

The 3rd row of seats
There is one lashing eyelet in the footwell
behind the seats in the 2nd row. 1
Lashing eyelet in the rear footwell Luggage compartment
There are four lashing eyelets in the luggage
compartment. 1
Lashing eyelets Securing hooks There is a mounting hook on each of the side
panels in the luggage compartment.
1
Securing hooks
Only secure lightweight luggage items (max-
imum 4 kg) on the mounting hooks. Controls
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 189 ZDateiname: 6515_1825_02_buchblock.pdf; preflight

Loading and stowing
190 Enlarging the luggage compartment
To enlarge the luggage compartment, the rear
bench seats of the 2nd and 3rd rows of seats
can be folded forwards separately. You can
enlarge the luggage compartment partially
(Y page 190) or fully ( Ypage 191). G
Risk of injury
Do not carry heavy or hard objects inside
the vehicle or in the luggage compartment
unless they are secured.
Otherwise, you and other vehicle occu-
pants could be injured by objects being
thrown around the vehicle in the event of
sharp braking, a sudden change in direction
or an accident.
When using the luggage compartment
enlargement feature, you must always fully
fold down the respective backrests and
attach the safety net. G
Risk of poisoning
Always drive with the tailgate closed.
Exhaust fumes could otherwise enter the
vehicle interior.
! If you want to fold the outer seats down
in the 2nd row of seats, the front seats must
not be in the rearmost position. Otherwise, you could damage the front seats and the
2nd row outer seats.
! Close the cup holder* before folding
down the 2nd row of seats. You could oth-
erwise damage the seats or cup holder.
Enlarging the luggage compartment
partially Folding the seats in the 3rd row forwards
X
Move the head restraint of the correspond-
ing seat down fully ( Ypage 83). 1
Backrest release handle
2 Retainer for the seat belt
3 Backrest X
Clamp the seat belt behind retainer 2.
X Pull release handle 1of backrest 3
upwards in the direction of the arrow.
Backrest 3is released.
X Fold backrest 3slowly forwards.
Seat cushion 1is released and moves
automatically to a vertical position. 1
Seat cushion
2 Loop
3 Backrest
i Loop 2can be used to pull the backrests
of the 3rd row of seats upright when the
seats are moved into the original position
(Y page 81). Controls
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 190Dateiname: 6515_1825_02_buchblock.pdf; preflight

Loading and stowing
191
X
Fold backrest 3forwards into a horizontal
position.
Enlarging the luggage compartment
fully G
Risk of injury
Folding down the seats in the 2nd row of
seats, in combination with folding the seats
in the 3rd row of seats, serves the purpose
of fully enlarging the luggage compartment.
Vehicle occupants in the 3rd row of seats
must not use the folded-down seats of the
2nd row of seats as a footrest.
Vehicle occupants in the 3rd row of seats
must not use the folded-down seats of the
2nd row of seats as a table or stowage
space, e. g. for drinks or items of luggage.
Otherwise:
R they could suffer serious or fatal head
injuries
R they or others could be injured by objects
being thrown around:
if you brake suddenly, change direction
abruptly or have an accident. Make absolutely sure that you adhere to the
specified folding order when fully enlarging
the luggage compartment.
Folding the middle seat in the 2nd row of
seats
!
On vehicles with a short wheelbase, the
head restraint must be removed before the
centre seat is folded. You could otherwise
damage the head restraint or the centre
console. X
Fold the centre seat to the armrest position
(Y page 81). Armrest position
1
Seat release loop
2 Seat
X Pull release loop 1in the direction of the
arrow and hold it securely.
The seat is released and folds up.
X Press seat 2further down until the front
of the seat engages in the luggage com-
partment floor position. Controls
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 191 ZDateiname: 6515_1825_02_buchblock.pdf; preflight

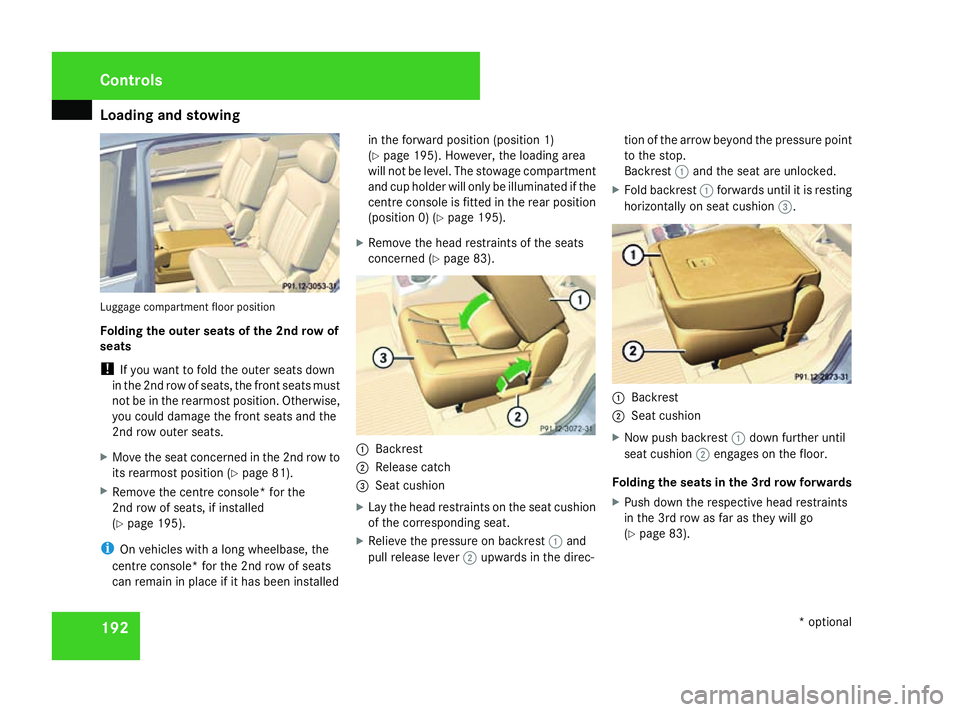

Loading and stowing
192Luggage compartment floor position
Folding the outer seats of the 2nd row of
seats
! If you want to fold the outer seats down
in the 2nd row of seats, the front seats must
not be in the rearmost position. Otherwise,
you could damage the front seats and the
2nd row outer seats.
X Move the seat concerned in the 2nd row to
its rearmost position (Y page 81).
X Remove the centre console* for the
2nd row of seats, if installed
(Y page 195).
i On vehicles with a long wheelbase, the
centre console* for the 2nd row of seats
can remain in place if it has been installed in the forward position (position 1)
(Y
page 195). However, the loading area
will not be level. The stowage compartment
and cup holder will only be illuminated if the
centre console is fitted in the rear position
(position 0) (Y page 195).
X Remove the head restraints of the seats
concerned (Y page 83). 1
Backrest
2 Release catch
3 Seat cushion
X Lay the head restraints on the seat cushion
of the corresponding seat.
X Relieve the pressure on backrest 1and
pull release lever 2upwards in the direc- tion of the arrow beyond the pressure point
to the stop.
Backrest
1and the seat are unlocked.
X Fold backrest 1forwards until it is resting
horizontally on seat cushion 3. 1
Backrest
2 Seat cushion
X Now push backrest 1down further until
seat cushion 2engages on the floor.
Folding the seats in the 3rd row forwards
X Push down the respective head restraints
in the 3rd row as far as they will go
(Y page 83). Controls
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 192Dateiname: 6515_1825_02_buchblock.pdf; preflight

Loading and stowing
1931
Backrest release handle
2 Retainer for the seat belt
3 Backrest
X Clamp the seat belt behind retainer 2.
X Pull release handle 1of backrest 3
upwards in the direction of the arrow.
Backrest 3is released.
X Fold backrest 3slowly forwards.
Seat cushion 7(3rd row of seats) is
released and moves automatically to a ver-
tical position. 3
Backrest (3rd row of seats)
4 Recess (on backrest in 2nd row of seats)
5 Guide pin (on backrest in 3rd row of seats)
6 Backrest (2nd row of seats)
7 Seat cushion (3rd row of seats)
8 Loop
i Loop 8can be used to pull the backrests
of the 3rd row of seats upright when the
seats are moved into the original position
(Y page 81).
X After it has been moved to a vertical posi-
tion automatically, fold seat cushion 7
further forwards until it reaches a horizon-
tal position. Make sure that guide pin 5of seat cushion
7(3rd row of seats) catches
fully in recess 4of backrest 6.
X Fold backrest 3forwards into a horizontal
position.
Moving the seats back into the driving
position G
Risk of injury
Ensure that the seats are locked and the
backrests are in the upright position before
driving.
The outer seats in the 2nd row are only
locked if the lock verification indicator is
folded in and the indicator area is barely
visible.
If the backrests are not locked, they could
fold forwards in case of sudden braking, a
sudden change of direction or an accident.
This means that they cannot provide the
intended level of restraint, and could cause
additional serious or even fatal injury.
Make absolutely sure that you reset the seats
to the driving position in the specified order.
Resetting seats in the 3rd row of seats
! Make absolutely sure that you reset the
seats to the driving position in the specified Controls
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 193 ZDateiname: 6515_1825_02_buchblock.pdf; preflight

Loading and stowing
194order. If you attempt to fold down the seat
cushion before the seat backrest has been
folded into the upright position, the seat
cover may be damaged.
X Grip loop 8(Ypage 193) and pull seat
backrest 3(3rd row of seats)
(Y page 193) into an upright position.
X Pull release handle 1(Ypage 192) and put
backrest 3(3rd row of seats)
(Y page 193) into the desired position.
X Bring seat cushion 7(3rd row of seats)
(Y page 193) into the vertical position.
X After putting it into an upright position, fold
seat cushion 7(3rd row of seats)
(Y page 193) further back until it audibly
engages in place. Resetting seats in the 2nd row of seats 1
Backrest
2 Release catch
3 Seat cushion
X Pull release lever 2upwards beyond the
pressure point to the stop and fold backrest
1 upwards by about 45°.
X Insert the head restraint (Y page 83).
X Pull release lever 2to the pressure point
and adjust backrest 1to the desired posi-
tion.
X Check that the seat is correctly engaged.
X Set the seat head restraint to the desired
position (Y page 83). Lock verification indicator for outer seats
in the 2nd row of seats Seat unlocked
1
Lock verification indicator
2 Indicator area
When the seat is unlocked, locking display
1 is folded out and indicator area 2is
clearly visible.
X When the seat is locked, fold the backrest
back until you hear the seat engage. Controls
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 194 Dateiname: 6515_1825_02_buchblock.pdf; preflight

Loading and stowing
195Seat locked
1
Lock verification indicator
2 Indicator area
When the seat is locked, locking display 1is
folded in and indicator area 2is barely visi-
ble. Resetting the middle seat in the 2nd row
of seats Armrest position
1
Release loop
2 Seat
X Pull release loop 1of seat 2in the direc-
tion of the arrow and hold it securely.
The seat is released and folds up.
X Press seat 2further down until the back
of the seat engages in the armrest position.
X Pull release loop 1of the backrest in the
direction of the arrow and hold it securely.
X Fold the backrest back until it is heard to
engage in the driving position. Centre console for the 2nd row of
seats*
The centre console contains a stowage com-
partment (Y page 203) and a cup holder
(Y page 183).
If you are using the fully extended luggage
compartment and want an even loading area
(Y page 190), you must remove the centre
console.
Removing the centre console G
Risk of injury
Before removing the centre console, take
out all containers from the centre console
cup holder. Liquids could otherwise spill
onto the passengers and /or the vehicle
interior. Hot liquids could scald passen-
gers. Liquids spilt on the vehicle interior
could damage it.
! To avoid damage to the centre console or
to its components, make sure that the
stowage compartment is closed before
removing the centre console.
i Remove all objects from the stowage
compartment (Y page 203) to reduce the
weight of the centre console. Controls
* optional
251_AKB; 5; 7, en-GB
wobuchh
, Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 195 ZDateiname: 6515_1825_02_buchblock.pdf; preflight

Loading and stowing
1961
Centre console
2 Recess
3 Anchoring points
4 Supporting base
5 Release handle
6 Direction of removal
X Pull release handle 5.
The front part of centre console 1
detaches from supporting base 4.
X Lift centre console 1upwards in the direc-
tion of arrow 6and hold centre console
1 in this position.
X At the same time, reach into recess 2.
X Lift centre console 1by recess 2
upwards in the direction of the arrow to release centre console
1from anchoring
points 3.
X Remove centre console 1from the vehi-
cle.
i Supporting base 4cannot be removed.
Fitting the centre console G
Risk of injury
The centre console must be correctly anch-
ored on the supporting base. The centre
console could otherwise become detached
from the supporting base and you and oth-
ers could be injured by the centre console
being thrown around if you:
R brake sharply
R change direction suddenly
R are involved in an accident
You can fit the centre console in two different
positions. In the front position (position 1) on
vehicles with the long wheelbase, you can
enlarge the luggage compartment fully
(Y page 190) without having to remove the
centre console.
i The stowage compartment and cup
holder will only be illuminated if the centre console is fitted in the rear position (posi-
tion 0).
1
Securing ring (position 1)
2 Securing ring (position 0)
3 Supporting base
4 Anchoring point (position 1)
5 Anchoring point (position 0) Controls
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 196 Dateiname: 6515_1825_02_buchblock.pdf; preflight

Loading and stowing
1973
Supporting base
6 Centre console
X Position centre console 6above support-
ing base 3.
X Anchor the retainers of centre console 6
to anchoring points 4or5 on supporting
base 3.
X Guide the front part of centre console 6
downwards in the direction of the arrow to
supporting base 3.
Centre console 6must rest on supporting
base 3.
X Push the front part of centre console 6
downwards until you hear centre console
6 engage in securing rings 1or2. Luggage compartment cover* and
safety net*
Luggage compartment cover* G
Risk of accident and injury
The luggage compartment cover is not a
restraint system. Secure the load under the
luggage compartment cover by suitable
means. Make sure that the luggage com-
partment cover is engaged securely. If lug-
gage is not sufficiently secured, it can be
thrown over the backrest into the
passenger compartment during, for
instance, heavy braking, sudden changes of
direction or in the event of an accident. You
could cause an accident or cause injury to
yourself and others.
The luggage compartment cover can be
attached behind the 2nd row of seats and 3rd
row of seats.
! When loading the vehicle, make sure that
you do not stack the load in the luggage
compartment higher than the lower edge of
the side windows. Do not place heavy
objects on top of the luggage compartment
cover. Extending and retracting the luggage
compartment cover
Luggage compartment cover fitted behind the 3rd
row of seats
1
Handle
2 Guide
i Short wheelbase vehicles:
If the luggage compartment cover is instal-
led behind the 3rd row of seats, it covers
the whole of the luggage compartment. It
cannot be extended and hooked in.
X To extend: pull the luggage compartment
cover towards you by handle 1.
X Hook the luggage compartment cover into
guides 2on the left and right. Controls
* optional
251_AKB; 5; 7, en-GB
wobuchh, Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 197 ZDateiname: 6515_1825_02_buchblock.pdf; preflight

Loading and stowing
198
X
To retract: pull the luggage compartment
cover towards you briefly by handle 1to
unhook it from guides 2on the left and
the right.
X Guide the luggage compartment cover
slowly forwards as far as it will go; it will
automatically retract while you do this.
Fitting/removing the luggage compart-
ment cover Luggage compartment cover fitted behind the 2nd
row of seats
1 Button
2 Luggage compartment cover
X To remove: roll up luggage compartment
cover 2.
X Push the right-hand side section to the left
until it engages. X
Remove luggage compartment cover 2.
X To install: extend luggage compartment
cover 2(Ypage 199 )if you wish to install
luggage compartment cover 2behind the
2nd row of seats.
! You must not fit the extensions if you wish
to fit the luggage compartment cover
behind the 3rd row of seats. The luggage
compartment cover and side panels in the
luggage compartment could otherwise be
damaged.
X If fitted, remove the protective caps from
the side panels on the 3rd row of seats if you wish to install luggage compartment
cover
2behind the 2nd row of seats. Protective cap in the right-hand side panel on the
3rd row of seats
X
Push in the bottom of the protective cap as
indicated by the arrow.
The protective cap folds out at the top.
X Pull the protective cap up from the side
panel in the direction of the arrow.
i Stow the protective caps in a safe place.
i Before fitting the luggage compartment
cover, make sure that the button
(Y page 198) is facing upwards.
X With the handle of the luggage compart-
ment enlargement pointing to the rear and
button 1facing upwards on the left-hand Controls
251_AKB; 5; 7, en-GB
wobuchh
, Version: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 198 Dateiname: 6515_1825_02_buchblock.pdf; preflight
