Exterior view
21Function Page
1 Opening and closing the
tailgate 71
Vehicle tool kit 252
Spare wheel 252
2 Rear window heating
173
3 Rear lights
310
4 Fuel filler flap
218
Fuel requirements 218
5 Exterior mirrors
90 Function Page
6 Fitting the towing eye
331
7 Tyres and wheels
224
Flat tyre 313
8 Opens the bonnet
220
Engine oil 222
Coolant
223 Function Page
9 Windscreen wipers
104
Cleaning the wiper blades 245
Replacing the wiper blades 311
a Cleaning the windows
245
b
Sliding/tilting sunroof* 178
Panorama sliding sunroof* 181
c Opening and closing the
doors
68
d Front lights
308
e Headlamp cleaning system
102At a glance
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 21Dateiname: 6515_1825_02_buchblock.pdf; preflight

Cockpit
23Function Page
1 Cruise control lever:
• cruise control 140
• Speedtronic 149
• Distronic* 143
2 Instrument cluster
26
3 Multi-function steering
wheel
30
4 Horn
5 DIRECT SELECT steering
wheel gearshift buttons 117
6 DIRECT SELECT selector
lever 114
7
Parktronic* warning dis-
play
156 Function Page
8 Overhead control panel
33
9 Locks/unlocks the glove
compartment 201
a Glove compartment
201
b Centre console
31
c Ignition lock/KEYLESS GO
button*
76
d Adjusts the steering wheel
manually
88
e Adjusts the steering wheel
electrically*
88
Steering wheel heating* 89
f Opens the bonnet
220 Function Page
g Releases the parking brake
112
h Parking brake
112
j Door control panel
34
k Light switch
97
l Adjusts the headlamp
range
100
m Combination switch:
• main-beam headlamps 99
• turn signals 99
• windscreen wipers 104
• headlamp cleaning sys-
tem
102At a glance
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 23Dateiname: 6515_1825_02_buchblock.pdf; preflight

Cockpit
25Function Page
1 Overhead control panel
33
2
Parktronic* warning dis-
play
156
3 DIRECT SELECT steering
wheel gearshift buttons 117
4 Horn
5 Multi-function steering
wheel
30
6 Instrument cluster
26
7 DIRECT SELECT selector
lever 114
8 Adjusts the headlamp
range
100
9 Light switch
97 Function Page
a Door control panel
34
b Releases the parking brake
112
c Opens the bonnet
220
d Ignition lock/KEYLESS GO
button*
76
e Adjusts the steering wheel
manually
88
f Parking brake
112
g Adjusts the steering wheel
electrically*
88
Steering wheel heating*
89 Function Page
h Combination switch:
• main-beam headlamps 99
• turn signals 99
• windscreen wipers 104
• headlamp cleaning sys-
tem
102
j Cruise control lever:
• cruise control 140
• Speedtronic 149
• Distronic* 143
k Centre console
31
l Locks/unlocks the glove
compartment
201
m Glove compartment
201At a glance
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 25Dateiname: 6515_1825_02_buchblock.pdf; preflight

Occupant safety
42
i
Airbags are not deployed in all types of
accidents. They are controlled by complex
sensor technology and evaluation logic.
This process is pre-emptive in nature as
airbag deployment must take place during
the impact and must be adapted to provide
calculated, additional protection for the
vehicle occupants. Not all airbags are
deployed in an accident.
The different airbag systems work inde-
pendently of each other. However, the
deployment of each individual system will
depend on the type of accident determined
by the control system in the first stages of
the collision (head-on collision, side impact
and overturn) and the extent of the acci-
dent (in particular, the vehicle's rate of
deceleration or acceleration).
The rate of vehicle deceleration or accelera-
tion and the direction of the force are basi-
cally determined by:
R the distribution of forces during the colli-
sion
R the collision angle R
the deformation characteristics of the vehi-
cle
R the characteristics of the object with which
the vehicle has collided, e.g. the other vehi-
cle
Factors which can only be seen and measured
after a collision has occurred do not play a
decisive role in the deployment of an airbag,
nor do they provide an indication of it.
The vehicle may be deformed significantly,
e. g. on the bonnet or the wing, without an
airbag being deployed. This is the case if only
parts which are relatively easily deformed are
affected and the necessary deceleration does
not occur. Conversely, airbags may be
deployed even though the vehicle suffers only
minor deformations. This is the case if, for
example, very rigid vehicle parts such as lon-
gitudinal body members are affected and suf-
ficient deceleration occurs as a result.
Belt tensioners, belt force limiters The seat belts of the front seats, the outer
seats in the 2nd row and the seats in the 3rd
row* have belt tensioners. The front seat
belts are also fitted with belt buckle tension-
ers.!
Do not engage the seat belt tongue in the
buckle on the front-passenger seat if the
seat is not occupied. Otherwise the belt
tensioner could be activated in an emer-
gency.
If the seat belt is also equipped with a belt
force limiter, the force exerted by the seat
belt on the seat occupant is reduced.
Belt tensioners tighten the seat belts in an
accident, pulling them close against the body.
i Belt tensioners do not correct incorrect
seat positions or incorrectly fastened seat
belts.
Belt tensioners do not pull occupants back
towards the backrest.
The front belt force limiters are synchronised
with the front airbags, which distribute the
forces exerted by the belt force limiters on
the occupant over a greater area.
The belt tensioners/belt buckle tensioners
are triggered when the ignition is switched
on:
R only if the restraint systems are operational
(the 1 warning lamp lights up after the Safety
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 42Dateiname: 6515_1825_02_buchblock.pdf; preflight

Anti-theft syste
ms 63Anti-theft systems
Immobiliser
The immobiliser prevents your vehicle from
being started without the correct key.
Activating the immobiliser X
With the key: remove the key from the
ignition lock.
X With KEYLESS GO*: press the KEYLESS
GO button on the dashboard.
The engine switches off.
Deactivating the immobiliser X
With the key: turn the key to position 2in
the ignition lock.
X With KEYLESS GO*: press the KEYLESS
GO button on the dashboard twice without
depressing the brake.
i The immobiliser is always deactivated
when you start the engine. ATA* (anti-theft alarm system)
A visual and audible alarm is triggered when
the alarm system is primed and you open:
R a door
R a door using the emergency key element
R the tailgate
R the bonnet
The alarm is not switched off even if you close
an open door again. 1
Indicator lamp X
To prime: lock the vehicle using the key.
On vehicles with KEYLESS GO*, the locking
button on the door handle can also be used.
Indicator lamp 1flashes. The alarm sys-
tem is primed after approximately 10 sec-
onds.
X To deactivate: unlock the vehicle using the
key. On vehicles with KEYLESS GO*, you
can also unlock the vehicle by grasping the
door handle.
Switching off the alarm X
With the key: insert the key into the igni-
tion lock.
The alarm is switched off.
or
X Press the Œor‹ button on the key.
The alarm is switched off.
X With KEYLESS GO*: grasp the door han-
dle. The key must be outside the vehicle.
The alarm is switched off.
or
X Press the KEYLESS GO* button on the
dashboard. The key must be inside the
vehicle.
The alarm is switched off. Safety
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 63 ZDateiname: 6515_1825_02_buchblock.pdf; preflight

Air conditioning
169
Setting the temperature in the front
compartment using 2-zone Thermatic X
Turn the key to position 2in the ignition
lock.
X To increase/reduce: turn thumbwheels
1 and 7clockwise or anti-clockwise
(Y page 161). Only change the temperature
setting in small increments. Start at 22 †.
Setting the temperature in the front
compartment using multi-zone
Thermotronic* X
Turn the key to position 2in the ignition
lock.
X To increase/reduce: turn thumbwheels
1 and 9clockwise or anti-clockwise
(Y page 163). Only change the temperature
setting in small increments. Start at 22 †. Setting the temperature in the rear
compartment using multi-zone
Thermotronic* X
Turn the key to position 2in the ignition
lock.
X Press the ™button.
The multi-zone Thermotronic* display
switches to the settings for the rear-com-
partment air conditioning.
X To increase/reduce: turn thumbwheel
9 clockwise or anti-clockwise
(Y page 163). Only change the temperature
setting in small increments. Start at 22 †.
The set temperature is shown in the multi-
zone Thermotronic* display. The multi-
zone Thermotronic* display changes back
to the standard display about three sec-
onds after a button is pressed.
Setting the temperature in the rear
compartment using the rear-compart-
ment air conditioning* X
Turn the key to position 2in the ignition
lock.
X To increase/reduce: turn thumbwheel
2 clockwise or anti-clockwise (Y
page 166). Only change the temperature
setting in small increments. Start at 22 †. Adjusting the air vents
G
Risk of injury
Very hot or very cold air can flow from the
air vents. This could cause burns or frost-
bite to bare skin in the immediate vicinity
of the vents. Keep bare skin away from
these air outlets. If necessary, direct the
airflow away to a different area of the vehi-
cle interior.
Please observe the following notes to ensure
that the air can flow freely through the air
vents:
R keep the air inlet between the windscreen
and the bonnet free of deposits, such as ice
and snow, to guarantee the supply of fresh
air into the vehicle interior.
R never cover the vents or air inlet and outlet
grilles in the vehicle interior.
i Position the sliders for the centre air
vents in the central position to provide vir-
tually draught-free ventilation. Cont
rols
* optional
251_AKB; 5; 7, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 169 ZDateiname: 6515_1825_02_buchblock.pdf; preflight

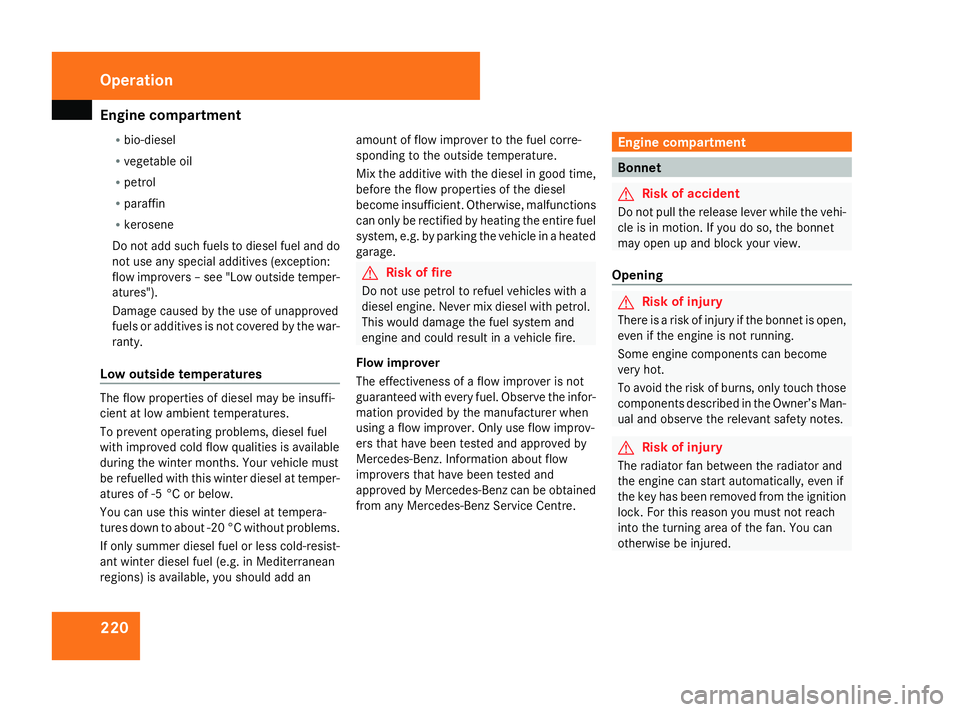

Engine compartment
220R
bio-diesel
R vegetable oil
R petrol
R paraffin
R kerosene
Do not add such fuels to diesel fuel and do
not use any special additives (exception:
flow improvers – see "Low outside temper-
atures").
Damage caused by the use of unapproved
fuels or additives is not covered by the war-
ranty.
Low outside temperatures The flow properties of diesel may be insuffi-
cient at low ambient temperatures.
To prevent operating problems, diesel fuel
with improved cold flow qualities is available
during the winter months. Your vehicle must
be refuelled with this winter diesel at temper-
atures of -5 °C or below.
You can use this winter diesel at tempera-
tures down to about -20 °C without problems.
If only summer diesel fuel or less cold-resist-
ant winter diesel fuel (e.g. in Mediterranean
regions) is available, you should add an amount of flow improver to the fuel corre-
sponding to the outside temperature.
Mix the additive with the diesel in good time,
before the flow properties of the diesel
become insufficient. Otherwise, malfunctions
can only be rectified by heating the entire fuel
system, e.g. by parking the vehicle in a heated
garage. G
Risk of fire
Do not use petrol to refuel vehicles with a
diesel engine. Never mix diesel with petrol.
This would damage the fuel system and
engine and could result in a vehicle fire.
Flow improver
The effectiveness of a flow improver is not
guaranteed with every fuel. Observe the infor-
mation provided by the manufacturer when
using a flow improver. Only use flow improv-
ers that have been tested and approved by
Mercedes-Benz. Information about flow
improvers that have been tested and
approved by Mercedes-Benz can be obtained
from any Mercedes-Benz Service Centre. Engine compartment
Bonnet
G
Risk of accident
Do not pull the release lever while the vehi-
cle is in motion. If you do so, the bonnet
may open up and block your view.
Opening G
Risk of injury
There is a risk of injury if the bonnet is open,
even if the engine is not running.
Some engine components can become
very hot.
To avoid the risk of burns, only touch those
components described in the Owner’s Man-
ual and observe the relevant safety notes. G
Risk of injury
The radiator fan between the radiator and
the engine can start automatically, even if
the key has been removed from the ignition
lock. For this reason you must not reach
into the turning area of the fan. You can
otherwise be injured. Operation
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 220Dateiname: 6515_1825_02_buchblock.pdf; preflight

Engine compartment
221Vehicles with a petrol engine:
The electronic ignition system uses high
voltage. For this reason, you must never
touch components of the ignition system
(ignition coil, ignition cable, spark plug con-
nector or test socket) when:
R the engine is running
R the engine is being started
R the ignition is switched on and the engine
is being cranked by hand
Vehicles with a diesel engine:
The electronic injection control uses high
voltage. Therefore, never touch fuel injec-
tion system components when:
R the engine is running
R the engine is being started
R the ignition is switched on
X Make sure that the windscreen wipers are
switched off. G
Risk of injury
The windscreen wipers and wiper linkage
could be set in motion.
When the bonnet is open, you or others
could be injured by the wiper rods. Make sure that the windscreen wipers are
switched off and that the key has been
pulled out of the ignition lock before open-
ing the bonnet.
The bonnet release lever is located in the
driver's footwell. 1
Bonnet release lever
X Pull bonnet release lever 1.
The bonnet is released.
! Make sure that the windscreen wipers
are not folded out away from the wind-
screen. You can otherwise damage the
windscreen wipers or the bonnet. The handle for opening the bonnet is located
above the radiator grille.
2
Bonnet catch handle
X Reach into the gap, pull bonnet catch han-
dle 2up and lift the bonnet.
Closing G
Risk of injury
Make sure that nobody can become trap-
ped as you close the bonnet.
X Lower the bonnet and let it fall from a
height of approximately 20 cm.
X Check that the bonnet has engaged prop-
erly. Operation
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 221 ZDateiname: 6515_1825_02_buchblock.pdf; preflight

Engine compartment
222
i
If the bonnet can be raised slightly, it is
not properly engaged. Open it again and
close it with a little more force. Engine oil
Depending on driving style, the vehicle con-
sumes a maximum of 0.8 l oil per 1,000 km.
The oil consumption may be higher than this
when the vehicle is new or if you frequently
drive at high engine speeds. You can only
estimate the oil consumption after you have
driven a considerable distance.
You will find further information about engine
oil in the "Technical data" section
(Y page 358).
Checking the engine oil level To do so:
R
the vehicle should be parked on level
ground.
R the engine should be switched off for at
least five minutes if the engine was at nor-
mal operating temperature.
R the engine should be switched off for at
least 30 minutes if the engine was not at operating temperature (i.e. if you only star-
ted the engine briefly).
Example
1
Oil dipstick
2 Maximum mark
3 Minimum mark
X Pull oil dipstick 1out of the oil dipstick
tube.
X Wipe off oil dipstick 1.
X Insert oil dipstick 1into the oil dipstick
tube to the stop, and take it out again.
The oil level is correct if the level is between
minimum mark 3and maximum mark
2.
X Top up the oil if necessary. i
The difference in quantity between mini-
mum mark 3and maximum mark 2is
approximately 2 litres.
Topping up the engine oil Example
1
Cap
X Unscrew cap 1and remove it.
X Top up with the amount of oil required.
! Do not add too much oil. If too much oil
is added and the oil level is above the max-
imum mark on the dipstick, the engine or
catalytic converter could be damaged.
Have excess oil siphoned off.
X Screw cap 1onto the filler neck. Operation
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 222Dateiname: 6515_1825_02_buchblock.pdf; preflight
