400 Operation
Tires and wheels
Temperature
The temperature grades are A (the high-
est), B, and C, representing the tire’s resis-
tance to the generation of heat and its
ability to dissipate heat when tested under
controlled conditions on a specified indoor
laboratory test wheel. Sustained high tem-
perature can cause the material of the tire
to degenerate and reduce tire life, and ex-
cessive temperature can lead to sudden
tire failure. The grade C corresponds to a
level of performance which all passenger
car tires must meet under the Federal
Motor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels of
performance on the laboratory test wheel
than the minimum required by law.Tire ply material
1Plies in sidewall
2Plies under tread
This marking tells you about the type of
cord and number of plies in the sidewall
and under the tread.

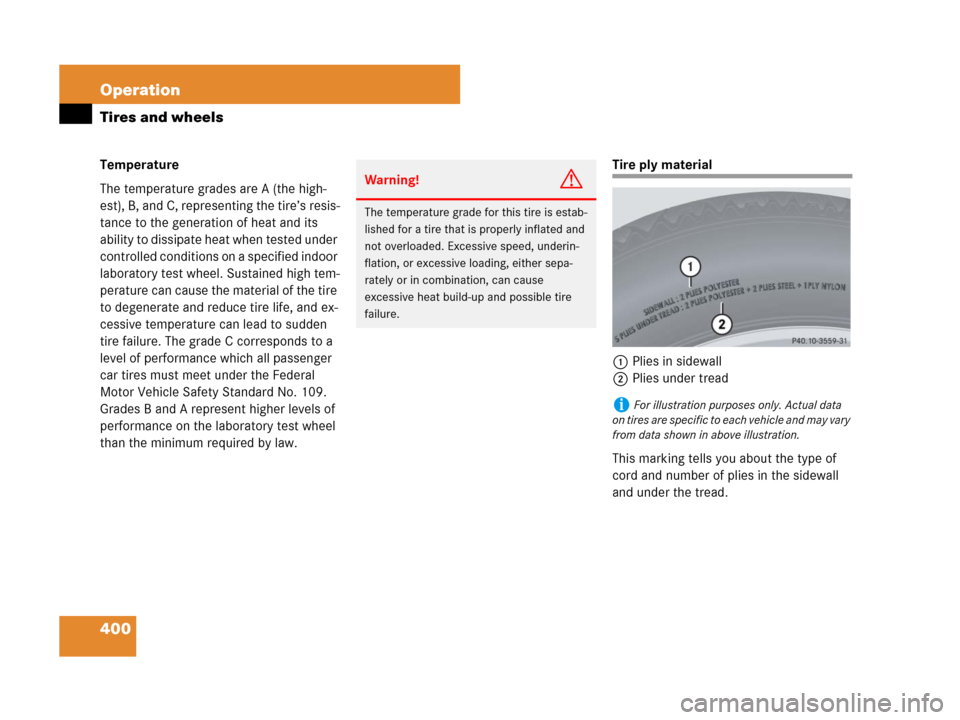

Warning!G
The temperature grade for this tire is estab-
lished for a tire that is properly inflated and
not overloaded. Excessive speed, underin-
flation, or excessive loading, either sepa-
rately or in combination, can cause
excessive heat build-up and possible tire
failure.
iFor illustration purposes only. Actual data
on tires are specific to each vehicle and may vary
from data shown in above illustration.
Page 402 of 570
401 Operation
Tires and wheels
Tire and loading terminology
Accessory weight
The combined weight (in excess of those
standard items which may be replaced) of
automatic transmission, power steering,
power brakes, power windows, power
seats, radio, and heater, to the extent that
these items are available as
factory-installed equipment (whether
installed or not).
Air pressure
The amount of air inside the tire pressing
outward on each square inch of the tire.
Air pressure is expressed in pounds per
square inch (psi), or kilopascal (kPa) or
bars.
Aspect ratio
Dimensional relationship between tire
section height and section width
expressed in percentage.Bar
Another metric unit for air pressure. There
are 14.5038 pounds per square inch (psi)
to 1 bar; there are 100 kilopascals (kPa)
to 1 bar.
Bead
The tire bead contains steel wires wrapped
by steel cords that hold the tire onto the
rim.
Cold tire inflation pressure
Tire inflation pressure when your vehicle
has been sitting for at least 3 hours or
driven no more than 1 mile (1.6 km).
Curb weight
The weight of a motor vehicle with stan-
dard equipment including the maximum
capacity of fuel, oil, and coolant, and, if so
equipped, air conditioning and additional
optional equipment, but without passen-
gers and cargo.DOT (Department of Transportation)
A tire branding symbol which denotes the
tire meets requirements of the
U.S. Department of Transportation.
GAWR (G
ross Axle Weight Rating)
The GAWR is the maximum permissible
axle weight. The gross vehicle weight on
each axle must never exceed the GAWR for
the front and rear axle indicated on the
certification label located on the driver’s
door B-pillar.
GTW (G
ross Trailer Weight)
The GTW is the weight of the trailer plus
the weight of all cargo, equipment, luggage
etc. loaded on the trailer.
Page 403 of 570
402 Operation
Tires and wheels
GVW (Gross Vehicle Weight)
The GVW comprises the weight of the
vehicle including fuel, tools, spare wheel,
installed accessories, passengers and
cargo and, if applicable, trailer tongue
load. The GVW must never exceed the
GVWR indicated on the certification label
located on the driver’s door B-pillar.
GVWR (G
ross Vehicle Weight Rating)
This is the maximum permissible vehicle
weight of the fully loaded vehicle (weight of
the vehicle including all options, passen-
gers, fuel, and cargo and, if applicable,
trailer tongue load). It is indicated on certi-
fication label located on the driver’s door
B-pillar.
Kilopascal (kPa)
The metric unit for air pressure. There are
6.9 kPa to 1 psi; another metric unit for air
pressure is bars. There are 100 kilopascals
(kPa) to 1 bar.Maximum load rating
The maximum load in kilograms and
pounds that can be carried by the tire.
Maximum loaded vehicle weight
The sum of curb weight, accessory weight,
total load limit and production options
weight.
Maximum tire inflation pressure
This number is the greatest amount of air
pressure that should ever be put in the tire
under normal driving conditions.
Normal occupant weight
The number of occupants the vehicle is
designed to seat, multiplied by
68 kilograms (150 lbs).
Occupant distribution
The distribution of occupants in a vehicle
at their designated seating positions.Production options weight
The combined weight of those installed
regular production options weighing over
5 lbs (2.3 kilograms) in excess of those
standard items which they replace, not
previously considered in curb weight or
accessory weight, including heavy duty
brakes, ride levelers, roof rack, heavy duty
battery, and special trim.
PSI (P
ounds per square inch)
A standard unit of measure for air pressure
-> bar, kilopascal (kPa).
Recommended tire inflation pressure
Recommended tire inflation pressure
listed on placard located on driver’s door
B-pillar for normal driving conditions.
Provides best handling, tread life and
riding comfort.
Page 404 of 570
403 Operation
Tires and wheels
Rim
A metal support for a tire or a tire and tube
assembly upon which the tire beads are
seated.
Sidewall
The portion of a tire between the tread and
the bead.
TIN (T
ire Identification Number)
Unique identifier which facilitates efforts
by tire manufacturers to notify purchasers
in recall situations or other safety matters
concerning tires and gives purchases the
means to easily identify such tires. The TIN
is comprised of “Manufacturer’s identifica-
tion mark”, “Tire size”, “Tire type code”
and “Date of manufacture”.
Tire load rating
Numerical code associated with the
maximum load a tire can support.Tire ply composition and material used
This indicates the number of plies or the
number of layers of rubber-coated fabric in
the tire tread and sidewall. Tire manufac-
turers also must indicate the ply materials
in the tire and sidewall, which include
steel, nylon, polyester, and others.
Tire speed rating
Part of tire designation; indicates the
speed range for which a tire is approved.
Traction
Force exerted by the vehicle on the road
via the tires. The amount of grip provided.
Tread
The portion of a tire that comes into
contact with the road.Treadwear indicators
Narrow bands, sometimes called
“wear bars” that show across the tread of
a tire when only
1/16in (1.6 mm) of tread
remains.
TWR (T
ongue Weight Rating)
Maximum permissible weight on trailer
tongue.
Uniform Tire Quality Grading Standards
A tire information system that provides
consumers with ratings for a tire’s traction,
temperature and treadwear. Ratings are
determined by tire manufacturers using
government testing procedures. The
ratings are molded into the sidewall of the
tire.
Vehicle maximum load on the tire
Load on an individual tire that is
determined by distributing to each axle its
share of the maximum loaded vehicle
weight and dividing it by two.
Page 405 of 570
404 Operation
Tires and wheels
Rotating tires
Tire rotation can be performed on vehicles
with tires of the same dimension all
around. If your vehicle is equipped with
tires of the same dimension all around,
tires can be rotated, observing a
front-to-rear rotation pattern that will
maintain the intended rotation (spinning)
direction of the tire (
page 375).
In some cases, such as when your vehicle
is equipped with mixed-size tires (different
tire dimension front vs. rear), tire rotation
is not possible.If applicable to your vehicle’s tire configu-
ration, tires can be rotated according to
the tire manufacturer’s recommended in-
tervals in the tire manufacturer’s warranty
pamphlet located in your vehicle literature
portfolio. If none is available, tires should
be rotated every 3 000 to 6 000 miles
(5 000 to 10 000 km), or sooner if neces-
sary, according to the degree of tire wear.
The same rotation (spinning) direction
must be maintained (
page 375).
Rotate tires before the characteristic tire
wear pattern becomes visible (shoulder
wear on front tires and tread center wear
on rear tires).
Thoroughly clean the mounting face of
wheels and brake disks, i.e. the inner side
of the wheels/tires, during each rotation.
Check for and ensure proper tire inflation
pressure.For information on wheel change, see “Flat
tire” (
page 497).

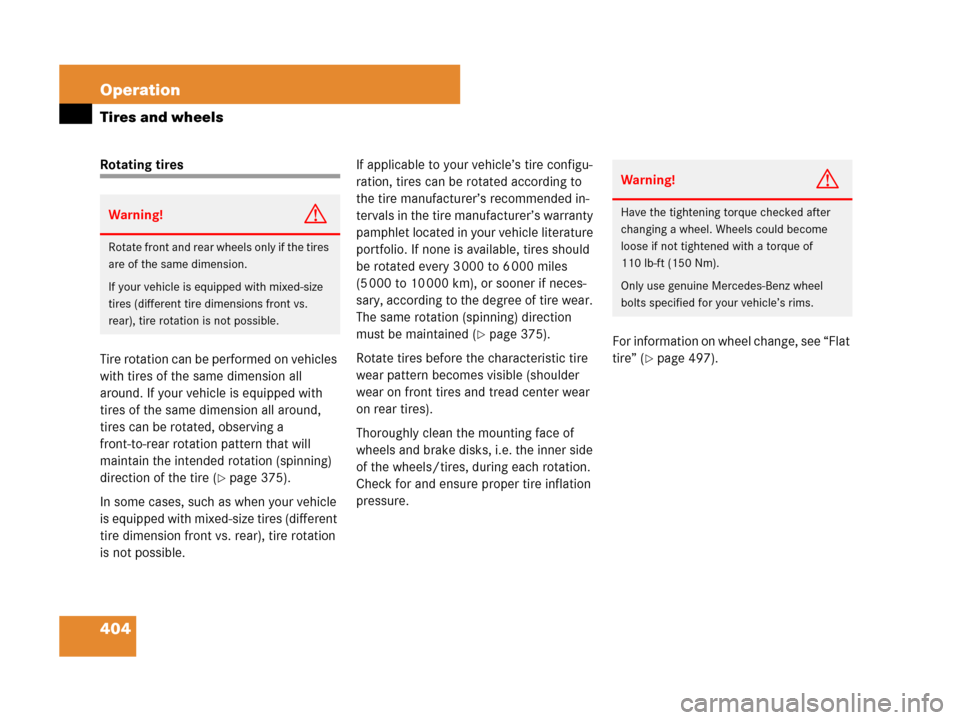

Warning!G
Rotate front and rear wheels only if the tires
are of the same dimension.
If your vehicle is equipped with mixed-size
tires (different tire dimensions front vs.
rear), tire rotation is not possible.
Warning!G
Have the tightening torque checked after
changing a wheel. Wheels could become
loose if not tightened with a torque of
110 lb-ft (150 Nm).
Only use genuine Mercedes-Benz wheel
bolts specified for your vehicle’s rims.
Page 406 of 570
405 Operation
Winter driving
Winter driving
Before the onset of winter, have your
vehicle winterized at an authorized
Mercedes-Benz Light Truck Center. This
service includes:
Check of anticorrosion and antifreeze
concentration.
Addition of cleaning concentrate to the
water of the windshield and headlamp
cleaning system. Add MB Concentrate
“MB SummerFit” to a premixed wind-
shield washer solvent/antifreeze
which is formulated for temperatures
below freezing point (
page 546).
Battery test. Battery capacity drops
with decreasing ambient temperature.
A well charged battery helps to make
sure that the engine can be started
even at low ambient temperatures.
Tire change. Mercedes-Benz recom-
mends M+S rated radial-ply tires with a
minimum tread depth of approximately
1/6in (4 mm) on all four wheels for the
winter season.
Winter tires
Always use winter tires at temperatures
below 45°F (7°C) and whenever wintry
road conditions prevail. Not all M+S rated
radial-ply tires provide special winter
performance. Make sure the tires you use
show M+S and the mountain/snowflake
marking.on the tire sidewall. These
tires meet specific snow traction perfor-
mance requirements of the Rubber
Manufacturers Association (RMA) and the
Rubber Association of Canada (RAC) and
have been designed specifically for use in
snow conditions. Use of winter tires is the
only way to achieve the maximum effec-
tiveness of the ABS, ESP
®, 4-ETS, and EBP
in winter operation.
For safe handling, make sure all winter
tires mounted are of the same make and
have the same tread design.Always observe the speed rating of the
winter tires installed on your vehicle. If the
maximum speed for which your tires are
rated is below the speed rating of your
vehicle, you must place a notice to this
effect where it will be seen by the driver.
Such notices are available at your tire
dealer or any authorized Mercedes-Benz
Light Truck Center.

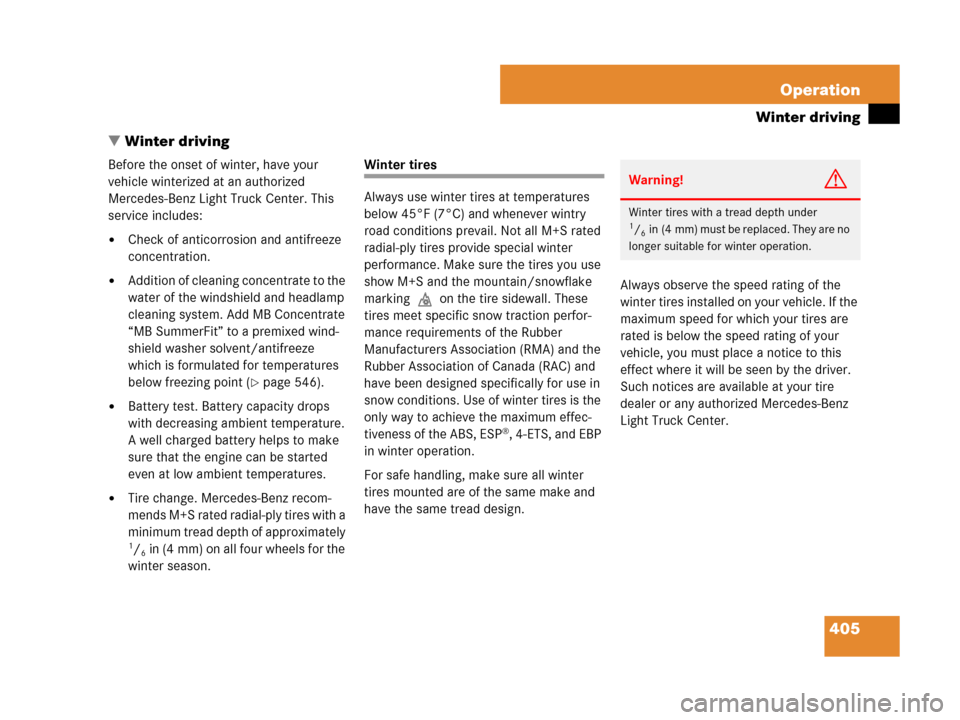

Warning!G
Winter tires with a tread depth under 1/6in (4 mm) must be replaced. They are no
longer suitable for winter operation.
Page 407 of 570
406 Operation
Winter driving
Snow chains
Snow chains should only be driven on
snow-covered roads at speeds not to
exceed 30 mph (50 km/h). Remove chains
as soon as possible when driving on roads
without snow.Please observe the following guidelines
when using snow chains:
Use of snow chains is not permissible
with all wheel/tire combinations
(
page 532).
Snow chains should only be used on
the rear wheels. Follow the manufac-
turer’s mounting instructions.
Only use snow chains that are
approved by Mercedes-Benz. Your
authorized Mercedes-Benz Light Truck
C e n t e r w i l l b e g l a d t o a d v i s e y o u o n t h i s
subject.
Use of snow chains may be prohibited
depending on location. Always check
local and state laws before installing
snow chains.
Do not use snow chains on the spare
wheel (
page 534).
Warning!G
If you use your spare tire when winter tires
are fitted on the other wheels, be aware that
the difference in tire characteristics may
very well impair turning stability and that
overall driving stability may be reduced.
Adapt your driving style accordingly.
Have the spare tire replaced with a winter
tire at the nearest authorized
Mercedes-Benz Light Truck Center.!Even on vehicles with all-wheel-drive, use
snow chains on rear wheels only.
Some tire sizes do not leave adequate clearance
for snow chains. To help avoid serious damage to
your vehicle or tires, use of snow chains is not
permissible with the spare wheel.
!Vehicles with Adaptive Damping
System (ADS)*: When driving with snow chains,
do not select SPORT mode (
page 286).
iWhen driving with snow chains, you may
wish to deactivate the ESP® (page 104) be-
fore setting the vehicle in motion. This will im-
prove the vehicle’s traction.
Page 408 of 570
407 Operation
Maintenance
Maintenance
We strongly recommend that you have
your vehicle serviced by an authorized
Mercedes-Benz Light Truck Center, in
accordance with the Maintenance Booklet
at the times called for by the maintenance
service indicator.
Failure to have the vehicle maintained in
accordance with the Maintenance Booklet
and maintenance service indicator at the
designated times/mileage will result in
vehicle damage not covered by the
Mercedes-Benz Limited Warranty.
Maintenance service indicator
message
The maintenance service indicator
message will notify you when your next
maintenance service is due.Starting approximately 1 month before
maintenance service is due, one of the fol-
lowing messages will appear in the multi-
function display while you are driving or
when you switch on the ignition (example
service A):
Service A in XXXX miles (km)
Service A in XX days
Service A in X day
Service A due now
The maintenance services will be indicated
by showing a service type A through type H
in the multifunction display. Types A
through H are classified based on estimat-
ed time needed to perform the mainte-
nance service, ranging:
from
Service A
(approx. 1 hour)
to
Service H
(approx. 8 hours)Refer to Maintenance Booklet for a listing
of maintenance services and intervals they
need to be performed at.
iVehicles equipped with Maintenance
System only (U.S. vehicles):
The Maintenance System in your vehicle tracks
distance driven and the time elapsed since your
last maintenance service and calculates other
maintenance service work required.
Page 409 of 570
408 Operation
Maintenance
Clearing the maintenance service
indicator message
The maintenance service indicator mes-
sage is automatically cleared
after approximately 10 seconds when
you switch on the ignition or when
reaching the maintenance service
threshold while driving
after approximately 30 seconds, once
the suggested maintenance service
term has passedYou can also clear it yourself:
1Reset button
Press reset button 1 on the instru-
ment cluster.
The maintenance service indicator
message is cleared and the standard
display appears in the multifunction
display (
page 166).Maintenance service term exceeded
If you have exceeded the suggested main-
tenance service term, you will see the fol-
lowing message in the multifunction
display:
Service A exceeded by XXXXX miles (km)
Service A exceeded by XXX days
Service A exceeded by X day
In addition, a signal sounds when the
message appears.
Any authorized Mercedes-Benz Light Truck
Center will reset the maintenance service
indicator following a completed mainte-
nance service.
iVehicles equipped with FSS {PLUS} (Flexible
Service System {PLUS}) only (Canada vehicles):
FSS {PLUS} evaluates engine temperature,
oil level, vehicle speed, engine speed, dis-
tance driven and the time elapsed since your
last service and calculates other mainte-
nance service work required.
The interval between maintenance services
depends on your driving habits. A gentle
driving style, moderate engine speeds and
the avoidance of short-distance trips will
lengthen the interval between services.
Page 410 of 570
409 Operation
Maintenance
Calling up the maintenance service
indicator display
You can call up the maintenance service
indicator display at any time to check
when the next maintenance service is due.
Switch on the ignition (page 39).
The standard display of the control sys-
tem appears (
page 166).
Press button èorÿon the
multifunction steering wheel
repeatedly until the standard display
appears in the multifunction display
(
page 166).
Press button k or j on the
multifunction steering wheel until the
maintenance service indicator display
with the service symbol 9 and the
service deadline appears in the multi-
function display.Resetting the maintenance service
indicator
In the event that the maintenance service
on your vehicle is not carried out by an
authorized Mercedes-Benz Light Truck
Center, you can have the maintenance
service indicator reset. The automotive
maintenance facility carrying out the
maintenance service will find the informa-
tion for resetting the maintenance service
indicator in the maintenance-relevant
literature for your vehicle. Such literature
is available either from either an
authorized Mercedes-Benz Light Truck
Center or directly from Mercedes-Benz.
iThe menu overview can be found on
(
page 162).
iIf the battery is disconnected, the days of
disconnection will not be included in the count
shown by the maintenance service indicator. To
arrive at the true maintenance service deadline,
you will need to subtract these days from the
days shown in the maintenance service indicator
message or maintenance service indicator
display.
iIf the maintenance service indicator was in-
advertently reset, have an authorized
Mercedes-Benz Light Truck Center correct it.
Only reset if the proper maintenance service has
been performed. Resetting the system without
performing the proper service as called for by
the maintenance service indicator will result in
engine damage and/or other vehicle damage not
covered by the Mercedes-Benz Limited
Warranty.
