Press buttonè orÿ on the mul-
tifunction steering wheel repeatedly
until the standard display menu
appears in the multifunction display
(
page 166).
Press thej or kbutton repeat-
edly until you see the current inflation
pressures for each tire appear in the
display or the following message ap-
pears in the display
Tire pressure
displayed after
driving for
a few minutes
Press the reset button (page 156).
The following message will appear in
the multifunction display:
Restart tire
pressure monitor?
Press the æbutton.
The following message will appear in
the multifunction display:
Tire pressure monitor
restarted
After driving a few minutes the system
verifies that the current tire inflation
pressures are within the system’s
specified range. Afterwards the current
tire inflation pressures are accepted as
reference pressures and then moni-
tored.
If you wish to cancel activation:
Press the çbutton.Potential problems associated with
underinflated and overinflated tires
Underinflated tires
Underinflated tires can:

cause excessive and uneven tire wear

adversely affect fuel economy

lead to tire failure from being
overheated

adversely affect handling
characteristics
iReactivate the TPMS after adjusting the tire
inflation pressure to the inflation pressure rec-
ommended for the vehicle operating condition.
Tire pressure should only be adjusted on cold
tires. Observe the recommended tire inflation
pressure on the placard on the driver’s door
B-pillar (
page 376). Some vehicles may have
supplemental tire pressure information for driv-
ing at high speeds (
page 381) or for vehicle
loads less than the maximum loaded vehicle con-
dition (
page 382). If such information is pro-
vided, it can be found on the inside of the fuel
filler flap.
Warning!G
Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being
overheated.


391 Operation
Tires and wheels
Overinflated tires
Overinflated tires can:

adversely affect handling
characteristics

cause uneven tire wear

be more prone to damage from road
hazards

adversely affect ride comfort

increase stopping distance

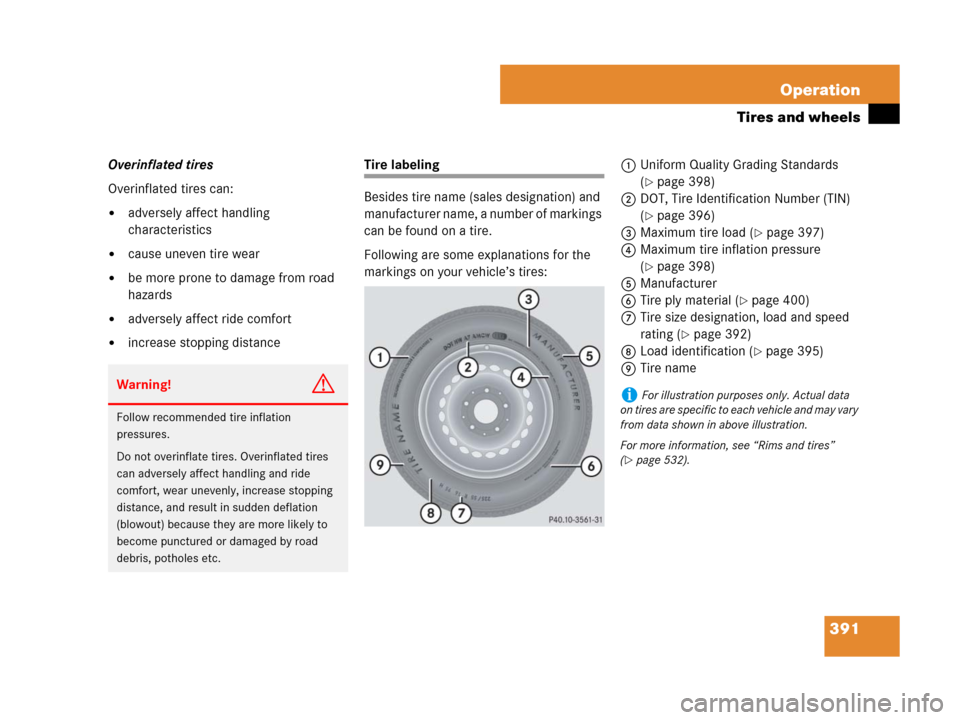

Tire labeling
Besides tire name (sales designation) and
manufacturer name, a number of markings
can be found on a tire.
Following are some explanations for the
markings on your vehicle’s tires:1Uniform Quality Grading Standards
(
page 398)
2DOT, Tire Identification Number (TIN)
(
page 396)

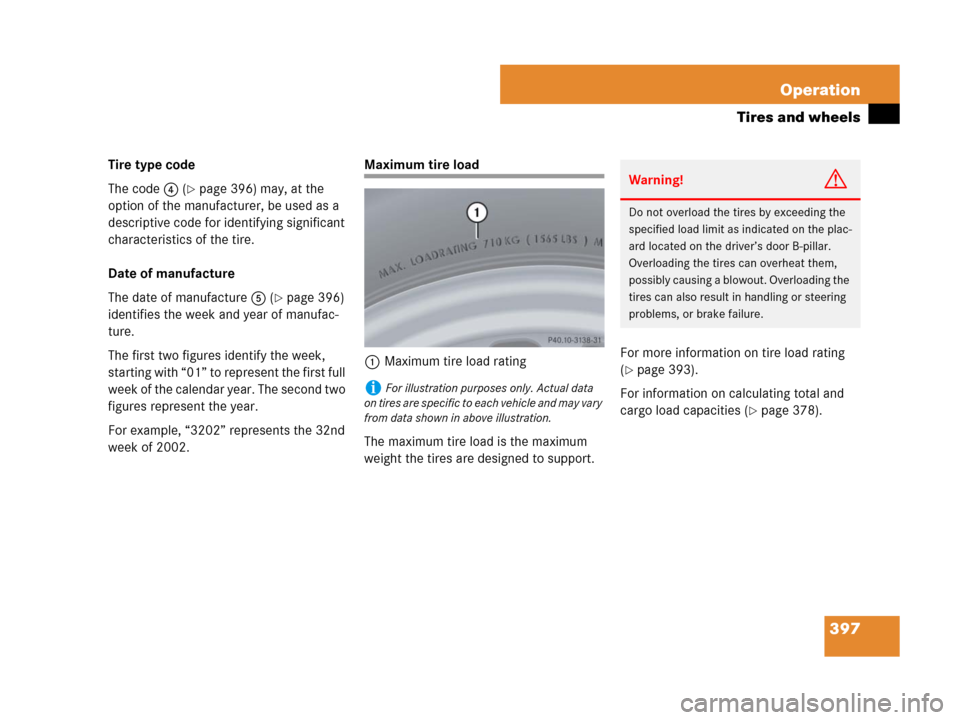

3Maximum tire load (
page 397)

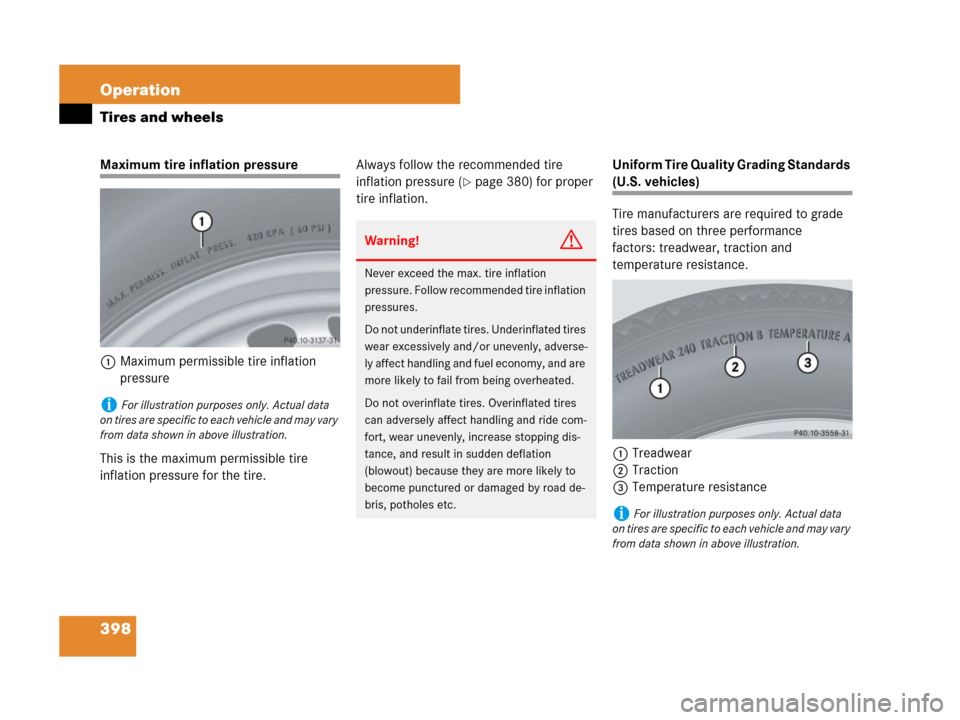

4Maximum tire inflation pressure
(
page 398)
5Manufacturer
6Tire ply material (
page 400)
7Tire size designation, load and speed
rating (
page 392)
8Load identification (
page 395)
9Tire name
Warning!G
Follow recommended tire inflation
pressures.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stopping
distance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road
debris, potholes etc.
iFor illustration purposes only. Actual data
on tires are specific to each vehicle and may vary
from data shown in above illustration.
For more information, see “Rims and tires”
(
page 532).

392 Operation
Tires and wheels

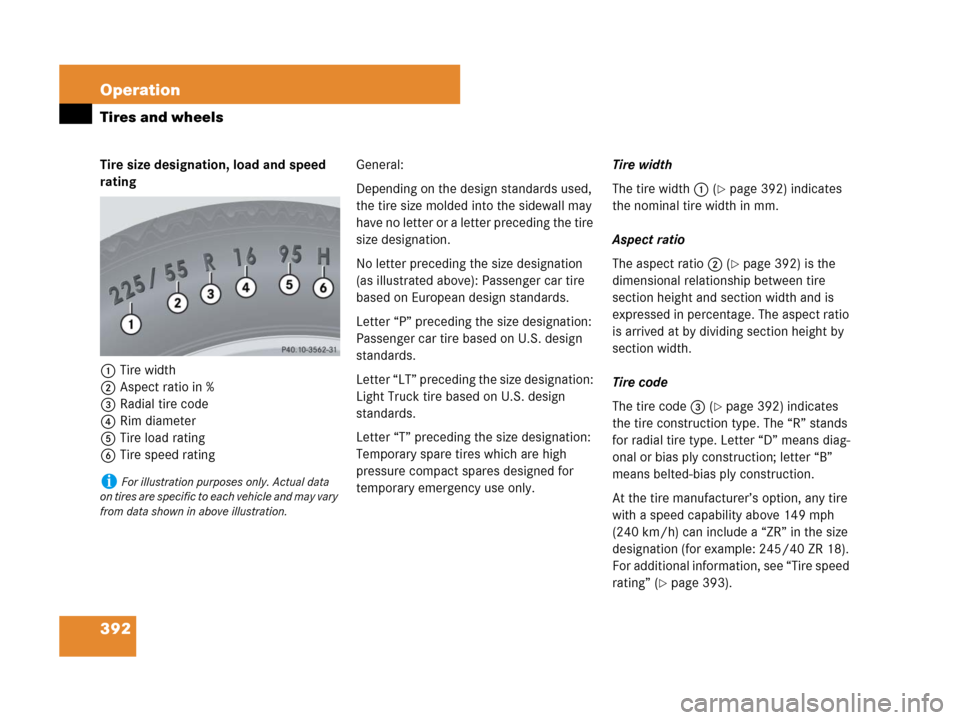

Tire size designation, load and speed
rating
1Tire width
2Aspect ratio in %
3Radial tire code
4Rim diameter
5Tire load rating
6Tire speed ratingGeneral:
Depending on the design standards used,
the tire size molded into the sidewall may
have no letter or a letter preceding the tire
size designation.
No letter preceding the size designation
(as illustrated above): Passenger car tire
based on European design standards.
Letter “P” preceding the size designation:
Passenger car tire based on U.S. design
standards.
Letter “LT” preceding the size designation:
Light Truck tire based on U.S. design
standards.
Letter “T” preceding the size designation:
Temporary spare tires which are high
pressure compact spares designed for
temporary emergency use only. Tire width
The tire width1 (
page 392) indicates
the nominal tire width in mm.
Aspect ratio
The aspect ratio2 (
page 392) is the
dimensional relationship between tire
section height and section width and is
expressed in percentage. The aspect ratio
is arrived at by dividing section height by
section width.
Tire code
The tire code3 (
page 392) indicates
the tire construction type. The “R” stands
for radial tire type. Letter “D” means diag-
onal or bias ply construction; letter “B”
means belted-bias ply construction.
At the tire manufacturer’s option, any tire
with a speed capability above 149 mph
(240 km/h) can include a “ZR” in the size
designation (for example: 245/40 ZR 18).
For additional information, see “Tire speed
rating” (
page 393).
iFor illustration purposes only. Actual data
on tires are specific to each vehicle and may vary
from data shown in above illustration.

393 Operation
Tires and wheels
Rim diameter
The rim diameter4 (
page 392) is the
diameter of the bead seat, not the
diameter of the rim edge. Rim diameter is
indicated in inches (in).
Tire load rating
The tire load rating5 (
page 392) is a
numerical code associated with the
maximum load a tire can support.
For example, a load rating of 91 corre-
sponds to a maximum load of 1356 lbs
(615 kg) the tire is designed to support.
See also “Maximum tire load”
(
page 397) where the maximum load as-
sociated with the load index is indicated in
kilograms and lbs.For additional information on tire load
rating, see “Load identification”
(
page 395).
Tire speed rating
The tire speed rating6 (
page 392)
indicates the approved maximum speed
for the tire.

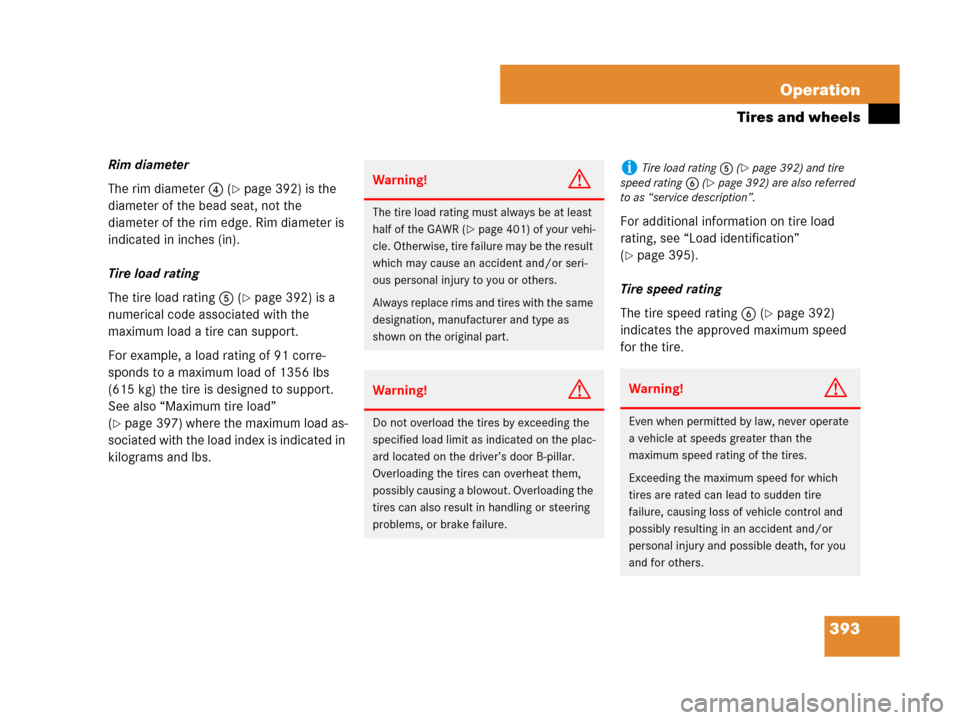

Warning!G
The tire load rating must always be at least
half of the GAWR (
page 401) of your vehi-
cle. Otherwise, tire failure may be the result
which may cause an accident and/or seri-
ous personal injury to you or others.
Always replace rims and tires with the same
designation, manufacturer and type as
shown on the original part.
Warning!G
Do not overload the tires by exceeding the
specified load limit as indicated on the plac-
ard located on the driver’s door B-pillar.
Overloading the tires can overheat them,
possibly causing a blowout. Overloading the
tires can also result in handling or steering
problems, or brake failure.
iTire load rating5 (page 392) and tire
speed rating6 (
page 392) are also referred
to as “service description”.
Warning!G
Even when permitted by law, never operate
a vehicle at speeds greater than the
maximum speed rating of the tires.
Exceeding the maximum speed for which
tires are rated can lead to sudden tire
failure, causing loss of vehicle control and
possibly resulting in an accident and/or
personal injury and possible death, for you
and for others.

394 Operation
Tires and wheels
Summer tires

At the tire manufacturer’s option, any
tire with a speed capability above
149 mph (240 km/h) can include a
“ZR” in the size designation (for exam-
ple: 245/40 ZR18). To determine the
maximum speed capability of the tire, the service description for the tire must
be referred to. The service description
is comprised of the tire load rating5
(
page 392) and the tire speed
rating6 (
page 392).
If your tire includes “ZR” in the size
designation and no service
description5 and6 (
page 392) is
given, the tire manufacturer must be
consulted for the maximum speed ca-
pability.
If a service description5 and6
(
page 392) is given, the speed capa-
bility is limited by the speed symbol in
the service description.
Example: 245/40 ZR18 97Y.
In this example, “97Y” is the service
description. The letter “Y” designates
the speed rating and the speed capabil-
ity of the tire is limited to 186 mph
(300 km/h).

Any tire with a speed capability above
186 mph (300 km/h) must include a
“ZR” in the size designation AND the
service description must be placed in
parenthesis. Example: 275/40 ZR 18
(99Y). The “(Y)” speed rating in paren-
thesis designates the maximum speed
capability of the tire as being above
186 mph (300 km/h). Consult the tire
manufacturer for the actual maximum
permissible speed of the tire.iTire load rating5 (page 392) and tire
speed rating6 (
page 392) are also referred
to as “service description”.

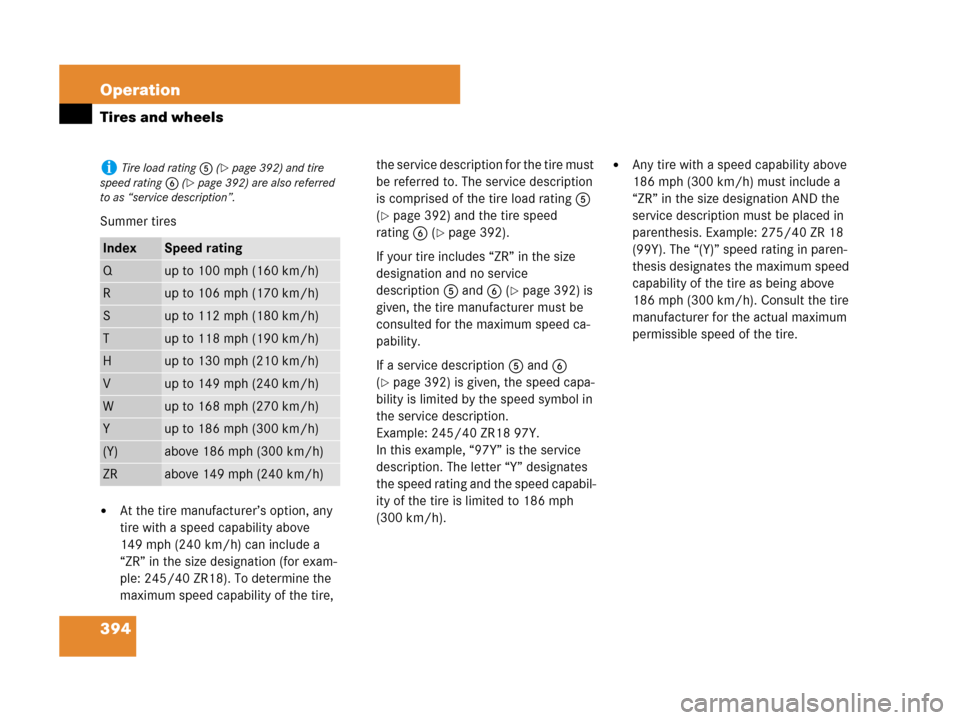

IndexSpeed rating
Qup to 100 mph (160 km/h)
Rup to 106 mph (170 km/h)
Sup to 112 mph (180 km/h)
Tup to 118 mph (190 km/h)
Hup to 130 mph (210 km/h)
Vup to 149 mph (240 km/h)
Wup to 168 mph (270 km/h)
Yup to 186 mph (300 km/h)
(Y)above 186 mph (300 km/h)
ZRabove 149 mph (240 km/h)

395 Operation
Tires and wheels
All-season and winter tiresLoad identification

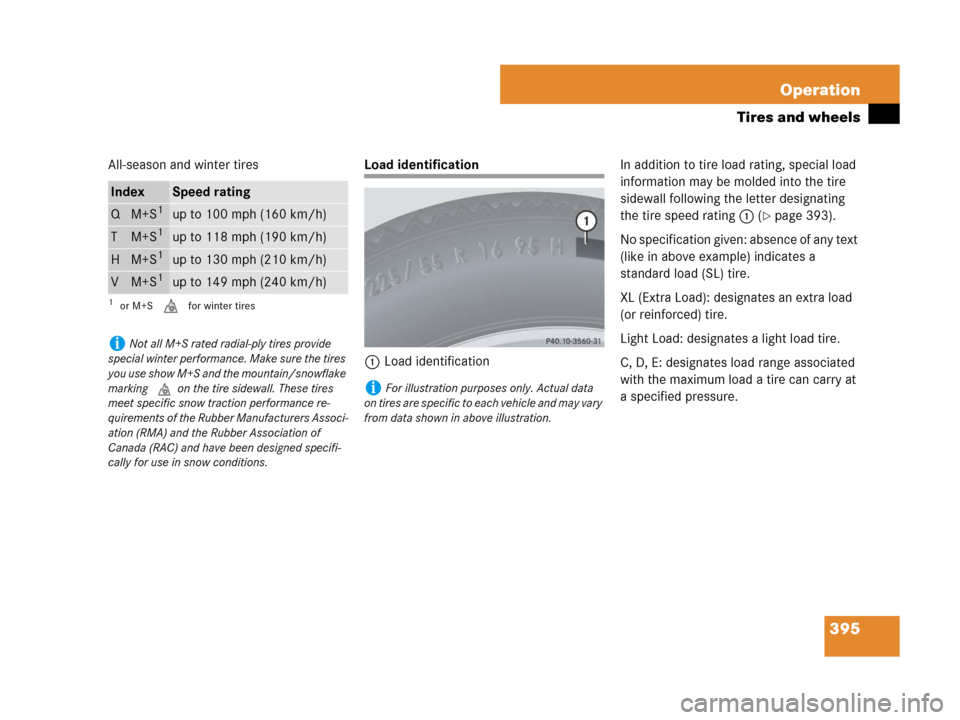

1Load identificationIn addition to tire load rating, special load
information may be molded into the tire
sidewall following the letter designating
the tire speed rating1 (
page 393).
No specification given: absence of any text
(like in above example) indicates a
standard load (SL) tire.
XL (Extra Load): designates an extra load
(or reinforced) tire.
Light Load: designates a light load tire.
C, D, E: designates load range associated
with the maximum load a tire can carry at
a specified pressure.
IndexSpeed rating
QM+S1
1or M+S. for winter tires
up to 100 mph (160 km/h)
TM+S1up to 118 mph (190 km/h)
HM+S1up to 130 mph (210 km/h)
VM+S1up to 149 mph (240 km/h)
iNot all M+S rated radial-ply tires provide
special winter performance. Make sure the tires
you use show M+S and the mountain/snowflake
marking.on the tire sidewall. These tires
meet specific snow traction performance re-
quirements of the Rubber Manufacturers Associ-
ation (RMA) and the Rubber Association of
Canada (RAC) and have been designed specifi-
cally for use in snow conditions.
iFor illustration purposes only. Actual data
on tires are specific to each vehicle and may vary
from data shown in above illustration.

396 Operation
Tires and wheels
DOT, Tire Identification Number (TIN)
U.S. tire regulations require each new tire
manufacturer or tire retreader to mold a
TIN into or onto a sidewall of each tire
produced.
The TIN is a unique identifier which facili-
tates efforts by tire manufactures to notify
purchasers in recall situations or other
safety matters concerning tires and gives
purchasers the means to easily identify
such tires.
The TIN is comprised of “Manufacturer’s
identification mark”, “Tire size”, “Tire type

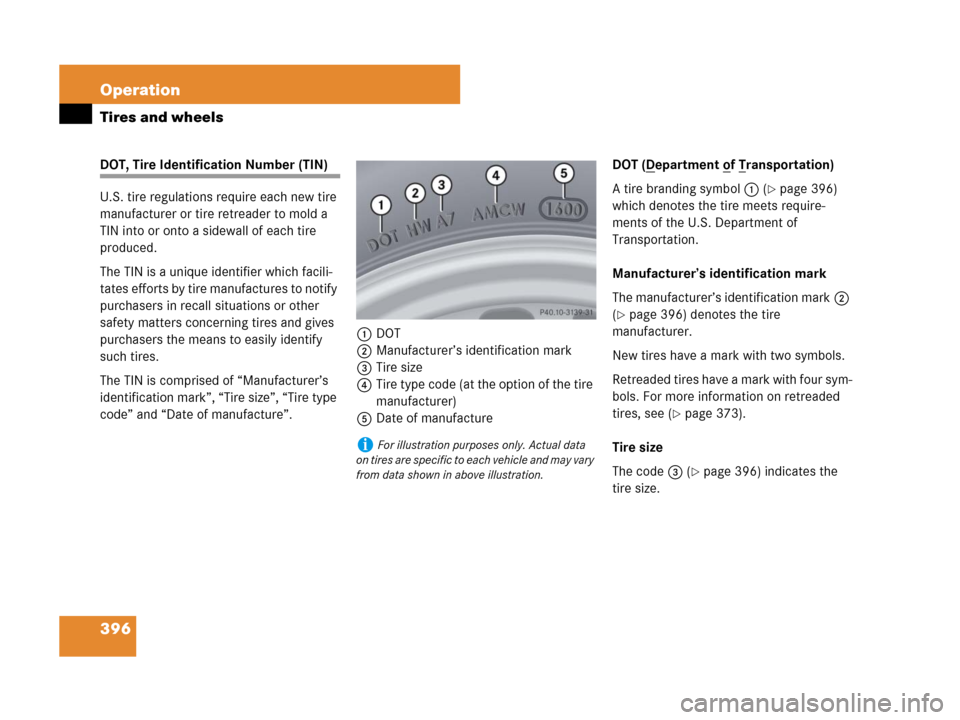

code” and “Date of manufacture”.1DOT
2Manufacturer’s identification mark
3Tire size
4Tire type code (at the option of the tire
manufacturer)
5Date of manufactureDOT (Department of Transportation)
A tire branding symbol1 (
page 396)
which denotes the tire meets require-
ments of the U.S. Department of
Transportation.
Manufacturer’s identification mark
The manufacturer’s identification mark2
(
page 396) denotes the tire
manufacturer.
New tires have a mark with two symbols.
Retreaded tires have a mark with four sym-
bols. For more information on retreaded
tires, see (
page 373).
Tire size
The code3 (
page 396) indicates the
tire size.
iFor illustration purposes only. Actual data
on tires are specific to each vehicle and may vary
from data shown in above illustration.

397 Operation
Tires and wheels
Tire type code
The code4 (
page 396) may, at the
option of the manufacturer, be used as a
descriptive code for identifying significant
characteristics of the tire.
Date of manufacture
The date of manufacture5 (
page 396)
identifies the week and year of manufac-
ture.
The first two figures identify the week,
starting with “01” to represent the first full
week of the calendar year. The second two
figures represent the year.
For example, “3202” represents the 32nd
week of 2002.
Maximum tire load
1Maximum tire load rating
The maximum tire load is the maximum
weight the tires are designed to support.For more information on tire load rating
(
page 393).
For information on calculating total and
cargo load capacities (
page 378).
iFor illustration purposes only. Actual data
on tires are specific to each vehicle and may vary
from data shown in above illustration.
Warning!G
Do not overload the tires by exceeding the
specified load limit as indicated on the plac-
ard located on the driver’s door B-pillar.
Overloading the tires can overheat them,
possibly causing a blowout. Overloading the
tires can also result in handling or steering
problems, or brake failure.

398 Operation
Tires and wheels
Maximum tire inflation pressure
1Maximum permissible tire inflation
pressure
This is the maximum permissible tire
inflation pressure for the tire.Always follow the recommended tire
inflation pressure (
page 380) for proper
tire inflation. Uniform Tire Quality Grading Standards (U.S. vehicles)
Tire manufacturers are required to grade
tires based on three performance
factors: treadwear, traction and
temperature resistance.
1Treadwear
2Traction
3Temperature resistance
iFor illustration purposes only. Actual data
on tires are specific to each vehicle and may vary
from data shown in above illustration.
Warning!G
Never exceed the max. tire inflation
pressure. Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly, adverse-
ly affect handling and fuel economy, and are
more likely to fail from being overheated.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride com-
fort, wear unevenly, increase stopping dis-
tance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road de-
bris, potholes etc.
iFor illustration purposes only. Actual data
on tires are specific to each vehicle and may vary
from data shown in above illustration.

399 Operation
Tires and wheels
Quality grades can be found, where
applicable, on the tire sidewall between
tread shoulder and maximum section
width. For example:
All passenger car tires must conform to
federal safety requirements in addition to
these grades.Treadwear
The treadwear grade is a comparative rat-
ing based on the wear rate of the tire when
tested under controlled conditions on a
specified government test course. For ex-
ample, a tire graded 150 would wear one
and one-half (1
1/2) times as well on the
government course as a tire graded 100.
The relative performance of tires depends
upon the actual conditions of their use,
however, and may depart significantly
from the norm due to variations in driving
habits, service practices and differences in
road characteristics and climate.Traction
The traction grades, from highest to low-
est, are AA, A, B, and C. Those grades rep-
resent the tire’s ability to stop on wet
pavement as measured under controlled
conditions on specified government test
surfaces of asphalt and concrete. A tire
marked C may have poor traction perfor-
mance.
TreadwearTractionTemperature
200AAA
Warning!G
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
