Page 7 of 561
ContentsLoading .............................................. 279
Roof rack* .................................... 279
Loading instructions ..................... 280
Cargo tie-down rings .................... 281
Hooks ........................................... 282
Expanding cargo compartment .... 283
Cargo compartment cover blind* . 288
Partition net* ............................... 290
Useful features .................................. 294
Storage compartments................. 294
Parcel nets ................................... 298
Cup holders .................................. 299
Ashtrays* ..................................... 302
Cigarette lighter* ......................... 305
Power outlets ............................... 306
Rear center console* ................... 308
Telephone*................................... 310
Tele Aid* ...................................... 311
Garage door opener* ................... 320
Compass ...................................... 327
Floormats* ................................... 328
Infrared reflecting windshield* ..... 328
Operation......................................... 329
The first 1000 miles (1500 km) ......... 330
Driving instructions............................ 331
Drive sensibly – save fuel ............. 331
Drinking and driving ..................... 331
Pedals .......................................... 331
Power assistance ......................... 331
Brakes .......................................... 332
Driving off .................................... 333
Parking ......................................... 334
Tires ............................................. 334
Hydroplaning ................................ 335
Tire traction.................................. 335
Tire speed rating .......................... 336
Winter driving instructions ........... 337
Standing water ............................. 338
Passenger compartment .............. 338
Driving abroad.............................. 339
Control and operation of radio
transmitters ................................. 339
Catalytic converter ....................... 340
Emission control .......................... 340
Coolant temperature .................... 341At the gas station .............................. 342
Refueling ...................................... 342
Check regularly and before a
long trip ....................................... 343
Engine compartment ......................... 345
Hood ............................................ 345
Engine oil ..................................... 346
Transmission fluid level................ 350
Coolant level ................................ 351
Windshield / rear window washer
system and headlamp cleaning
system* ....................................... 352
Tires and wheels................................ 353
Important guidelines .................... 353
Tire care and maintenance........... 354
Direction of rotation..................... 356
Loading the vehicle ...................... 356
Recommended tire inflation
pressure ....................................... 363
Checking tire inflation pressure ... 365
Tire labeling ................................. 375
Load identification ....................... 380
DOT, Tire Identification Number
(TIN) ............................................. 380
Maximum tire load ....................... 382
Maximum tire inflation pressure .. 382
Page 8 of 561
Contents
Uniform Tire Quality Grading
Standards (U.S. vehicles) ............. 383
Tire ply material ........................... 385
Tire and loading terminology ........ 385
Rotating tires ............................... 388
Winter driving .................................... 390
Winter tires .................................. 390
Block heater (Canada only) .......... 391
Snow chains................................. 391
Maintenance ...................................... 392
Clearing the maintenance service
indicator ....................................... 393
Maintenance service term
exceeded ..................................... 393
Calling up the maintenance
service indicator........................... 393
Resetting the maintenance
service indicator........................... 394
Vehicle care ....................................... 395
Cleaning and care of the vehicle .. 395
Practical hints.................................. 403
What to do if … ................................... 404
Lamps in instrument cluster ......... 404
Lamp in center console................. 414
Vehicle status messages in the
multifunction display..................... 416
Where will I find ...? ............................ 454
First aid kit .................................... 454
Vehicle tool kit .............................. 454
Spare wheel .................................. 457
Unlocking / locking in an emergency .. 459
Unlocking the vehicle.................... 459
Locking the vehicle ....................... 460
Fuel filler flap ................................ 461
Opening / closing in an emergency ..... 462
Power tilt/sliding sunroof* ........... 462
Replacing SmartKey batteries ............ 463
SmartKey ...................................... 463
SmartKey with KEYLESS-GO* ....... 464
Replacing bulbs .................................. 465
Bulbs ............................................. 465
Replacing bulbs for front lamps .... 468
Replacing bulbs for rear lamps ..... 472Replacing wiper blades ...................... 475
Front wiper blades ........................ 475
Rear wiper blade ........................... 476
Flat tire............................................... 478
Preparing the vehicle .................... 478
Mounting the spare wheel ............ 479
Battery ............................................... 487
Disconnecting, removing,
reinstalling and reconnecting
the battery .................................... 489
Charging the battery ..................... 495
Jump starting...................................... 496
Towing the vehicle.............................. 499
Installing towing eye bolts ............ 501
Stranded vehicle ........................... 502
Fuses.................................................. 503
Main fuse box ............................... 504
Fuse box in cargo compartment ... 504
Fuse box in passenger
compartment ................................ 505

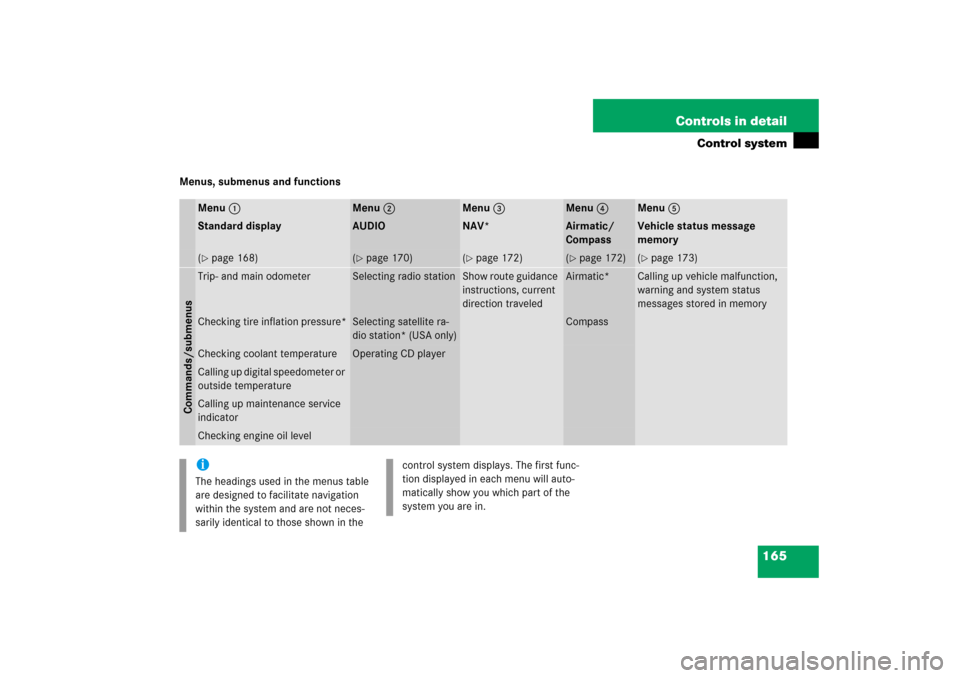

Page 166 of 561
165 Controls in detail
Control system
Menus, submenus and functions
Menu1
Menu2
Menu3
Menu4
Menu5
Standard display
AUDIO
NAV*
Airmatic/
Compass
Vehicle status message
memory
(page 168)
(page 170)
(page 172)
(page 172)
(page 173)
Commands/submenusTrip- and main odometer
Selecting radio station
Show route guidance
instructions, current
direction traveled
Airmatic*
Calling up vehicle malfunction,
warning and system status
messages stored in memory
Checking tire inflation pressure*
Selecting satellite ra-
dio station* (USA only)
Compass
Checking coolant temperature
Operating CD player
Calling up digital speedometer or
outside temperatureCalling up maintenance service
indicatorChecking engine oil leveliThe headings used in the menus table
are designed to facilitate navigation
within the system and are not neces-
sarily identical to those shown in the
control system displays. The first func-
tion displayed in each menu will auto-
matically show you which part of the
system you are in.

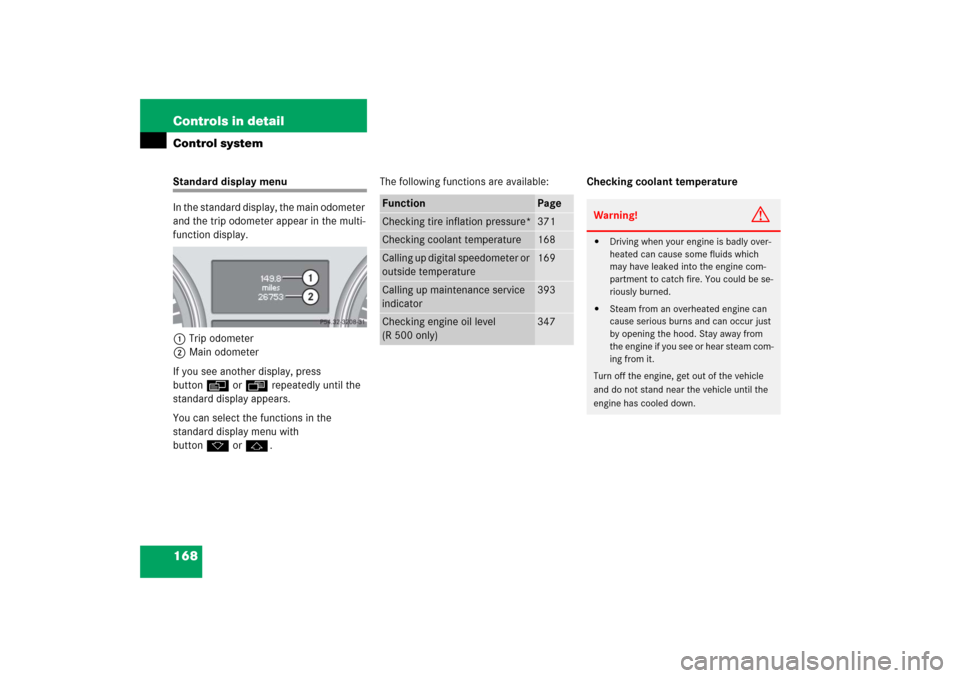

Page 169 of 561
168 Controls in detailControl systemStandard display menu
In the standard display, the main odometer
and the trip odometer appear in the multi-
function display.
1Trip odometer
2Main odometer
If you see another display, press
buttonè orÿ repeatedly until the
standard display appears.
You can select the functions in the
standard display menu with
buttonkorj.The following functions are available:Checking coolant temperature
Function
Page
Checking tire inflation pressure*
371
Checking coolant temperature
168
Calling up digital speedometer or
outside temperature
169
Calling up maintenance service
indicator
393
Checking engine oil level
(R 500 only)
347
Warning!
G
Driving when your engine is badly over-
heated can cause some fluids which
may have leaked into the engine com-
partment to catch fire. You could be se-
riously burned.
Steam from an overheated engine can
cause serious burns and can occur just
by opening the hood. Stay away from
the engine if you see or hear steam com-
ing from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until the
engine has cooled down.
Page 317 of 561
316 Controls in detailUseful featuresThe Mercedes-Benz Roadside Assistance
dispatcher will either dispatch a qualified
Mercedes-Benz technician or arrange to
tow your vehicle to the nearest
Mercedes-Benz Light Truck Center. For
services such as labor and/or towing,
charges may apply. Refer to the Roadside
Assistance Manual for more information.
These programs are only available in the
USA:
Sign and Drive services: Services such
as jump start, a few gallons of fuel or
the replacement of a flat tire with the
vehicle spare tire are obtainable.
iThe indicator lamp on the Roadside
Assistance button• remains illumi-
nated in red for approximately
10 seconds during the system
self-check after switching on the igni-
tion (together with the SOS button and
the Information button¡).
See system self-check (
page 312) if
the indicator lamp does not come on in
red or stays on longer than
approximately 10 seconds.
If the indicator lamp on the Roadside
Assistance button• is flashing
continuously and there was no voice
connection to the Response Center
established, then the Tele Aid system
could not initiate a Roadside Assis-
tance call (e.g. the relevant cellular
phone network was not available). The
message
Call failed
appears in the
multifunction display.
Roadside Assistance calls can be
terminated using thet button on
the multifunction steering wheel or the
END Button on the Modular COMAND
System.
Page 336 of 561
335 Operation
Driving instructions
The treadwear indicator appears as a solid
band across the tread.
Specified tire pressures must be main-
tained. This applies particularly if the tires
are subjected to high loads (e.g. high
speeds, heavy loads, high ambient temper-
atures).
Hydroplaning
Depending on the depth of the water layer
on the road, hydroplaning may occur, even
at low speeds and with new tires. Reduce
vehicle speed, avoid track grooves in the
road and apply brakes cautiously in the
rain.
Tire traction
The safe speed on a wet, snow covered or
icy road is always lower than on a dry road.
You should pay particular attention to the
condition of the road whenever the outside
temperatures are close to the freezing
point.
Warning!
G
Although the applicable federal motor
vehicle safety laws consider a tire to be
worn when the treadwear indicators (TWI)
become visible at approximately
1/16in
(1.6 mm), we recommend that you do not
allow your tires to wear down to that level.
As tread depth approaches
1/8in (3 mm),
the adhesion properties on a wet road are
sharply reduced.
Depending upon the weather and/or road
surface (conditions), the tire traction varies
widely.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle. Continued
driving with a flat tire or driving at high
speed with a flat tire will cause excessive
heat build-up and possibly a fire.
Warning!
G
If ice has formed on the road, tire traction
will be substantially reduced. Under such
weather conditions, drive, steer and brake
with extreme caution.
Page 345 of 561
344 OperationAt the gas stationCoolant
For normal replenishing, use water (pota-
ble water quality). For more information,
see “Coolant level” (
page 351) and
“Fuels, coolants, lubricants, etc.”
(
page 521).
Brake fluidWindshield / rear window washer
system and headlamp cleaning
system*
For more information on refilling the reser-
voir, see “Windshield / rear window washer
system and headlamp cleaning system*”
(
page 352).
Vehicle lighting
Check function and cleanliness. For infor-
mation on replacing light bulbs, see “Re-
placing bulbs” (
page 465).
For more information, see “Exterior lamp
switch” (
page 147).
Tire inflation pressure
For more information, see “Checking tire
inflation pressure” (
page 365).
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks immediately. Noti-
fy an authorized Mercedes-Benz Light
Truck Center immediately. Do not add
brake fluid as this will not solve the
problem. For more information, see
“Brake fluid” (
page 523).
Page 354 of 561
353 Operation
Tires and wheels
Tires and wheels
See an authorized Mercedes-Benz Light
Truck Center for information on tested and
recommended rims and tires for summer
and winter operation. They can also offer
advice concerning tire service and
purchase.
Retreaded tires are not tested or recom-
mended by Mercedes-Benz, since previous
damage cannot always be recognized on
retreads. The operating safety of the
vehicle cannot be assured when such tires
are used.
Important guidelines
Only use sets of tires and rims of the
same type and make.
Tires must be of the correct size for the
rim.
Break in new tires for approximately
60 miles (100 km) at moderate
speeds.
Regularly check the tires and rims for
damage. Dented or bent rims can
cause tire inflation pressure loss and
damage to the tire beads.
If vehicle is heavily loaded, check tire
inflation pressure and correct as
required.
Do not allow your tires to wear down
too far. Adhesion properties on wet
roads are sharply reduced at tread
depths under
1/8in (3 mm).
When replacing individual tires, you
should mount new tires on the front
wheels first (on vehicles with
same-sized wheels all around).
Warning!
G
Replace rims or tires with the same designa-
tion, manufacturer and type as shown on the
original part. See an authorized
Mercedes-Benz Light Truck Center for fur-
ther information. If incorrectly sized rims
and tires are mounted:
The wheel brakes or suspension
components can be damaged.
The operating clearance of the wheels
and the tires may no longer be correct.
Warning!
G
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
When replacing rims, only use genuine
Mercedes-Benz wheel bolts specified for the
particular rim type. Failure to do so can
result in the bolts loosening and possibly an
accident.
Page 355 of 561
354 OperationTires and wheelsTire care and maintenance
Regularly check your tire inflation pressure
at least once a month. For more informa-
tion on checking tire inflation pressure,
see “Recommended tire inflation pres-
sure” (
page 363).Tire inspection
Every time you check your tire inflation
pressure, you should also inspect your
tires for the following:
excessive treadwear (
page 355)
cord or fabric showing through the
tire’s rubber
bumps, bulges, cuts, cracks or splits in
the tread or side of the tire
Replace the tire if you find any of the above
conditions.
Make sure you also inspect the spare tire
periodically for condition and inflation.
Spare tires will age and become worn over
time even if never used, and thus should be
inspected and replaced when necessary.Life of tire
The service life of a tire is dependent upon
varying factors including but not limited to:
Driving style
Tire inflation pressure
Distance driven
Warning!
G
Regularly check the tires for damage. Dam-
aged tires can cause tire inflation pressure
loss. As a result, you could lose control of
your vehicle.
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
Warning!
G
Tires and spare tire should be replaced after
6 years, regardless of the remaining tread.
Page 357 of 561
356 OperationTires and wheelsDirection of rotation
Unidirectional tires offer added advan-
tages, such as better hydroplaning perfor-
mance. To benefit, however, you must
make sure the tires rotate in the direction
specified.
An arrow on the sidewall indicates the
intended direction of rotation (spinning) of
the tire.
Loading the vehicle
Two labels on your vehicle show how much
weight it may properly carry.
The Tire and Loading Information
placard (Example A) or the Vehicle Tire
Information placard (Example B) can be
found on the driver’s door B-pillar. This
placard tells you important information
about the number of people that can be
in the vehicle and the total weight that
can be carried in the vehicle. It also
contains information on the proper size
and recommended tire inflation
pressures for the original equipment
tires on your vehicle.
The Certification label, also found on
the driver’s door B-pillar tells you about
the gross weight capacity of your vehi-
cle, called the Gross Vehicle Weight
Rating (GVWR). The GVWR includes the
weight of the vehicle, all occupants,
fuel and cargo. The Certification label
also tells you about the front and rear
axle weight capacity, called the Gross
Axle Weight Rating (GAWR). The GAWR
is the total allowable weight that can be
carried by a single axle (front or rear).
Never exceed the GVWR or GAWR for
either the front axle or rear axle.
iSpare wheels may be mounted against
the direction of rotation (spinning) even
with a unidirectional tire for temporary
use only until the regular drive wheel
has been repaired or replaced. Always
observe and follow applicable tempo-
rary use restrictions and speed limita-
tions indicated on the spare wheel.
