27 At a glance
Instrument cluster
ItemPage
1LLeft turn signal
indicator lamp
2To dim instrument cluster
illumination157
3Reset button156
4To brighten instrument clus-
ter illumination157
5KRight turn signal
indicator lamp
6Clock
ItemPage
7Speedometer with:
-Antilock Brake
System (ABS)
indicator lamp420
’Variable speed limiter
indicator lamp1
lDistance warning
lamp2
1Lamp without function. It illuminates when the
ignition is on. It should go out when the engine is
running.
2Vehicles without Distronic*: Warning lamp without
function. It illuminates when the ignition is on.
It should go out when the engine is running.
ItemPage
;Brake warning lamp,
USA only421
3Brake warning lamp,
Canada only421
vElectronic Stability
Program (ESP®)
warning lamp
425
HCombination low tire
pressure/TPMS
malfunction telltale,
USA only
Low tire pressure
telltale*, Canada only428
428

181 Controls in detail
Control system
Time/Date submenu
Access the
Time/Date submenu via the
Settings menu. Use the Time/Date
submenu to change the time and date
settings.
The following functions are available:Setting the time (hour)
This function is not available if your vehicle
is equipped with the COMAND system and
navigation module*.
Move the selection marker with
buttonæ orçto the
Time/Date
submenu.
Press buttonj ork repeatedly
until the message
Clock Set hour
appears in the multifunction display.
The selection marker is on the hour
setting.
Press buttonæ orç to set the
hour.Setting the time (minutes)
This function is not available if your vehicle
is equipped with the COMAND system and
navigation module*.
Move the selection marker with
buttonæ orçto the
Time/Date
submenu.
Press buttonj ork repeatedly
until the message
Clock Set minute(s) appears in the
multifunction display.
The selection marker is on the minute
setting.
Press buttonæ orç to set the
minutes.
FunctionPage
Setting the time (hours)181
Setting the time (minutes)181
Setting the date (month)182
Setting the date (day)182
Setting the date (year)182
iIf your vehicle is equipped with the
COMAND system and navigation module*, see
separate COMAND operating instructions for
information on how to set the date and time.

223 Controls in detail
Climate control
Deactivating
Press button
orQ
(
page 220).
The indicator lamp on buttonU
goes out. The automatic operation of
air volume switches off. The selected
blower speed is shown in the air
volume displayb (
page 220).
or
Press air distribution button 5,9,
ora (
page 220).
The indicator lamp on buttonU
goes out. The automatic operation of
air distribution switches off.
Setting the temperature
Use temperature controls1 and7
(
page 220) to separately adjust the air
temperature on each side of the passenger
compartment. You should raise or lower
the temperature setting in small incre-
ments, preferably starting at 72°F (22°C).
The climate control will adjust to the set
temperature as fast as possible.
Increasing
Turn temperature control1and/or
7 (
page 220) slightly clockwise.
The climate control system will corre-
spondingly adjust the interior air
temperature.
Decreasing
Turn temperature control1 and/or
7 (
page 220) slightly counterclock-
wise.
The climate control system will corre-
spondingly adjust the interior air
temperature.
Adjusting air distribution
Press air distribution button5,9, ora
(
page 220) to adjust the air distribution.
The following symbols are found on the
buttons:
Press the desired air distribution
button5,9, ora (
page 220).
The indicator lamp on buttonU
goes out.
SymbolFunction
aDirects air through the center
and side air vents
ZDirects air to the windshield
and side air vents
YDirects air to the footwells and
side air vents

237 Controls in detail
3-zone automatic climate control*
Operating the automatic climate
control system in automatic mode
You can switch the automatic climate
control system on and off separately for
each zone as needed.
Activating
Press buttonU (page 234) while
the engine is running.
The indicator lamp on the button
comes on.
AUTO appears in the
displaye (
page 234). Air volume
and air distribution are controlled
separately for each zone.
Use temperature controls1 and9
(
page 234) to separately adjust the
air temperature on each side of the
passenger compartment.
The temperature of the interior is
adjusted automatically.
Deactivating
Press one button of the air distribution
(
page 234) or press button

orQ (
page 234).
The indicator lamp on the buttonU
goes out and
AUTO disappears in the
displaye (
page 234).
Depending on which button you press –
the air distribution button or the air vol-
ume button
or Q – automatic
control of either the air distribution or
air volume is switched off.
Setting the temperature
Use temperature controls1 and9
(
page 234) to separately adjust the air
temperature on each side of the passenger
compartment. You should raise or lower
the temperature setting in small incre-
ments, preferably starting at 72°F (22°C).
The automatic climate control will adjust
to the set temperature as fast as possible.
Increasing
Turn temperature control
1and/or9 slightly clockwise.
The automatic climate control system
will correspondingly adjust the interior
air temperature.
Decreasing
Turn temperature control
1and/or9 slightly counterclock-
wise.
The automatic climate control system
will correspondingly adjust the interior
air temperature.
iWhen operating the automatic climate con-
trol system in automatic mode, you will only
rarely need to adjust the temperature, air volume
and air distribution.
In automatic mode, cooling with dehumidify is
switched on. This function can be switched off if
necessary.

248 Controls in detail
3-zone automatic climate control*
Setting the temperature
Use temperature controla (
page 245)
to separately adjust the air temperature of
the rear passenger compartment.
You should raise or lower the temperature
setting in small increments, preferably
starting at 72°F (22°C). The automatic
climate control will adjust to the set
temperature as fast as possible.Increasing the temperatureTurn temperature controla
(
page 245) slightly clockwise.
The rear automatic climate control will
correspondingly adjust the interior air
temperature for the rear passenger
compartment.
Decreasing the temperature
Turn temperature controla
(
page 245) slightly counterclock-
wise.
The rear automatic climate control will
correspondingly adjust the interior air
temperature for the rear passenger
compartment.Adjusting air volume
Adjusting manually
Five blower speeds are available.
Press button
to decrease or
buttonQ to increase air volume to
the desired level.
The indicator lamp on buttonU
goes out. The selected blower speed is
shown by the indicator lamps for air
volume settings 9 (
page 245).
Adjusting automatically
Press buttonU.
The indicator lamp on the button
comes on. The air volume is adjusted
automatically.
iThe rear automatic climate control will not
cool the air when the air conditioning is switched
off (
page 243).

330 Controls in detail
Useful features
Tele Aid*
Shortly after the completion of your Tele
Aid acquaintance call, you will receive a
user ID and password. By visiting
www.mbusa.com and selecting “Tele Aid”
(USA only), you will have access to account
information, remote door unlock and
more.The Tele Aid system
(Tele
matic Alarm Identification on
D
emand)
The Tele Aid system consists of three
types of response:

automatic and manual emergency

roadside assistance

information
The Tele Aid system is operational provid-
ing that the vehicle’s battery is charged,
properly connected, not damaged and cel-
lular and GPS coverage are available.
The speaker volume of a Tele Aid call can
be adjusted by using the volume control on
the COMAND system headunit or on the
multifunction steering wheel. To raise, turn
the rotary volume control on the COMAND
system headunit clockwise or press
buttonæ on the multifunction steering
wheel. To lower, turn the rotary volume
control on the COMAND system headunit
counterclockwise or press buttonç on
the multifunction steering wheel.
To activate, press the SOS button, the
Roadside Assistance button• or
the Information button¡, depend-
ing on the type of response required.
!The initial activation of the Tele Aid system
may only be performed by completing the sub-
scriber agreement and placing an acquaintance
call using the ¡button. Failure to complete
either of these steps will result in a system that
is not activated.
If you have any questions regarding activation,
please call the Response Center at
1-800-756-9018 (in the USA) or
1-888-923-8367 (in Canada).
iThe SOS button is located in the overhead
control panel (
page 332).
The Roadside Assistance button•
(
page 333) and the Information
button¡(
page 334) are located below
the center armrest cover.
!The Tele Aid system utilizes the cellular
network for communication and the GPS (G
lobal
P
ositioning System) satellites for vehicle
location. If either of these signals are unavail-
able, the Tele Aid system may not function and if
this occurs, assistance must be summoned by
other means.

361 Operation
At the gas station
Open the fuel filler flap completely.
Turn the fuel cap to the counterclock-
wise and hold on to it until possible
pressure is released.
Take off the fuel cap.
To prevent fuel vapors from escaping
into open air, fully insert filler nozzle
unit.
Only fill your tank until the filler nozzle
unit cuts out – do not top up or overfill.
Replace the fuel cap by turning it clock-
wise until it audibly engages.
Close the fuel filler flap.
You should hear the latch close shut.
!The fuel filler cap is tethered to the fuel filler
neck. Do not drop the cap. It could damage the
vehicle paint finish.
Warning!G
Overfilling of the fuel tank may create pres-
sure in the system which could cause a gas
discharge. This could cause the gas to spray
back out when removing the fuel pump
nozzle, which could cause personal injury.
iLeaving the engine running and the fuel cap
open can cause the yellow fuel tank reserve
warning lamp to flash and the? malfunction
indicator lamp (USA only) or the± malfunc-
tion indicator lamp (Canada only) comes on.
For more information, see “Practical hints”
(
page 424).
iGasoline engine:
Only use premium unleaded gasoline with a min-
imum Posted Octane Rating of 91 (average of
96 RON/86 MON). Information on gasoline
quality can normally be found on the fuel pump.
For more information on gasoline, see see “Pre-
mium unleaded gasoline (gasoline engine)”
(
page 541), see “Fuel requirements”
(
page 542), and the Factory Approved Service
Products pamphlet.
iDiesel engine:
Only use commercially available vehicular diesel
fuels No. 2 or No. 1 (ASTM D975 No. 2-D or
No. 1-D). Information on diesel quality can
normally be found on the fuel pump.
The sulfur content in diesel fuel should not
exceed 50 parts per million (ppm). When using
diesel fuel with a sulfur content of above
300 ppm, the engine oil interval should be
shortened.
For more information on diesel fuels, refer to the
Factory Approved Service Products pamphlet or
contact an authorized Mercedes-Benz Light
Truck Center.
!Diesel engine:
The engine is more susceptible to wear and
damage if you use

marine diesel fuel

heating oil

additives
The use of such non-approved fuels and/or
special additives is not covered by the
Mercedes-Benz Limited Warranty.

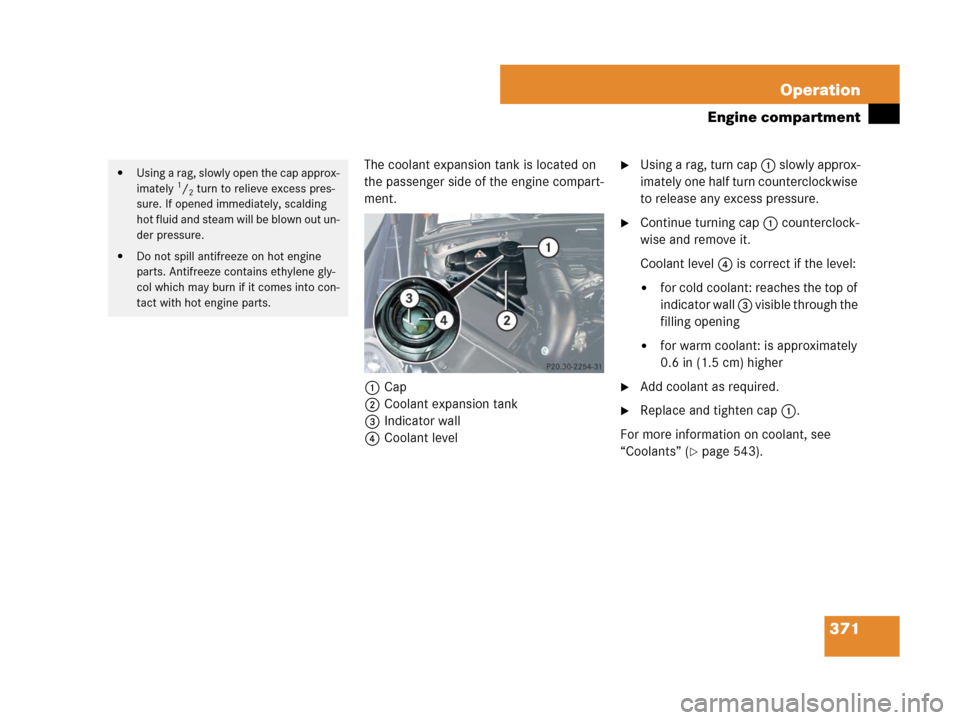

371 Operation
Engine compartment
The coolant expansion tank is located on
the passenger side of the engine compart-
ment.
1Cap
2Coolant expansion tank
3Indicator wall
4Coolant levelUsing a rag, turn cap 1 slowly approx-
imately one half turn counterclockwise
to release any excess pressure.
Continue turning cap 1 counterclock-
wise and remove it.
Coolant level 4 is correct if the level:

for cold coolant: reaches the top of
indicator wall 3 visible through the
filling opening

for warm coolant: is approximately
0.6 in (1.5 cm) higher
Add coolant as required.
Replace and tighten cap 1.
For more information on coolant, see
“Coolants” (
page 543).

Using a rag, slowly open the cap approx-
imately 1/2turn to relieve excess pres-
sure. If opened immediately, scalding
hot fluid and steam will be blown out un-
der pressure.

Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene gly-
col which may burn if it comes into con-
tact with hot engine parts.

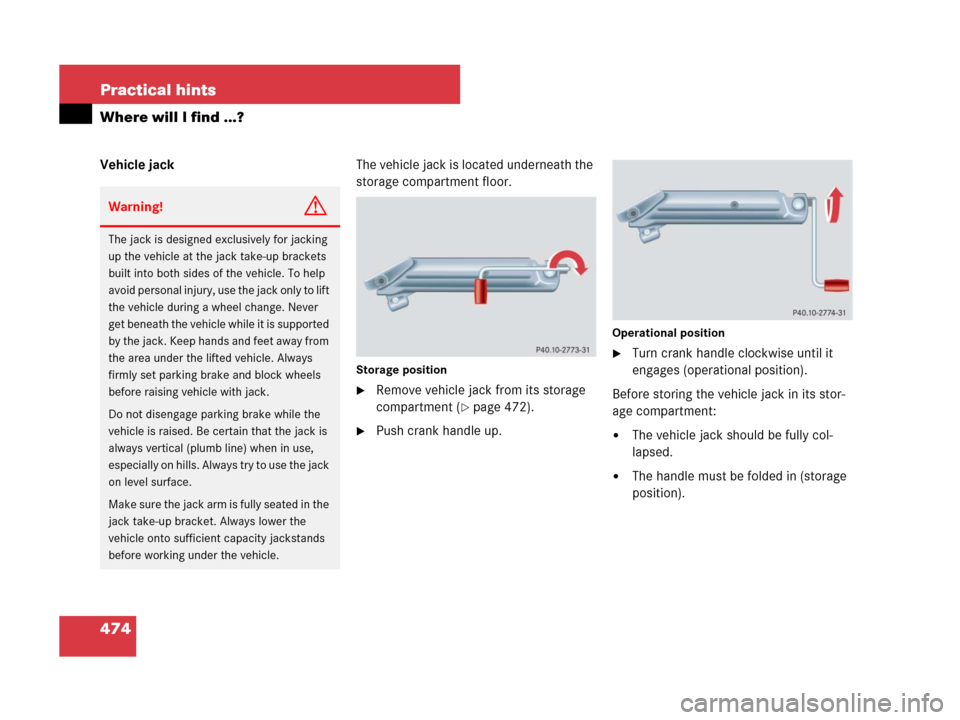

474 Practical hints
Where will I find ...?
Vehicle jackThe vehicle jack is located underneath the
storage compartment floor.
Storage position
Remove vehicle jack from its storage
compartment (
page 472).
Push crank handle up.
Operational position
Turn crank handle clockwise until it
engages (operational position).
Before storing the vehicle jack in its stor-
age compartment:

The vehicle jack should be fully col-
lapsed.

The handle must be folded in (storage
position).
Warning!G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use,
especially on hills. Always try to use the jack
on level surface.
Make sure the jack arm is fully seated in the
jack take-up bracket. Always lower the
vehicle onto sufficient capacity jackstands
before working under the vehicle.

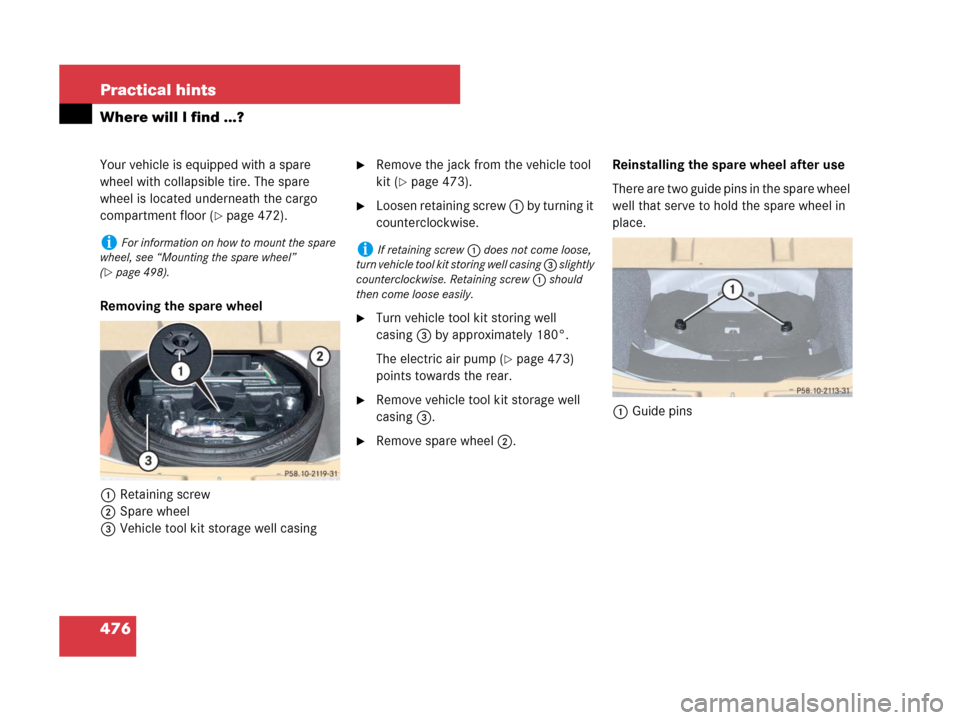

476 Practical hints
Where will I find ...?
Your vehicle is equipped with a spare
wheel with collapsible tire. The spare
wheel is located underneath the cargo
compartment floor (
page 472).
Removing the spare wheel
1Retaining screw
2Spare wheel
3Vehicle tool kit storage well casing
Remove the jack from the vehicle tool
kit (
page 473).
Loosen retaining screw 1 by turning it
counterclockwise.
Turn vehicle tool kit storing well
casing3 by approximately 180°.
The electric air pump (
page 473)
points towards the rear.
Remove vehicle tool kit storage well
casing 3.
Remove spare wheel 2.Reinstalling the spare wheel after use
There are two guide pins in the spare wheel
well that serve to hold the spare wheel in
place.
1Guide pins
iFor information on how to mount the spare
wheel, see “Mounting the spare wheel”
(
page 498).
iIf retaining screw 1 does not come loose,
turn vehicle tool kit storing well casing 3 slightly
counterclockwise. Retaining screw 1 should
then come loose easily.
