171 Controls in detail
Good visibility
Windshield wipers
Information on the windshield wipers is
found in the “Getting started” section
(page 47).
A rain sensor automatically controls the
windshield wipers depending on how wet
the windshield is.

Switch on ignition.

Set wiper switch to position I
(page 47).
After the initial wipe, pauses between
wipes are automatically controlled by the
rain sensor which monitors the wetness of
the windshield.
Headlamp cleaning system
The switch is located on the left side of the
dashboard.
1Headlamp washer switch
Switch on ignition.

Press switch1.
iIntermittent wiping is interrupted when
the vehicle is at a standstill and a front
door is opened.
!To prevent the windshield wipers from
being damaged, do not leave the wiper
switch in intermittent setting when tak-
ing the vehicle to an automatic car
wash or when cleaning the windshield.
The switch should not be left in inter-
mittent setting as the wipers will wipe
the windshield once every time the en-
gine is started. Dust that accumulates
on the windshield might scratch the
glass when wiping occurs on a dry
windshield.iIf intermittent wiping is on and you turn
the SmartKey in the steering lock from
position 1 to position 2 (
page 31)
and keep the SmartKey in that position
longer than 2 seconds, the wipe inter-
val will be set to approximately 5 sec-
onds.

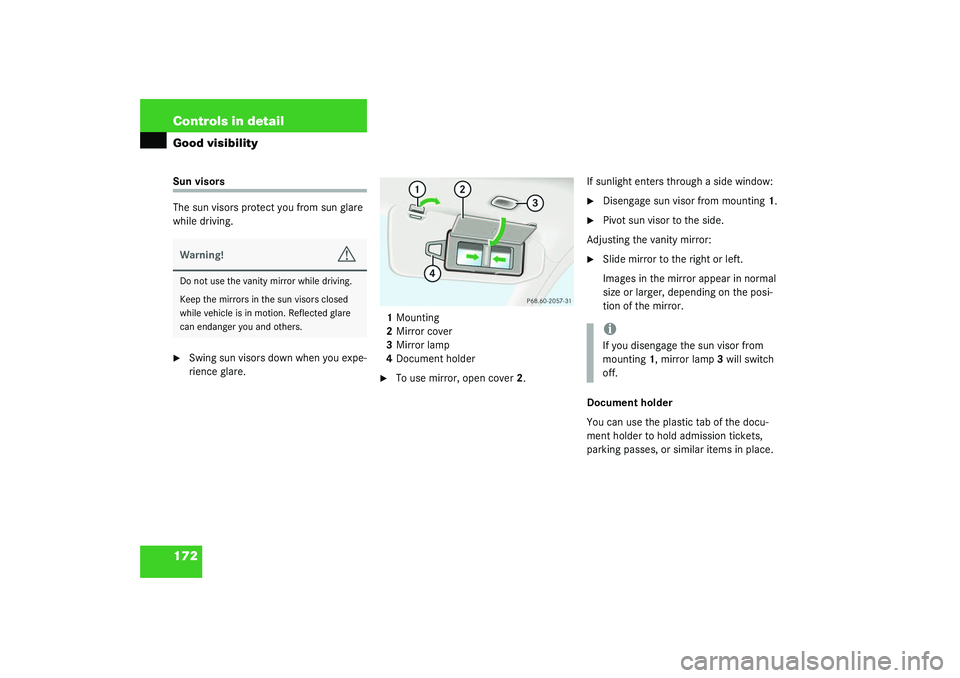

172 Controls in detailGood visibilitySun visors
The sun visors protect you from sun glare
while driving.
Swing sun visors down when you expe-
rience glare.1Mounting
2Mirror cover
3Mirror lamp
4Document holder

To use mirror, open cover2.If sunlight enters through a side window:

Disengage sun visor from mounting1.

Pivot sun visor to the side.
Adjusting the vanity mirror:

Slide mirror to the right or left.
Images in the mirror appear in normal
size or larger, depending on the posi-
tion of the mirror.
Document holder
You can use the plastic tab of the docu-
ment holder to hold admission tickets,
parking passes, or similar items in place.
Warning!
G
Do not use the vanity mirror while driving.
Keep the mirrors in the sun visors closed
while vehicle is in motion. Reflected glare
can endanger you and others.
iIf you disengage the sun visor from
mounting1, mirror lamp3 will switch
off.

173 Controls in detail
Good visibility

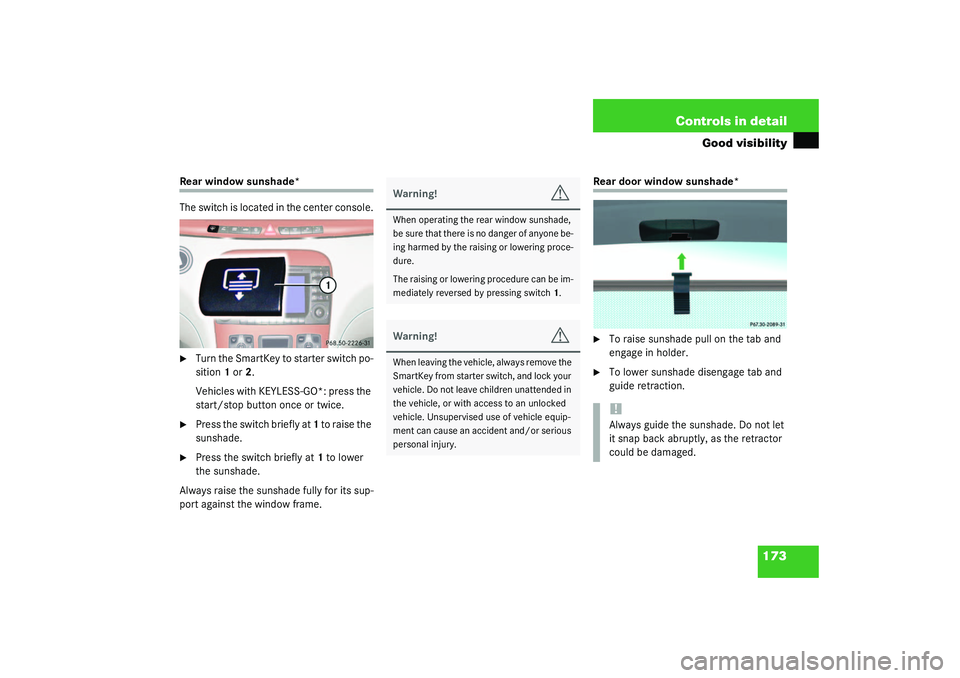

Rear window sunshade*
The switch is located in the center console.
Turn the SmartKey to starter switch po-
sition 1 or 2.
Vehicles with KEYLESS-GO*: press the
start/stop button once or twice.

Press the switch briefly at 1 to raise the
sunshade.

Press the switch briefly at 1 to lower
the sunshade.
Always raise the sunshade fully for its sup-
port against the window frame.
Rear door window sunshade*
To raise sunshade pull on the tab and
engage in holder.

To lower sunshade disengage tab and
guide retraction.
Warning!
G
When operating the rear window sunshade,
b e s u r e t h a t t h e r e i s n o d a n g e r o f a n y o n e b e -
ing harmed by the raising or lowering proce-
dure.
The raising or lowering procedure can be im-
mediately reversed by pressing switch1.Warning!
G
When leaving the vehicle, always remove the
SmartKey from starter switch, and lock your
vehicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment can cause an accident and/or serious
personal injury.
!Always guide the sunshade. Do not let
it snap back abruptly, as the retractor
could be damaged.

174 Controls in detailAutomatic climate control

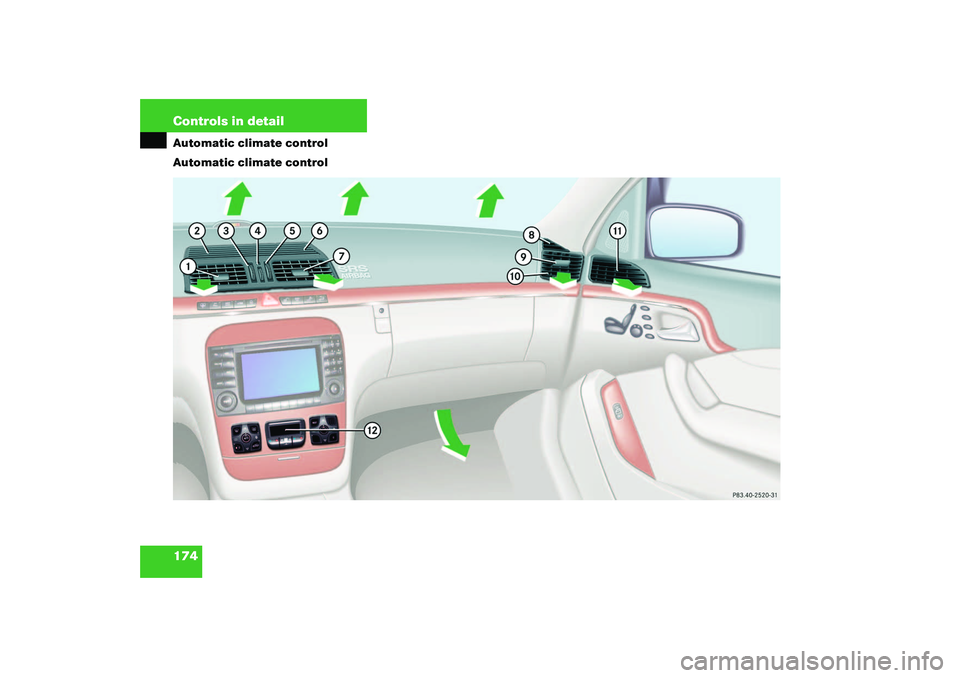

Automatic climate control

175 Controls in detail
Automatic climate control

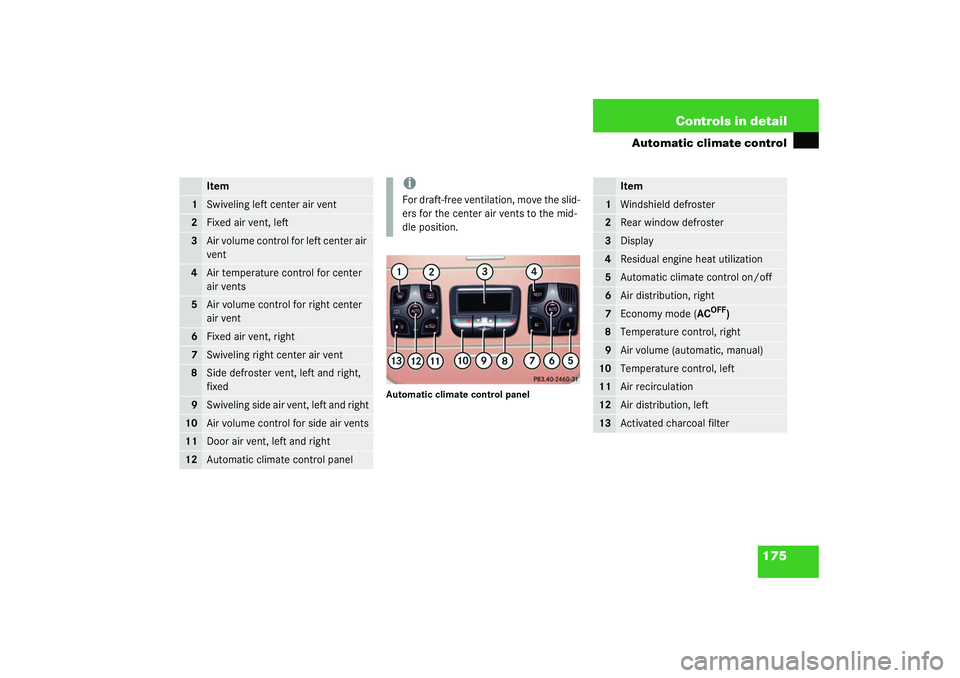

Automatic climate control panel
Item
1
Swiveling left center air vent
2
Fixed air vent, left
3
Air volume control for left center air
vent
4
Air temperature control for center
air vents
5
Air volume control for right center
air vent
6
Fixed air vent, right
7
Swiveling right center air vent
8
Side defroster vent, left and right,
fixed
9
Swiveling side air vent, left and right
10
Air volume control for side air vents
11
Door air vent, left and right
12
Automatic climate control panel
iFor draft-free ventilation, move the slid-
ers for the center air vents to the mid-
dle position.
Item
1
Windshield defroster
2
Rear window defroster
3
Display
4
Residual engine heat utilization
5
Automatic climate control on/off
6
Air distribution, right
7
Economy mode (AC
OFF
)
8
Temperature control, right
9
Air volume (automatic, manual)
10
Temperature control, left
11
Air recirculation
12
Air distribution, left
13
Activated charcoal filter

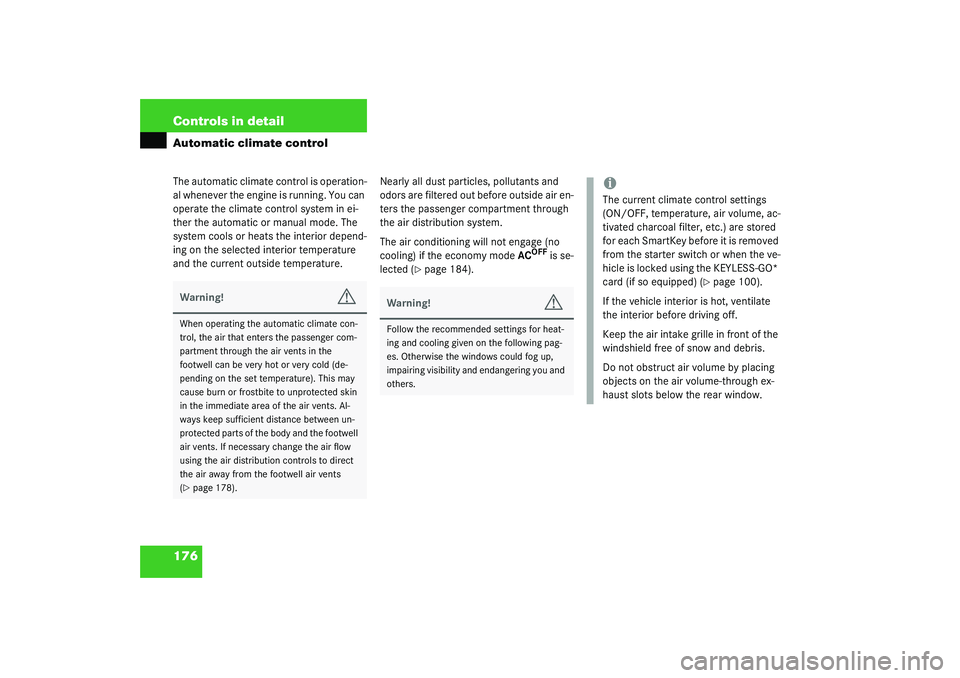

176 Controls in detailAutomatic climate controlThe automatic climate control is operation-
al whenever the engine is running. You can
operate the climate control system in ei-
ther the automatic or manual mode. The
system cools or heats the interior depend-
ing on the selected interior temperature
and the current outside temperature.Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
The air conditioning will not engage (no
cooling) if the economy mode AC
OFF
is se-
lected (
page 184).
Warning!
G
When operating the automatic climate con-
trol, the air that enters the passenger com-
partment through the air vents in the
footwell can be very hot or very cold (de-
pending on the set temperature). This may
cause burn or frostbite to unprotected skin
in the immediate area of the air vents. Al-
ways keep sufficient distance between un-
protected parts of the body and the footwell
air vents. If necessary change the air flow
using the air distribution controls to direct
the air away from the footwell air vents
(page 178).
Warning!
G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
iThe current climate control settings
(ON/OFF, temperature, air volume, ac-
tivated charcoal filter, etc.) are stored
for each SmartKey before it is removed
from the starter switch or when the ve-
hicle is locked using the KEYLESS-GO*
card (if so equipped) (
page 100).
If the vehicle interior is hot, ventilate
the interior before driving off.
Keep the air intake grille in front of the
windshield free of snow and debris.
Do not obstruct air volume by placing
objects on the air volume-through ex-
haust slots below the rear window.

177 Controls in detail
Automatic climate control

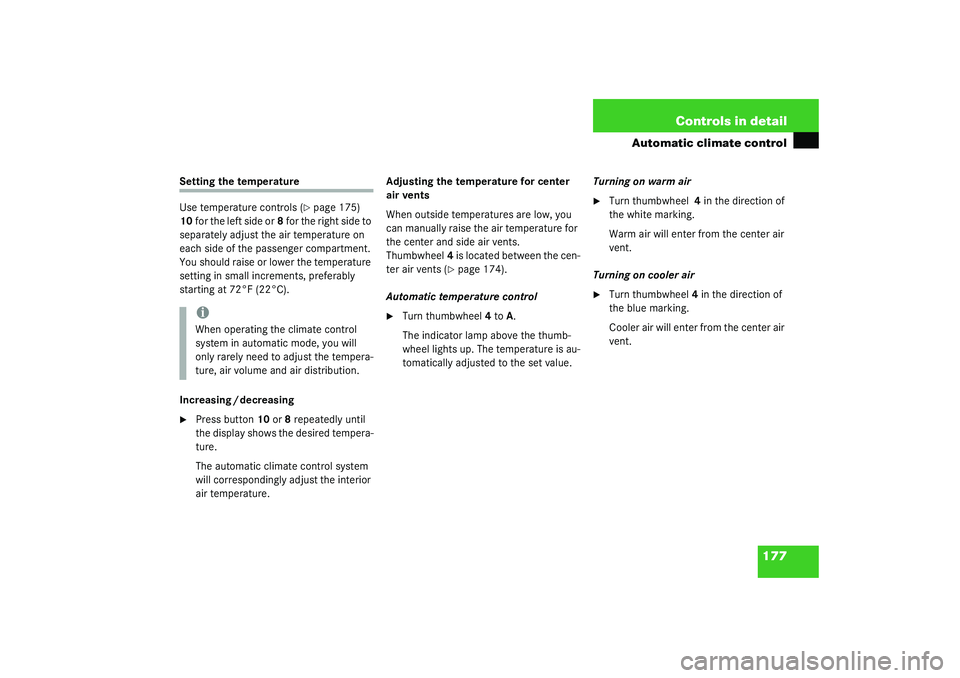

Setting the temperature
Use temperature controls (
page 175)
10for the left side or8 for the right side to
separately adjust the air temperature on
each side of the passenger compartment.
You should raise or lower the temperature
setting in small increments, preferably
starting at 72°F (22°C).
Increasing / decreasing

Press button 10 or 8 repeatedly until
the display shows the desired tempera-
ture.
The automatic climate control system
will correspondingly adjust the interior
air temperature.Adjusting the temperature for center
air vents
When outside temperatures are low, you
can manually raise the air temperature for
the center and side air vents.
Thumbwheel4 is located between the cen-
ter air vents (
page 174).
Automatic temperature control

Turn thumbwheel 4 to A.
The indicator lamp above the thumb-
wheel lights up. The temperature is au-
tomatically adjusted to the set value.Turning on warm air

Turn thumbwheel 4 in the direction of
the white marking.
Warm air will enter from the center air
vent.
Turning on cooler air

Turn thumbwheel4 in the direction of
the blue marking.
Cooler air will enter from the center air
vent.
iWhen operating the climate control
system in automatic mode, you will
only rarely need to adjust the tempera-
ture, air volume and air distribution.

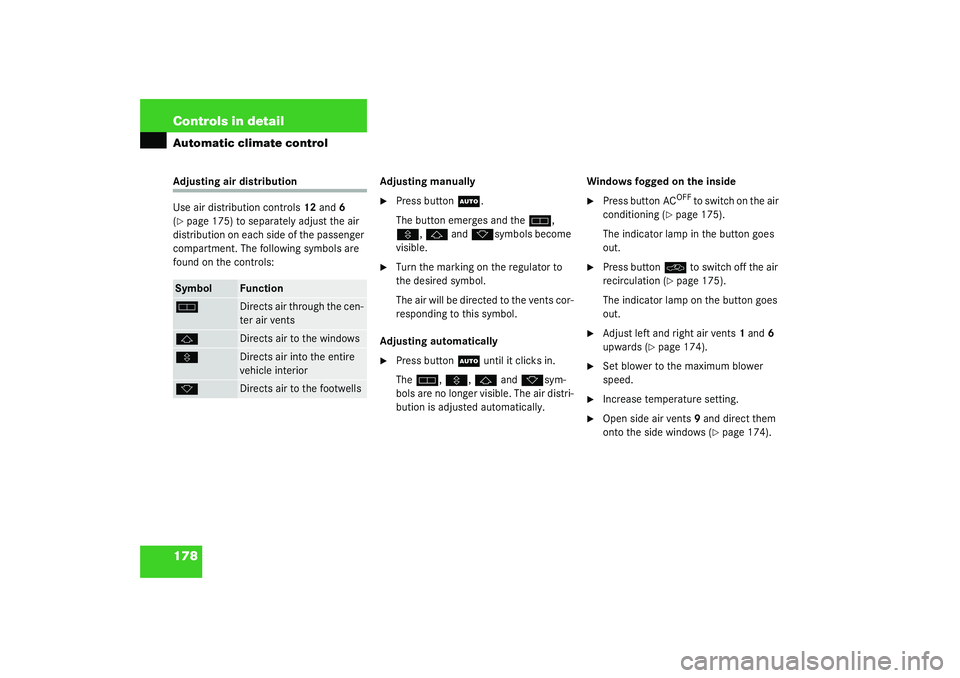

178 Controls in detailAutomatic climate controlAdjusting air distribution
Use air distribution controls12 and6
(page 175) to separately adjust the air
distribution on each side of the passenger
compartment. The following symbols are
found on the controls:Adjusting manually

Press button
U
.
The button emerges and the
h
,
V
, j
and
k
symbols become
visible.

Turn the marking on the regulator to
the desired symbol.
The air will be directed to the vents cor-
responding to this symbol.
Adjusting automatically

Press button
U
until it clicks in.
The
h
, V
, j
and
k
sym-
bols are no longer visible. The air distri-
bution is adjusted automatically.Windows fogged on the inside

Press button AC
OFF
to switch on the air
conditioning (
page 175).
The indicator lamp in the button goes
out.

Press button
O
to switch off the air
recirculation (
page 175).
The indicator lamp on the button goes
out.

Adjust left and right air vents1 and6
upwards (
page 174).

Set blower to the maximum blower
speed.

Increase temperature setting.

Open side air vents9 and direct them
onto the side windows (
page 174).
Symbol
Function
h
Directs air through the cen-
ter air vents
j
Directs air to the windows
V
Directs air into the entire
vehicle interior
k
Directs air to the footwells

179 Controls in detail
Automatic climate control

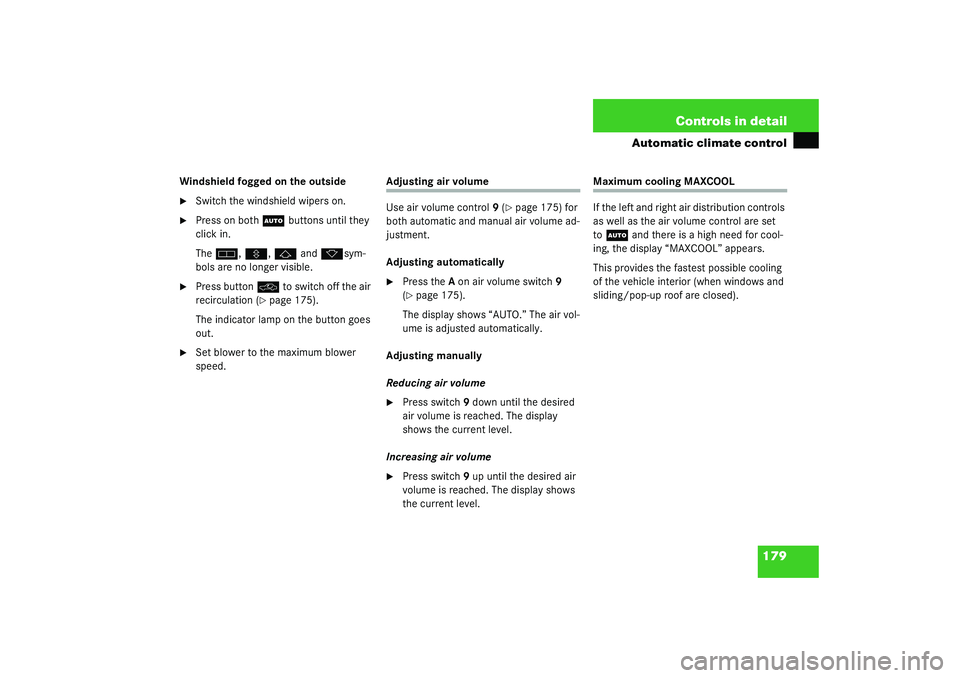

Windshield fogged on the outside
Switch the windshield wipers on.

Press on both
U
buttons until they
click in.
The
h
, V
, j
and
k
sym-
bols are no longer visible.

Press button
O
to switch off the air
recirculation (
page 175).
The indicator lamp on the button goes
out.

Set blower to the maximum blower
speed.
Adjusting air volume
Use air volume control9 (
page 175) for
both automatic and manual air volume ad-
justment.
Adjusting automatically

Press theA on air volume switch9
(page 175).
The display shows “AUTO.” The air vol-
ume is adjusted automatically.
Adjusting manually
Reducing air volume

Press switch9 down until the desired
air volume is reached. The display
shows the current level.
Increasing air volume

Press switch9 up until the desired air
volume is reached. The display shows
the current level.
Maximum cooling MAXCOOL
If the left and right air distribution controls
as well as the air volume control are set
to
U
and there is a high need for cool-
ing, the display “MAXCOOL” appears.
This provides the fastest possible cooling
of the vehicle interior (when windows and
sliding/pop-up roof are closed).

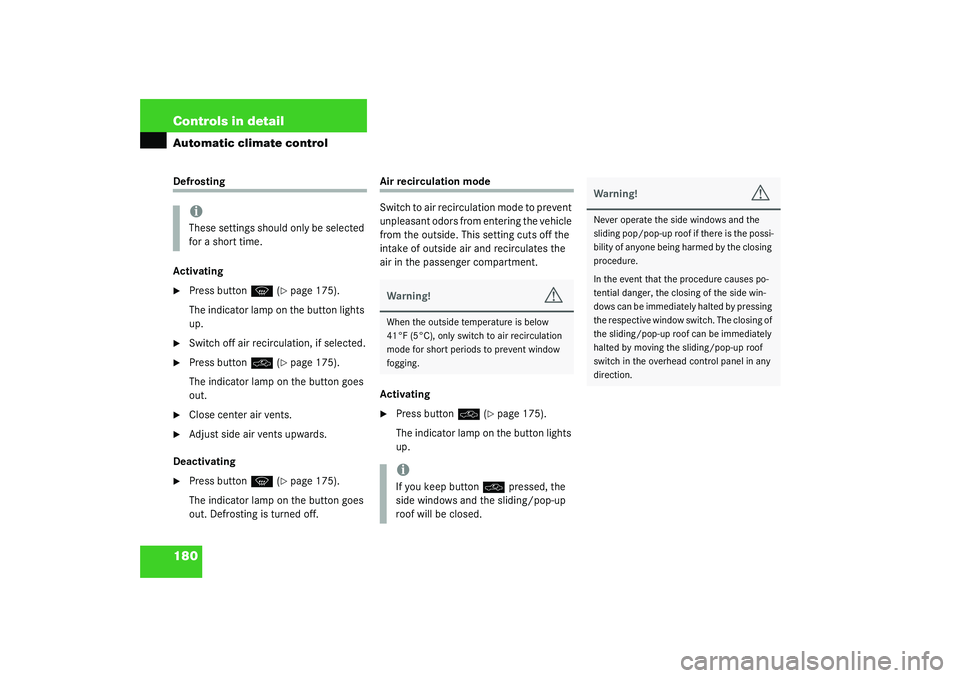

180 Controls in detailAutomatic climate controlDefrosting
Activating
Press button
P
(page 175).
The indicator lamp on the button lights
up.

Switch off air recirculation, if selected.

Press button
O
(page 175).
The indicator lamp on the button goes
out.

Close center air vents.

Adjust side air vents upwards.
Deactivating

Press button
P
(page 175).
The indicator lamp on the button goes
out. Defrosting is turned off.
Air recirculation mode
Switch to air recirculation mode to prevent
unpleasant odors from entering the vehicle
from the outside. This setting cuts off the
intake of outside air and recirculates the
air in the passenger compartment.
Activating
Press button
O
(page 175).
The indicator lamp on the button lights
up.
iThese settings should only be selected
for a short time.
Warning!
G
When the outside temperature is below
41°F (5°C), only switch to air recirculation
mode for short periods to prevent window
fogging.iIf you keep button
O
pressed, the
side windows and the sliding/pop-up
roof will be closed.
Warning!
G
Never operate the side windows and the
sliding pop/pop-up roof if there is the possi-
bility of anyone being harmed by the closing
procedure.
In the event that the procedure causes po-
tential danger, the closing of the side win-
dows can be immediately halted by pressing
the respective window switch. The closing of
the sliding/pop-up roof can be immediately
halted by moving the sliding/pop-up roof
switch in the overhead control panel in any
direction.
