MERCEDES-BENZ S CLASS 2003 Owners Manual

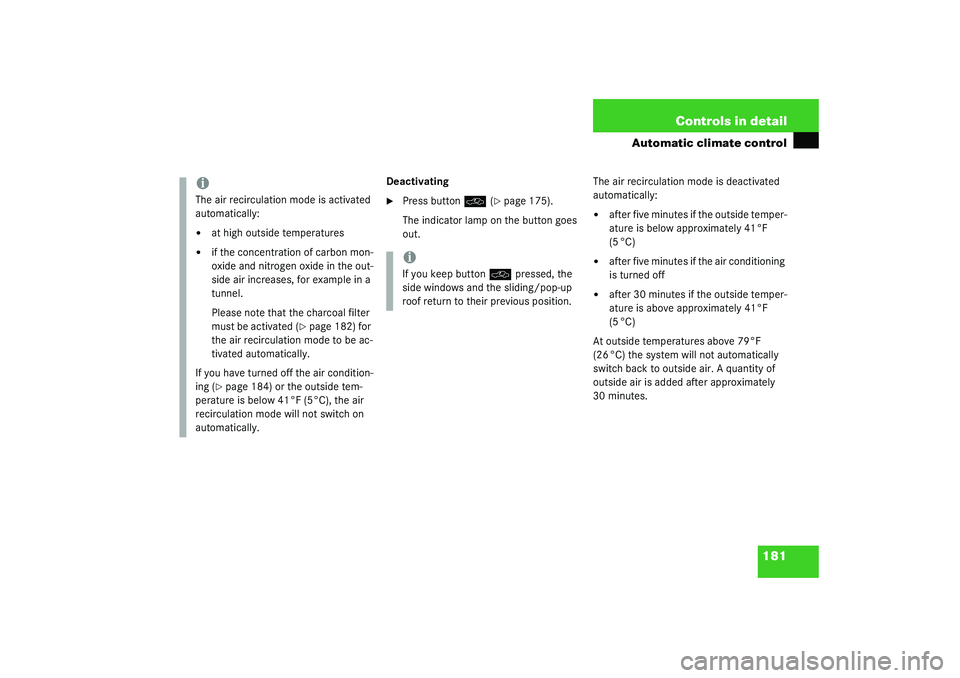

181 Controls in detail
Automatic climate control
Deactivating
Press button
O
(page 175).
The indicator lamp on the button goes
out.The air recirculation mode is deactivated
automatically:


after five minutes if the outside temper-
ature is below approximately 41°F
(5 °C)


after five minutes if the air conditioning
is turned off


after 30 minutes if the outside temper-
ature is above approximately 41°F
(5 °C)
At outside temperatures above 79°F
(26 °C) the system will not automatically
switch back to outside air. A quantity of
outside air is added after approximately
30 minutes.
iThe air recirculation mode is activated
automatically:

at high outside temperatures


if the concentration of carbon mon-
oxide and nitrogen oxide in the out-
side air increases, for example in a
tunnel.
Please note that the charcoal filter
must be activated (
page 182) for
the air recirculation mode to be ac-
tivated automatically.
If you have turned off the air condition-
ing (
page 184) or the outside tem-
perature is below 41°F (5°C), the air
recirculation mode will not switch on
automatically.
iIf you keep button
O
pressed, the
side windows and the sliding/pop-up
roof return to their previous position.

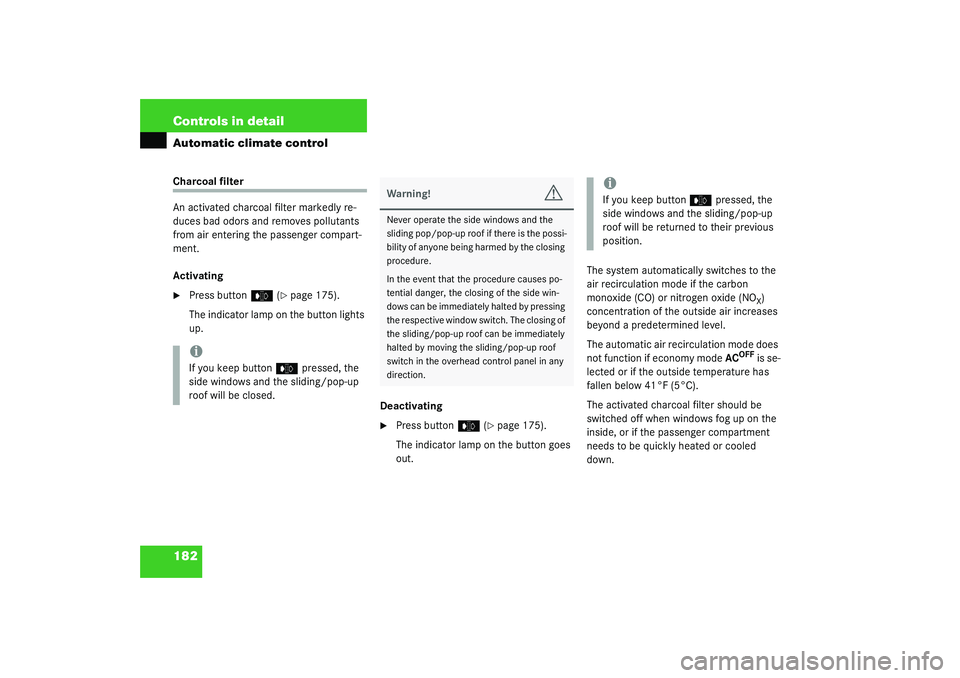

182 Controls in detailAutomatic climate controlCharcoal filter
An activated charcoal filter markedly re-
duces bad odors and removes pollutants
from air entering the passenger compart-
ment.
Activating
Press button
e
(page 175).
The indicator lamp on the button lights
up.
Deactivating

Press button
e
(page 175).
The indicator lamp on the button goes
out.The system automatically switches to the
air recirculation mode if the carbon
monoxide (CO) or nitrogen oxide (NO
X)
concentration of the outside air increases
beyond a predetermined level.
The automatic air recirculation mode does
not function if economy mode AC
OFF
is se-
lected or if the outside temperature has
fallen below 41°F (5°C).
The activated charcoal filter should be
switched off when windows fog up on the
inside, or if the passenger compartment
needs to be quickly heated or cooled
down.
iIf you keep button
e
pressed, the
side windows and the sliding/pop-up
roof will be closed.
Warning!
G
Never operate the side windows and the
sliding pop/pop-up roof if there is the possi-
bility of anyone being harmed by the closing
procedure.
In the event that the procedure causes po-
tential danger, the closing of the side win-
dows can be immediately halted by pressing
the respective window switch. The closing of
the sliding/pop-up roof can be immediately
halted by moving the sliding/pop-up roof
switch in the overhead control panel in any
direction.
iIf you keep button
e
pressed, the
side windows and the sliding/pop-up
roof will be returned to their previous
position.

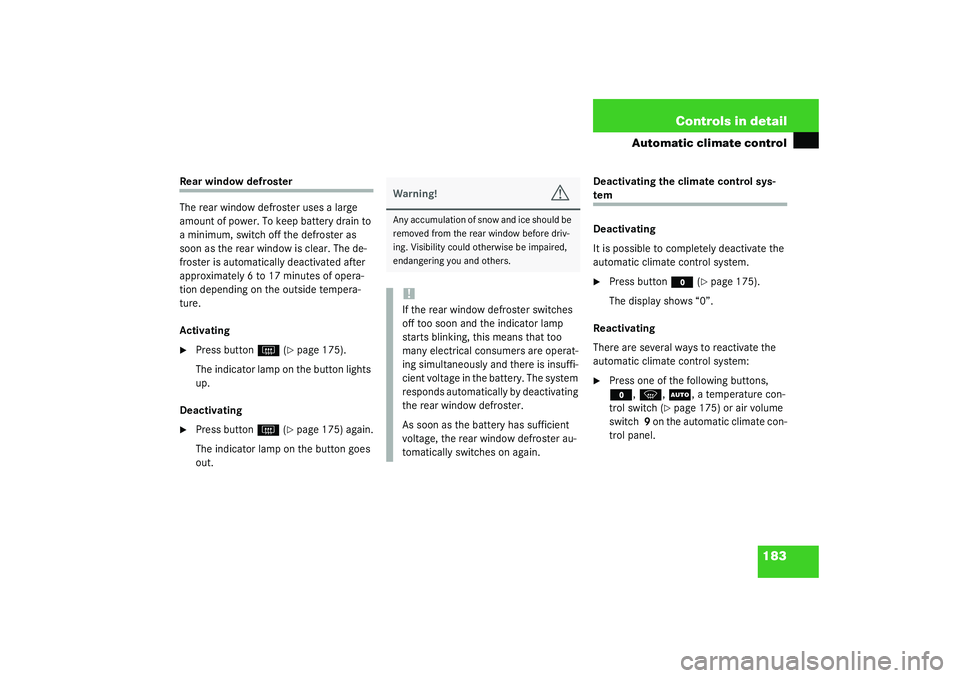

183 Controls in detail
Automatic climate control
Rear window defroster
The rear window defroster uses a large
amount of power. To keep battery drain to
a minimum, switch off the defroster as
soon as the rear window is clear. The de-
froster is automatically deactivated after
approximately 6 to 17 minutes of opera-
tion depending on the outside tempera-
ture.
Activating
Press button
F
(page 175).
The indicator lamp on the button lights
up.
Deactivating

Press button
F
(page 175) again.
The indicator lamp on the button goes
out.Deactivating the climate control sys-
tem
Deactivating
It is possible to completely deactivate the
automatic climate control system.
Press button
M
(page 175).
The display shows “0”.
Reactivating
There are several ways to reactivate the
automatic climate control system:

Press one of the following buttons, M
, P
, U
, a temperature con-
trol switch (
page 175) or air volume
switch 9 on the automatic climate con-
trol panel.
Warning!
G
Any accumulation of snow and ice should be
removed from the rear window before driv-
ing. Visibility could otherwise be impaired,
endangering you and others.!If the rear window defroster switches
off too soon and the indicator lamp
starts blinking, this means that too
many electrical consumers are operat-
ing simultaneously and there is insuffi-
cient voltage in the battery. The system
responds automatically by deactivating
the rear window defroster.
As soon as the battery has sufficient
voltage, the rear window defroster au-
tomatically switches on again.

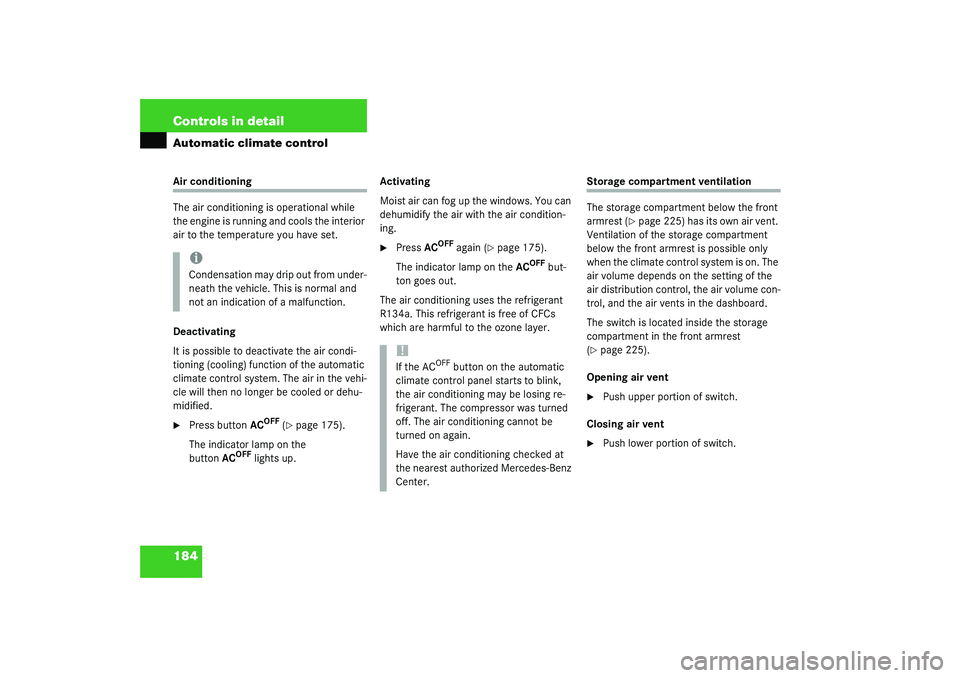

184 Controls in detailAutomatic climate controlAir conditioning
The air conditioning is operational while
the engine is running and cools the interior
air to the temperature you have set.
Deactivating
It is possible to deactivate the air condi-
tioning (cooling) function of the automatic
climate control system. The air in the vehi-
cle will then no longer be cooled or dehu-
midified.
Press buttonAC
OFF
(page 175).
The indicator lamp on the
buttonAC
OFF
lights up.Activating
Moist air can fog up the windows. You can
dehumidify the air with the air condition-
ing.

PressAC
OFF
again (
page 175).
The indicator lamp on the AC
OFF
but-
ton goes out.
The air conditioning uses the refrigerant
R134a. This refrigerant is free of CFCs
which are harmful to the ozone layer.
Storage compartment ventilation
The storage compartment below the front
armrest (
page 225) has its own air vent.
Ventilation of the storage compartment
below the front armrest is possible only
when the climate control system is on. The
air volume depends on the setting of the
air distribution control, the air volume con-
trol, and the air vents in the dashboard.
The switch is located inside the storage
compartment in the front armrest
(
page 225).
Opening air vent

Push upper portion of switch.
Closing air vent

Push lower portion of switch.
iCondensation may drip out from under-
neath the vehicle. This is normal and
not an indication of a malfunction.
!If the AC
OFF
button on the automatic
climate control panel starts to blink,
the air conditioning may be losing re-
frigerant. The compressor was turned
off. The air conditioning cannot be
turned on again.
Have the air conditioning checked at
the nearest authorized Mercedes-Benz
Center.

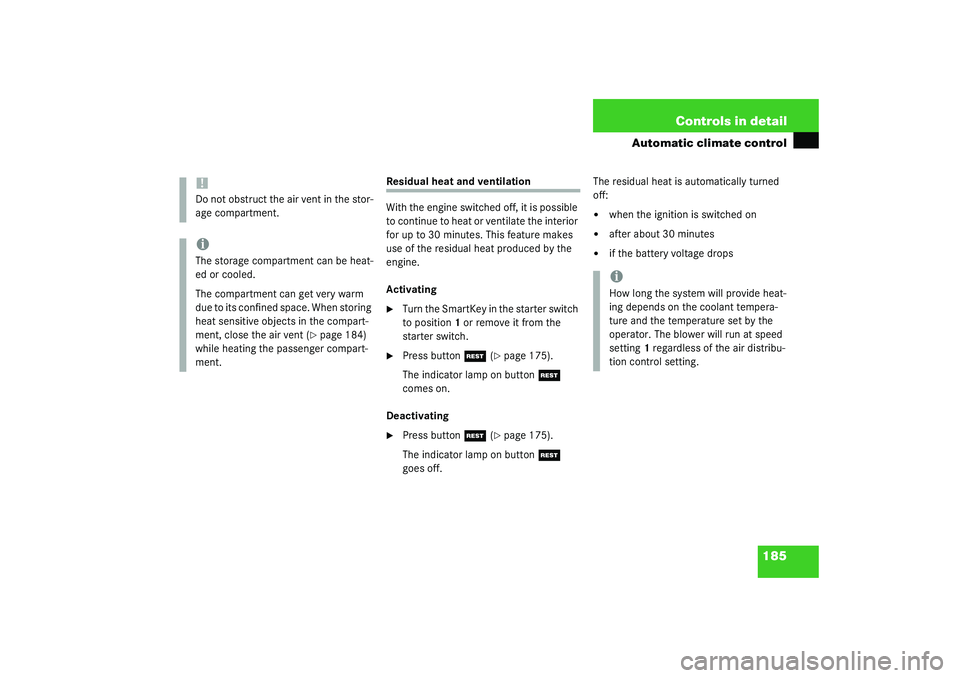

185 Controls in detail
Automatic climate control
Residual heat and ventilation
With the engine switched off, it is possible
to continue to heat or ventilate the interior
for up to 30 minutes. This feature makes
use of the residual heat produced by the
engine.
Activating
Turn the SmartKey in the starter switch
to position1 or remove it from the
starter switch.

Press button
T
(page 175).
The indicator lamp on button
T

comes on.
Deactivating

Press button
T
(page 175).
The indicator lamp on button
T

goes off.The residual heat is automatically turned
off:


when the ignition is switched on


after about 30 minutes


if the battery voltage drops
!Do not obstruct the air vent in the stor-
age compartment.iThe storage compartment can be heat-
ed or cooled.
The compartment can get very warm
due to its confined space. When storing
heat sensitive objects in the compart-
ment, close the air vent (
page 184)
while heating the passenger compart-
ment.
iHow long the system will provide heat-
ing depends on the coolant tempera-
ture and the temperature set by the
operator. The blower will run at speed
setting1 regardless of the air distribu-
tion control setting.

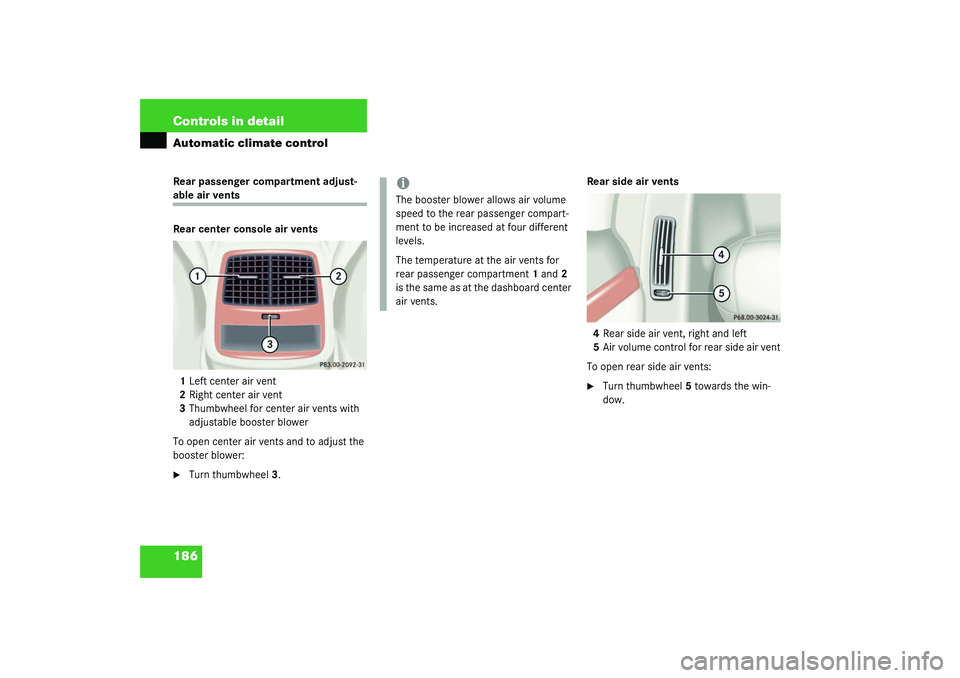

186 Controls in detailAutomatic climate controlRear passenger compartment adjust-able air vents
Rear center console air vents
1Left center air vent
2Right center air vent
3Thumbwheel for center air vents with
adjustable booster blower
To open center air vents and to adjust the
booster blower:
Turn thumbwheel3.Rear side air vents
4Rear side air vent, right and left
5Air volume control for rear side air vent
To open rear side air vents:

Turn thumbwheel5 towards the win-
dow.
iThe booster blower allows air volume
speed to the rear passenger compart-
ment to be increased at four different
levels.
The temperature at the air vents for
rear passenger compartment1 and2
is the same as at the dashboard center
air vents.

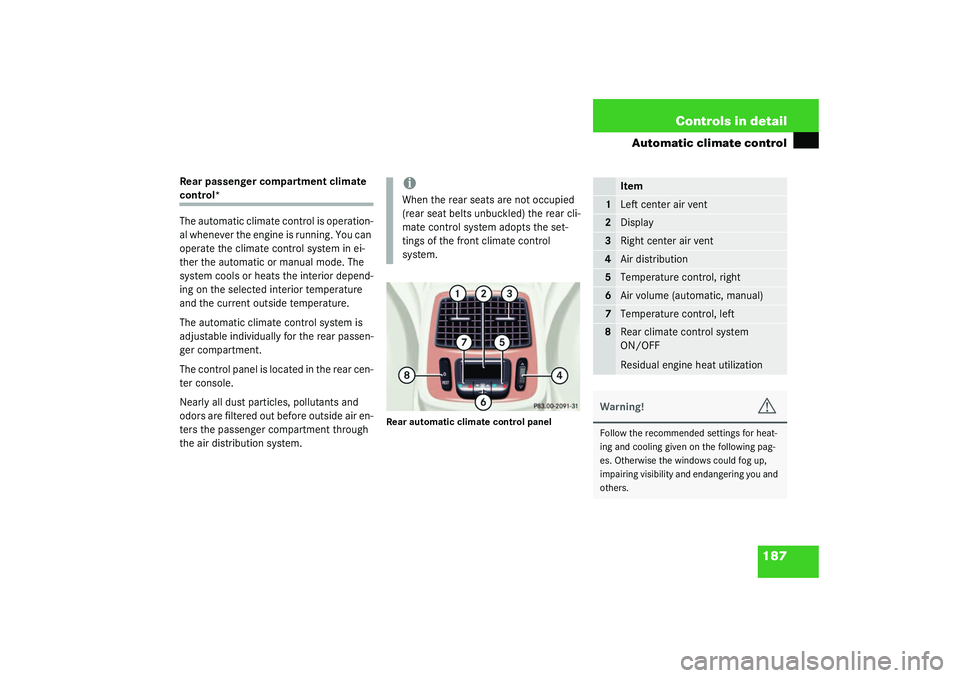

187 Controls in detail
Automatic climate control
Rear passenger compartment climate control*
The automatic climate control is operation-
al whenever the engine is running. You can
operate the climate control system in ei-
ther the automatic or manual mode. The
system cools or heats the interior depend-
ing on the selected interior temperature
and the current outside temperature.
The automatic climate control system is
adjustable individually for the rear passen-
ger compartment.
The control panel is located in the rear cen-
ter console.
Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
Rear automatic climate control panel
iWhen the rear seats are not occupied
(rear seat belts unbuckled) the rear cli-
mate control system adopts the set-
tings of the front climate control
system.
Item
1
Left center air vent
2
Display
3
Right center air vent
4
Air distribution
5
Temperature control, right
6
Air volume (automatic, manual)
7
Temperature control, left
8
Rear climate control system
ON/OFF
Residual engine heat utilization
Warning!
G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.

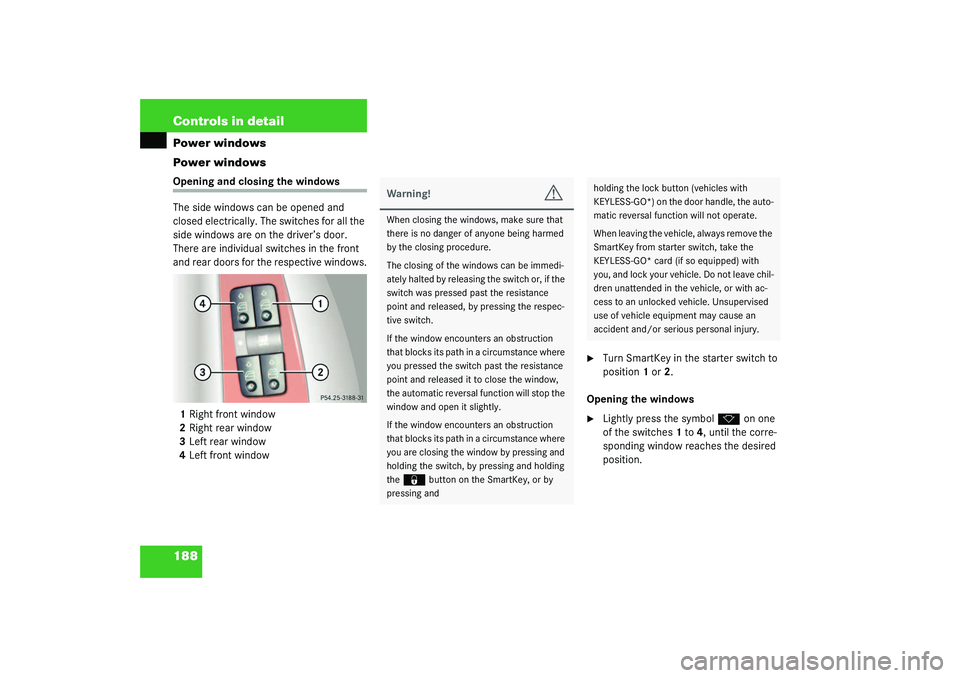

188 Controls in detailPower windows
Power windowsOpening and closing the windows
The side windows can be opened and
closed electrically. The switches for all the
side windows are on the driver’s door.
There are individual switches in the front
and rear doors for the respective windows.
1Right front window
2Right rear window
3Left rear window
4Left front window

Turn SmartKey in the starter switch to
position1 or2.
Opening the windows

Lightly press the symbol
k
on one
of the switches1 to4, until the corre-
sponding window reaches the desired
position.
Warning!
G
When closing the windows, make sure that
there is no danger of anyone being harmed
by the closing procedure.
The closing of the windows can be immedi-
ately halted by releasing the switch or, if the
switch was pressed past the resistance
point and released, by pressing the respec-
tive switch.
If the window encounters an obstruction
that blocks its path in a circumstance where
you pressed the switch past the resistance
point and released it to close the window,
the automatic reversal function will stop the
window and open it slightly.
If the window encounters an obstruction
that blocks its path in a circumstance where
you are closing the window by pressing and
holding the switch, by pressing and holding
the
‹
button on the SmartKey, or by
pressing and
holding the lock button (vehicles with
KEYLESS-GO*) on the door handle, the auto-
matic reversal function will not operate.
When leaving the vehicle, always remove the
SmartKey from starter switch, take the
KEYLESS-GO* card (if so equipped) with
you, and lock your vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause an
accident and/or serious personal injury.

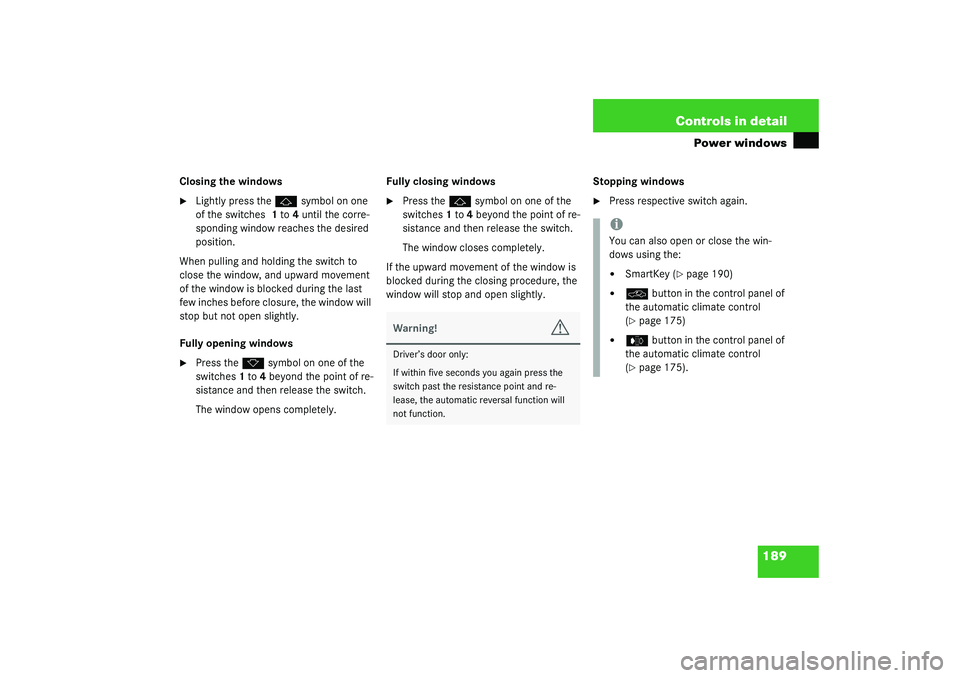

189 Controls in detail
Power windows
Closing the windows
Lightly press the
j
symbol on one
of the switches 1 to4 until the corre-
sponding window reaches the desired
position.
When pulling and holding the switch to
close the window, and upward movement
of the window is blocked during the last
few inches before closure, the window will
stop but not open slightly.
Fully opening windows

Press the
k
symbol on one of the
switches 1 to 4 beyond the point of re-
sistance and then release the switch.
The window opens completely.Fully closing windows

Press the
j
symbol on one of the
switches 1 to 4 beyond the point of re-
sistance and then release the switch.
The window closes completely.
If the upward movement of the window is
blocked during the closing procedure, the
window will stop and open slightly.Stopping windows

Press respective switch again.
Warning!
G
Driver’s door only:
If within five seconds you again press the
switch past the resistance point and re-
lease, the automatic reversal function will
not function.
iYou can also open or close the win-
dows using the:

SmartKey (
page 190)


O
button in the control panel of
the automatic climate control
(
page 175)


e
button in the control panel of
the automatic climate control
(
page 175).

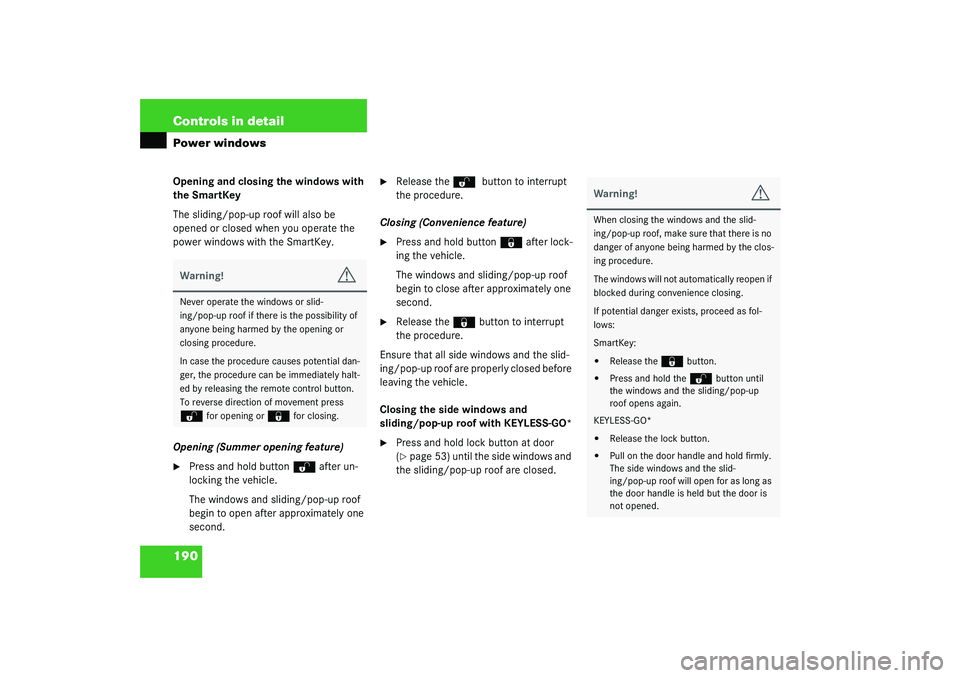

190 Controls in detailPower windowsOpening and closing the windows with
the SmartKey
The sliding/pop-up roof will also be
opened or closed when you operate the
power windows with the SmartKey.
Opening (Summer opening feature)
Press and hold button
Œ
after un-
locking the vehicle.
The windows and sliding/pop-up roof
begin to open after approximately one
second.

Release the
Œ
button to interrupt
the procedure.
Closing (Convenience feature)

Press and hold button
‹
after lock-
ing the vehicle.
The windows and sliding/pop-up roof
begin to close after approximately one
second.

Release the
‹
button to interrupt
the procedure.
Ensure that all side windows and the slid-
ing/pop-up roof are properly closed before
leaving the vehicle.
Closing the side windows and
sliding/pop-up roof with KEYLESS-GO*

Press and hold lock button at door
(page 53) until the side windows and
the sliding/pop-up roof are closed.
Warning!
G
Never operate the windows or slid-
ing/pop-up roof if there is the possibility of
anyone being harmed by the opening or
closing procedure.
In case the procedure causes potential dan-
ger, the procedure can be immediately halt-
ed by releasing the remote control button.
To reverse direction of movement press

Œ
for opening or
‹
for closing.
Warning!
G
When closing the windows and the slid-
ing/pop-up roof, make sure that there is no
danger of anyone being harmed by the clos-
ing procedure.
The windows will not automatically reopen if
blocked during convenience closing.
If potential danger exists, proceed as fol-
lows:
SmartKey:

Release the
‹
button.


Press and hold the
Œ
button until
the windows and the sliding/pop-up
roof opens again.
KEYLESS-GO*


Release the lock button.


Pull on the door handle and hold firmly.
The side windows and the slid-
ing/pop-up roof will open for as long as
the door handle is held but the door is
not opened.
