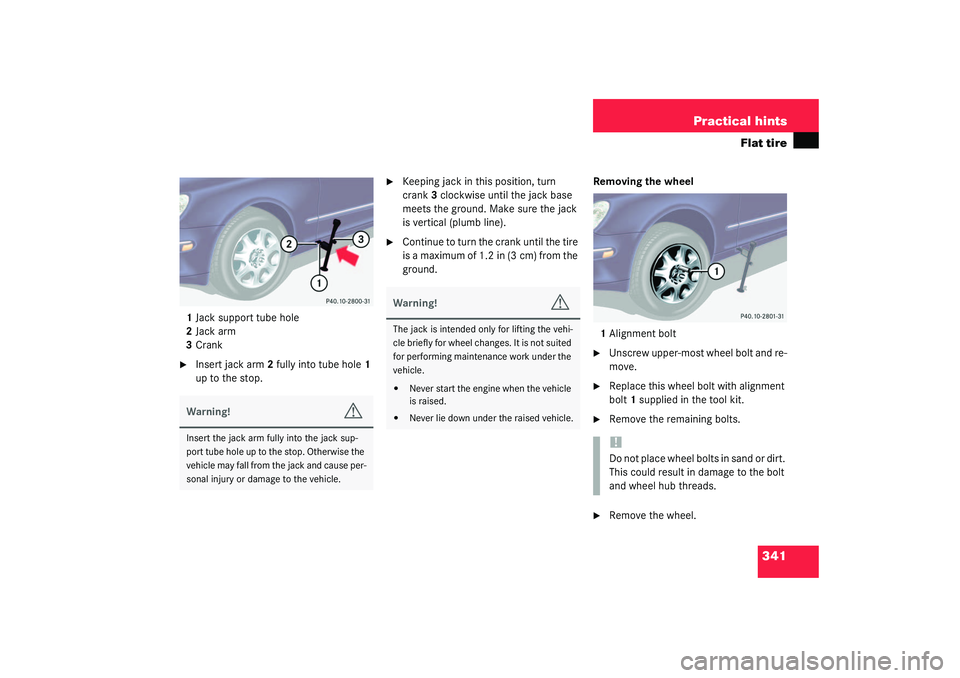

Page 341 of 416

MERCEDES-BENZ S CLASS 2003  Owners Manual 341 Practical hints
Flat tire
1Jack support tube hole
2Jack arm
3Crank
Insert jack arm2 fully into tube hole1
up to the stop.

Keeping jack in this position, turn
crank3 clockwise until the jack b

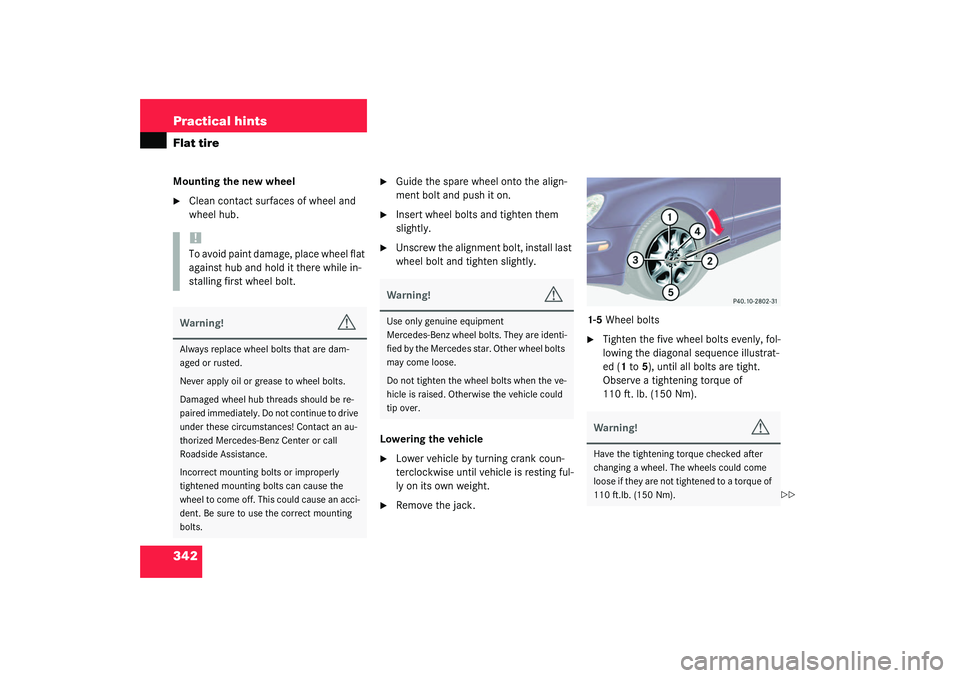

Page 342 of 416

MERCEDES-BENZ S CLASS 2003  Owners Manual 342 Practical hintsFlat tireMounting the new wheel
Clean contact surfaces of wheel and
wheel hub.

Guide the spare wheel onto the align-
ment bolt and push it on.

Insert wheel bolts and tighten t

Page 343 of 416

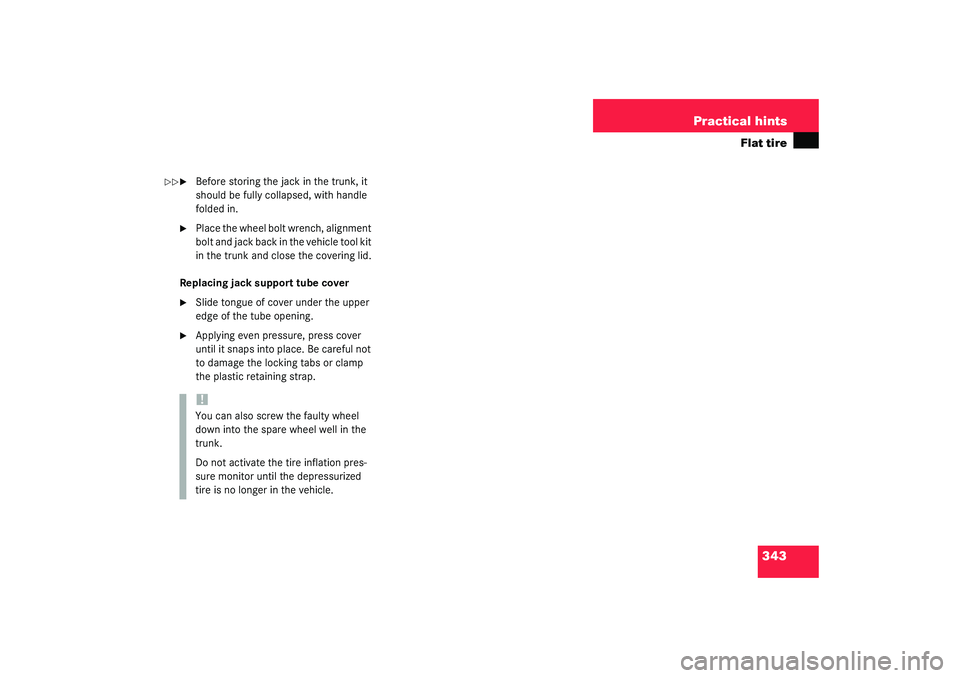

MERCEDES-BENZ S CLASS 2003  Owners Manual 343 Practical hints
Flat tire

Before storing the jack in the trunk, it
should be fully collapsed, with handle
folded in.

Place the wheel bolt wrench, alignment
bolt and jack back in the vehicle

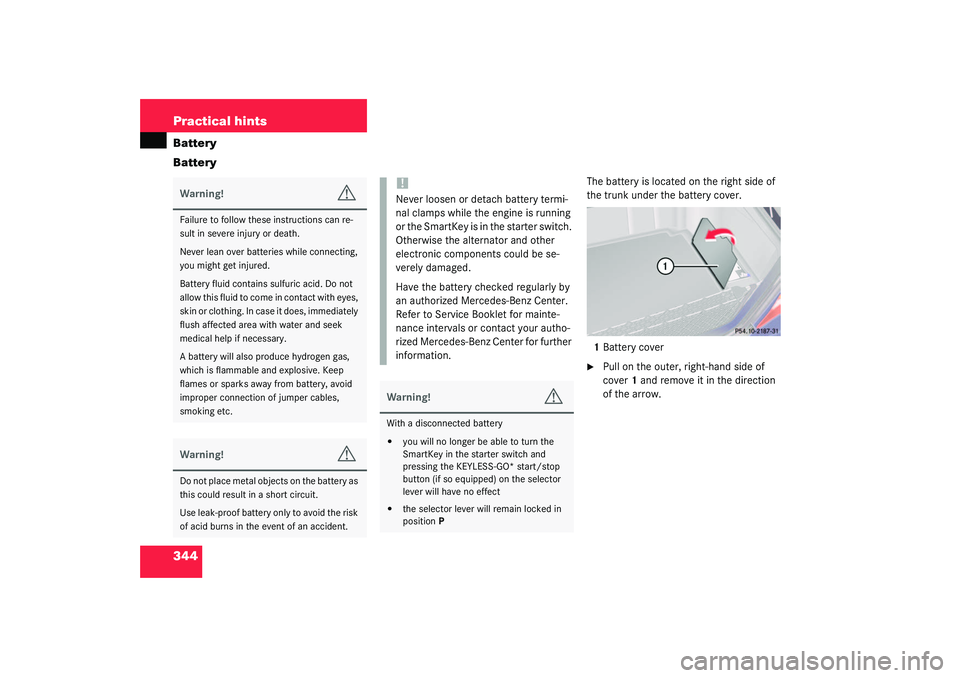

Page 344 of 416

MERCEDES-BENZ S CLASS 2003  Owners Manual 344 Practical hintsBattery
Battery
The battery is located on the right side of
the trunk under the battery cover.
1Battery cover
Pull on the outer, right-hand side of
cover1 and remove it in the d

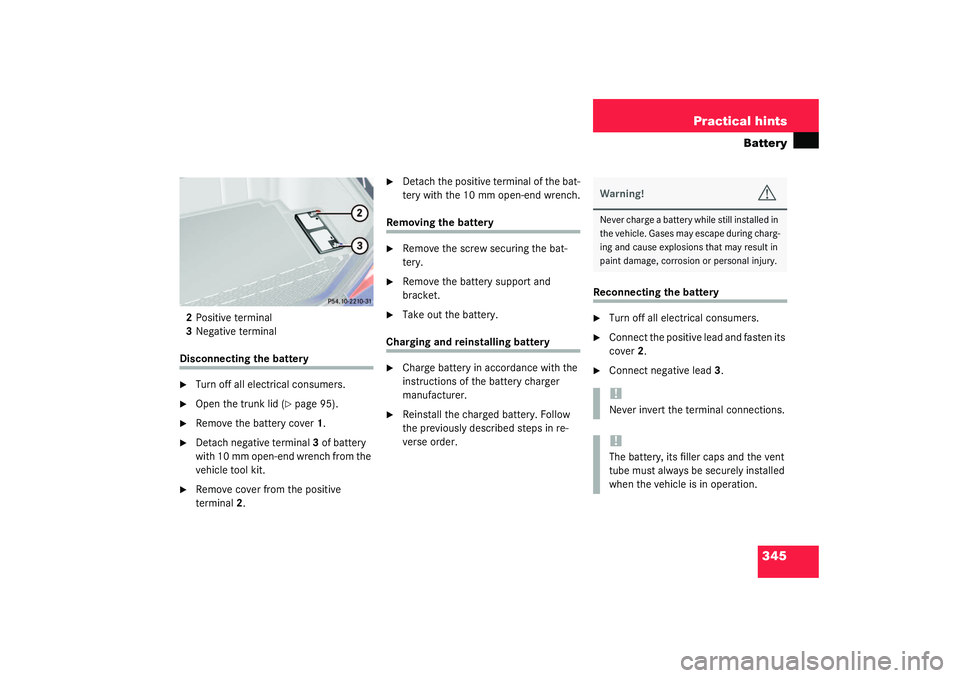

Page 345 of 416

MERCEDES-BENZ S CLASS 2003  Owners Manual 345 Practical hints
Battery
2Positive terminal
3Negative terminalDisconnecting the battery
Turn off all electrical consumers.

Open the trunk lid (
page 95).

Remove the battery cover1.

Detach n

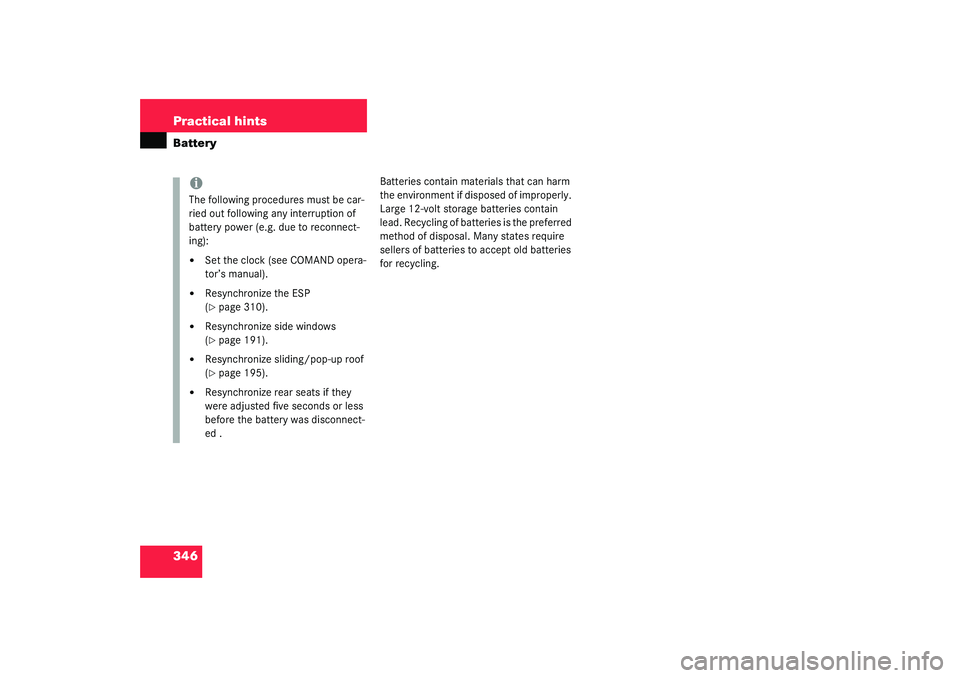

Page 346 of 416

MERCEDES-BENZ S CLASS 2003  Owners Manual 346 Practical hintsBattery
Batteries contain materials that can harm
the environment if disposed of improperly.
Large 12-volt storage batteries contain
lead. Recycling of batteries is the preferred

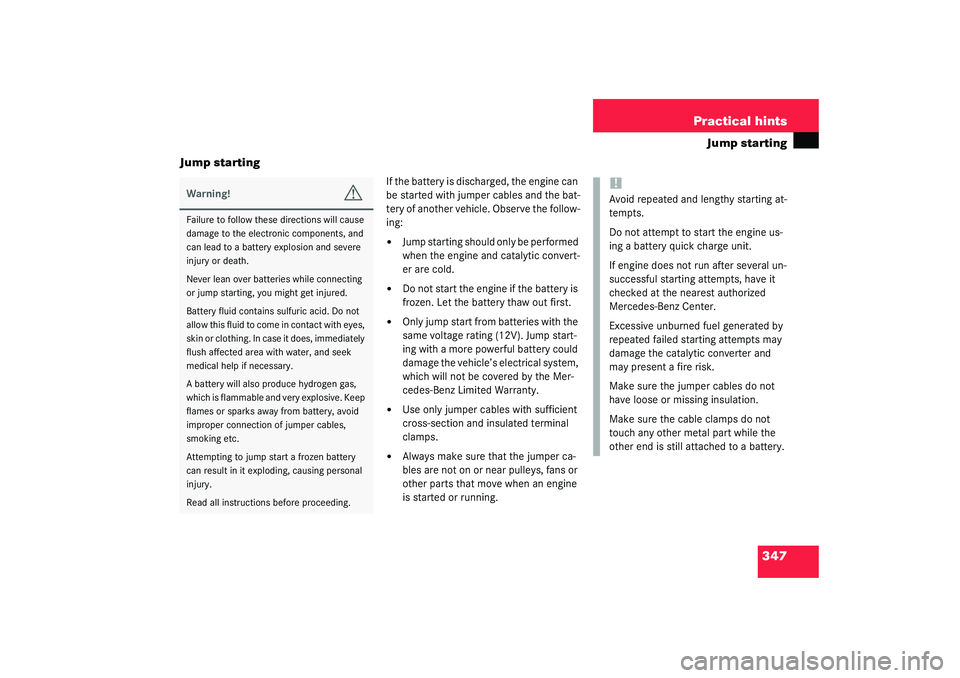

Page 347 of 416

MERCEDES-BENZ S CLASS 2003  Owners Manual 347 Practical hints
Jump starting
Jump starting
If the battery is discharged, the engine can
be started with jumper cables and the bat-
tery of another vehicle. Observe the follow-
ing:
Jump startin

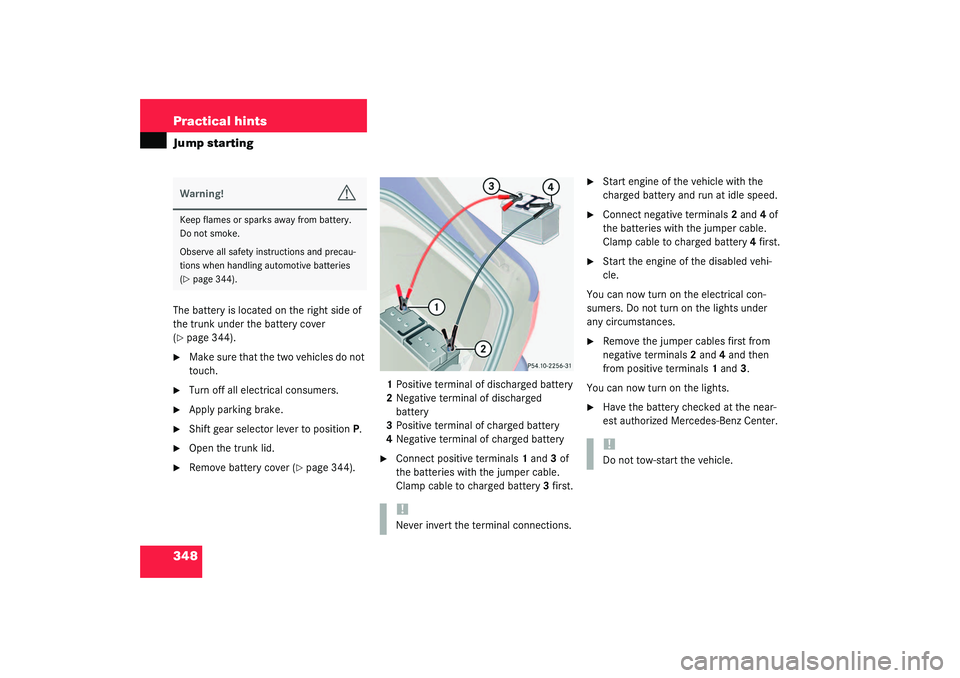

Page 348 of 416

MERCEDES-BENZ S CLASS 2003  Owners Manual 348 Practical hintsJump startingThe battery is located on the right side of
the trunk under the battery cover
(page 344).

Make sure that the two vehicles do not
touch.

Turn off all electrical

Page 349 of 416

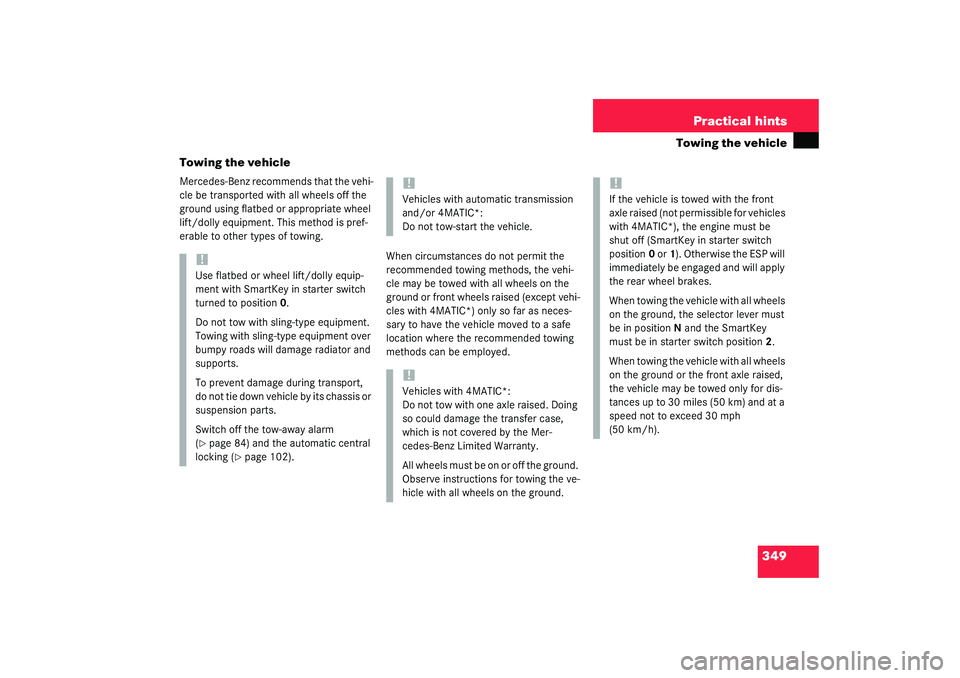

MERCEDES-BENZ S CLASS 2003  Owners Manual 349 Practical hints
Towing the vehicle
Towing the vehicle
Mercedes-Benz recommends that the vehi-
cle be transported with all wheels off the
ground using flatbed or appropriate wheel
lift/dolly equi

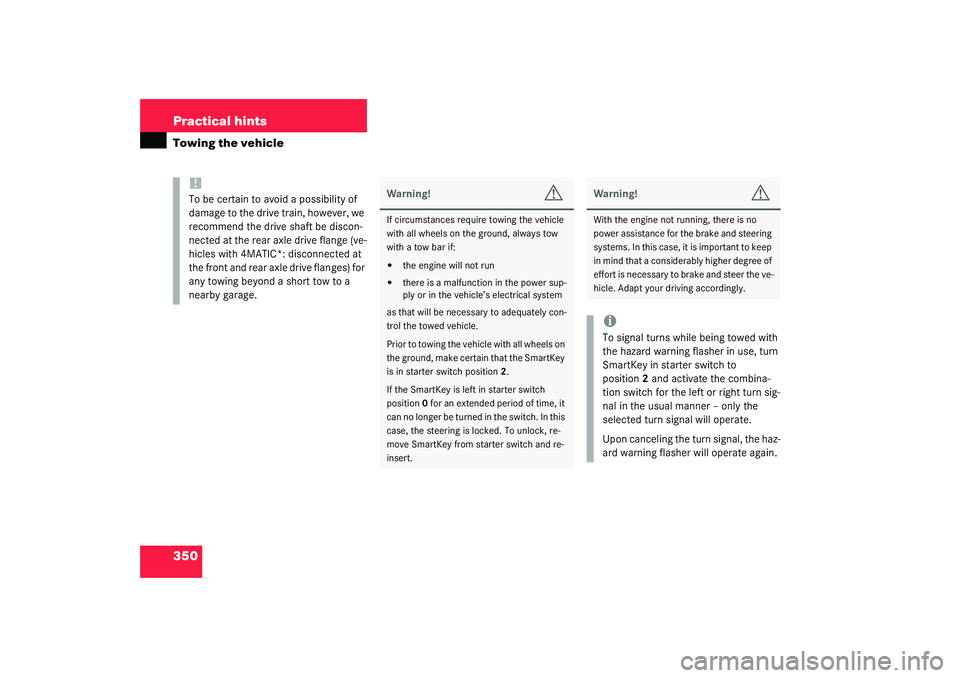

Page 350 of 416

MERCEDES-BENZ S CLASS 2003  Owners Manual 350 Practical hintsTowing the vehicle
!To be certain to avoid a possibility of
damage to the drive train, however, we
recommend the drive shaft be discon-
nected at the rear axle drive flange (ve-
h
