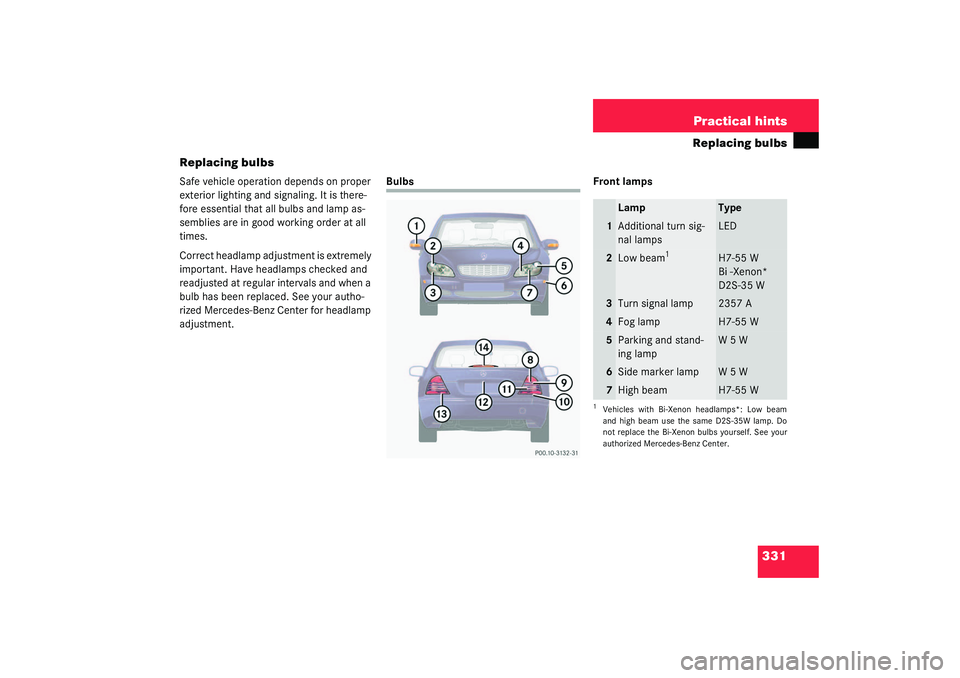

Page 331 of 416

MERCEDES-BENZ S CLASS 2003  Owners Manual 331 Practical hints
Replacing bulbs
Replacing bulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in g

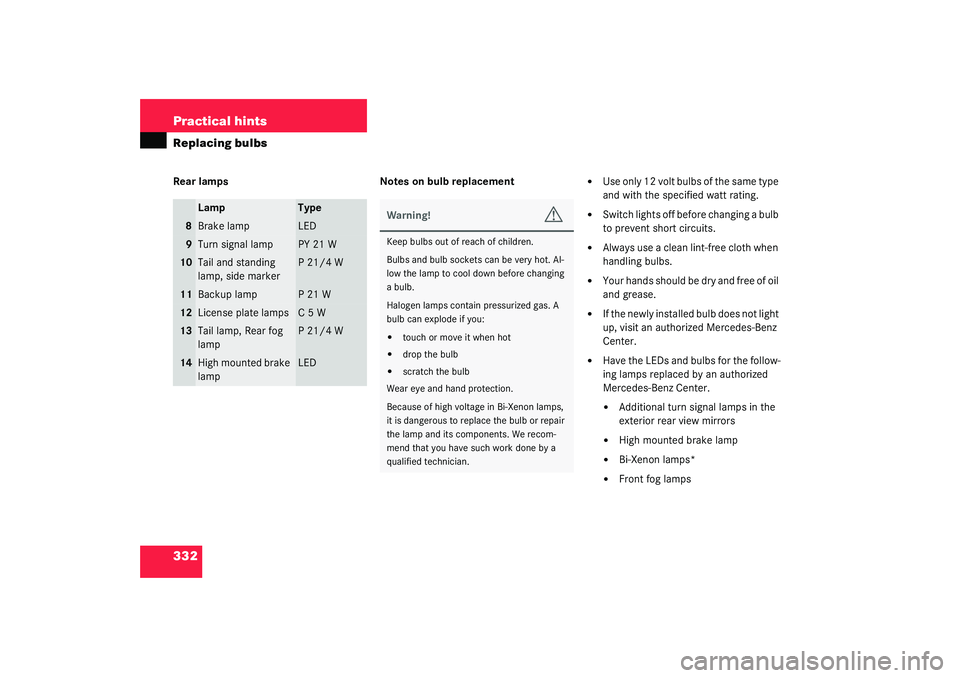

Page 332 of 416

MERCEDES-BENZ S CLASS 2003  Owners Manual 332 Practical hintsReplacing bulbsRear lamps Notes on bulb replacement

Use only 12 volt bulbs of the same type
and with the specified watt rating.

Switch lights off before changing a bulb
to pr

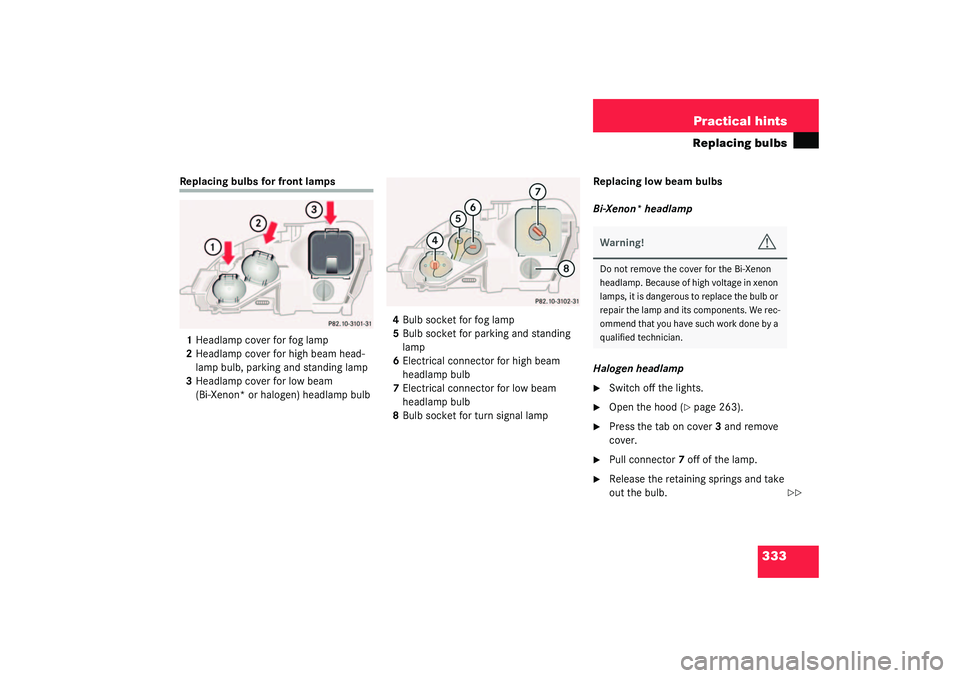

Page 333 of 416

MERCEDES-BENZ S CLASS 2003  Owners Manual 333 Practical hints
Replacing bulbs
Replacing bulbs for front lamps
1Headlamp cover for fog lamp
2Headlamp cover for high beam head-
lamp bulb, parking and standing lamp
3Headlamp cover for low beam

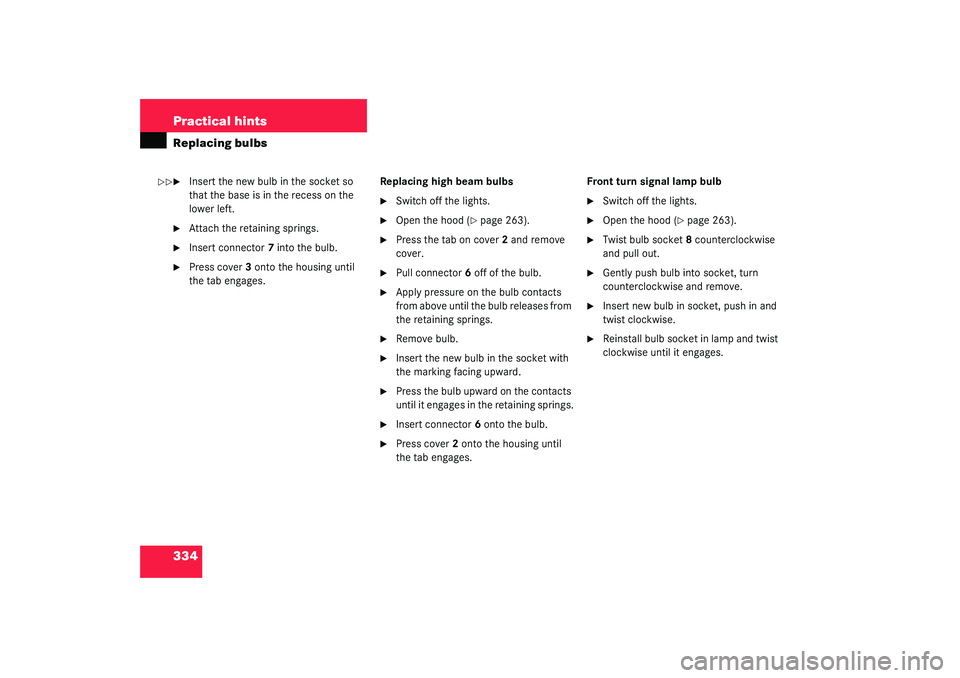

Page 334 of 416

MERCEDES-BENZ S CLASS 2003  Owners Manual 334 Practical hintsReplacing bulbs
Insert the new bulb in the socket so
that the base is in the recess on the
lower left.

Attach the retaining springs.

Insert connector7 into the bulb.

Press

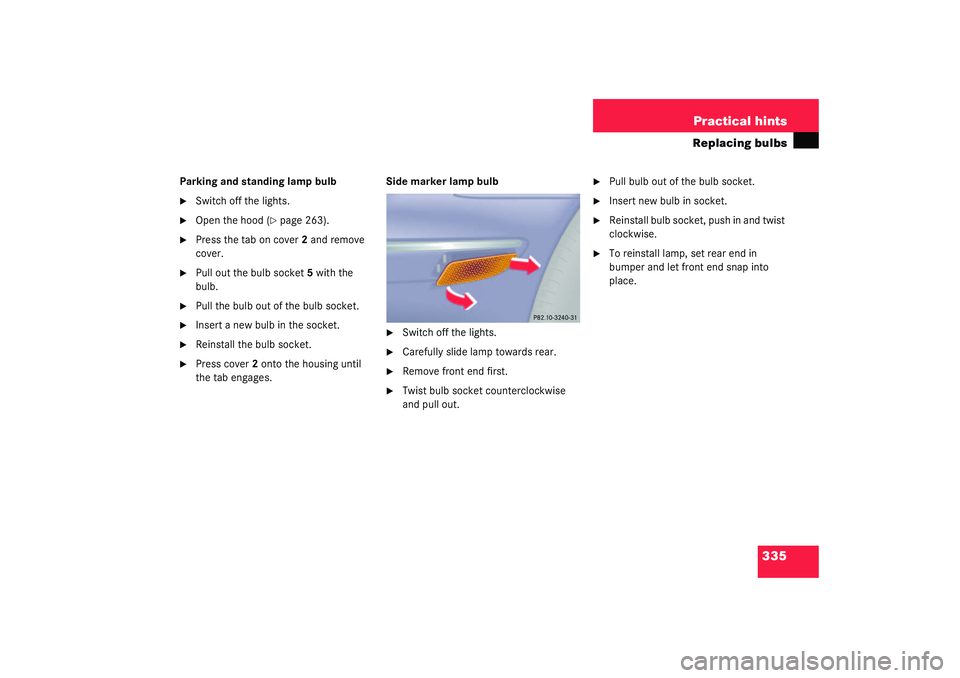

Page 335 of 416

MERCEDES-BENZ S CLASS 2003  Owners Manual 335 Practical hints
Replacing bulbs
Parking and standing lamp bulb
Switch off the lights.

Open the hood (
page 263).

Press the tab on cover2 and remove
cover.

Pull out the bulb socket5 with t

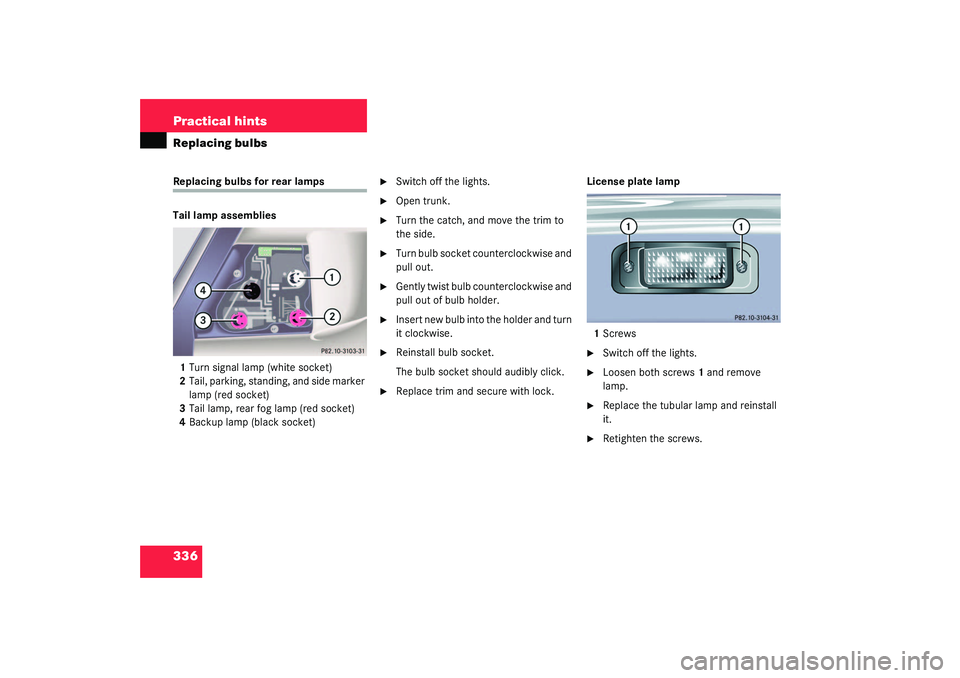

Page 336 of 416

MERCEDES-BENZ S CLASS 2003  Owners Manual 336 Practical hintsReplacing bulbsReplacing bulbs for rear lamps
Tail lamp assemblies
1Turn signal lamp (white socket)
2Tail, parking, standing, and side marker
lamp (red socket)
3Tail lamp, rear fog

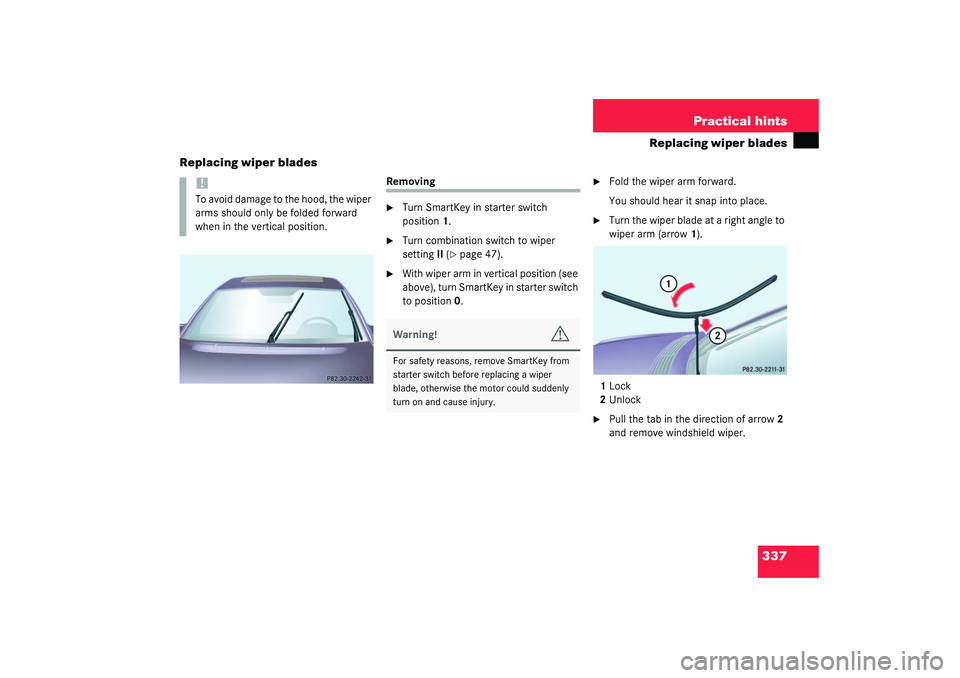

Page 337 of 416

MERCEDES-BENZ S CLASS 2003  Owners Manual 337 Practical hints
Replacing wiper blades
Replacing wiper blades
Removing
Turn SmartKey in starter switch
position1.

Turn combination switch to wiper
settingII (
page 47).

With wiper arm in v

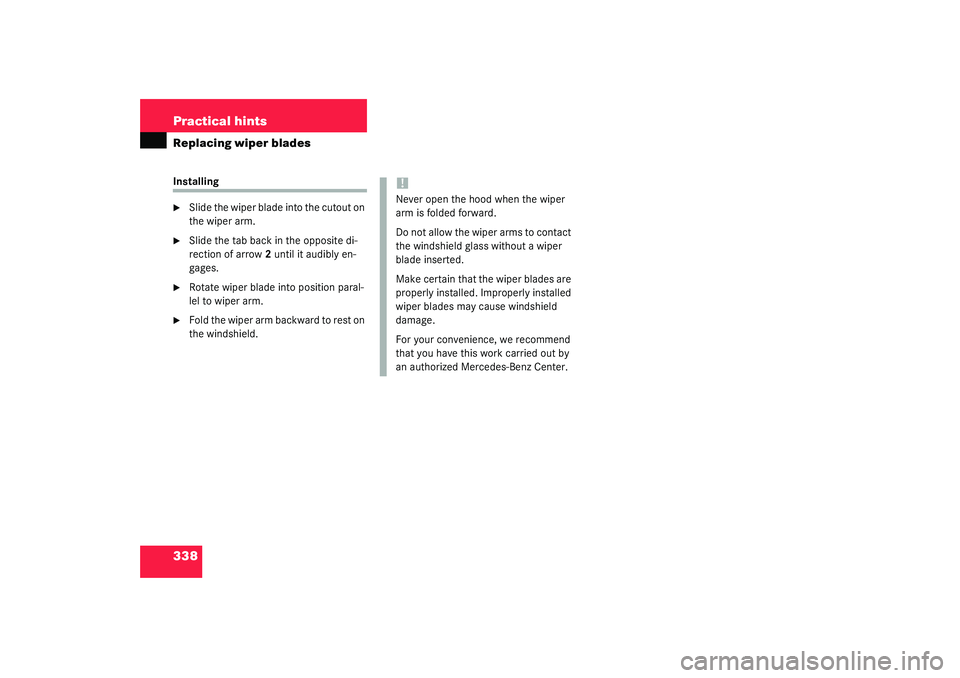

Page 338 of 416

MERCEDES-BENZ S CLASS 2003  Owners Manual 338 Practical hintsReplacing wiper bladesInstalling
Slide the wiper blade into the cutout on
the wiper arm.

Slide the tab back in the opposite di-
rection of arrow2 until it audibly en-
gages.

R

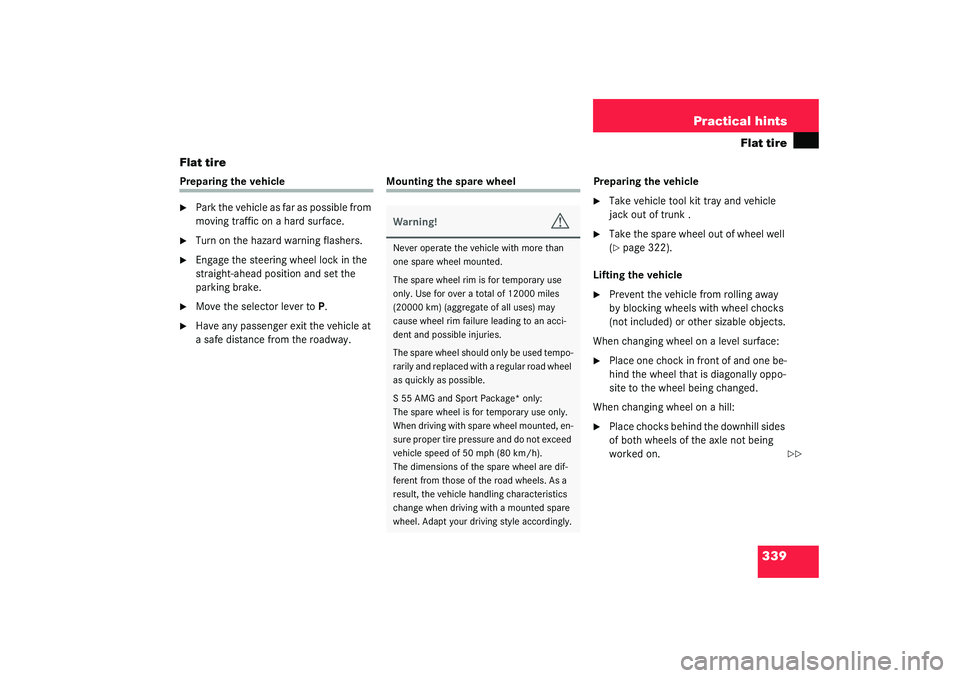

Page 339 of 416

MERCEDES-BENZ S CLASS 2003  Owners Manual 339 Practical hints
Flat tire
Flat tire
Preparing the vehicle
Park the vehicle as far as possible from
moving traffic on a hard surface.

Turn on the hazard warning flashers.

Engage the steering

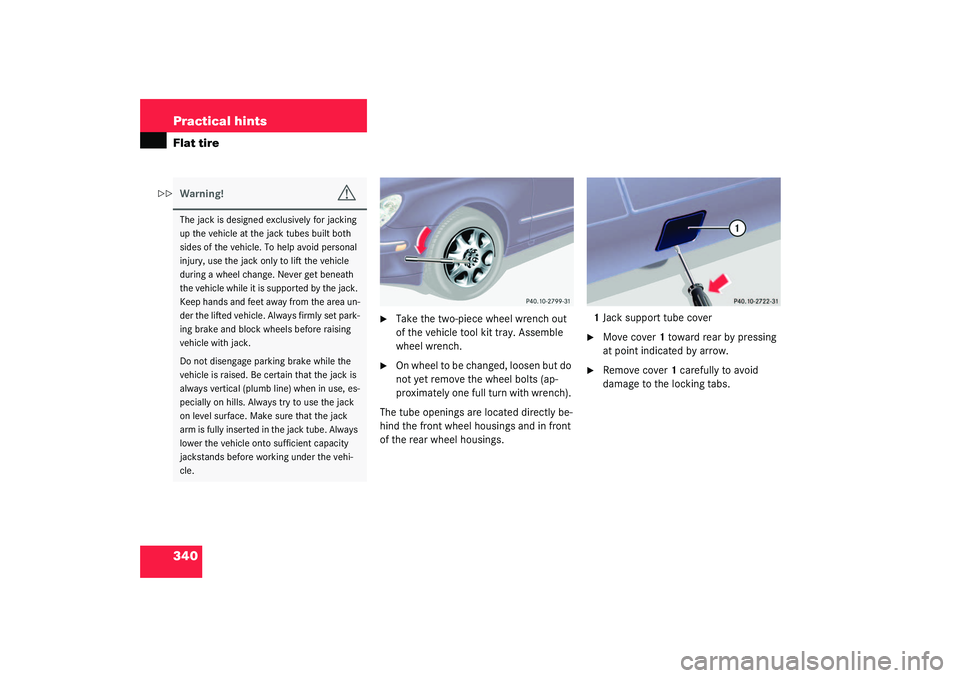

Page 340 of 416

MERCEDES-BENZ S CLASS 2003  Owners Manual 340 Practical hintsFlat tire

Take the two-piece wheel wrench out
of the vehicle tool kit tray. Assemble
wheel wrench.

On wheel to be changed, loosen but do
not yet remove the wheel bolts (ap-
p
