Memory MERCEDES-BENZ S-Class 2003 W220 Comand Manual

85 Telephone
Telephone operation
Dialing a number from the phone book
Dialing using the multifunction steering
wheel
In order to use this feature, the phone
book must have previously been downloa-
ded to the COMAND memory. This is per-
formed automatically each time the
portable phone is connected to the coiled
cord.
The telephone is ready for operation
(page 78).

Press E or H as often as neces-
sary until the telephone mode appears
in the multifunction display.
If ENTER CODE
appears, enter your unlock
code first (page 78).
The message NO ENTRY
appears when the
portable phone has been put into the crad-
le and no entries are stored in the phone
book.

Press F or G.
You are paging the phone book back-
wards or forwards in alphabetical or-
der. Name and memory location
appear.
or

Press F or G longer than 2 se-
conds.
You are scrolling through the phone
book very quickly.
The name that is selected appears in
the display.
P82.85-9546-31US
MERCEDES
TEL MO
iIf you do not wish to place a call, press
L. The process will be cancelled and
the message
READY
appears again.

86 TelephoneTelephone operation1Call time
Press K when desired name ap-
pears in the display.
The telephone number is dialed. The message
DIALING
appears in the
display. COMAND will mute an active
audio source.
When the call is initiated, the call time
appears in the display. The name will
reappear.

Press L to end the call.
The message
READY
will reappear. The
audio source will switch on again.
.
P82.85-9545-31US
OO:O1:15
MERCEDES
TEL
1
iPhone numbers are stored in the phone
book according to memory locations. A
memory location starts with “M”.
Memory locations available: M01 - M99

90 TelephoneTelephone operationIf the input line is empty
Turn the right-hand rotary/push-button
v until 2 is highlighted and press the
button.
The “Phone book” selection menu will
appear (
page 87).
Phone book page (phone numbers)3Phone book entries sorted according to
memory locations
Memory locations available:
M01 - M99
4Pages back in the list, if filled
5Pages forward in the list, if filled

Turn the right-hand rotary/push-button
v to highlight the desired entry and
press to confirm.
The main telephone menu appears indi-
cating the selected phone number and
memory location.
Begin dialing (
page 88), then con-
ducting a call.
Ending a call (page 89).
TEL Phone Book
M02:
M03:M01:
3
45
1800 5414112
1800 3921718 1800 48622040
P82.85-9389-31US
iIf there is no entry in the numbers list,
the message “No entry in telephone
book” appears in the telephone menu.

91 Telephone
Telephone operation
RedialDialing using the multifunction steering
wheel1The telephone is ready for operation.
2Number in the redial memory
3Number in the redial memory, dialing
has begun4Dialing is completed. Name or still the
dialed number (name has not been sa-
ved).5Memory location number, the last 10
dialed telephone numbers are stored
L01, number dialed last
L01 to L10, numbers dialed previously
6Call time
P82.85-9544-31US
READY
TEL
1
01305005
LO TEL
01111980
LO TEL
00:01:15
MERCEDES
LO TEL
6
23
4
5
K
K
L

92 TelephoneTelephone operationThe telephone is switched on
Press E or H repeatedly until the
corresponding telephone menu 1 ap-
pears in the display.
The telephone is ready for operation.

Press K.
The redial memory appears with the
last number dialed.

Press F or G.
This allows you to page forward or
backward through the redial memory.
The number selected will appear in the
display with the corresponding memo-
ry location.

Press K, when the desired number
or name appears in the display 2.
Dialing will begin 3. When the dialing
has been completed, the name 4 is
displayed if the name has been stored
in the phone book, otherwise you will
continue to see the phone number.
The display is maintained for the dura-
tion of the call.

Press L to end the call.
The telephone display 1 appears.
iIf you do not wish to place a call, press
L. The telephone display 1 ap-
pears.
iPress E or H to display the next
or previous system.

93 Telephone
Telephone operation

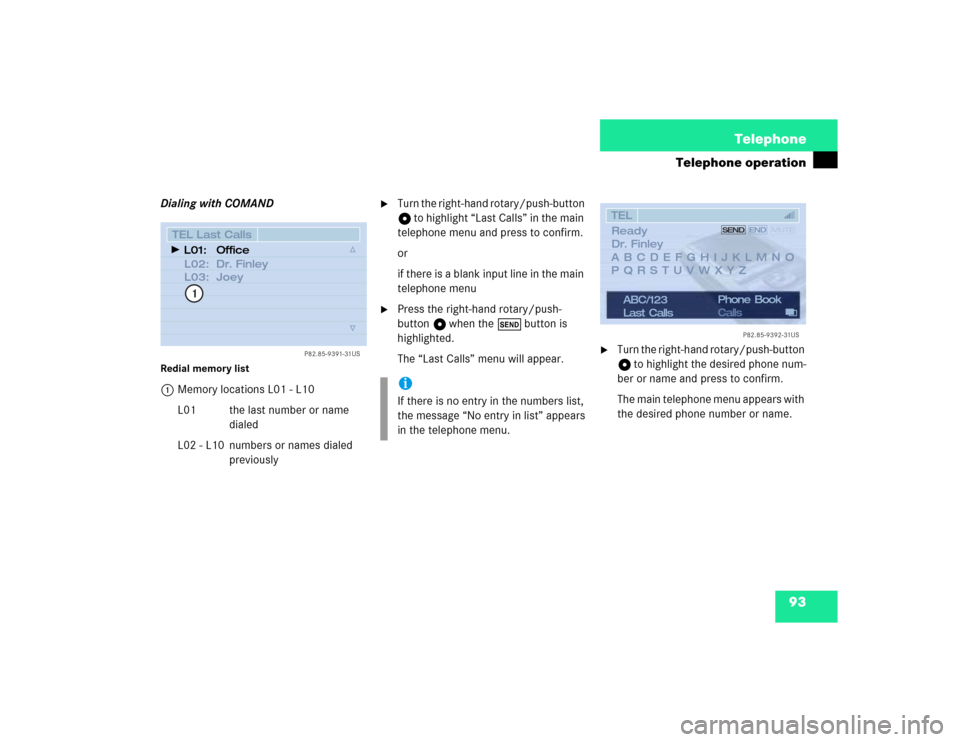

Dialing with COMANDRedial memory list1Memory locations L01 - L10
L01 the last number or name
dialed
L02 - L10 numbers or names dialed
previously

Turn the right-hand rotary/push-button
v to highlight “Last Calls” in the main
telephone menu and press to confirm.
or
if there is a blank input line in the main
telephone menu

Press the right-hand rotary/push-
button v when the Ä button is
highlighted.
The “Last Calls” menu will appear.

Turn the right-hand rotary/push-button
v to highlight the desired phone num-
ber or name and press to confirm.
The main telephone menu appears with
the desired phone number or name.
TEL Last Calls
L02:
L03:L01:1
Dr. Finley
Joey Office
P82.85-9391-31US
iIf there is no entry in the numbers list,
the message “No entry in list” appears
in the telephone menu.
ABC/123
Last CallsPhone Book
CallsTELABCDEFGHIJKLMNO
PQRSTUVWXYZReady
Dr. Finley
P82.85-9392-31US SENDENDMUTE

94 TelephoneTelephone operationBegin dialing
Press the right-hand rotary/push-
button v to confirm the Ä button.
The message “Dialing” will appear. The
Ö button is highlighted.
Use one of these three ways to end a call:

Press the right-hand rotary/push-
button v to confirm the Ö button
or the call has been finished by the
other party.
or

Press a.
or

Press *.Dialing from calls list

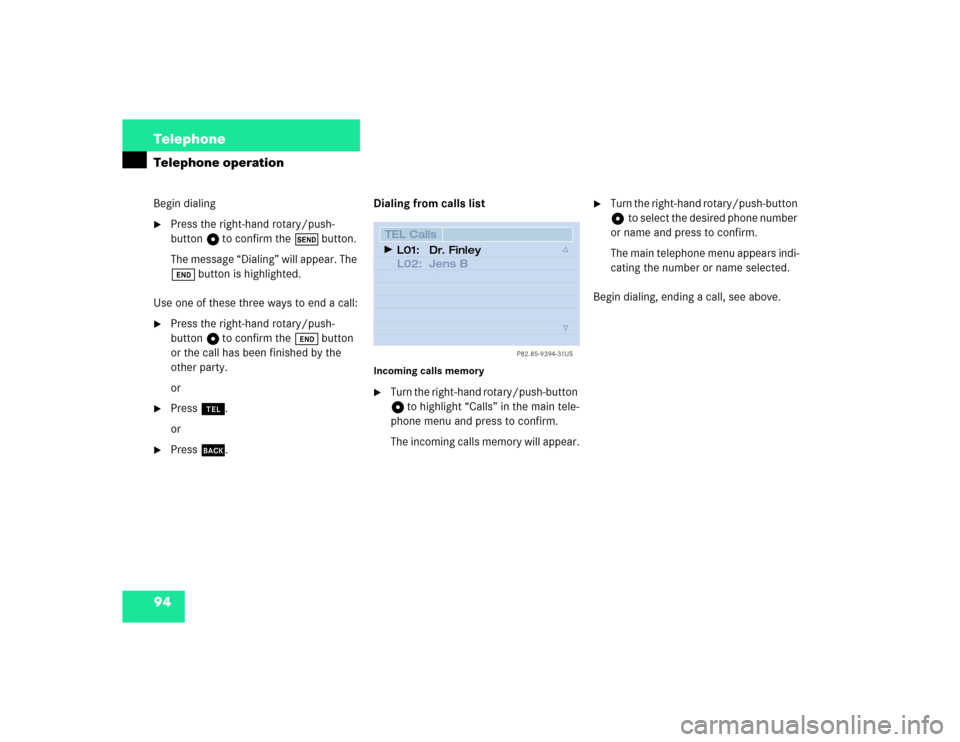

Incoming calls memory
Turn the right-hand rotary/push-button
v to highlight “Calls” in the main tele-
phone menu and press to confirm.
The incoming calls memory will appear.

Turn the right-hand rotary/push-button
v to select the desired phone number
or name and press to confirm.
The main telephone menu appears indi-
cating the number or name selected.
Begin dialing, ending a call, see above.
TEL Calls
L02:L01:
Jens B Dr. Finley
P82.85-9394-31US

95 Telephone
Telephone operation
Speed-dialing (only with COMAND)
For all memory locations
You can enter up to 2 digits
The main telephone menu is displayed
Use the number keys, e.g. 1 and 4 to
enter the memory location number. Begin dialing
Use one of these ways

Press the last number key for more
than 2 seconds.
or

Press the right-hand rotary/push-
button v to confirm the Ä button.
The phone number or name will appear
in the menu. The telephone will dial the
phone number that has been stored in
this memory location.
When the call is initiated, the call time
will appear.
ABC/123
Last CallsPhone Book
CallsTEL
14_
P82.85-9397-31US SENDENDMUTE
Warning
G
If you enter “1” and confirm this memory lo-
cation using one of the described ways in
“Begin dialing”, the emergency number
9-1-1 (default input) will be dialed.
The 9-1-1 emergency call system is a public
service. Using it without due cause is a cri-
minal offense.

96 TelephoneTelephone operation
Ending a call (
page 94).Quick-dialing for the first 10 memory
locations
The main telephone menu is displayed

Press 2 to 0 longer than 2 seconds.
The phone number or name will appear
in the menu. The telephone will dial the
phone number that has been stored in
this memory location.
When the call is initiated, the call time
will appear.

Ending a call (
page 94).
iIf the memory location called is free, the
message “Memory location not alloca-
ted” will appear.
Warning
G
If you press “1” the emergency number
9-1-1 (default input) will be dialed.
The 9-1-1 emergency call system is a public
service. Using it without due cause is a cri-
minal offense.

98 TelephoneTelephone operationYou can edit the phone book and transfer
a phone number from the notebook.
In the main telephone menu, turn the
right-hand rotary/push-button v until
“Phone Book” is highlighted and press
to confirm.
The “Phone Book” selection menu will
appear.
“Phone book” selection menu1Changing entries in the phone book
2Adding entries in the phone book
(
page 101)
3Transferring a telephone number from
the notebook (
page 102)Changing entries in the phone book

Turn the right-hand rotary/push-button
v to highlight 1 and press to con-
firm.
The phone book will either display
the list of names sorted alphabeti-
cally

the list of phone numbers sorted by
memory locations.
Editing the phone book
TEL Phone BookRead phone book...
Add an entry...
Copy notebook... Change phone book...
123
P82.85-9404-31US
TEL Phone Book
F. Miller
MB
Garage
Morrison
OfficeDr. Finley
P82.85-9405-31US
