Memory MERCEDES-BENZ S-Class 2003 W220 Comand Manual

106 TelephoneEmergency call

Emergency callYou can make an emergency call to an
emergency rescue station with a mobile
communication network.
The emergency call will be placed as long
as the corresponding mobile communicati-
on network is available. To do this, switch
the telephone on if you have not already
done so.
Emergency calls may not be possible with
all mobile phone networks or if certain net-
work services and/or telephone functions
are active. Check with your local network
operating company.
iThe emergency call will also be placed if
the phone is locked.iThis function places a call to the local
9-1-1 provider. It does not initiate a Tele
Aid call.
Warning
G
The 9-1-1 emergency call system is a public
service. Using it without due cause is a cri-
minal offense.!If you enter “1” and press the right-
hand rotary/push-button v, the num-
ber stored in memory location “1” (de-
fault is 9-1-1) will be dialed.
Pressing or holding “1” longer than 2
seconds will also initiate the call.
!It will not be possible to complete the
emergency call if the cellular system is
busy. The message “System busy,
redial?” appears.
Take appropriate measures to alert an
emergency service as soon as possible.

107 Telephone
Emergency call
If there is an active Tele Aid call, the tele-
phone main menu will disappear and you
will see the message “Phone off”.
After the Tele Aid call is ended the telepho-
ne main menu will reappear.
See your vehicle’s operator’s manual.Initiating an emergency call
If the telephone main menu or a memory
menu is displayed

Press number key 1 longer than 2 se-
conds (quick-dialing).
The telephone begins dialing, the Ö
button is highlighted.
When the call is initiated, the call time
will appear.
Do not place the emergency call

Turn the right-hand rotary/push-button
v to highlight the Ö button and
press to confirm or press *.
Ending the call, use one of the three ways:

Press the right-hand rotary/push-
button v to confirm the Ö button.
or

Press a.
or

Press *.
P82.85-9418-31US
TEL
Phone off.
Telephone is ready for operationiPlease ensure that the number stored in
the memory location is the number you
want to dial in case of an emergency
(default is 9-1-1).
The function will also be performed if
the telephone is locked.ABC/123
Last CallsPhone Book
CallsTELABCDEFGHIJKLMNO
PQRSTUVWXYZDialing: 911
P82.85-9419-31US SENDENDMUTE

111
Navigation
Important notes
Quick reference
Destination input
Route guidance
Destination memory
Settings

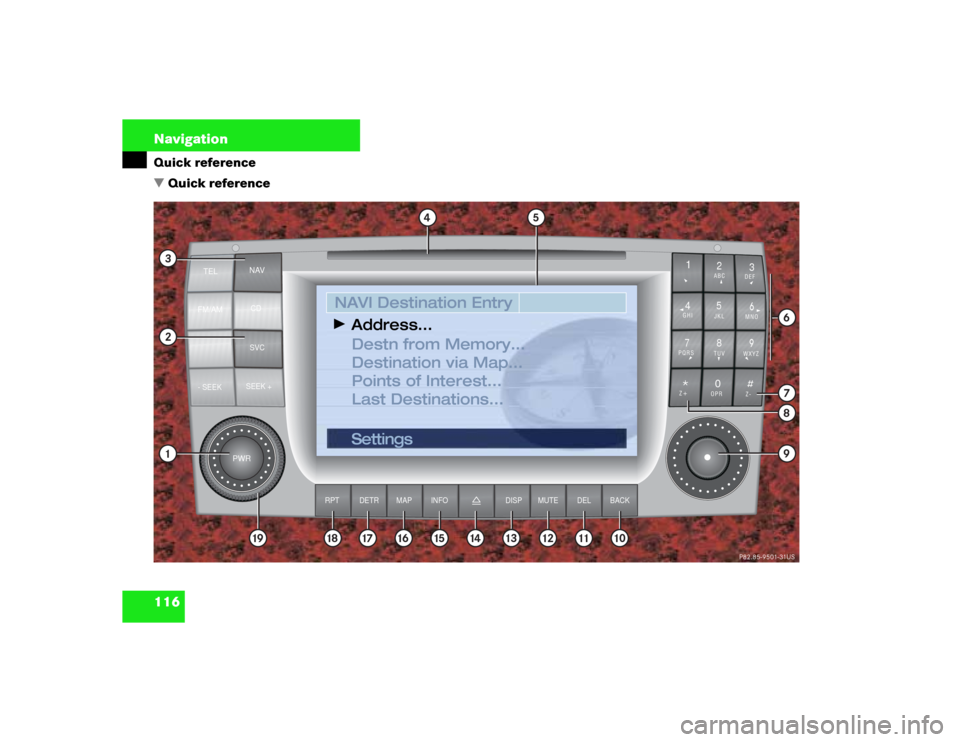

116 NavigationQuick reference

Quick reference
PWR
TELNAV
CD
FM/AM
MNO
ABCJKL GHI
DEF
2
1
3
5
4
6
TUV PQRS
WXYZ8
7
9
0
P82.85-9501-31US
4
5
78
19 1718 16 15 14 13 12 11 1 0
13
69
2
Settings NAVI Destination Entry
Destn from Memory...
Destination via Map...
Points of Interest...
Last Destinations...Address...
SVC
- SEEKSEEK +
DEL BACK MAP
DETR RPT INFO DISP MUTE
OPR Z+
Z-

120 NavigationDestination input

Destination input

Menu overview
SettingsNAVI Destination Entry
Destn from Memory...
Destination via Map...
Points of Interest
Last Destinations...Address...
1
P82.85-9502-31US
234
5
76
NAVI Destination EntryCity...
Street...
Center...NAVI Destn via MapPrevious Destn...
Current Location...
City...
Coordinate Destn...Center Map on:
NAVI Points of InterestAround Current Location...
Around Previous Destn...
Select City...
Regional...NAVI Last Destinations
NORTH ADAMS, NORTH
NORTHBROOK, WILWAUKEE
DEERFIELD, CHICORY
MMM, NORTHBROOK
NAVI Destn MemoDisplay Destinations...
Sort Destinations...
Delete Destn. in Memory...
Save Current Destination ...
Save Current Location...
NAVI SettingsLocation...
Calibration...Sound

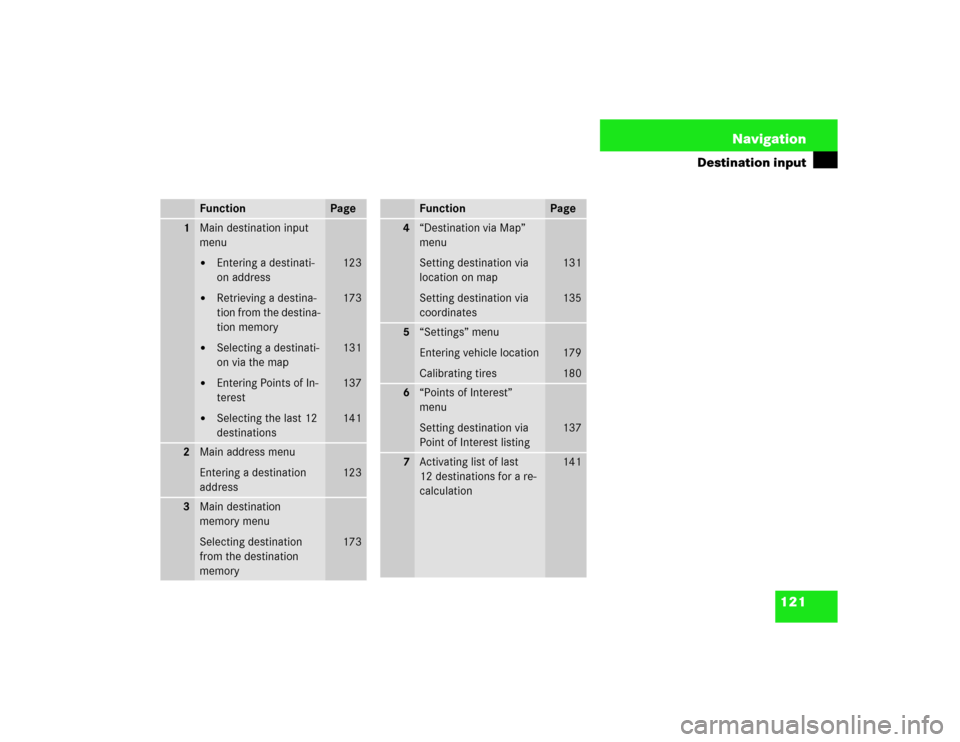

121 Navigation
Destination input
Function
Page
1
Main destination input
menu
Entering a destinati-
on address

Retrieving a destina-
tion from the destina-
tion memory

Selecting a destinati-
on via the map

Entering Points of In-
terest

Selecting the last 12
destinations
123
173
131
137
141
2
Main address menu
Entering a destination
address
123
3
Main destination
memory menu
Selecting destination
from the destination
memory
173
4
“Destination via Map”
menu
Setting destination via
location on map
Setting destination via
coordinates
131
135
5
“Settings” menu
Entering vehicle location
Calibrating tires
179
180
6
“Points of Interest”
menu
Setting destination via
Point of Interest listing
137
7
Activating list of last
12 destinations for a re-
calculation
141
Function
Page

122 NavigationDestination inputMain destination input menu
Press b.
The display that appears is dependent
on the last navigation function used:Route guidance has been switched off

the main destination input menu or

the location map (
page 149).
Route guidance has been switched on

the symbol display with an arrow in-
dicating your driving direction
(page 144) or

the map with the symbol indicating
current vehicle location
(page 144)
Route guidance has been switched on,
COMAND has been switched off for
more than 2 hours

an inquiry menu (
page 168)Changing over to another system, for
e.g. radio

Press c.
Switching the navigation system on
Settings
P82.85-9429-31US
NAVI Destination Entry
Destn from Memory...
Destination via Map...
Points of Interest...
Last Destinations...Address...
iThe following message will appear when
COMAND is preparing for navigation
startup: “Navigation being activated.
Please obey all traffic rules.”. Then, one
of the 3 displays will appear.
!Potential fault messages during prepa-
ration of navigation startup:
“Navigation cannot be activated. An
error has occurred”.

“CD-Reading error. Please use ano-
ther CD”.
Eject the inserted CD and insert a
navigation CD.

“No CD available. Please insert
NAVI-CD type DX only”.
Insert a current DX-coded navigati-
on CD. Using other navigation CDs
might lead to malfunctions.
If the error has been eliminated, you will
see the message “Navigation being acti-
vated. Please obey all traffic rules”.

123 Navigation
Destination input
Select one of the following possibilities to
enter a destination:
Entering a destination address

Selecting destination via the map
(page 131)

Entering Points of Interest
(page 137)

Selecting last destinations
(page 141)

Selecting from destination memory
(page 173)
Main address menu1Info/status line
2Selecting city/suburb or selecting des-
tination that has been entered at last
3Selecting a street
4Selecting a city center (
page 130)

Press the right-hand rotary/push-
button v in the main destination input
menu and confirm “Address”.
The main address menu will appear.
Switching back to the main destination in-
put menu

Press *.
Entering destination address
iIf you have previously entered a city/
suburb, you can highlight 3 and 4.
P82.85-9430-31US
NAVI Destination EntryCity...
Street...
Center...
1
2
34

128 NavigationDestination input“Destination Entry” selection menu1Adding an intersection
2Adding a house number
3Selecting a destination via the map
(
page 131)
4Saving a destination address in the
destination memory (
page 174)
5Confirming the destination and calcula-
ting route (
page 141)You have now selected the destination and
can define your destination address more
precisely in the following manner:

Adding an intersection

Adding a house number

Selecting it via the map (
page 131)

Selecting a city center, if you do not
want to select a street (
page 130)
or
Confirm the destination and calculate the
route (
page 141)

Press the right-hand rotary/push-
button v to confirm “OK” in the menu
“Destination Entry”.Adding an intersection
If the menu “Destination Entry” is display-
ed

Turn the right-hand rotary/push-button
v to highlight 1 and press to con-
firm.
A list of roads intersecting with the pre-
viously input street will appear.
Continue destination input
P82.85-9436-31US
NAVI Destination EntryIN: NEW YORK
WEST 100TH, CENTRAL PARKIntersection
Map
OKHouse No.
Save
1
24
5
3
iIn order to do so, “House No.” must be
shown in black.
P82.85-9437-31US
NAVI Intersection Entry12TH AVE
BROADWAY
CATHEDRAL PARK
DVKE ELLINGTON BLVD
DYCKMANST
EDGAR ALLEN POE ST

136 NavigationDestination inputConfirming coordinate destination and
calculate the route
Press the right-hand rotary/push-
button v longer than 2 seconds.
A selection menu appears showing the
entry “Coordinate Destn”.

Press the right-hand rotary/push-but-
ton v and confirm “OK”.

Then calculate the route (
page 141).In the selection menu you can also

store the coordinate destination in the
destination memory with a name
Turn the right-hand rotary/push-
button v to highlight “Save” and
press to confirm.
The input menu “Save destination”
will appear (
page 174).

Enter the name and then calculate
the route.

activate the map with crosshairs
Turn the right-hand rotary/push-
button v to highlight “Map” and
press to confirm.
This will activate the map
(page 132), the crosshairs high-
light the entered destination.

Press the right-hand rotary/push-
button v to confirm the destinati-
on.
or

Move the crosshairs to the position
you want (
page 132) and press
the right-hand rotary/push-button
v to confirm.

Then calculate the route
(page 141).
