292 OperationEngine compartmentBe careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.
Screw filler cap1 back on filler neck.
For more information on engine, see the
“Technical data” section (
page 429) and
(
page 431).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the automatic transmission.Active Body Control* (ABC*) fluid level
Regular fluid level check is not required. If
you notice fluid leaks or malfunction mes-
sages in the multifunction display, have an
authorized Mercedes-Benz Center check
the ABC-system.
Coolant level
The engine coolant is a mixture of water
and anticorrosion/antifreeze.
When checking the coolant level,

the vehicle must be parked on level
ground, and


the engine must be cool.
!Excess oil must be siphoned or drained
off. It could cause damage to the en-
gine and catalytic converter not cov-
ered by the Mercedes-Benz Limited
Warranty.

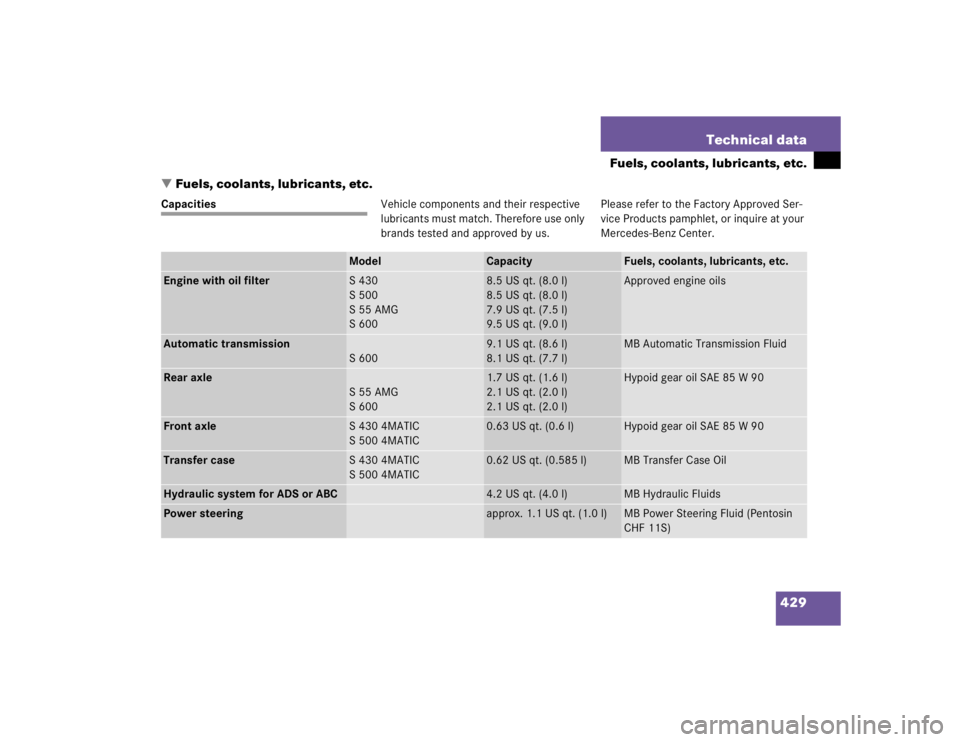

429 Technical data
Fuels, coolants, lubricants, etc.
Fuels, coolants, lubricants, etc.
CapacitiesVehicle components and their respective
lubricants must match. Therefore use only
brands tested and approved by us.Please refer to the Factory Approved Ser-
vice Products pamphlet, or inquire at your
Mercedes-Benz Center.
Model
Capacity
Fuels, coolants, lubricants, etc.
Engine with oil filter
S 430
S 500
S 55 AMG
S 600
8.5 US qt. (8.0 l)
8.5 US qt. (8.0 l)
7.9 US qt. (7.5 l)
9.5 US qt. (9.0 l)
Approved engine oils
Automatic transmission
S 600
9.1 US qt. (8.6 l)
8.1 US qt. (7.7 l)
MB Automatic Transmission Fluid
Rear axle
S55AMG
S 600
1.7 US qt. (1.6 l)
2.1 US qt. (2.0 l)
2.1 US qt. (2.0 l)
Hypoid gear oil SAE 85 W 90
Front axle
S 430 4MATIC
S 500 4MATIC
0.63 US qt. (0.6 l)
Hypoid gear oil SAE 85 W 90
Transfer case
S 430 4MATIC
S 500 4MATIC
0.62 US qt. (0.585 l)
MB Transfer Case Oil
Hydraulic system for ADS or ABC
4.2 US qt. (4.0 l)
MB Hydraulic Fluids
Power steering
approx. 1.1 US qt. (1.0 l)
MB Power Steering Fluid (Pentosin
CHF 11S)

445 Index
Armrest
Storage compartment in front of 245,
246, 247
Ashtray 251
Aspect ratio 322
At the gas station 283
ATF (Automatic Transmission Fluid) 292
AUDIO menu 148
Selecting CD track 150
Selecting MP3-CD track 150
Selecting radio station 149
Selecting satellite radio* station (USA
only) 149
Audio system
CD mode 151
Auto-dimming for rear view mirror 186
Automatic central locking
Activating/deactivating (control
system) 168
Automatic climate control 192
Air recirculation mode 199
Defrosting 199
Rear window defroster 201
Setting the temperature 195
Automatic headlamp mode 132Automatic lighting control
Activating 137
Deactivating 137
Automatic locking when driving 112
Automatic shift program
Automatic transmission 179
Automatic transmission 173
Accelerator position 180
Automatic shift program 179
Emergency operation (Limp Home
Mode) 185
Fluid level 292
Gear ranges 176
Gear selector lever position 173, 177
Gear shifting malfunctions 185
Kickdown 180
Kickdown, manual shift program S 55
AMG 184
Manual shift program S 55 AMG 183
Manual shifting 175
One-touch gearshifting 175
Starting the engine 46
Steering wheel gearshift control S 55
AMG 181
Transmission fluid 292
Auxiliary fuse box 412B
BabySmart
TM
Air bag deactivation system 73
Compatible child seats 73, 437
Self-test 74
BabySmart
TM airbag deactivation
system 437
Backrest supports
Lumbar region 123
Shoulder region 123
Backup lamps 390, 395
Bulbs 390
Bar 322
BAS 81, 437
Messages in display 351
Batteries, SmartKey
Check lamp 95
Checking 95
Replacing 387
Batteries, SmartKey with KEYLESS-GO*
Checking 101
Battery discharged
Jump starting 406

453 Index
G
Garage door opener 264
Erasing in remote control 269
Integrated remote control 266
Rolling code programming 267
Gasoline see Fuel 284
GAWR 322
Gear range 439
Automatic transmission 176
Limiting 176
Shifting into optimal 175
Gear range limit
Canceling 175
Gear selector lever
Cleaning 335
Position (Automatic
transmission) 177
Position (automatic
transmission) 173
Glasses
Storage compartment in front of
armrest 246Global
Locking 94
Unlocking 94
Global Positioning System (GPS) 439
Glove box 244
Closing 244
Locking 244
Opening 244
Unlocking 244
Gloves (vehicle tool kit) 380
Good visibility 186
GPS 255, 439
Gross Axle Weight Rating see GAWR
Gross Vehicle Weight Rating see GVWR
Gross Vehicle Weight see GVW
GVW 322
GVWR 323
H
Hand-held transmitter
Programming integrated remote
control 266
Hands-free microphone 29Hard plastic trim items
Cleaning 335
Hazard warning flasher 136
Switching off 136
Switching on 136
Head restraints 116
Headlamp cleaning system* 295
Headlamps
Automatic control 132
Bi-Xenon 437
Cleaning 332
Cleaning system* 186, 295
Refilling washer fluid 295
Switching off 57
Switching on 50
Headliner
Cleaning 335
Heated steering wheel* 253
Height adjustment
Head restraints 39
Steering wheel 40
