MERCEDES-BENZ S-Class 2008 W221 Comand Manual

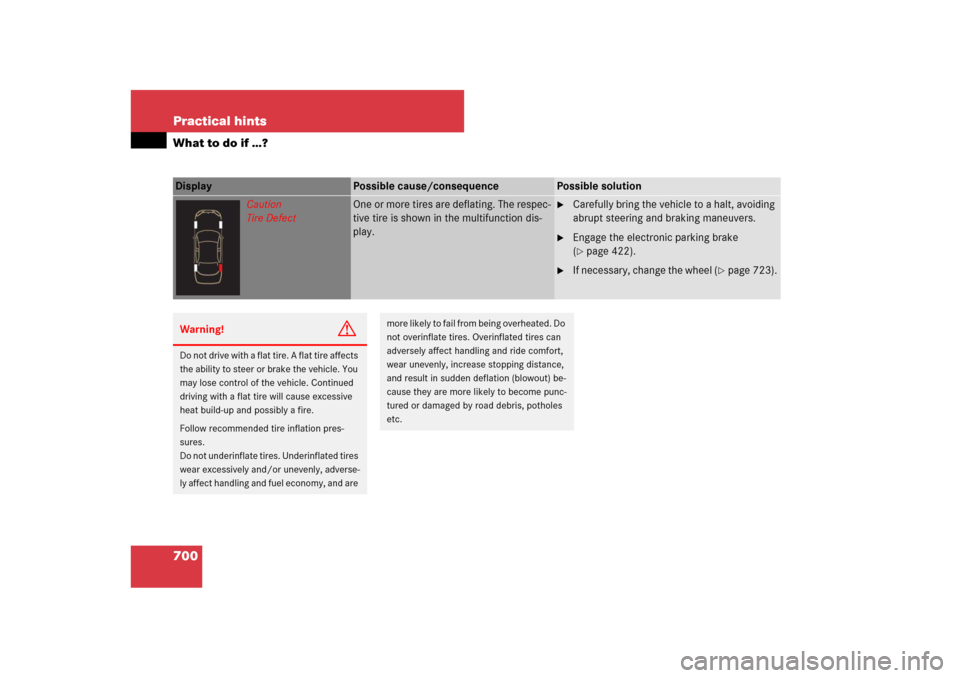

700 Practical hintsWhat to do if …?Display
Possible cause/consequence
Possible solution
Caution
Tire Defect
One or more tires are deflating. The respec-
tive tire is shown in the multifunction dis-
play.

Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.

Engage the electronic parking brake
(page 422).

If necessary, change the wheel (
page 723).
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle. Continued
driving with a flat tire will cause excessive
heat build-up and possibly a fire.
Follow recommended tire inflation pres-
sures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly, adverse-
ly affect handling and fuel economy, and are
more likely to fail from being overheated. Do
not overinflate tires. Overinflated tires can
adversely affect handling and ride comfort,
wear unevenly, increase stopping distance,
and result in sudden deflation (blowout) be-
cause they are more likely to become punc-
tured or damaged by road debris, potholes
etc.

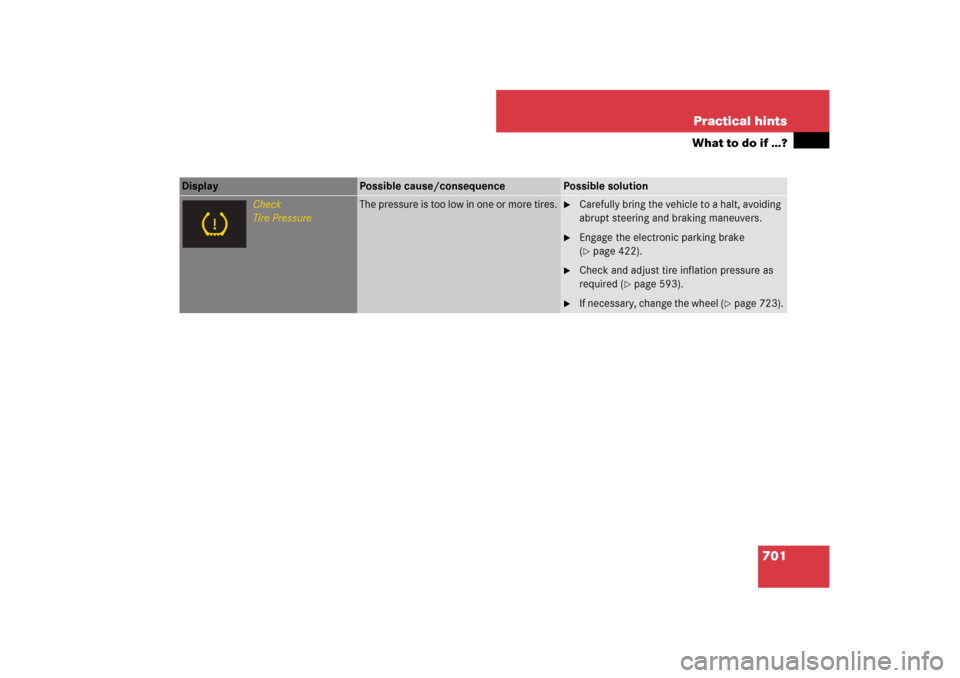

701 Practical hints
What to do if …?
Display
Possible cause/consequence
Possible solution
Check
Tire Pressure
The pressure is too low in one or more tires.

Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.

Engage the electronic parking brake
(page 422).

Check and adjust tire inflation pressure as
required (
page 593).

If necessary, change the wheel (
page 723).

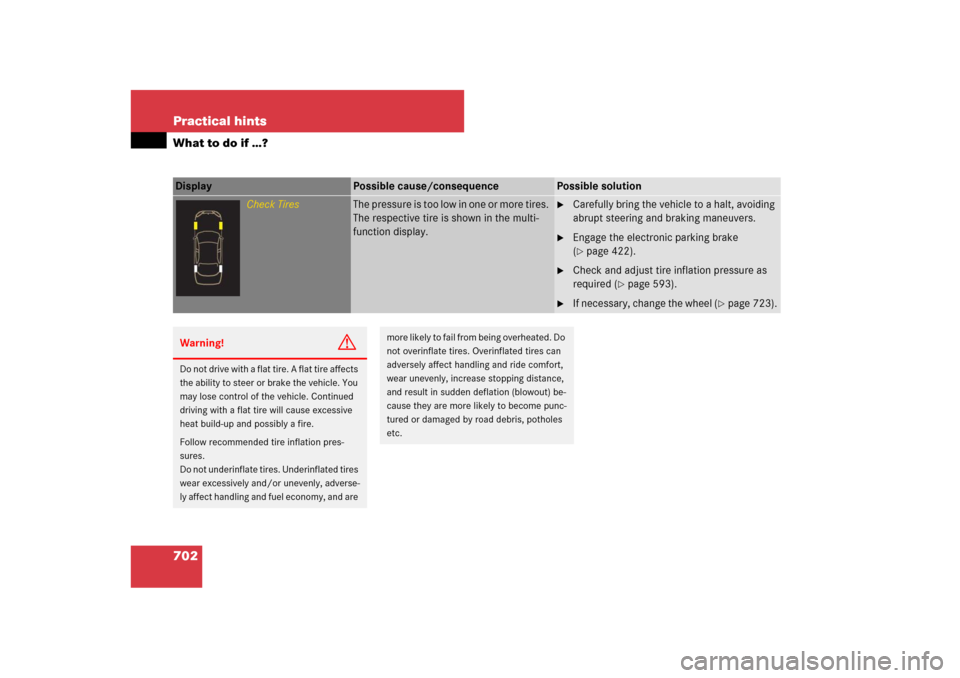

702 Practical hintsWhat to do if …?Display
Possible cause/consequence
Possible solution
Check Tires
The pressure is too low in one or more tires.
The respective tire is shown in the multi-
function display.

Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.

Engage the electronic parking brake
(page 422).

Check and adjust tire inflation pressure as
required (
page 593).

If necessary, change the wheel (
page 723).
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle. Continued
driving with a flat tire will cause excessive
heat build-up and possibly a fire.
Follow recommended tire inflation pres-
sures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly, adverse-
ly affect handling and fuel economy, and are
more likely to fail from being overheated. Do
not overinflate tires. Overinflated tires can
adversely affect handling and ride comfort,
wear unevenly, increase stopping distance,
and result in sudden deflation (blowout) be-
cause they are more likely to become punc-
tured or damaged by road debris, potholes
etc.

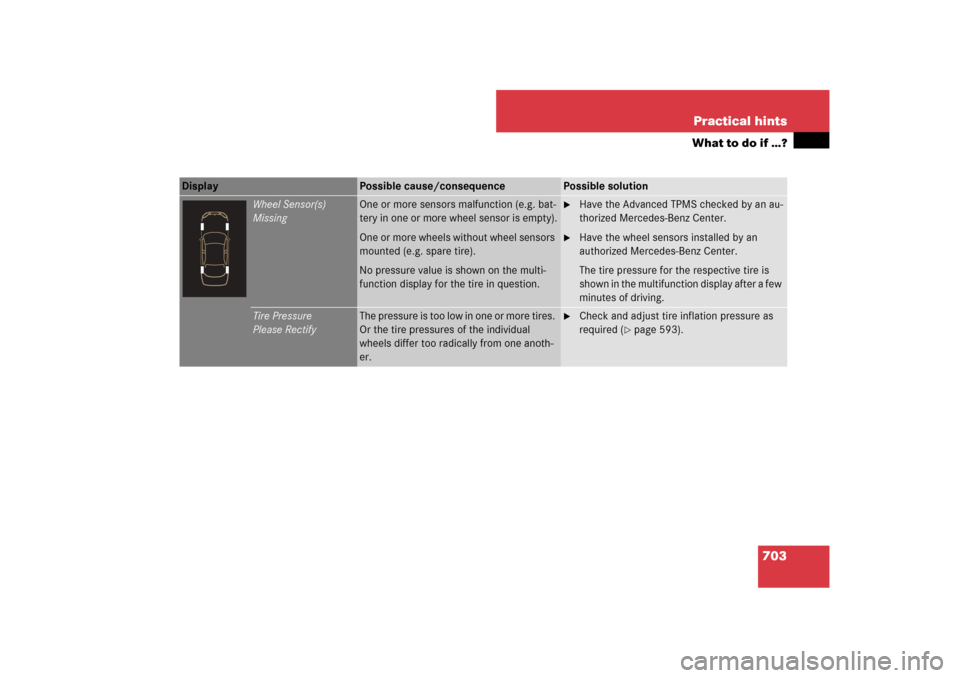

703 Practical hints
What to do if …?
Display
Possible cause/consequence
Possible solution
Wheel Sensor(s)
Missing
One or more sensors malfunction (e.g. bat-
tery in one or more wheel sensor is empty).
One or more wheels without wheel sensors
mounted (e.g. spare tire).
No pressure value is shown on the multi-
function display for the tire in question.

Have the Advanced TPMS checked by an au-
thorized Mercedes-Benz Center.

Have the wheel sensors installed by an
authorized Mercedes-Benz Center.
The tire pressure for the respective tire is
shown in the multifunction display after a few
minutes of driving.
Tire Pressure
Please Rectify
The pressure is too low in one or more tires.
Or the tire pressures of the individual
wheels differ too radically from one anoth-
er.

Check and adjust tire inflation pressure as
required (
page 593).

704 Practical hintsWhat to do if …?Display
Possible cause/consequence
Possible solution
Shift to P
You have attempted to turn off the engine
with the KEYLESS-GO* start/stop button
and opened the driver’s door with the auto-
matic transmission not shift to park
positionP.

Shift the automatic transmission to park
positionP (
page 426).
or

Close the driver’s door.
You are driving with the trunk open.

Close the trunk (
page 512).
Check
Washer Fluid
The water level has dropped to approx.
1.1 US qts (1.0 l).

Add washer fluid (
page 580).

705 Practical hints
Where will I find ...?
Where will I find ...?
First aid kit
The first aid kit is located in the storage
compartment under the front passenger
seat.
1Tab
2Cover
Pull tab1 upward.

Fold the covering forward in the direc-
tion of arrow.

Remove the first aid kit.
Vehicle jack, vehicle tool kit, luggage
bowl, Minispare wheel
The vehicle jack, Minispare wheel, the ve-
hicle tools, and the luggage bowl are
stored in the compartment underneath the
trunk floor.
Lift up trunk floor cover and engage
trunk floor handle in upper edge of
trunk.
You can now remove the tools and ac-
cessories.The vehicle tool kit includes:


Towing eye bolt


Wheel wrench with socket wrench


Alignment bolt


Pair of gloves


Fuse chart for the main fuse box


Collapsible wheel chock


Release tool for mechanically releasing
the electronic parking brake
The spare wheel bolts are fixed at the
Minispare wheel.
!
Always keep the storage compartment un-
der the front passenger seat closed while the ve-
hicle is in motion.
i
Check expiration dates and contents for
completeness at least once a year and replace
missing/expired items.
!
To prevent damage, always disengage trunk
floor handle from trunk lid and lower trunk floor
before closing the trunk.

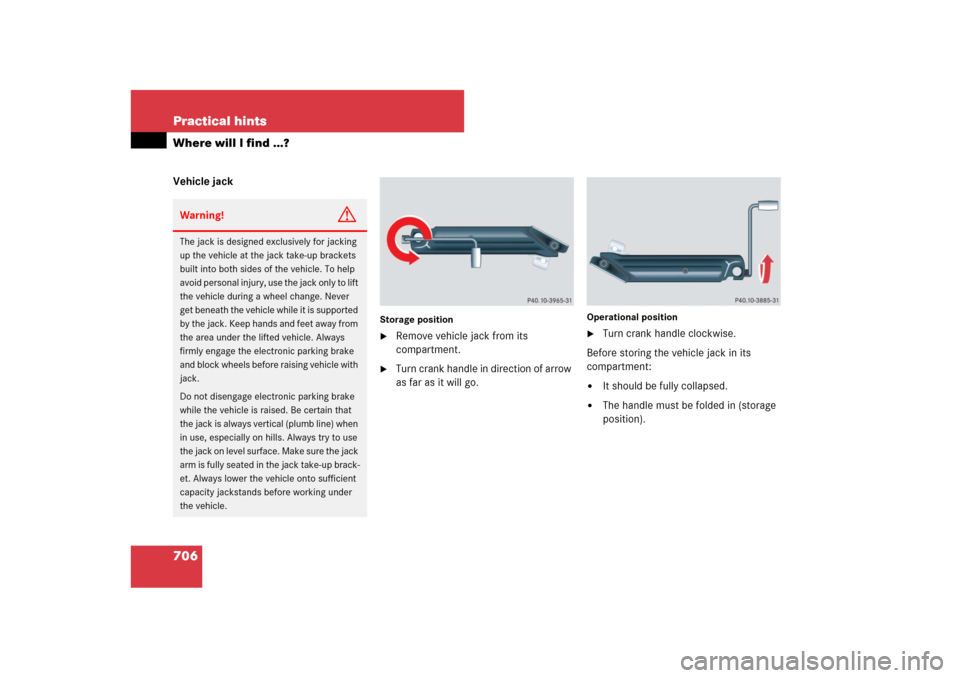

706 Practical hintsWhere will I find ...?Vehicle jack
Storage position
Remove vehicle jack from its
compartment.

Turn crank handle in direction of arrow
as far as it will go.
Operational position
Turn crank handle clockwise.
Before storing the vehicle jack in its
compartment:


It should be fully collapsed.


The handle must be folded in (storage
position).
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly engage the electronic parking brake
and block wheels before raising vehicle with
jack.
Do not disengage electronic parking brake
while the vehicle is raised. Be certain that
the jack is always vertical (plumb line) when
in use, especially on hills. Always try to use
the jack on level surface. Make sure the jack
arm is fully seated in the jack take-up brack-
et. Always lower the vehicle onto sufficient
capacity jackstands before working under
the vehicle.

707 Practical hints
Where will I find ...?
Minispare wheel
The Minispare wheel is stored in the com-
partment underneath the trunk floor.
1Minispare wheel with spare wheel bolts
in container on wheel rim
2Luggage bowl
3Vehicle tool kit, jack and collapsible
wheel chock
Removing the Minispare wheel
Turn luggage bowl2 counterclock-
wise.

Remove Minispare wheel1.Setting up the collapsible wheel chock
The collapsible wheel chock serves to
additionally secure the vehicle, e.g. while
changing the wheel.
1Tilt the plates upward
2Fold the lower plate outward
3Insert the plate

Tilt both plates upward1.

Fold the lower plate outward2.

Guide the tabs of the lower plate all the
way into the openings of the base
plate3.
For information on where to place wheel
chocks when changing a wheel, see “Lift-
ing the vehicle” (
page 724).

708 Practical hintsUnlocking/locking in an emergencyUnlocking the vehicle
If you cannot unlock the vehicle with the
SmartKey or KEYLESS-GO*, unlock the
driver’s door and the trunk using the me-
chanical key. Removing the mechanical key
1Mechanical key locking tab
2Mechanical key

Move locking tab1 in the direction of
arrow.

Slide mechanical key2 out of the
housing.Unlocking the driver’s door

Insert mechanical key2 into the driv-
er’s door lock until it stops.

Turn mechanical key2 counterclock-
wise to position 1 and hold it there.

Pull the door handle until the locking
knob moves up.
The driver’s door is unlocked.

Pull the door handle once more to open
the driver’s door.
i
Unlocking the vehicle with the mechanical
key and opening the driver’s door or the trunk
with the mechanical key will trigger the anti-theft
alarm system (
page 82).
To cancel the alarm, insert the SmartKey or
SmartKey with KEYLESS-GO* in the starter
switch.
1
Unlocking
2
Mechanical key

709 Practical hints
Unlocking/locking in an emergency
Unlocking the trunk
A minimum height clearance of 6.0 ft
(1.8 m) is required to open the trunk lid.
Insert the mechanical key2 into the
trunk lid lock until it stops.

Turn mechanical key2 all the way
counterclockwise to position 1.
The trunk opens.

Turn the mechanical key2 back and
remove it from the trunk lid lock.
Locking the vehicle
If you cannot lock the vehicle with the
SmartKey or KEYLESS-GO*, do the follow-
ing:
Close the front passenger door, the
rear right door and the trunk.

Open the driver’s door and the rear left
door.

Press the central locking switch on the
driver’s door (
page 369).
The locking knobs of the front passen-
ger door and the rear doors move
down.
If the vehicle battery is disconnected or
drained:

Press down the locking knobs of
the front passenger door and the
rear doors manually.

Exit the vehicle.

Check whether the trunk is locked.

If necessary, lock the trunk with the
mechanical key (
page 517).

Close the driver’s door.

Enter the vehicle through the rear left
door.

Press down the locking knob of the
driver’s door.

Exit the vehicle.

Close the rear left door.
The vehicle is locked.
1
Unlocking in an emergency
2
Mechanical key
!
The trunk lid swings open upwards automat-
ically. Always make sure that there is sufficient
overhead clearance.
i
If you cannot close the trunk with the re-
mote trunk opening/closing* switch, lower the
trunk lid manually and close it with hands placed
flat on the trunk lid until it is engaged in its lock.
!
To prevent inadvertent lockout, make sure
to have the SmartKey or SmartKey with
KEYLESS-GO* with you before proceeding with
the next step. The next step will lock the vehicle.
i
This procedure does not arm the anti-theft
alarm system nor does it lock the fuel filler flap.
