Contents
Introduction....................................... 13
Product information ............................. 13
Operator’s Manual ............................... 14
Service and warranty information .. 14
Important notice for California
retail buyers and lessees of
Mercedes-Benz automobiles .......... 15
Maintenance .................................. 15
Roadside Assistance ...................... 15
Change of address or ownership.... 16
Operating your vehicle outside the
USA or Canada............................... 16
Where to find it .................................... 17
Symbols ............................................... 18
Operating safety .................................. 19
Proper use of the vehicle ............... 19
Problems with your vehicle .................. 20
Reporting safety defects...................... 21
Reporting safety defects ................ 21
Vehicle data recording......................... 22
Information regarding electronic
recording devices........................... 22
At a glance.......................................... 23
Exterior view ......................................... 24
Cockpit ................................................. 26
Instrument cluster ................................ 28
Control systems ................................... 30
Center console ..................................... 32
Upper part ...................................... 32
Overhead control panel ........................ 33
Driver’s door control panel ................... 34
Rear door control panel ........................ 35
Storage compartments ......................... 36
Rear passenger compartment .............. 38Safety and Security............................ 39
Occupant safety ................................... 40
Air bags........................................... 42
Occupant Classification System ..... 47
Seat belts........................................ 52
Active head restraints ..................... 56
Preventive occupant safety
(PRE-SAFE
®).................................... 57
Children in the vehicle .................... 58
Override switch for rear passenger
compartment .................................. 64Panic alarm .......................................... 66
Activating........................................ 66
Deactivating.................................... 66
Driving safety systems ......................... 67
ABS ................................................. 67
Adaptive Brake ............................... 68
Adaptive Brake Lights
(S 600 and S 65 AMG, USA only).... 69
BAS ................................................. 69
BAS Plus* ....................................... 70
EBP ................................................. 72
ESP
®............................................... 72
Four wheel electronic traction
system (4MATIC) with the ESP
®..... 76
PRE-SAFE
® Brake* (vehicles with
DISTRONIC Plus* only) ................... 77
Anti-theft systems ................................ 82
Immobilizer ..................................... 82
Anti-theft alarm system .................. 82
Canceling the alarm ........................ 83

40 Safety and SecurityOccupant safetyIn this section you will learn the most im-
portant facts about the restraint systems
of the vehicle.
The restraint systems are

Seat belts (
page 52)


Child restraints (
page 58)


Lower Anchors and Tethers for
CHildren (LATCH) (
page 63)
Additional protection potential provide


Supplemental Restraint System (SRS)
with

Air bags (
page 42)


Air bag control unit (with crash
sensors)


Emergency Tensioning Device
(ETD) for seat belts (
page 55)


Seat belt force limiter (
page 55)


Preventive occupant safety
(PRE-SAFE
®) (page 57)


Active head restraints (
page 56)Air bag system components with


The front passenger front air bag off in-
dicator lamp (
page 51)


Front passenger seat with Occupant
Classification System (OCS)
(page 47)
Although independent systems, their pro-
tective functions work in conjunction with
each other.The SRS system conducts a self-test when
the ignition is switched on and in regular
intervals while the engine is running. This
facilitates early detection of malfunctions.
The =indicator lamp in the instrument
cluster (
page 28) comes on when the
ignition is switched on and goes out no lat-
er than a few seconds after the engine has
been started.
The SRS components are in operational
readiness when the =indicator lamp is
not lit when the engine is running.
A malfunction in the system has been
detected if the =indicator lamp:


fails to go out after approximately
4 seconds after the engine was started


does not come on at all


comes on after the engine was started
or while driving
i
For information on infants and children trav-
eling with you in the vehicle and restraint sys-
tems for infants and children, see “Children in
the vehicle” (
page 58).

43 Safety and Security
Occupant safety


Occupants, especially children, should
always sit as upright as possible, proper-
ly use the seat belts and use an appro-
priately sized infant restraint, toddler
restraint, or booster seat recommended
for the size and weight of the child.
Failure to follow these instructions can
result in severe injuries to you or other
occupants.
If you sell your vehicle, it is important that
you make the buyer aware of this safety
information. Be sure to give the buyer this
Operator’s Manual.
Warning!
G
Accident research shows that the safest
place for children in an automobile is in the
rear seat.
There is a possibility for a side impact air
bag related injury if occupants, especially
children, are not properly seated or re-
strained when next to a side impact air bag
which needs to deploy rapidly in a side im-
pact in order to do its job.
To help avoid the possibility of injury, please
follow these guidelines:
(1) Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door where the
side impact air bag inflates. This could
result in serious injuries or death should
the side impact air bag be deployed.
(2) Always sit as upright as possible, prop-
erly use the seat belts, and for all chil-
dren 12 years old and under, use an
appropriately sized infant restraint,
toddler restraint, or booster seat recom-
mended for the size and weight of the
child.
(3) Always wear seat belts properly.
If you believe that, even with the use of
these guidelines, it would be safer for your
rear seat occupants to have the rear mount-
ed side impact air bags deactivated, then
deactivation can be accomplished upon
your written request to do so at your autho-
rized Mercedes-Benz Center at an additional
cost.
Please contact your local authorized
Mercedes-Benz Center or call our Customer
Assistance Center at 1-800-FOR-MERCedes
(1-800-367-6372) for details.

48 Safety and SecurityOccupant safetyFurthermore, the occupant weight may ap-
pear to increase or decrease due to the fol-
lowing: objects hanging on the seat,
lodged underneath the seat, stuffed be-
tween the seat and middle console or the
seat and door, other passengers pushing
on the seat or objects applying pressure to
the back of the seat.
Both driver and the front passenger should
always use the 59indicator
lamp as an indication of whether or not the
front passenger is properly positioned.i
If your seat, including your trim cover and
cushion needs to be serviced in any way, take
the vehicle to an authorized Mercedes-Benz
Center.
Only seat accessories approved by
Mercedes-Benz may be used.
Warning!
G
If the 59indicator lamp illumi-
nates when an adult or someone larger than
a small individual is in the front passenger
seat, have the front passenger re-position
himself or herself in the seat until the
59indicator lamp goes out, or
check whether objects are caught under or
around the seat.
More information about air bag display mes-
sages (
page 649).
In the event of a collision, the air bag control
unit will not allow front passenger front air
bag deployment when the OCS classified
the front passenger seat occupant as being
up to or less than the weight of a typical
12-month-old child in a standard child re-
straint or if the front passenger seat is
sensed as being empty.
When the OCS senses that the front passen-
ger seat occupant is classified as being up
to or less than the weight of a typical
12-month-old child in a standard child
restraint, the 59indicator
lamp will illuminate when the engine is start-
ed and remain illuminated, indicating that
the front passenger front air bag is deacti-
vated.
When the OCS senses that the front passen-
ger seat is classified as being empty, the
59indicator lamp will illumi-
nate when the engine is started and remain
illuminated, indicating that the front
passenger front air bag is deactivated.
When the OCS senses that the front passen-
ger seat occupant is classified as being
heavier than the weight of a typical
12-month-old child seated in a standard
child restraint or as being a small individual
(such as a young teenager or a small adult),
the 59indicator lamp will illu-
minate for approximately 6 seconds when
the engine is started and then, depending on
occupant weight sensor readings from

49 Safety and Security
Occupant safety
the seat, remain illuminated or go out. With
the 59indicator lamp illumi-
nated, the front passenger front air bag is
deactivated. With the 59 indi-
cator lamp out, the front passenger front air
bag is activated.
When the OCS senses that the front passen-
g e r s e a t o c c u p a n t i s c l a s s i f i e d a s a n a d u l t o r
someone larger than a small individual, the
59indicator lamp will illumi-
nate for approximately 6 seconds when the
engine is started and then go out, indicating
that the front passenger front air bag is
activated.
If the 59indicator lamp is illu-
minated, the front passenger front air bag is
deactivated and will not be deployed.
If the 59indicator lamp is not
illuminated, the front passenger front air
bag is activated and will be deployed:

in the event of certain frontal impacts


if impact exceeds a preset deployment
threshold


independently of the side impact air
bags
If the front passenger air bag is deployed,
the rate of inflation will be influenced by:


the rate of relevant vehicle deceleration
as assessed by the air bag control unit


front passenger’s weight category as
identified by the Occupant Classification
System (OCS).
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant or child restraint
recommended for the size and weight of the
child.
The infant or child restraint must be properly
secured with the vehicle’s seat belt, the seat
belt and top tether strap, or lower anchors
and top tether strap, fully in accordance
with the child seat manufacturer’s
instructions.
Children can be killed or seriously injured by
an inflating air bag. Note the following im-
portant information when circumstances re-
quire you to place a child in the front
passenger seat:

Your vehicle is equipped with air bag
technology designed to turn off the front
passenger front air bag in your vehicle
when the system senses the weight of a
typical 12-month-old child or less along
with the weight of a standard appropri-
ate child restraint on the front passen-
ger seat.

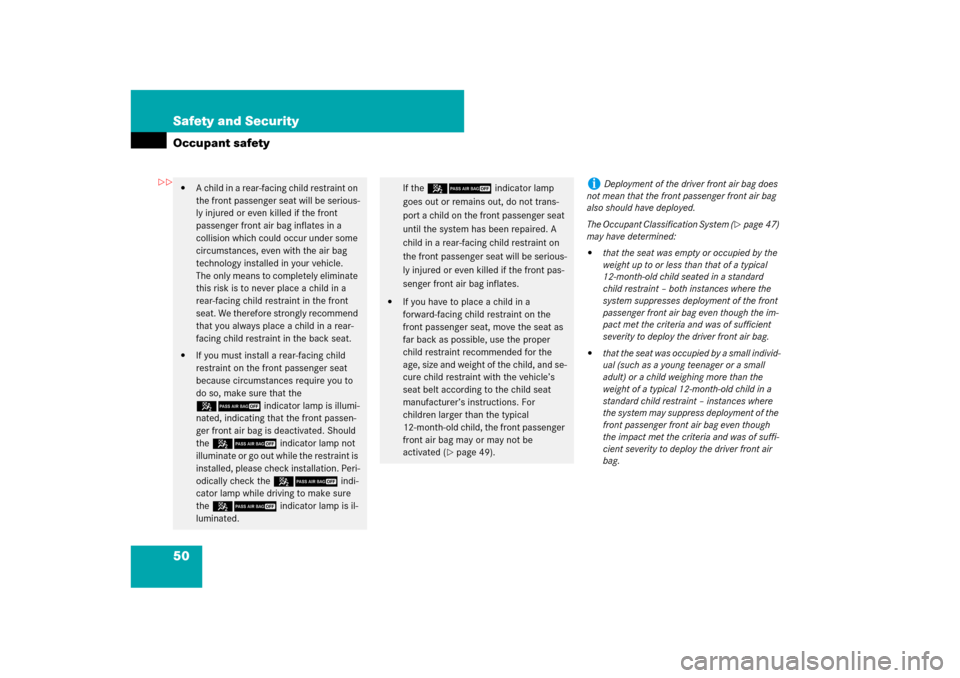

50 Safety and SecurityOccupant safety

A child in a rear-facing child restraint on
the front passenger seat will be serious-
ly injured or even killed if the front
passenger front air bag inflates in a
collision which could occur under some
circumstances, even with the air bag
technology installed in your vehicle.
The only means to completely eliminate
this risk is to never place a child in a
rear-facing child restraint in the front
seat. We therefore strongly recommend
that you always place a child in a rear-
facing child restraint in the back seat.


If you must install a rear-facing child
restraint on the front passenger seat
because circumstances require you to
do so, make sure that the
59 indicator lamp is illumi-
nated, indicating that the front passen-
ger front air bag is deactivated. Should
the 59 indicator lamp not
illuminate or go out while the restraint is
installed, please check installation. Peri-
odically check the 59 indi-
cator lamp while driving to make sure
the 59 indicator lamp is il-
luminated.
If the 59indicator lamp
goes out or remains out, do not trans-
port a child on the front passenger seat
until the system has been repaired. A
child in a rear-facing child restraint on
the front passenger seat will be serious-
ly injured or even killed if the front pas-
senger front air bag inflates.


If you have to place a child in a
forward-facing child restraint on the
front passenger seat, move the seat as
far back as possible, use the proper
child restraint recommended for the
age, size and weight of the child, and se-
cure child restraint with the vehicle’s
seat belt according to the child seat
manufacturer’s instructions. For
children larger than the typical
12-month-old child, the front passenger
front air bag may or may not be
activated (
page 49).
i
Deployment of the driver front air bag does
not mean that the front passenger front air bag
also should have deployed.
The Occupant Classification System (
page 47)
may have determined:


that the seat was empty or occupied by the
weight up to or less than that of a typical
12-month-old child seated in a standard
child restraint – both instances where the
system suppresses deployment of the front
passenger front air bag even though the im-
pact met the criteria and was of sufficient
severity to deploy the driver front air bag.


that the seat was occupied by a small individ-
ual (such as a young teenager or a small
adult) or a child weighing more than the
weight of a typical 12-month-old child in a
standard child restraint – instances where
the system may suppress deployment of the
front passenger front air bag even though
the impact met the criteria and was of suffi-
cient severity to deploy the driver front air
bag.


52 Safety and SecurityOccupant safetySelf-test Occupant Classification
System
After turning the SmartKey in the starter
switch to position1 or2 or pressing the
KEYLESS-GO* start/stop button once or
twice (
page 372), the 59
indicator lamp1 located in the center
console illuminates. If an adult occupant is
properly sitting on the front passenger
seat and the system senses the occupant
as being an adult, the 59 indi-
cator lamp will illuminate and go out after
approximately 6 seconds.
If the seat is not occupied and the system
senses the front passenger seat as being
empty, the 59indicator lamp
will illuminate and not go out.For more information, see the “Practical
hints” section (
page 640).
Seat belts
The use of seat belts and infant and child
restraint systems is required by law in all
50 states, the District of Columbia, the
U.S. territories and all Canadian provinces.
Even where this is not the case, all vehicle
occupants should have their seat belts fas-
tened whenever the vehicle is in motion.
Warning!
G
If the 59 indicator lamp should
not illuminate, the system is not functioning.
You must contact an authorized
Mercedes-Benz Center before seating any
child on the front passenger seat.Warning!
G
Never place anything between seat cushion
(e.g. pillow), since it reduces the effective-
ness of the Occupant Classification System.
The bottom of the child seat must make full
contact with the passenger seat cushion. An
incorrectly mounted child seat could cause
injuries to the child in case of an accident,
instead of increasing protection for the
child.
Follow the manufacturer’s instructions for
installation of child seats.

53 Safety and Security
Occupant safety
For more information, see “Fastening the
seat belts” (
page 395).
i
For information on infants and children trav-
eling with you in the vehicle and restraint sys-
tems for infants and children, see “Children in
the vehicle” (
page 58).
Warning!
G
Always fasten your seat belt before driving
off. Always make sure all of your passengers
are properly restrained.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled.
Without your seat belt buckled, you are
much more likely to hit the interior of the ve-
hicle or be ejected from it. You can be seri-
ously injured or killed.
In the same crash, the possibility of injury or
death is lessened if you are properly wearing
your seat belt. Air bags can only protect as
they are designed if the occupants are prop-
erly wearing their seat belts.Warning!
G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the seat belt would apply force at
the abdomen or neck. That could cause se-
rious or even fatal injuries. The seat back-
rest and seat belt provide the best restraint
when the wearer is in a nearly upright posi-
tion and the seat belt is properly positioned
on the body.
Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Make
sure everyone riding in the vehicle is cor-
rectly restrained with a separate seat belt.
Never use a seat belt for more than one per-
son at a time.Warning!
G
Damaged seat belts or seat belts that were
highly stressed in an accident must be re-
placed and their anchoring points must also
be checked.
Only use seat belts which have been
approved by Mercedes-Benz.
Do not make any modifications to the seat
belts. This can lead to unintended activation
of the ETDs or to failure.


55 Safety and Security
Occupant safety
Enhanced seat belt reminder system
When the engine is started, the seat belt
telltale< will always illuminate for
6 seconds to remind you and your passen-
gers to fasten your seat belts.
If the driver’s seat belt is not fastened
when the engine is started, an additional
warning chime will also sound for a maxi-
mum of 6 seconds or until the driver’ s
seat belt is fastened.
If after these 6 seconds the driver’s or the
front passenger’s seat belt (with the front
passenger seat occupied) is not fastened
with front doors closed,

the seat belt telltale< remains illu-
minated for as long as either the driv-
er’s or front passenger’s seat belt is not
fastened.


and if the vehicle speed once exceeds
15 mph (25 km/h), the seat belt
telltale< starts flashing and a
warning chime sounds with increasing
intensity for a maximum of 60 seconds
or until the driver’s and the front pas-
senger’s seat belt are fastened.
If the driver’s or the front passenger’s
seat belt remains unfastened after
60 seconds, the warning chime stops
sounding, the seat belt telltale<
stops flashing but continues to be illu-
minated.
The seat belt telltale< will only go out
if both the driver’s and the front passen-
ger’s seat belt (with the front passenger
seat occupied) are fastened, or the vehicle
is standing still and a front door is opened.
For more information, see “Practical hints”
(
page 635).Emergency tensioning device (ETD),
seat belt force limiter
The seat belts for the front and rear outer
seats are equipped with emergency ten-
sioning devices and seat belt force limit-
ers.
The ETD is designed to activate in the
following cases:


in frontal or rear-end impacts exceed-
ing the system deployment threshold


in side impacts exceeding the system’s
deployment threshold on the far side of
the impact


in certain vehicle rollovers


if the restraint systems are operational
and functioning correctly,
see=indicator lamp (
page 637)


When using a seat belt to secure infant
restraint, toddler restraint, or booster
seat, always follow the child seat manu-
facturer’s instructions.
i
The ETDs for the front seats will only acti-
vate if the front seat belt is fastened (latch plate
properly inserted into buckle).
The ETDs for the rear outer seats will activate
with or without the respective seat belt fastened.

58 Safety and SecurityOccupant safetyPRE-SAFE
® takes action in the following in-
stances:


Emergency braking situations, e.g.
when BAS (
page 69) is activated or
when BAS Plus* (
page 70) is strongly
intervening.


Critical dynamic driving situations, e.g.
when the vehicle is understeering or
oversteering because it has exceeded
its physical limitations.


Evasive steering maneuvers at speeds
above 20 mph (30 km/h).
When you are driving faster than 20 mph
(30 km/h), PRE-SAFE
® takes the following
measures in such situations:


The front seat belts are pre-tensioned
electrically.


If the OCS senses that the front pas-
senger seat is occupied and the seat is
in an unfavorable position, it will be
adjusted to a better position.


If the vehicle is equipped with power
adjustable rear seats* and the passen-
ger outer seats are in an unfavorable
position, they will be adjusted to a bet-
ter position.


The system increases the air pressure
in the air pockets (on the sides of the
seat cushion and backrest) of the mul-
ticontour* and/or drive-dynamic front
seats*.


If the vehicle is understeering or over-
steering, the tilt/sliding sunroof and
the door windows also close until only
a small gap remains.
Once the hazardous situation is over with-
out an accident occurring, PRE-SAFE
®
loosens the seat belt pre-tension and de-
creases the air pressure in the air pockets
of the multicontour and drive-dynamic
seats*. You can readjust all of the settings
made by PRE-SAFE
®.If the seat belts do not release:

Adjust the backrest or seat slightly to
the rear until the seat belt tension is di-
minished.
The locking mechanism releases.
Children in the vehicle
If an infant or child is traveling with you in
the vehicle:
Secure the child using an infant or child
restraint appropriate to the age and
size of the child.

Make sure the infant or child is
properly secured at all times while the
vehicle is in motion.
i
If the closing procedure of the tilt/sliding
sunroof or power windows is blocked, the
tilt/sliding sunroof or power windows will stop
and open slightly.
!
When moving the seat, make sure there are
no items in the footwell or behind the seats. Oth-
erwise you could damage the seats.
