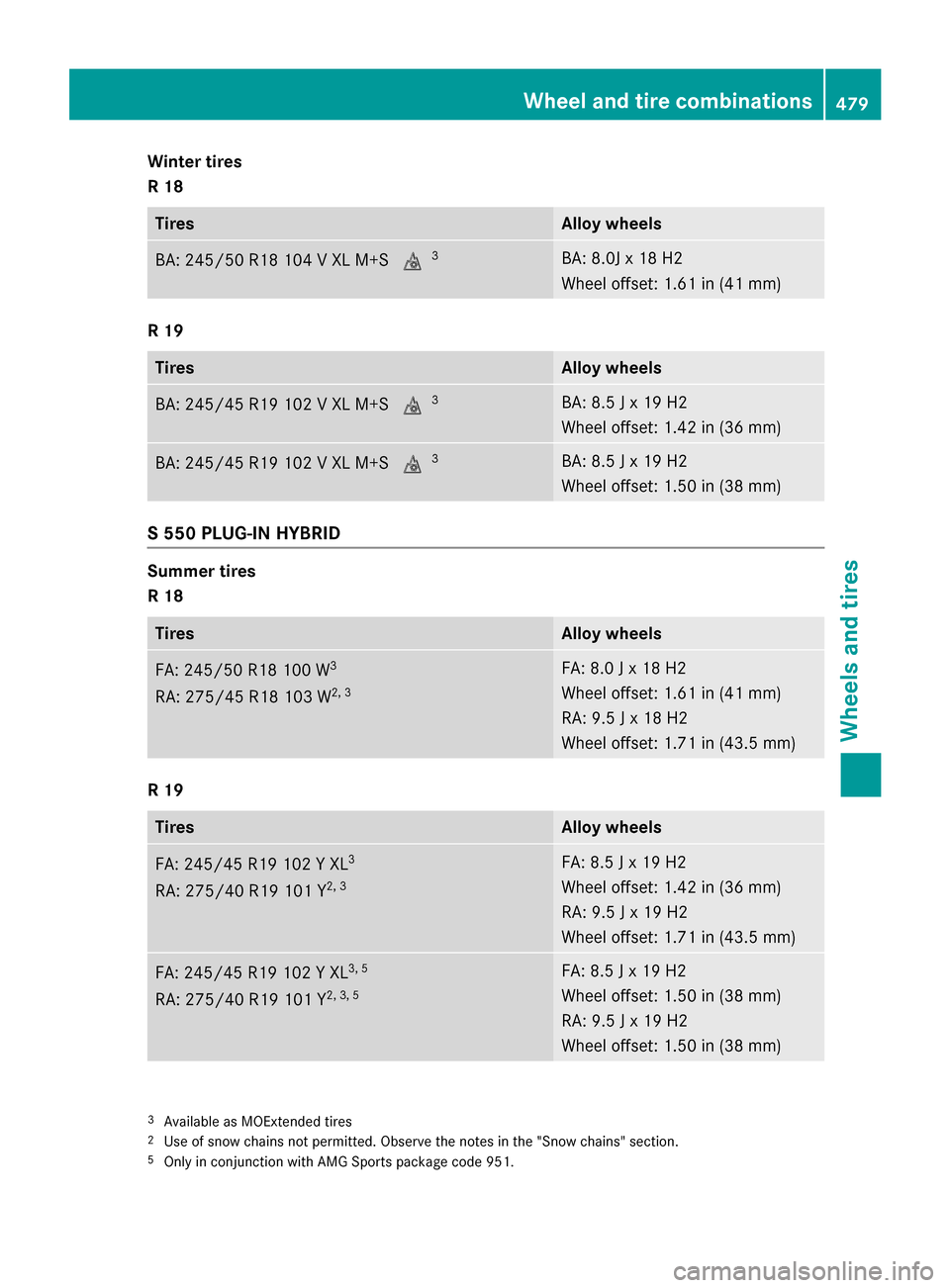

Page 481 of 502

Winter tires
R 18
Tires Alloy wheels
BA: 245/50 R18 104 V XL M+S
i3 BA: 8.0J x 18 H2
Wheel offset: 1.61 in (41 mm)
R 19
Tires Alloy wheels
BA: 245/45 R19 102 V XL M+S
i3 BA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
BA: 245/45 R19 102 V XL M+S
i3 BA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
S 550 PLUG-IN HYBRID
Summer tires
R 18
Tires Alloy wheels
FA: 245/50 R18 100 W
3
RA: 275/45 R18 103 W 2, 3 FA: 8.0 J x 18 H2
Wheel offset: 1.61 in (41 mm)
RA: 9.5 J x 18 H2
Wheel offset: 1.71 in (43.5 mm)
R 19
Tires Alloy wheels
FA: 245/45 R19 102 Y XL
3
RA: 275/40 R19 101 Y 2, 3 FA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
FA: 245/45 R19 102 Y XL
3, 5
RA: 275/40 R19 101 Y 2, 3, 5 FA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
3
Available as MOExtended tires
2 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
5 Only in conjunction with AMG Sports package code 951. Wheel and tire combinations
479Wheels and tires Z

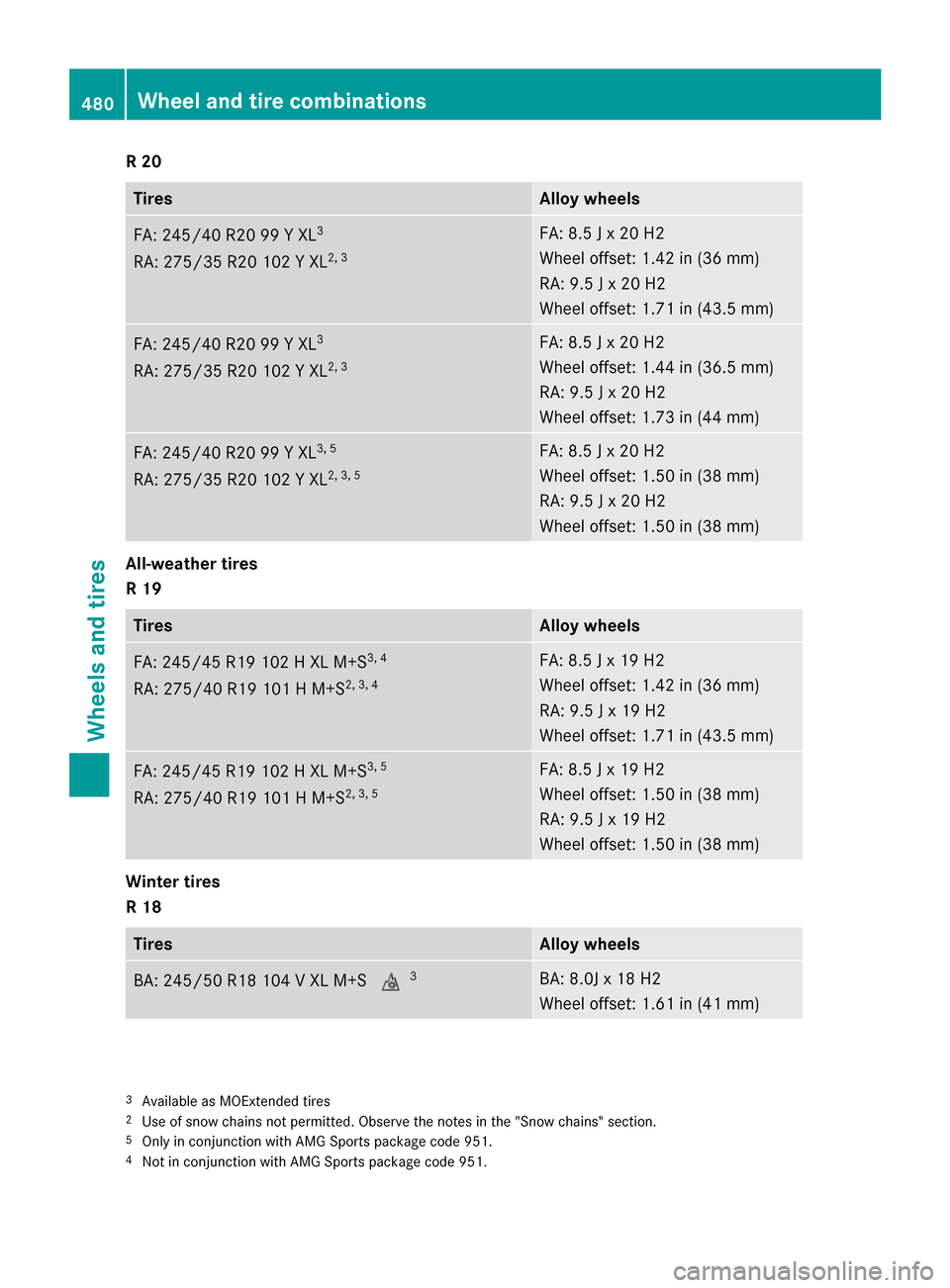

Page 482 of 502

R 20
Tires Alloy wheels
FA: 245/40 R20 99 Y XL
3
RA: 275/35 R20 102 Y XL 2, 3 FA: 8.5 J x 20 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.71 in (43.5 mm)
FA: 245/40 R20 99 Y XL
3
RA: 275/35 R20 102 Y XL 2, 3 FA: 8.5 J x 20 H2
Wheel offset: 1.44 in (36.5 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.73 in (44 mm)
FA: 245/40 R20 99 Y XL
3, 5
RA: 275/35 R20 102 Y XL 2, 3, 5 FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
All-weather tires
R 19 Tires Alloy wheels
FA: 245/45 R19 102 H XL M+S
3, 4
RA: 275/40 R19 101 H M+S 2, 3, 4 FA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
FA: 245/45 R19 102 H XL M+S
3, 5
RA: 275/40 R19 101 H M+S 2, 3, 5 FA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
Winter tires
R 18
Tires Alloy wheels
BA: 245/50 R18 104 V XL M+S
i3 BA: 8.0J x 18 H2
Wheel offset: 1.61 in (41 mm)
3
Available as MOExtended tires
2 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
5 Only in conjunction with AMG Sports package code 951.
4 Not in conjunction with AMG Sports package code 951. 480
Wheel and tire combinationsWheels and tires

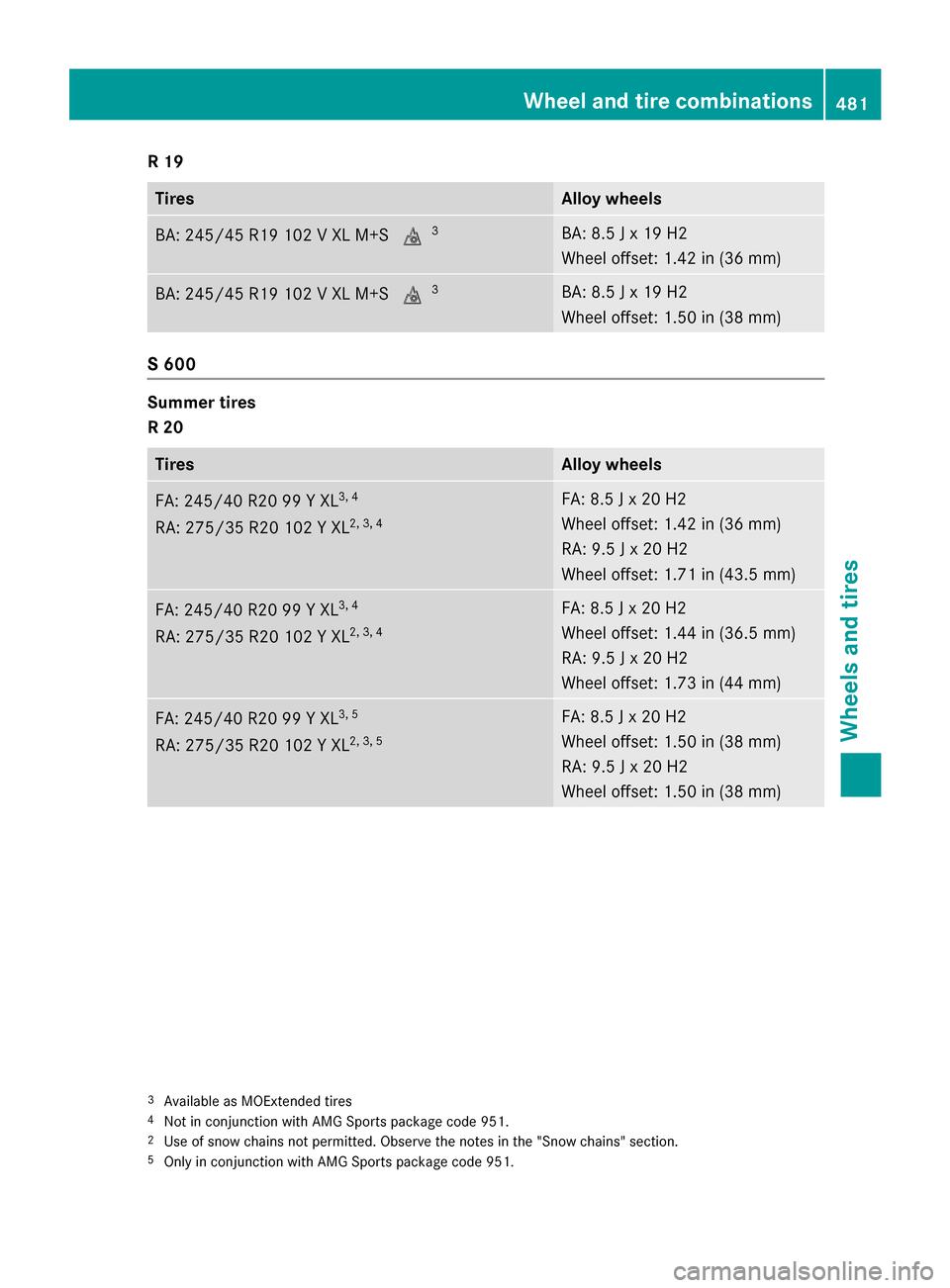

Page 483 of 502

R 19
Tires Alloy wheels
BA: 245/45 R19 102 V XL M+S
i3 BA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
BA: 245/45 R19 102 V XL M+S
i3 BA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
S 600
Summer tires
R 20
Tires Alloy wheels
FA: 245/40 R20 99 Y XL
3, 4
RA: 275/35 R20 102 Y XL 2, 3, 4 FA: 8.5 J x 20 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.71 in (43.5 mm)
FA: 245/40 R20 99 Y XL
3, 4
RA: 275/35 R20 102 Y XL 2, 3, 4 FA: 8.5 J x 20 H2
Wheel offset: 1.44 in (36.5 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.73 in (44 mm)
FA: 245/40 R20 99 Y XL
3, 5
RA: 275/35 R20 102 Y XL 2, 3, 5 FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
3
Available as MOExtended tires
4 Not in conjunction with AMG Sports package code 951.
2 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
5 Only in conjunction with AMG Sports package code 951. Wheel and tire combinations
481Wheels and tires Z

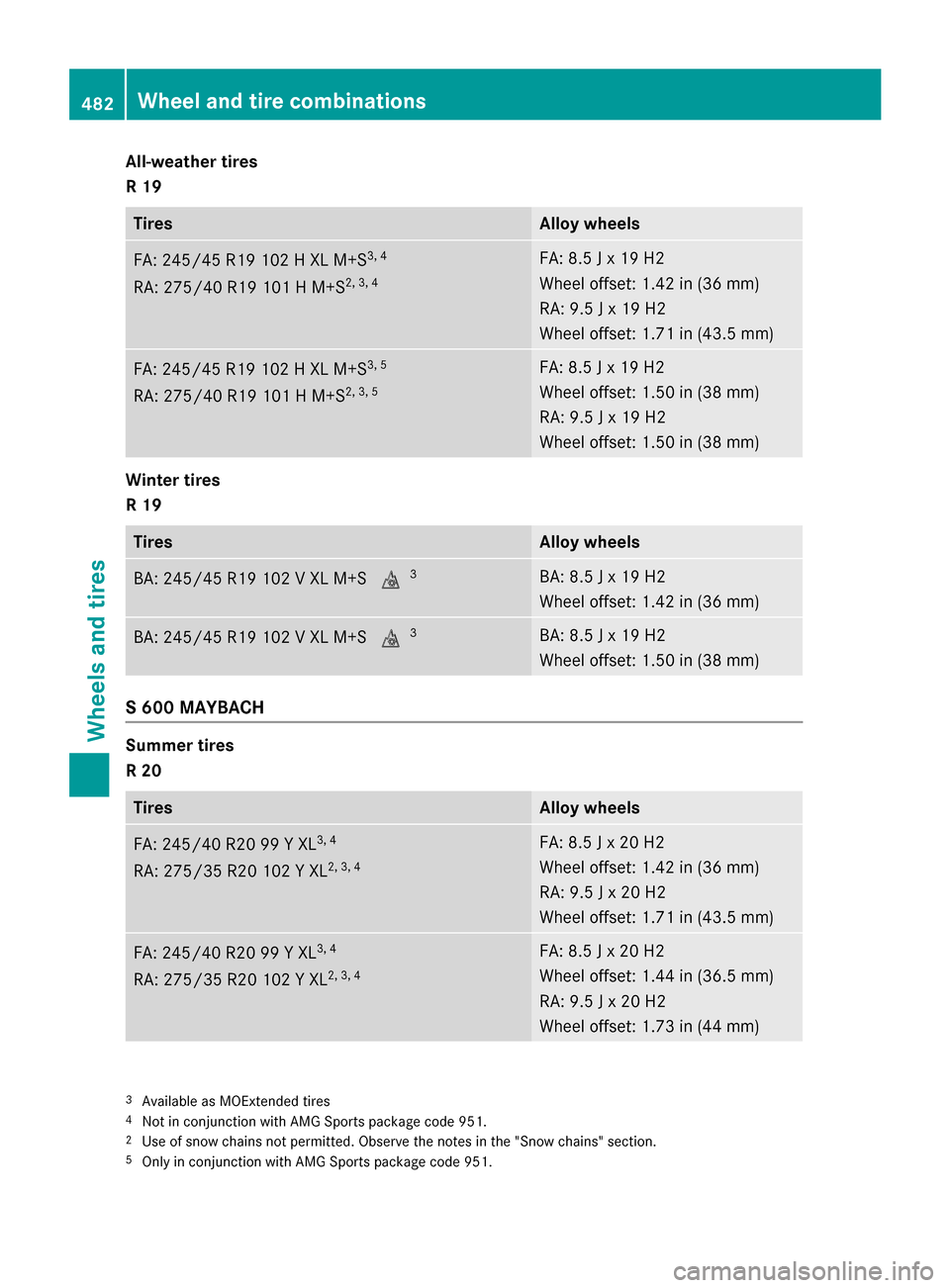

Page 484 of 502

All-weather tires
R 19
Tires Alloy wheels
FA: 245/45 R19 102 H XL M+S
3, 4
RA: 275/40 R19 101 H M+S 2, 3, 4 FA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
FA: 245/45 R19 102 H XL M+S
3, 5
RA: 275/40 R19 101 H M+S 2, 3, 5 FA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
Winter tires
R 19
Tires Alloy wheels
BA: 245/45 R19 102 V XL M+S
i3 BA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
BA: 245/45 R19 102 V XL M+S
i3 BA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
S 600 MAYBACH
Summer tires
R 20 Tires Alloy wheels
FA: 245/40 R20 99 Y XL
3, 4
RA: 275/35 R20 102 Y XL 2, 3, 4 FA: 8.5 J x 20 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.71 in (43.5 mm)
FA: 245/40 R20 99 Y XL
3, 4
RA: 275/35 R20 102 Y XL 2, 3, 4 FA: 8.5 J x 20 H2
Wheel offset: 1.44 in (36.5 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.73 in (44 mm)
3
Available as MOExtended tires
4 Not in conjunction with AMG Sports package code 951.
2 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
5 Only in conjunction with AMG Sports package code 951. 482
Wheel and tire combinationsWheels and ti
res

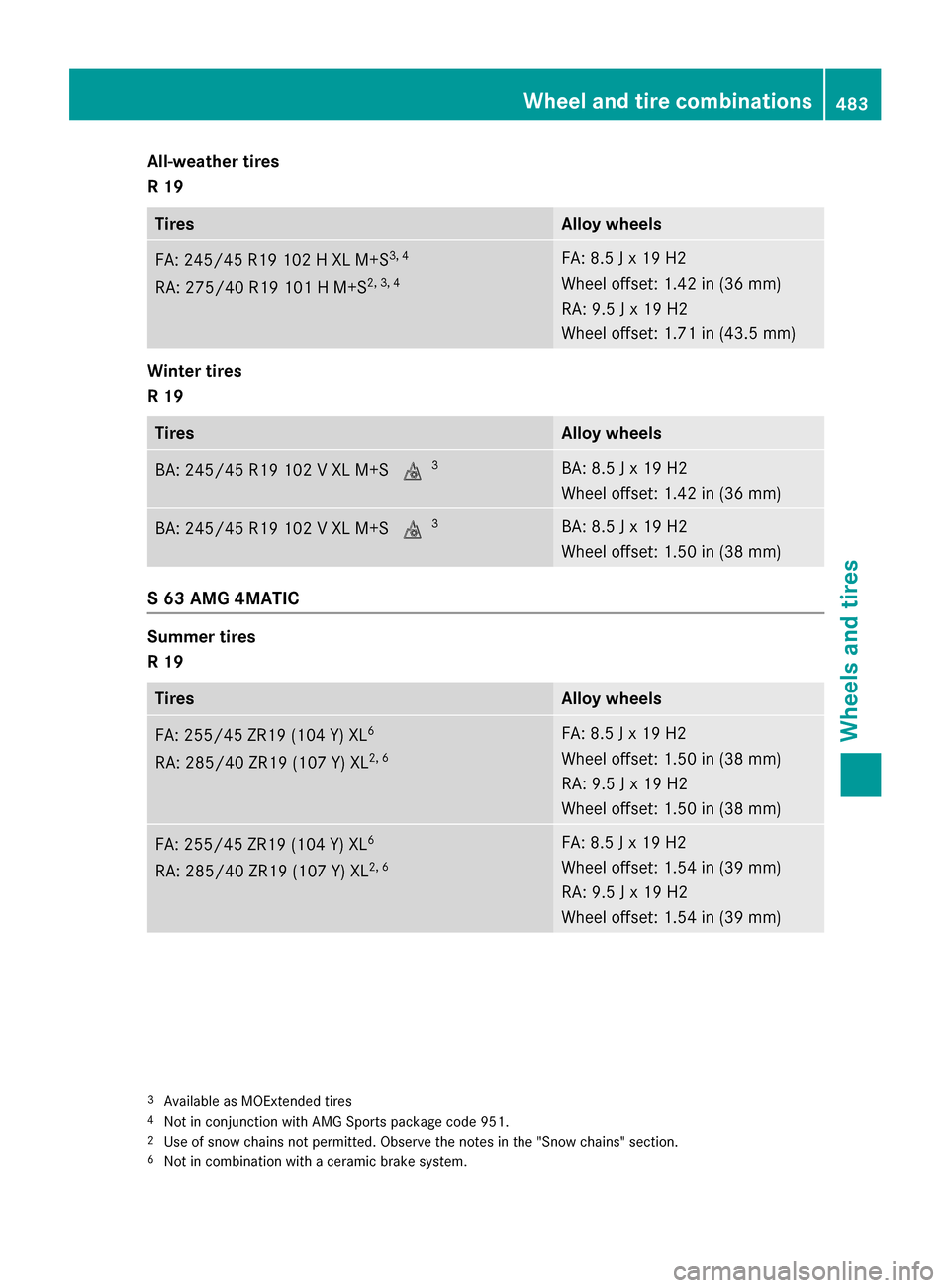

Page 485 of 502

All-weather tires
R 19
Tires Alloy wheels
FA: 245/45 R19 102 H XL M+S
3, 4
RA: 275/40 R19 101 H M+S 2, 3, 4 FA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
Winter tires
R 19
Tires Alloy wheels
BA: 245/45 R19 102 V XL M+S
i3 BA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
BA: 245/45 R19 102 V XL M+S
i3 BA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
S 63 AMG 4MATIC
Summer tires
R 19
Tires Alloy wheels
FA: 255/45 ZR19 (104 Y) XL
6
RA: 285/40 ZR19 (107 Y) XL 2, 6 FA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/45 ZR19 (104 Y) XL
6
RA: 285/40 ZR19 (107 Y) XL 2, 6 FA: 8.5 J x 19 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.54 in (39 mm)
3
Available as MOExtended tires
4 Not in conjunction with AMG Sports package code 951.
2 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
6 Not in combination with a ceramic brake system. Wheel and tire combinations
483Wheels and tires Z

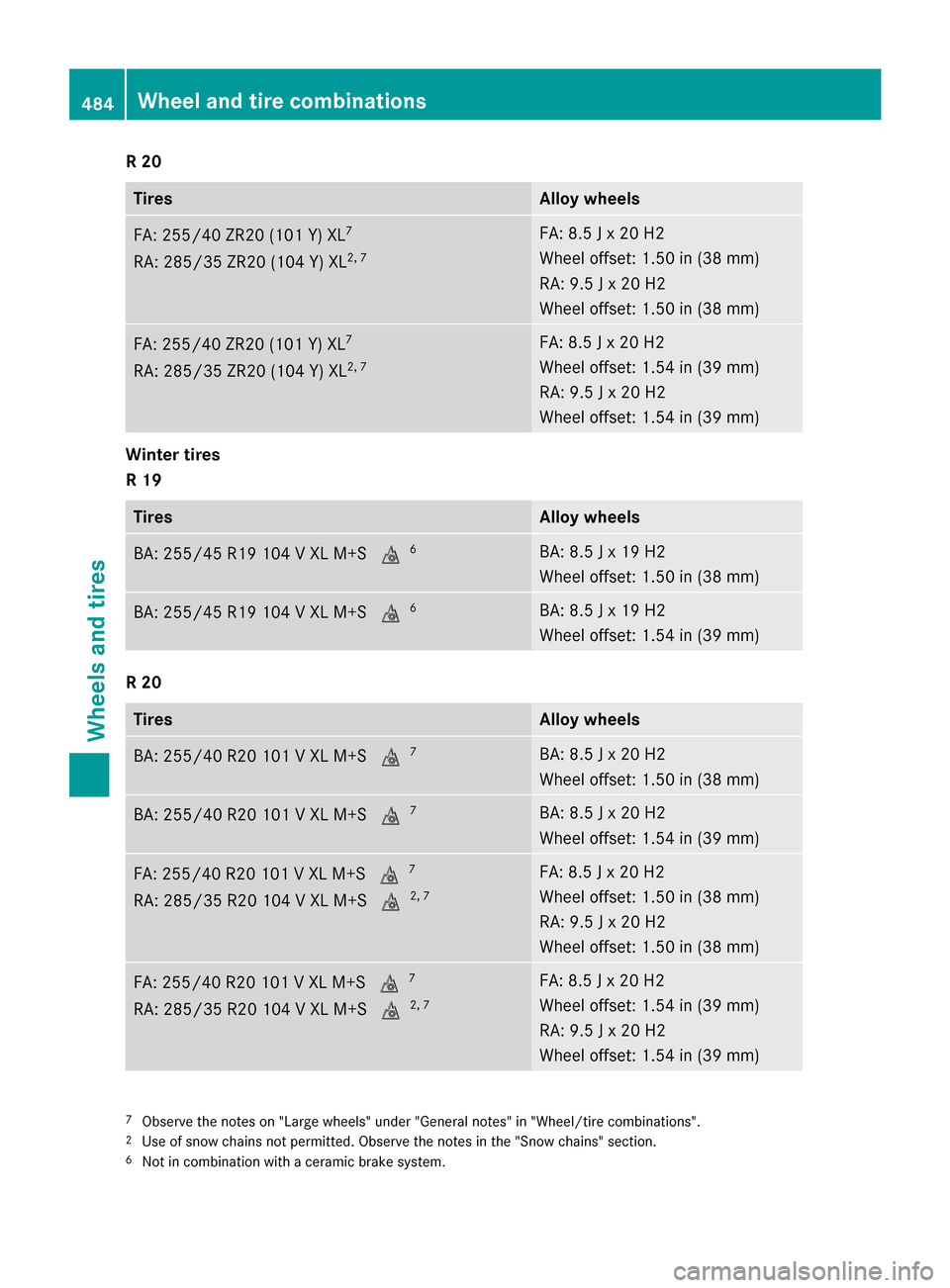

Page 486 of 502

R 20
Tires Alloy wheels
FA: 255/40 ZR20 (101 Y) XL
7
RA: 285/35 ZR20 (104 Y) XL 2, 7 FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 ZR20 (101 Y) XL
7
RA: 285/35 ZR20 (104 Y) XL 2, 7 FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
Winter tires
R 19
Tires Alloy wheels
BA: 255/45 R19 104 V XL M+S
i6 BA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
BA: 255/45 R19 104 V XL M+S
i6 BA: 8.5 J x 19 H2
Wheel offset: 1.54 in (39 mm)
R 20
Tires Alloy wheels
BA: 255/40 R20 101 V XL M+S
i7 BA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
BA: 255/40 R20 101 V XL M+S
i7 BA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
FA: 255/40 R20 101 V XL M+S
i7
RA: 285/35 R20 104 V XL M+S i2, 7 FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 R20 101 V XL M+S
i7
RA: 285/35 R20 104 V XL M+S i2, 7 FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
7
Observe the notes on "Large wheels" under "General notes" in "Wheel/tire combinations".
2 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
6 Not in combination with a ceramic brake system. 484
Wheel and tire combinationsWheels and tires

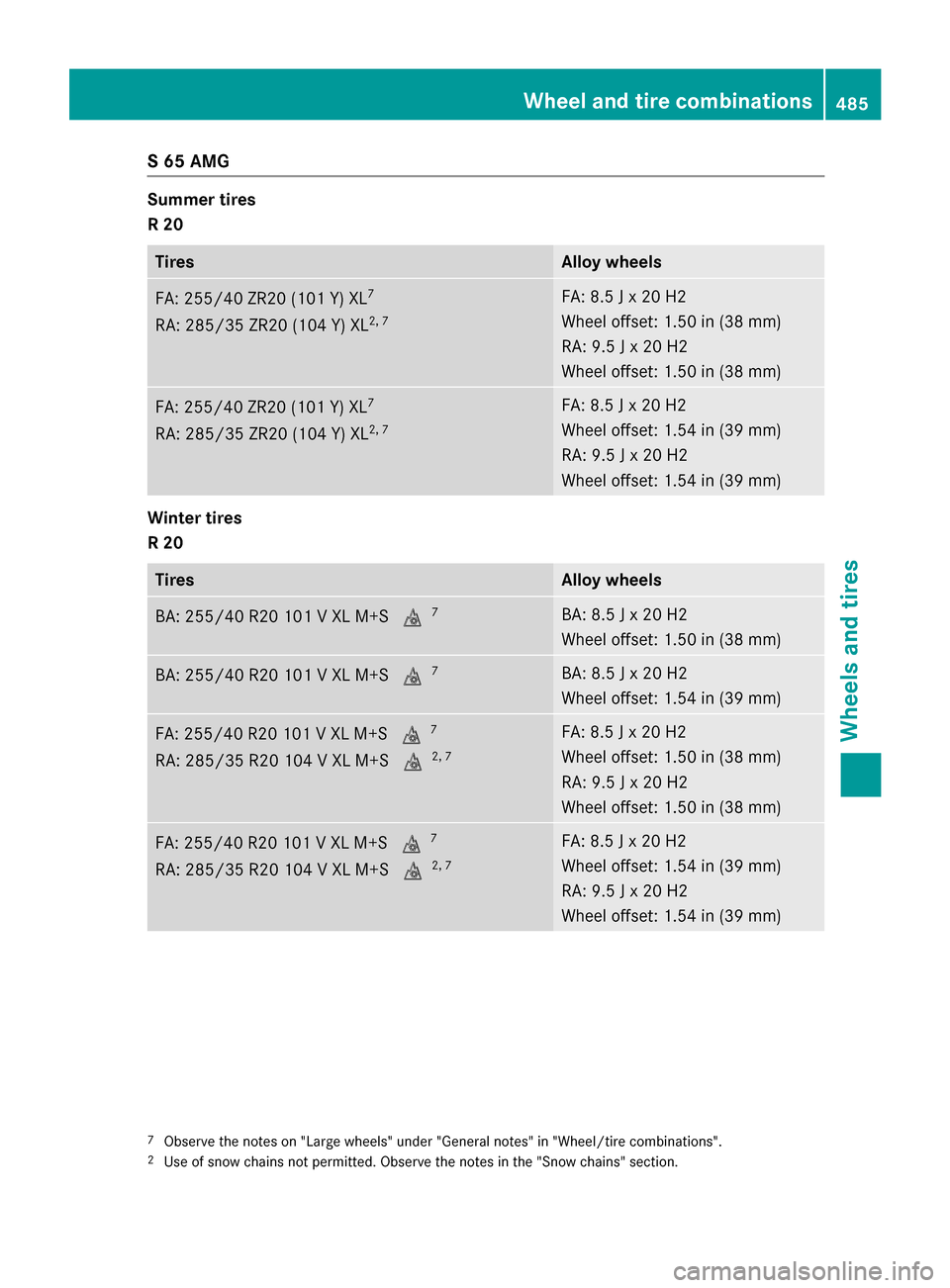

Page 487 of 502

S 65 AMG
Summer tires
R 20
Tires Alloy wheels
FA: 255/40 ZR20 (101 Y) XL
7
RA: 285/35 ZR20 (104 Y) XL 2, 7 FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 ZR20 (101 Y) XL
7
RA: 285/35 ZR20 (104 Y) XL 2, 7 FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
Winter tires
R 20
Tires Alloy wheels
BA: 255/40 R20 101 V XL M+S
i7 BA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
BA: 255/40 R20 101 V XL M+S
i7 BA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
FA: 255/40 R20 101 V XL M+S
i7
RA: 285/35 R20 104 V XL M+S i2, 7 FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 R20 101 V XL M+S
i7
RA: 285/35 R20 104 V XL M+S i2, 7 FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
7
Observe the notes on "Large wheels" under "General notes" in "Wheel/tire combinations".
2 Use of snow chains not permitted. Observe the notes in the "Snow chains" section. Wheel and tire combinations
485Wheels and tires Z
Page 488 of 502

486
Page 489 of 502

Useful information
............................488
Information regarding technical
data .................................................... 488
Identification plates .........................488
Service products and filling capaci- ties ..................................................... 489
Vehicle data ....................................... 495 487Technical data

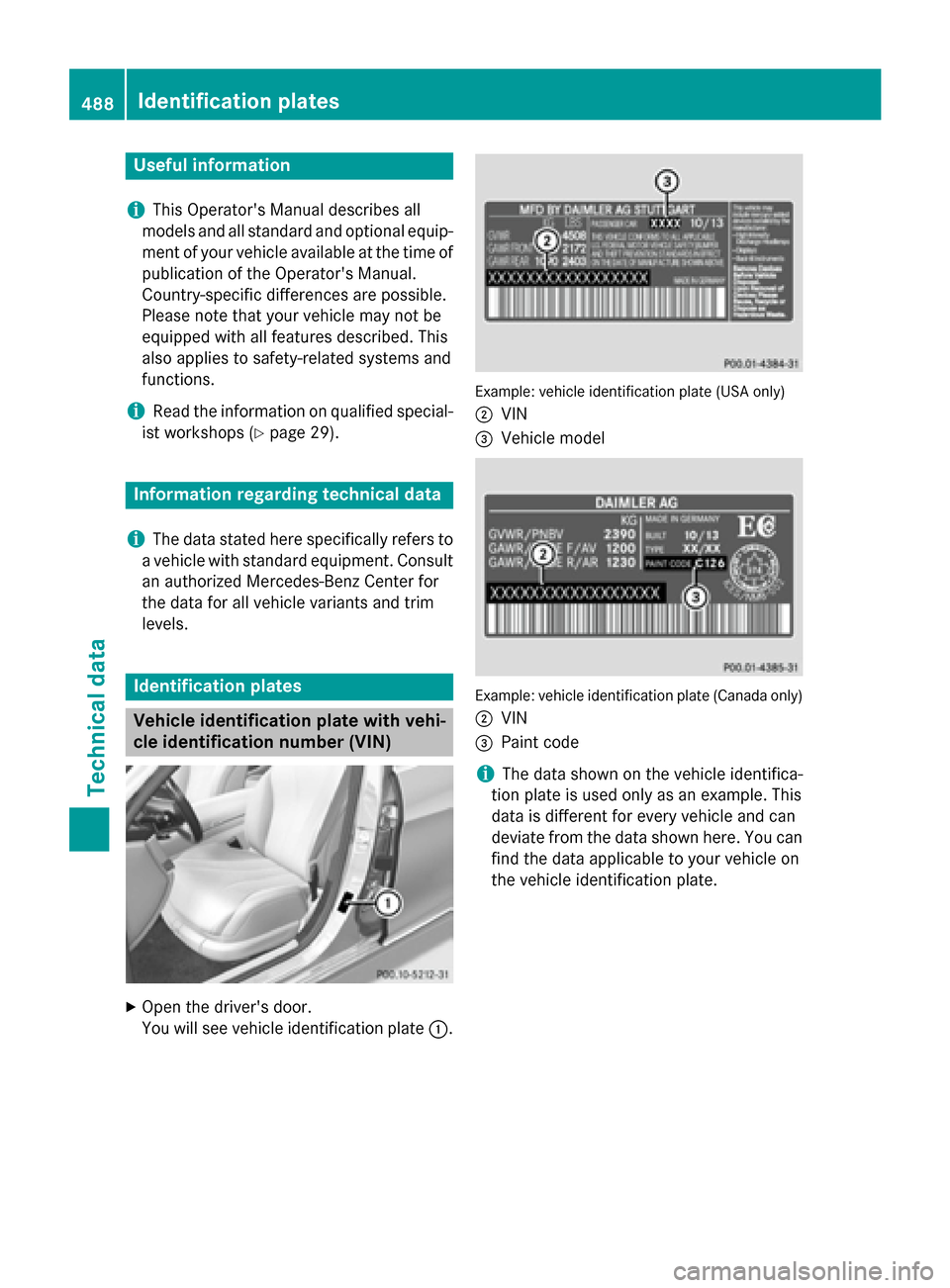

Page 490 of 502

Useful information
i This Operator's Manual describes all
models and all standard and optional equip- ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
i Read the information on qualified special-
ist workshops (Y page 29). Information regarding technical data
i The data stated here specifically refers to
a vehicle with standard equipment. Consult an authorized Mercedes-Benz Center for
the data for all vehicle variants and trim
levels. Identification plates
Vehicle identification plate with vehi-
cle identification number (VIN)
X
Open the driver's door.
You will see vehicle identification plate :. Example: vehicle identification plate (USA only)
; VIN
= Vehicle model Example: vehicle identification plate (Canada only)
; VIN
= Paint code
i The data shown on the vehicle identifica-
tion plate is used only as an example. This
data is different for every vehicle and can
deviate from the data shown here. You can
find the data applicable to your vehicle on
the vehicle identification plate. 488
Identification platesTechnical data
