Page 451 of 502

MERCEDES-BENZ S-Class 2015 W222 Owners Manual X

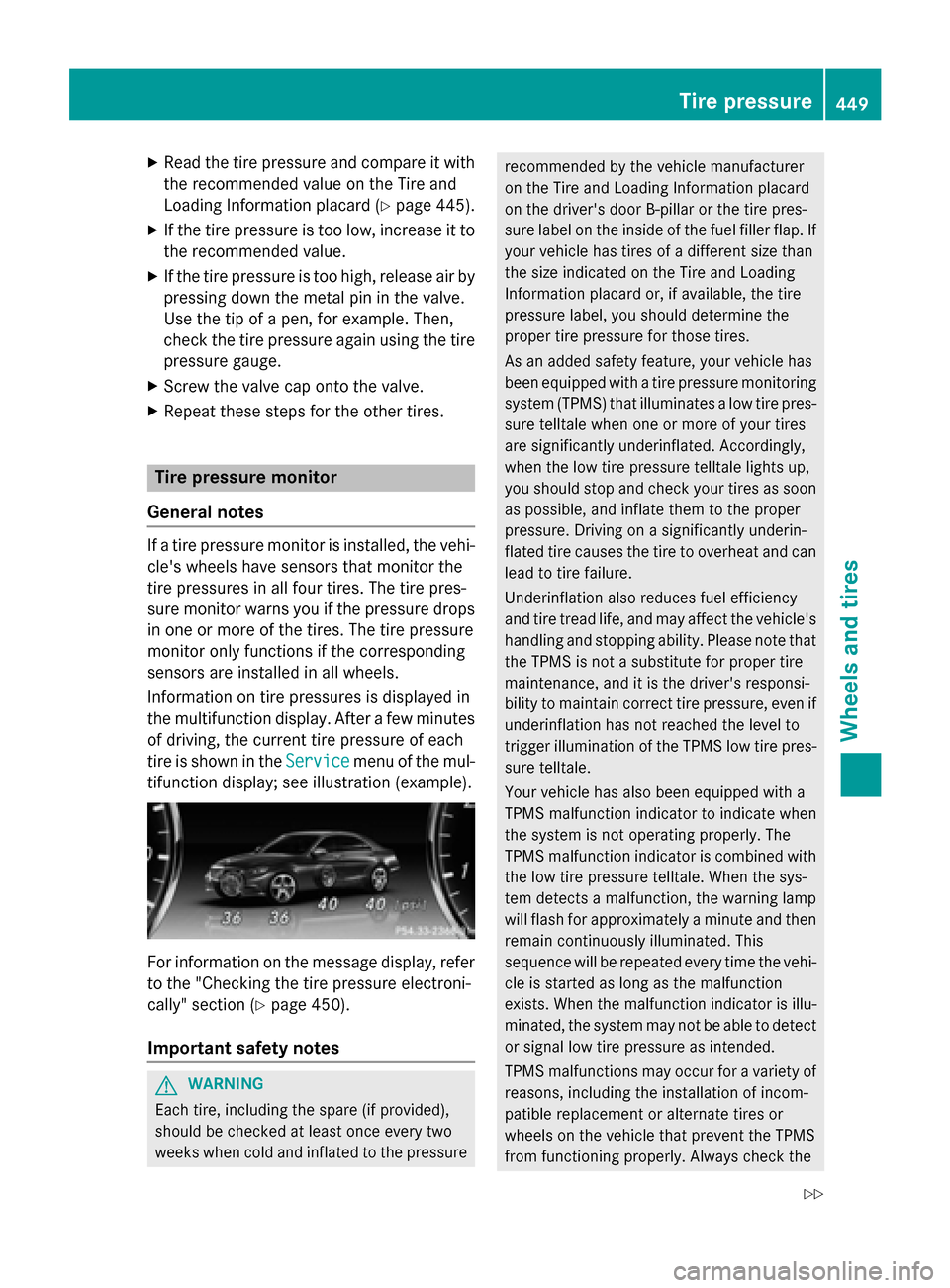

Read the tire pressure and compare it with
the recommended value on the Tire and
Loading Information placard (Y page 445).
X If the tire pressure is too low, increase it to
the recommended value.
X

Page 452 of 502

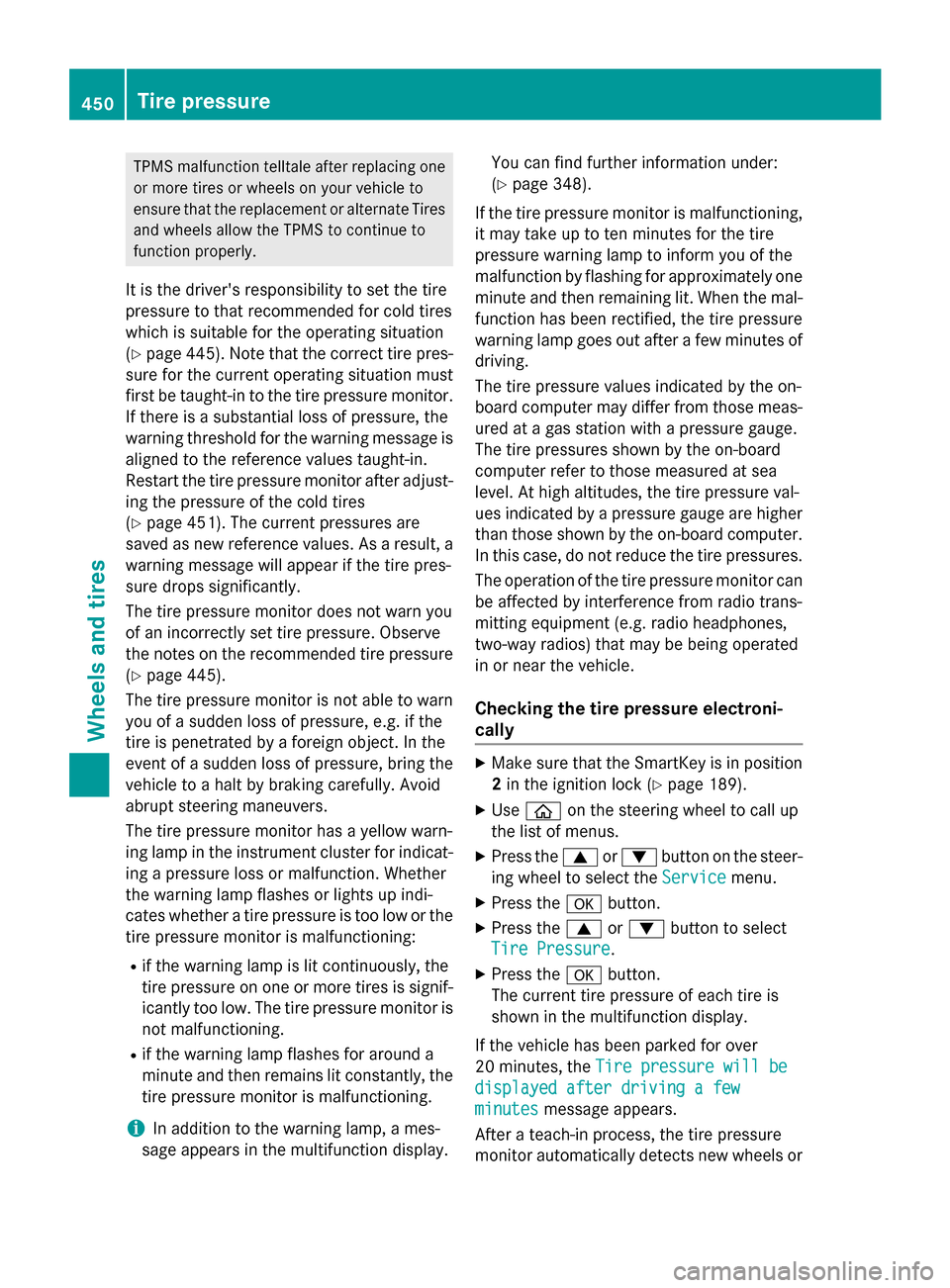

MERCEDES-BENZ S-Class 2015 W222 Owners Manual TPMS malfunction telltale after replacing one
or more tires or wheels on your vehicle to
ensure that the replacement or alternate Tires and wheels allow the TPMS to continue to
function properly.
It i

Page 453 of 502

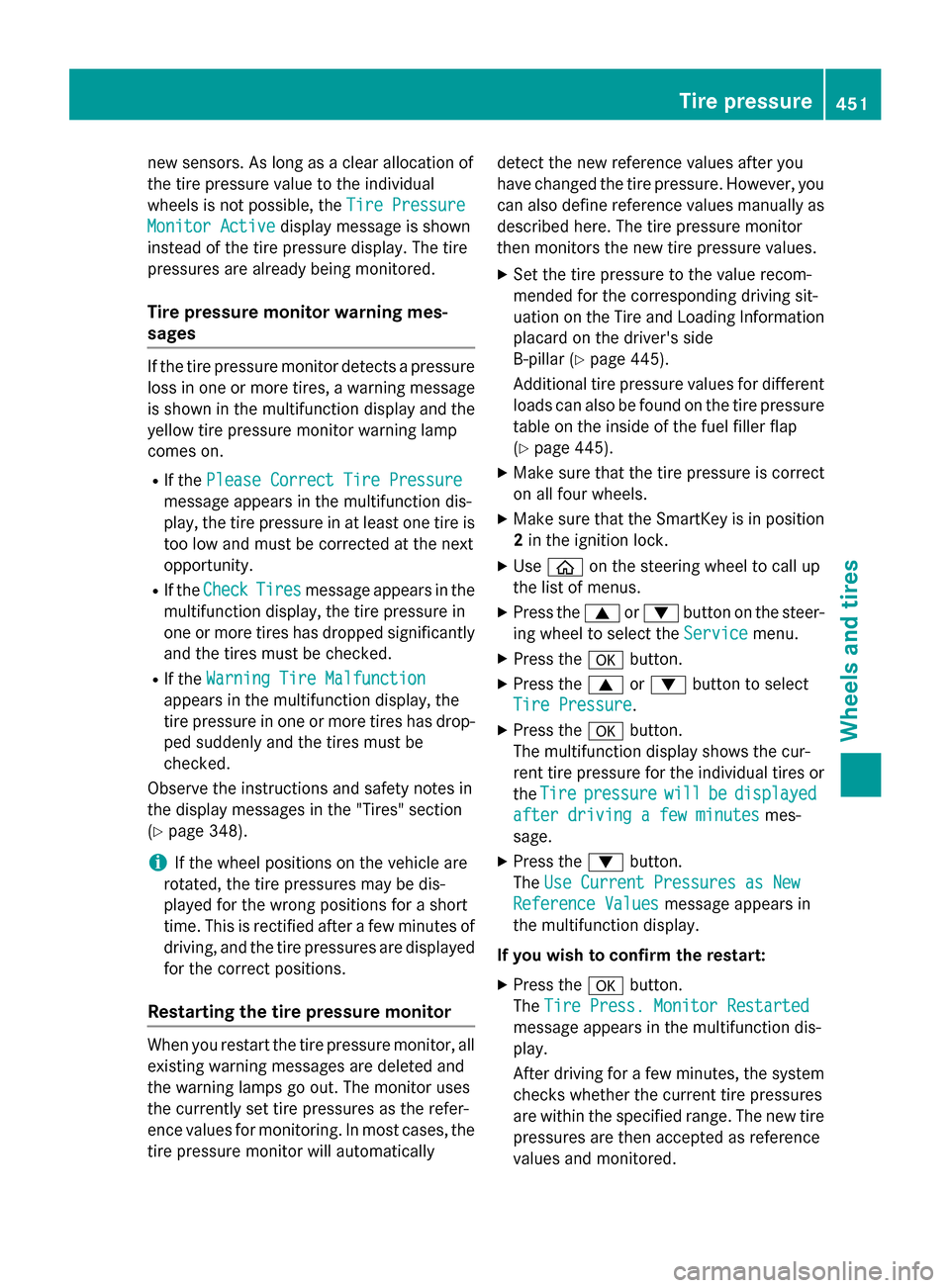

MERCEDES-BENZ S-Class 2015 W222 Owners Manual new sensors. As long as a clear allocation of
the tire pressure value to the individual
wheels is not possible, the Tire Pressure
Tire Pressure
Monitor Active Monitor Active display message is shown
i

Page 454 of 502

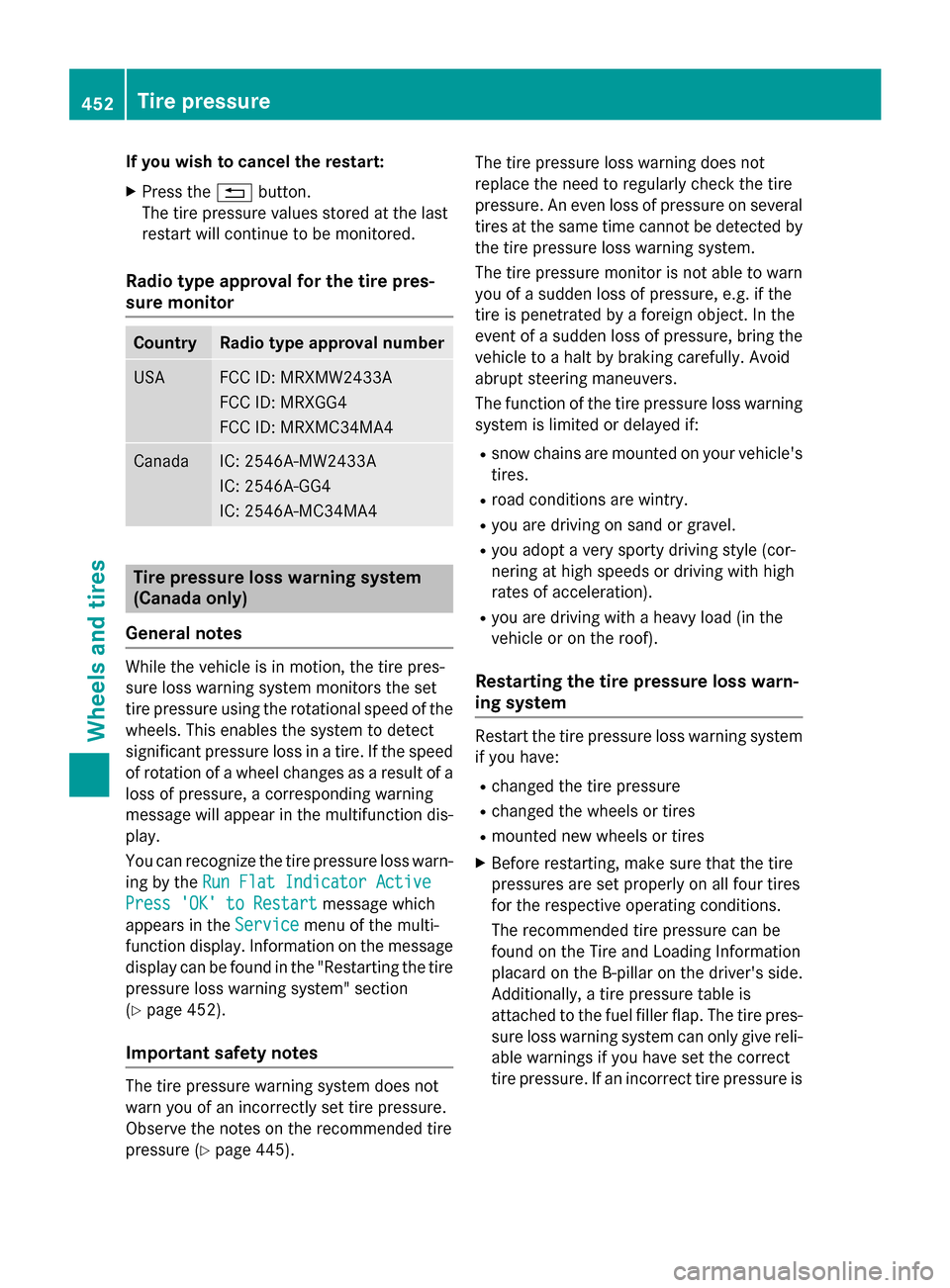

MERCEDES-BENZ S-Class 2015 W222 Owners Manual If you wish to cancel the restart:
X Press the %button.
The tire pressure values stored at the last
restart will continue to be monitored.
Radio type approval for the tire pres-
sure monitor Country R

Page 455 of 502

MERCEDES-BENZ S-Class 2015 W222 Owners Manual set, these incorrect values will be moni-
tored.
X Also observe the notes in the section on tire
pressures (Y page 445).
X Make sure that the SmartKey is in position
2 in the ignition lock (Y page 189

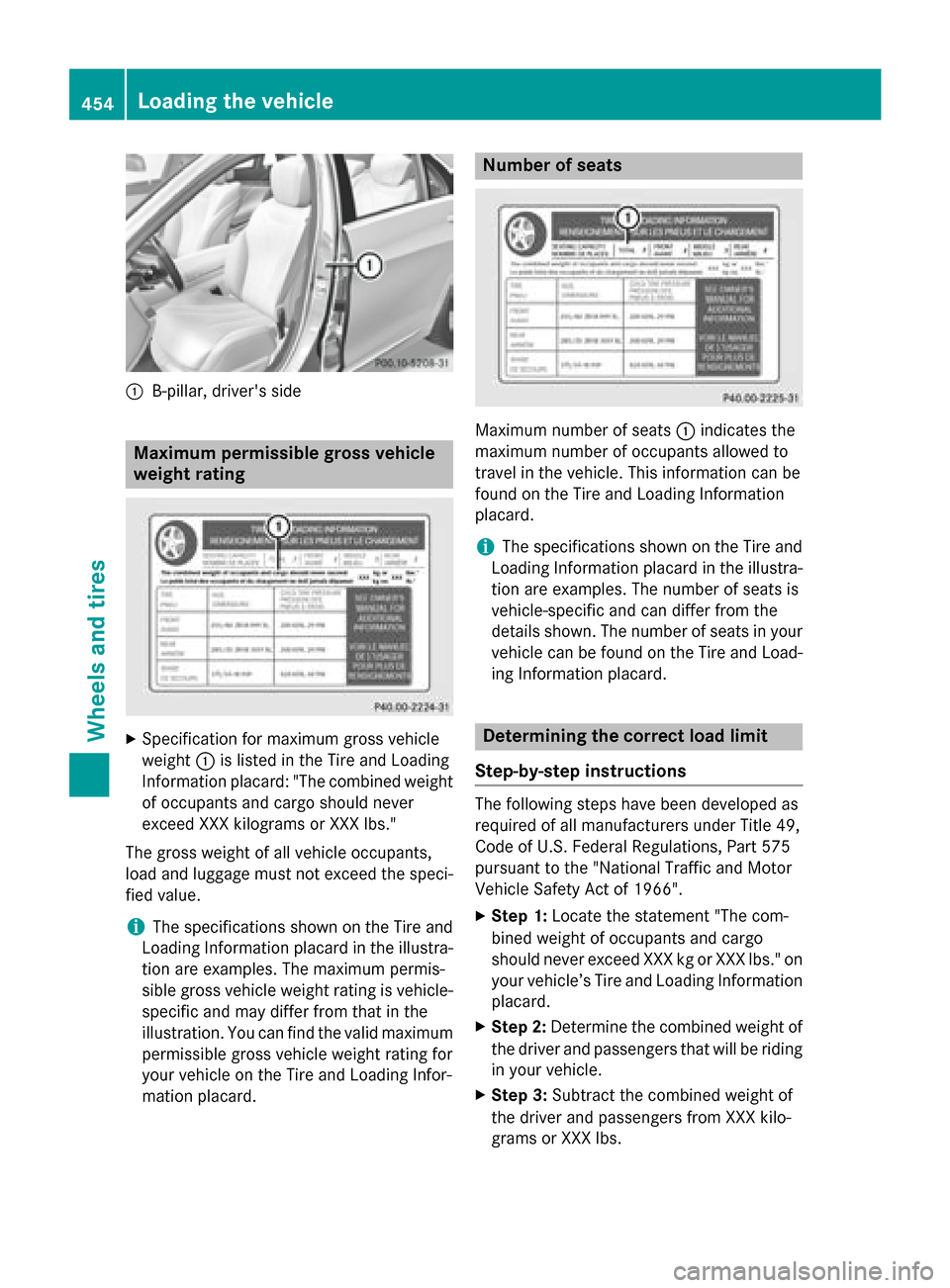

Page 456 of 502

MERCEDES-BENZ S-Class 2015 W222 Owners Manual :
B-pillar, drivers side Maximum permissible gross vehicle
weight rating X
Specification for maximum gross vehicle
weight :is listed in the Tire and Loading
Information placard: "The combined weight

Page 457 of 502

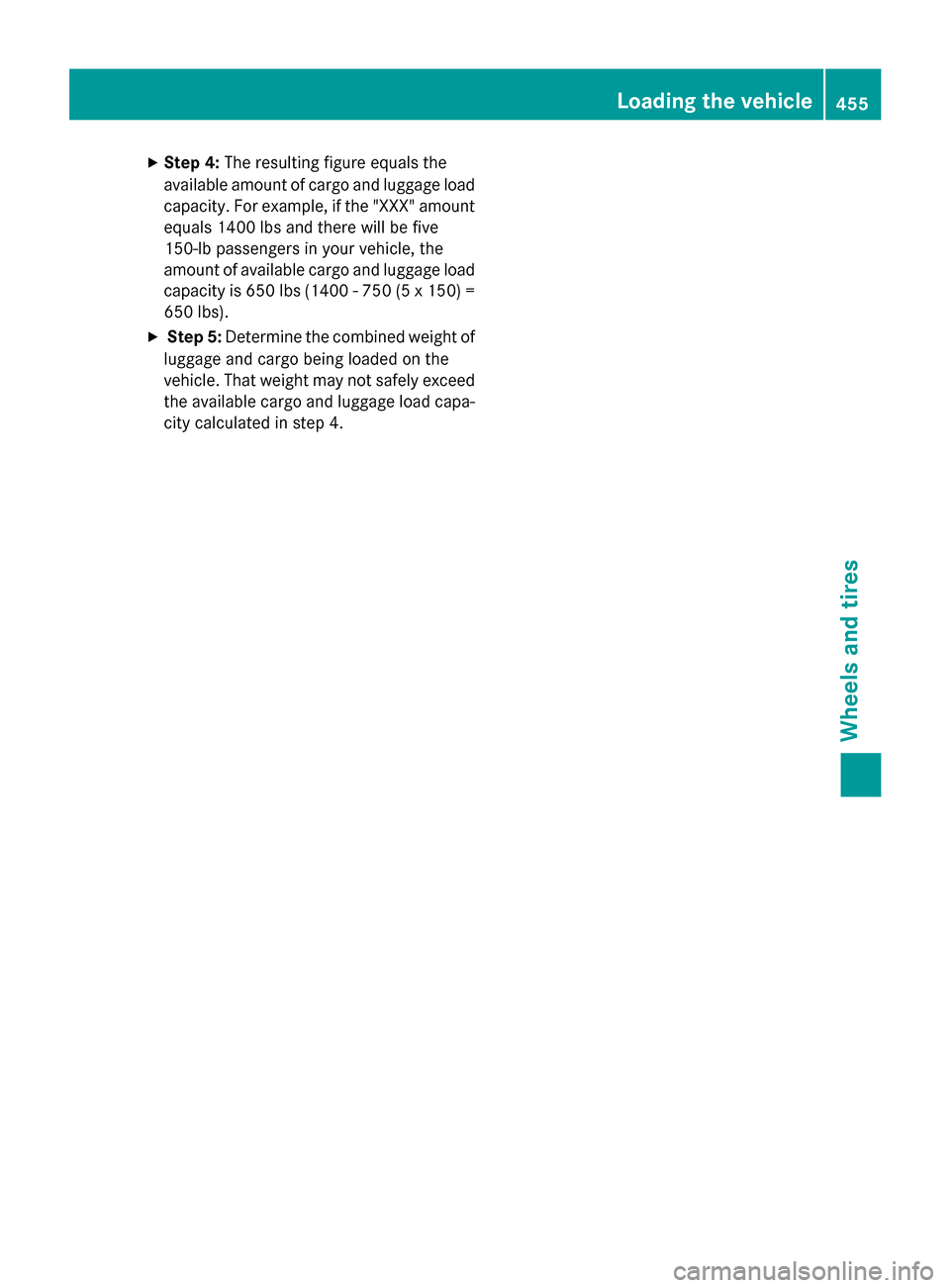

MERCEDES-BENZ S-Class 2015 W222 Owners Manual X
Step 4: The resulting figure equals the
available amount of cargo and luggage load capacity. For example, if the "XXX" amount
equals 1400 lbs and there will be five
150-lb passengers in your vehicle

Page 458 of 502

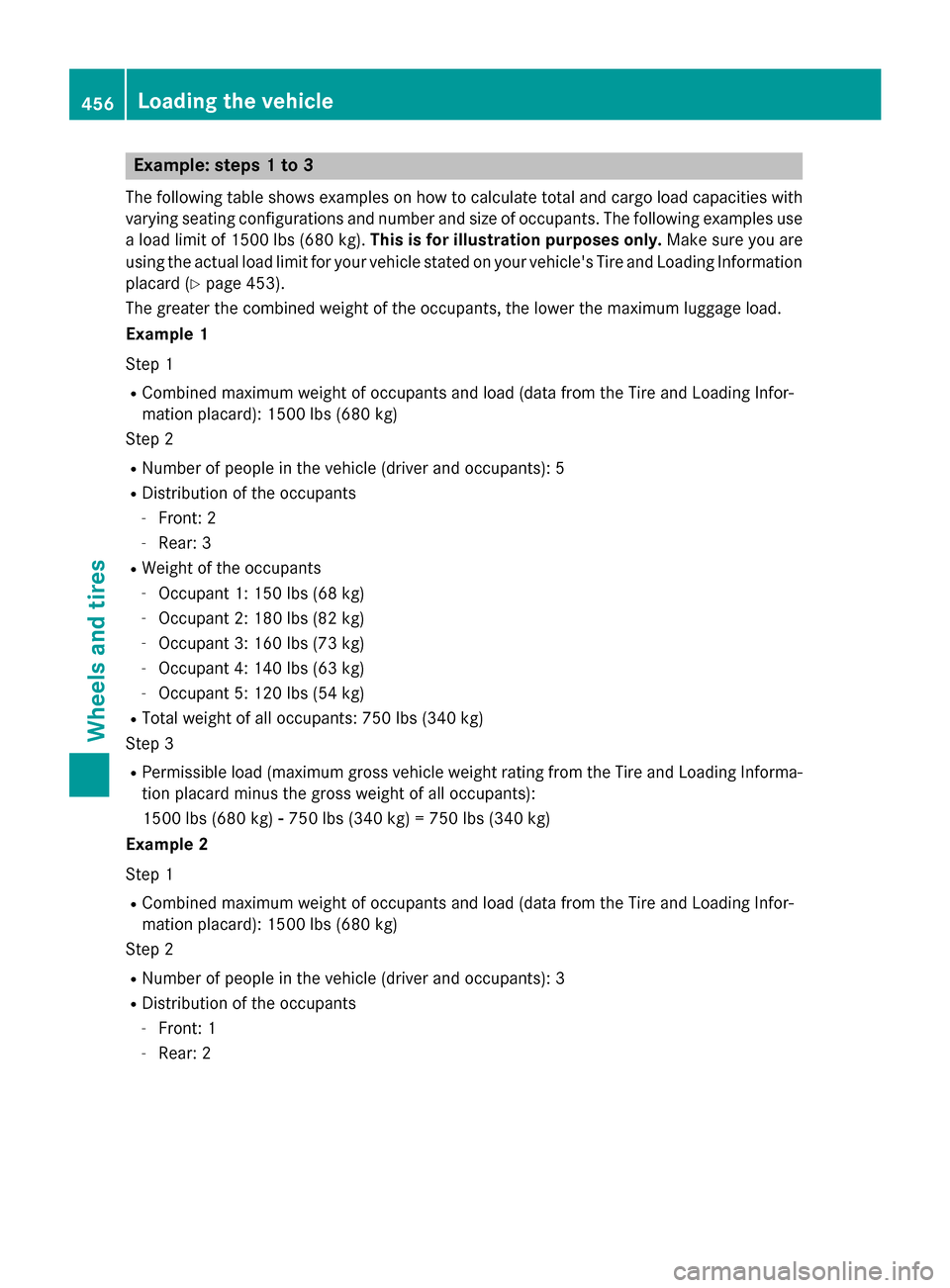

MERCEDES-BENZ S-Class 2015 W222 Owners Manual Example: steps 1 to 3
The following table shows examples on how to calculate total and cargo load capacities with varying seating configurations and number and size of occupants. The following example

Page 459 of 502

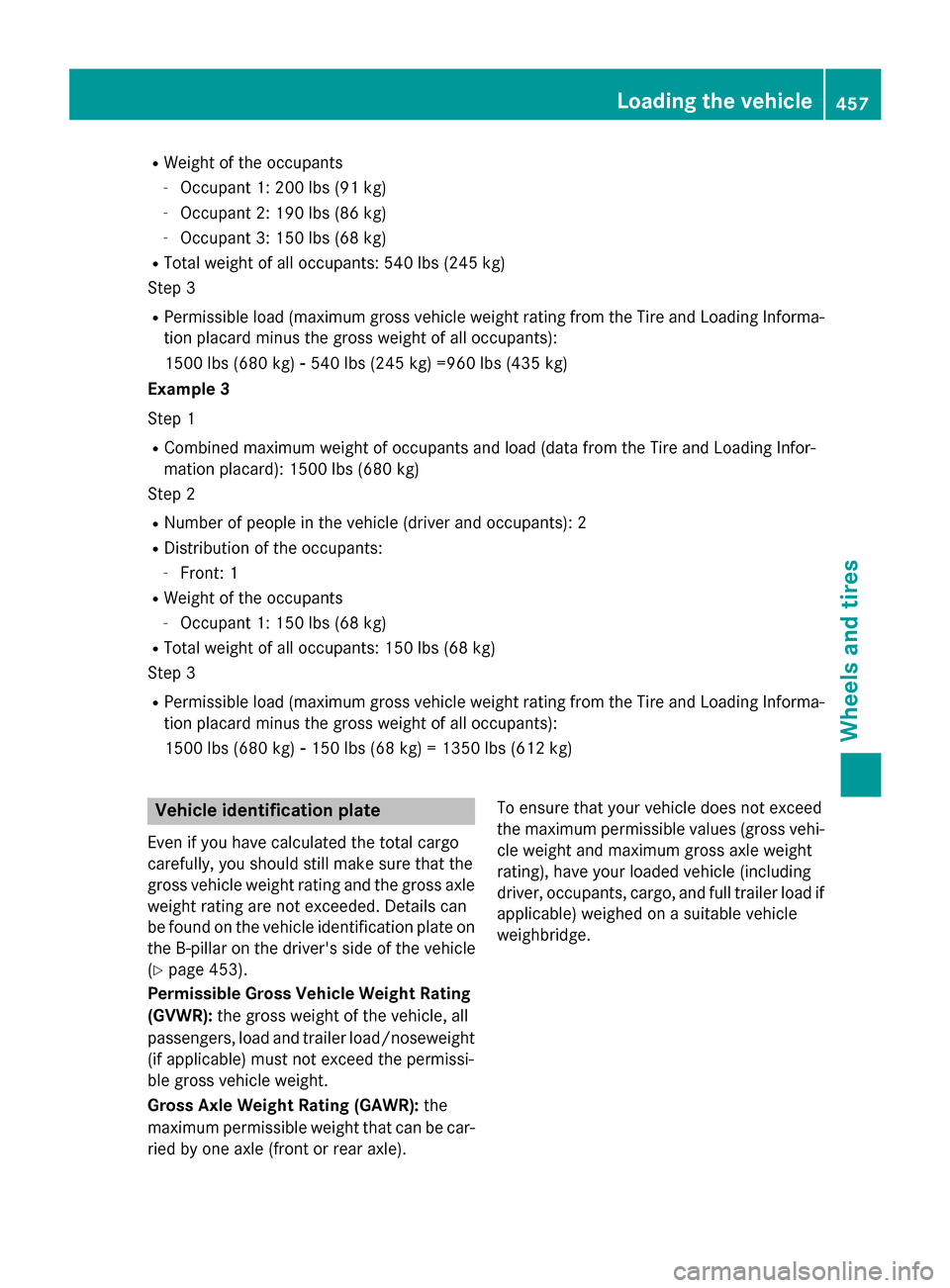

MERCEDES-BENZ S-Class 2015 W222 Owners Manual R
Weight of the occupants
- Occupant 1: 200 lbs (91 kg)
- Occupant 2: 190 lbs (86 kg)
- Occupant 3: 150 lbs (68 kg)
R Total weight of all occupants: 540 lbs (245 kg)
Step 3
R Permissible load (maximum

Page 460 of 502

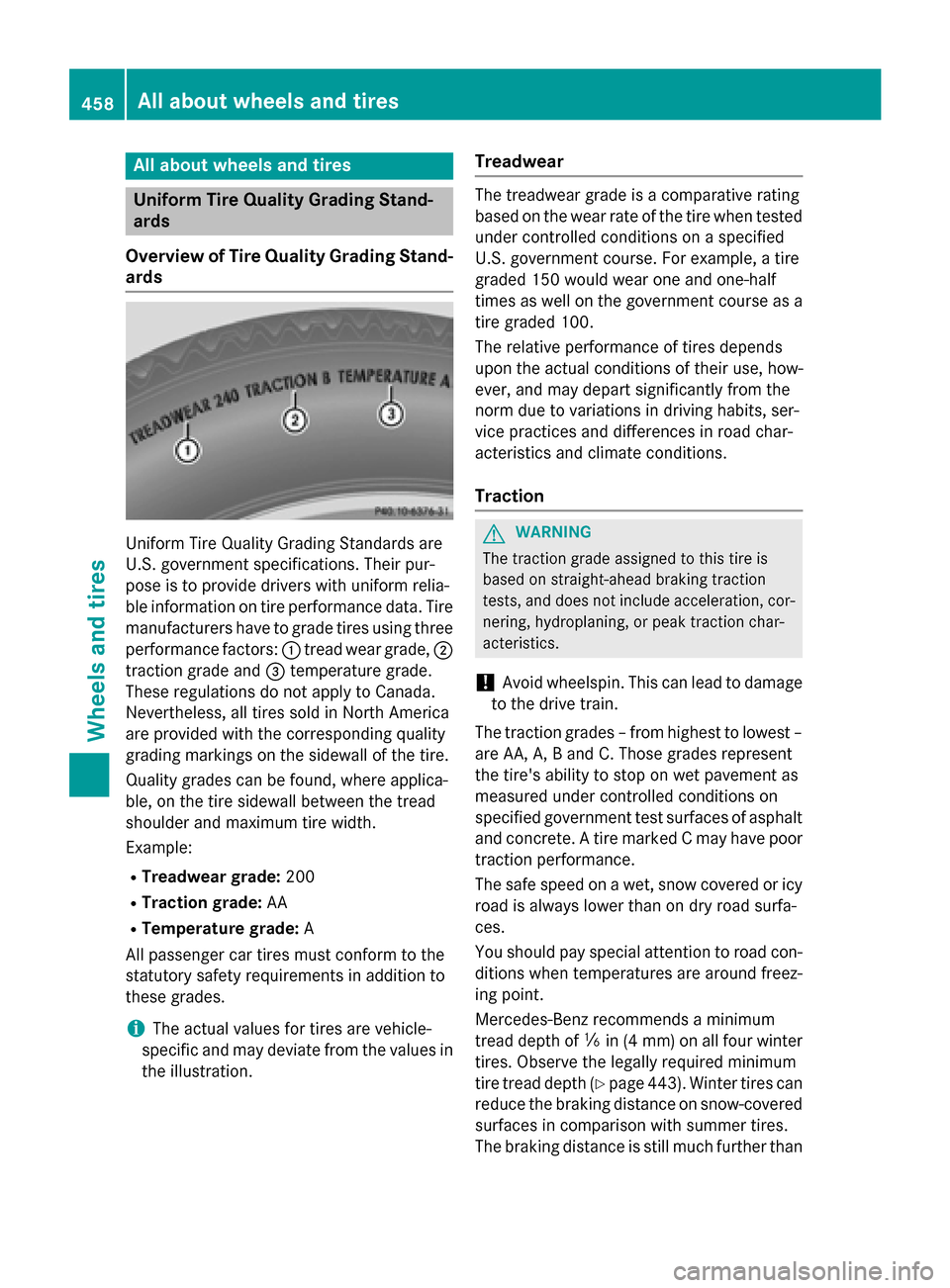

MERCEDES-BENZ S-Class 2015 W222 Owners Manual All about wheels and tires
Uniform Tire Quality Grading Stand-
ards
Overview of Tire Quality Grading Stand- ards Uniform Tire Quality Grading Standards are
U.S. government specifications. Their pur-
p
