MERCEDES-BENZ S CLASS 2016 Owners Manual

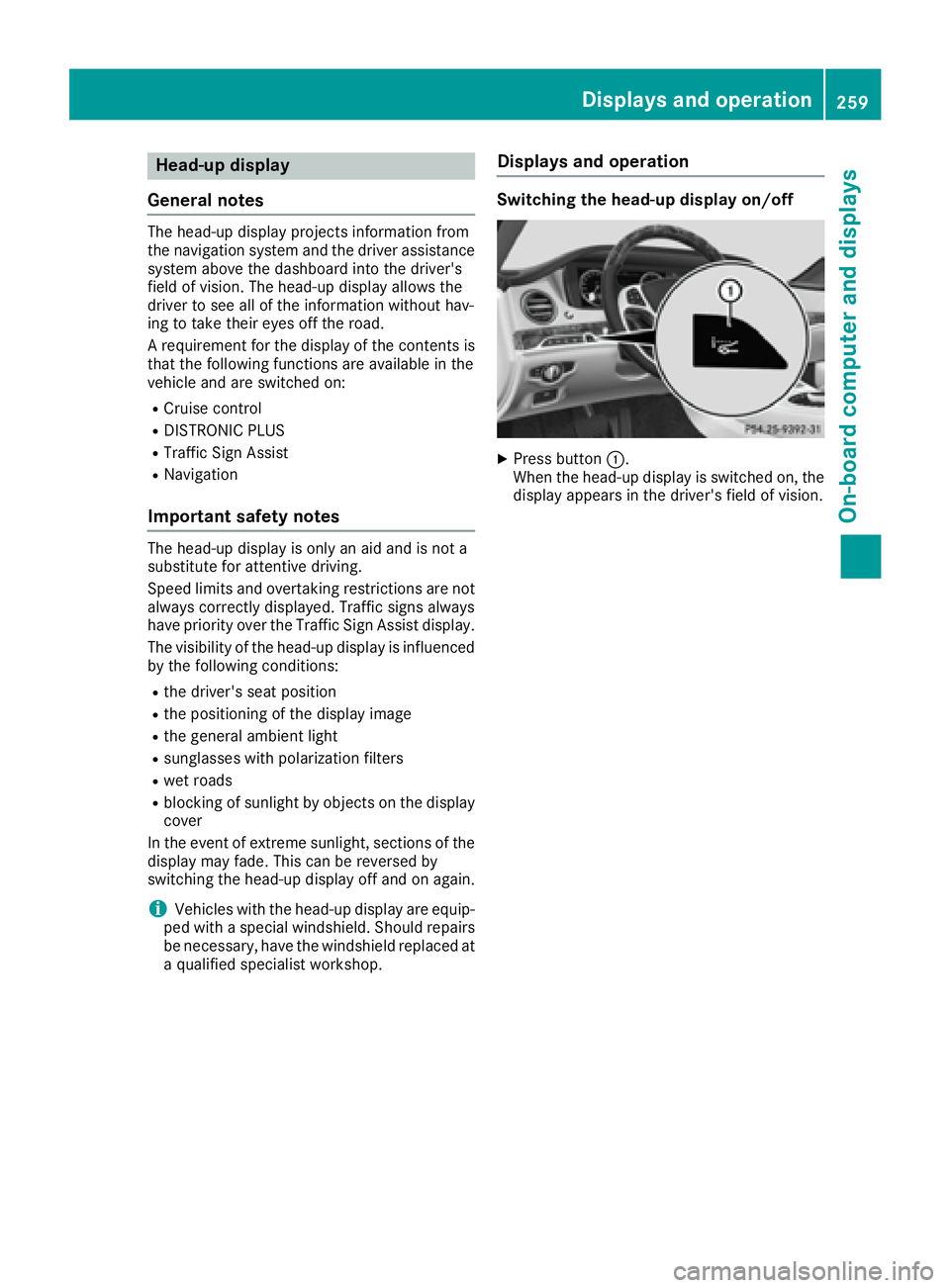

Head-up display
General notes The head-up display projects information from
the navigation system and the driver assistance
system above the dashboard into the driver's
field of vision. The head-up display allows the
driver to see all of the information without hav-
ing to take their eyes off the road.
A requirement for the display of the contents is
that the following functions are available in the
vehicle and are switched on: R
Cruise control R
DISTRONIC PLUS R
Traffic Sign Assist R
Navigation
Important safety notes The head-up display is only an aid and is not a
substitute for attentive driving.
Speed limits and overtaking restrictions are not
always correctly displayed. Traffic signs always
have priority over the Traffic Sign Assist display.
The visibility of the head-up display is influenced
by the following conditions: R
the driver's seat position R
the positioning of the display image R
the general ambient light R
sunglasses with polarization filters R
wet roads R
blocking of sunlight by objects on the display
cover
In the event of extreme sunlight, sections of the
display may fade. This can be reversed by
switching the head-up display off and on again.
i Vehicles with the head-up display are equip-
ped with a special windshield. Should repairs
be necessary, have the windshield replaced at
a qualified specialist workshop. Displays and operation Switching the head-up display on/off X
Press button C .
When the head-up display is switched on, the
display appears in the driver's field of vision.Displays and operation 259
On-board computer and displays Z

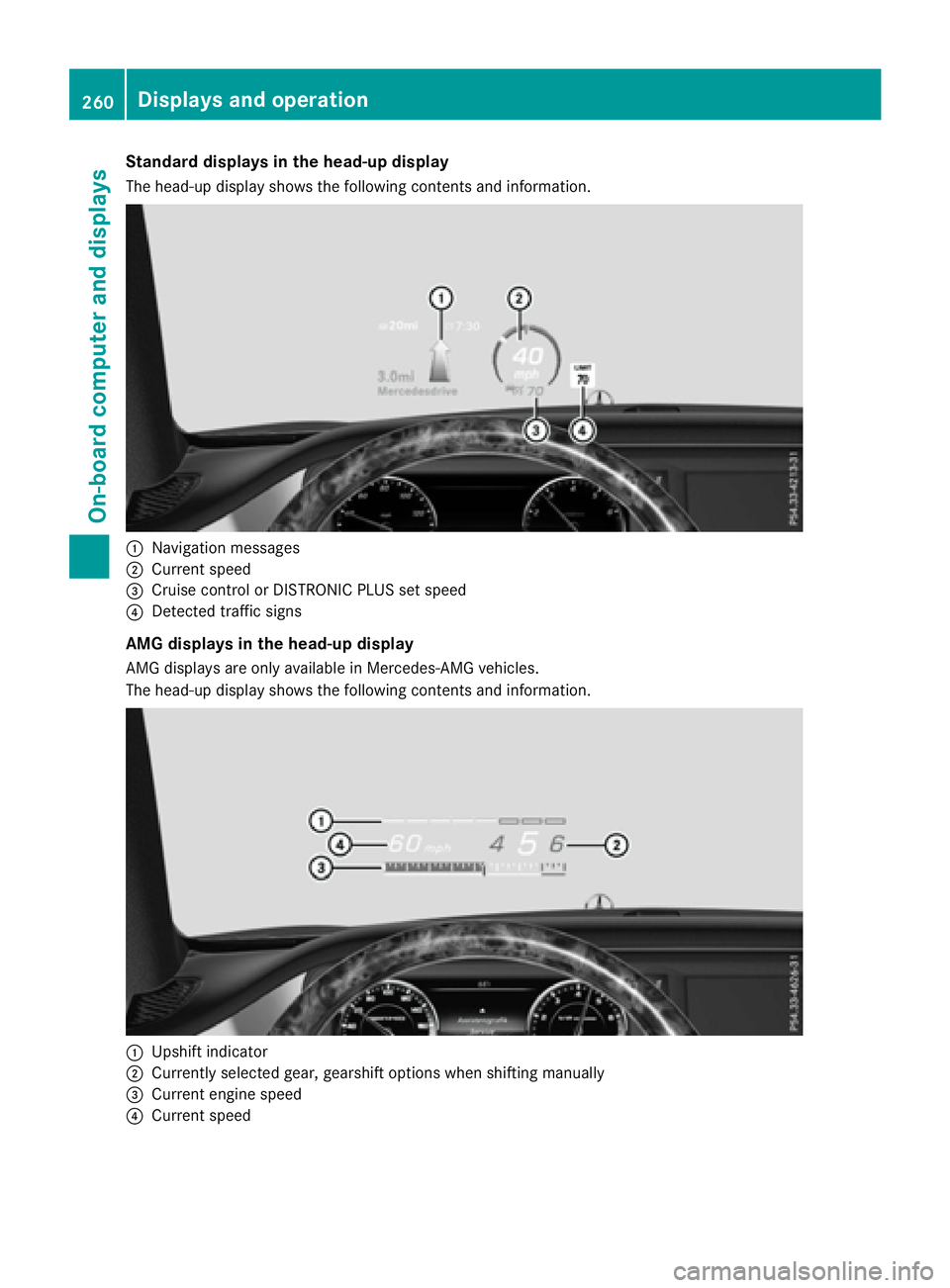

Standard displays in the head-up display The head-up display shows the following contents and information.
C
Navigation messagesD
Current speed

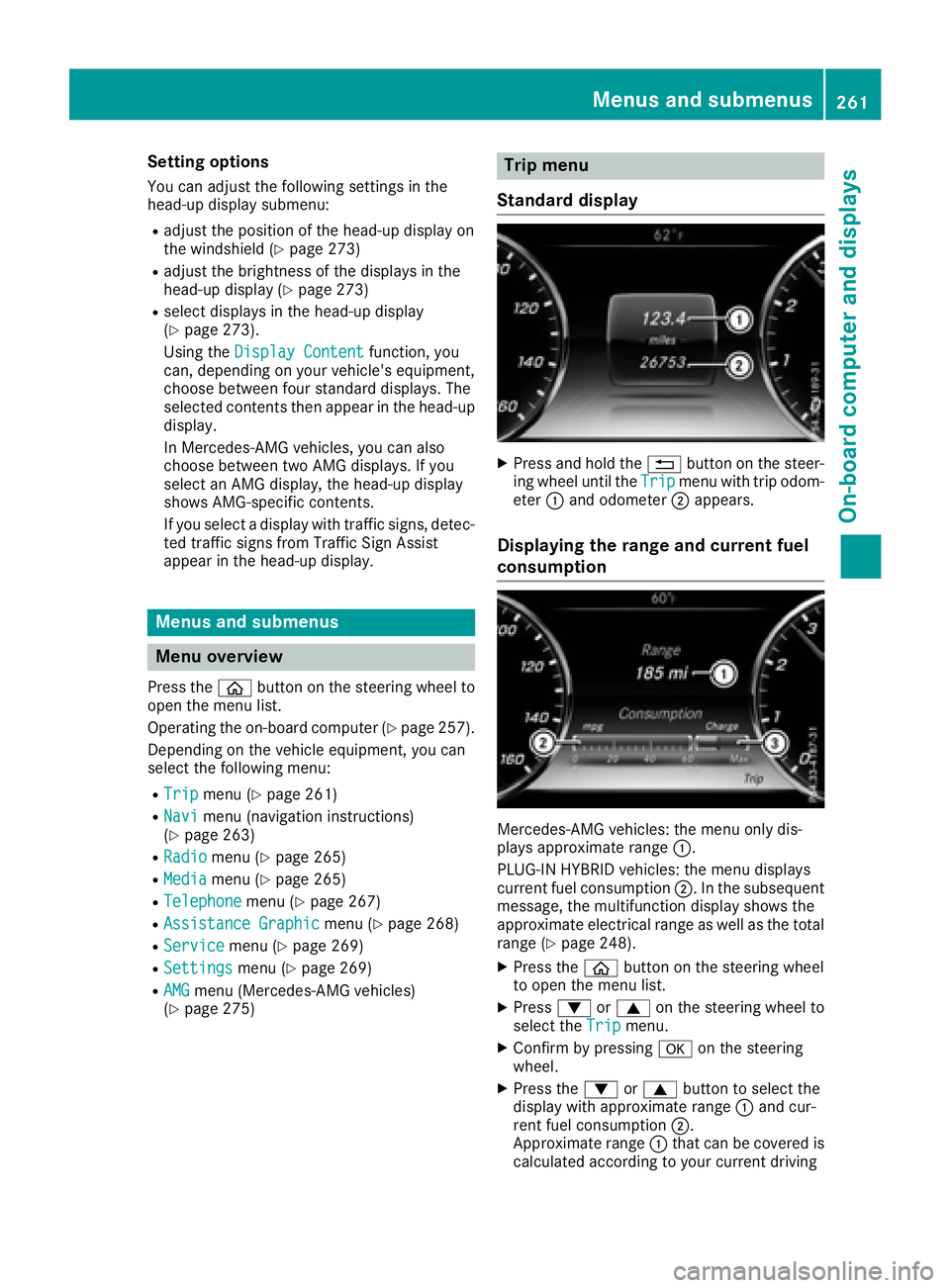

Setting options You can adjust the following settings in the
head-up display submenu: R
adjust the position of the head-up display on
the windshield ( Y
page 273)R
adjust the brightness of the displays in the
head-up display ( Y
page 273)R
select displays in the head-up display
( Y
page 273).
Using the Display Content
function, you
can, depending on your vehicle's equipment,
choose between four standard displays. The
selected contents then appear in the head-up
display.
In Mercedes-AMG vehicles, you can also
choose between two AMG displays. If you
select an AMG display, the head-up display
shows AMG-specific contents.
If you select a display with traffic signs, detec-
ted traffic signs from Traffic Sign Assist
appear in the head-up display.
Menus and submenus
Menu overview Press the

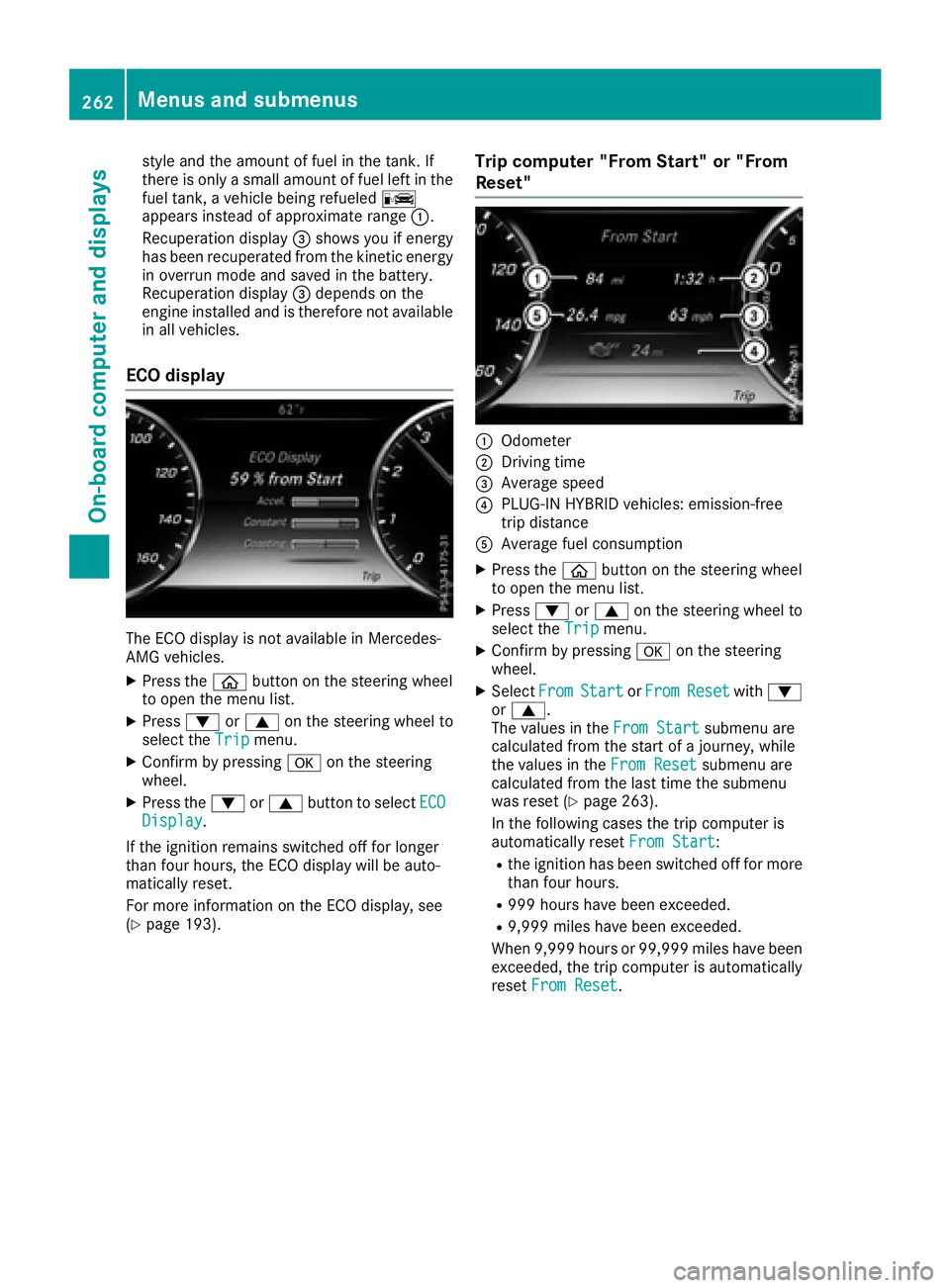

style and the amount of fuel in the tank. If
there is only a small amount of fuel left in the
fuel tank, a vehicle being refueled

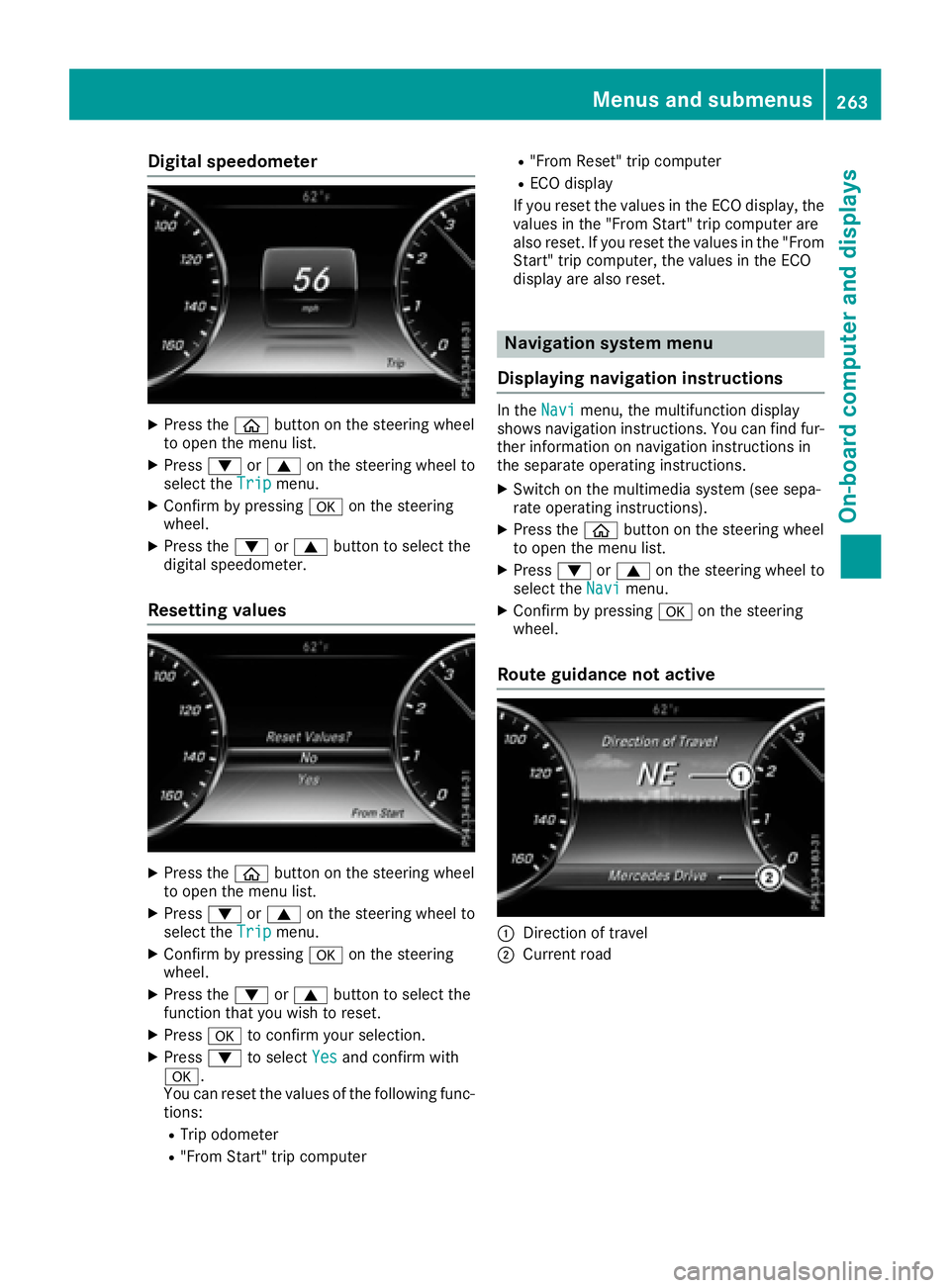

Digital speedometer X
Press th e

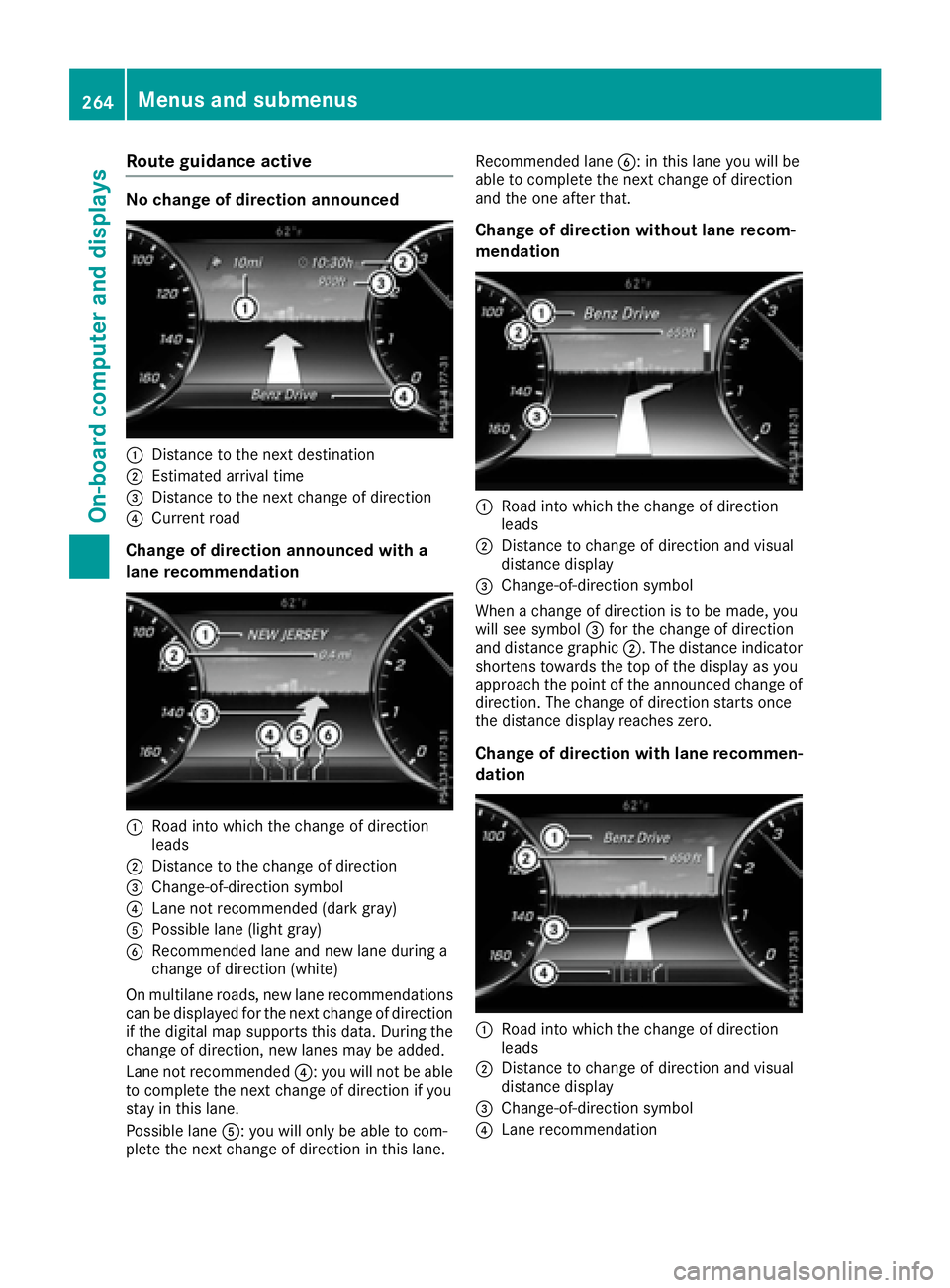

Route guidance active No change of direction announced
C
Distance to the next destinationD
Estimated arrival time

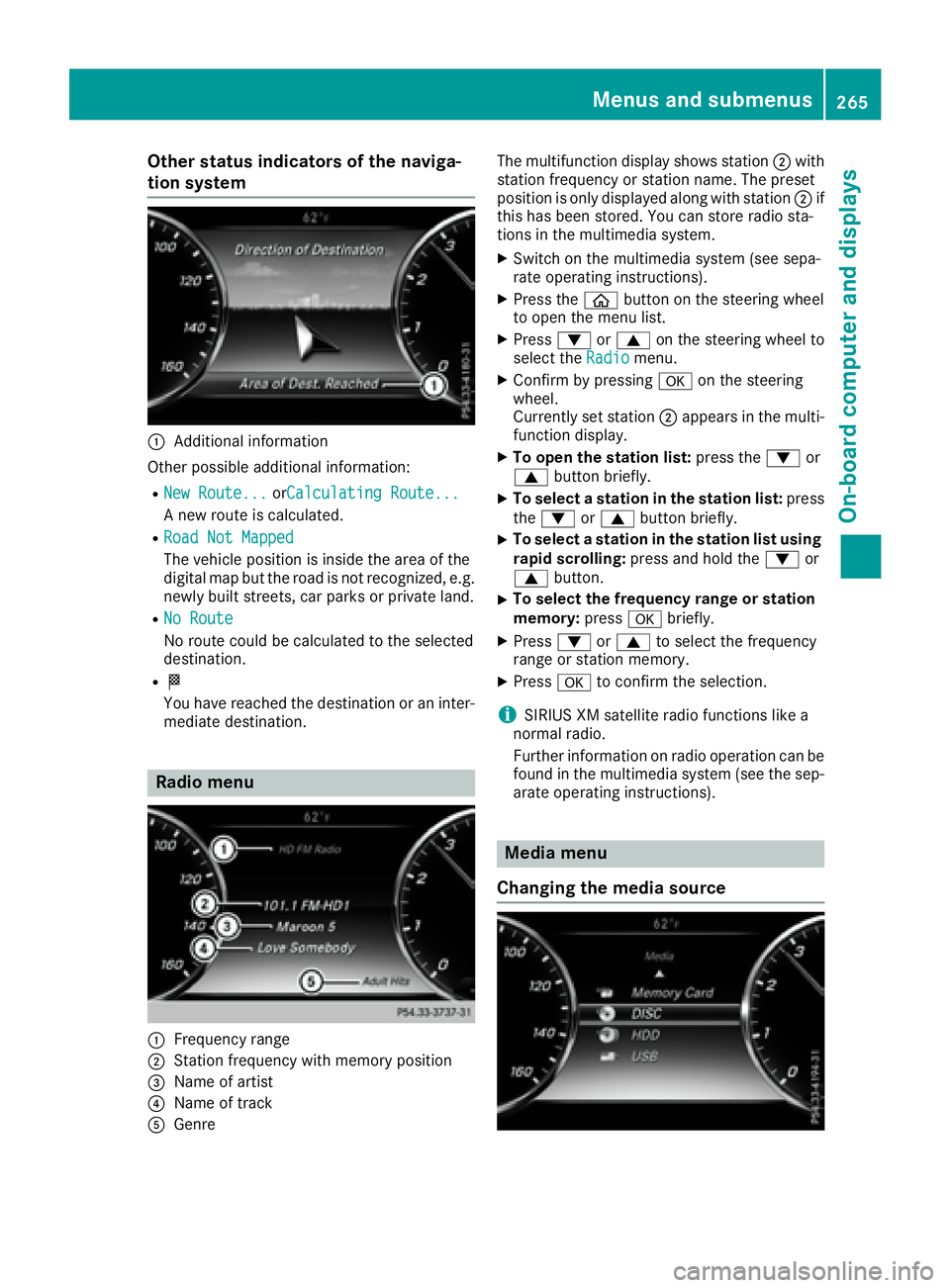

Other status indicators of the naviga-
tion system
C
Additional information
Other possible additional information: R
New Route... or Calculating Route...
A new route is calculated. R
Road Not Mapped
The vehicle position is inside the area of the
digital map but the road is not recognized, e.g.
newly built streets, car parks or private land. R
No Route
No route could be calculated to the selected
destination. R
K
You have reached the destination or an inter-
mediate destination.
Radio menu
C
Frequency range
D
Station frequency with memory position

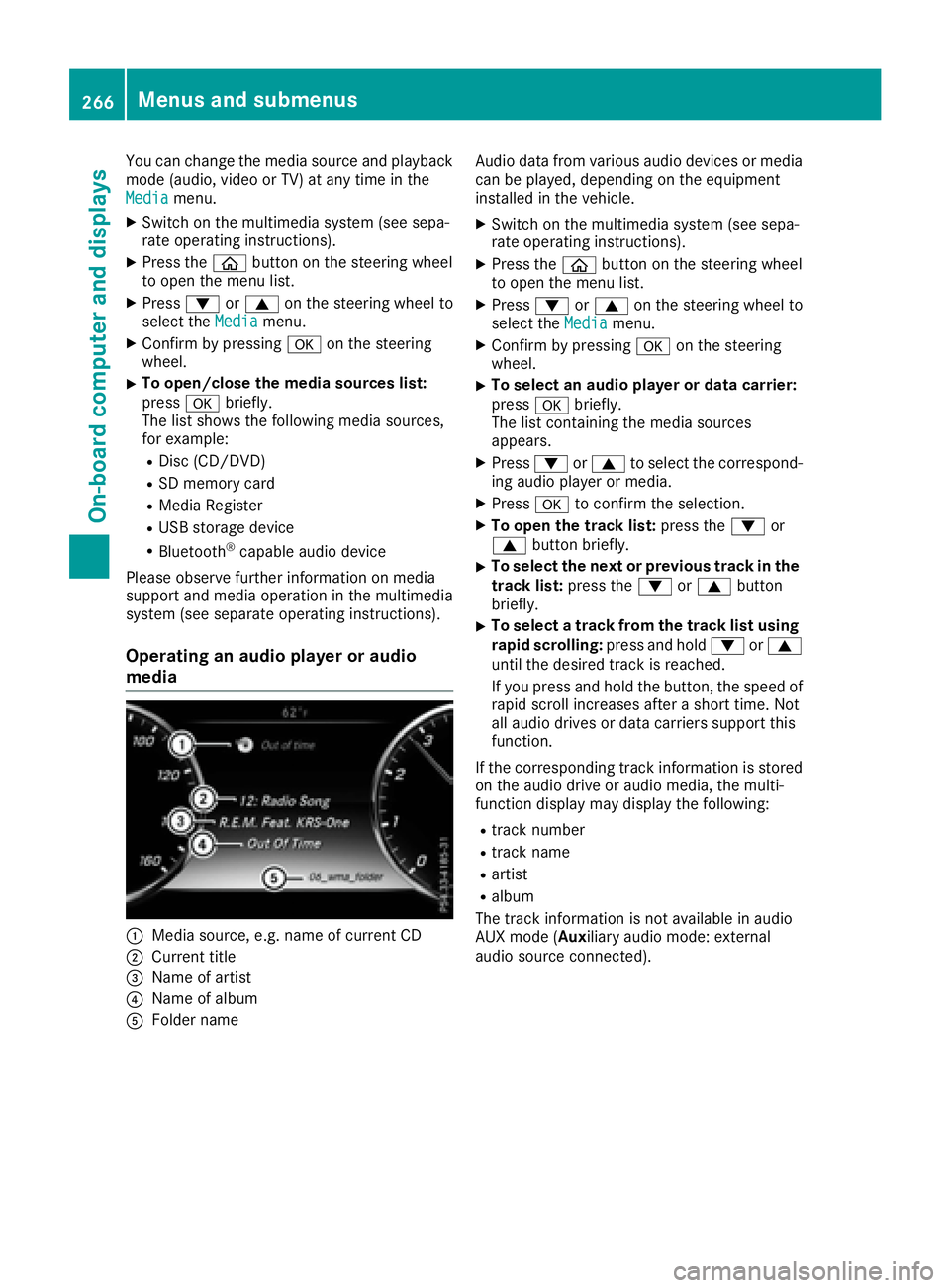

You can change the media source and playback
mode (audio, video or TV) at any time in the
Media menu.X
Switch on the multimedia system (see sepa-
rate operating instructions). X
Press the

Video DVD operation X
Switch on the multimedia system (see sepa-
rate operating instructions). X
Press the

X

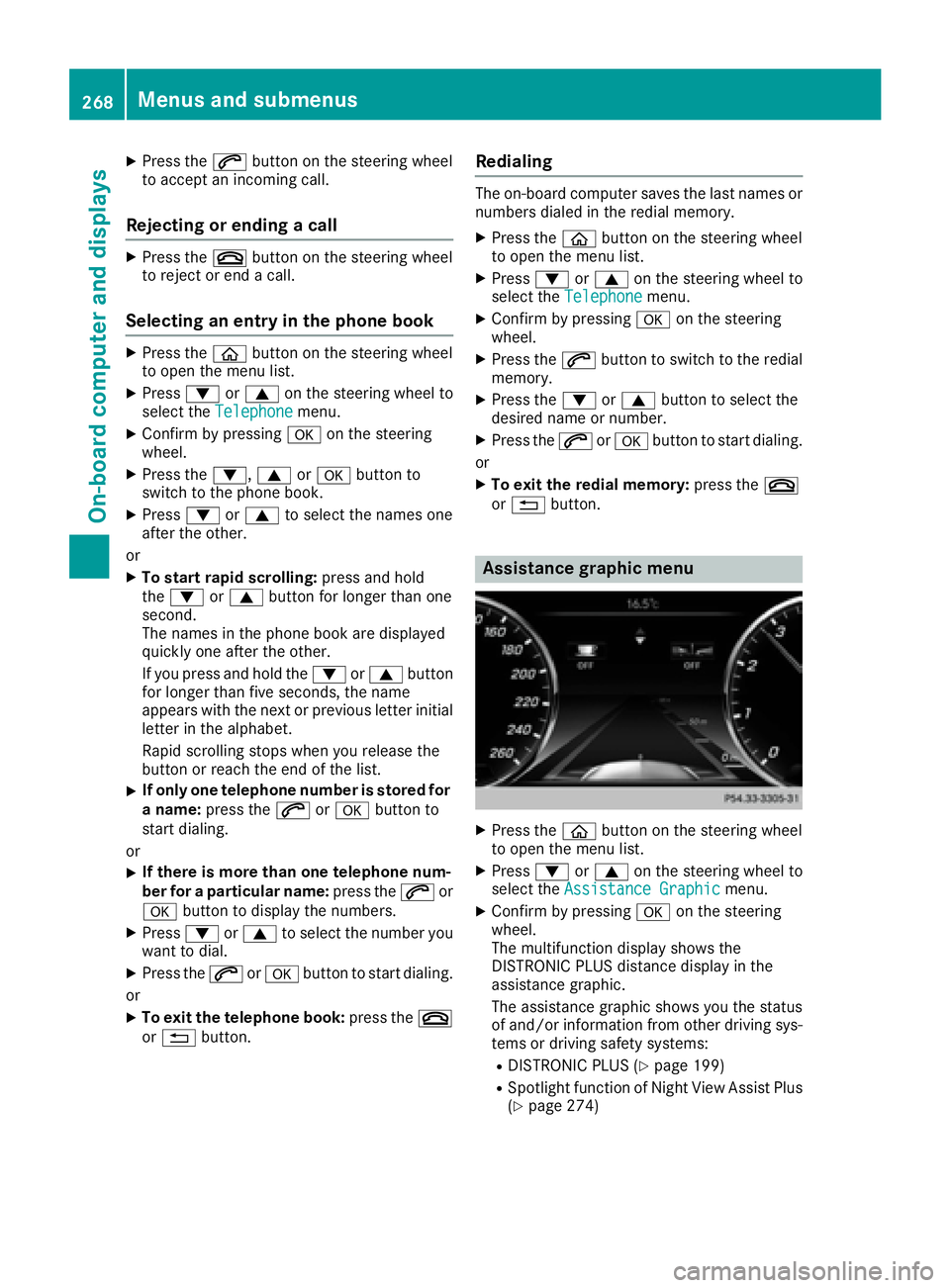

Press the a button on the steering wheel
to accept an incoming call.
Rejecting or ending a call X
Press the v button on the steering wheel
to reject or end a call.
Selecting an entry in the phone book X
Press the
