MERCEDES-BENZ S CLASS 2016 Owners Manual

R
Distance warning and the autonomous
braking function COLLISION PREVENTION
ASSIST PLUS ( Y
page 71)R
PRE-SAFE ®
Brake ( Y
page 75)R
Active Blind Spot Assist ( Y
page 234)R
ATTENTION ASSIST ( Y
page 228)R
Active Lane Keeping Assist ( Y
page 237)X
Press d to display the ATTENTION ASSIST
assessment.

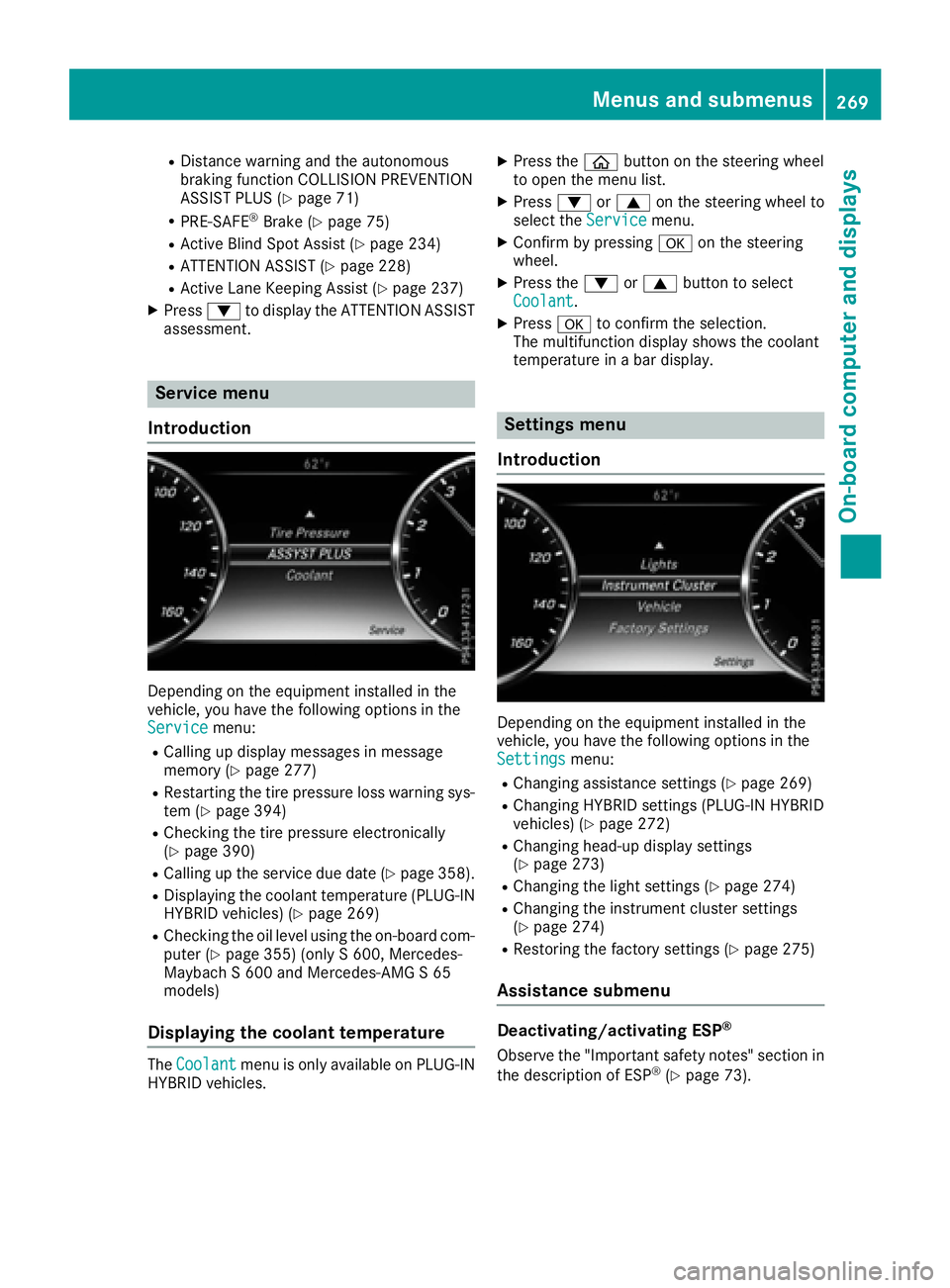

Service menu
Introduction
Depending on the equipment installed in the
vehicle, you have the following options in the
Service menu:R
Calling up display messages in message
memory ( Y
page 277)R
Restarting the tire pressure loss warning sys-
tem ( Y
page 394)R
Checking the tire pressure electronically
( Y
page 390) R
Calling up the service due date ( Y
page 358).R
Displaying the coolant temperature (PLUG-IN
HYBRID vehicles) ( Y
page 269)R
Checking the oil level using the on-board com-
puter ( Y
page 355) (only S 600, Mercedes-
Maybach S 600 and Mercedes-AMG S 65
models)
Displaying the coolant temperature
The Coolant menu is only available on PLUG ‑ IN
HYBRID vehicles. X
Press the

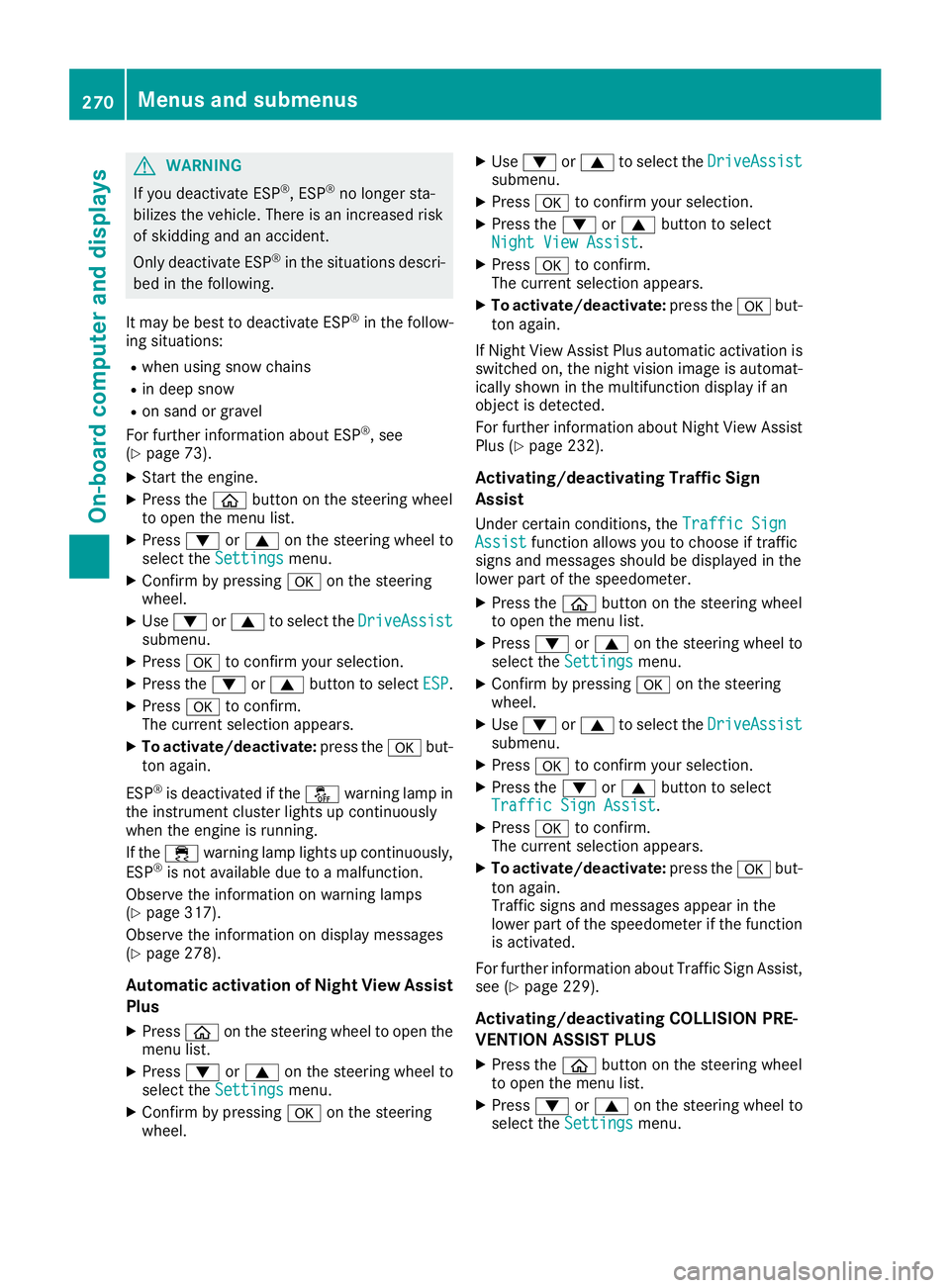

G WARNING
If you deactivate ESP ®
, ESP ®
no longer sta-
bilizes the vehicle. There is an increased risk
of skidding and an accident.
Only deactivate ESP ®
in the situations descri-
bed in the following.
It may be best to deactivate ESP ®
in the follow-
ing situations: R
when using snow chains R
in deep snow R
on sand or gravel
For further information about ESP ®
, see
( Y
page 73). X
Start the engine. X
Press the

X
Confirm by pressing v on the steering
wheel. X
Use d or c to select the DriveAssist
submenu. X
Press v to confirm your selection.X

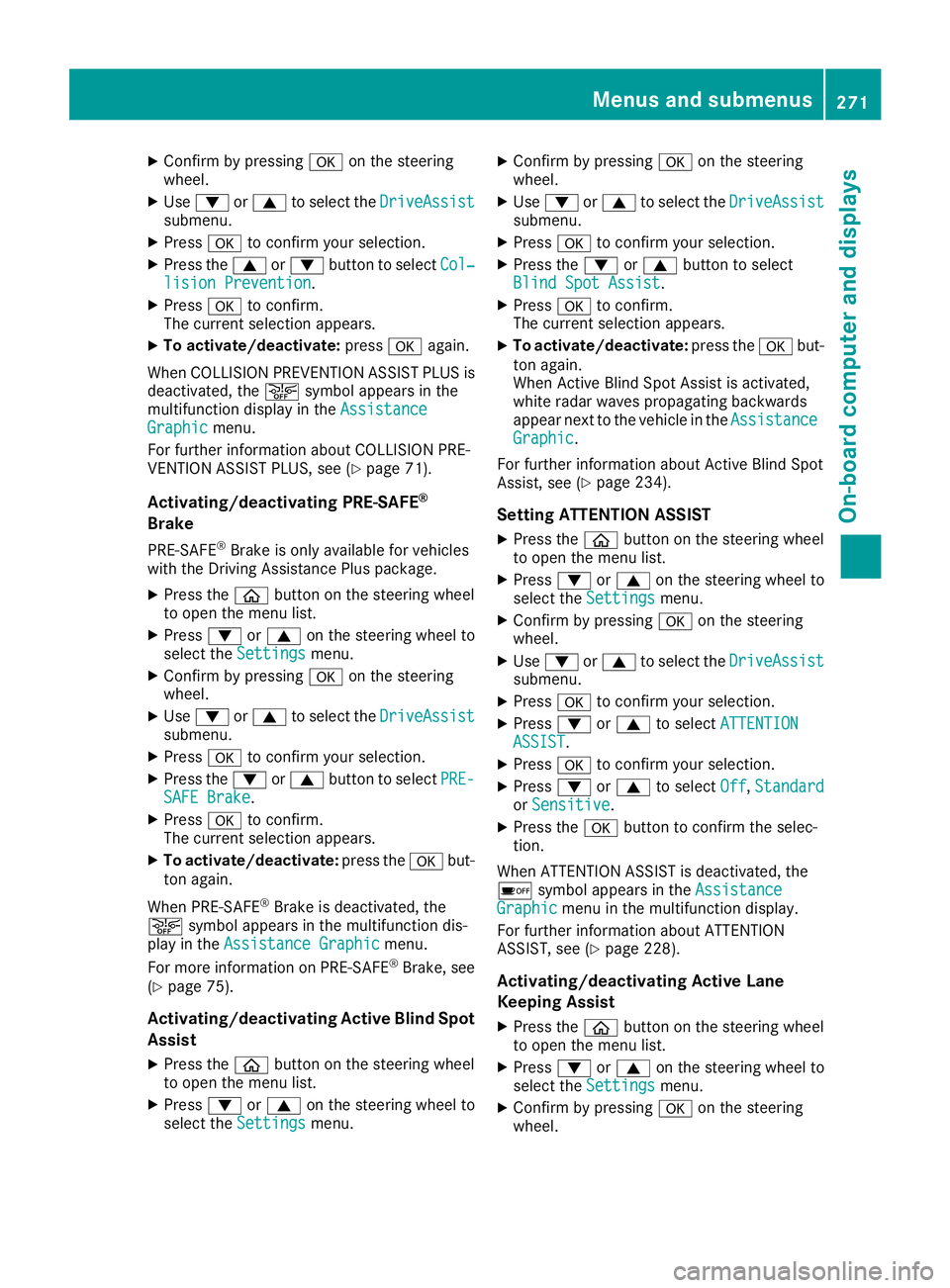

Press the c or d button to select Col‐
lision Prevention .X
Press v to confirm.
The current selection appears. X
To activate/deactivate: press v again.
When COLL IS ION PREVENTION AS SIST PLUS is
deactivate d, the

X
Use d or c to select the DriveAssist
submenu. X
Press v to confirm your selection.X
Press the d or c button to select
Lane Keeping Assist .X
Press v to confirm.
The current selection, Standard or Adap‐
tive , appears.X
To change the setting: press v again.
For further information about Active Lane Keep-
ing Assist, see ( Y
page 237).

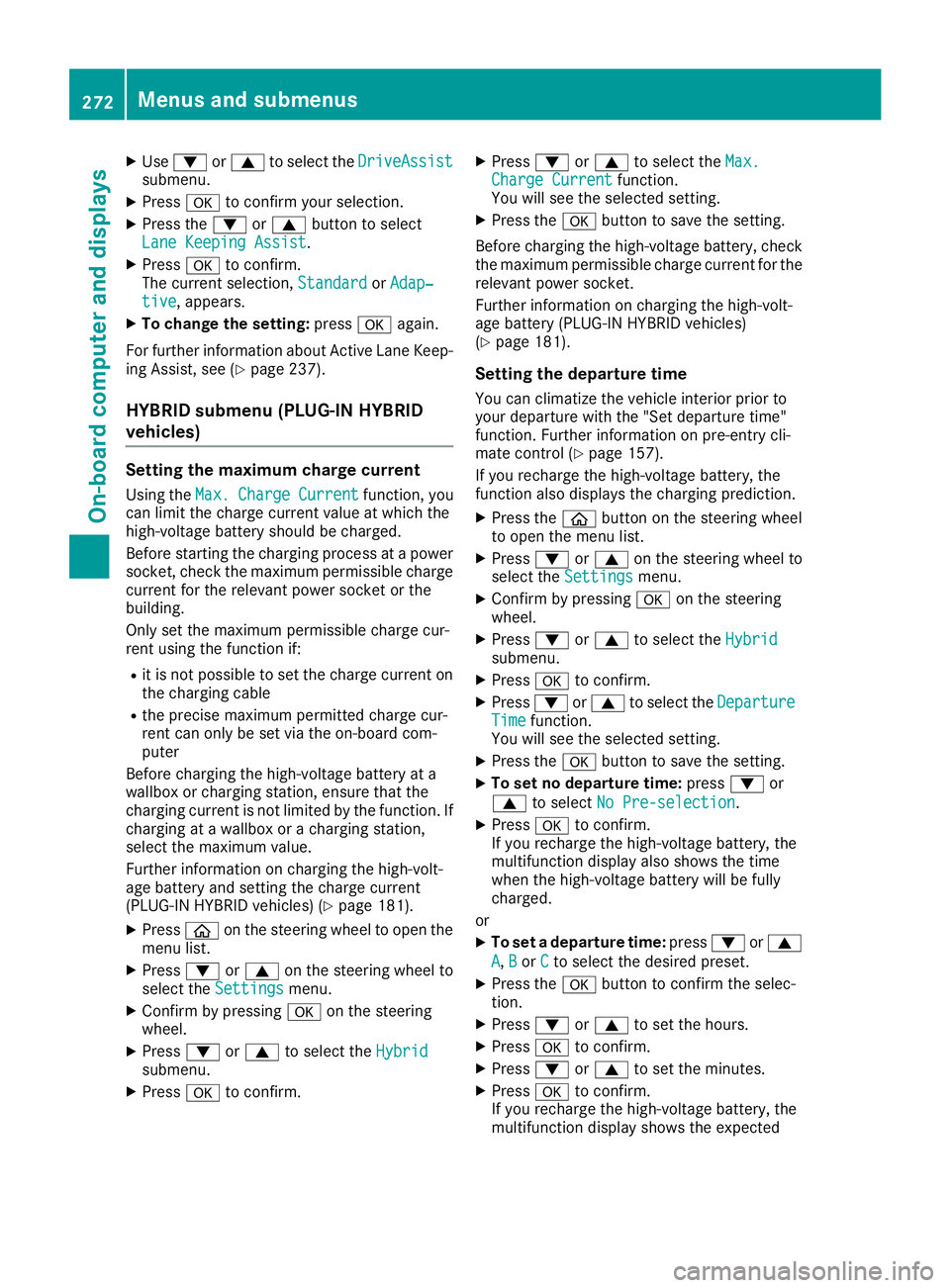

HYBRID submenu (PLUG-IN HYBRID
vehicles) Setting the maximum charge current Using the Max. Charge Current function, you
can limit the charge current value at which the
high-voltage battery should be charged.
Before starting the charging process at a power
socket, check the maximum permissible charge
current for the relevant power socket or the
building.
Only set the maximum permissible charge cur-
rent using the function if: R
it is not possible to set the charge current on
the charging cable R
the precise maximum permitted charge cur-
rent can only be set via the on-board com-
puter
Before charging the high-voltage battery at a
wallbox or charging station, ensure that the
charging current is not limited by the function. If
charging at a wallbox or a charging station,
select the maximum value.
Further information on charging the high-volt-
age battery and setting the charge current
(PLUG-IN HYBRID vehicles) ( Y
page 181).X
Press

condition of charge of the high-voltage bat-
tery for the departure time set.
Further information on charging the high-volt-
age battery (PLUG-IN HYBRID vehicles)
( Y
page 181).

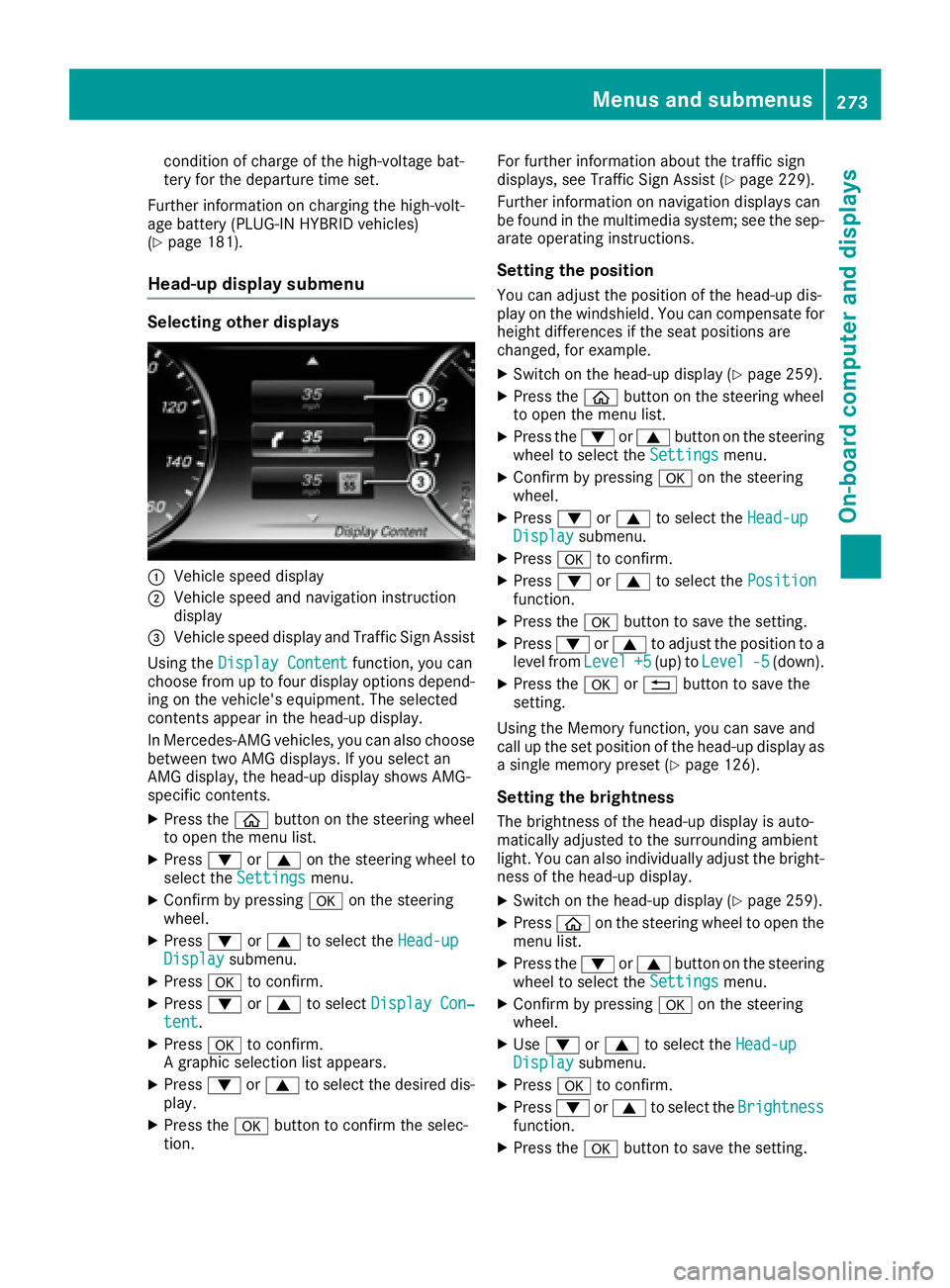

Head-up display submenu Selecting other displays
C
Vehicle speed displayD
Vehicle speed and navigation instruction
display

X

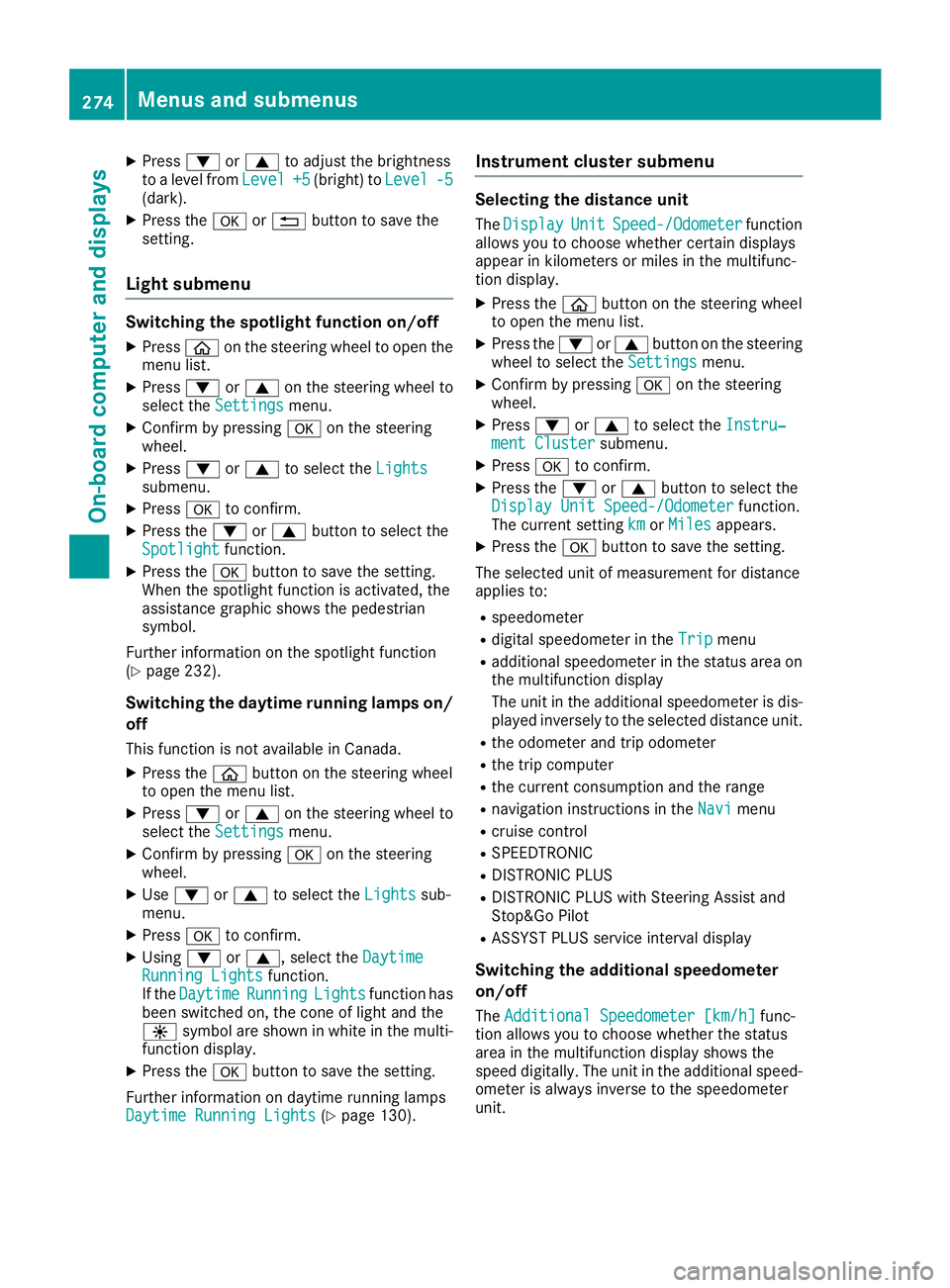

Press d or c to adjust the brightness
to a level from Level +5 (bright) to Level -5
(dark). X
Press the v or 8 button to save the
setting.
Light submenu Switching the spotlight function on/off X
Press

X
Press

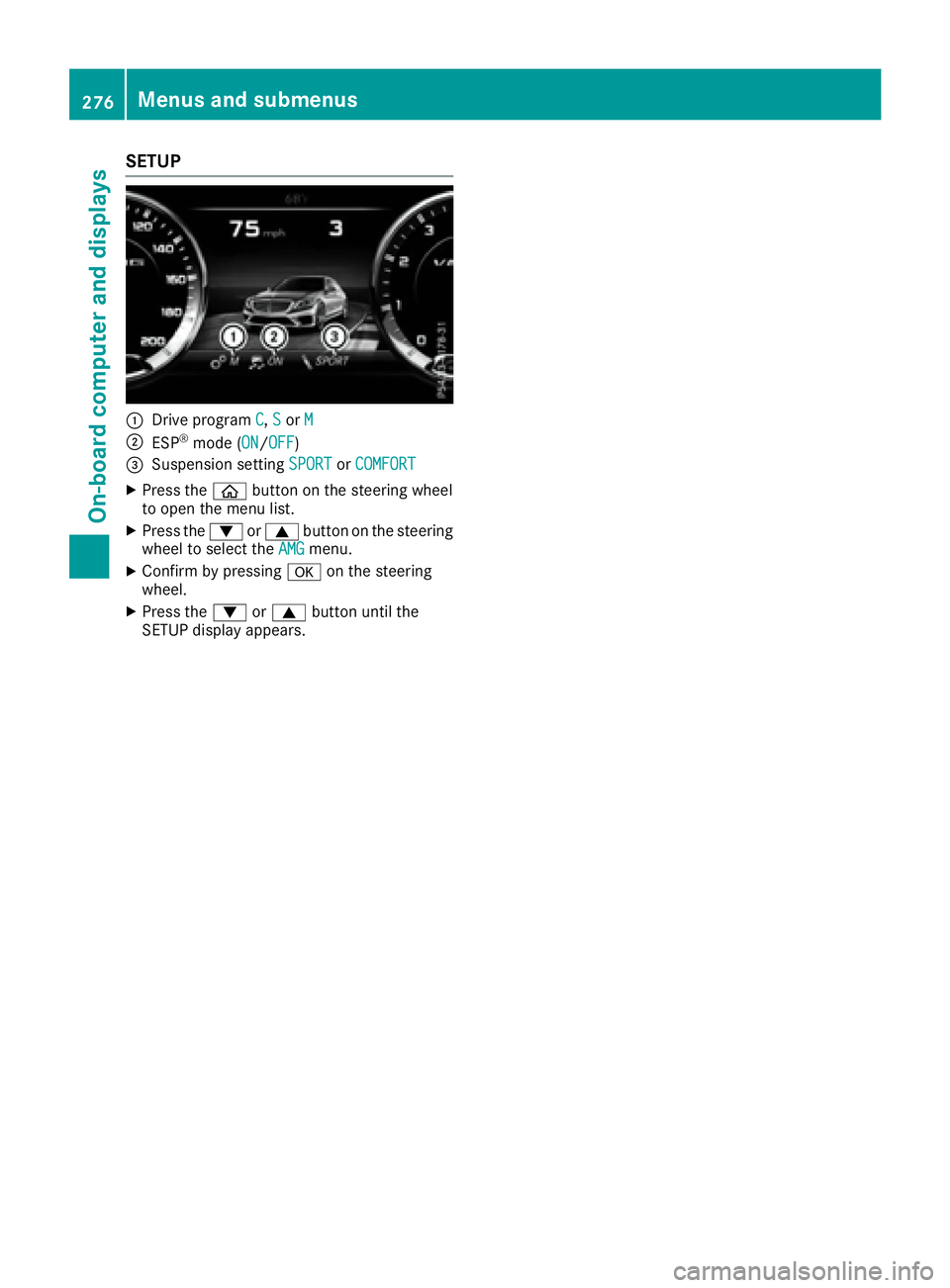

SETUP
C
Drive program C , S or MD
ESP ®
mode ( ON / OFF )

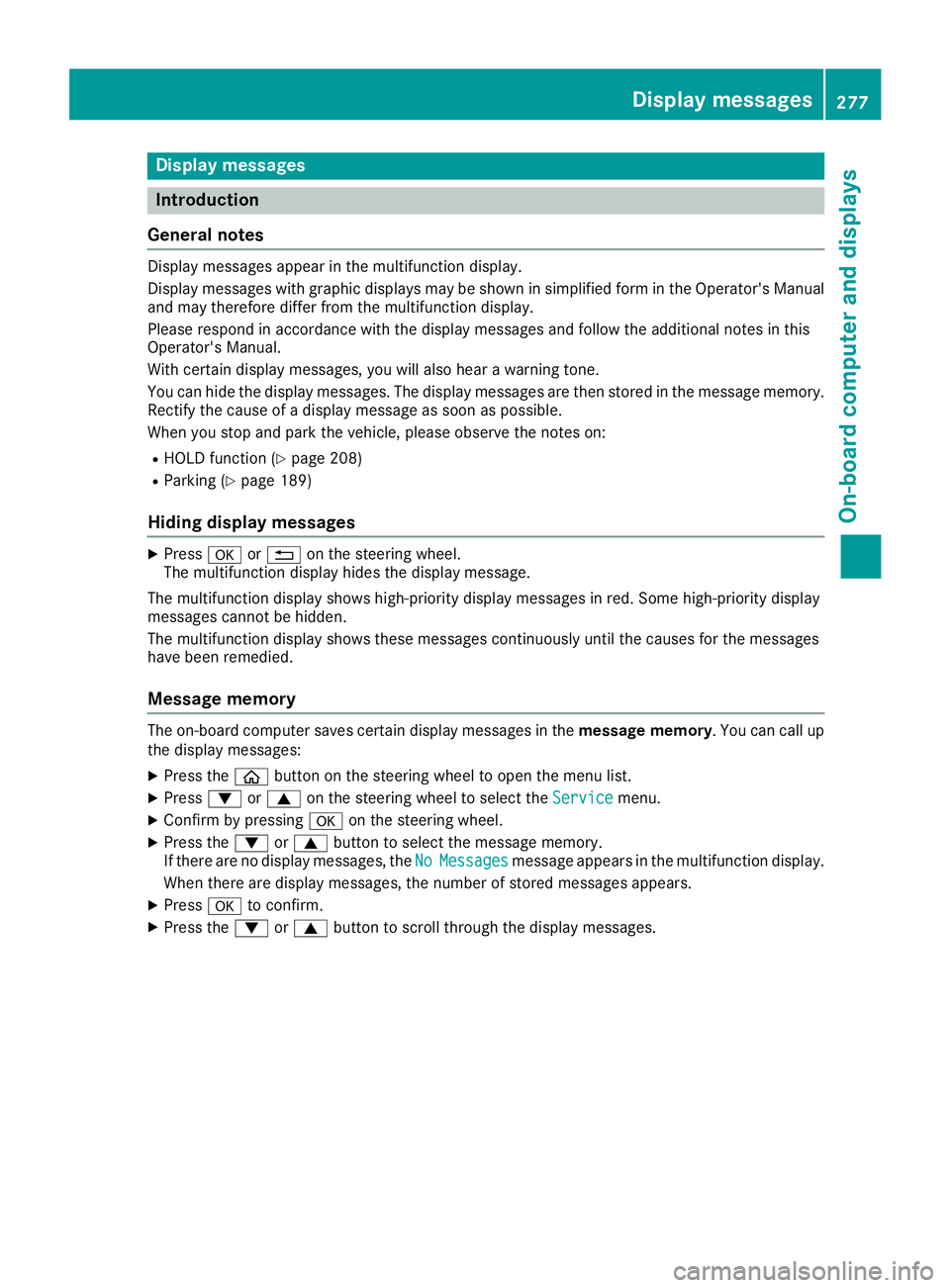

Display messages
Introduction
General notes Display messages appear in th e multifunction display.
Display messages wit h graphi c displays may be shown in simplified form in th e Operator's Manual
and may therefore diffe r from th e multifunction display.
Please respon d in accordance wit h th e display messages and follow th e additional note s in this
Operator's Manual.
Wit h certain display messages, you will also hear a warnin g tone .
You can hide th e display messages. The display messages are then stored in th e messag e memory.
Rectify th e cause of a display messag e as soo n as possible.
Whe n you stop and par k th e vehicle, please observ e th e note s on :R
HOLD function ( Y
page 208)R
Parking ( Y
page 189)
Hiding display messages X
Press v or 8 on th e steerin g wheel.
The multifunction display hide s th e display message.
The multifunction display shows high-priorit y display messages in red . Some high-priorit y display
messages canno t be hidden .
The multifunction display shows these messages continuously until th e causes fo r th e messages
hav e bee n remedied.
Message memory The on-boar d compute r saves certain display messages in th e message memory . You can cal l up
th e display messages: X
Press th e

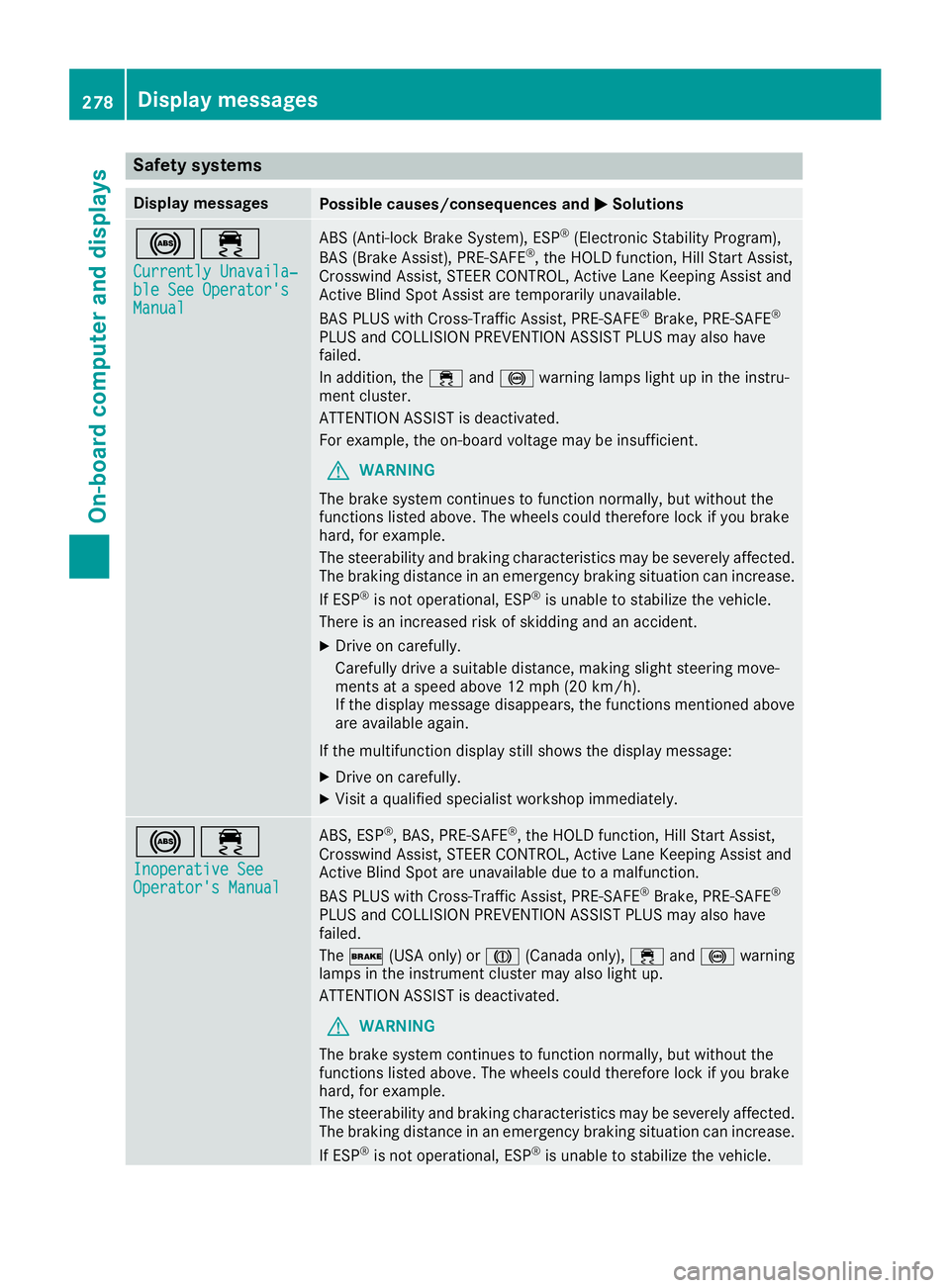

Safety systems Display messages
Possible causes/consequences and P Solutions
%
