MERCEDES-BENZ S CLASS 2016 Owners Manual

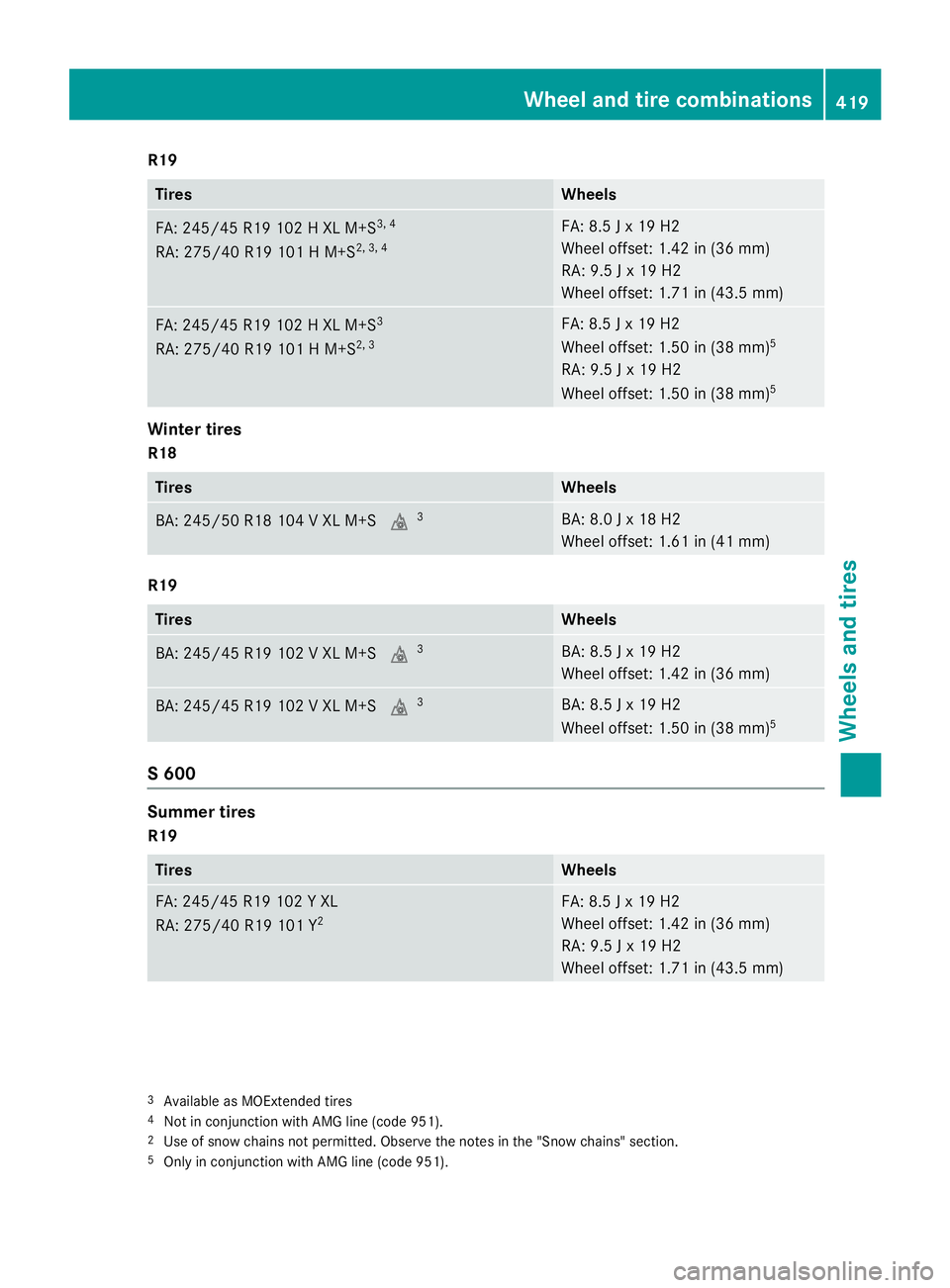

R19
Tires Wheels
FA: 245/45 R19 102 H XL M+S 3, 4
RA: 275/40 R19 101 H M+S 2, 3, 4
FA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
FA: 245/45 R19 102 H XL M+S 3
RA: 275/40 R19 101 H M+S 2, 3
FA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm) 5
RA: 9.5 J x 19 H2
Wheel offset: 1.50 in (38 mm) 5
Winter tires R18
Tires Wheels
BA: 245/50 R18 104 V XL M+S M 3
BA: 8.0 J x 18 H2
Wheel offset: 1.61 in (41 mm)
R19
Tires Wheels
BA: 245/45 R19 102 V XL M+S M 3
BA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
BA: 245/45 R19 102 V XL M+S M 3
BA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm) 5
S 600
Summer tires R19
Tires Wheels
FA: 245/45 R19 102 Y XL
RA: 275/40 R19 101 Y 2
FA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
3
Available as MOExtended tires 4
Not in conjunction with AMG line (code 951). 2
Use of snow chains not permitted. Observe the notes in the "Snow chains" section. 5
Only in conjunction with AMG line (code 951). Wheel and tire combinations 419
Wheels and tires Z

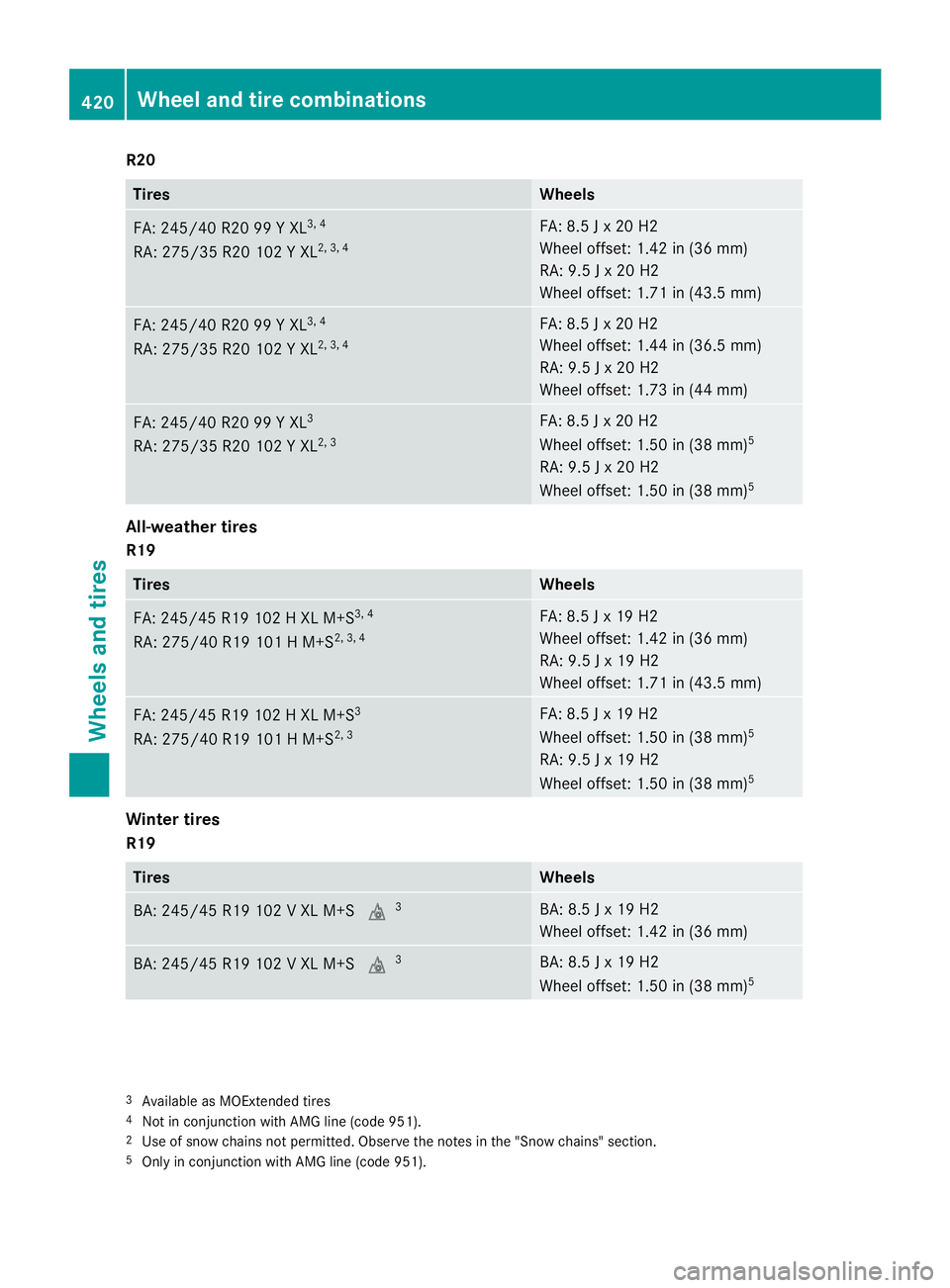

R20
Tires Wheels
FA: 245/40 R20 99 Y XL 3, 4
RA: 275/35 R20 102 Y XL 2, 3, 4
FA: 8.5 J x 20 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.71 in (43.5 mm)
FA: 245/40 R20 99 Y XL 3, 4
RA: 275/35 R20 102 Y XL 2, 3, 4
FA: 8.5 J x 20 H2
Wheel offset: 1.44 in (36.5 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.73 in (44 mm)
FA: 245/40 R20 99 Y XL 3
RA: 275/35 R20 102 Y XL 2, 3
FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm) 5
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm) 5
All-weather tires R19
Tires Wheels
FA: 245/45 R19 102 H XL M+S 3, 4
RA: 275/40 R19 101 H M+S 2, 3, 4
FA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
FA: 245/45 R19 102 H XL M+S 3
RA: 275/40 R19 101 H M+S 2, 3
FA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm) 5
RA: 9.5 J x 19 H2
Wheel offset: 1.50 in (38 mm) 5
Winter tires R19
Tires Wheels
BA: 245/45 R19 102 V XL M+S M 3
BA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
BA: 245/45 R19 102 V XL M+S M 3
BA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm) 5
3
Available as MOExtended tires 4
Not in conjunction with AMG line (code 951). 2
Use of snow chains not permitted. Observe the notes in the "Snow chains" section. 5
Only in conjunction with AMG line (code 951).420
Wheel and tire combinations
Wheels and tires

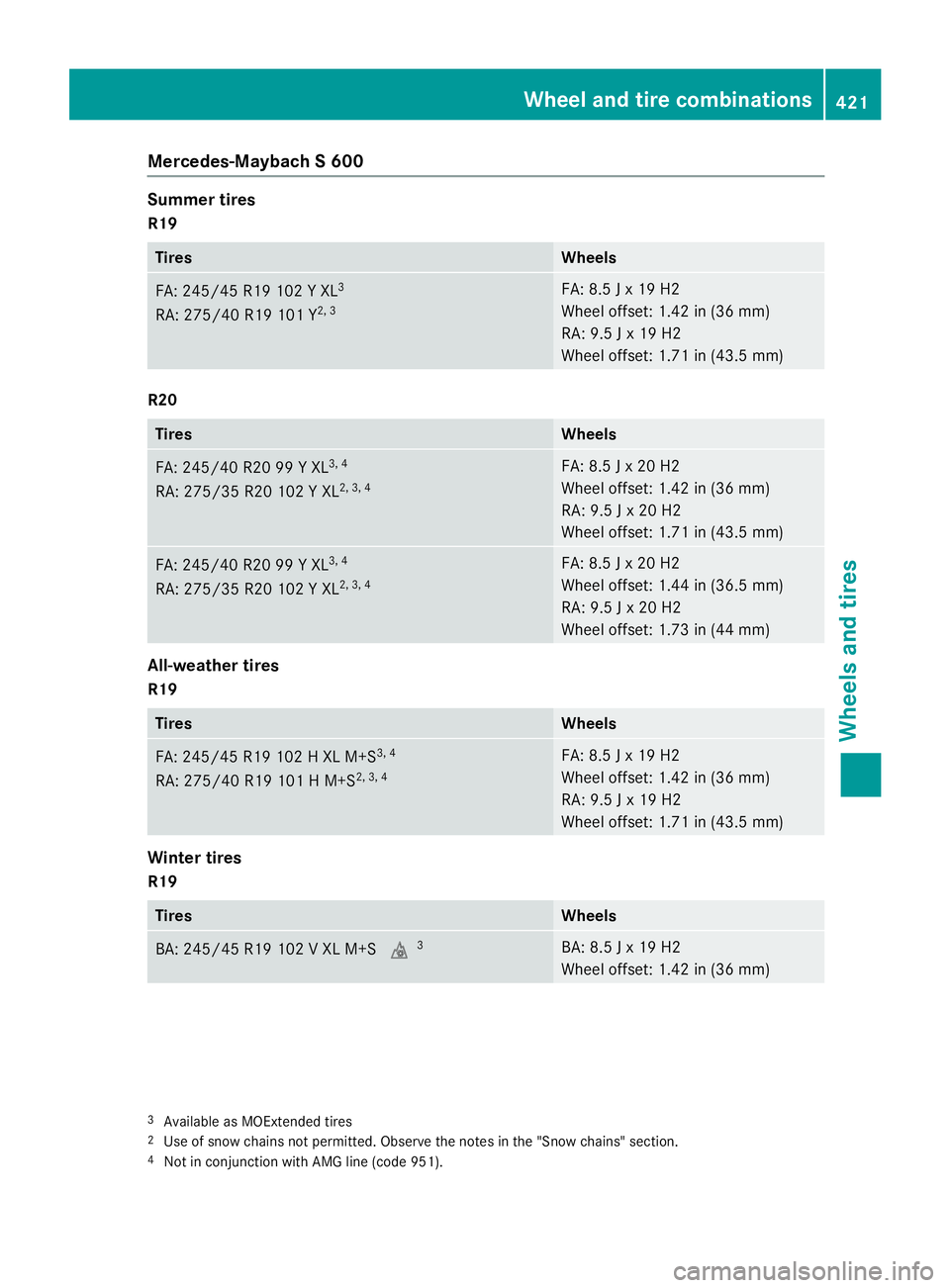

Mercedes-Maybach S 600 Summer tires R19
Tires Wheels
FA: 245/45 R19 102 Y XL 3
RA: 275/40 R19 101 Y 2, 3
FA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
R20
Tires Wheels
FA: 245/40 R20 99 Y XL 3, 4
RA: 275/35 R20 102 Y XL 2, 3, 4
FA: 8.5 J x 20 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.71 in (43.5 mm)
FA: 245/40 R20 99 Y XL 3, 4
RA: 275/35 R20 102 Y XL 2, 3, 4
FA: 8.5 J x 20 H2
Wheel offset: 1.44 in (36.5 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.73 in (44 mm)
All-weather tires R19
Tires Wheels
FA: 245/45 R19 102 H XL M+S 3, 4
RA: 275/40 R19 101 H M+S 2, 3, 4
FA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
Winter tires
R19
Tires Wheels
BA: 245/45 R19 102 V XL M+S M 3
BA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
3
Available as MOExtended tires 2
Use of snow chains not permitted. Observe the notes in the "Snow chains" section. 4
Not in conjunction with AMG line (code 951). Wheel and tire combinations 421
Wheels and tires Z

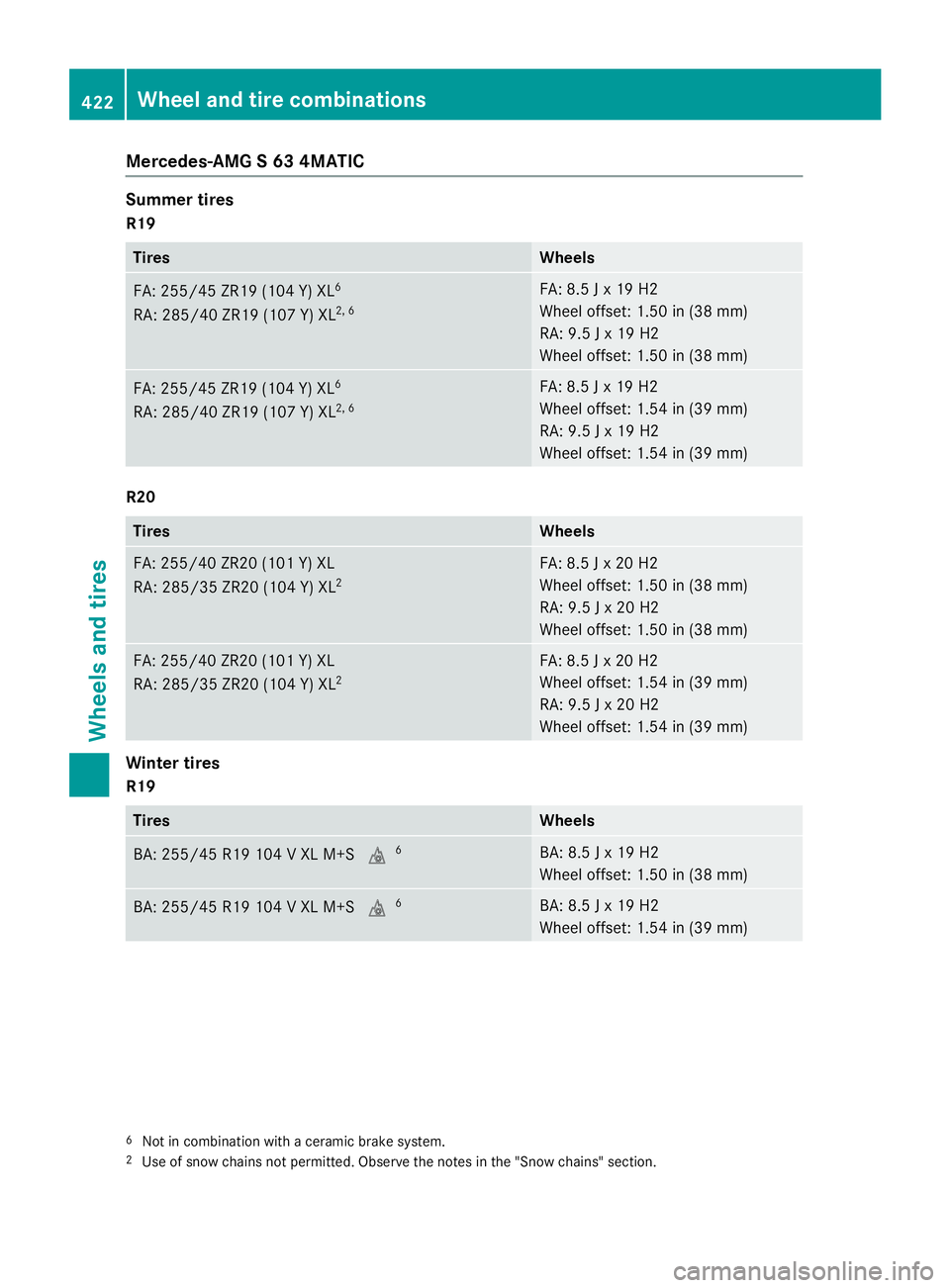

Mercedes ‑ AMG S 63 4MATICSummer tires R19
Tires Wheels
FA: 255/45 ZR19 (104 Y) XL 6
RA: 285/40 ZR19 (107 Y) XL 2, 6
FA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/45 ZR19 (104 Y) XL 6
RA: 285/40 ZR19 (107 Y) XL 2, 6
FA: 8.5 J x 19 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.54 in (39 mm)
R20
Tires Wheels
FA: 255/40 ZR20 (101 Y) XL
RA: 285/35 ZR20 (104 Y) XL 2
FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 ZR20 (101 Y) XL
RA: 285/35 ZR20 (104 Y) XL 2
FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
Winter tires R19
Tires Wheels
BA: 255/45 R19 104 V XL M+S M 6
BA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
BA: 255/45 R19 104 V XL M+S M 6
BA: 8.5 J x 19 H2
Wheel offset: 1.54 in (39 mm)
6
Not in combination with a ceramic brake system. 2
Use of snow chains not permitted. Observe the notes in the "Snow chains" section.422
Wheel and tire combinations
Wheels and tires

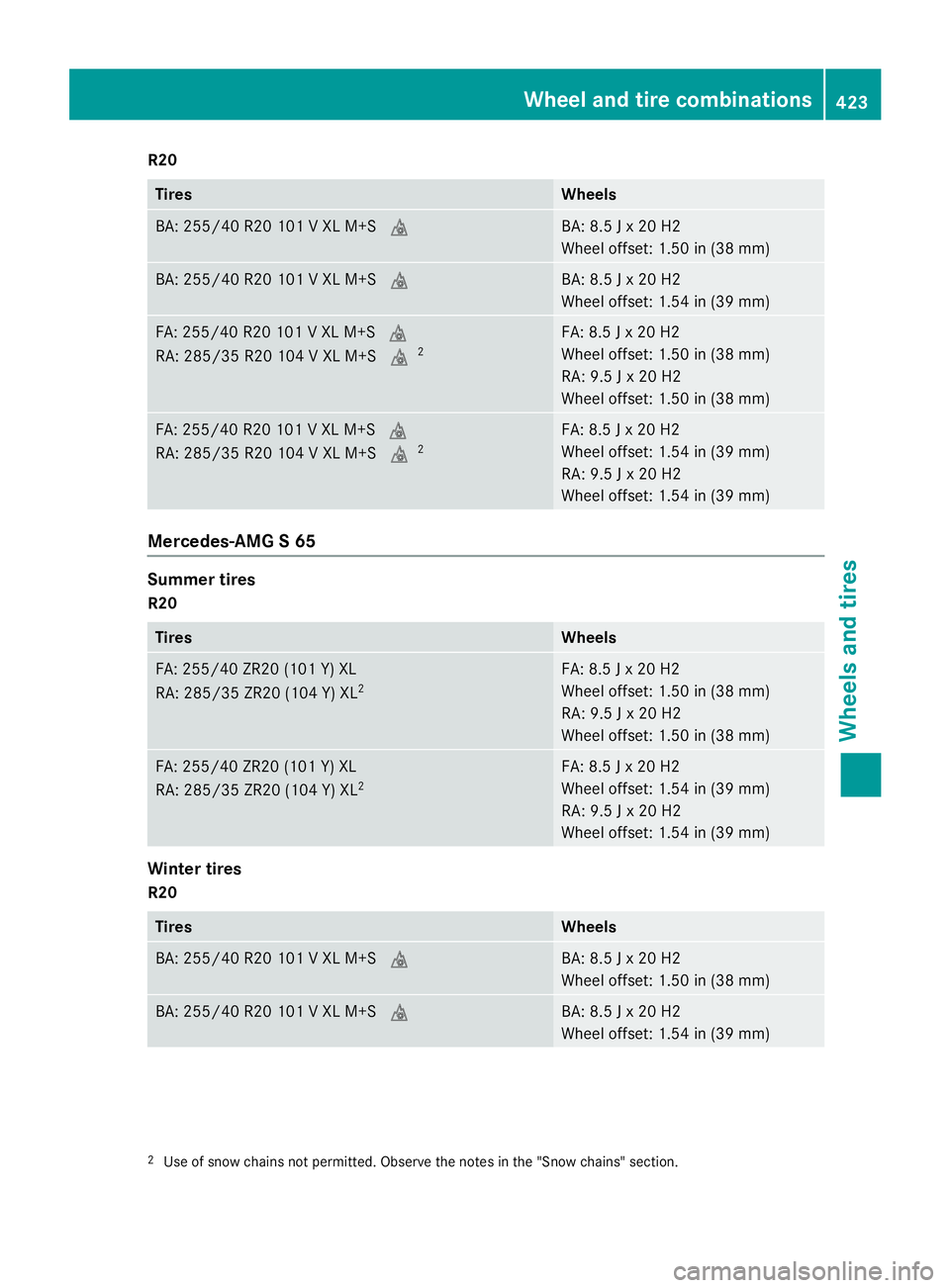

R20
Tires Wheels
BA: 255/40 R20 101 V XL M+S M BA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
BA: 255/40 R20 101 V XL M+S M BA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
FA: 255/40 R20 101 V XL M+S M
RA: 285/35 R20 104 V XL M+S M 2
FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 R20 101 V XL M+S M
RA: 285/35 R20 104 V XL M+S M 2
FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
Mercedes ‑ AMG S 65
Summer tires R20
Tires Wheels
FA: 255/40 ZR20 (101 Y) XL
RA: 285/35 ZR20 (104 Y) XL 2
FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 ZR20 (101 Y) XL
RA: 285/35 ZR20 (104 Y) XL 2
FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
Winter tires
R20
Tires Wheels
BA: 255/40 R20 101 V XL M+S M BA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
BA: 255/40 R20 101 V XL M+S M BA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
2
Use of snow chains not permitted. Observe the notes in the "Snow chains" section. Wheel and tire combinations 423
Wheels and tires Z

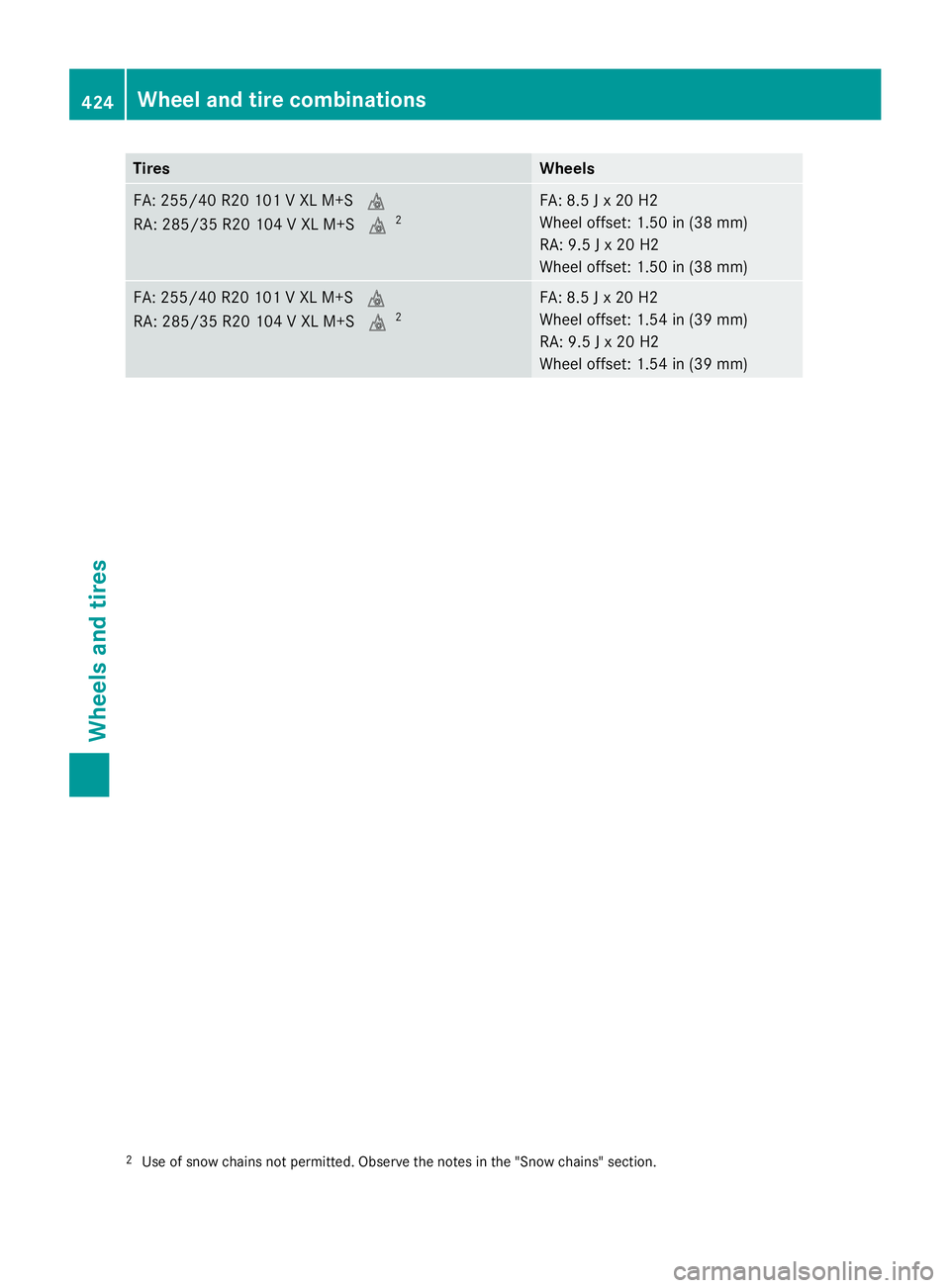

Tires Wheels
FA: 255/40 R20 101 V XL M+S M
RA: 285/35 R20 104 V XL M+S M 2
FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 R20 101 V XL M+S M
RA: 285/35 R20 104 V XL M+S M 2
FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
2
Use of snow chains not permitted. Observe the notes in the "Snow chains" section.424
Wheel and tire combinations
Wheels and tires

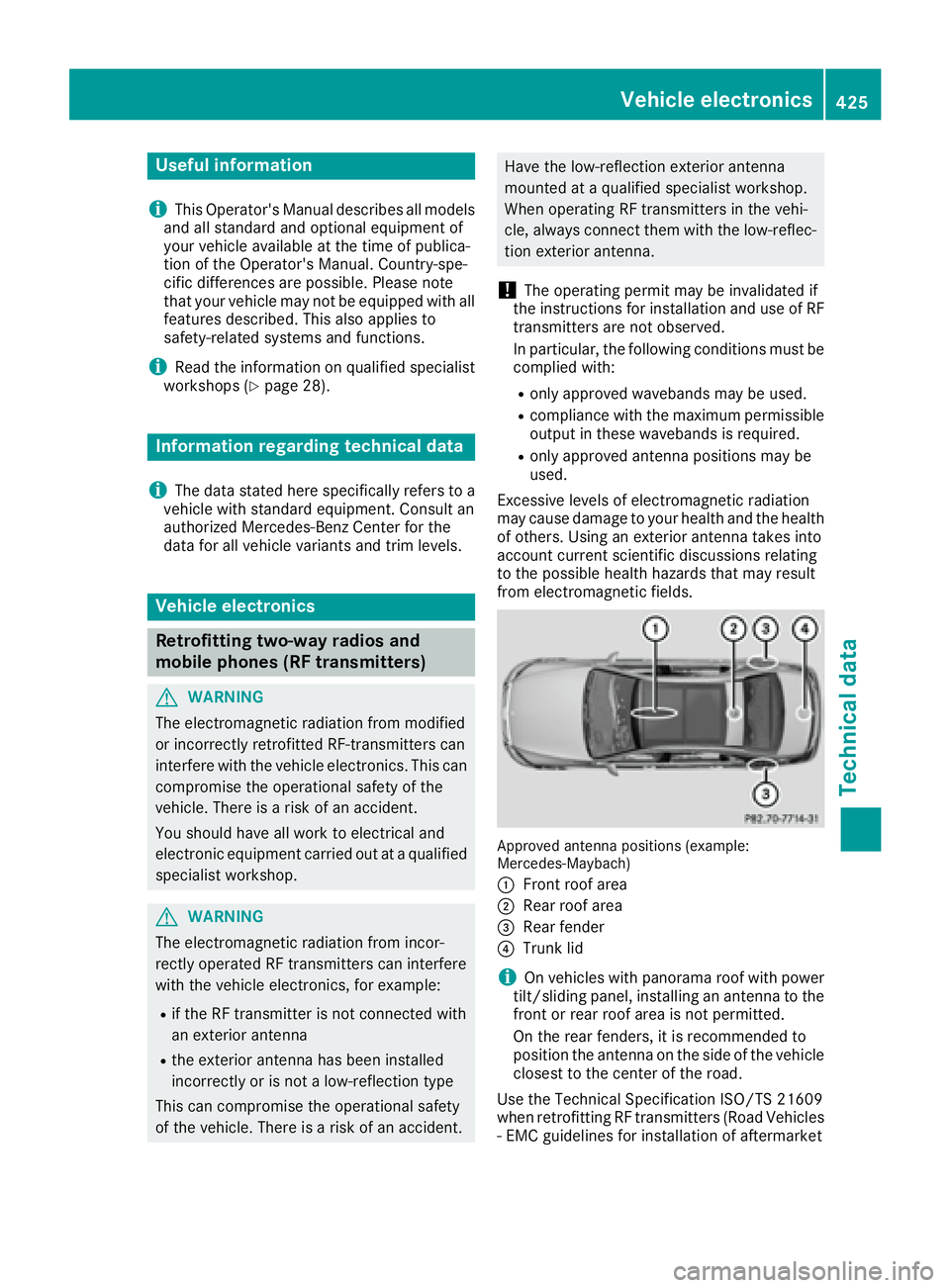

Useful information
i This Operator's Manual describes all models
and all standard and optional equipment of
your vehicle available at the time of publica-
tion of the Operator's Manual. Country-spe-
cific differences are possible. Please note
that your vehicle may not be equipped with all
features described. This also applies to
safety-related systems and functions.
i Read the information on qualified specialist
workshops ( Y
page 28).
Information regarding technical data
i The data stated here specifically refers to a
vehicle with standard equipment. Consult an
authorized Mercedes-Benz Center for the
data for all vehicle variants and trim levels.
Vehicle electronics
Retrofitting two-way radios and
mobile phones (RF transmitters)
G WARNING
The electromagnetic radiation from modified
or incorrectly retrofitted RF-transmitters can
interfere with the vehicle electronics. This can
compromise the operational safety of the
vehicle. There is a risk of an accident.
You should have all work to electrical and
electronic equipment carried out at a qualified
specialist workshop.
G WARNING
The electromagnetic radiation from incor-
rectly operated RF transmitters can interfere
with the vehicle electronics, for example: R
if the RF transmitter is not connected with
an exterior antenna R
the exterior antenna has been installed
incorrectly or is not a low-reflection type
This can compromise the operational safety
of the vehicle. There is a risk of an accident. Have the low-reflection exterior antenna
mounted at a qualified specialist workshop.
When operating RF transmitters in the vehi-
cle, always connect them with the low-reflec-
tion exterior antenna.
! The operating permit may be invalidated if
the instructions for installation and use of RF
transmitters are not observed.
In particular, the following conditions must be
complied with: R
only approved wavebands may be used. R
compliance with the maximum permissible
output in these wavebands is required. R
only approved antenna positions may be
used.
Excessive levels of electromagnetic radiation
may cause damage to your health and the health
of others. Using an exterior antenna takes into
account current scientific discussions relating
to the possible health hazards that may result
from electromagnetic fields.
Approved antenna positions (example:
Mercedes ‑ Maybach)
C
Front roof area D
Rear roof area

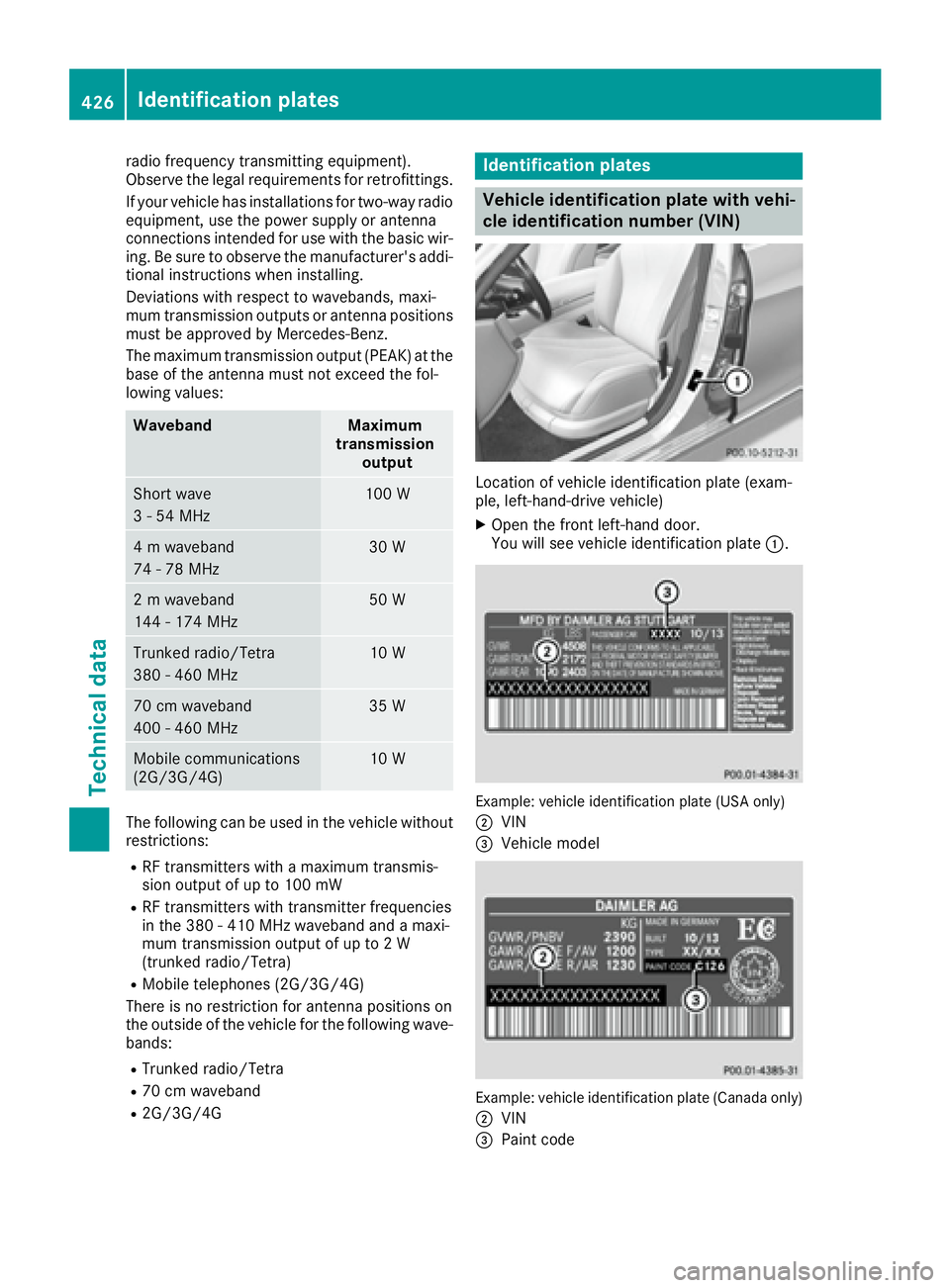

radio frequency transmitting equipment).
Observe the legal requirements for retrofittings.
If your vehicle has installations for two-way radio
equipment, use the power supply or antenna
connections intended for use with the basic wir-
ing. Be sure to observe the manufacturer's addi-
tional instructions when installing.
Deviations with respect to wavebands, maxi-
mum transmission outputs or antenna positions
must be approved by Mercedes-Benz.
The maximum transmission output (PEAK) at the
base of the antenna must not exceed the fol-
lowing values:
Waveband Maximum
transmission
output
Short wave
3 - 54 MHz 100 W
4 m waveband
74 - 78 MHz 30 W
2 m waveband
144 - 174 MHz 50 W
Trunked radio/Tetra
380 - 460 MHz 10 W
70 cm waveband
400 - 460 MHz 35 W
Mobile communications
(2G/3G/4G) 10 W
The following can be used in the vehicle without
restrictions: R
RF transmitters with a maximum transmis-
sion output of up to 100 mW R
RF transmitters with transmitter frequencies
in the 380 - 410 MHz waveband and a maxi-
mum transmission output of up to 2 W
(trunked radio/Tetra) R
Mobile telephones (2G/3G/4G)
There is no restriction for antenna positions on
the outside of the vehicle for the following wave-
bands: R
Trunked radio/Tetra R
70 cm waveband R
2G/3G/4G Identification plates
Vehicle identification plate with vehi-
cle identification number (VIN)
Location of vehicle identification plate (exam-
ple, left-hand-drive vehicle) X
Open the front left-hand door.
You will see vehicle identification plate C .
Example: vehicle identification plate (USA only)
D
VIN

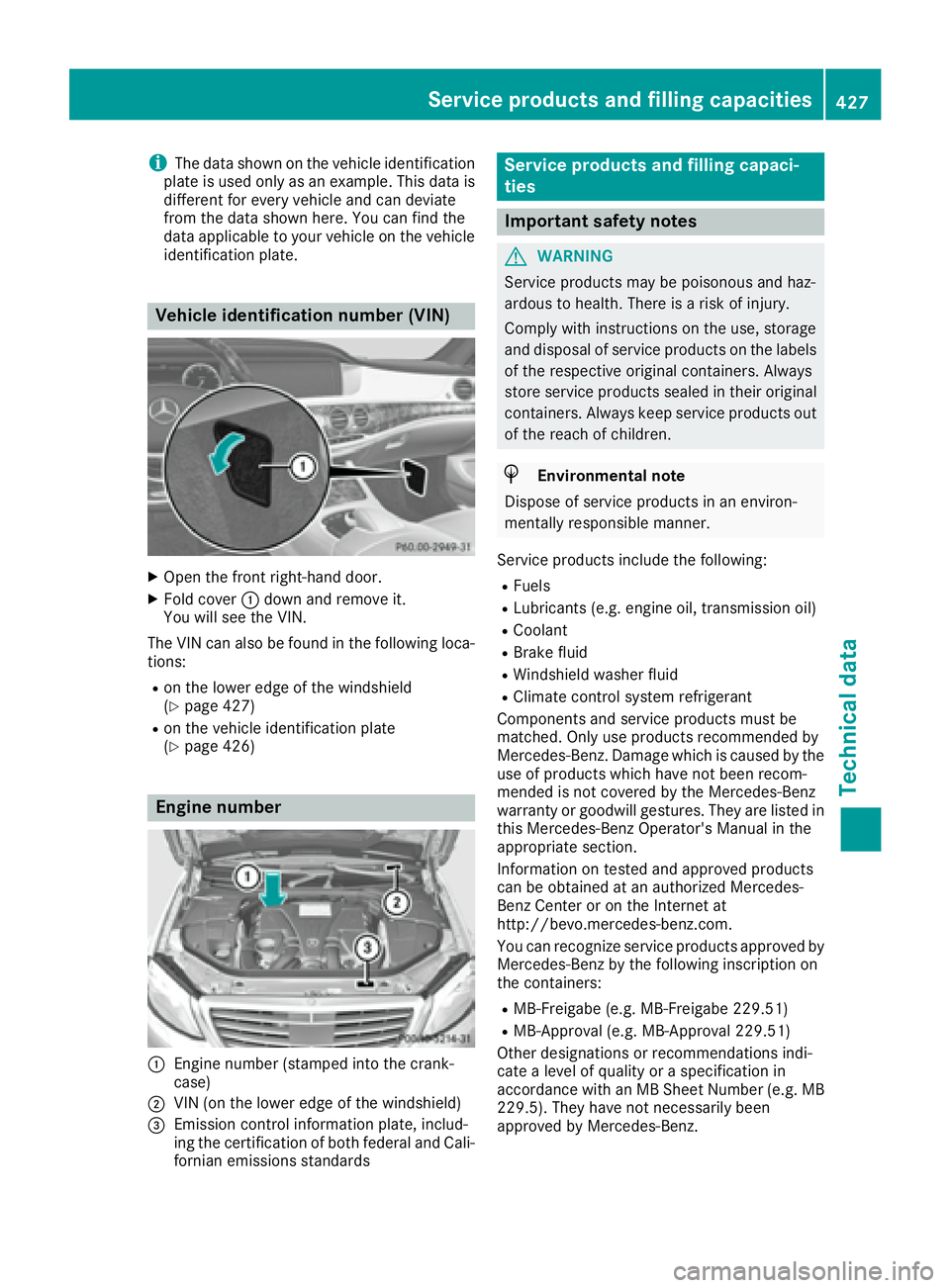

i The data shown on the vehicle identification
plate is used only as an example. This data is
different for every vehicle and can deviate
from the data shown here. You can find the
data applicable to your vehicle on the vehicle
identification plate.
Vehicle identification number (VIN) X
Open the front right-hand door. X
Fold cover C down and remove it.
You will see the VIN.
The VIN can also be found in the following loca-
tions: R
on the lower edge of the windshield
( Y
page 427) R
on the vehicle identification plate
( Y
page 426)
Engine number
C
Engine number (stamped into the crank-
case)
D
VIN (on the lower edge of the windshield)

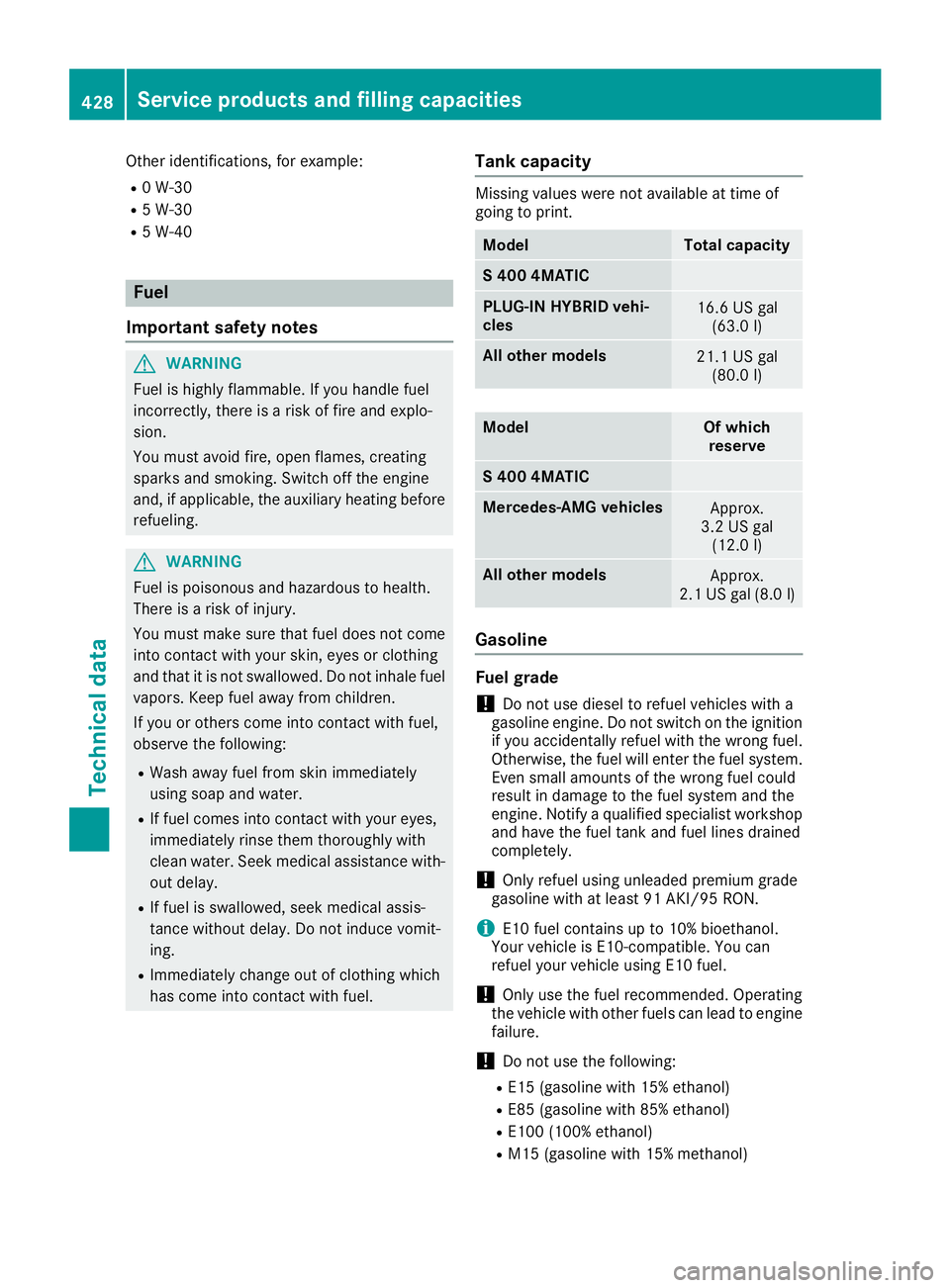

Other identifications, for example: R
0 W-30 R
5 W-30 R
5 W-40
Fuel
Important safety notes
G WARNING
Fuel is highly flammable. If you handle fuel
incorrectly, there is a risk of fire and explo-
sion.
You must avoid fire, open flames, creating
sparks and smoking. Switch off the engine
and, if applicable, the auxiliary heating before
refueling.
G WARNING
Fuel is poisonous and hazardous to health.
There is a risk of injury.
You must make sure that fuel does not come
into contact with your skin, eyes or clothing
and that it is not swallowed. Do not inhale fuel
vapors. Keep fuel away from children.
If you or others come into contact with fuel,
observe the following: R
Wash away fuel from skin immediately
using soap and water. R
If fuel comes into contact with your eyes,
immediately rinse them thoroughly with
clean water. Seek medical assistance with-
out delay. R
If fuel is swallowed, seek medical assis-
tance without delay. Do not induce vomit-
ing. R
Immediately change out of clothing which
has come into contact with fuel. Tank capacity Missing values were not available at time of
going to print.
Model Total capacity
S 400 4MATIC
PLUG-IN HYBRID vehi-
cles 16.6 US gal
(63.0 l)
Al l ot her models
21.1 US gal
(80.0 l)
Model Of which
reserve
S 400 4MATIC
Mercedes ‑ AMG vehicles
Approx.
3.2 US gal
(12.0 l)
Al l ot her models
Approx.
2.1 US gal (8.0 l)
Gasoline
Fuel grade
! Do not use diesel to refuel vehicles with a
gasoline engine. Do not switch on the ignition
if you accidentally refuel with the wrong fuel.
Otherwise, the fuel will enter the fuel system.
Even small amounts of the wrong fuel could
result in damage to the fuel system and the
engine. Notify a qualified specialist workshop
and have the fuel tank and fuel lines drained
completely.
! Only refuel using unleaded premium grade
gasoline with at least 91 AKI/95 RON.
i E10 fuel contains up to 10% bioethanol.
Your vehicle is E10-compatible. You can
refuel your vehicle using E10 fuel.
! Only use the fuel recommended. Operating
the vehicle with other fuels can lead to engine
failure.
! Do not use the following: R
E15 (gasoline with 15% ethanol) R
E85 (gasoline with 85% ethanol) R
E100 (1 00% ethanol) R
M15 (gasoline with 15% methanol)428
Service products and filling capacities
Technical data
