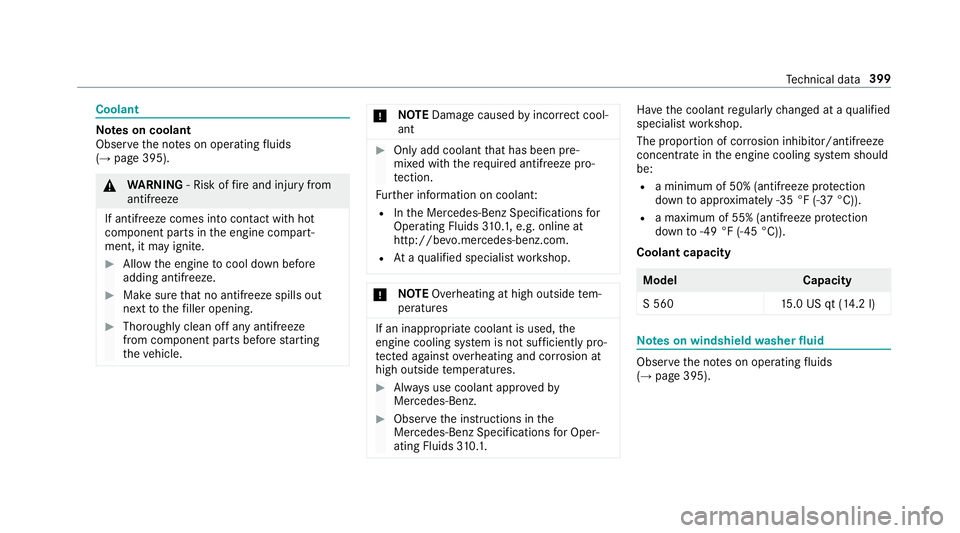

Coolant
Notes on coolant
Obser vethe no tes on operating fluids
(
→page 395).
& WARNING ‑ Risk of fire and injury from
antifreeze
If antifreeze comes into con tact wi thhot
component parts in the engine compart‐
ment, it may ignite.
#Allow the engine tocool down before
adding antifreeze.
#Make surethat no antifreeze spills out
next tothefiller opening.
#Thoroughly clean off any antifreeze
from component parts before starting
th eve hicle.
* NO
TEDama gecaused byincor rect cool‐
ant
#Only add coolant that has been pre‐
mixed with therequ ired antifreeze pro‐
te ction.
Fu rther information on coolant:
RIn the Mercedes-Benz Specifications for
Operating Fluids 310.1, e.g. online at
http://be vo.mercedes-benz.com.
RAt aqu alified specialist workshop.
* NO
TEOverheating at high outside tem‐
peratures
If an inappro priate coolant is used, the
engine cooling sy stem is not suf ficiently pro‐
te cted against overheating and cor rosion at
high outside temp eratures.
#Alw ays use coolant appr ovedby
Mercedes-Benz.
#Obser vethe instructions in the
Mercedes-Benz Specifications for Oper‐
ating Fluids 310.1.
Ha ve the coolant regularly changed at a qualified
specialist workshop.
The proportion of cor rosion inhibitor/antifreeze
concentrate in the engine cooling sy stem should
be:
Ra minimum of 50% (antifreeze pr otection
down toappr oximately -35 °F (-37 °C)).
Ra maximum of 55% (antifreeze pr otection
down to-49 °F (-45 °C)).
Coolant capacity
Mode lC apacity
S 560 15.0 US qt (14.2 l)
Note s on windshield washer fluid
Obser vethe no tes on operating fluids
(→page 395).
Te ch nical da ta399

&WARNING ‑ Risk of fire and injury from
windshield washer concentrate
Wi ndshield washer concentrate is highly
fl ammable. It could ignite if it comes into
con tact wi thhot engine component parts or
th eex haust sy stem.
#Make sure that no windshield washer
concentrate spills out next tothefiller
opening.
* NO
TEBlocked spr aynozzles caused by
mixing windshield washer fluids
#Do not mix MB SummerFit and MB Win‐
te rFit with other windshield washer flu‐
ids.
Do not use distilled or de-ionized water asthefill
le ve l sensor may be triggered er roneously.
Re commended windshield washer fluid:
RAbo vefreezing point: e.g. MB SummerFit
RBelow freezing point: e.g. MB WinterFit Fo
rth e cor rect mixing ratio referto the informa‐
tion on the antif reeze conta iner.
Mix thewa sher fluid withth e windshield washer
fl uid all year round.
Re frigerant
Note s onrefrigerants
Obser vethe no tes on operating fluids
(
→page 395).
* NO
TEDama gedue toincor rect refriger‐
ant
If a non-appr ovedre frigerant is used, the cli‐
mate control sy stem may be damaged.
#Only use there frigerant R‑134a
* NO
TEDama getothe climate control
sy stem due toincor rect refrigerant com‐
pressor oil
#Only use refrigerant compressor oil that
has been appr ovedby Mercedes-Benz.
#Do not mix the appr ovedre frigerant
compressor oil with a dif fere nt refriger‐
ant compressor oil.
Wo rkon the climate control sy stem may only be
car ried out byaqu alified specialist workshop. All
applicable regulations, as well as SAEstandard
J639, must be adhered to.

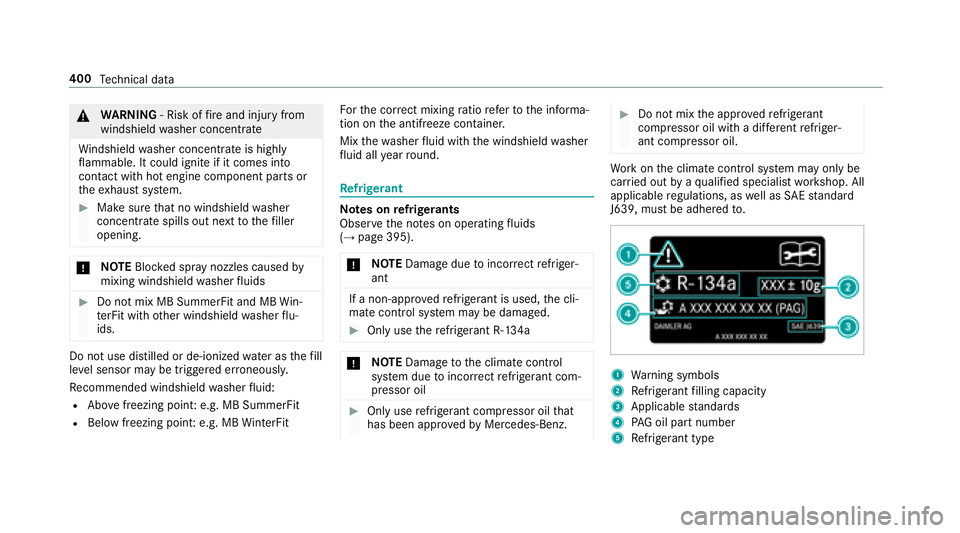

1Wa rning symbols
2Re frigerant filling capacity
3Applicable standards
4PA G oil part number
5Re frigerant type
400
Tech nical da ta

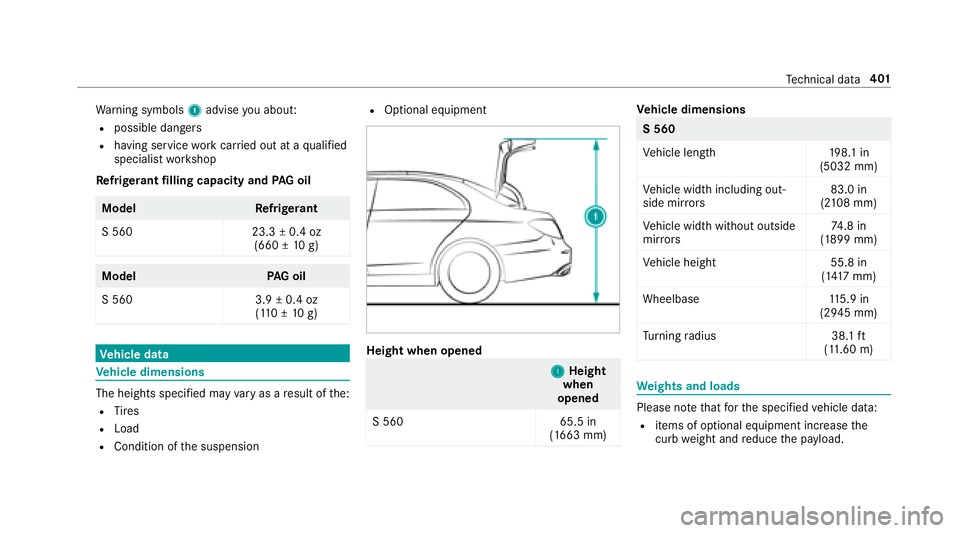

Warning symbols 1advise you about:
Rpossible dangers
Rhaving service workcar ried out at a qualified
specialist workshop
Re frigerant filling capacity and PAG oil
Model Refrigerant
S 560 23.3 ± 0.4 oz
(660 ± 10g)
Model PAG oil
S 560 3.9 ± 0.4 oz
(1 10 ±10 g)
Vehicle data
Vehicle dimensions
The heights specifi ed mayvary as a result of the:
RTire s
RLoad
RCondition of the suspension
ROptional equipment
Height when opened
1Height
when
opened
S 560 65.5 in
(1663 mm)
Ve hicle dimensions
S 560
Vehicle lengt h1 98.1 in
(5032 mm)
Ve hicle width including out‐
side mir rors 83.0 in
(2 10 8 mm)
Ve hicle width without outside
mir rors 74
.8 in
(1899 mm)
Ve hicle height 55.8 in
(1 41 7 mm)
Wheelbase 115.9 in
(2945 mm)
Tu rning radius 38.1ft
(1 1. 60 m)
We ights and loads
Please no tethat forth e specified vehicle data:
Ritems of optional equipment increase the
curb weight and reduce the pa yload.
Te ch nical da ta401

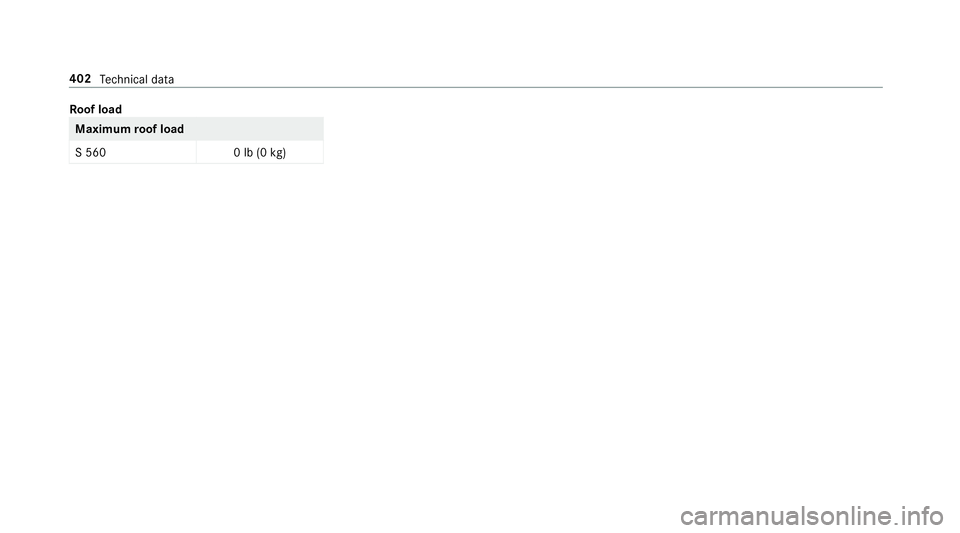

Roof load
Maximum roof load
S 5600 lb (0kg)
402
Tech nical da ta

Displaymessages
Int roduction
Note s on display messages
Display messages appear on the multifunction
displa y.
Displ aymessage s with graphic symbols are sim‐
plified in the Operator's Manual and may dif fer
from the symbols on the multifunction displa y.
The multifunction display sho wshigh-priority dis‐
play messages in red. Cer tain display messages
are accompanied byawa rning tone.
Please respond in accordance with the display
messages and follow the additional no tes in this
Opera tor's Manual.
Fo r some display message s, a symbol is also
shown:
R¤ Further information
RO Hide display message
Yo u can select the desired symbol byswiping
left or right on the left-hand Touch Control.
Press the¤ symbol toshow fur ther informa‐
tion on the multifunction displa y.Press theO
symbol tohide the display message.
Yo u can hidelow- priority display messages by
pressing the¤ button or the left-hand Touch
Control. The display messages arethen stored in
th e message memor y.
Re ctify the cause of a display message as
qu ickly as possible.
High-priority display messages cannot be hid‐
den. The multifunction display sho ws these dis‐
play messages continuously until the cause of
th e display message has been rectified. Calling up
stored displ aymessages
On-boa rdcompute r:
,Service.1 Message
If th ere are no display messages, No Messages
appears on the multifunction displa y.
#Scrollthro ugh the display messages byswip‐
ing upwards or down wards on the left-hand
To uch Control.
#To exitth e message memor y:press the
¤ button.
Display messages and warning/indicator lamps 403

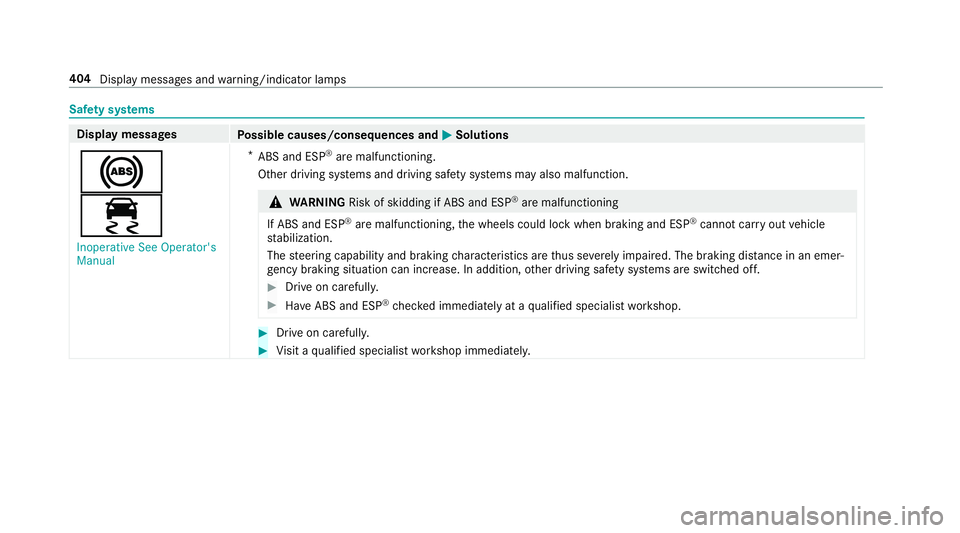

Safety sy stems
Display messages
Possible causes/consequences and MSolutions
!
÷
Inoperative See Operator's
Manual*
ABS and ESP
®are malfunctioning.
Other driving sy stems and driving saf etysy stems may also malfunction.
&
WARNING Risk of skidding if ABS and ESP®are malfunctioning
If ABS and ESP
®are malfunctioning, the wheels could lock when braking and ESP®cannot carryout vehicle
st abilization.
The steering capability and braking characteristics are thus se verely impaired .Th ebr aking dis tance in an emer‐
ge ncy braking situation can increase. In addition, other driving saf etysy stems are switched off.
#Drive on carefull y.
#Have ABS and ESP®checked immediately at a qualified specialist workshop.
#Drive on carefully.
#Visit a qualified specialist workshop immediatel y.
404
Display messages and warning/indicator lamps

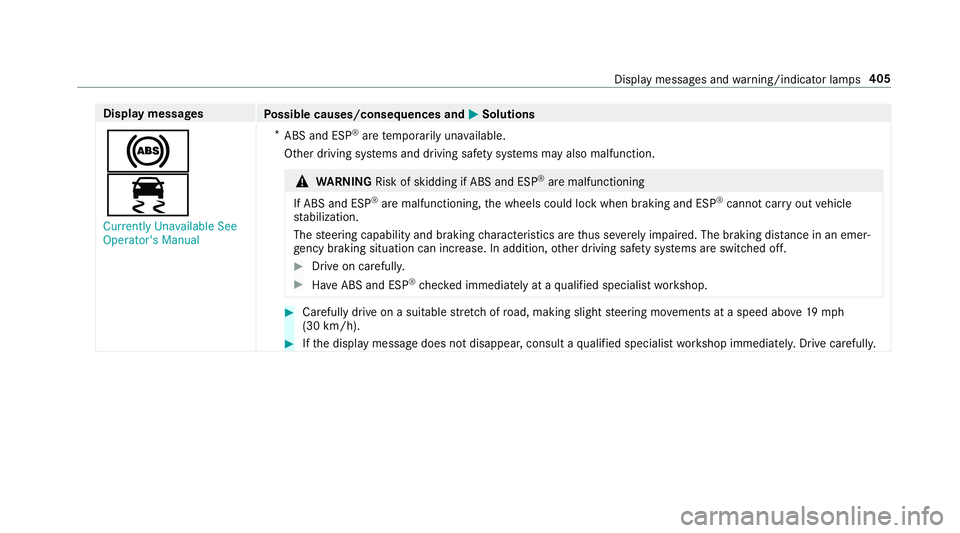

Displaymessages
Possible causes/consequences and MSolutions
!
÷
Currently Unavailable See
Operator's Manual*
ABS and ESP
®are temp orarily una vailable.
Other driving sy stems and driving saf etysy stems may also malfunction.
&
WARNING Risk of skidding if ABS and ESP®are malfunctioning
If ABS and ESP
®are malfunctioning, the wheels could lock when braking and ESP®cannot carryout vehicle
st abilization.
The steering capability and braking characteristics are thus se verely impaired .Th ebr aking dis tance in an emer‐
ge ncy braking situation can increase. In addition, other driving saf etysy stems are switched off.
#Drive on carefull y.
#Have ABS and ESP®checked immediately at a qualified specialist workshop.
#Carefully drive on a suitable stre tch of road, making slight steering mo vements at a speed abo ve19 mp h
(30 km/h).
#If th e display message does not disappear, consult a qualified specialist workshop immediately. Drive carefully.
Display messages and warning/indicator lamps 405

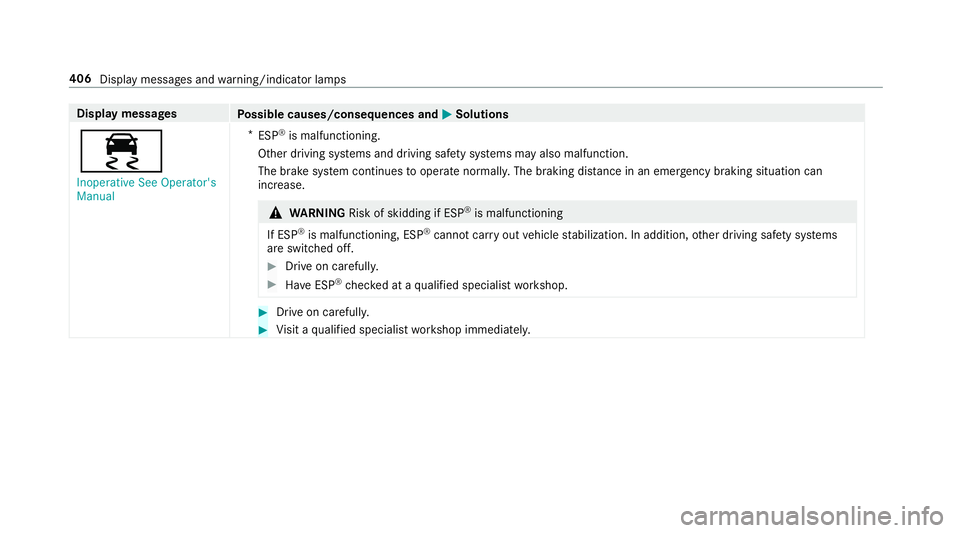

Displaymessages
Possible causes/consequences and MSolutions
÷
Inoperative See Operator's
Manual*
ESP
®is malfunctioning.
Other driving sy stems and driving saf etysy stems may also malfunction.
The brake sy stem continues tooperate normally. The braking dis tance in an emergency braking situation can
increase.
& WARNING Risk of skidding if ESP®is malfunctioning
If ESP
®is malfunctioning, ESP®cannot car ryout vehicle stabilization. In addition, other driving saf etysy stems
are switched off.
#Drive on carefull y.
#Have ESP®checked at a qualified specialist workshop.
#Drive on carefully.
#Vi sit a qualified specialist workshop immediatel y.
406
Display messages and warning/indicator lamps

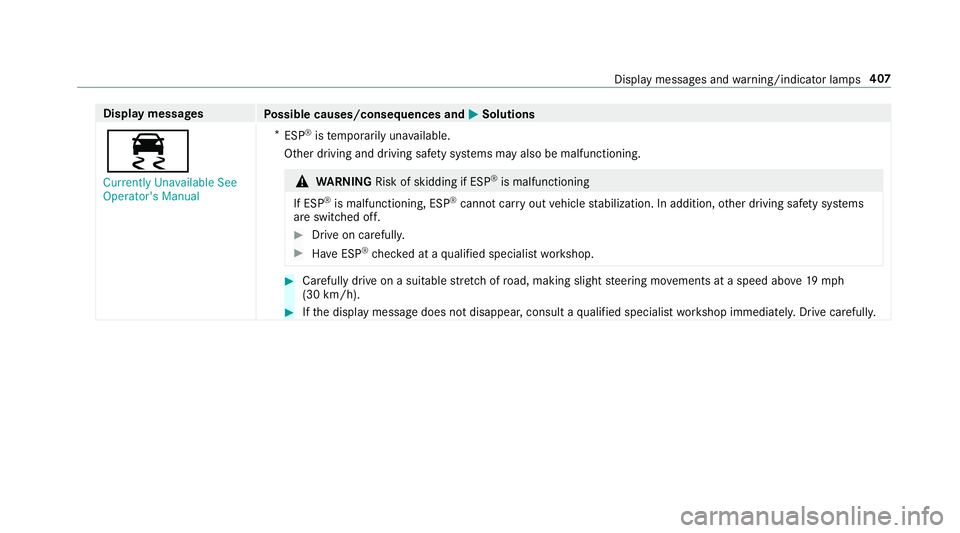

Displaymessages
Possible causes/consequences and MSolutions
÷
Currently Unavailable See
Operator's Manual*
ESP
®is temp orarily una vailable.
Other driving and driving saf etysy stems may also be malfunctioning.
&
WARNING Risk of skidding if ESP®is malfunctioning
If ESP
®is malfunctioning, ESP®cannot car ryout vehicle stabilization. In addition, other driving saf etysy stems
are switched off.
#Drive on carefull y.
#Have ESP®checked at a qualified specialist workshop.
#Carefully drive on a suitable stre tch of road, making slight steering mo vements at a speed abo ve19 mp h
(30 km/h).
#If th e display message does not disappear, consult a qualified specialist workshop immediately. Drive carefully.
Display messages and warning/indicator lamps 407

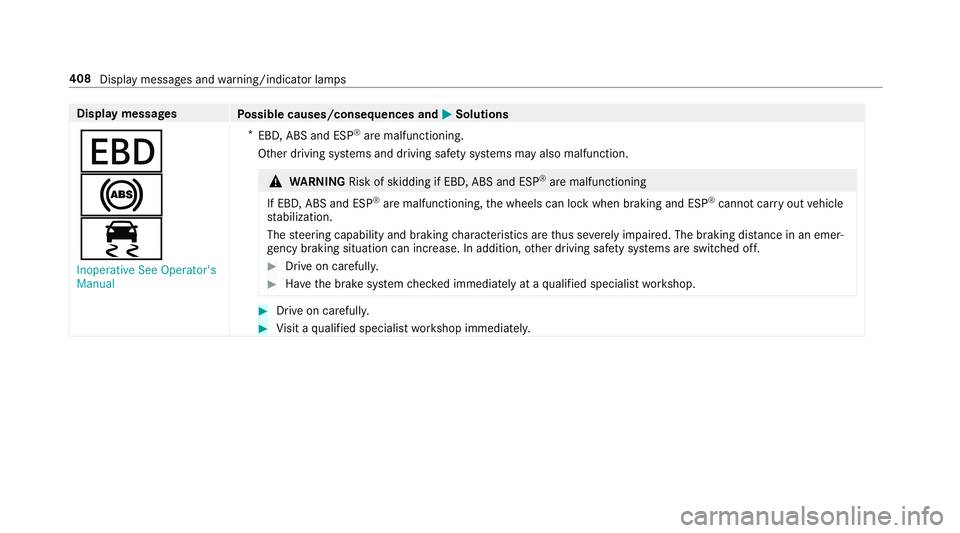

Displaymessages
Possible causes/consequences and MSolutions
T
!
÷
Inoperative See Operator's
Manual*
EBD, ABS and ESP
®are malfunctioning.
Other driving sy stems and driving saf etysy stems may also malfunction.
&
WARNING Risk of skidding if EBD, ABS and ESP®are malfunctioning
If EBD, ABS and ESP
®are malfunctioning, the wheels can lock when braking and ESP®cannot carryout vehicle
st abilization.
The steering capability and braking characteristics are thus se verely impaired .Th ebr aking dis tance in an emer‐
ge ncy braking situation can increase. In addition, other driving saf etysy stems are switched off.
#Drive on carefull y.
#Have the brake sy stem checked immediately at a qualified specialist workshop.
#Drive on carefully.
#Vi sit a qualified specialist workshop immediatel y.
408
