Page 161 of 382

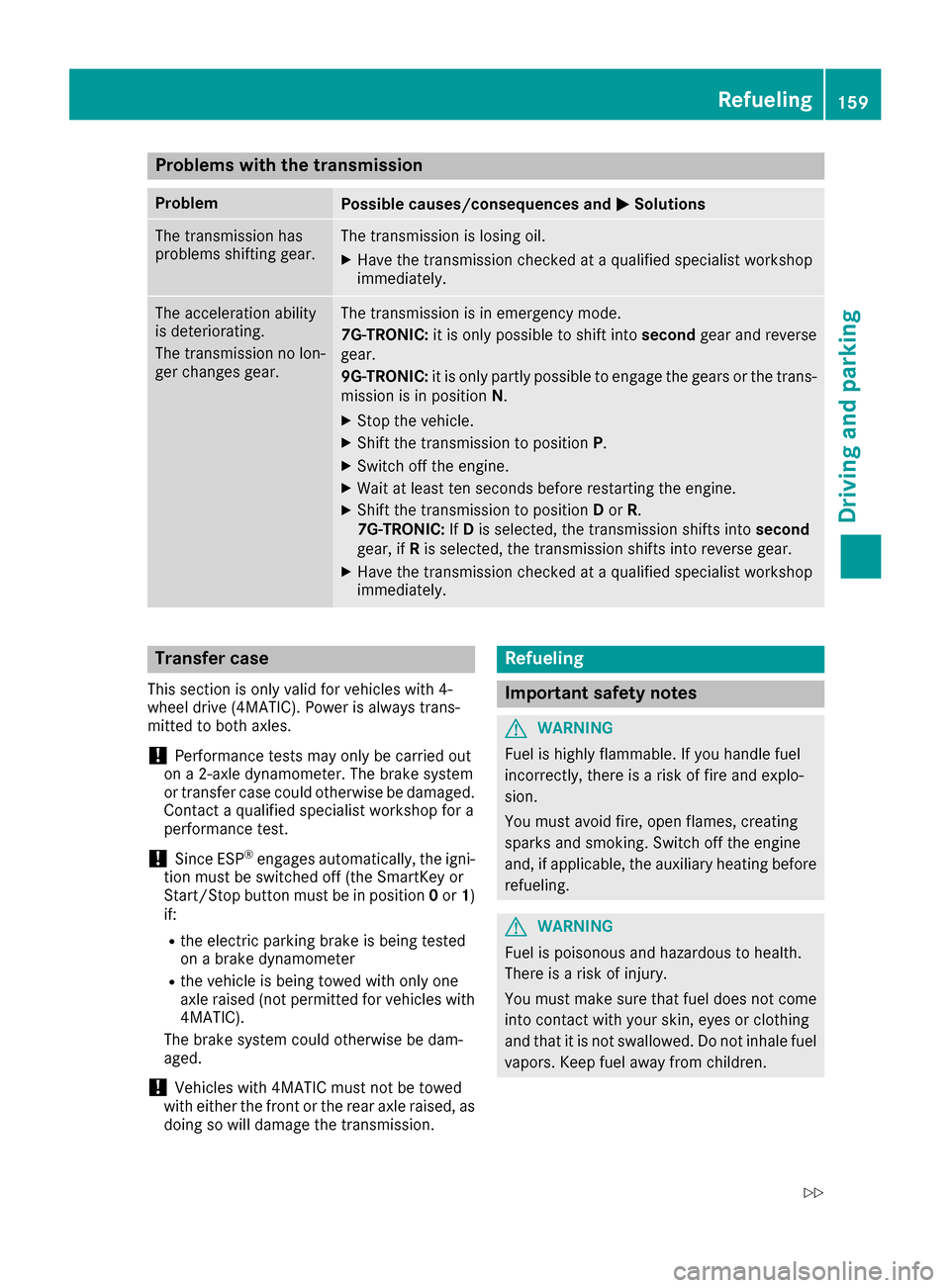

MERCEDES-BENZ S-Class MAYBACH 2017 W222 Owners Manual Problems with the transmission
ProblemPossible causes/consequences andMSolutions
The transmission has
problems shifting gear.The transmission is losing oil.
XHave the transmission checked at a qualifi

Page 162 of 382

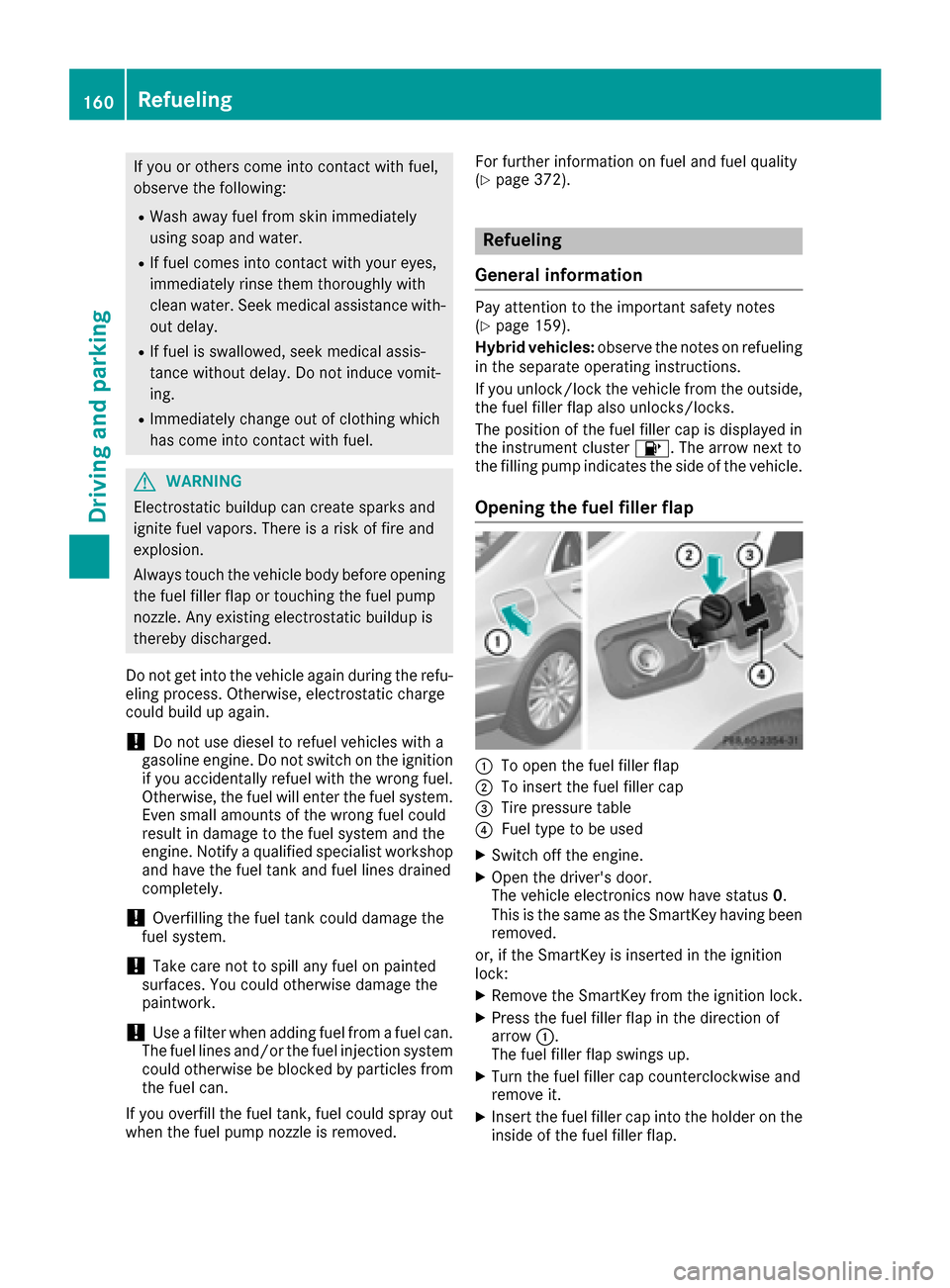

MERCEDES-BENZ S-Class MAYBACH 2017 W222 Owners Manual If you or others come into contact with fuel,
observe the following:
RWash away fuel from skin immediately
using soap and water.
RIf fuel comes into contact with your eyes,
immediately rinse them thor

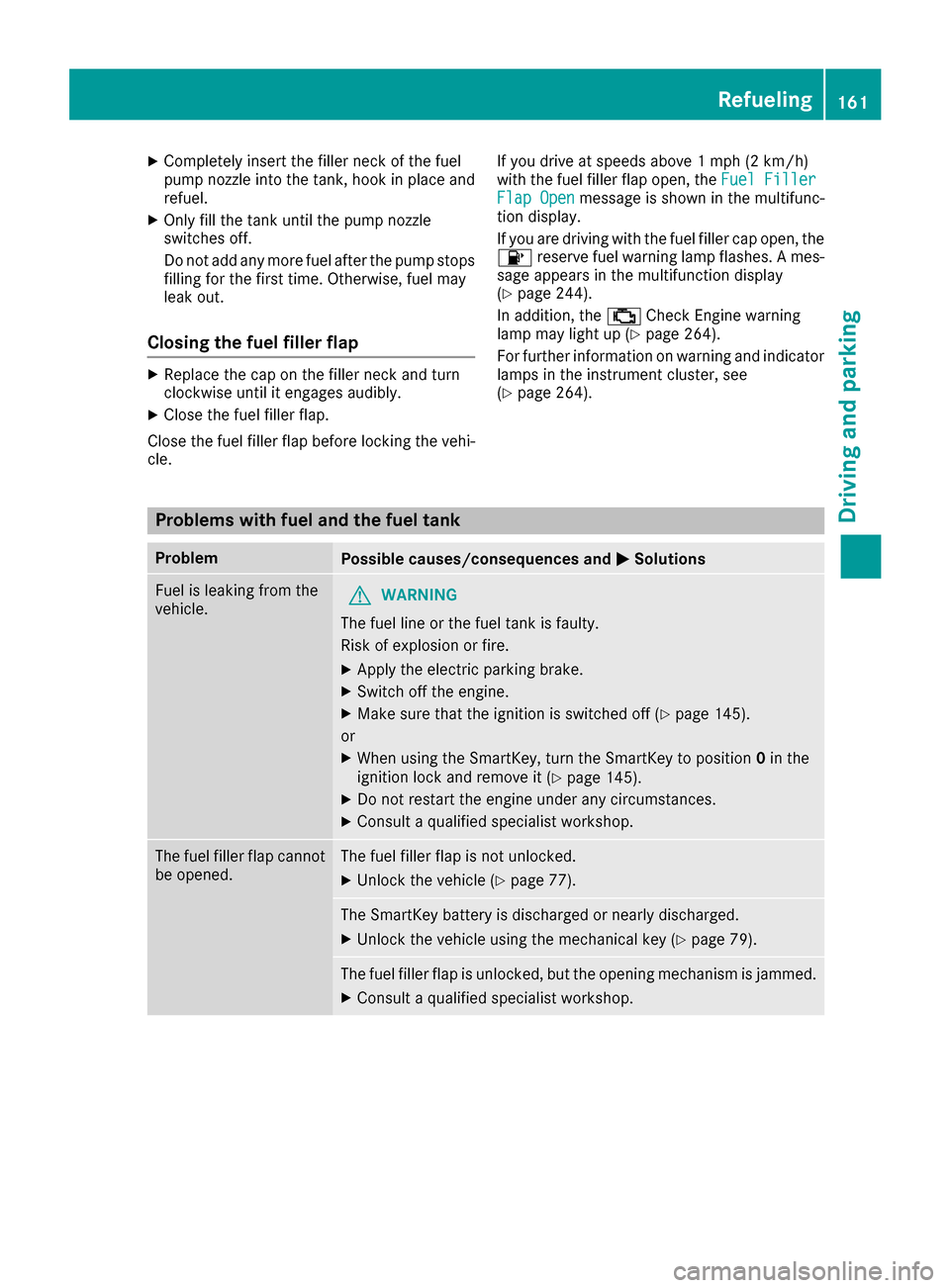

Page 163 of 382

MERCEDES-BENZ S-Class MAYBACH 2017 W222 Owners Manual XCompletely insert thefiller neck of the fuel
pump nozz leinto the tank, hook in place and
refuel.
XOnly fill the tank unt ilthe pump nozz le
swit ches off.
Do not add any more fuel after the pump sto

Page 164 of 382

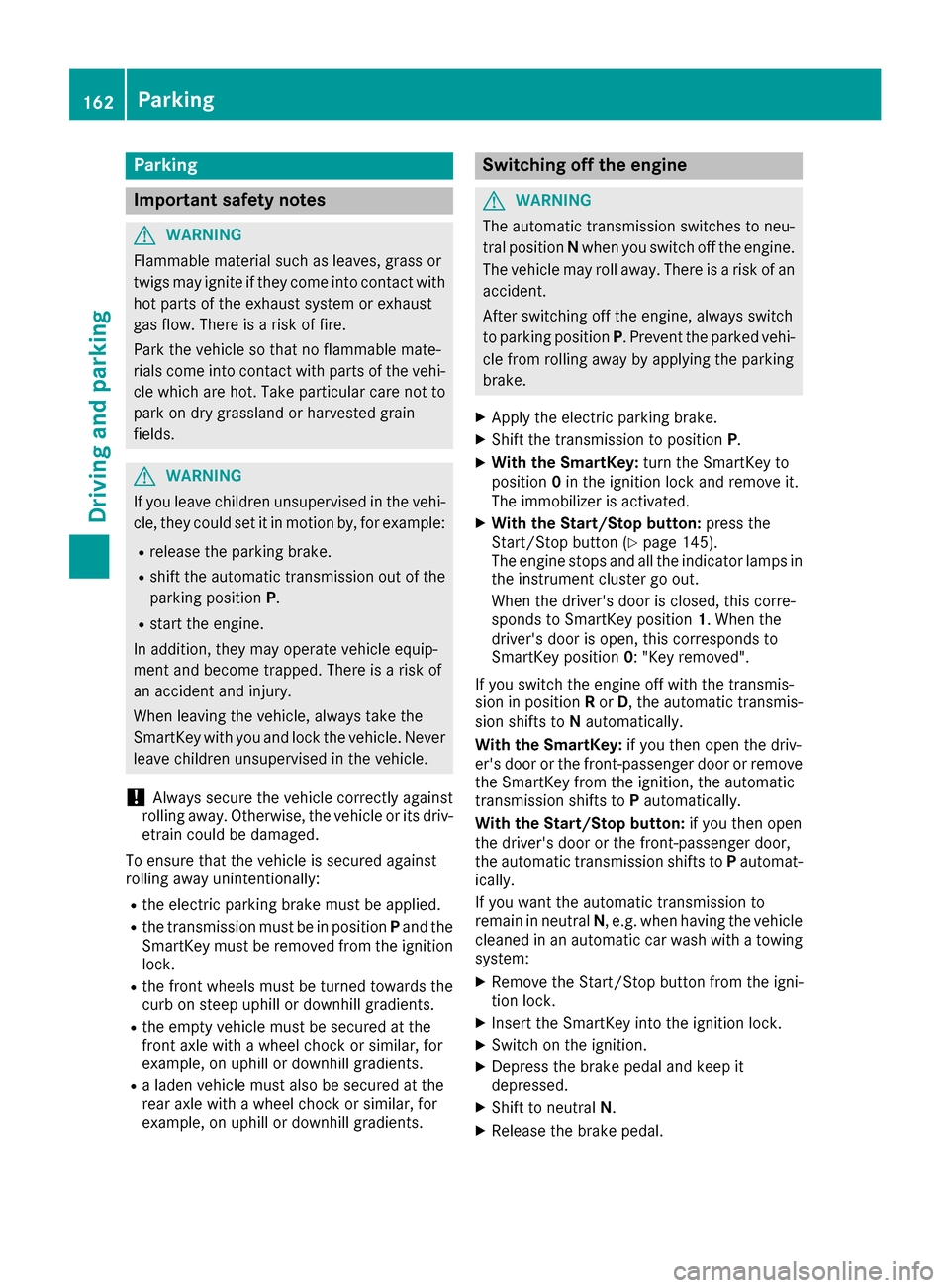

MERCEDES-BENZ S-Class MAYBACH 2017 W222 Owners Manual Parking
Important safety notes
GWARNING
Flammable material such as leaves, grass or
twigs may ignite if they come into contact with
hot parts of the exhaust system or exhaust
gas flow. There is a risk

Page 165 of 382

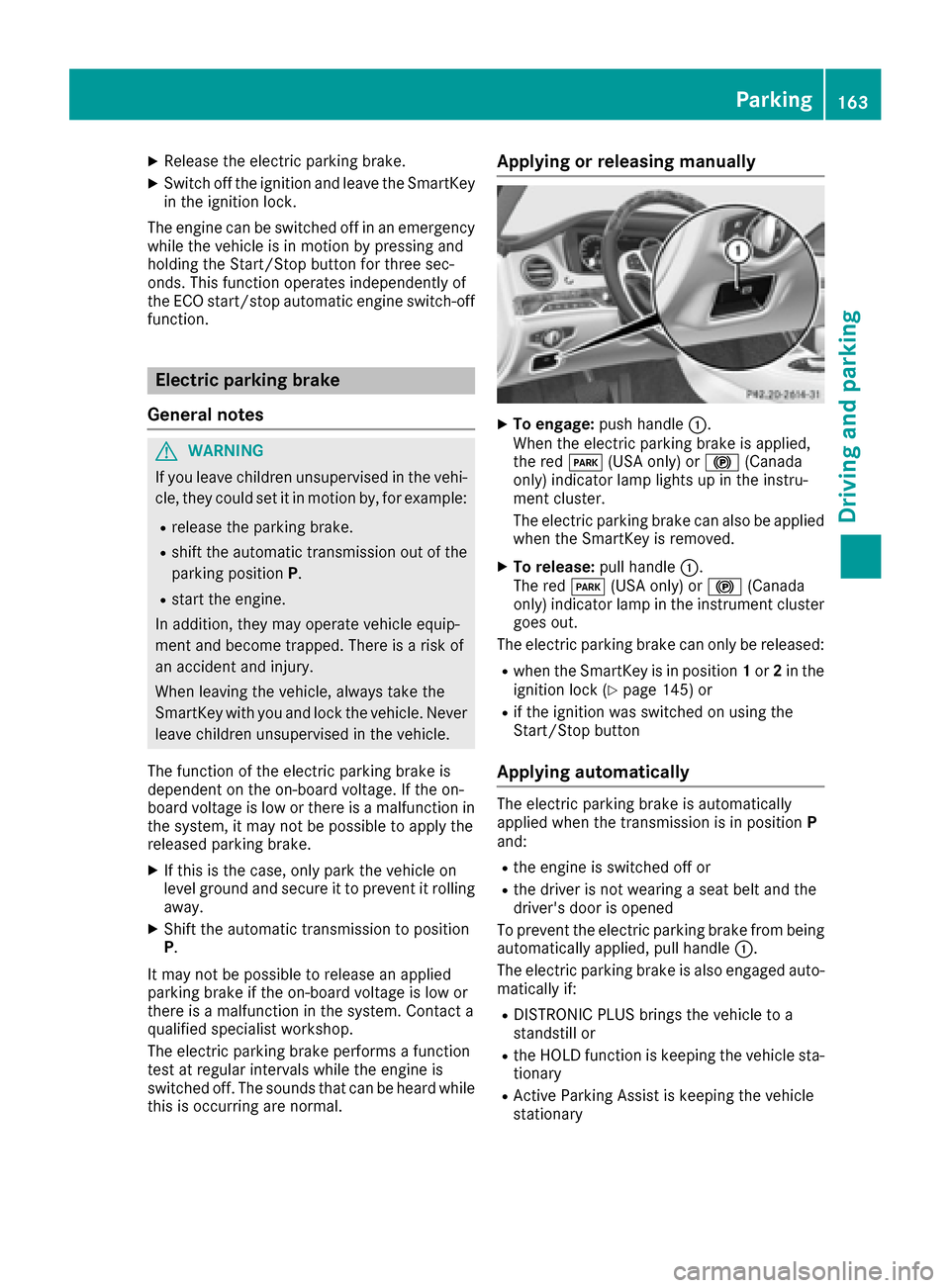

MERCEDES-BENZ S-Class MAYBACH 2017 W222 Owners Manual XReleaseth eelectric parking brake.
XSwitc hoff th eignition and leav eth eSmartKey
in th eignition lock.
The engin ecan be switched off in an emergenc y
while th evehicl eis in motion by pressin gand

Page 166 of 382

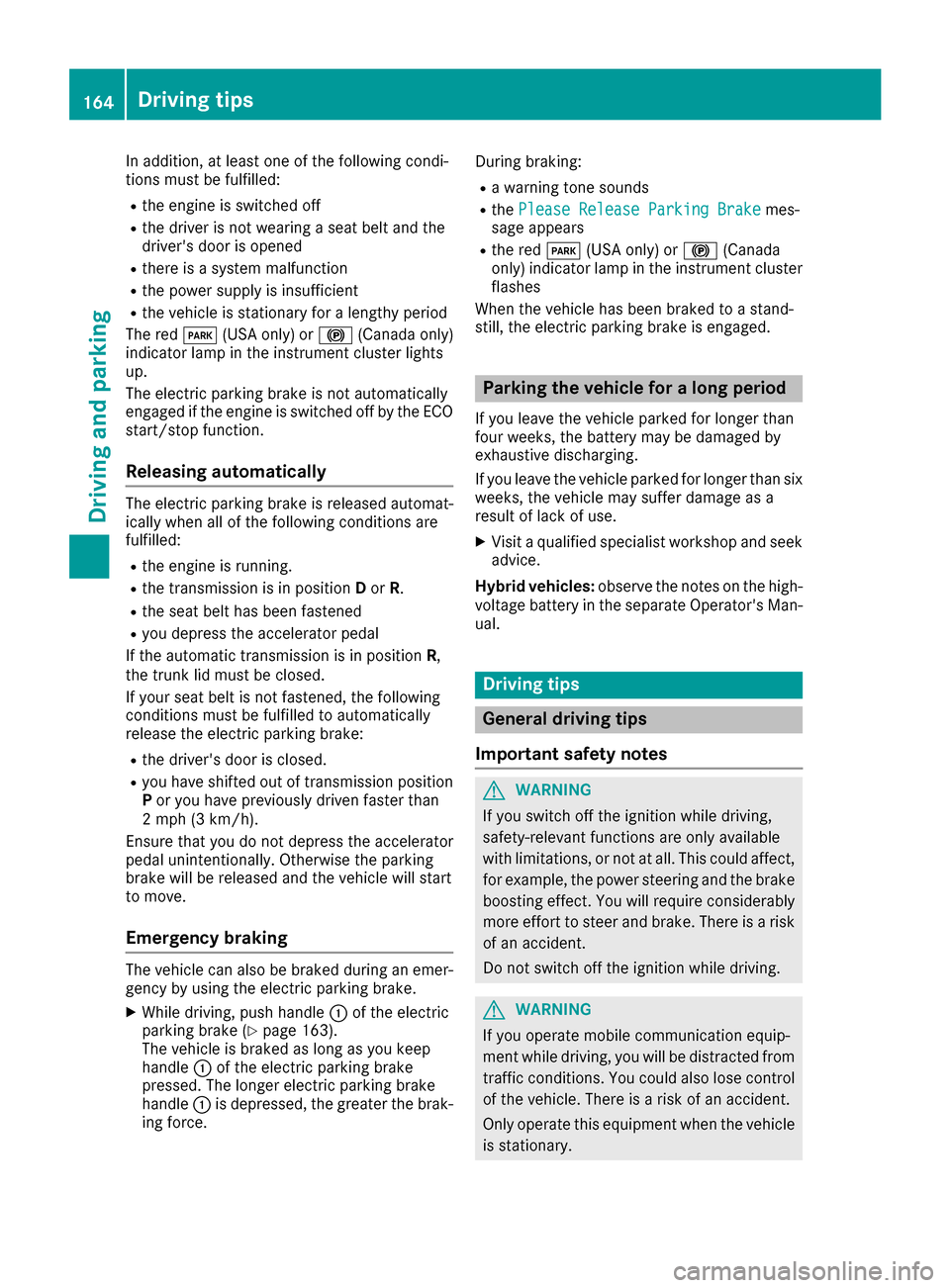

MERCEDES-BENZ S-Class MAYBACH 2017 W222 Owners Manual In addition, at least one of the following condi-
tions must be fulfilled:
Rthe engine is switched off
Rthe driver is not wearing a seat belt and the
drivers door is opened
Rthere is a system malfunc

Page 167 of 382

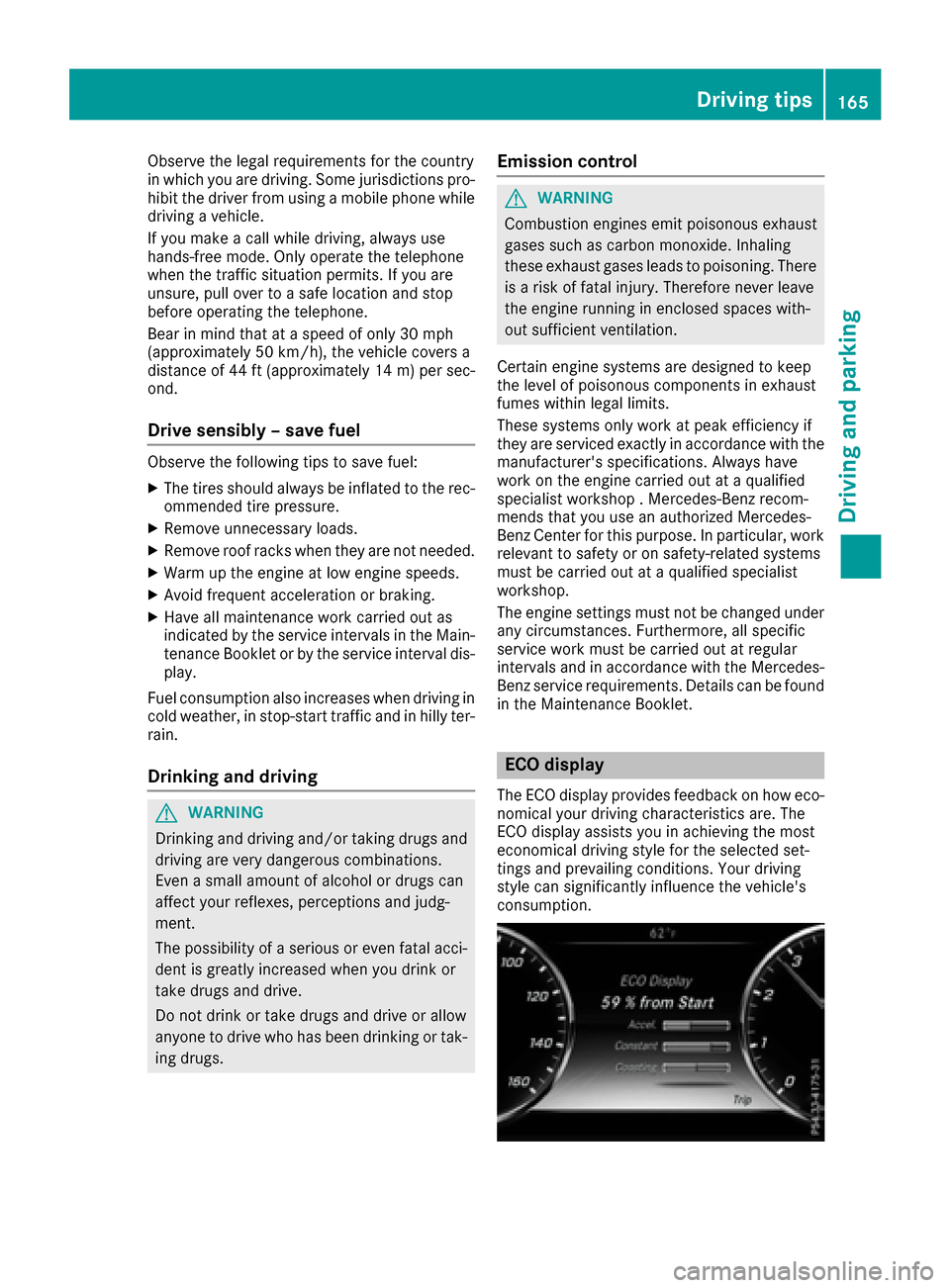

MERCEDES-BENZ S-Class MAYBACH 2017 W222 Owners Manual Observe the legal requirements for the country
in which you are driving. Some jurisdictions pro-
hibit the driver from using a mobile phone while
driving a vehicle.
If you make a call while driving, a

Page 168 of 382

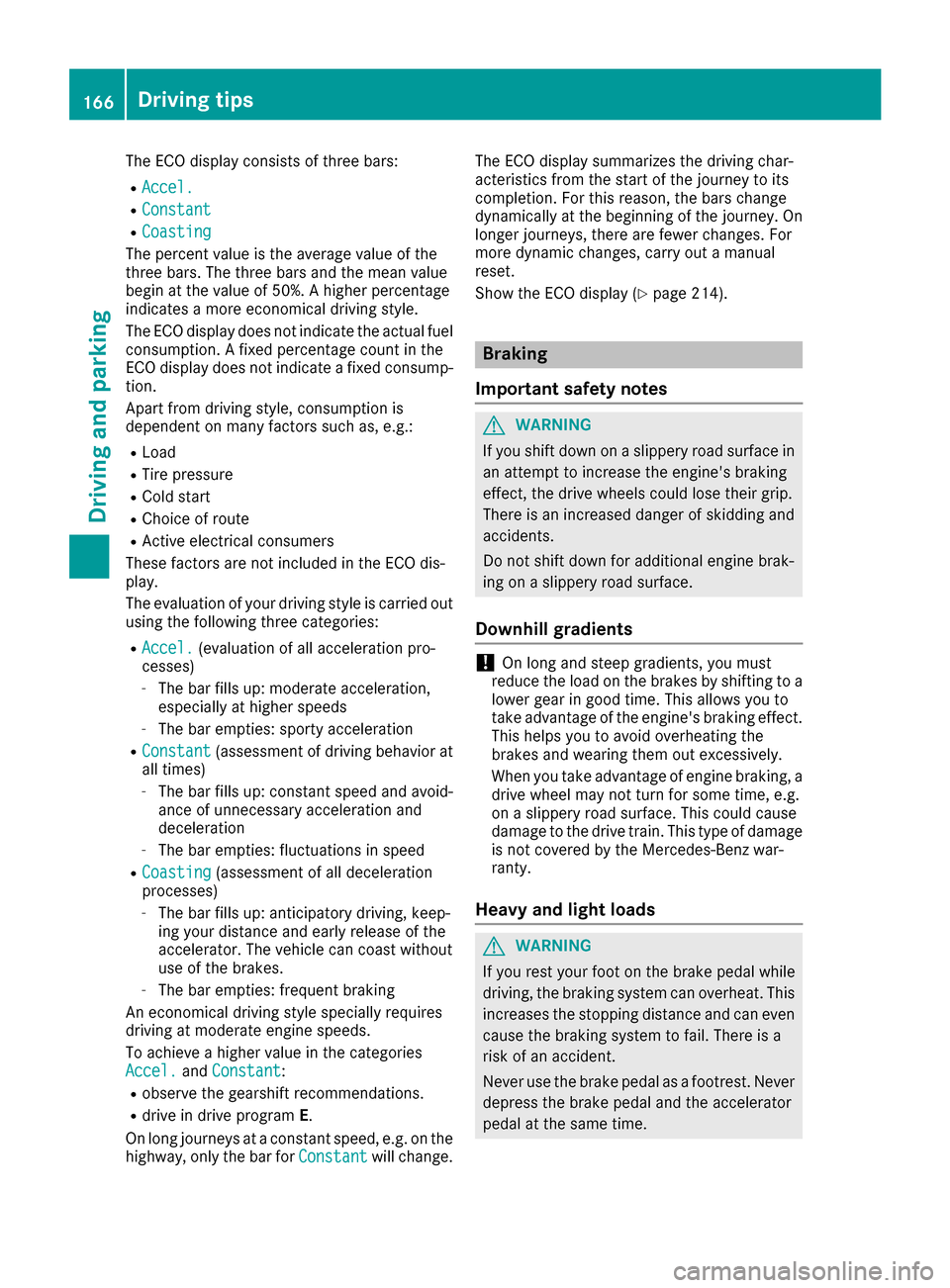

MERCEDES-BENZ S-Class MAYBACH 2017 W222 Owners Manual The ECO display consists of three bars:
RAccel.
RConstant
RCoasting
The percent value is the average value of the
three bars. The three bars and the mean value
begin at the value of 50%. A higher perc

Page 169 of 382

MERCEDES-BENZ S-Class MAYBACH 2017 W222 Owners Manual !Depressing the brake pedal constantly
results in excessive and premature wear to
the brake pads.
If the brakes have been subjected to a heavy
load, do not stop the vehicle immediately. Drive
on for a

Page 170 of 382

MERCEDES-BENZ S-Class MAYBACH 2017 W222 Owners Manual Always replace all brake disks and brake pads/
linings on an axle at the same time. Always
install new brake pads/linings when replacing
brake disks.
The vehicle is equipped with lightweight brake
dis
