alarm MERCEDES-BENZ S350 2006 W221 Owner's Manual

ContentsSafety and Security........................... 59
Occupant safety................................... 60
Air bags .......................................... 61
Seat belts ....................................... 67
Preventive occupant safety
(PRE-SAFE
®)................................... 70
Children in the vehicle .................... 71
Override switch for rear
passenger compartment ................ 77
Panic alarm .......................................... 78
Activating ....................................... 78
Deactivating ................................... 78
Driving safety systems ......................... 79
ABS ................................................ 79
BAS ................................................ 80
ESP
®.............................................. 81
Four wheel electronic traction
system (4MATIC) with the ESP
®..... 84
Anti-theft systems................................ 85
Immobilizer..................................... 85
Anti-theft alarm system .................. 86
Tow-away alarm ............................. 88
Controls in detail............................... 91
Locking and unlocking ......................... 92
SmartKey ....................................... 92
SmartKey with KEYLESS-GO* ........ 96
Opening the doors
from the inside ............................. 102
Opening the trunk ........................ 103
Closing the trunk.......................... 105
Trunk lid emergency release ........ 111
Power closing assist for doors
and trunk lid ................................. 112
Automatic central locking ............ 112
Locking and unlocking
from the inside ............................. 113
Seats ................................................. 114
Easy-entry/exit feature ................ 114
Removing and installing front
seat head restraints ..................... 116
Rear seats .................................... 117
Rear seat head restraints ............. 120
Lumbar support............................ 122
Multicontour backrest* ................ 122
Drive-dynamic seat* .................... 124
Seat heating* ............................... 125
Seat ventilation* .......................... 127Memory function ............................... 128
Storing positions into memory ..... 129
Recalling positions from memory . 129
Storing exterior rear view
mirror parking position ................ 130
Lighting ............................................. 131
Exterior lamp switch .................... 131
Combination switch ..................... 135
Hazard warning flasher ................ 136
Interior lighting ............................ 137
Courtesy lighting .......................... 139
Door entry lamps ......................... 139
Trunk lighting ............................... 139
Instrument cluster ............................. 140
Instrument cluster illumination .... 140
Coolant temperature gauge ......... 141
Trip odometer .............................. 141
Tachometer .................................. 142
Outside temperature indicator ..... 142
Clock............................................ 142
Control system .................................. 143
Multifunction display.................... 143
Multifunction steering wheel........ 144
Menus .......................................... 146
Standard display menu ................ 148
AUDIO menu ................................ 148

27 At a glance
Center console
Center console
Upper part
Item
Page
1
Switch for rear window sun-
shade
191
2
Parktronic* deactivation
button
238
3
Airmatic or Active Body
Control (ABC)* button
232
4
Level control button
234
5
Central locking switch
113
Anti-theft alarm system indi-
cator lamp
86
6
Hazard warning flasher
on/off switch
136
Item
Page
7
Central unlocking switch
113
8
Electronic Stability Program
(ESP
®) control switch
82
9
Rear seat head restraints,
switch for folding down
120
a
Tow-away alarm switch
88
b
COMAND system (see
separate operating instruc-
tions)
c
Automatic climate control
205
d
Cover of:

Ashtray


Lighter
249
250

32 Getting startedThe “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page refer-
ences are located at the end of each seg-
ment.Unlocking

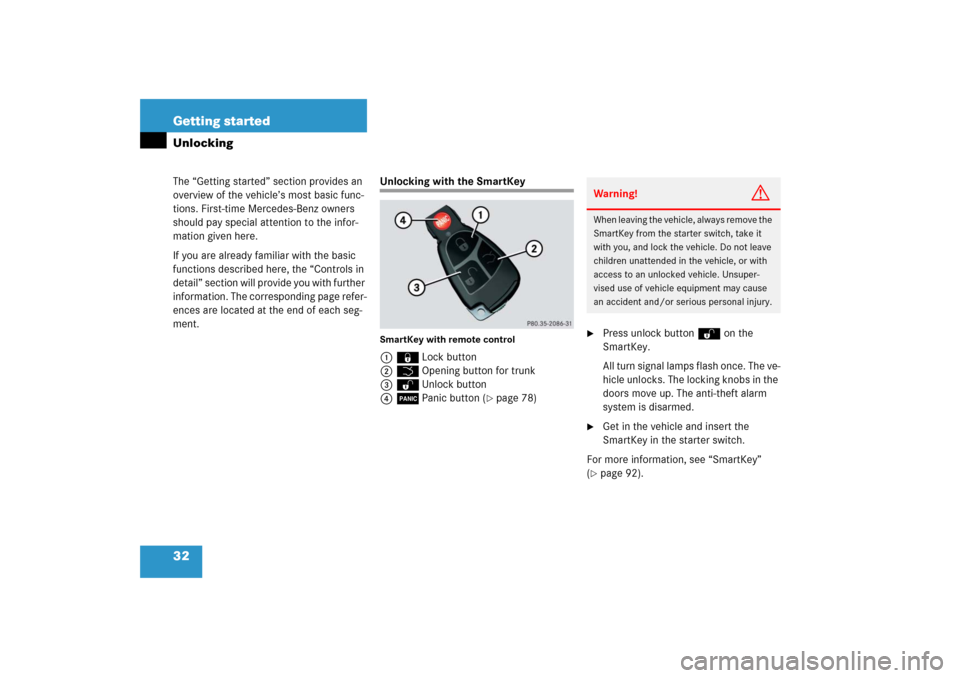

Unlocking with the SmartKeySmartKey with remote control 1‹Lock button
2ŠOpening button for trunk
3ŒUnlock button
4ÂPanic button (
page 78)

Press unlock buttonΠon the
SmartKey.
All turn signal lamps flash once. The ve-
hicle unlocks. The locking knobs in the
doors move up. The anti-theft alarm
system is disarmed.

Get in the vehicle and insert the
SmartKey in the starter switch.
For more information, see “SmartKey”
(
page 92).Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.

33 Getting started
Unlocking
Unlocking with KEYLESS-GO*
With the KEYLESS-GO function, you can
lock and unlock the vehicle without using
the remote control buttons on the
SmartKey and start the engine without in-
serting the SmartKey in the starter switch.

Grasp an outside door handle.
All turn signal lamps flash once. The ve-
hicle unlocks. The locking knobs in the
doors move up. The anti-theft alarm
system is disarmed.

Get in the vehicle.
For more information, see “SmartKey with
KEYLESS-GO*” (
page 96).
iTo unlock the vehicle, the SmartKey
with KEYLESS-GO must be outside the
vehicle, no further than approximately
3 feet (1 meter) away from the door.
Warning!
G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO* with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
iIf the vehicle has been parked for more
than 72 hours, you must pull an outside
door handle in order to activate the
KEYLESS-GO function.

58 Getting startedParking and lockingLocking Locking with the SmartKey

After exiting the vehicle, press the lock
button‹ on the SmartKey
(page 32).
With the trunk and all doors closed, all
turn signal lamps flash three times. The
locking knobs in the doors move down.
The anti-theft alarm system is armed.
For more information, see “SmartKey”
(
page 92).Locking with KEYLESS-GO*
1Lock button

After exiting the vehicle, press lock
button1 on an outside door handle or
on the trunk lid (
page 101).
With the trunk and all doors closed, all
turn signal lamps flash three times. The
locking knobs in the doors move down.
The anti-theft alarm system is armed.
For more information, see “SmartKey with
KEYLESS-GO*” (
page 96).
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.

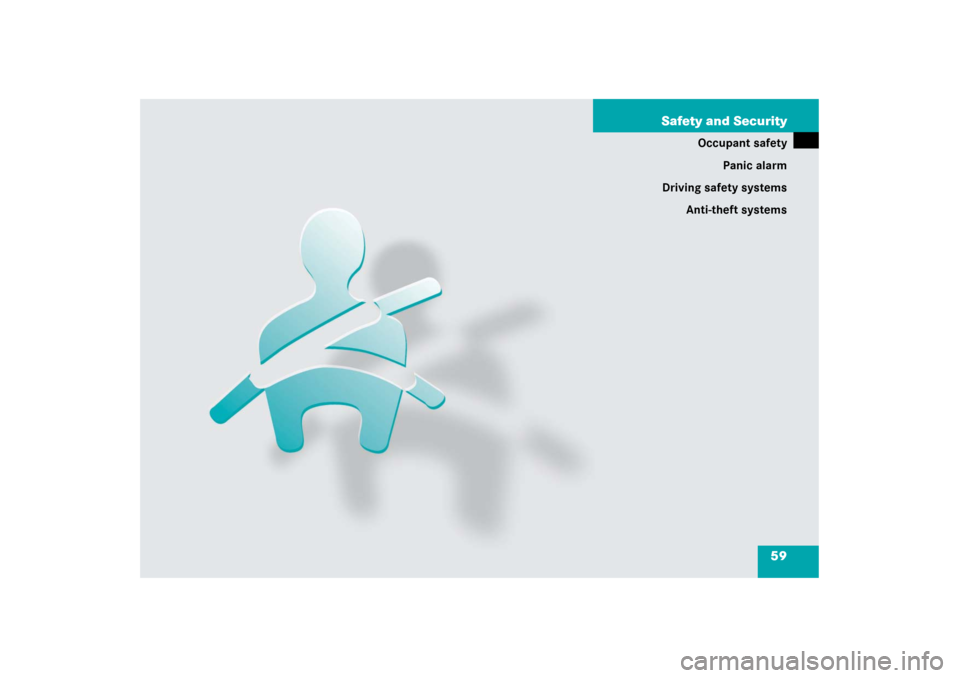

59 Safety and Security
Occupant safety
Panic alarm
Driving safety systems
Anti-theft systems

78 Safety and SecurityPanic alarmAn audible alarm and flashing exterior
lamps will operate for approximately
21/2minutes.
1Â button
Activating
Press and hold button1 for at least
one second.
Deactivating
Press button1 again.
or

Insert the SmartKey or the SmartKey
with KEYLESS-GO* in starter switch.
or

Press the KEYLESS-GO* start/stop
button (
page 35).
The SmartKey with KEYLESS-GO must
be inside the vehicle.
iUSA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.iCanada only:
This device complies with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions:
(1) This device may not cause interfer-
ence, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation of the device.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

86 Safety and SecurityAnti-theft systemsAnti-theft alarm system
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens:

a door


the trunk


the hood
The alarm will stay on even if the activating
element (a door, for example) is immedi-
ately closed.
The alarm system will also be triggered
when


someone attempts to raise the vehicle


the vehicle is opened with the
mechanical key


someone opens a door from the inside


someone opens the trunk lid with the
emergency release button Arming the alarm system
The indicator lamp located in the central
locking switch in on the upper part of the
front center console.
1Indicator lamp

Lock your vehicle with the SmartKey or
KEYLESS-GO*.
The turn signal lamps flash three times
to indicate that the alarm system is ac-
tivated. The indicator lamp1 flashes
to indicate that the alarm system is
armed.
iIf the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
Tele Aid system (
page 254) provided
Tele Aid service was subscribed to and
properly activated, and that necessary
cellular service and GPS coverage are
available.
iIf the turn signal lamps does not flash
three times one of the following ele-
ments may not be properly closed:

a door


the trunk
Close the respective element and lock
the vehicle again.

87 Safety and Security
Anti-theft systems
Disarming the alarm system
Unlock your vehicle with the SmartKey
or KEYLESS-GO*.
The turn signal lamps flash once to in-
dicate that the alarm system is dis-
armed.Canceling the alarm
To cancel the alarm:
With the SmartKey

Insert the SmartKey in the starter
switch.
or

Press the Œ or ‹ button on the
SmartKey.
The alarm is canceled.With KEYLESS-GO*

Grasp an outside door handle.
The SmartKey with KEYLESS-GO must
be within 3 ft. (1 m) of the vehicle.
or

Press the KEYLESS-GO start/stop but-
ton (
page 35).
The SmartKey with KEYLESS-GO must
be inside the vehicle.
The alarm is canceled.
iThe alarm system will rearm automati-
cally again after approximately 40 sec-
onds if no door was opened.

88 Safety and SecurityAnti-theft systemsTow-away alarm
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.Arming tow-away alarm

Lock your vehicle with the SmartKey or
KEYLESS-GO*.
The tow-away alarm is automatically
armed after about 30 seconds.
Disarming tow-away alarm
To prevent triggering the tow-away alarm,
switch off the tow-away alarm feature be-
fore towing the vehicle, or when parking on
a surface subject to movement, such as a
ferry or auto train.The button is located on the upper part of
the front center console.
1Indicator lamp
2Tow-away alarm off button

Switch off the ignition and remove the
SmartKey from the starter switch.
iThe tow-away protection alarm is trig-
gered, for example, if the vehicle is lift-
ed on one side.
If the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
Tele Aid system (
page 254) provided
Tele Aid service was subscribed to and
properly activated and that necessary
cellular service and GPS coverage are
available.
iYou cannot disarm the tow-away alarm
if the ignition is switched on.
