MERCEDES-BENZ S550 2007 W221 Owner's Guide
Manufacturer: MERCEDES-BENZ, Model Year: 2007, Model line: S550, Model: MERCEDES-BENZ S550 2007 W221Pages: 705
Page 21 of 705
20 IntroductionProblems with your vehicleIf you should experience a problem with your vehicle, particularly one that you believe may affect its safe operation, we urge you to
immediately contact an authorized Mercedes-Benz Center to have the problem diagnosed and corrected if required. If the matter is
not handled to your satisfaction, please discuss the problem with the Mercedes-Benz Center management, or if necessary contact us
at one of the following addresses:
In the USA:
Customer Assistance Center
Mercedes-Benz USA, LLC
One Mercedes Drive
Montvale, NJ 07645-0350
In Canada:
Customer Relations Department
Mercedes-Benz Canada, Inc.
98 Vanderhoof Avenue
Toronto, Ontario, M4G 4C9
Page 22 of 705
21 Introduction
Reporting safety defects
Reporting safety defects
For the USA only:
The following text is published as required of manufacturers under Title 49, Code of U.S. Federal Regulations, Part 575 pursuant to the
“National Traffic and Motor Vehicle Safety Act of 1966.”Reporting safety defects
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Mercedes-Benz USA, LLC.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer,
or Mercedes-Benz USA, LLC.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov; or write to: Administrator, NHTSA, 400 Seventh Street, SW., Washington, DC 20590. You can also
obtain other information about motor vehicle safety from http://www.safercar.gov.
Page 23 of 705
22 IntroductionVehicle data recordingInformation regarding electronic recording devices
(Including notice pursuant to California Code § 9951)
Please note that your vehicle is equipped with devices that can record vehicle systems data and, if equipped with the Tele Aid system,
may transmit some data in certain accidents.
This information helps, for example, to diagnose vehicle systems after a collision and to continuously improve vehicle safety.
DaimlerChrysler may access the information and share it with others
for safety research or vehicle diagnosis purposes
with the consent of the vehicle owner or lessee
in response to an official request by law enforcement or other government agency
for use in dispute resolution involving DaimlerChrysler, its affiliates or sales/service organization and/or
as otherwise required or permitted by law.
Please check the Tele Aid subscription service agreement for details regarding the information that may be recorded or transmitted
via that system.
Page 24 of 705
23 At a glance
Exterior view
Cockpit
Instrument cluster
Control systems
Center console
Automatic climate control
Overhead control panel
Driver’s door control panel
Rear door control panel
Storage compartments
Rear passenger compartment
Page 25 of 705

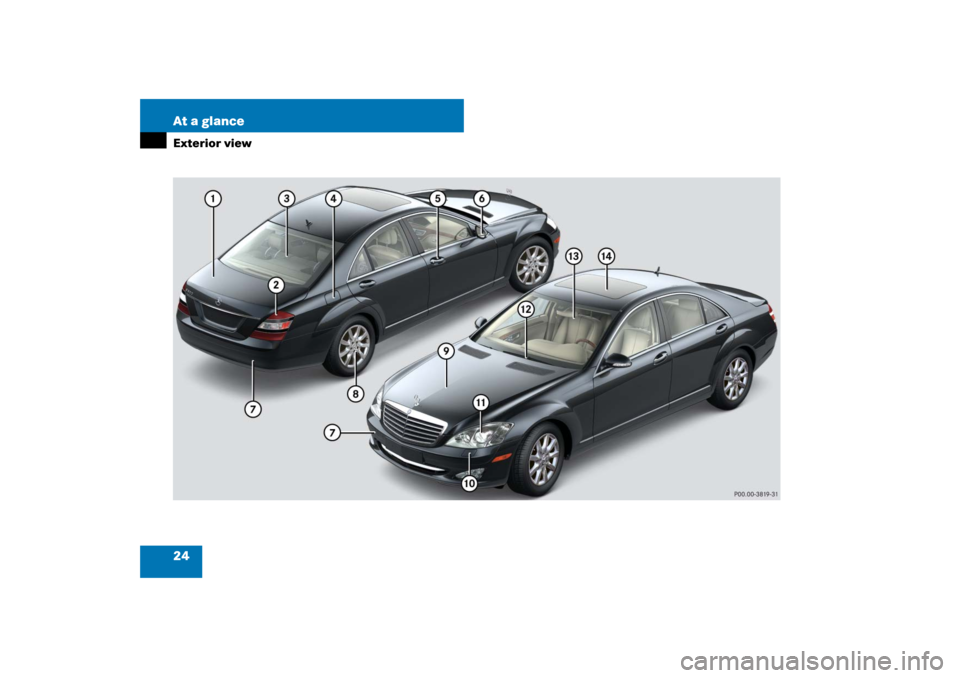

24 At a glanceExterior view
Page 26 of 705
25 At a glance
Exterior view
Item
Page
1
Trunk
Unlocking
Opening and closing
Minispare wheel
Vehicle tool kit
436
436
629
611
2
Rear lamps
622
3
Rear window, defrosting
430
4
Fuel filler flap
Gasoline
489
664
5
Doors
Locking and unlocking
Opening and closing
304
312
Item
Page
6
Exterior rear view mirror
Parking position
334
335
7
Towing eye bolt
General information
644
642
8
Rims and tires
Checking tire inflation
pressure
Minispare wheel
Flat tire
655
511
613
629
9
Hood, opening
Engine oil
Coolant
492
494
497
Item
Page
a
Headlamp cleaning system
346
b
Front lamps
622
c
Windshield wipers
Wiper blades, replacing
Wiper blades, cleaning
351
627
540
d
Window, cleaning
540
e
Roofs
Power tilt/sliding sunroof
Panorama roof with power
tilt/sliding panel*
441
443
Page 27 of 705

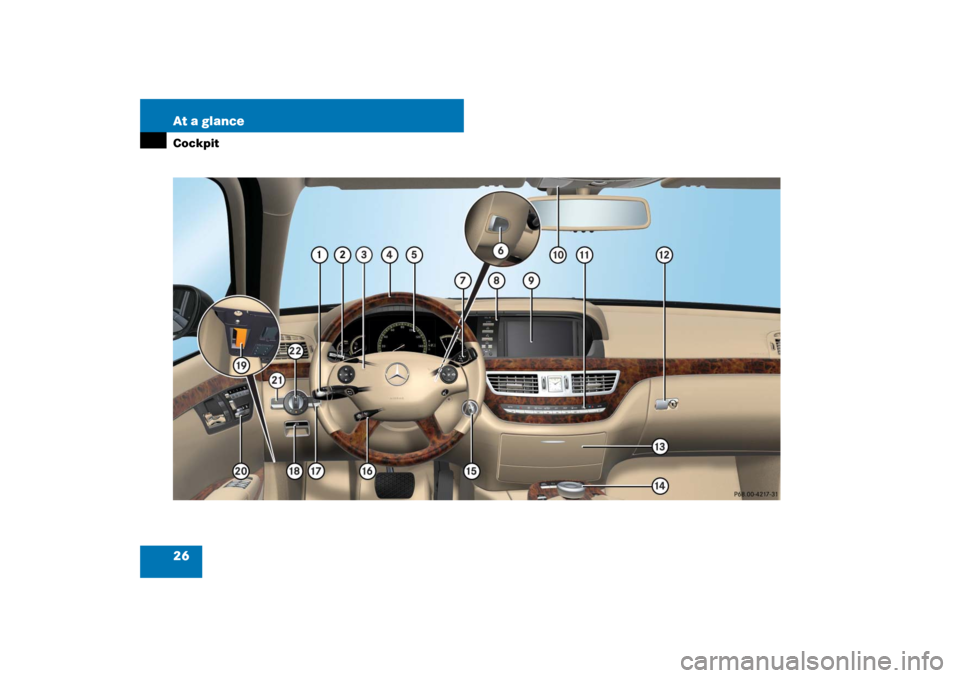

26 At a glanceCockpit
Page 28 of 705
27 At a glance
Cockpit
Item
Page
1
Combination switch
Turn signals
Windshield wipers
High beam
Cornering lamps
362
351
346
347
2
Lever for
Cruise control
DISTRONIC Plus*
380
385
3
Horn
4
Multifunction steering wheel
242
5
Instrument cluster
28
6
Steering wheel gearshift con-
trol
375
7
Gear selector lever for
automatic transmission
359
Item
Page
8
Control panel with
Front passenger front
air bag indicator lamp
Vehicle level control
switch
Electronic Stability Pro-
gram (ESP
®) switch
Parktronic*/Park Assist*
deactivation switch
Swivel COMAND display
COMAND/instrument
cluster illumination
53
401,
403
73
408,
408
81
378
9
COMAND display
79
a
Overhead control panel
37
b
Automatic climate control
Center console, upper part
424
32
Item
Page
c
Glove box lock
448
d
Cover of compartment with
CD changer
PCMCIA card slot
107
108
e
Center console, lower part
33
f
Starter switch
KEYLESS-GO* start/stop but-
ton
315
316
g
Steering wheel adjustment
Heated steering wheel*
330
331
h
Headlamp washer button
346
j
Parking brake
364
k
Hood lock release
492
l
Door control panel
39
m
Night View Assist*
420
n
Exterior lamp switch
342
Page 29 of 705

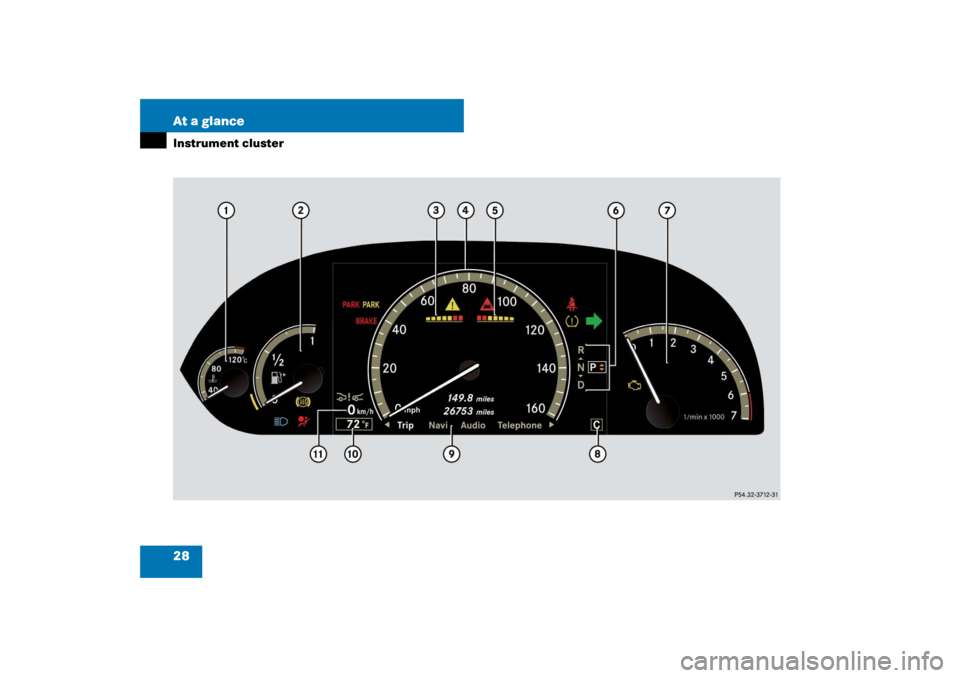

28 At a glanceInstrument cluster
Page 30 of 705
29 At a glance
Instrument cluster
Item
Page
1
Coolant temperature gauge
378
2
Fuel gauge with:
Fuel tank reserve warning
lamp
AHigh beam headlamp
indicator lamp
-ABS indicator lamp
=SRS indicator lamp
550
346
544
552
3
Parktronic*/Park Assist*
warning indicator for left
front area
407,
411
4
Speedometer with:0
USA only
!
Canada only
Parking brake
warning or indi-
cator lamps
546
Item
Page
;
USA only
3
Canada only
Brake warning
lamp
545
HCombination low tire
pressure*/TPMS mal-
function telltale*
553
L
Left/right turn
signal indicator
lamps
362
KvESP
® warning lamp
549
lDistance warning
lamp*
397,
549
5
Parktronic*/Park Assist*
warning indicator for right
front area
407,
411
Item
Page
6
Gear position/range indica-
tor
370
7
Tachometer with:±Engine malfunction
indicator lamp
547
8
Selected program mode indi-
cator
370
9
Main menu for control sys-
tem, multifunction display
241
a
Outside temperature
379
b
Display with:Additional speedometer
255
:Distance warner*
397,
252
