Page 11 of 705
ContentsOperation......................................... 477
The first 1000 miles (1500 km) ......... 478
Driving instructions ............................ 479
Drive sensibly – save fuel ............. 479
Drinking and driving ..................... 479
Pedals .......................................... 479
Power assistance ......................... 479
Brakes .......................................... 480
Driving off..................................... 481
Parking ......................................... 481
Tires ............................................. 482
Hydroplaning ................................ 483
Tire traction .................................. 483
Tire speed rating .......................... 484
Winter driving instructions ........... 484
Standing water ............................. 485
Passenger compartment .............. 486
Driving abroad .............................. 486
Control and operation of radio
transmitters.................................. 486
Catalytic converter ....................... 487
Emission control........................... 488
Coolant temperature .................... 488At the gas station .............................. 489
Refueling ...................................... 489
Check regularly and before
a long trip ..................................... 490
Engine compartment ......................... 492
Hood ............................................ 492
Engine oil ..................................... 494
Transmission fluid level ................ 497
Active Body Control* (ABC*)
fluid level...................................... 497
Coolant level ................................ 497
Windshield washer system and
headlamp cleaning system ........... 498
Tires and wheels ................................ 500
Important guidelines .................... 500
Tire care and maintenance ........... 501
Direction of rotation ..................... 503
Loading the vehicle ...................... 503
Recommended tire inflation
pressure ....................................... 509
Checking tire inflation pressure ... 511
Tire labeling.................................. 518
Load identification ....................... 521DOT, Tire Identification Number
(TIN) ............................................. 522
Maximum tire load ....................... 523
Maximum tire inflation pressure .. 523
Uniform Tire Quality Grading
Standards (U.S. vehicles) ............. 524
Tire ply material ........................... 525
Tire and loading terminology........ 526
Rotating tires ............................... 529
Winter driving .................................... 530
Winter tires .................................. 530
Snow chains................................. 531
Maintenance...................................... 532
Maintenance service indicator
message ...................................... 532
Calling up the maintenance
service indicator display .............. 533
Resetting the maintenance
service indicator .......................... 533
Vehicle care....................................... 534
Cleaning and care of vehicle ........ 534
Page 13 of 705
ContentsTechnical data.................................. 649
Parts service ...................................... 650
Warranty coverage ............................. 651
Loss of Service and Warranty
Information Booklet...................... 651
Identification labels............................ 652
Layout of poly-V-belt drive ................. 653
S 550 ........................................... 653
S 600 ........................................... 653
Engine ................................................ 654
Rims and tires .................................... 655
Same size tires ............................. 656
Mixed size tires ............................ 657
Minispare wheel ........................... 658
Electrical system................................ 659
Main dimensions and weights............ 660
Main dimensions .......................... 660
Weights ........................................ 660Fuels, coolants, lubricants, etc. ......... 661
Capacities .................................... 661
Engine oils.................................... 663
Engine oil additives ...................... 663
Air conditioning refrigerant .......... 663
Brake fluid .................................... 663
Premium unleaded gasoline ......... 664
Fuel requirements ........................ 664
Gasoline additives ........................ 665
Coolants....................................... 665
Windshield and headlamp
washer system ............................. 668
Technical terms............................... 669Index................................................. 679
Page 353 of 705
352 Controls in detailWindshield wipersIntermittent wiping
Only switch on intermittent wiping under
wet weather conditions or in the presence
of precipitation.
Set the wiper switch to position U
or V.The wipers move across the wind-
shield. Afterward, the wiping intervals
are determined by the wetness of the
windshield.
After the initial wipe, pauses between
wipes are automatically controlled by the
rain sensor.
Single wipe
Press the combination switch briefly in
the direction of arrow2.
The windshield wipers wipe one time
without washer fluid.
Wiping with windshield washer fluid
Press the combination switch in the di-
rection of arrow2 past the resistance
point.
The windshield wiper operates with
washer fluid.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system”
(
page 498).
i
When the windshield wipers are switched on
and you brake the vehicle to a stop, the wipers
operate more slowly.
!
Do not leave windshield wipers in intermit-
tent setting when the vehicle is taken to an auto-
matic car wash or during windshield cleaning.
Wipers will operate in the presence of water
sprayed on the windshield, and windshield wip-
ers may be damaged as a result.
!
If you have set intermittent wiping, dirt on
the surface of the rain sensor or optical effects
may cause the windshield wipers to wipe in an
undesired fashion. This could then damage the
windshield wiper blades or scratch the windows.
You should therefore switch off the windshield
wipers when weather conditions are dry.
i
Intermittent wiping is interrupted when the
vehicle is at a standstill and a front door is
opened. This protects persons getting into or out
of the vehicle from being sprayed.
Intermittent wiping will be continued when
all doors are closed and the automatic trans-
mission is set to positionD orR
or
the wiper setting is changed using the com-
bination switch
i
To prevent smears on the windshield, wipe
with windshield washer fluid every now and then
even when it is raining.
Page 481 of 705
480 OperationDriving instructionsBrakesTo help prevent brake disk corrosion after
driving on wet road surfaces (particularly
salted roads), it is advisable to brake the
vehicle with considerable force prior to
parking. The heat generated serves to dry
the brakes.
If your brake system is normally only sub-
jected to moderate loads, you should occa-
sionally test the effectiveness of the
brakes by applying above-normal braking
pressure at higher speeds. This will also
enhance the grip of the brake pads.
Refer to the description of the Brake Assist
System (BAS) (
page 71).If the parking brake is released and the
brake warning lamp in the instrument clus-
ter stays on and there is no audible warn-
ing (EBP), the brake fluid level in the
reservoir is too low.
Brake pad wear or a leak in the system may
be the reason for low brake fluid in the res-
ervoir.
Have the brake system inspected immedi-
ately. Contact an authorized
Mercedes-Benz Center.
All checks and service work on the brake
system should be carried out by qualified
technicians only. Contact an authorized
Mercedes-Benz Center.
Only install brake pads and brake fluid
recommended by Mercedes-Benz.
Warning!
G
After driving in heavy rain for some time
without applying the brakes or through wa-
ter deep enough to wet brake components,
the first braking action may be somewhat
reduced and increased pedal pressure may
be necessary to obtain expected braking ef-
fect. Maintain a safe distance from vehicles
in front.
Resting your foot on the brake pedal will
cause excessive and premature wear of the
brake pads.
It can also result in the brakes overheating,
thereby significantly reducing their effec-
tiveness. It may not be possible to stop the
vehicle in sufficient time to avoid an acci-
dent.
Warning!
G
Make sure not to endanger any other road
users when carrying out these braking ma-
neuvers.
Page 482 of 705
481 Operation
Driving instructions
After hard braking, it is advisable to drive
on for some time, rather than immediately
park, so that the air stream can cool down
the brakes faster.
Driving off
Apply the brakes to test them briefly after
driving off. Perform this procedure only
when the road is clear of other traffic.
Warm up the engine smoothly. Do not
place full load on the engine until the oper-
ating temperature has been reached.
When starting off on a slippery surface, do
not allow a drive wheel to spin for an ex-
tended period with the ESP
® switched off.
Doing so may cause serious damage to the
drivetrain which is not covered by the
Mercedes-Benz Limited Warranty.
Parking
Warning!
G
If other than recommended brake pads are
installed, or other than recommended brake
fluid is used, the braking properties of the
vehicle can be degraded to an extent that
safe braking is substantially impaired. This
could result in an accident.!
When driving down long and steep grades,
relieve the load on the brakes by shifting into a
lower gear to use the engine’s braking power.
This helps prevent overheating of the brakes and
reduces brake pad wear.
When using the engine’s braking power, a drive
wheel may not spin for an extended period of
time, e.g. on slippery road surfaces. This may
cause serious damage to the drivetrain which is
not covered by the Mercedes-Benz Limited War-
ranty.
!
Simultaneously depressing the accelerator
pedal and applying the brake reduces engine
performance and causes premature brake and
drivetrain wear.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of inadvertent vehicle movement, be-
fore turning off the engine and leaving the
vehicle always:
Keep right foot on brake pedal.
Firmly depress parking brake pedal.
Shift the automatic transmission toP.
Slowly release brake pedal.
When parked on an incline, turn front
wheels towards the road curb.
Page 491 of 705
490 OperationAt the gas station
Take off fuel filler cap and set it in di-
rection of arrow 2 in the recess on the
inside of fuel filler flap 4.
To prevent fuel vapors from escaping
into open air, fully insert filler nozzle
unit.
Only fill your tank until the filler nozzle
unit cuts out – do not top up or over-
fill.
Replace fuel cap by turning it clockwise
until it audibly engages.
Close the fuel filler flap.
Check regularly and before a long tripExample illustration from S 5501Coolant level
2Brake fluid
3Windshield washer and headlamp
cleaning system
Warning!
G
Overfilling of the fuel tank may create pres-
sure in the system which could cause a gas
discharge. This could cause the gas to spray
back out when removing the fuel pump noz-
zle, which could cause personal injury.
i
Only use premium unleaded gasoline with a
minimum Posted Octane Rating of 91 (average of
96 RON/86 MON).
Information on gasoline quality can normally be
found on the fuel pump.
More information on gasoline can be found in the
Factory Approved Service Products pamphlet.
i
Leaving the engine running and the fuel cap
open can cause the yellow engine malfunction
indicator lamp ± to illuminate.
For more information, see the “Practical hints”
section (
page 547).
i
Opening the hood (
page 492).
Page 492 of 705
491 Operation
At the gas station
Windshield washer system and head-
lamp cleaning system
For more information on refilling the wash-
er reservoir, see “Windshield washer sys-
tem and headlamp cleaning system”
(page 498).
Coolant
For more information on coolant, see
“Coolant level” (
page 497) and see “Fu-
els, coolants, lubricants, etc.”
(
page 661).Brake fluid
For information on brake fluid, see “Brake
fluid” (
page 663)
Engine oil level
For more information on engine oil, see
“Engine oil” (
page 494).Vehicle lighting
Check function and cleanliness. For more
information on replacing light bulbs, see
“Replacing bulbs” (
page 621).
For more information, see “Lighting”
(
page 342).
Tire inflation pressure
For information on tire inflation pressure,
see “Checking tire inflation pressure”
(page 511).
!
If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks immediately. Notify an
authorized Mercedes-Benz Center immediately.
Do not add brake fluid as this will not solve the
problem. For more information, see “Practical
hints” (page 545).
Page 535 of 705
534 OperationVehicle careCleaning and care of vehicle
While in operation, even while parked, your
vehicle is subjected to varying external in-
fluences which, if gone unchecked, can at-
tack the paintwork as well as the vehicle
underbody and cause lasting damage.Such damage is caused not only by ex-
treme and varying climatic conditions, but
also by:
Air pollution
Road salt
Tar
Gravel and stone chipping
To avoid paint damage, you should imme-
diately remove:
Grease and oil
Fuel
Coolant
Brake fluid
Bird droppings
Insects
Tree resins, etc.
Frequent washing reduces and/or elimi-
nates the aggressiveness and potency of
the above adverse influences.More frequent washings are necessary to
deal with unfavorable conditions:
near the ocean
in industrial areas (smoke, exhaust
emissions)
during winter operation
You should check your vehicle from time to
time for stone chipping or other damage.
Any damage should be repaired as soon as
possible to prevent corrosion.
In doing so, do not neglect the underbody
of the vehicle. A prerequisite for a thor-
ough check is a washing of the underbody
followed by a thorough inspection. Dam-
aged areas need to be re-undercoated.
Your vehicle has been treated at the facto-
ry with a wax-base rustproofing in the body
cavities which will last for the lifetime of
the vehicle. Post-production treatment is
neither necessary nor recommended by
Mercedes-Benz because of the possibility
of incompatibility between materials used
in the production process and others ap-
plied later.

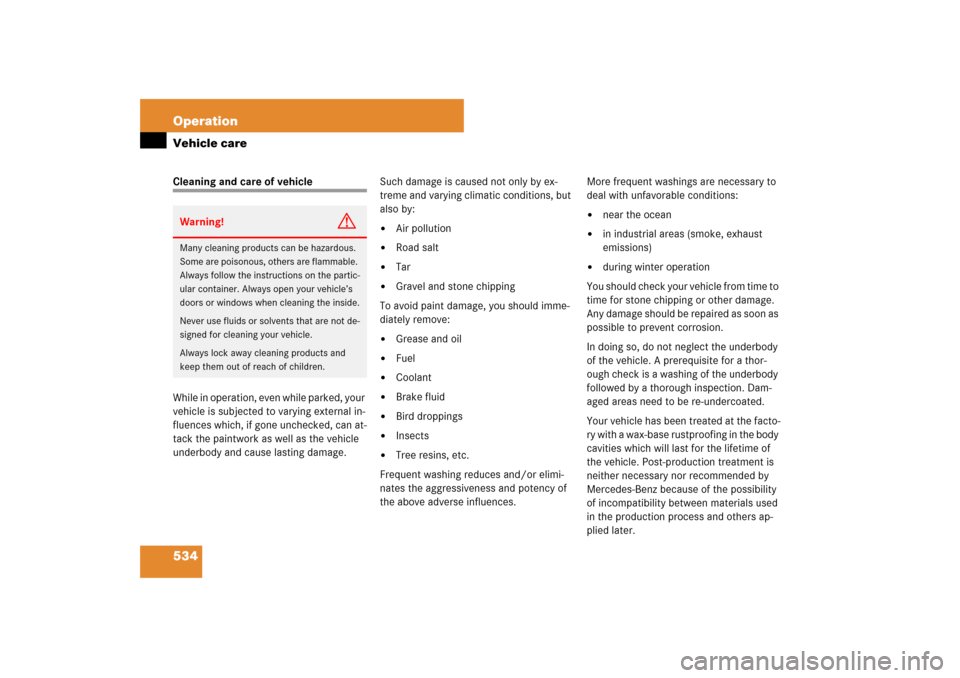

Warning!
G
Many cleaning products can be hazardous.
Some are poisonous, others are flammable.
Always follow the instructions on the partic-
ular container. Always open your vehicle’s
doors or windows when cleaning the inside.
Never use fluids or solvents that are not de-
signed for cleaning your vehicle.
Always lock away cleaning products and
keep them out of reach of children.
Page 547 of 705
546 Practical hintsWhat to do if …?Problem
Possible cause/consequence
Suggested solution
0(USA only)!(Canada only)
The red indicator lamp
for the electric parking
brake flashes and/or the
yellow warning lamp for
the electric parking brake
is on.
The electric parking brake is malfunctioning
or defective.
Read and observe messages in the mul-
tifunction display (
page 557).
Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
;(USA only)3(Canada only)
The red brake warning
lamp comes on while
driving and you hear a
warning sound.
There is insufficient brake fluid in the reser-
voir.
Risk of accident! Do not drive any fur-
ther. Consult a Mercedes-Benz Center.
Under no circumstances should you top
up the brake fluid. This will not solve the
problem.
Warning!
G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on. Do not add
brake fluid before checking the brake
system. Overfilling the brake fluid reservoir
can result in spilling brake fluid on hot en-
gine parts and the brake fluid catching fire.
You can be seriously burned.!
If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks.
Page 574 of 705
573 Practical hints
What to do if …?
Display
Possible cause/consequence
Possible solution
Check brake
fluid level
There is insufficient brake fluid in the reser-
voir.
Risk of accident! Stop the vehicle in a safe lo-
cation as soon as it is safe to do so and notify
an authorized Mercedes-Benz Center. Do not
add brake fluid! This will not solve the prob-
lem.
(USA only)(Canada only)Warning!
G
Driving with the message “Check brake fluid
level ” displayed can result in an accident.
Have your brake system checked immedi-
ately. Do not add brake fluid before check-
ing the brake system. Overfilling the brake
fluid reservoir can result in spilling brake flu-
id on hot engine parts and the brake fluid
catching fire. You can be seriously burned.
!
If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks.
