526 OperationTires and wheelsTire and loading terminology
Accessory weight
The combined weight (in excess of those
standard items which may be replaced) of
automatic transmission, power steering,
power brakes, power windows, power
seats, radio, and heater, to the extent that
these items are available as
factory-installed equipment (whether
installed or not).
Air pressure
The amount of air inside the tire pressing
outward on each square inch of the tire.
Air pressure is expressed in pounds per
square inch (psi), or kilopascal (kPa) or
bars.
Aspect ratio
Dimensional relationship between tire
section height and section width
expressed in percentage.Bar
Another metric unit for air pressure. There
are 14.5038 pounds per square inch (psi)
to 1 bar; there are 100 kilopascals (kPa)
to 1 bar.
Bead
The tire bead contains steel wires wrapped
by steel cords that hold the tire onto the
rim.
Cold tire inflation pressure
Tire inflation pressure when your vehicle
has been sitting for at least 3 hours or driv-
en no more than 1 mile (1.6 km).
Curb weight
The weight of a motor vehicle with stan-
dard equipment including the maximum
capacity of fuel, oil, and coolant, and, if so
equipped, air conditioning and additional
optional equipment, but without passen-
gers and cargo.DOT (D
epartment o
f T
ransportation)
A tire branding symbol which denotes the
tire meets requirements of the
U.S. Department of Transportation.
GAWR (G
ross A
xle W
eight R
ating)
The GAWR is the maximum permissible
axle weight. The gross vehicle weight on
each axle must never exceed the GAWR for
the front and rear axle indicated on the
Certification label located on the driver’s
door B-pillar.
GVW (G
ross V
ehicle W
eight)
The GVW comprises the weight of the
vehicle including fuel, tools, spare wheel,
installed accessories, passengers and
cargo and, if applicable, trailer tongue
load. The GVW must never exceed the
GVWR indicated on the Certification label
located on the driver’s door B-pillar.

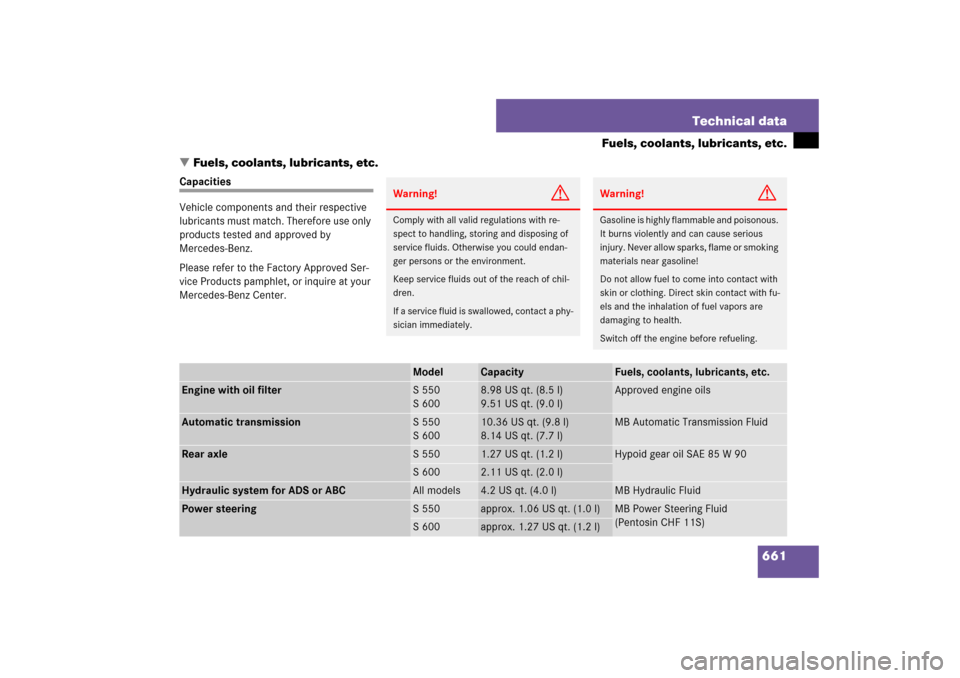

661 Technical data
Fuels, coolants, lubricants, etc.
Fuels, coolants, lubricants, etc.
Capacities
Vehicle components and their respective
lubricants must match. Therefore use only
products tested and approved by
Mercedes-Benz.
Please refer to the Factory Approved Ser-
vice Products pamphlet, or inquire at your
Mercedes-Benz Center.
Warning!
G
Comply with all valid regulations with re-
spect to handling, storing and disposing of
service fluids. Otherwise you could endan-
ger persons or the environment.
Keep service fluids out of the reach of chil-
dren.
If a service fluid is swallowed, contact a phy-
sician immediately.
Warning!
G
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious
injury. Never allow sparks, flame or smoking
materials near gasoline!
Do not allow fuel to come into contact with
skin or clothing. Direct skin contact with fu-
els and the inhalation of fuel vapors are
damaging to health.
Switch off the engine before refueling.
Model
Capacity
Fuels, coolants, lubricants, etc.
Engine with oil filter
S 550
S 600
8.98 US qt. (8.5 l)
9.51 US qt. (9.0 l)
Approved engine oils
Automatic transmission
S 550
S 600
10.36 US qt. (9.8 l)
8.14 US qt. (7.7 l)
MB Automatic Transmission Fluid
Rear axle
S 550
1.27 US qt. (1.2 l)
Hypoid gear oil SAE 85 W 90
S600
2.11 US qt. (2.0 l)
Hydraulic system for ADS or ABC
All models
4.2 US qt. (4.0 l)
MB Hydraulic Fluid
Power steering
S 550
approx. 1.06 US qt. (1.0 l)
MB Power Steering Fluid
(Pentosin CHF 11S)
S 600
approx. 1.27 US qt. (1.2 l)

662 Technical dataFuels, coolants, lubricants, etc.
Model
Capacity
Fuels, coolants, lubricants, etc.
Front wheel hubs
All models
approx. 2.1 oz. (60 g) each
High-temperature roller bearing
grease
Brake system
All models
approx. 0.53 US qt. (0.5 l)
MB Brake Fluid (DOT 4+)
Cooling
system
Vehicles without rear passenger
compartment climate control*
S 550
12.15 US qt. (11.5 l)
MB 325.0 Anticorrosion/Antifreeze
Vehicles with rear passenger
compartment climate control*
S 550
13.9 US qt. (13.15 l)
S 600
14.69 US qt. (13.9 l)
Low temperature cooling system
S 600
2.75 US qt. (2.6 l)
Fuel tank
All models
23.78 US gal (90.0 l)
Premium unleaded gasoline:
Minimum Posted Octane 91
(Avg.of96RON/86MON)
including a reserve of
All models
2.9 US gal (11.0 l)
Air conditioning system
All models
R-134a refrigerant and special PAG
lubricant oil (never R-12)
Windshield
washer
Vehicles with ABC*
All models
6.93 US qt (6.56 l)
MB Windshield Washer Concentrate
1
1Use MB Windshield Washer Concentrate “MB SummerFit” and water for temperatures above freezing or MB Windshield Washer Concentrate “MB SummerFit” and
commercially available premixed windshield washer solvent/antifreeze for temperatures below freezing point. Follow suggested mixing ratios (page 668).
Vehicles with Airmatic*
All models
6.76 US qt (6.4 l)

686 IndexETD 58, 672
Safety guidelines 47
Exterior lighting
Delayed switch-off (COMAND) 220
Locator lighting (COMAND) 221
Exterior rear view mirrors
Adjusting 332
Auto-dimming on the driver’s
side 334
Fold in automatically when locking
(COMAND) 222
Lower mirror when reversing
(COMAND) 222
Power folding 333
F
Favorite button 216
First aid kit 611
Flat tire 629
Jacking up the vehicle 630
Lowering the vehicle 633
Mounting the Minispare wheel 629
Preparing the vehicle 629
Flexible Service System see FSS
Fluids
Automatic transmission fluid 661
Brake fluid 662, 663Capacities 661
Engine coolant 497, 662, 665
Engine oil 496, 661, 663
Power steering fluid 661
Windshield washer and headlamp
cleaning system 662, 668
Fog lamps
Messages in display 598
Replacing bulbs 622
Front air bags 49
Front lamps
Replacing bulbs 622, 623
Front lamps see headlamps
Front passenger front air bag 49
Front passenger front air bag off indicator
lamp 53, 555
FSS (Canada vehicles) 532
Fuel 490, 662, 664
Additives 665
Capacity, Fuel tank 662
Filling the tank 489
Fuel filler flap and cap 489
Fuel reserve warning lamp 29, 550
Premium unleaded gasoline 490,
662, 664
Requirements, Octane rating 664Fuel cap
Message in display 591
Fuel consumption statistics
After start 245
Since last reset 245
Fuel filler flap 489
Locking/Unlocking 489
Fuel tank
Capacity 662
Filler flap 489
Fuels, coolants, lubricants etc.
Capacities 661
Fuses 645
Aids for replacing fuses 646
Fuse box in engine compartment 646
Fuse box in passenger
compartment 647
Fuse boxes in dashboard 647
Fuse chart (vehicle tool kit) 611
Fuse extractor (vehicle tool kit) 611
Replacing 645
Spare fuses (vehicle tool kit) 611
