MERCEDES-BENZ S550 4MATIC 2008 W221 Owner's Manual

380 Controls in detail
Lighting
Courtesy lighting
For better orientation the inside door han-
dles (depending on vehicle production
date), the driver and passenger footwells
and the center console are illuminated in
the dark.Trunk lamp
The trunk lamp switches on if the trunk is
opened.
If the trunk remains open, the trunk light-
ing switches off automatically after ap-
proximately 10 minutes.

381 Controls in detail
Windshield wipers
Windshield wipers
Combination switch
1Switching on windshield wipers
2Single wipe
Wiping with windshield washer fluid
Switch on the ignition (page 344).
Switching on/off windshield wipers
Turn the combination switch to the
desired position depending on the
intensity of the rain.
MWindshield wipers off
USlow intermittent wiping
(rain sensor operation with low
sensitivity)
VFast intermittent wiping
(rain sensor operation with high
sensitivity)
uSlow continuous wiping
tFast continuous wiping
!If the windshield wipers leave smears on the
windshield after the car has been driven through
an automatic car wash, then wax or other resi-
due is on the windshield. Shortly after washing
the car in an automatic car wash, clean the wind-
shield with windshield washer fluid
(
page 382).
!Do not operate the windshield wipers when
the windshield is dry. Dust that accumulates on
a windshield might scratch the glass and/or
damage the wiper blades when wiping occurs on
a dry windshield. If it is necessary to operate the
windshield wipers in dry weather conditions, al-
ways operate the windshield wipers with wind-
shield washer fluid (
page 382).
!If anything blocks the windshield wipers
(leaves, snow, etc.), switch them off immediate-
ly.

For safety reasons, stop the vehicle in a safe
location and,

remove SmartKey from starter switch
or

turn off the engine by pressing the
KEYLESS-GO* start/stop button
(
page 346) and open the driver’s door
(with the driver’s door open, starter
switch is in position0, same as with
SmartKey removed from starter switch)
before attempting to remove any blockage.

Remove blockage.

Turn the windshield wipers on again.If the windshield wipers fail to function at all in
the combination switch position U or V,

set the combination switch to the next
higher wiper speed

have the windshield wipers checked at the
nearest authorized Mercedes-Benz Center

382 Controls in detail
Windshield wipers
Intermittent wiping
Only switch on intermittent wiping under
wet weather conditions or in the presence
of precipitation.
Turn the combination switch to posi-
tion U or V.
The wipers move across the wind-
shield. Afterward, the wiping intervals
are determined by the wetness of the
windshield.
After the initial wipe, pauses between
wipes are automatically controlled by the
rain sensor.Single wipe
Press the combination switch briefly in
the direction of arrow2 (
page 381)
to the resistance point.
The windshield wipers wipe one time
without washer fluid.
Wiping with windshield washer fluid
Press the combination switch in the di-
rection of arrow2 (
page 381) past
the resistance point.
The windshield wiper operates with
washer fluid.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system”
(
page 548).
iWhen the windshield wipers are switched on
and you brake the vehicle to a stop, the wipers
operate more slowly.
!Do not leave windshield wipers on an inter-
mittent setting when the vehicle is taken to an
automatic car wash or during windshield clean-
ing. Wipers will operate in the presence of water
sprayed on the windshield, and windshield wip-
ers may be damaged as a result.
!If you have set intermittent wiping, dirt on
the surface of the rain sensor or optical effects
may cause the windshield wipers to wipe in an
undesired fashion. This could then damage the
windshield wiper blades or scratch the windows.
You should therefore switch off the windshield
wipers when weather conditions are dry.
iIntermittent wiping is interrupted when the
vehicle is at a standstill and a front door is
opened. This protects persons getting into or out
of the vehicle from being sprayed.
Intermittent wiping will be continued when

all doors are closed
and

the automatic transmission is set to
positionD orR
or

the wiper setting is changed using the com-
bination switch
iTo prevent smears on the windshield or
noisy/chattering wiper blades, wipe with wind-
shield washer fluid every now and then even
when it is raining.

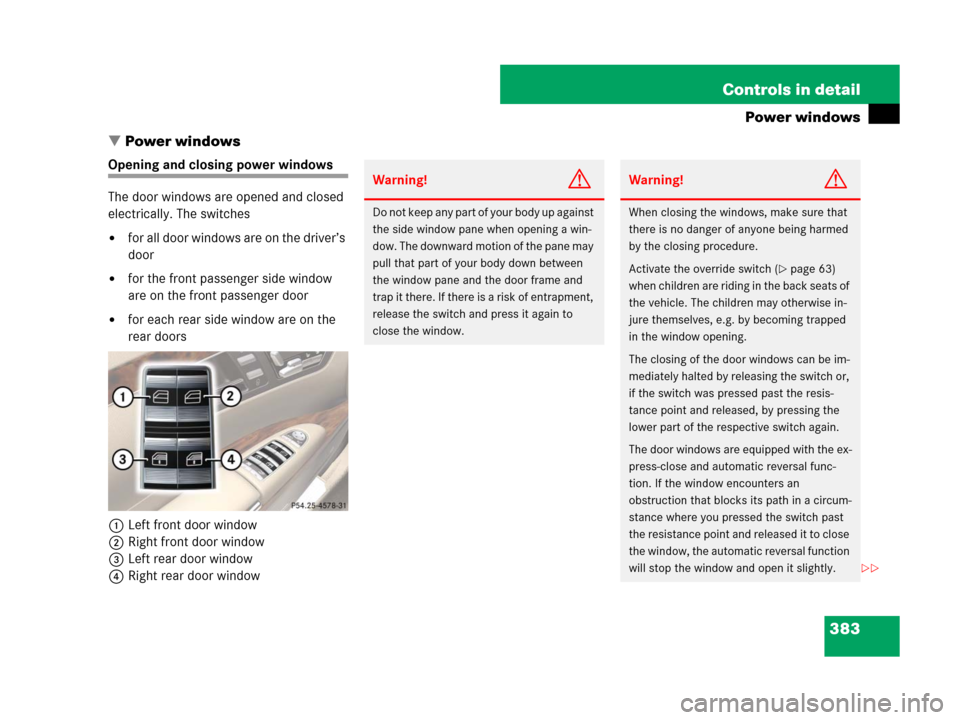

383 Controls in detail
Power windows
Power windows
Opening and closing power windows
The door windows are opened and closed
electrically. The switches

for all door windows are on the driver’s
door

for the front passenger side window
are on the front passenger door

for each rear side window are on the
rear doors
1Left front door window
2Right front door window
3Left rear door window
4Right rear door window
Warning!G
Do not keep any part of your body up against
the side window pane when opening a win-
dow. The downward motion of the pane may
pull that part of your body down between
the window pane and the door frame and
trap it there. If there is a risk of entrapment,
release the switch and press it again to
close the window.
Warning!G
When closing the windows, make sure that
there is no danger of anyone being harmed
by the closing procedure.
Activate the override switch (
page 63)
when children are riding in the back seats of
the vehicle. The children may otherwise in-
jure themselves, e.g. by becoming trapped
in the window opening.
The closing of the door windows can be im-
mediately halted by releasing the switch or,
if the switch was pressed past the resis-
tance point and released, by pressing the
lower part of the respective switch again.
The door windows are equipped with the ex-
press-close and automatic reversal func-
tion. If the window encounters an
obstruction that blocks its path in a circum-
stance where you pressed the switch past
the resistance point and released it to close
the window, the automatic reversal function
will stop the window and open it slightly.


384 Controls in detail
Power windows
Switch on the ignition (page 344).
Opening: Press the lower part of
switch1 to 4 (
page 383) to the re-
sistance point.
The corresponding window will move
downwards until you release the
switch.
Closing: Press the upper part of
switch1 to 4 (
page 383) to the re-
sistance point.
The corresponding window will move
upwards until you release the switch.
If the window encounters an obstruction
that blocks its path in a circumstance where
you are closing the window by pressing and
holding the switch, by pressing and holding
button ‹ on the SmartKey or SmartKey
with KEYLESS-GO*, by pressing and holding
the sensor surface (vehicles with
KEYLESS-GO*) on an outside door handle,
or by pressing and holding button, on
the climate control panel, the automatic re-
versal function will not operate.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.iYou can also open or close the windows us-
ing the SmartKey, see “Summer opening fea-
ture” (
page 385) and “Convenience closing
feature” (
page 386).
Depending on current position, the windows may
also open or close when the air recirculation
button, (
page 469) is pressed and held
for 2 seconds.
iOperating the windows from the rear is not
possible if you activate the override switch
(
page 63).
iIf PRE-SAFE® has been activated, the door
windows close automatically until only a small
gap remains.
iWith the SmartKey in starter switch
position0 or removed from the starter switch,
the power windows can be operated:

until you open the driver’s or front passenger
door

for at least 5 minutes if no door was opened
Warning!G
If you press and hold the switch up when
closing the window, and upward movement
of the window is blocked by some obstruc-
tion including but not limited to arms, hands,
fingers, etc., the automatic reversal will not
operate.


385 Controls in detail
Power windows
Express-opening: Press the lower part
of switch1 to4 (
page 383) past
the resistance point and release.
The corresponding window opens com-
pletely.
Express-closing: Press the upper part
of switch1 to4 (
page 383) past
the resistance point and release.
The corresponding window closes com-
pletely.
Stopping during Express-operation:
Briefly press the respective power win-
dow switch again.
Rear side window sunshades*
Closing: With the side window fully
closed, press the upper part of
switch3 or4 (
page 383).
The rear side window sunshade will be
fully closed.
Opening: Press the lower part of
switch3 or4 (
page 383).
The rear side window sunshade will be
fully opened.
Summer opening feature
If the weather is warm, you can ventilate
the vehicle before driving off by simulta-
neously:

opening the door windows and rear
side window sunshades*

opening the tilt/sliding sunroof or
tilt/sliding panel* and extending the
roller sunblinds*

turning on the seat ventilation* for the
driver’s seat
Warning!G
Driver’s door only:
If within 5 seconds you again press the
switch past the resistance point and re-
lease, the automatic reversal will not oper-
ate.
!If the upward movement of the window is
blocked during the closing procedure, the win-
dow will stop and open slightly. Remove the ob-
struction, press the respective power window
switch at the upper part again past the resis-
tance point and release. If the window still does
not close when there is no obstruction, press
and hold the respective power window switch at
the upper part. The side window will then close
without the obstruction sensor function.
iThe rear side window sunshade cannot be
partially closed.
iThe switches on the rear doors can also be
used to close the rear side window sunshades on
the other side of the vehicle.
iThe switches on the driver’s door take pre-
cedence over the rocker switches on the other
doors.

386 Controls in detail
Power windows
Aim transmitter eye of the SmartKey or
SmartKey with KEYLESS-GO* at the
driver’s outside door handle. The
SmartKey or SmartKey with
KEYLESS-GO* must be in close proxim-
ity to the driver’s door handle.Vehicles with tilt/sliding sunroof
Press and hold button Πuntil the
door windows and tilt/sliding sunroof
have reached the desired position.
Release button Πto interrupt pro-
cedure.
Vehicles with panorama roof* and/or
rear side window sunshades*
If roller sunblinds are retracted and/or
rear side window sunshades* are closed:
Press and hold button Œ. The win-
dows and sunblinds and/or rear side
window sunshades* begin to open/ex-
tend after approximately 1 second.
With the windows and roller blinds
and/or rear side window sunshades*
fully opened/extended, press and hold
button
Πagain. The tilt/sliding pan-
el tilts and opens.If roller sunblinds and/or rear side window
sunshades* are open/extended:
Press and hold button Œ. The win-
dows move down and the tilt/sliding
panel tilts and opens after approxi-
mately 1 second.
Release button Πto interrupt proce-
dure.
Convenience closing feature
When you lock the vehicle, you can close
the door windows and tilt/sliding sunroof
or tilt/sliding panel* simultaneously.
Afterward, you can close the roller sun-
blinds* of the panorama tilt/sliding sun-
roof* and the rear side window
sunshades*.
iThe “Summer opening” function can only be
activated via the remote control of the SmartKey
or SmartKey with KEYLESS-GO*.
iThe seat ventilation* for the driver’s seat is
automatically set to the highest level if activated
via summer opening feature.
iThe function of the SmartKey overrules the
KEYLESS-GO function.

387 Controls in detail
Power windows
Vehicles with SmartKey
Aim transmitter eye of the SmartKey
towards the sensor in the driver’s door
handle. The SmartKey must be in close
proximity to the driver’s door handle.
Vehicles with tilt/sliding sunroof
Press and hold button ‹ until the
door windows and the tilt/sliding sun-
roof are completely closed.
Release button ‹ to interrupt pro-
cedure.Vehicles with panorama roof* and/or
rear side window sunshades*
Press and hold button ‹ until the
door windows and the tilt/sliding panel
are completely closed.
Press and hold button ‹ again.
The roller sunblinds and/or rear side
window sunshades* close.
Release button ‹ to interrupt pro-
cedure.
Warning!G
When closing the windows and the tilt/slid-
ing sunroof or tilt/sliding panel*, make sure
that there is no danger of anyone being
harmed by the closing procedure.
If potential danger exists, proceed as fol-
lows:

Release button ‹ to stop the closing
procedure. To open, press and hold but-
ton Œ. To continue the closing after
making sure that there is no danger of
anyone being harmed by the closing pro-
cedure, press and hold button‹.
Vehicles with KEYLESS-GO*:

Release the sensor surface on the out-
side door handle (
page 388) to stop
the closing procedure.

Immediately pull on the same outside
door handle and hold firmly. The door
windows and the tilt/sliding sunroof or
tilt/sliding panel* will open for as long
as the outside door handle is held but
the door is not opened.
iIf you press ‹ while one of the front door
windows is open and one of the rear door win-
dows is closed, for example, then the front side
window and the rear side window sunshade will
be closed. To prevent this from happening, first
open all door windows slightly by briefly
pressingΠand then close all door windows
by pressing ‹.

388 Controls in detail
Power windows
Vehicles with KEYLESS-GO*
1Sensor surface on door handle
The SmartKey with KEYLESS-GO must be
located outside the vehicle within approxi-
mately 3 ft (1 m) of a door.
Close all doors.Vehicles with tilt/sliding sunroof
Touch and hold sensor surface1 until
the windows and the tilt/sliding sun-
roof are completely closed.
Release sensor surface1 to interrupt
procedure.Vehicles with panorama roof* and/or
rear side window sunshades*
Touch and hold sensor surface1 until
the windows and the tilt/sliding panel
are completely closed.
Touch and hold sensor surface1
again.
The roller sunblinds and/or rear side
window sunshades* close.
Release sensor surface1 to interrupt
procedure.
iMake sure that you are only touching the
sensor surface.
iMake sure that you are only touching the
sensor surface.
iIf you touch the sensor surface while one of
the front door windows is open and one of the
rear door windows is closed, for example, the
front side window will be closed as well as the
rear side window sunshade*.

389 Controls in detail
Driving and parking
Driving and parking
Starting the engine
Automatic transmission

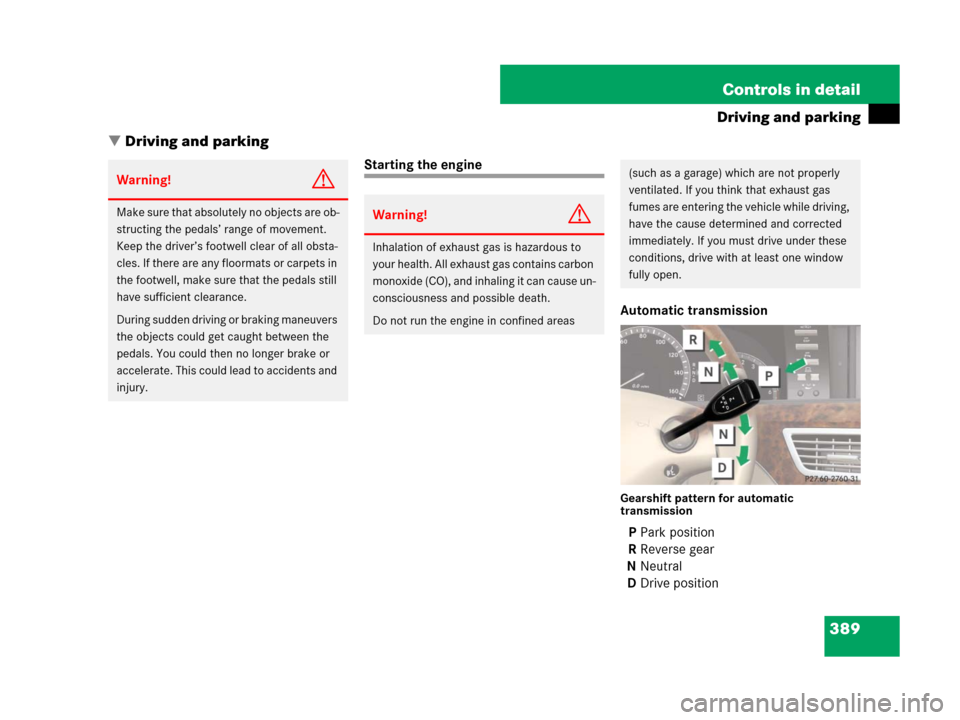

Gearshift pattern for automatic
transmission
PPark position
RReverse gear
NNeutral
DDrive position
Warning!G
Make sure that absolutely no objects are ob-
structing the pedals’ range of movement.
Keep the driver’s footwell clear of all obsta-
cles. If there are any floormats or carpets in
the footwell, make sure that the pedals still
have sufficient clearance.
During sudden driving or braking maneuvers
the objects could get caught between the
pedals. You could then no longer brake or
accelerate. This could lead to accidents and
injury.Warning!G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide (CO), and inhaling it can cause un-
consciousness and possible death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive with at least one window
fully open.
