Park Assist is also switched off when you
set the automatic transmission to P or
switch off the engine.
While the transmission is in neutral
positionN, Park Assist is switched off if
you secure the vehicle in place with the
electronic parking brake.

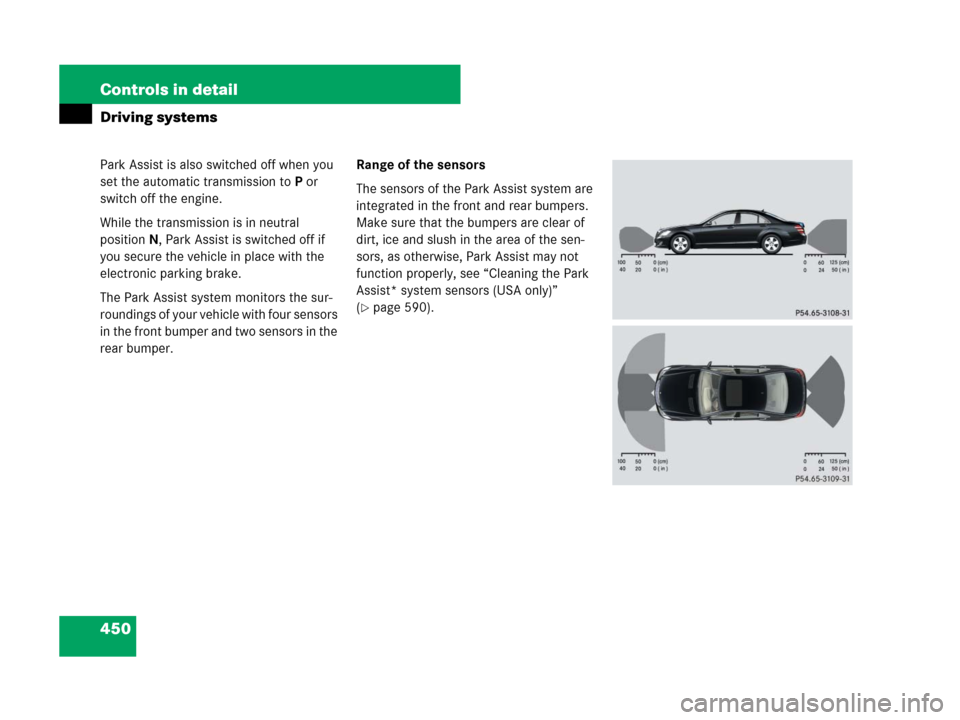

The Park Assist system monitors the sur-
roundings of your vehicle with four sensors
in the front bumper and two sensors in the
rear bumper.Range of the sensors
The sensors of the Park Assist system are
integrated in the front and rear bumpers.
Make sure that the bumpers are clear of
dirt, ice and slush in the area of the sen-
sors, as otherwise, Park Assist may not
function properly, see “Cleaning the Park
Assist* system sensors (USA only)”
(
page 590).

451 Controls in detail
Driving systems
Front sensors
Rear sensorsWarning indicators
Visual signals indicate to the driver the rel-
ative distance between the sensors and an
obstacle.
The warning indicator for the front area is
in the instrument cluster. The warning indi-
cator for the rear area is on the roof liner in
the rear.
1Left side of the vehicle
2Right side of the vehicle
3Indicator

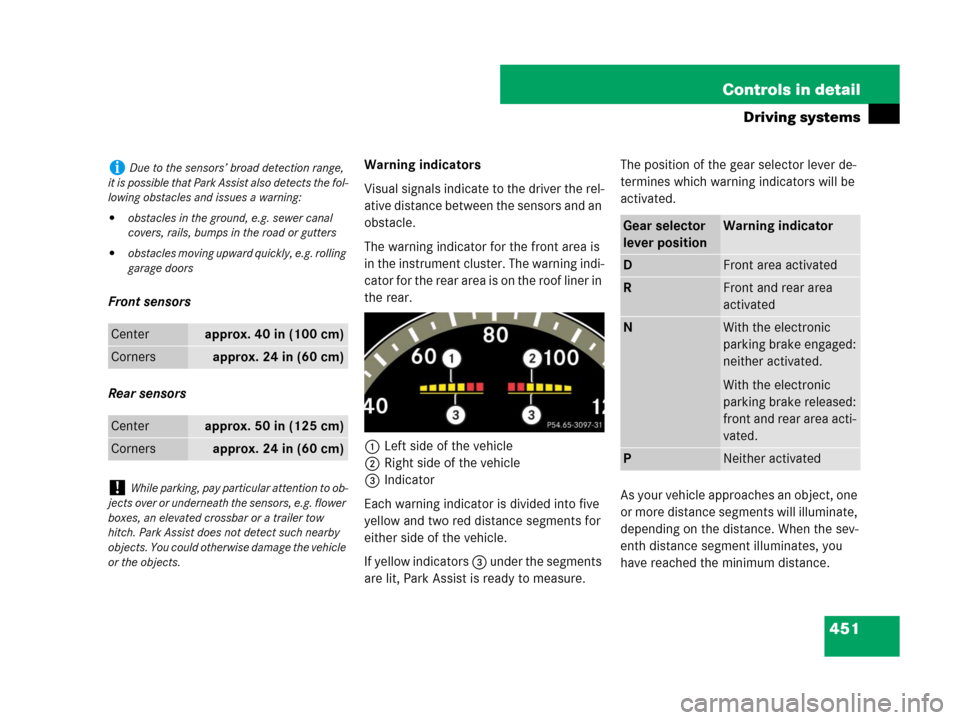

Each warning indicator is divided into five
yellow and two red distance segments for
either side of the vehicle.
If yellow indicators 3 under the segments
are lit, Park Assist is ready to measure.The position of the gear selector lever de-
termines which warning indicators will be
activated.
As your vehicle approaches an object, one
or more distance segments will illuminate,
depending on the distance. When the sev-
enth distance segment illuminates, you
have reached the minimum distance.
iDue to the sensors’ broad detection range,
it is possible that Park Assist also detects the fol-
lowing obstacles and issues a warning:

obstacles in the ground, e.g. sewer canal
covers, rails, bumps in the road or gutters

obstacles moving upward quickly, e.g. rolling
garage doors
Centerapprox. 40 in (100 cm)
Cornersapprox. 24 in (60 cm)
Centerapprox. 50 in (125 cm)
Cornersapprox. 24 in (60 cm)
!While parking, pay particular attention to ob-
jects over or underneath the sensors, e.g. flower
boxes, an elevated crossbar or a trailer tow
hitch. Park Assist does not detect such nearby
objects. You could otherwise damage the vehicle
or the objects.
Gear selector
lever positionWarning indicator
DFront area activated
RFront and rear area
activated
NWith the electronic
parking brake engaged:
neither activated.
With the electronic
parking brake released:
front and rear area acti-
vated.
PNeither activated

452 Controls in detail
Driving systems

Front area:
As soon as the first red segment lights
up, you will hear an intermittent warn-
ing tone for approximately two sec-
onds. Once the second red segment
lights up, you will hear a continuous
warning tone. You have reached the
minimum distance.

Rear area:
As soon as the first red segment lights
up, you will hear an intermittent warn-
ing tone for approximately two sec-
onds. Once the second red segment
lights up, you will hear a continuous
warning tone. You have reached the
minimum distance.Collision warning
Park Assist can detect obstacles from a
considerable distance. If you drive in re-
verse towards an obstacle, you will hear a
warning tone. You must then brake in or-
der to avoid a collision. The warning tone
for a collision will not sound when the vehi-
cle is at a standstill very close to the obsta-
cle. In this case, you will hear a
corresponding tone for the warning indica-
tor in the rear area.Switching Park Assist system on/off
The Park Assist system can be switched off
manually.

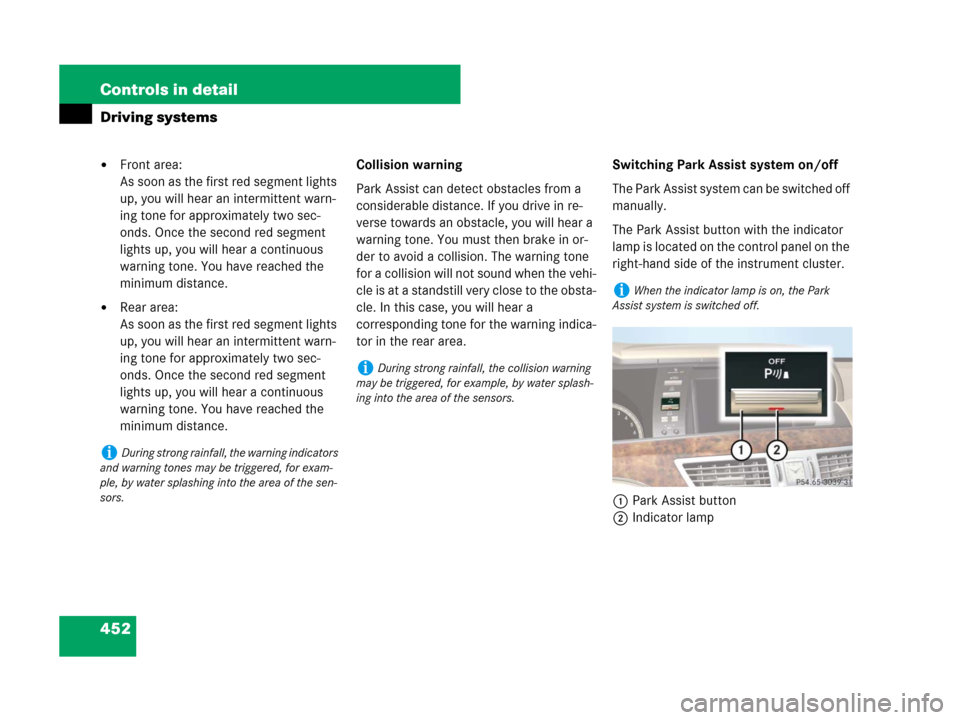

The Park Assist button with the indicator
lamp is located on the control panel on the
right-hand side of the instrument cluster.
1Park Assist button
2Indicator lamp
iDuring strong rainfall, the warning indicators
and warning tones may be triggered, for exam-
ple, by water splashing into the area of the sen-
sors.
iDuring strong rainfall, the collision warning
may be triggered, for example, by water splash-
ing into the area of the sensors.
iWhen the indicator lamp is on, the Park
Assist system is switched off.

453 Controls in detail
Driving systems
Switching off Park Assist system:
Press button 1.
Indicator lamp 2 comes on.
Switching on Park Assist system:
Press button 1 again.
Indicator lamp 2 goes out.
Dynamic Rear View Monitor*
The Dynamic Rear View Monitor is an elec-
tronic and visual parking aid. It shows you
the area behind the vehicle on the
COMAND display.
In addition, the Dynamic Rear View Moni-
tor contains guide lines to help you with re-
verse parking (back-in parking) and
parallel parking.
The area behind the vehicle is displayed as
a reverse-mirror image similar to the view

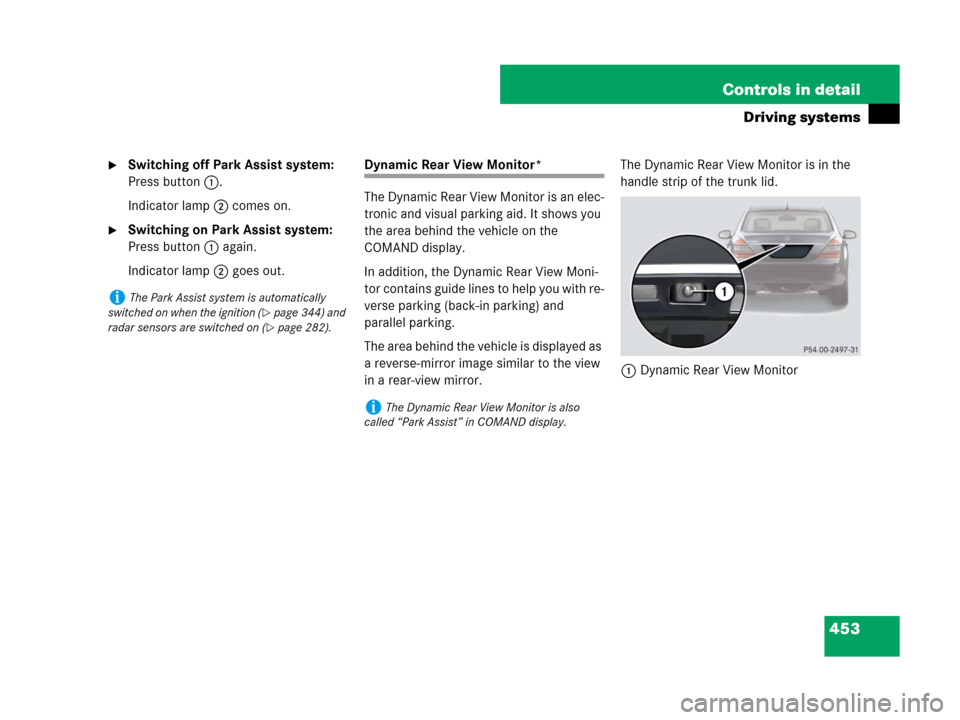

in a rear-view mirror.The Dynamic Rear View Monitor is in the
handle strip of the trunk lid.
1Dynamic Rear View Monitor
iThe Park Assist system is automatically
switched on when the ignition (
page 344) and
radar sensors are switched on (
page 282).
iThe Dynamic Rear View Monitor is also
called “Park Assist” in COMAND display.

454 Controls in detail
Driving systems

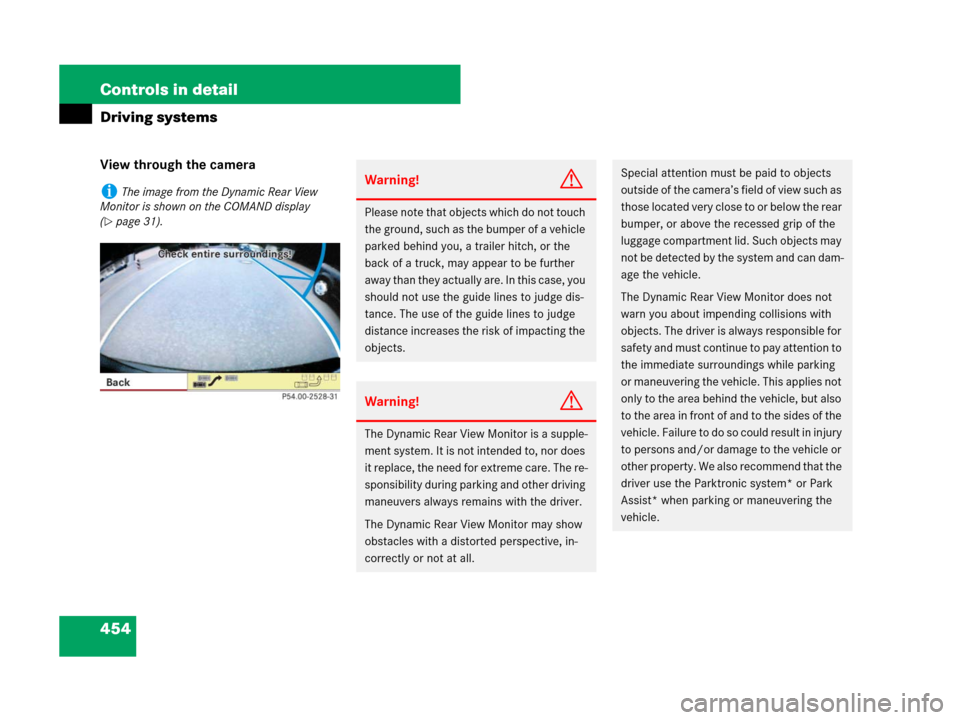

View through the camera
iThe image from the Dynamic Rear View
Monitor is shown on the COMAND display
(
page 31).
Warning!G
Please note that objects which do not touch
the ground, such as the bumper of a vehicle
parked behind you, a trailer hitch, or the
back of a truck, may appear to be further
away than they actually are. In this case, you
should not use the guide lines to judge dis-
tance. The use of the guide lines to judge
distance increases the risk of impacting the
objects.
Warning!G
The Dynamic Rear View Monitor is a supple-
ment system. It is not intended to, nor does
it replace, the need for extreme care. The re-
sponsibility during parking and other driving
maneuvers always remains with the driver.
The Dynamic Rear View Monitor may show
obstacles with a distorted perspective, in-
correctly or not at all.
Special attention must be paid to objects
outside of the camera’s field of view such as
those located very close to or below the rear
bumper, or above the recessed grip of the
luggage compartment lid. Such objects may
not be detected by the system and can dam-
age the vehicle.
The Dynamic Rear View Monitor does not
warn you about impending collisions with
objects. The driver is always responsible for
safety and must continue to pay attention to
the immediate surroundings while parking
or maneuvering the vehicle. This applies not
only to the area behind the vehicle, but also
to the area in front of and to the sides of the
vehicle. Failure to do so could result in injury
to persons and/or damage to the vehicle or
other property. We also recommend that the
driver use the Parktronic system* or Park
Assist* when parking or maneuvering the
vehicle.

455 Controls in detail
Driving systems

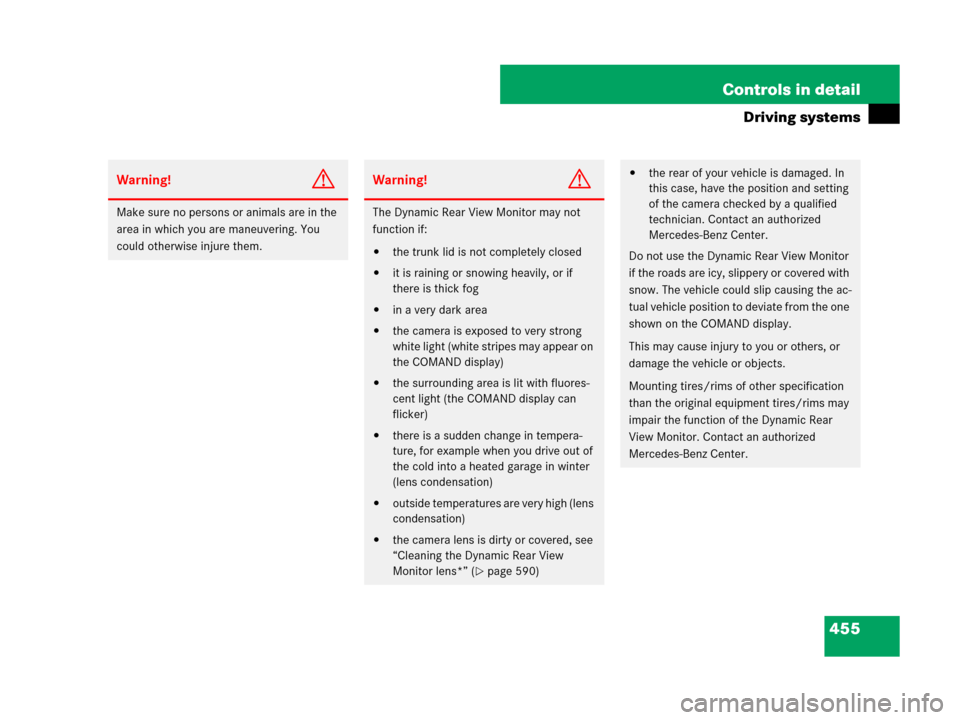

Warning!G
Make sure no persons or animals are in the
area in which you are maneuvering. You
could otherwise injure them.
Warning!G
The Dynamic Rear View Monitor may not
function if:

the trunk lid is not completely closed

it is raining or snowing heavily, or if
there is thick fog

in a very dark area

the camera is exposed to very strong
white light (white stripes may appear on
the COMAND display)

the surrounding area is lit with fluores-
cent light (the COMAND display can
flicker)

there is a sudden change in tempera-
ture, for example when you drive out of
the cold into a heated garage in winter
(lens condensation)

outside temperatures are very high (lens
condensation)

the camera lens is dirty or covered, see
“Cleaning the Dynamic Rear View
Monitor lens*” (
page 590)

the rear of your vehicle is damaged. In
this case, have the position and setting
of the camera checked by a qualified
technician. Contact an authorized
Mercedes-Benz Center.
Do not use the Dynamic Rear View Monitor
if the roads are icy, slippery or covered with
snow. The vehicle could slip causing the ac-
tual vehicle position to deviate from the one
shown on the COMAND display.
This may cause injury to you or others, or
damage the vehicle or objects.
Mounting tires/rims of other specification
than the original equipment tires/rims may
impair the function of the Dynamic Rear
View Monitor. Contact an authorized
Mercedes-Benz Center.

456 Controls in detail
Driving systems
Switching on Dynamic Rear View
Monitor
Switch on the ignition (page 344).
Switch on COMAND (page 85).
Move gear selector lever to position R
(reverse gear).
The COMAND display will show the
area behind the vehicle with guide lines
to help you reverse into a parking
place.Reverse parking (back-in parking)

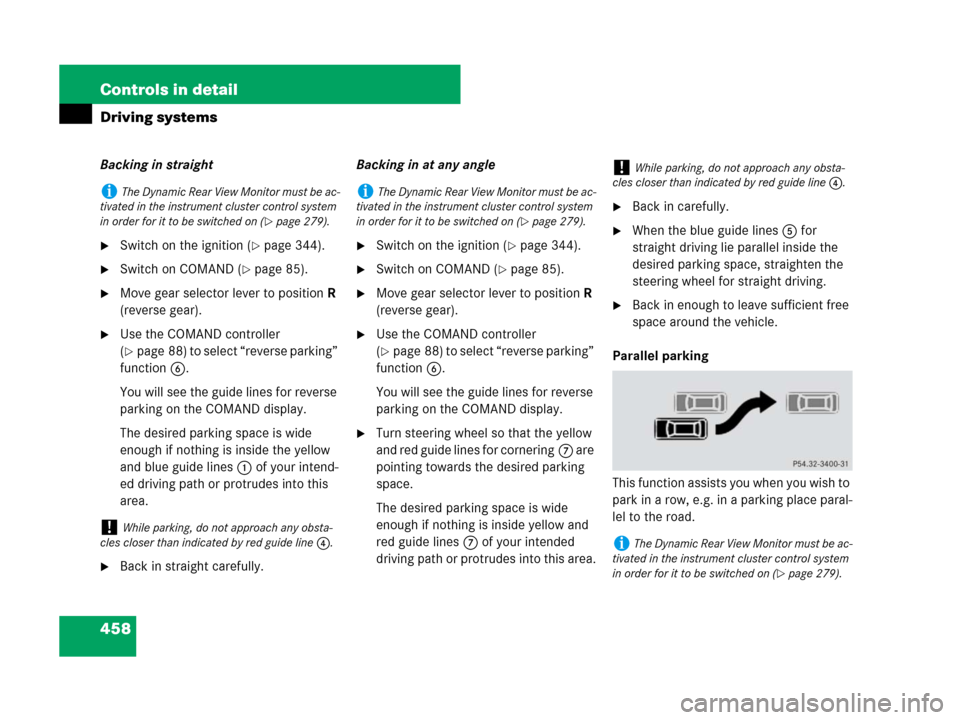

This function helps you when you are re-
versing in a straight line or backing in at
any angle.
The space required by the vehicle for re-
versing is shown by guide lines.
When you turn the steering wheel to a
straight-ahead position, you will see the
guide lines on the COMAND display in the
following order:

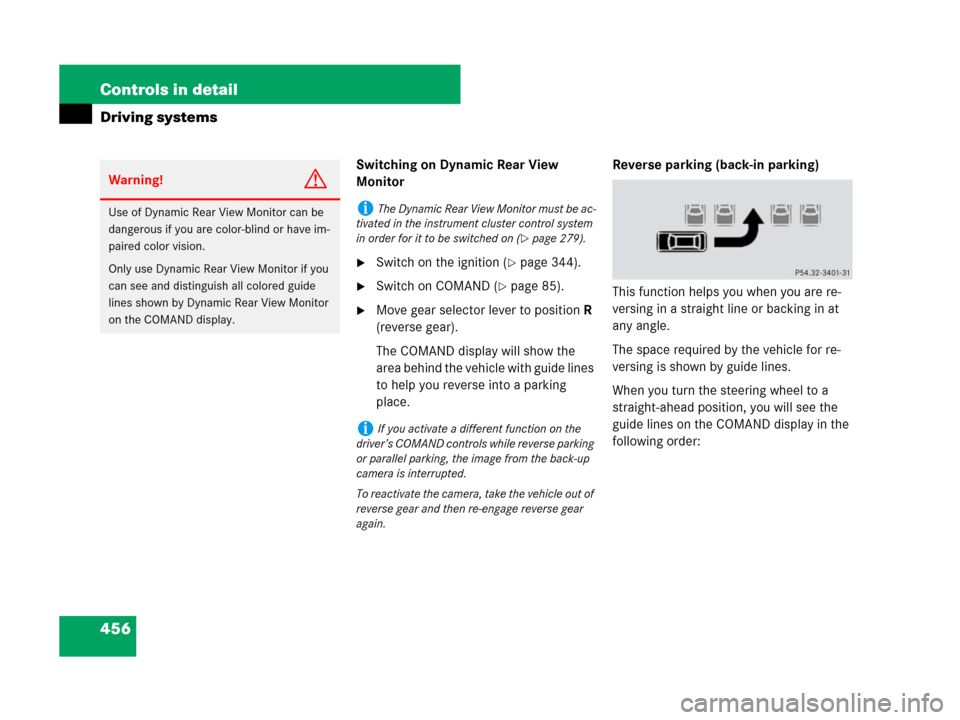

Warning!G
Use of Dynamic Rear View Monitor can be
dangerous if you are color-blind or have im-
paired color vision.
Only use Dynamic Rear View Monitor if you
can see and distinguish all colored guide
lines shown by Dynamic Rear View Monitor
on the COMAND display.iThe Dynamic Rear View Monitor must be ac-
tivated in the instrument cluster control system
in order for it to be switched on (
page 279).
iIf you activate a different function on the
driver’s COMAND controls while reverse parking
or parallel parking, the image from the back-up
camera is interrupted.
To reactivate the camera, take the vehicle out of
reverse gear and then re-engage reverse gear
again.

457 Controls in detail
Driving systems

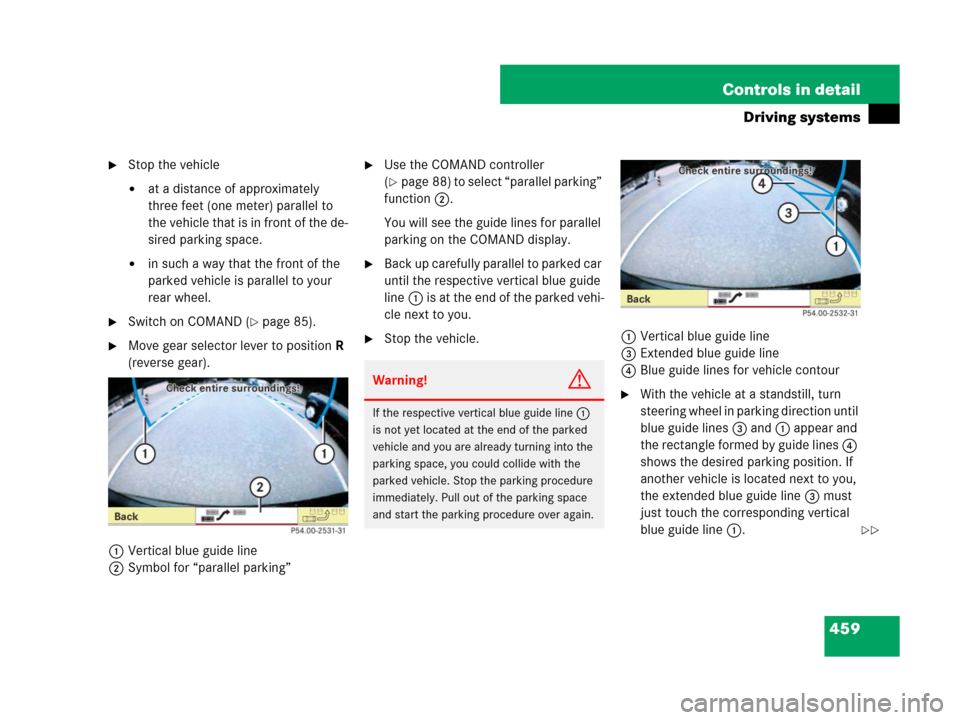

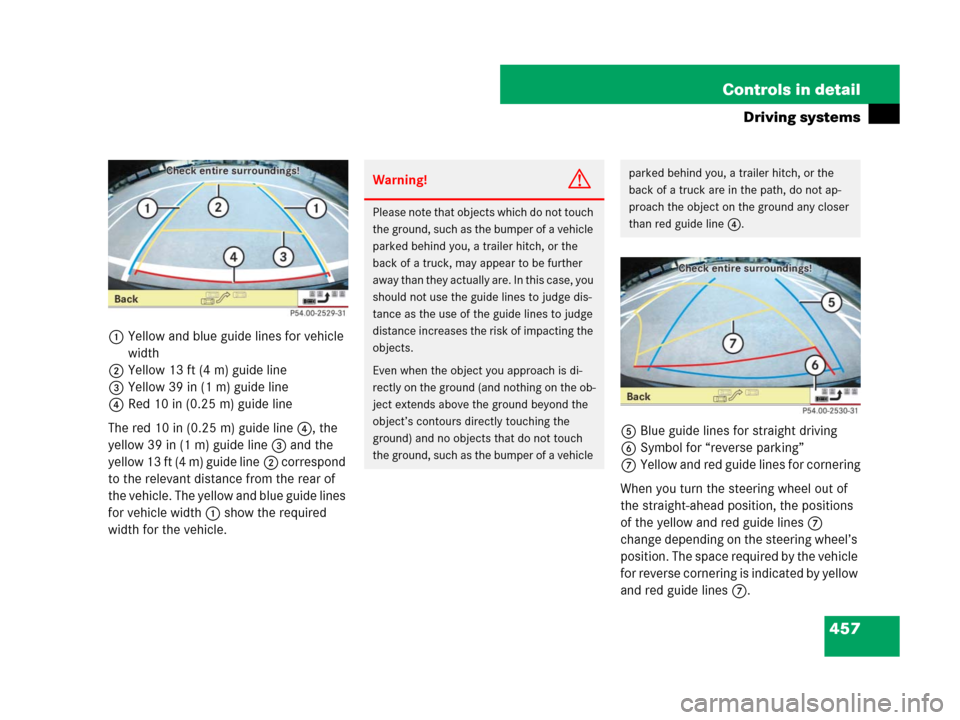

1Yellow and blue guide lines for vehicle
width
2Yellow 13 ft (4 m) guide line
3Yellow 39 in (1 m) guide line
4Red 10 in (0.25 m) guide line
The red 10 in (0.25 m) guide line4, the
yellow 39 in (1 m) guide line3 and the
yellow 13 ft (4 m) guide line2 correspond
to the relevant distance from the rear of
the vehicle. The yellow and blue guide lines
for vehicle width1 show the required
width for the vehicle.5Blue guide lines for straight driving
6Symbol for “reverse parking”
7Yellow and red guide lines for cornering
When you turn the steering wheel out of
the straight-ahead position, the positions
of the yellow and red guide lines7
change depending on the steering wheel’s
position. The space required by the vehicle
for reverse cornering is indicated by yellow
and red guide lines7.
Warning!G
Please note that objects which do not touch
the ground, such as the bumper of a vehicle
parked behind you, a trailer hitch, or the
back of a truck, may appear to be further
away than they actually are. In this case, you
should not use the guide lines to judge dis-
tance as the use of the guide lines to judge
distance increases the risk of impacting the
objects.
Even when the object you approach is di-
rectly on the ground (and nothing on the ob-
ject extends above the ground beyond the
object’s contours directly touching the
ground) and no objects that do not touch
the ground, such as the bumper of a vehicle
parked behind you, a trailer hitch, or the
back of a truck are in the path, do not ap-
proach the object on the ground any closer
than red guide line4.

458 Controls in detail
Driving systems
Backing in straight
Switch on the ignition (page 344).
Switch on COMAND (page 85).
Move gear selector lever to position R
(reverse gear).
Use the COMAND controller
(
page 88) to select “reverse parking”
function6.
You will see the guide lines for reverse
parking on the COMAND display.
The desired parking space is wide
enough if nothing is inside the yellow
and blue guide lines1 of your intend-
ed driving path or protrudes into this
area.
Back in straight carefully.Backing in at any angle
Switch on the ignition (page 344).
Switch on COMAND (page 85).
Move gear selector lever to position R
(reverse gear).
Use the COMAND controller
(
page 88) to select “reverse parking”
function6.
You will see the guide lines for reverse
parking on the COMAND display.
Turn steering wheel so that the yellow
and red guide lines for cornering7 are
pointing towards the desired parking
space.
The desired parking space is wide
enough if nothing is inside yellow and
red guide lines7 of your intended
driving path or protrudes into this area.
Back in carefully.
When the blue guide lines5 for
straight driving lie parallel inside the
desired parking space, straighten the
steering wheel for straight driving.
Back in enough to leave sufficient free
space around the vehicle.
Parallel parking
This function assists you when you wish to
park in a row, e.g. in a parking place paral-
lel to the road.
iThe Dynamic Rear View Monitor must be ac-
tivated in the instrument cluster control system
in order for it to be switched on (
page 279).
!While parking, do not approach any obsta-
cles closer than indicated by red guide line4.
iThe Dynamic Rear View Monitor must be ac-
tivated in the instrument cluster control system
in order for it to be switched on (
page 279).
!While parking, do not approach any obsta-
cles closer than indicated by red guide line4.
iThe Dynamic Rear View Monitor must be ac-
tivated in the instrument cluster control system
in order for it to be switched on (
page 279).

459 Controls in detail
Driving systems
Stop the vehicle

at a distance of approximately
three feet (one meter) parallel to
the vehicle that is in front of the de-
sired parking space.

in such a way that the front of the
parked vehicle is parallel to your
rear wheel.
Switch on COMAND (page 85).
Move gear selector lever to position R
(reverse gear).
1Vertical blue guide line
2Symbol for “parallel parking”
Use the COMAND controller
(
page 88) to select “parallel parking”
function2.
You will see the guide lines for parallel
parking on the COMAND display.
Back up carefully parallel to parked car
until the respective vertical blue guide
line1 is at the end of the parked vehi-
cle next to you.
Stop the vehicle.1Vertical blue guide line
3Extended blue guide line
4Blue guide lines for vehicle contour
With the vehicle at a standstill, turn
steering wheel in parking direction until
blue guide lines3 and 1 appear and
the rectangle formed by guide lines 4
shows the desired parking position. If
another vehicle is located next to you,
the extended blue guide line3 must
just touch the corresponding vertical
blue guide line1.Warning!G
If the respective vertical blue guide line1
is not yet located at the end of the parked
vehicle and you are already turning into the
parking space, you could collide with the
parked vehicle. Stop the parking procedure
immediately. Pull out of the parking space
and start the parking procedure over again.
