MERCEDES-BENZ S550 4MATIC 2008 W221 Owner's Manual

550 Operation
Tires and wheels
Contact an authorized Mercedes-Benz
Center for information on tested and
recommended rims and tires for summer
and winter operation. They can also offer
advice concerning tire service and
purchase.Important guidelines

Only use sets of tires and rims of the
same type and make.

Tires must be of the correct size for the
rim.

Break in new tires for approximately
60 miles (100 km) at moderate
speeds.

Regularly check the tires and rims for
damage. Dented or bent rims can
cause tire inflation pressure loss and
damage to the tire beads.

If vehicle is heavily loaded, check tire
inflation pressure and correct as
required.

Do not allow your tires to wear down
too far. Adhesion properties on wet
roads are sharply reduced at tread
depths of less than
1/8in (3 mm).

When replacing individual tires, you
should mount new tires on the front
wheels first (on vehicles with
same-sized wheels all around).

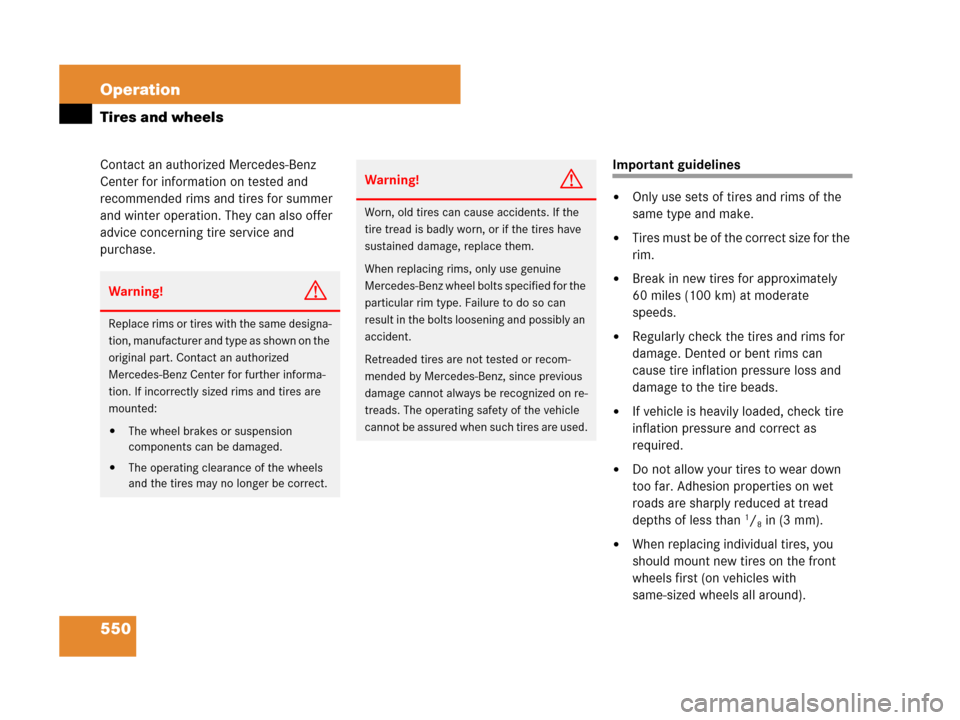

Warning!G
Replace rims or tires with the same designa-
tion, manufacturer and type as shown on the
original part. Contact an authorized
Mercedes-Benz Center for further informa-
tion. If incorrectly sized rims and tires are
mounted:

The wheel brakes or suspension
components can be damaged.

The operating clearance of the wheels
and the tires may no longer be correct.
Warning!G
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
When replacing rims, only use genuine
Mercedes-Benz wheel bolts specified for the
particular rim type. Failure to do so can
result in the bolts loosening and possibly an
accident.
Retreaded tires are not tested or recom-
mended by Mercedes-Benz, since previous
damage cannot always be recognized on re-
treads. The operating safety of the vehicle
cannot be assured when such tires are used.

551 Operation
Tires and wheels
Tire care and maintenance
Regularly check the tire inflation pressure
at least once a month. For more informa-
tion on checking tire inflation pressure,
see “Recommended tire inflation pres-
sure” (
page 558).Tire inspection
Every time you check the tire inflation
pressure, you should also inspect your
tires for the following:

excessive treadwear (page 552)

cord or fabric showing through the
tire’s rubber

bumps, bulges, cuts, cracks or splits in
the tread or side of the tire
Replace the tire if you find any of the above
conditions.
Make sure you also inspect the spare tire
periodically for condition and inflation.
Spare tires will age and degrade over time
even if never used, and thus should be in-
spected and replaced when necessary.Life of tire
The service life of a tire is dependent upon
varying factors including but not limited to:

Driving style

Tire inflation pressure

Distance driven
Warning!G
Regularly check the tires for damage. Dam-
aged tires can cause tire inflation pressure
loss. As a result, you could lose control of
your vehicle.
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
Warning!G
Tires and spare tire should be replaced after
6 years, regardless of the remaining tread.

552 Operation
Tires and wheels
Tread depth
Do not allow your tires to wear down too
far. Adhesion properties on wet roads are
sharply reduced at tread depths of less
than
1/8in (3 mm).
Treadwear indicators (TWI) are required by
law. These indicators are located in six
places on the tread circumference and
become visible at a tread depth of approx-
imately
1/16in (1.6 mm), at which point the
tire is considered worn and should be re-
placed.
Recommended minimum tire tread depth:

Summer tires 1/8in (3 mm)

Winter tires 1/6in (4 mm)

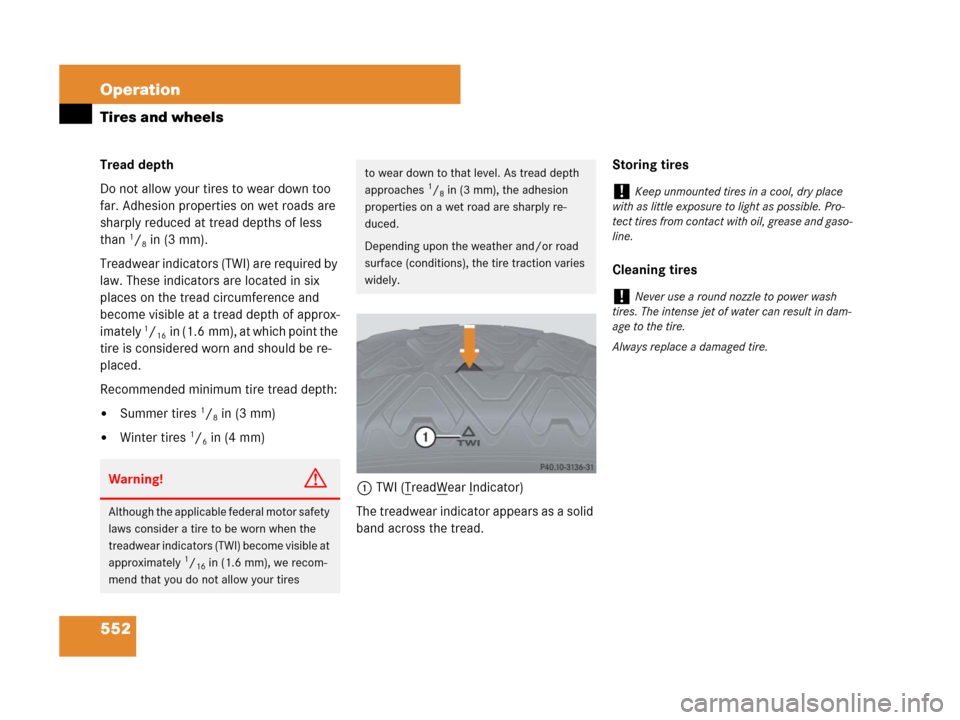

1TWI (T
readWear Indicator)
The treadwear indicator appears as a solid
band across the tread.Storing tires
Cleaning tiresWarning!G
Although the applicable federal motor safety
laws consider a tire to be worn when the
treadwear indicators (TWI) become visible at
approximately
1/16in (1.6 mm), we recom-
mend that you do not allow your tires
to wear down to that level. As tread depth
approaches 1/8in (3 mm), the adhesion
properties on a wet road are sharply re-
duced.
Depending upon the weather and/or road
surface (conditions), the tire traction varies
widely.!Keep unmounted tires in a cool, dry place
with as little exposure to light as possible. Pro-
tect tires from contact with oil, grease and gaso-
line.
!Never use a round nozzle to power wash
tires. The intense jet of water can result in dam-
age to the tire.
Always replace a damaged tire.

553 Operation
Tires and wheels
Direction of rotation
Unidirectional tires offer added advan-
tages, such as better hydroplaning perfor-
mance. To benefit, however, you must
make sure the tires rotate in the direction
specified.
An arrow on the sidewall indicates the
intended direction of rotation (spinning) of
the tire.Loading the vehicle
Two labels on your vehicle show how much
weight it may properly carry.
1) The Tire and Loading Information
placard can be found on the driver’s
door B-pillar. This placard tells you im-
portant information about the number
of people that can be in the vehicle and
the total weight that can be carried in
the vehicle. It also contains information
on the proper size and recommended
tire inflation pressures for the original
equipment tires on your vehicle.
2) The certification label, also found on
the driver’s door B-pillar tells you about
the gross weight capacity of your vehi-
cle, called the Gross Vehicle Weight
Rating (GVWR). The GVWR includes the
weight of the vehicle, all occupants,
fuel and cargo. The certification label
also tells you about the front and rear
axle weight capacity, called the Gross
Axle Weight Rating (GAWR). The GAWR
is the total allowable weight that can be carried by a single axle (front or rear).
Never exceed the GVWR or GAWR for
either the front axle or rear axle.
1Driver’s door B-pillar
Following is a discussion on how to work
with the information contained on the Tire
and Loading Information placard with re-
gards to loading your vehicle.
iSpare wheels may be mounted against the
direction of rotation (spinning) even with a unidi-
rectional tire for temporary use only until the reg-
ular drive wheel has been repaired or replaced.
Always observe and follow applicable temporary
use restrictions and speed limitations indicated
on the spare wheel.

554 Operation
Tires and wheels

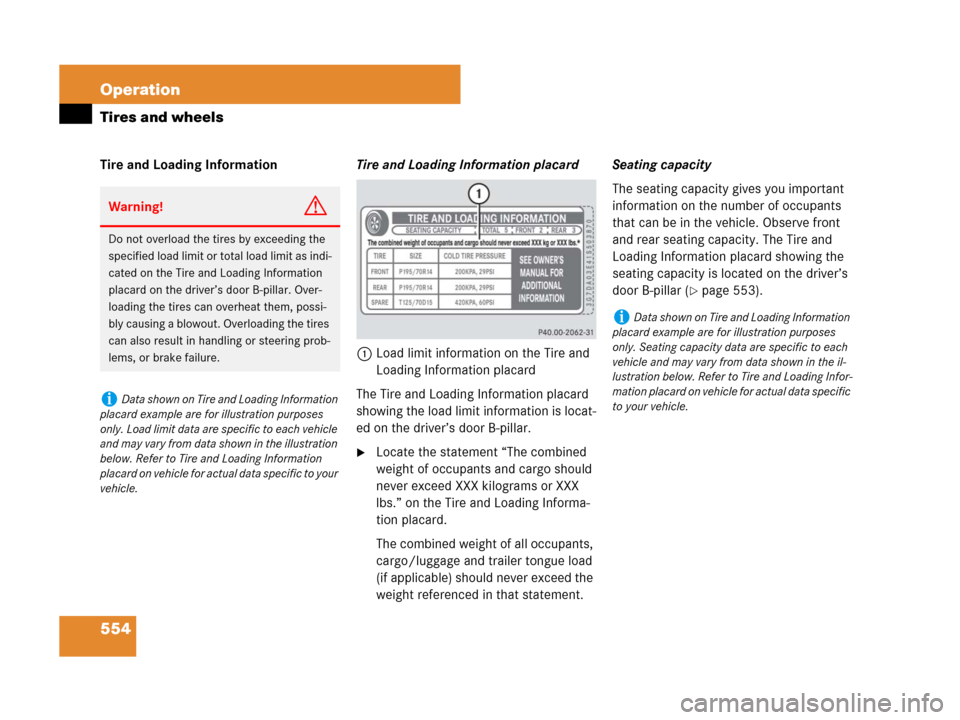

Tire and Loading InformationTire and Loading Information placard
1Load limit information on the Tire and
Loading Information placard
The Tire and Loading Information placard
showing the load limit information is locat-
ed on the driver’s door B-pillar.
Locate the statement “The combined
weight of occupants and cargo should
never exceed XXX kilograms or XXX
lbs.” on the Tire and Loading Informa-
tion placard.
The combined weight of all occupants,
cargo/luggage and trailer tongue load
(if applicable) should never exceed the
weight referenced in that statement.Seating capacity
The seating capacity gives you important
information on the number of occupants
that can be in the vehicle. Observe front
and rear seating capacity. The Tire and
Loading Information placard showing the
seating capacity is located on the driver’s
door B-pillar (
page 553).
Warning!G
Do not overload the tires by exceeding the
specified load limit or total load limit as indi-
cated on the Tire and Loading Information
placard on the driver’s door B-pillar. Over-
loading the tires can overheat them, possi-
bly causing a blowout. Overloading the tires
can also result in handling or steering prob-
lems, or brake failure.
iData shown on Tire and Loading Information
placard example are for illustration purposes
only. Load limit data are specific to each vehicle
and may vary from data shown in the illustration
below. Refer to Tire and Loading Information
placard on vehicle for actual data specific to your
vehicle.
iData shown on Tire and Loading Information
placard example are for illustration purposes
only. Seating capacity data are specific to each
vehicle and may vary from data shown in the il-
lustration below. Refer to Tire and Loading Infor-
mation placard on vehicle for actual data specific
to your vehicle.

555 Operation
Tires and wheels

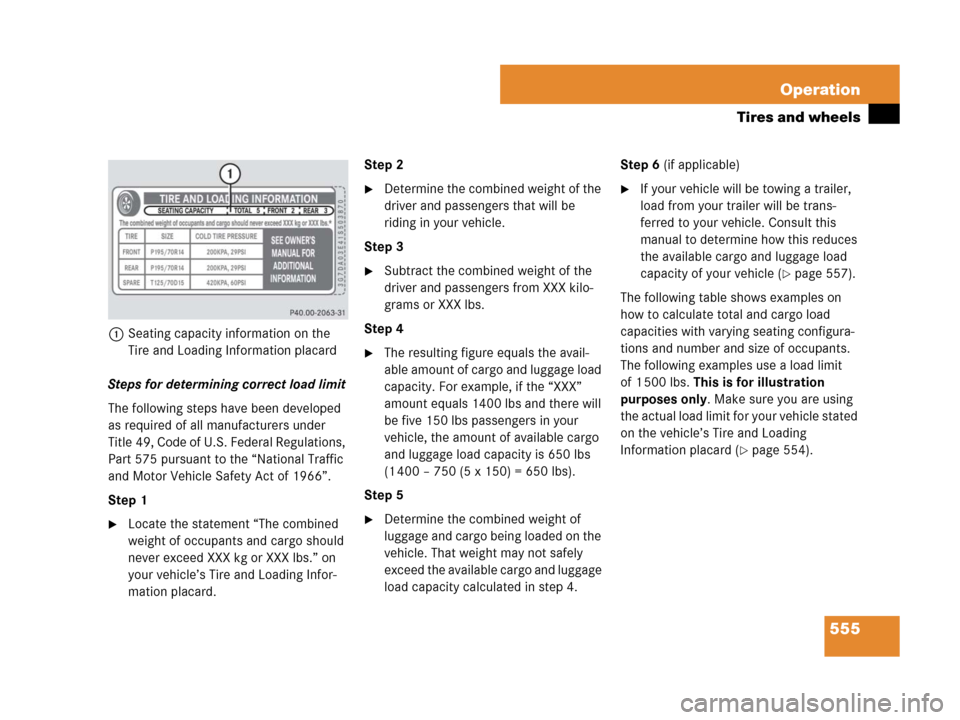

1Seating capacity information on the
Tire and Loading Information placard
Steps for determining correct load limit
The following steps have been developed
as required of all manufacturers under
Title 49, Code of U.S. Federal Regulations,
Part 575 pursuant to the “National Traffic
and Motor Vehicle Safety Act of 1966”.
Step 1
Locate the statement “The combined
weight of occupants and cargo should
never exceed XXX kg or XXX lbs.” on
your vehicle’s Tire and Loading Infor-
mation placard.Step 2
Determine the combined weight of the
driver and passengers that will be
riding in your vehicle.
Step 3
Subtract the combined weight of the
driver and passengers from XXX kilo-
grams or XXX lbs.
Step 4
The resulting figure equals the avail-
able amount of cargo and luggage load
capacity. For example, if the “XXX”
amount equals 1400 lbs and there will
be five 150 lbs passengers in your
vehicle, the amount of available cargo
and luggage load capacity is 650 lbs
(1 400 – 750 (5 x 150) = 650 lbs).
Step 5
Determine the combined weight of
luggage and cargo being loaded on the
vehicle. That weight may not safely
exceed the available cargo and luggage
load capacity calculated in step 4.Step 6 (if applicable)
If your vehicle will be towing a trailer,
load from your trailer will be trans-
ferred to your vehicle. Consult this
manual to determine how this reduces
the available cargo and luggage load
capacity of your vehicle (
page 557).

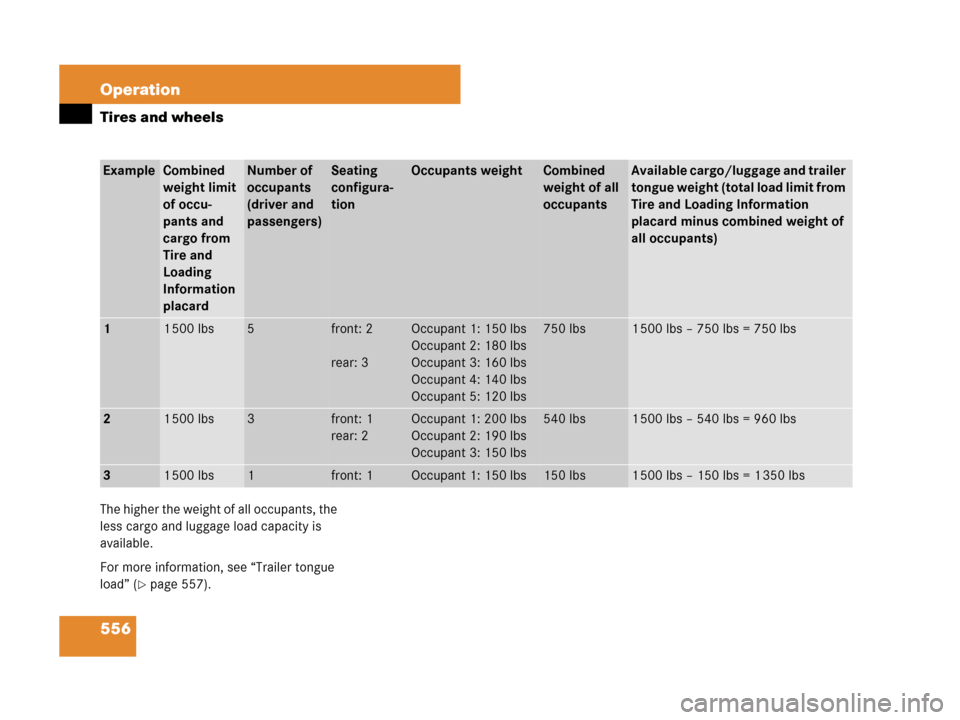

The following table shows examples on
how to calculate total and cargo load
capacities with varying seating configura-
tions and number and size of occupants.
The following examples use a load limit
of 1 500 lbs. This is for illustration
purposes only. Make sure you are using
the actual load limit for your vehicle stated
on the vehicle’s Tire and Loading
Information placard (
page 554).

556 Operation
Tires and wheels
The higher the weight of all occupants, the
less cargo and luggage load capacity is
available.
For more information, see “Trailer tongue
load” (
page 557).
ExampleCombined
weight limit
of occu-
pants and
cargo from
Tire and
Loading
Information
placardNumber of
occupants
(driver and
passengers)Seating
configura-
tionOccupants weight Combined
weight of all
occupantsAvailable cargo/luggage and trailer
tongue weight (total load limit from
Tire and Loading Information
placard minus combined weight of
all occupants)
11 500 lbs5front: 2
rear: 3Occupant 1: 150 lbs
Occupant 2: 180 lbs
Occupant 3: 160 lbs
Occupant 4: 140 lbs
Occupant 5: 120 lbs750 lbs1 500 lbs – 750 lbs = 750 lbs
21 500 lbs3front: 1
rear: 2Occupant 1: 200 lbs
Occupant 2: 190 lbs
Occupant 3: 150 lbs540 lbs1 500 lbs – 540 lbs = 960 lbs
31 500 lbs1front: 1Occupant 1: 150 lbs150 lbs1 500 lbs – 150 lbs = 1 350 lbs

557 Operation
Tires and wheels
Certification label
Even after careful determination of the
combined weight of all occupants, cargo
and the trailer tongue load (if applicable)
(
page 557) as to not exceed the permis-
sible load limit, you must make sure that
your vehicle never exceeds the Gross Vehi-
cle Weight Rating (GVWR) and the Gross
Axle Weight Rating (GAWR) for either the
front or rear axle. You can obtain the
GVWR and GAWR from the certification la-
bel. The certification label can be found on
the driver’s door B-pillar, see “Technical
data” (
page 712).Gross Vehicle Weight Rating (GVWR): The
total weight of the vehicle, all occupants,
all cargo, and the trailer tongue load
(
page 557) must never exceed the
GVWR.
Gross Axle Weight Rating (GAWR): The to-
tal allowable weight that can be carried by
a single axle (front or rear).
To assure that your vehicle does not ex-
ceed the maximum permissible weight
limits (GVWR and GAWR for front and rear
axle), have the loaded vehicle (including
driver, passengers and all cargo and, if ap-
plicable, trailer fully loaded) weighed on a
suitable commercial scale.Trailer tongue load
The tongue load of any trailer is an impor-
tant weight to measure because it affects
the load you can carry in your vehicle. If a
trailer is towed, the tongue load must be
added to the weight of all occupants riding
and any cargo you are carrying in the
vehicle. The tongue load typically is 10% of
the trailer weight and everything loaded in
it.
Your Mercedes-Benz has been designed
primarily to carry passengers and their
cargo. Mercedes-Benz does not recom-
mend trailer towing with your vehicle.

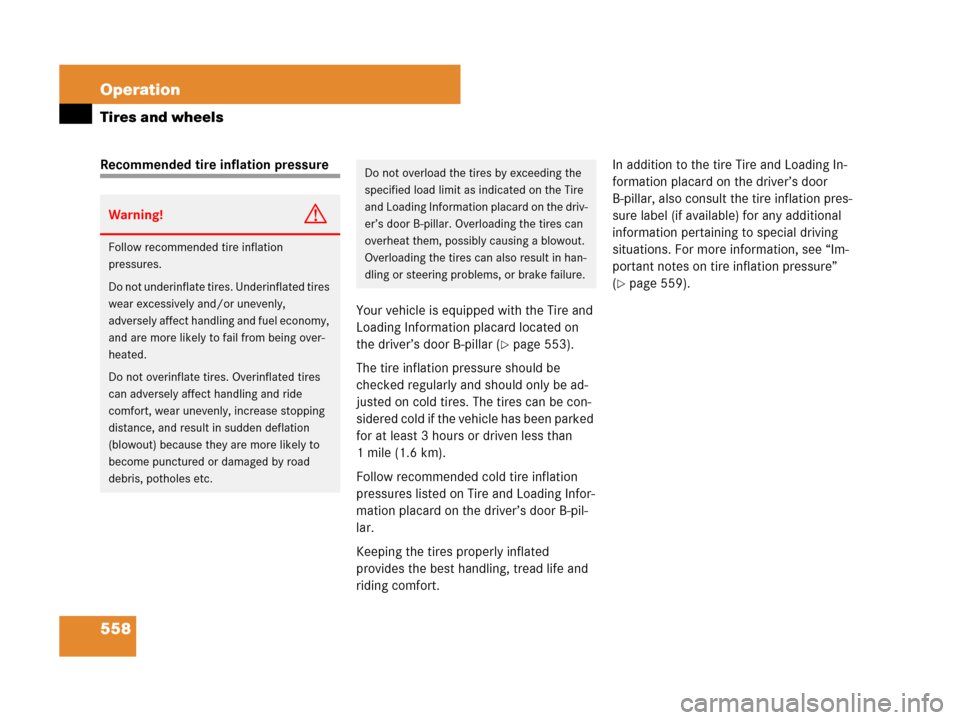

558 Operation
Tires and wheels
Recommended tire inflation pressure
Your vehicle is equipped with the Tire and
Loading Information placard located on
the driver’s door B-pillar (
page 553).
The tire inflation pressure should be
checked regularly and should only be ad-
justed on cold tires. The tires can be con-
sidered cold if the vehicle has been parked
for at least 3 hours or driven less than
1 mile (1.6 km).
Follow recommended cold tire inflation
pressures listed on Tire and Loading Infor-
mation placard on the driver’s door B-pil-
lar.
Keeping the tires properly inflated
provides the best handling, tread life and
riding comfort. In addition to the tire Tire and Loading In-
formation placard on the driver’s door
B-pillar, also consult the tire inflation pres-
sure label (if available) for any additional
information pertaining to special driving
situations. For more information, see “Im-
portant notes on tire inflation pressure”
(
page 559).
Warning!G
Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being over-
heated.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stopping
distance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road
debris, potholes etc.
Do not overload the tires by exceeding the
specified load limit as indicated on the Tire
and Loading Information placard on the driv-
er’s door B-pillar. Overloading the tires can
overheat them, possibly causing a blowout.
Overloading the tires can also result in han-
dling or steering problems, or brake failure.

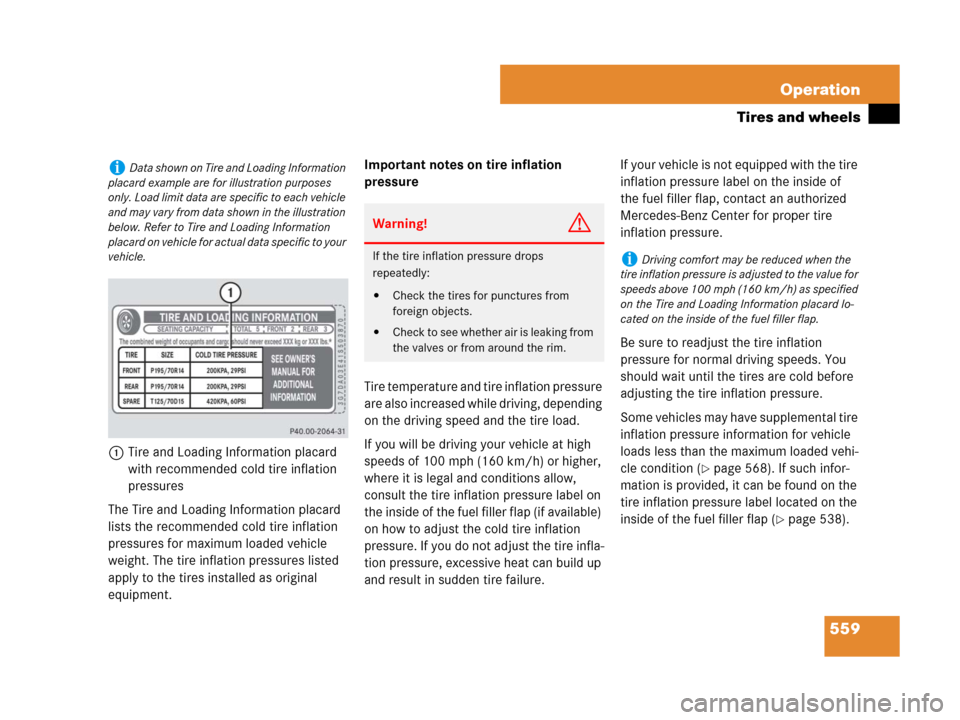

559 Operation
Tires and wheels
1Tire and Loading Information placard
with recommended cold tire inflation
pressures
The Tire and Loading Information placard
lists the recommended cold tire inflation
pressures for maximum loaded vehicle
weight. The tire inflation pressures listed
apply to the tires installed as original
equipment.Important notes on tire inflation
pressure
Tire temperature and tire inflation pressure
are also increased while driving, depending
on the driving speed and the tire load.
If you will be driving your vehicle at high
speeds of 100 mph (160 km/h) or higher,
where it is legal and conditions allow,
consult the tire inflation pressure label on
the inside of the fuel filler flap (if available)
on how to adjust the cold tire inflation
pressure. If you do not adjust the tire infla-
tion pressure, excessive heat can build up
and result in sudden tire failure.If your vehicle is not equipped with the tire
inflation pressure label on the inside of
the fuel filler flap, contact an authorized
Mercedes-Benz Center for proper tire
inflation pressure.
Be sure to readjust the tire inflation
pressure for normal driving speeds. You
should wait until the tires are cold before
adjusting the tire inflation pressure.
Some vehicles may have supplemental tire
inflation pressure information for vehicle
loads less than the maximum loaded vehi-
cle condition (
page 568). If such infor-
mation is provided, it can be found on the
tire inflation pressure label located on the
inside of the fuel filler flap (
page 538).
iData shown on Tire and Loading Information
placard example are for illustration purposes
only. Load limit data are specific to each vehicle
and may vary from data shown in the illustration
below. Refer to Tire and Loading Information
placard on vehicle for actual data specific to your
vehicle.
Warning!G
If the tire inflation pressure drops
repeatedly:

Check the tires for punctures from
foreign objects.

Check to see whether air is leaking from
the valves or from around the rim.
iDriving comfort may be reduced when the
tire inflation pressure is adjusted to the value for
speeds above 100 mph (160 km/h) as specified
on the Tire and Loading Information placard lo-
cated on the inside of the fuel filler flap.
