MERCEDES-BENZ S550 4MATIC 2008 W221 Owner's Manual

540 Operation
At the gas station
Check regularly and before a long trip
Example illustration from S 550
1Coolant level
2Brake fluid
3Windshield washer and headlamp
cleaning systemWindshield washer system and head-
lamp cleaning system
For more information on refilling the wash-
er reservoir, see “Windshield washer sys-
tem and headlamp cleaning system”
(
page 548).
Coolant
For more information on coolant, see
“Coolant level” (
page 547) and see “Fu-
els, coolants, lubricants, etc.”
(
page 724).
Brake fluid
For information on brake fluid, see “Brake
fluid” (
page 728).Engine oil level
For more information on engine oil, see
“Engine oil” (
page 543).
Vehicle lighting
Check function and cleanliness. For more
information on replacing light bulbs, see
“Replacing bulbs” (
page 678).
For more information, see “Lighting”
(
page 371).
Tire inflation pressure
For information on tire inflation pressure,
see “Checking tire inflation pressure”
(
page 560).
iOpening the hood (page 541).
!If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks immediately. Notify an
authorized Mercedes-Benz Center immediately.
Do not add brake fluid as this will not solve the
problem. For more information, see “Practical
hints” (
page 601) and (page 630).

541 Operation
Engine compartment
Engine compartment
Hood
Opening1Release lever
Pull release lever 1.
The hood is unlocked.
2Handle for opening the hood
Lift the hood slightly.
Handle2 will extend out of the radia-
tor grille.
Pull handle 2 to its stop out of radiator
grille.
Lift bottom of hood at edge of radiator
grille.
The hood will be automatically held
open at shoulder height by gas-filled
struts.
Warning!G
Do not pull the release lever while the vehi-
cle is in motion. Otherwise the hood could
be forced open by passing air flow.
This could cause the hood to come loose
and injure you and/or others.
Warning!G
You could be injured when the hood is open
– even when the engine is turned off.
Parts of the engine can become very hot. To
prevent burns, let the engine cool off com-
pletely before touching any components on
the vehicle. Comply with all relevant safety
precautions.
!To avoid damage to the windshield wipers or
hood, never open the hood if the wiper arms are
folded forward away from the windshield.
!To avoid damage to handle2 never pull up
the hood on handle2.


542 Operation
Engine compartment
Closing
Let the hood drop from a height of ap-
proximately 1 ft (30 cm).
The hood will lock audibly.
Check to make sure the hood is fully
closed.
If you can raise the hood at a point
above the headlamps, then it is not
properly closed. Open it again and let it
drop with somewhat greater force.

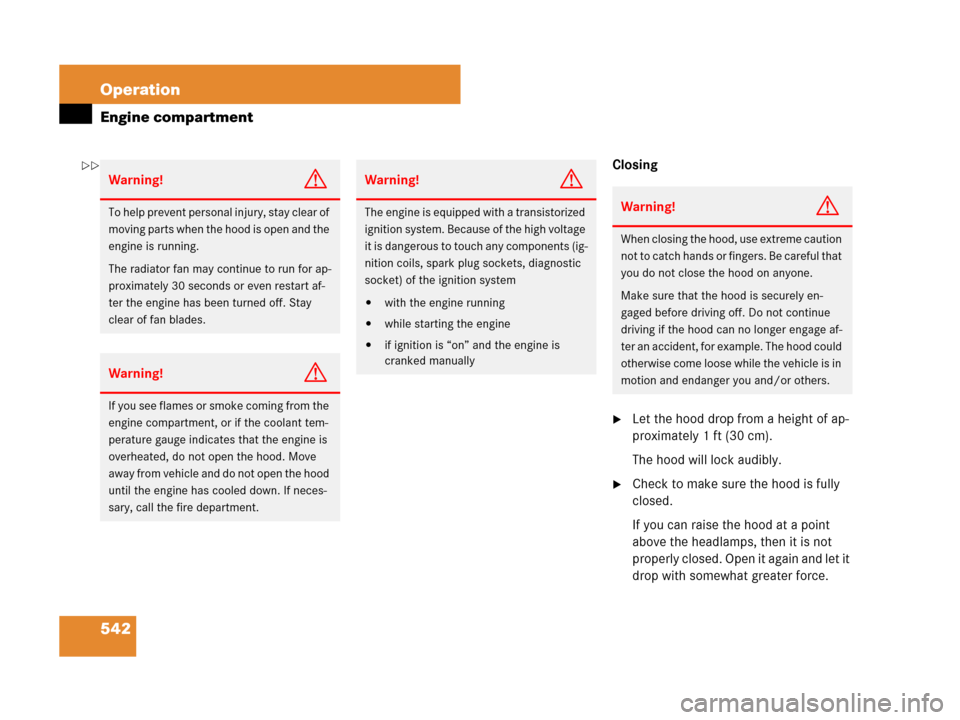

Warning!G
To help prevent personal injury, stay clear of
moving parts when the hood is open and the
engine is running.
The radiator fan may continue to run for ap-
proximately 30 seconds or even restart af-
ter the engine has been turned off. Stay
clear of fan blades.
Warning!G
If you see flames or smoke coming from the
engine compartment, or if the coolant tem-
perature gauge indicates that the engine is
overheated, do not open the hood. Move
away from vehicle and do not open the hood
until the engine has cooled down. If neces-
sary, call the fire department.
Warning!G
The engine is equipped with a transistorized
ignition system. Because of the high voltage
it is dangerous to touch any components (ig-
nition coils, spark plug sockets, diagnostic
socket) of the ignition system

with the engine running

while starting the engine

if ignition is “on” and the engine is
cranked manually
Warning!G
When closing the hood, use extreme caution
not to catch hands or fingers. Be careful that
you do not close the hood on anyone.
Make sure that the hood is securely en-
gaged before driving off. Do not continue
driving if the hood can no longer engage af-
ter an accident, for example. The hood could
otherwise come loose while the vehicle is in
motion and endanger you and/or others.


543 Operation
Engine compartment
Engine oil
The amount of oil your engine needs will
depend on a number of factors, including
driving style. Higher oil consumption can
occur when

the vehicle is new

the vehicle is driven frequently at
higher engine speeds
Engine oil consumption checks should only
be made after the vehicle break-in period.Notes about checking engine oil level
When checking the oil level

the vehicle must be parked on level
ground

with the engine at operating tempera-
ture, the vehicle must have been
stationary for at least 5 minutes with
the engine turned off

with the engine not at operating tem-
perature yet, the vehicle must have
been stationary for at least 30 minutes
with the engine turned offChecking engine oil level with the con-
trol system (S 600 and S 65 AMG)
To check the engine oil level via the multi-
function display, do the following:
Switch on the ignition (page 344).
Press( or& to select the menu
“Service”.
Press$ or% to select “Engine
oil level”.
Press#.
The following message is seen in the multi-
function display:
“Engine oil level
Measuring now
Correct measurement
only if vehicle is level”!Do not use any special lubricant additives,
as these may damage the drive assemblies. Us-
ing special additives not approved by
Mercedes-Benz may cause damage not covered
by the Mercedes-Benz Limited Warranty.
More information on this subject is available at
any Mercedes-Benz Center.
iThe menu overview can be found on
(
page 266).


544 Operation
Engine compartment
One of the following messages will
subsequently appear in the multifunction
display:

“Engine oil level
OK”

“Add 1.0 qts. engine oil
at next refueling”
(Canada: “1.0 l”)

“Add 1.5 qts. engine oil
at next refueling”
(Canada: “1.5 l”)

“Add 2.0 qts. engine oil
at next refueling”
(Canada: “2.0 l”)
If necessary, add engine oil
(
page 546).
For more information on engine oil, see the
“Technical data” section (
page 724) and
(
page 728).Other display messages
If the SmartKey or KEYLESS-GO* start/
stop button is not in position 2, the follow-
ing message will appear:
“For engine oil level,
turn on ignition”
Switch on the ignition (page 344).
If you see the message
“Waiting period for,
engine oil level
not complete”
If engine is at operating temperature,
wait 5 minutes before repeating check
procedure.
If engine is not at operating tempera-
ture yet, wait 30 minutes before
repeating check procedure.
If you see the message
“Engine oil level
Not when engine on”
Turn off the engine.
If the engine is at operating tempera-
ture, wait 5 minutes before checking
oil.
If the engine is not at operating temper-
ature yet, you must wait 30 minutes
before checking oil.
If there is excess engine oil with the engine
at operating temperature, the following
message will appear:
“Engine oil level
Reduce oil level”
Have excess oil siphoned or drained
off. Contact an authorized
Mercedes-Benz Center.
For more information on messages in the
multifunction display concerning engine
oil, see the “Practical hints” section
(
page 659).
iIf you want to interrupt the checking proce-
dure, press buttonL on the multifunction
steering wheel.
!Excess oil must be siphoned or drained off.
It could cause damage to the engine and catalyt-
ic converter not covered by the Mercedes-Benz
Limited Warranty.


545 Operation
Engine compartment
Checking engine oil level with the oil
dipstick (S 550 and S 63 AMG)
To check the engine oil level with the oil
dipstick, do the following:
Open the hood (page 541).
Example illustration from S 550
1Oil dipstick
2Upper mark
3Lower mark
Example illustration from S 550 4matic
1Oil dipstick
2Upper mark
3Lower mark
Pull out oil dipstick1.
Wipe oil dipstick1 clean.
Fully insert oil dipstick1 into the dip-
stick guide tube.
Pull out oil dipstick1 again after ap-
proximately 3 seconds to obtain accu-
rate reading.
The oil level is correct when it is between
lower mark3 (min.) and upper mark2
(max.) of the oil dipstick.
If necessary, add engine oil.
For adding engine oil (
page 546).
For more information on engine oil, see the
“Technical data” section (
page 724) and
(
page 728).
For more information on messages in the
multifunction display concerning engine
oil, see the “Practical hints” section
(
page 612).
iS 550 only:
The filling quantity between the upper and lower
marks on the oil dipstick is approximately
2.1 US qt. (2.0 l).
iS 63 AMG only:
The filling quantity between the upper and lower
marks on the oil dipstick is approximately
1.6 US qt. (1.5 l).

546 Operation
Engine compartment
Adding engine oil
Example illustration from S 550
S63 AMG
1Filler cap
Unscrew filler cap1 from filler neck.
Add engine oil as required. Be careful
not to overfill with oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.
Screw filler cap1 back on filler neck.
For more information on engine oil, see the
“Technical data” section (
page 724) and
(
page 728).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the automatic transmission.
!Only use approved engine oils and oil filters
required for vehicles with Maintenance System.
For a listing of approved engine oils and oil fil-
ters, refer to the Factory Approved Service Prod-
ucts pamphlet (USA only) in your vehicle
literature portfolio, or contact an authorized
Mercedes-Benz Center.
Using engine oils and oil filters of specification
other than those expressly required for the Main-
tenance System, or changing of oil and oil filter
at change intervals longer than those called for
by the Maintenance System will result in engine
or emission control system damage not covered
by the Mercedes-Benz Limited Warranty.
!Excess oil must be siphoned or drained off.
It will cause damage to the engine and emission
control system not covered by the
Mercedes-Benz Limited Warranty.

547 Operation
Engine compartment
Active Body Control* (ABC*) fluid level
Regular fluid level check is not required. If
you notice fluid leaks or malfunction mes-
sages in the multifunction display, have an
authorized Mercedes-Benz Center check
the ABC-system.Coolant level
The engine coolant is a mixture of water
and anticorrosion/antifreeze.
When checking the coolant level,

the vehicle must be parked on level
ground

the coolant temperature must be be-
low 158°F (70°C)
The coolant expansion tank is located on
the passenger side of the engine compart-
ment.
Example illustration from S 550
1Cap
2Coolant expansion tank
Warning!G
In order to avoid potentially serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature gauge indi-
cates that the coolant is overheated.

Do not remove pressure cap on coolant
reservoir if coolant temperature is
above 158°F (70°C). Allow engine to
cool down before removing cap. The
coolant reservoir contains hot fluid and
is under pressure.

Using a rag, slowly open the cap approx-
imately 1/2 turn to relieve excess pres-
sure. If opened immediately, scalding
hot fluid and steam will be blown out un-
der pressure.

Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene gly-
col which may burn if it comes into con-
tact with hot engine parts.

548 Operation
Engine compartment
Using a rag, turn cap1 slowly approx-
imately one half turn counterclockwise
to release any excess pressure.
Continue turning the cap counterclock-
wise and remove it.
The coolant level is correct if the level

for cold coolant: reaches the white
marking (plastic bridge) inside the cool-
ant expansion tank

for warm coolant: is approximately
0.6 in (1.5 cm) higher
Add coolant as required.
Replace and tighten cap1.
For more information on coolant, see the
“Technical data” section (
page 730). Windshield washer system and
headlamp cleaning system
The washer fluid reservoir is located on the
left-hand side of the engine compartment
when looking in the direction of travel. It
supplies the windshield washer system
and headlamp cleaning system with wash-
er fluid.
Example illustration S 550 with Airmatic
1Cap
Vehicles with ABC*
1Cap
Fluid for the windshield washer system and
the headlamp cleaning system is supplied
from the windshield washer reservoir. It
has a capacity of approximately 6.87 US qt
(6.5 l).
During all seasons, add MB Windshield
Washer Concentrate “MB SummerFit” to
water. Premix the windshield washer fluid
in a suitable container.

549 Operation
Engine compartment
To open washer fluid reservoir: Pull
tab of cap1 upward.
Refill the reservoir with MB Windshield
Washer Concentrate and water (or
commercially available premixed wind-
shield washer solvent/antifreeze, de-
pending on ambient temperatures).
To close washer fluid reservoir:
Press cap1 onto filler hole until it en-
gages.
For more information, see “Windshield
washer system and headlamp cleaning
system” (
page 733).
Warning!G
Washer solvent/antifreeze is highly flamma-
ble. Do not spill washer solvent/antifreeze
on hot engine parts, because it may ignite
and burn. You could be seriously burned.
!Always use washer solvent/antifreeze
where temperatures may fall below freezing
point. Failure to do so could result in damage to
the washer system/reservoir.
!Only use washer fluid which is suitable for
plastic lenses. Improper washer fluid can dam-
age the plastic lenses of the headlamps.
