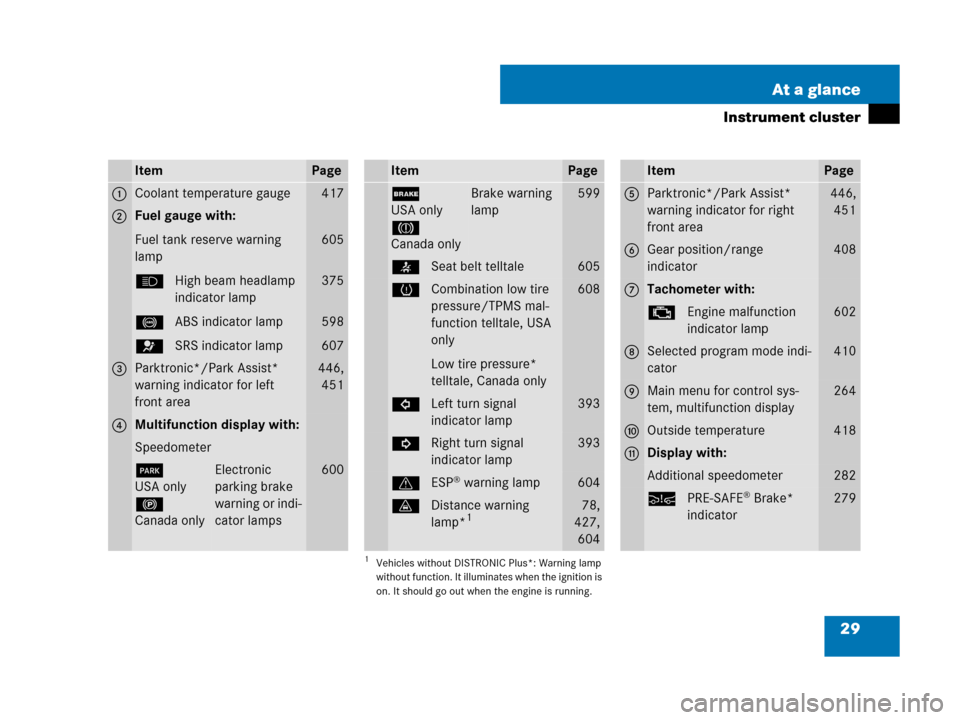

29 At a glance
Instrument cluster
ItemPage
1Coolant temperature gauge417
2Fuel gauge with:
Fuel tank reserve warning
lamp
AHigh beam headlamp
indicator lamp
-ABS indicator lamp
=SRS indicator lamp
605
375
598
607
3Parktronic*/Park Assist*
warning indicator for left
front area 446,
451
4Multifunction display with:
Speedometer
0
USA only
!
Canada onlyElectronic
parking brake
warning or indi-
cator lamps600
ItemPage
;
USA only
3
Canada onlyBrake warning
lamp599
HCombination low tire
pressure/TPMS mal-
function telltale, USA
only
Low tire pressure*
telltale, Canada only608
LLeft turn signal
indicator lamp393
KRight turn signal
indicator lamp393
vESP® warning lamp604
lDistance warning
lamp*178,
427,
604
1Vehicles without DISTRONIC Plus*: Warning lamp
without function. It illuminates when the ignition is
on. It should go out when the engine is running.
ItemPage
5Parktronic*/Park Assist*
warning indicator for right
front area 446,
451
6Gear position/range
indicator 408
7Tachometer with:
±Engine malfunction
indicator lamp602
8Selected program mode indi-
cator 410
9Main menu for control sys-
tem, multifunction display264
aOutside temperature 418
bDisplay with:
Additional speedometer282
:PRE-SAFE® Brake*
indicator279

418 Controls in detail
Instrument cluster
Tachometer
The red marking on the tachometer de-
notes excessive engine speed.To help protect the engine, the fuel supply
is interrupted if the engine is operated
within the red marking.
Outside temperature indicator
The outside temperature indicator is on
the bottom left-hand side of the instru-
ment cluster (
page 28).
The temperature sensor is located in the
front bumper area. Due to its location, the
sensor can be affected by road or engine
heat during idling or slow driving. There-
fore, the accuracy of the displayed temper-ature can only be verified by comparison to
a thermometer placed next to the sensor,
not by comparison to external displays
(e.g. bank signs, etc.).
When moving the vehicle into colder ambi-
ent temperatures (e.g. when leaving your
garage), you will notice a delay before the
lower temperature is displayed.
A delay also occurs when ambient temper-
atures rise. This prevents inaccurate tem-
perature indications caused by heat
radiated from the engine during idling or
slow driving.
Fuel gauge
The fuel gauge is on the left-hand side of
the instrument cluster (
page 28). Once
the fuel level has fallen below the reserve
mark, the yellow segment indicator for the
fuel reserve comes on (
page 605).
of the vehicle and do not stand near the ve-
hicle until the engine has cooled down.
!Excessive coolant temperature triggers a
warning in the multifunction display
(
page 646).
The engine should not be operated with the cool-
ant temperature above 248°F (120°C), i.e. in
the red zone of the coolant temperature gauge.
Doing so may cause serious engine damage
which is not covered by the Mercedes-Benz Lim-
ited Warranty.
iDuring severe operating conditions,
e.g. stop-and-go traffic, the coolant temperature
may rise close to 248°F (120°C), i.e. close to
the red zone of the temperature gauge.
!Avoid driving at excessive engine speeds, as
it may result in serious engine damage that is not
covered by the Mercedes-Benz Limited
Warranty.
Warning!G
The outside temperature indicator is not de-
signed to serve as an ice-warning device and
is therefore unsuitable for that purpose.
Indicated temperatures just above the freez-
ing point do not guarantee that the road sur-
face is free of ice. The road may still be icy,
especially in wooded areas or on bridges.

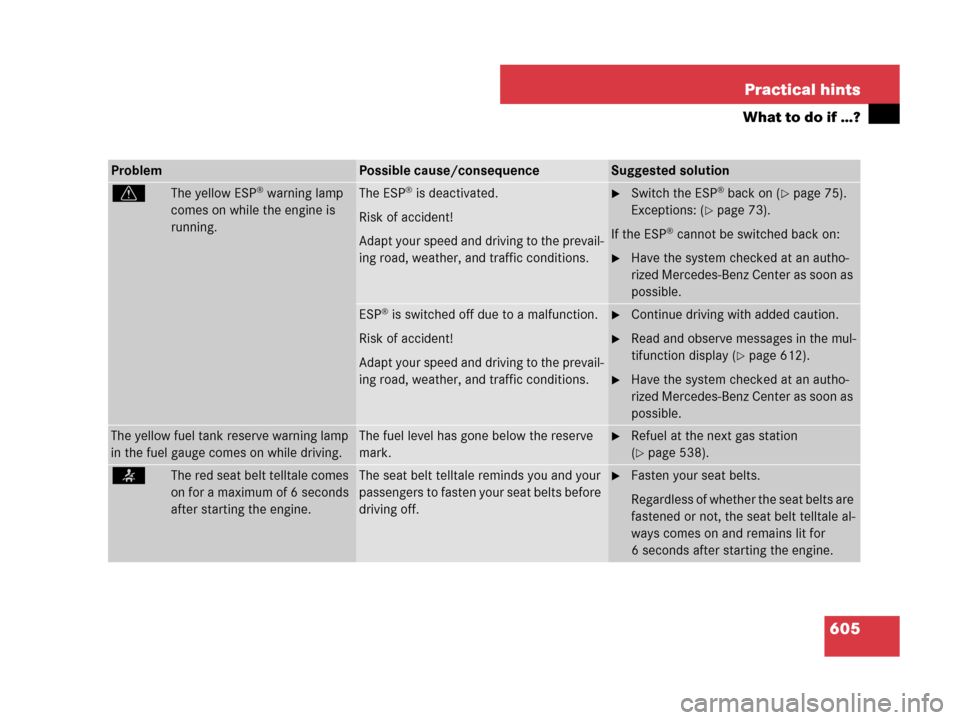

605 Practical hints
What to do if …?
ProblemPossible cause/consequenceSuggested solution
vThe yellow ESP® warning lamp
comes on while the engine is
running.The ESP® is deactivated.
Risk of accident!
Adapt your speed and driving to the prevail-
ing road, weather, and traffic conditions.Switch the ESP® back on (page 75).
Exceptions: (
page 73).
If the ESP
® cannot be switched back on:
Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
ESP® is switched off due to a malfunction.
Risk of accident!
Adapt your speed and driving to the prevail-
ing road, weather, and traffic conditions.Continue driving with added caution.
Read and observe messages in the mul-
tifunction display (
page 612).
Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
The yellow fuel tank reserve warning lamp
in the fuel gauge comes on while driving.The fuel level has gone below the reserve
mark.Refuel at the next gas station
(
page 538).
on for a maximum of 6 seconds
after starting the engine.The seat belt telltale reminds you and your
passengers to fasten your seat belts before
driving off.Fasten your seat belts.
Regardless of whether the seat belts are
fastened or not, the seat belt telltale al-
ways comes on and remains lit for
6 seconds after starting the engine.

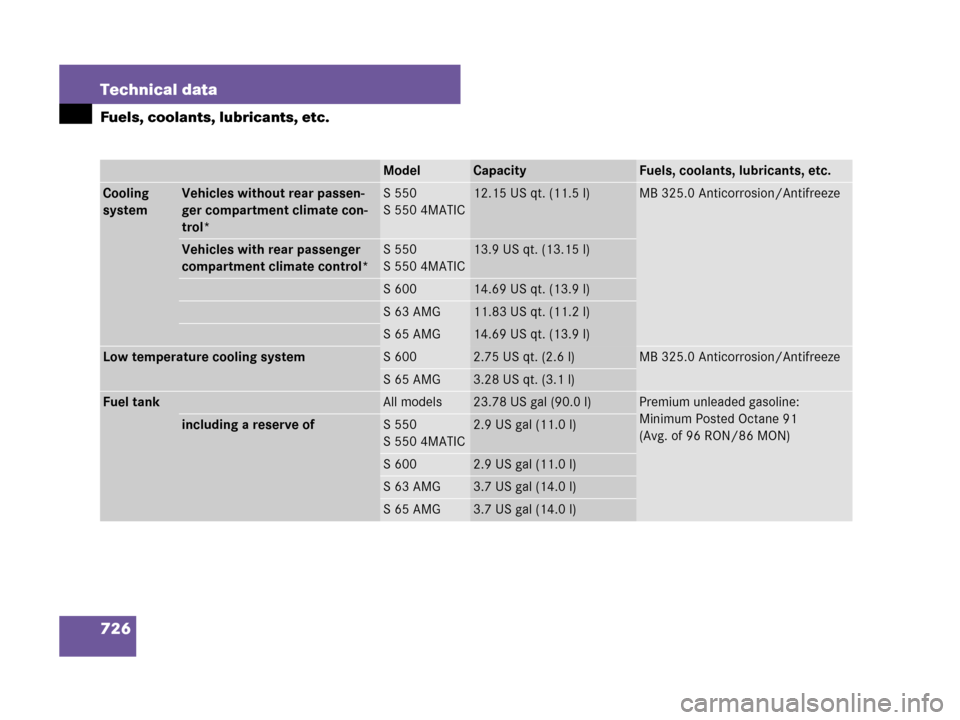

726 Technical data
Fuels, coolants, lubricants, etc.
ModelCapacityFuels, coolants, lubricants, etc.
Cooling
systemVehicles without rear passen-
ger compartment climate con-
trol*S 550
S 550 4MATIC12.15 US qt. (11.5 l)MB 325.0 Anticorrosion/Antifreeze
Vehicles with rear passenger
compartment climate control*S 550
S 550 4MATIC13.9 US qt. (13.15 l)
S 60014.69 US qt. (13.9 l)
S63 AMG11.83 US qt. (11.2 l)
S65 AMG14.69 US qt. (13.9 l)
Low temperature cooling systemS 6002.75 US qt. (2.6 l)MB 325.0 Anticorrosion/Antifreeze
S65 AMG3.28 US qt. (3.1 l)
Fuel tankAll models23.78 US gal (90.0 l)Premium unleaded gasoline:
Minimum Posted Octane 91
(Avg.of96RON/86MON)
including a reserve ofS 550
S 550 4MATIC2.9 US gal (11.0 l)
S 6002.9 US gal (11.0 l)
S63 AMG3.7 US gal (14.0 l)
S65 AMG3.7 US gal (14.0 l)

743 Index
Fuel 539, 726, 729
Additives 730
Capacity, Fuel tank 726
Filling the tank 538
Fuel filler flap and cap 538
Fuel reserve warning lamp 29, 605
Gauge 29
Premium unleaded gasoline 539,
726, 729
Requirements, Octane rating 729
Fuel cap
Message in display 649
Fuel consumption statistics
Since last reset 268
Since start 268
Fuel filler flap 538
Locking/Unlocking 538
Fuel tank
Capacity 726
Filler flap 538
Fuels, coolants, lubricants etc.
Capacities 724Fuses 704
Fuse box in engine compartment 705
Fuse box in passenger
compartment 706
Fuse boxes in dashboard 706
Fuse chart (vehicle tool kit) 668
Fuse extractor (vehicle tool kit) 668
Replacing 704
Spare fuses (vehicle tool kit) 668
G
Garage door opener 518
Gasoline see Fuel
GAWR 576
Gear range
Automatic transmission 408
Limiting 408
Shifting into optimal 413
Gear selector lever 399
Gearshift pattern 399
Messages in display 617, 622, 624,
625, 667
Position 402
Shifting procedure 402
Transmission position 403Glove box 494
Gloves, Vehicle tool kit 668
GPS
Reception (COMAND) 163
Tele Aid 510
Gross Axle Weight Rating see GAWR
Gross Vehicle Weight Rating see GVWR
Gross Vehicle Weight see GVW
GVW 576
GVWR 577
H
Hands-free microphone 33
Hard plastic trim items, cleaning 594
Hazard warning flasher 377
Head restraints 353
Adjustment 353
Folding back and placing upright rear
head restraints 354
Front seat 353
Luxury active head restraints
(S 600 only) 55
Rear seat 354
Resetting activated luxury active head
restraints (S 600 only) 675

746 Index
ESP®29, 599, 604
Front passenger front air bag off 50,
610
Fuel reserve 605
High beam headlamp 29
Maintenance service indicator 582
Park Assist* 29
Parktronic* 29
Seat belt telltale 29, 605
SRS 29, 607
TPMS* malfunction telltale 29, 608
Turn signals 29
Language (COMAND) 238
LATCH-type child seat anchors see
Children in the vehicle
Lever
For automatic transmission
(gear selector lever) 399
For cruise control 420
For DISTRONIC Plus* 430
License plate lamps
Messages in display 655
Replacing bulbs 679
Light alloy wheels, Cleaning 593Light sensor
Message in display 654
Lighter see Cigarette lighter
Lighting 371
Automatic headlamp mode 372
COMAND display illumination 87
Corner-illuminating lamps 376
Courtesy lighting 380
Daytime running lamp mode 373
Door entry lamps 379
High beam flasher 375
Instrument cluster illumination 417,
463
Interior 378
Manual headlamp mode 372
Trunk 380
Limp-home mode 416
Loading see Vehicle loading
Locator lighting (COMAND) 243
Lock button
Door handle (KEYLESS-GO*) 338,
388
Key, SmartKey 332
Key, SmartKey with
KEYLESS-GO* 335Locking 394
Automatic central locking
(COMAND) 245
Vehicle in an emergency 672
Locking knob 341
Loss of
Key, Mechanical 340
Key, SmartKey 340
Key, SmartKey with
KEYLESS-GO* 340
Service and Warranty Information
Booklet 711
Low beam headlamps
Replacing bulbs 679
Lowering
Vehicle 690
Lubricants 724
Lumbar support (COMAND) 260
