Page 219 of 302
215 Contents - Practical hints
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index
Practical hints First aid kit ..................................... 216
Stowing things in the vehicle ...... 216
Vehicle tools .................................... 217
Vehicle jack ..................................... 218
Fuses ................................................ 219
Hood .................................................220
Automatic transmission
fluid level ...................................222
Checking engine oil level .............222
Coolant level ...................................224
Adding coolant ...............................225Windshield and
headlamp washer
fluid mixing ratio ..................... 226
Wheels ............................................ 227
Tire replacement ........................... 227
Rotating wheels ............................. 228
Spare wheel .................................... 229
Changing wheels ........................... 231
Tire inflation pressure ................. 235
Battery ............................................. 237
Battery Recycling ....................... 238
Jump starting ................................. 239
Towing the vehicle ........................ 241Exterior lamps ................................243
Headlamp assembly
(Halogen) .....................................244
Taillamp assemblies ..................250
Changing batteries in the
remote control ...........................252
Synchronizing ............................253
Raising soft top manually .............254
Replacing wiper blade .................258
Manual release of
fuel filler flap .............................260
Trunk lamp .....................................260
Page 226 of 302
222 Checking engine oil level
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index
Automatic transmission fluid level
The transmission has a permanent fill of automatic
transmission fluid.
Regular automatic transmission fluid level checks and
changes are not required. For this reason the dipstick is
omitted.
If you notice f luid loss or gear shifting malfunctions,
have your authorized Mercedes-Benz Center check the
transmission fluid level.Checking engine oil level
SL 500
1Oil dipstick
2Oil filler cap
To check the engine oil level, park vehicle on level
ground, with engine at normal operational temperature.
Check engine oil level approximately 5 minutes after
stopping the engine, allowing for the oil to return to the
oil pan.
Page 227 of 302
223 Checking engine oil level
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index SL 600
1Oil dipstick
2Oil filler cap
Wipe oil dipstick clean prior to checking the engine oil
level. Fully insert dipstick in tube, and remove after
three seconds to obtain accurate reading.Oil level must be between the lower
(min) and upper (max) mark of the
dipstick.
Fill quantity between upper and lower dipstick marking
level is approximately 2.1 US qt (2.0l).
Do not overfill the engine.
Excessive oil must be drained or siphoned. It could
cause engine damage not covered by the Mercedes-Benz
Limited Warranty.
For low engine oil level warning, see page 210.
MERCEDES BENZ
MERCEDES BENZ
1
2P18.40-0258-26
Page 241 of 302
237 Battery
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index Battery
Important!
Battery replacement information:
The maintenance-free battery is located in the trunk
behind the right side cover panel.
The service life of the battery is dependent on its
condition of charge. The battery should always be kept
sufficiently charged, in order to last an optimum length
of time.Therefore, we strongly recommend that you have the
battery charge checked frequently, and corrected if
necessary, especially if you use the vehicle less than
approximately 200 miles (300 km) per month,
mostly for short distance trips, or if it is not used for
long periods of time.
Only charge a battery with a battery charger after the
battery has been disconnected from the vehicle’s
electrical circuit.
Always disconnect the battery negative lead first and
connect last.
When removing and connecting the battery, always
make sure that all electrical consumers are off and the
key is in steering lock position 0. The battery must
always be securely installed when the vehicle is in
operation. During removal and installation always
protect the disconnected battery positive (+) terminal
with the cover attached to the battery.
While the engine is running the battery terminal clamps
must not be loosened or detached, otherwise the
generator and other electronic components will be
damaged.

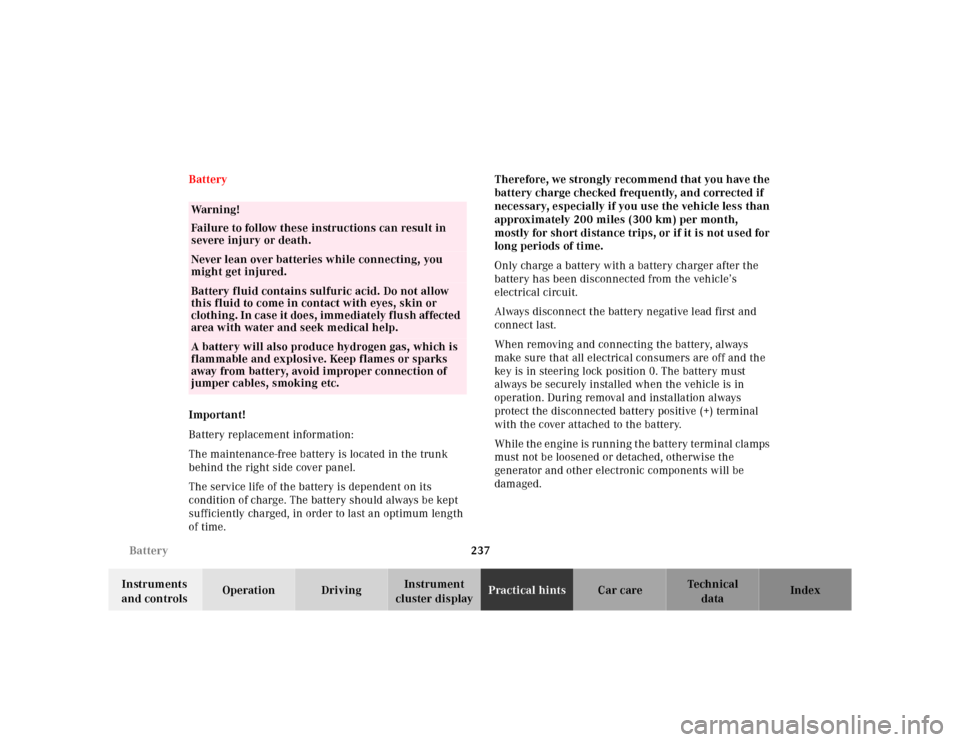

Wa r n i n g !
Failure to follow these instructions can result in
severe injury or death.Never lean over batteries while connecting, you
might get injured.Battery fluid contains sulfuric acid. Do not allow
this fluid to come in contact with eyes, skin or
clothing. In case it does, immediately flush affected
area with water and seek medical help.A battery will also produce hydrogen gas, which is
flammable and explosive. Keep flames or sparks
away from battery, avoid improper connection of
jumper cables, smoking etc.
Page 244 of 302
240 Jump starting
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index
Proceed as follows:
1. Position the vehicle with the charged battery so that
the jumper cables will reach, but never let the
vehicles touch. Make sure the jumper cables do not
have loose or missing unsulation.
2. On both vehicles:
• Turn off engine and all lights and accessories,
except hazard warning flashers or work lights.
• Apply parking brake and shift selector lever to
position “P”.
Important!
3. Clamp one end of the first jumper cable to the
positive (+) terminal of the discharged battery and
the other end to the positive (+) terminal of the
charged battery. Make sure the cable clamps do not
touch any other metal parts.
4. Clamp one end of the second jumper cable to the
grounded negative (-) terminal of the charged
battery and the final connection to the negative (-)
terminal of the discharged battery.Important!
5. Start engine of the vehicle with the charged battery
and run at high idle. Make sure the cables are not
on or near pulleys, fans, or other parts that will
move when the engine is started. Allow the
discharged battery to charge for a few minutes. Start
engine of the disabled vehicle in the usual manner.
6. After the engine has started, remove jumper cables
by exactly reversing the above installation
sequence, starting with the last connection made
first. When removing each clamp, make sure that it
does not touch any other metal while the other end
is still attached.
Note:
If engine does not run after several unsuccessful
starting attempts, have it checked at the nearest
authorized Mercedes-Benz Center.
Excessive unburned fuel may damage the catalytic
converter.
Page 286 of 302
282 Fuels, coolants, lubricants etc. - capacities
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
the engine temperature will increase due to the lower
heat transfer capability of the solution. Therefore, do not
use more than this amount of anticorrosion/antifreeze.
If the coolant level is low, water and MB anticorrosion/
antifreeze should be used to bring it up to the proper
level (have cooling system checked for signs of leakage).
The water in the cooling system must meet minimum
requirements, which are usually satisfied by normal
drinking water. If your are not sure about the water
quality, consult your authorized Mercedes-Benz Center.
Anticorrosion/antifreeze
Your vehicle contains a number of aluminum parts. The
use of aluminum components in motor vehicle engines
necessitates that anticorrosion/antifreeze coolant used
in such engines be specifically formulated to protect the
aluminum parts. (Failure to use such anticorrosion/
antifreeze coolant will result in a significantly
shortened service life.)
Therefore the following product is strongly
recommended for use in your car: Mercedes-Benz
anticorrosion/antifreeze Agent.Before the start of the winter season (or once a year in
the hot southern regions), you should have the
anticorrosion/antifreeze concentration checked. The
coolant is also regularly checked each time you bring
your vehicle to your authorized Mercedes-Benz Center
for service.
Anticorrosion/antifreeze quantity
Model Approx. freeze protection
-35°F
(-37°C)-49°F
(-45°C)
SL 500 6.6 US qt
(6.25 l)7. 3 U S q t
(6.9 l)
SL 600 10.6 US qt
(10.0 l)11 . 6 U S q t
(11.0 l)
Page 290 of 302
286 Index
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car careIndex
BBabySmart
TM airbag deactivation system ..................... 58
Self-test ......................................................................... 58
Backrest ............................................................................. 48
BAS (Brake assist system) ............................................ 188
Malfunction indicator lamp .....................................207
Battery .............................................................................237
Charge indicator lamp .............................................. 211
Recycling ....................................................................238
Brake assist system (BAS) ............................................ 188
Brake fluid ......................................................................279
Capacity ......................................................................277
Brake pad wear indicator lamp ....................................205
Brake warning lamp ......................................................205
CCatalytic converter ........................................................ 163
Central locking system ................................................... 29
Automatic central locking ......................................... 37
Central locking switch ............................................... 36
General notes ............................................................... 33
Locking and unlocking
with remote control ............................................... 30
Remote control ..................................................... 28, 29Remote control – changing batteries .................... 252
Vehicle keys .................................................................28
Changing wheels ............................................................231
Charge indicator lamp ................................................... 211
Check engine
malfunction indicator lamp .................................... 204
Check regularly and before a long trip ...................... 202
Checking engine oil level ............................................ 222
Checking engine oil level indicator .............................. 82
Cleaning and care of the vehicle ................................ 262
Clock .................................................................................. 79
Combination switch .........................................................86
Console storage compartments ....................................127
Consumer information ................................................. 283
Control and operation of
radio transmitters ..................................................... 154
Coolant
Adding coolant .......................................................... 225
Anticorrosion/antifreeze quantity ........................ 282
Checking level .......................................................... 224
Coolants ......................................................................281
Low engine coolant level
warning lamp ....................................................... 209
Temperature gauge .....................................................78
Cruise control ................................................................. 184
Cup holder .............................................................. 128, 265
Page 291 of 302
287 Index
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car careIndex
DDisplay illumination ........................................................ 77
Door control panel ........................................................... 20
Door pockets ................................................................... 129
Doors .................................................................................. 34
Drinking and Driving .....................................................176
Drive sensibly - Save Fuel .............................................176
Driving instructions .......................................................176
Block heater ............................................................... 183
Brakes ......................................................................... 177
Deep water ................................................................. 182
Pedals ...........................................................................176
Traveling abroad ....................................................... 183
Winter driving ........................................................... 182
Driving off ....................................................................... 178EEconomy ............................................................................ 93
Electronic stability program (ESP) .............................. 192
Emergency call
See Tele Aid ............................................................... 156
Emergency tensioning retractor (ETR) ......................... 59
Emergency trunk lid release button ............................. 40Emergency unlocking in
case of accident ........................................................... 37
Emission control ............................................................ 164
Engine compartment .................................................... 220
Engine oil
Additives .................................................................... 279
Capacities .................................................................. 277
Checking level .......................................................... 222
Consumption ................................................................83
Engine oils ................................................................. 279
Low level warning lamp ........................................... 210
Engine oil level indicator ................................................82
Engine oil temperature gauge ........................................ 83
Entrance lamps in footwells,
exit lamps in doors ...................................................120
ESP (Electronic Stability Program) ............................. 192
Control Switch ........................................................... 194
Malfunction indicator lamp .................................... 207
Synchronizing ........................................................... 193
Warning lamp ........................................................... 207
ETR (Emergency tensioning retractor) .........................59
SRS indicator lamp .................................................. 206
Exterior lamp switch .......................................................84
Exterior lamps ............................................................... 243
Adjusting headlamp aim ......................................... 248
Bulb for high and low beam ................................... 245
