MERCEDES-BENZ SL-Class 2004 R230 Comand Manual

62 AudioCD operation1No audio source has been switched on
2CD unit is switched on
3If the CD changer is switched on, the
number of the CD currently playing ap-
pears
4Track number

Press d on COMAND.
CD unit is switched on.

Press E or H repeatedly until
display 2 appears.

Press F or G until the desired
track number 4 appears.

Press E or H to display the next
or previous system.
Multifunctional display
P82.85-9074-31

63 Audio
Sound settings

Sound settings
COMAND is equipped with a standard am-
plifier.
You can set
the sound Bass/Treble individually

the sound-center

select predefined sound optimization.
See individual audio mode descriptions for
instructions on this feature.
Adjustments to the sound have a different
effect on the audio and service sources.
The predefined sound optimizations are
available for the audio sources only.Audio sources include:

Radio FM, AM, WB

CD (CD drive, CD changer)

Satellite radio*

auxiliary audio source, e.g. tape deck (if
connected)
You can activate the main Sound menu in
the audio sources through the menu field
“Sound”.
Service sources include:

Telephone*

Voice output in the navigation

Voice control system*
See separate operating instructions for te-
lephone and voice recognition system.
You can activate the main Sound menu in
the “NAVI Settings” menu (
page 199),
through the menu field “Sound”. Activating the main sound menu
For audio sources
Main sound menu1Radio (FM) is switched on
2Actual sound settings (Bass/Treble)
3Actual sound-center (Balance)
4Slider switch to alter the value
5Resets Bass/Treble to “0”, and the Ba-
lance to the middle of the vehicle
6Activates predefined sound optimizati-
ons
Adjusting sound settings

64 AudioSound settings
Turn the right-hand rotary/push-button
v to highlight “Sound“ in the main
menu for radio or CD operation and
press to confirm.
The main sound menu will appear dis-
playing the actual settings.For service sources
1Volume difference
Set the difference between voice out-
put during route guidance and an acti-
ve audio source
“0” The volume of the audio source
is not affected during voice out-
put.
“10” The audio source is set very low
during voice output.

Turn the right-hand rotary/push-button
v to highlight “Settings” in the main
destination input menu (
page 140)
and press to confirm.
The “NAVI Settings” menu will appear
(
page 199).

Turn the right-hand rotary/push-button
v to highlight “Sound” and press to
confirm.
The “Speech Bass/Treble” menu will
appear.
iIt is also possible that “AM Bass/Treb-
le”, “WB Bass/Treble”, “CD Bass/Treb-
le”, “SAT Sound” or “AUX Bass/Treble”
are indicated in 1.
Balance defines sound-center left/
right
P82.85-9113-31
1
iNo predefined sound optimizations are
available for service sources.
During adjustment in the “Speech
Bass/Treble” menu, COMAND will issue
a repetitive voice output of “Sample” to
allow you to set the settings as you pre-
fer.

65 Audio
Sound settings
Setting Bass/Treble/Balance
1Setting mode active
Turn the right-hand rotary/push-button
v to move the cursor to the parameter
you want to adjust and press to con-
firm.
The setting mode is active. The activa-
ted sound parameter is shown in red.

Turn the right-hand rotary/push-button
v to set the desired value.

Press the button.
The value is set. The sound feature is
shown in black.Reset the Settings to “0”

Turn the right-hand rotary/push-button
v to highlight “Reset” and press to
confirm.
COMAND sets treble and bass to “0”
and sets the sound-center into the
middle of the vehicle.
Return to the main audio menu

Press *.
P82.85-9114-31
1
P82.85-9115-31
iThe sound-center adjustments affect
the settings for the radio (FM/AM/WB)
and CD operation.
Adjustments which are made to the na-
vigation system will affect the voice
control system and the telephone.

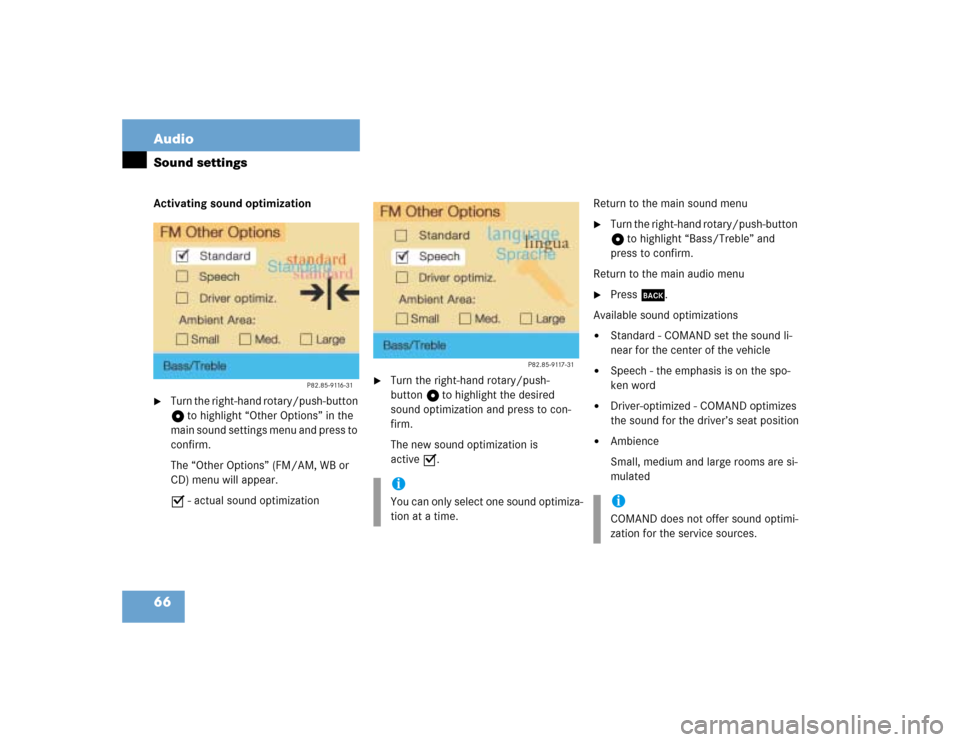

66 AudioSound settingsActivating sound optimization
Turn the right-hand rotary/push-button
v to highlight “Other Options” in the
main sound settings menu and press to
confirm.
The “Other Options” (FM/AM, WB or
CD) menu will appear.
P - actual sound optimization

Turn the right-hand rotary/push-
button v to highlight the desired
sound optimization and press to con-
firm.
The new sound optimization is
active P.Return to the main sound menu

Turn the right-hand rotary/push-button
v to highlight “Bass/Treble” and
press to confirm.
Return to the main audio menu

Press *.
Available sound optimizations

Standard - COMAND set the sound li-
near for the center of the vehicle

Speech - the emphasis is on the spo-
ken word

Driver-optimized - COMAND optimizes
the sound for the driver’s seat position

Ambience
Small, medium and large rooms are si-
mulated
P82.85-9116-31
iYou can only select one sound optimiza-
tion at a time.
P82.85-9117-31
iCOMAND does not offer sound optimi-
zation for the service sources.

67 Satellite radio*
Important notes
Satellite radio operation
Multifunction display

68 Satellite radio*Important notes

Important notesIn chapter “Satellite radio”, you will find
detailed information regarding
selecting a station and a program cate-
gory

memory functions

sound adjustments
If you have not done so already, please fa-
miliarize yourself with these functions by
reading chapter “At a glance”.iAdditional optional satellite radio equip-
ment and a subscription to satellite ra-
dio service provider are required for the
satellite radio operation described here.
Feature description is based on prelimi-
nary information available at time of
printing. At time of printing, no date for
the availability of optional equipment
required for satellite radio operation
had been set. Contact your authorized
Mercedes-Benz Center for details and
availability for your vehicle.
iNote that categories and channels
shown in illustrations are dependent on
programming content delivered by the
service provider. Programming content
is subject to change. Therefore, channel
and categories shown in illustrations
and descriptions contained in this ma-
nual may differ from the channels and
categories delivered by the service pro-
vider.
Satellite radio service may be unavai-
lable or interrupted from time to time
for a variety of reasons, such as envi-
ronmental or topographic conditions
and other things we can’t control. Ser-
vice might also not be available in cer-
tain places (e.g., in tunnels, parking
garages, or within or next to buildings)
or near other technologies.
iSirius Satellite Radio provides approxi-
mately 100 channels, so called
streams, of digital-quality radio, among
others music, sports, news, and enter-
tainment commercial-free.
Sirius Satellite Radio uses a fleet of
high-power satellites to broadcast
24 hours per day, coast-to-coast.
This diverse, satellite-delivered pro-
gramming is available for a monthly
subscription fee.
For more information, call the Sirius
Service Center (
page 69) or contact
www.siriusradio.com.

69 Satellite radio*
Important notes
Service information display1Phone number of the provider,
(SIRIUS) or “Call Service Provider”
2The number of your SAT tuner

Press W to switch to satellite radio
operation.
The Service information display will ap-
pear if the satellite radio function has
not yet been subscribed to.

Contact satellite radio service provider
at the telephone number displayed in
the screen.
After the connection is made:

Follow the instructions given by the
operator.
The activation process may take up to
10 minutes. If it is successful, you will
see the display with the message
“Acquiring Signal. Please wait...”
(page 74) followed by the main satel-
lite radio menu (
page 74).
Subscribing to satellite radio
iCredit card information may be re-
quired for your application.
The activation process takes up to ap-
proximately 10 minutes.

70 Satellite radio*Satellite radio operation

Satellite radio operationQuick reference

71 Satellite radio*
Satellite radio operation
Function
Page
1
Switching COMAND on
and off
12
2
Muting the satellite radio
audio (muting on/off)
75
3
Selecting a station via di-
rect channel entry
in the main satellite
radio menu

in the satellite me-
mory preset
Ending scan function and
play a station
78
81
78
4
Activating the input
mode for channel num-
ber
in the main satellite
radio menu

in the satellite me-
mory preset
78
81
5
Changing between sta-
tion name and channel
number
74
6
Return to previous menu
7
Turn to highlight a func-
tion or a menu field
Press to perform a func-
tion or access a subme-
nu
8
Adjusting the volume
14
9
Automatic tuning ascen-
ding/descending
Selecting a category in
alphabetical order as-
cending/descending
77
75
a
Switching to satellte ra-
dio operation
74
b
Color screen with main
radio menu

Function
Page
